Sigenergy

Sigenergy 10KW 14.4A Three Phase Energy Controller Inverter SigenStor EC 10.0TPSigenStor is an AI-optimized 5-in-one energy storage system that brings your solar dream to reality, helping you achieve energy independence with maximum efficiency, savings, flexibility and resilience.FeaturesEMS-integrated intelligent management for precision control.Unbalanced 3-phase power output, ensuring efficient operation.200% peak output power in off-grid mode, instant high-power boost.Up to 4 MPP trackers for maximum solar energy extraction.SpecificationsDC Input (from PV):Max. PV power: 16000WMax. DC input voltage: 1100V Nominal DC input voltage: 600V Start-up voltage: 180V MPPT voltage range: 160 - 1000V Number of MPP. trackers: 3Number of PV strings per MPPT: 1Max. input current per MPPT: 16 AMax. short-circuit current per MPPT: 20A AC Output (on - grid): Nominal output power: 9999W Max. output apparent power: 9999VANominal output current: 14.4AMax. output current: 14.4A Nominal output voltage: 380 / 400V Nominal grid frequency: 50 / 60Hz Power factor: 0.8 leading - 0.8 lagging Total current harmonic distortion: THDi < 2% General Data: Dimensions (W / H / D): 700 / 300 / 260mm Weight: 36kg Storage temperature range: -40 - 70°C Operating temperature range: -30 - 60°C Relative humidity range: 0% - 100% Max. operating altitude: 4000m Cooling: Smart air cooling System ingress protection rating: IP66 Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G) Warranty: 5 years

Read more less

Sigenergy Modular Energy Storage System 5KWh 280Ah LiFePO4 Battery Module with LEDSigenergy's latest modular BESS solution, SigenStack, offers a flexible, reliable and scalable option for commercial applications. Its innovative modular design simplifies site selection, system placement and installation. With complete pack-level safety management, everything is under control.Sigen Battery Features:Premium 280Ah cells with 10,000 cycles, long-lasting & reliable.5-layer battery safety protection to define the safety standard.Battery optimizer inside, mix old and new, upgrade with ease.Higher energy density, efficient storage, compact design.100% depth of discharge, maximum energy utilization. Performance Specifications: Model: SigenStor BAT 5.0 Battery type: LiFePO4 Cell capacity: 280Ah Cycle life: 10000 Total energy capacity: 5.38KWh Usable energy capacity: 5.2KWh Depth of discharge: 100% Max. charge / discharge power: 2500WPeak charge / discharge power (10 seconds): 3750W General Data: Weight: 55kg Dimensions (W / H / D): 767 / 270 / 260mm Storage temperature range: -25 - 60 °C Operating temperature range: -20 - 55 °C Relative humidity range: 5% - 95% Max. operating altitude: 4000m Cooling: Natural convection System ingress protection rating: IP66 Installation method: Floor standing / Wall-mounted Number of modules per controller: 1 - 6 pcs Compatible inverters: SigenStor EC series, Sigen Hybrid SP2/TP2 series Innovative modular BESS features superior safety, high precision and outstanding cost-effectiveness. Its zero-maintenance operation makes it an ideal choice for energy storage investment.

Read more less

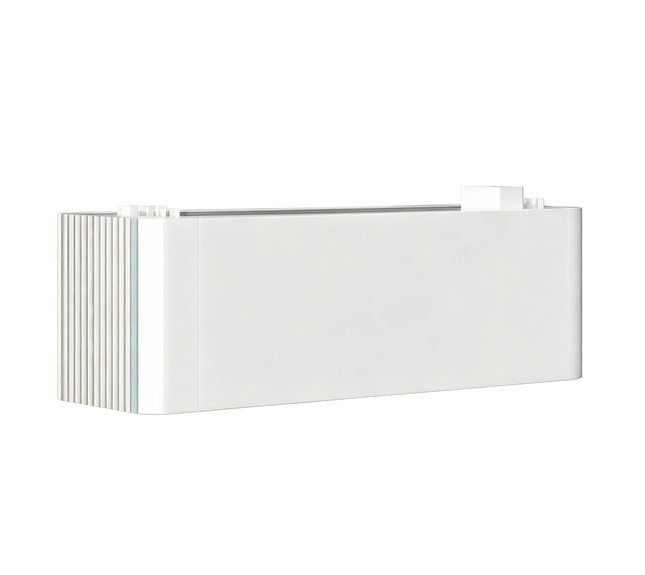

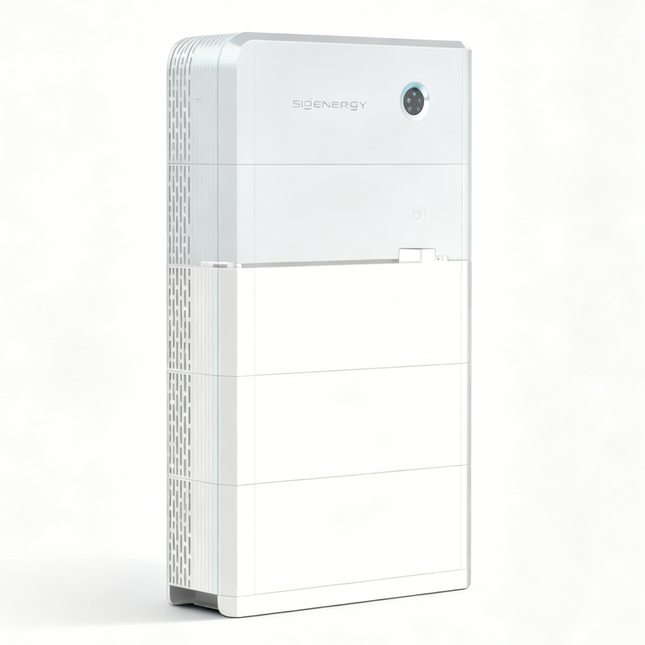

Sigenergy Modular Energy Storage System 8KWh 280Ah LiFePO4 Battery Module with LEDSigenergy's latest modular BESS solution, SigenStack, offers a flexible, reliable and scalable option for commercial applications. Its innovative modular design simplifies site selection, system placement and installation. With complete pack-level safety management, everything is under control.Sigen Battery Features:Premium 280Ah cells with 10,000 cycles, long-lasting & reliable.5-layer battery safety protection to define the safety standard.Battery optimizer inside, mix old and new, upgrade with ease.Higher energy density, efficient storage, compact design.100% depth of discharge, maximum energy utilization. Performance Specifications: Model: SigenStor BAT 8.0 Battery type: LiFePO4 Cell capacity: 280Ah Cycle life: 10000 Total energy capacity: 8.06KWh Usable energy capacity: 7.8KWh Depth of discharge: 100% Max. charge / discharge power: 4000WPeak charge / discharge power (10 seconds): 6000W General Data: Weight: 70kg Dimensions (W / H / D): 767 / 270 / 260mm Storage temperature range: -25 - 60 °C Operating temperature range: -20 - 55 °C Relative humidity range: 5% - 95% Max. operating altitude: 4000m Cooling: Natural convection System ingress protection rating: IP66 Installation method: Floor standing / Wall-mounted Number of modules per controller: 1 ~ 6 pcs Compatible inverters: SigenStor EC series, Sigen Hybrid SP2/TP2 series Innovative modular BESS features superior safety, high precision and outstanding cost-effectiveness. Its zero-maintenance operation makes it an ideal choice for energy storage investment.

Read more less

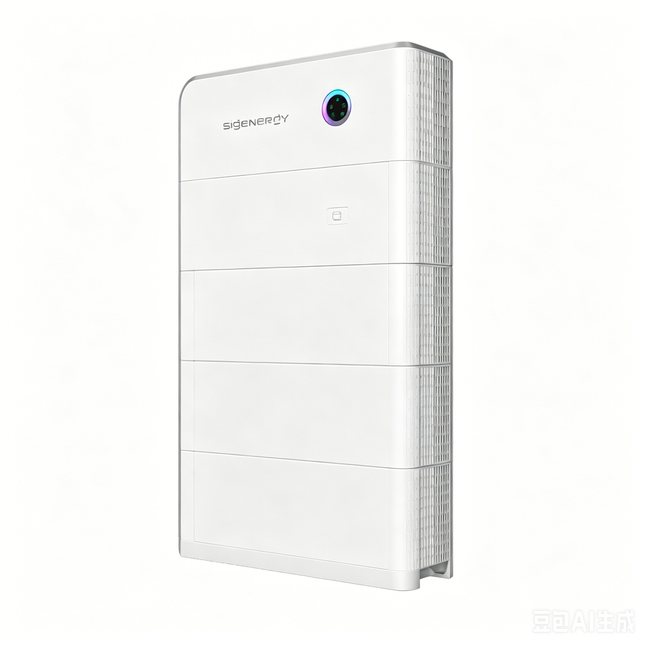

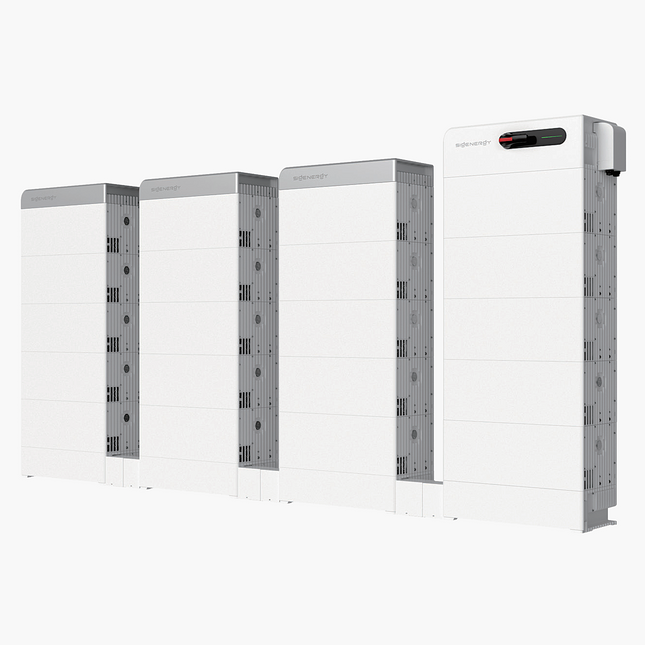

Sigenergy Innovative modular energy storage system 12KWh 314Ah Stackable LiFePO4 Battery Module with LEDSigenergy's latest modular BESS solution, SigenStack, offers a flexible, reliable and scalable option for commercial applications. Its innovative modular design simplifies site selection, system placement and installation. With complete pack-level safety management, everything is under control.Sigen Battery Features:Pack-level safety protection, precise thermal runaway control.Higher energy density saves space and eases site selection.IP66-rated design eliminates regular and complex O&M.Pack-level active balancing, no need for on-site SOC calibration.Modular design, stackable installation & ultra-fast commissioning. Performance Specifications: Model: SigenStack BAT 12.0 Battery type: LiFePO4 Cell capacity: 314Ah Cycle life: 10000 Total energy capacity per module: 12.06KWh Weight: 105kg Dimensions (W / H / D): 770 / 300 / 363mm Nominal charge / discharge rate: 0.5C Max. charge / discharge rate: 1CSystem Configuration quantity range: 4 - 21pcsMax. system energy capacity: 253kWhSystem General Data:Max. number of modules per stack: 7pcsMax. number of modules per system: 21pcs Dimensions (W / H / D): 770 / 195 / 363mm Storage temperature range: -25 - 60 °C Operating temperature range: -20 - 55 °C Relative humidity range: 0% - 100% Max. operating altitude: 4000m(Derating at 2,000m) Cooling: Smart air cooling System ingress protection rating: IP66 Installation method: Floor standing Noise: < 65dB Innovative modular BESS features superior safety, high precision and outstanding cost-effectiveness. Its zero-maintenance operation makes it an ideal choice for energy storage investment.

Read more less

Sigenergy Battery Module 6KWh 314Ah Energy Storage 5-in-One LiFePO4 Battery Module with LEDSigenStor is an AI-optimized 5-in-one energy storage system that brings your solar dream to reality, helping you achieve energy independence with maximum efficiency, savings, flexibility and resilience.Sigen Battery Features:Premium 314Ah cells with 10,000 cycles, long-lasting and reliable.5-layer battery safety protection to define the safety standard.Battery optimizer inside, mix old and new, upgrade with ease.Higher energy density, efficient storage, compact design.100% depth of discharge, maximum energy utilization. Performance Specifications: Model: SigenStor BAT 6.0 Battery type: LiFePO4 Cell capacity: 314Ah Cycle life: 10000 Total energy capacity: 6.02KWh Usable energy capacity: 5.84KWh Depth of discharge: 100% Max. charge / discharge power: 3000WPeak charge / discharge power (10 seconds): 4500W General Data: Weight: 62kg Dimensions (W / H / D): 767 / 270 / 265mm Storage temperature range: -25 - 60 °C Operating temperature range: -20 - 55 °C Relative humidity range: 5% ~ 95% Max. operating altitude: 4000m Cooling: Natural convection System ingress protection rating: IP66 Installation method: Floor standing / Wall-mounted Number of modules per controller: 1 ~ 6 pcs Compatible inverters: SigenStor EC series, Sigen Hybrid SP2/TP2 series Integrating Solar Inverter, EV DC Charger, Battery PCS, Battery Pack, and EMS into one powerful energy system - this is our revolutionary 5-in-One Home ESS.Simplified to give you a smart and seamless experience. Versatile in nature, caters to every energy usage scenario. Stylish front eagle eye and side ambient lighting design blend elegantly with any surroundings. SigenStor complements a variety of home styles perfectly.

Read more less

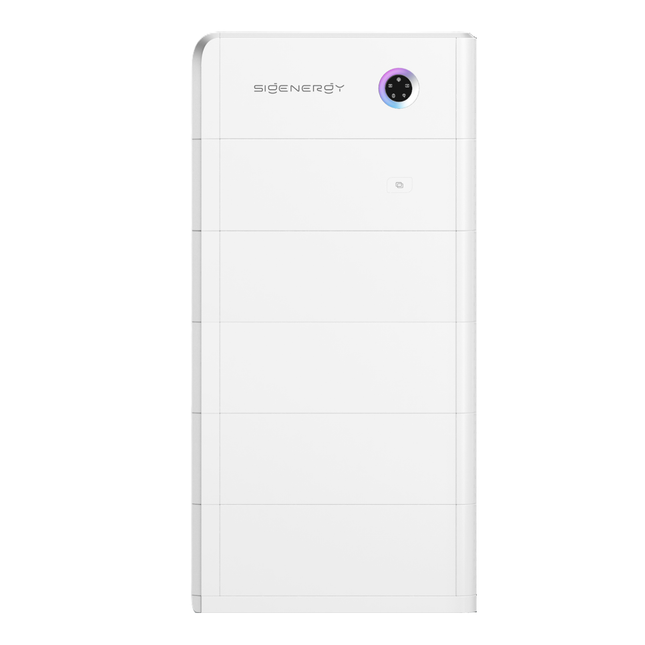

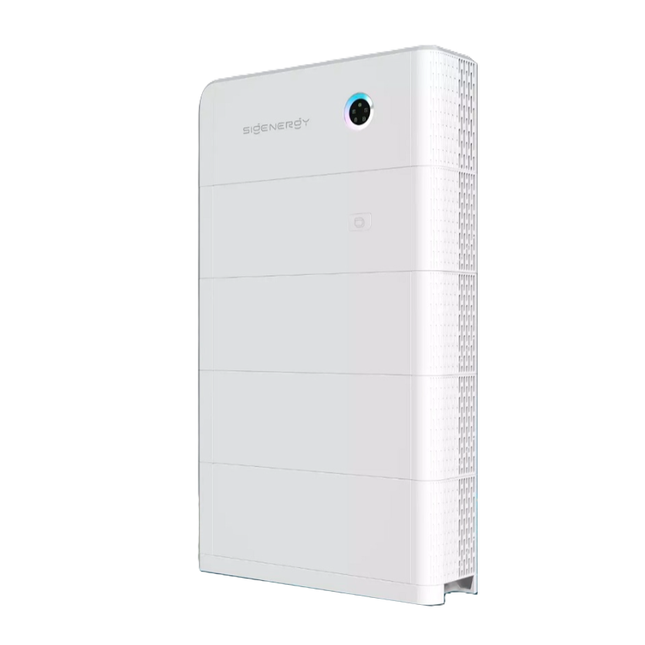

Sigenergy Battery Module 10KWh 314Ah Energy Storage 5-in-One LiFePO4 Battery Module with LEDSigenStor is an AI-optimized 5-in-one energy storage system that brings your solar dream to reality, helping you achieve energy independence with maximum efficiency, savings, flexibility and resilience.Sigen Battery Features:Premium 314Ah cells with 10,000 cycles, long-lasting and reliable.5-layer battery safety protection to define the safety standard.Battery optimizer inside, mix old and new, upgrade with ease.Higher energy density, efficient storage, compact design.100% depth of discharge, maximum energy utilization. Performance Specifications: Model: SigenStor BAT 10.0 Battery type: LiFePO4 Cell capacity: 314Ah Cycle life: 10000 Total energy capacity: 9.04KWh Usable energy capacity: 8.76KWh Depth of discharge: 100% Max. charge / discharge power: 4600WPeak charge / discharge power (10 seconds): 6900W General Data: Weight: 62kg Dimensions (W / H / D): 767 / 270 / 265mm Storage temperature range: -25 - 60 °C Operating temperature range: -20 - 55 °C Relative humidity range: 5% ~ 95% Max. operating altitude: 4000m Cooling: Natural convection System ingress protection rating: IP66 Installation method: Floor standing / Wall-mounted Number of modules per controller: 1 ~ 6 pcs Compatible inverters: SigenStor EC series, Sigen Hybrid SP2/TP2 series Integrating Solar Inverter, EV DC Charger, Battery PCS, Battery Pack, and EMS into one powerful energy system - this is our revolutionary 5-in-One Home ESS.Simplified to give you a smart and seamless experience. Versatile in nature, caters to every energy usage scenario. Stylish front eagle eye and side ambient lighting design blend elegantly with any surroundings. SigenStor complements a variety of home styles perfectly.

Read more less

Sigenergy 10KW 43.4A Single Phase Energy Controller Inverter SigenStor EC 10.0SPSigenStor is an AI-optimized 5-in-one energy storage system that brings your solar dream to reality, helping you achieve energy independence with maximum efficiency, savings, flexibility and resilience.FeaturesEMS-integrated intelligent management for precision control.Max. 2.0 DC/AC ratio compatibility, higher energy utilization (Single Phase).Unbalanced 3-phase power output, ensuring efficient operation.200% peak output power in off-grid mode, instant high-power boost.Up to 4 MPP trackers for maximum solar energy extraction.SpecificationsDC Input (from PV):Max. PV power: 20000WMax. DC input voltage: 600V Nominal DC input voltage: 350V Start-up voltage: 100V MPPT voltage range: 50 - 550V Number of MPP. trackers: 4Number of PV strings per MPPT: 1Max. input current per MPPT: 16 AMax. short-circuit current per MPPT: 20A AC Output (on - grid): Nominal output power: 9999W Max. output apparent power: 9999VANominal output current: 43.4AMax. output current: 43.4A Nominal output voltage: 220 / 230V Nominal grid frequency: 50 / 60Hz Power factor: 0.8 leading 0.8 lagging Total current harmonic distortion: THDi < 2% General Data: Dimensions (W / H / D): 700 / 300 / 260mm Weight: 36kg Storage temperature range: -40 - 70°C Operating temperature range: -30 - 60°C Relative humidity range: 0% - 100% Max. operating altitude: 4000m Cooling: Smart air cooling System ingress protection rating: IP66 Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G) Warranty: 5 years

Read more less

Sigenergy 8KW 36.4A Single Phase Energy Controller Inverter SigenStor EC 8.0SPSigenStor is an AI-optimized 5-in-one energy storage system that brings your solar dream to reality, helping you achieve energy independence with maximum efficiency, savings, flexibility and resilience.FeaturesEMS-integrated intelligent management for precision control.Max. 2.0 DC/AC ratio compatibility, higher energy utilization (Single Phase).Unbalanced 3-phase power output, ensuring efficient operation.200% peak output power in off-grid mode, instant high-power boost.Up to 4 MPP trackers for maximum solar energy extraction.SpecificationsDC Input (from PV):Max. PV power: 16000WMax. DC input voltage: 600V Nominal DC input voltage: 350V Start-up voltage: 100V MPPT voltage range: 50 - 550V Number of MPP. trackers: 3Number of PV strings per MPPT: 1Max. input current per MPPT: 16 AMax. short-circuit current per MPPT: 20A AC Output (on - grid): Nominal output power: 8000W Max. output apparent power: 8800VANominal output current: 36.4AMax. output current: 40A Nominal output voltage: 220 / 230V Nominal grid frequency: 50 / 60Hz Power factor: 0.8 leading 0.8 lagging Total current harmonic distortion: THDi < 2% General Data: Dimensions (W / H / D): 700 / 300 / 260mm Weight: 36kg Storage temperature range: -40 - 70°C Operating temperature range: -30 - 60°C Relative humidity range: 0% - 100% Max. operating altitude: 4000m Cooling: Smart air cooling System ingress protection rating: IP66 Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G) Warranty: 5 years

Read more less

Sigenergy 5KW 21.7A Single Phase Energy Controller Inverter SigenStor EC 5.0SPSigenStor is an AI-optimized 5-in-one energy storage system that brings your solar dream to reality, helping you achieve energy independence with maximum efficiency, savings, flexibility and resilience.FeaturesEMS-integrated intelligent management for precision control.Max. 2.0 DC/AC ratio compatibility, higher energy utilization (Single Phase).Unbalanced 3-phase power output, ensuring efficient operation.200% peak output power in off-grid mode, instant high-power boost.Up to 4 MPP trackers for maximum solar energy extraction.SpecificationsDC Input (from PV):Max. PV power: 10000WMax. DC input voltage: 600V Nominal DC input voltage: 350V Start-up voltage: 100V MPPT voltage range: 50 - 550V Number of MPP. trackers: 2Number of PV strings per MPPT: 1Max. input current per MPPT: 16 AMax. short-circuit current per MPPT: 20A AC Output (on - grid): Nominal output power: 4999W Max. output apparent power: 4999VANominal output current: 21.7AMax. output current: 21.7A Nominal output voltage: 220 / 230 / 240V Nominal grid frequency: 50 / 60Hz Power factor: 0.8 leading - 0.8 lagging Total current harmonic distortion: THDi < 2% General Data: Dimensions (W / H / D): 700 / 300 / 245mm Weight: 18kg Storage temperature range: -40 - 70°C Operating temperature range: -30 - 60°C Relative humidity range: 0% - 100% Max. operating altitude: 4000m Cooling: Natural convection System ingress protection rating: IP66 Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G) Warranty: 5 years

Read more less

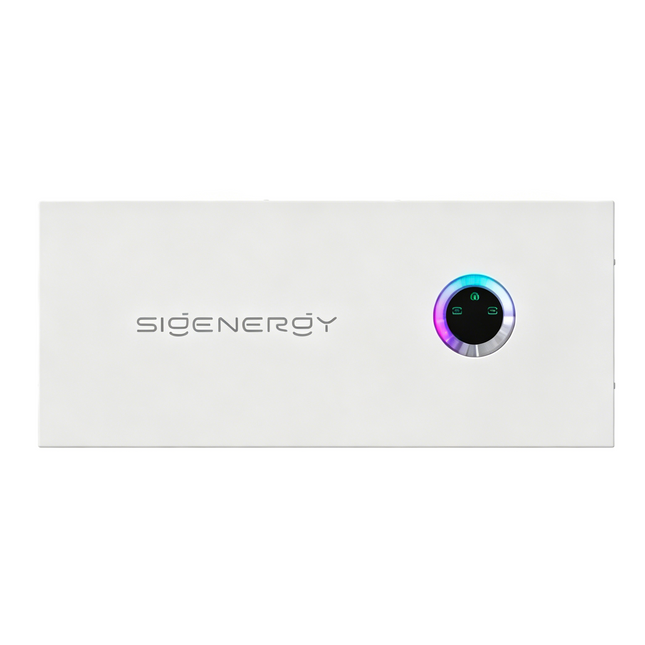

Sigenergy 6KW 27.3A Single Phase Energy Controller Inverter SigenStor EC 6.0SPSigenStor is an AI-optimized 5-in-one energy storage system that brings your solar dream to reality, helping you achieve energy independence with maximum efficiency, savings, flexibility and resilience.FeaturesEMS-integrated intelligent management for precision control.Max. 2.0 DC/AC ratio compatibility, higher energy utilization (Single Phase).Unbalanced 3-phase power output, ensuring efficient operation.200% peak output power in off-grid mode, instant high-power boost.Up to 4 MPP trackers for maximum solar energy extraction.SpecificationsDC Input (from PV):Max. PV power: 12000WMax. DC input voltage: 600V Nominal DC input voltage: 350V Start-up voltage: 100V MPPT voltage range: 50 - 550V Number of MPP. trackers: 2Number of PV strings per MPPT: 1Max. input current per MPPT: 16 AMax. short-circuit current per MPPT: 20A AC Output (on - grid): Nominal output power: 6000W Max. output apparent power: 6600VANominal output current: 27.3AMax. output current: 30A Nominal output voltage: 220 / 230 / 240V Nominal grid frequency: 50 / 60Hz Power factor: 0.8 leading - 0.8 lagging Total current harmonic distortion: THDi < 2% General Data: Dimensions (W / H / D): 700 / 300 / 245mm Weight: 18kg Storage temperature range: -40 - 70°C Operating temperature range: -30 - 60°C Relative humidity range: 0% - 100% Max. operating altitude: 4000m Cooling: Natural convection System ingress protection rating: IP66 Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G) Warranty: 5 years

Read more less

Sigenergy 12KW 54.6A Single Phase Energy Controller Inverter SigenStor EC 12.0SPSigenStor is an AI-optimized 5-in-one energy storage system that brings your solar dream to reality, helping you achieve energy independence with maximum efficiency, savings, flexibility and resilience.FeaturesEMS-integrated intelligent management for precision control.Max. 2.0 DC/AC ratio compatibility, higher energy utilization (Single Phase).Unbalanced 3-phase power output, ensuring efficient operation.200% peak output power in off-grid mode, instant high-power boost.Up to 4 MPP trackers for maximum solar energy extraction.SpecificationsDC Input (from PV):Max. PV power: 24000WMax. DC input voltage: 600V Nominal DC input voltage: 350V Start-up voltage: 100V MPPT voltage range: 50 - 550V Number of MPP. trackers: 4Number of PV strings per MPPT: 1Max. input current per MPPT: 16 AMax. short-circuit current per MPPT: 20A AC Output (on - grid): Nominal output power: 12000W Max. output apparent power: 12000VANominal output current: 54.6AMax. output current: 54.6A Nominal output voltage: 220 / 230V Nominal grid frequency: 50 / 60Hz Power factor: 0.8 leading - 0.8 lagging Total current harmonic distortion: THDi < 2% General Data: Dimensions (W / H / D): 700 / 300 / 260mm Weight: 36kg Storage temperature range: -40 - 70°C Operating temperature range: -30 - 60°C Relative humidity range: 0% - 100% Max. operating altitude: 4000m Cooling: Smart air cooling System ingress protection rating: IP66 Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G) Warranty: 5 years

Read more less

Sigenergy 5KW 7.2A Three Phase Energy Controller Inverter SigenStor EC 5.0TPSigenStor is an AI-optimized 5-in-one energy storage system that brings your solar dream to reality, helping you achieve energy independence with maximum efficiency, savings, flexibility and resilience.FeaturesEMS-integrated intelligent management for precision control.Unbalanced 3-phase power output, ensuring efficient operation.200% peak output power in off-grid mode, instant high-power boost.Up to 4 MPP trackers for maximum solar energy extraction.SpecificationsDC Input (from PV):Max. PV power: 8000WMax. DC input voltage: 1100V Nominal DC input voltage: 600V Start-up voltage: 180V MPPT voltage range: 160 - 1000V Number of MPP. trackers: 2Number of PV strings per MPPT: 1Max. input current per MPPT: 16 AMax. short-circuit current per MPPT: 20A AC Output (on - grid): Nominal output power: 5000W Max. output apparent power: 5000VANominal output current: 7.2AMax. output current: 7.2A Nominal output voltage: 380 / 400V Nominal grid frequency: 50 / 60Hz Power factor: 0.8 leading - 0.8 lagging Total current harmonic distortion: THDi < 2% General Data: Dimensions (W / H / D): 700 / 300 / 260mm Weight: 36kg Storage temperature range: -40 - 70°C Operating temperature range: -30 - 60°C Relative humidity range: 0% - 100% Max. operating altitude: 4000m Cooling: Smart air cooling System ingress protection rating: IP66 Communication: WLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G) Warranty: 5 years

Read more less
