24V 55Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar Battery
Key Features:
Latest Generation Cells: Incorporates the newest and safest global CATL cells.
Extended Life: Offers up to 6000 cycles at 80% DOD with a projected lifespan exceeding 20 years.
Precision BMS: Features patented 3-BMS system for precise cell voltage display and balance, with a 0.004mV difference.
Warranty: Enjoy peace of mind with a 6-year full warranty, plus an additional 4-year repair warranty.

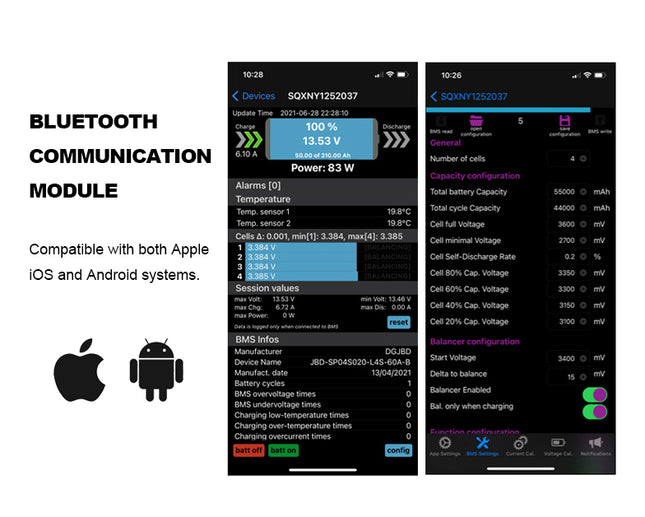

Connectivity: Enhanced with the latest Bluetooth 5.1.
Versatile Compatibility: Works seamlessly with caravan charging systems, as well as lead acid and lithium chargers.
Water-resistant
Performance:
Powerful: Provides a robust output up to 1.2kW for high energy demands.
High Energy Density: Superior to lead acid batteries, offering notable energy density and weight savings.
Applications:
Perfect for RVs, solar storage, yachts, vehicles, and water pumps. It's designed for direct replacement without the need for circuit modifications.
Enhanced Performance:
Expect longer cycle life, rapid recharging, and excellent discharge rates. Its triple BMS systems protect against over-discharge, over-charge, and short circuits.
Main Parameter
Capacity: Max 55Ah
Nominal Voltage: 25.6V
Operating Voltage: 21.6 - 28.8V
Energy: 1.4kWh
Usable Energy: 1.25kWh
Charge/Discharge Current:
Recommend 25A
Max: 50A
Peak: 200A (500ms, 25°C)
Short-circuit: 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (D/W/H): 330 x 215 x 172mm
Weight Approximate: 11kg
Cycle Life: 6000

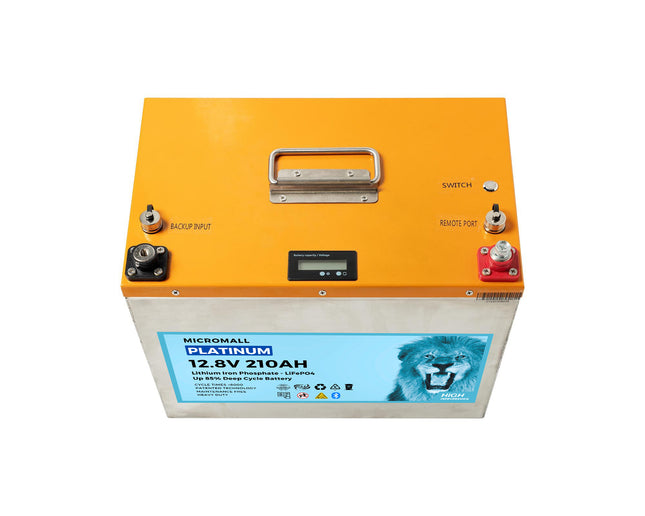

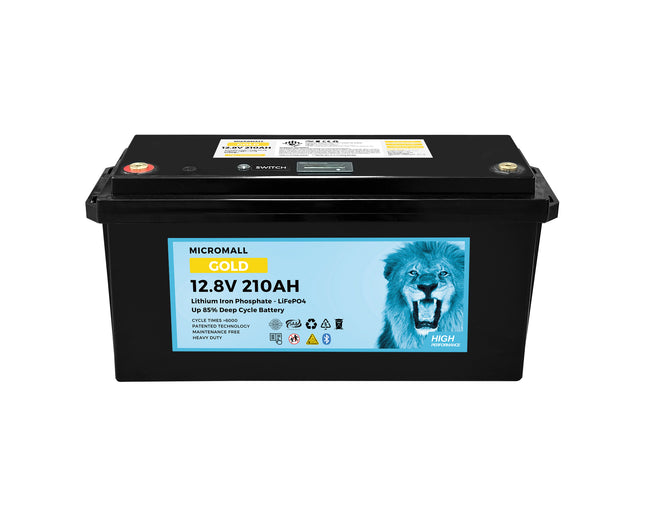

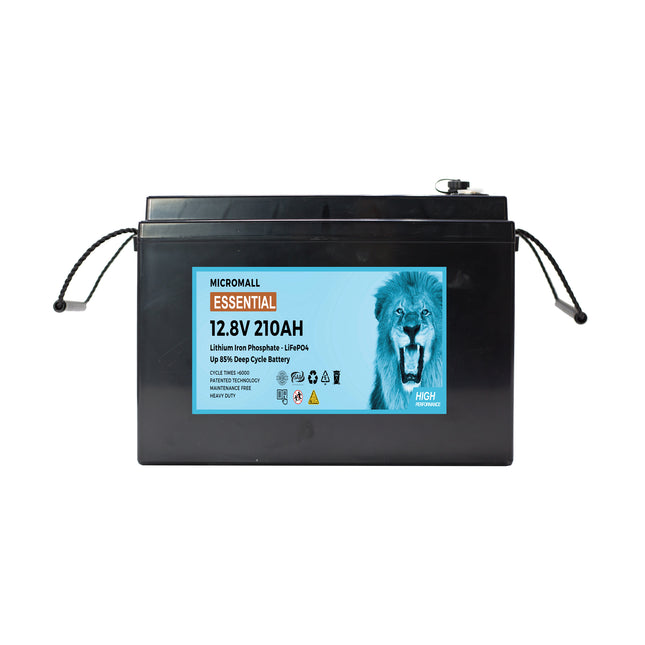

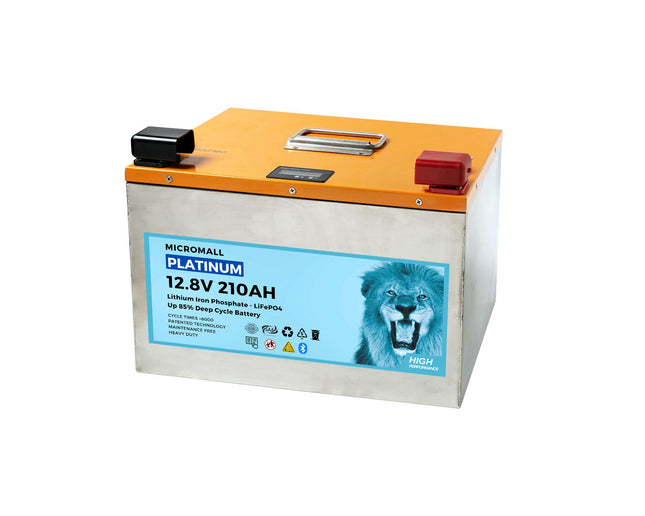

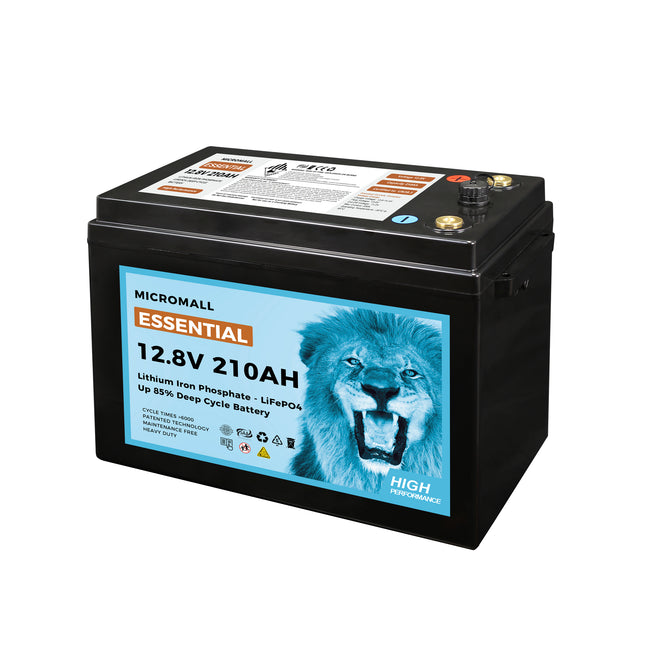

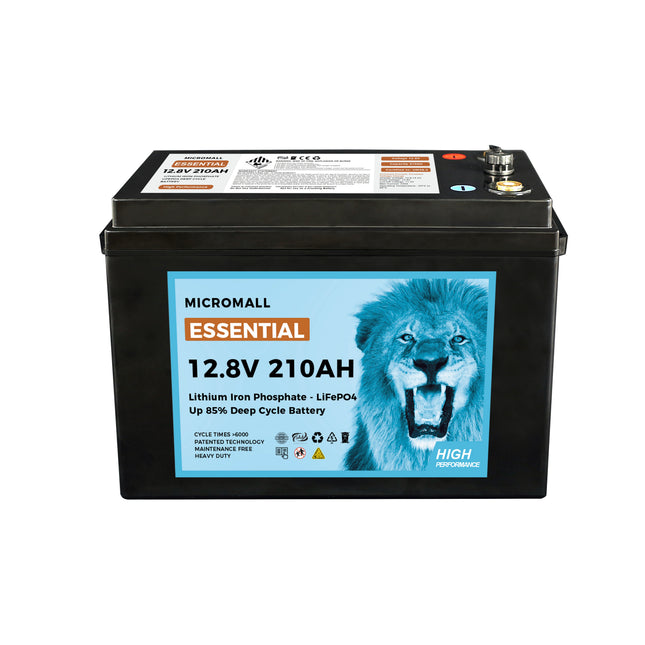

Introducing our newest 12V 200Ah (210Ah max) LiFePO4 lithium iron phosphate battery, featuring the latest CATL cell technology, renowned as the world's safest.
Enjoy a robust 10-year full warranty plus an additional 5-year repair warranty. These batteries boast an impressive 8000 cycle lifespan, lasting up to 20 years. Uniquely designed to be compatible with standard car lead acid chargers and alternators.
Our deep cycle LiFePO4 battery, sized at 12V 200Ah, offers a modern solution for energy storage, matching conventional battery sizes but with superior energy density and significant weight reduction. Ideal for RVs, solar systems, cars, and water pumps, these batteries can directly replace traditional batteries without any circuit modifications.
Our LiFePO4 batteries feature a high cycle life, higher maximum discharge rates, and faster recharge times compared to lead-acid batteries. Each comes with an integrated Battery Management System (BMS) for protection against over-discharge, overcharge, and short circuits, enhancing safety and prolonging battery life.
Key Features:
80% efficiency after 6000 deep cycles
BMS protection system with built-in voltmeter
Automatic overload and short circuit protection
Continuous discharge current of max 230 amps
Over-discharge and overcharge protection
Specifications:
Battery Chemistry: LiFePO4
Capacity(Ah): Max 210Ah
Nominal Voltage (V): 12.8V
Operating Voltage(V): 10.8 - 14.4V
Energy(kWh): 2.6kWh
Usable Energy(kWh): 2.4kWh
Charge/Discharge Current
Recommend: 80A
Max: 180A
Peak: 300A (500ms, 25°C)
Short-circuit 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Weight: 27kg each battery
Size: 355mm L x 230mm W x 235mm H

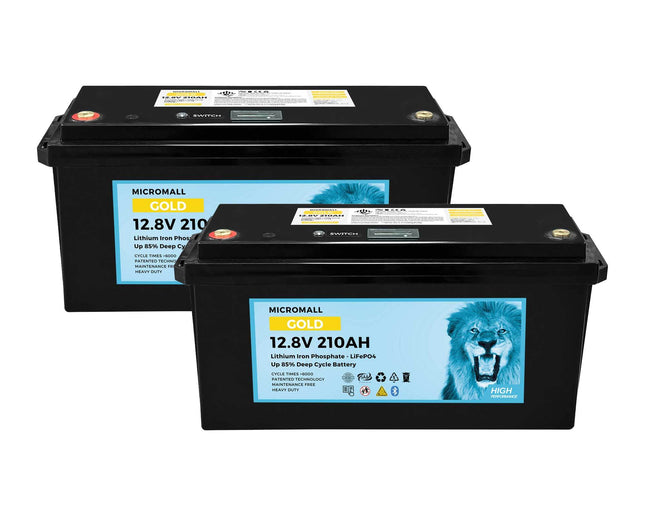

This package includes two batteries.
Key Features
Safer
Cobalt-free Lithium Iron Phosphate (LFP) battery ensures safety and long lifespan with high energy density.
Low-voltage safety connection for added protection.
High Performance
Supports maximum 1C charge and 1.2C discharge rates.
Offers up to 6,000 cycles at 90% Depth of Discharge (DOD).
Backed by a standard 10-year warranty.
Reliable
Built-in intelligent Battery Management System (BMS) provides comprehensive protection.
Features natural cooling and an IP65 rating, operating reliably across a wide temperature range (-20°C to 55°C).
Flexible
Modular design allows easy expansion, supporting up to 32 units in parallel with a maximum capacity of 326 kWh.
Ideal for both residential and commercial applications, enhancing self-consumption ratios.
Convenient
Auto-networking battery module eliminates the need for DIP switch coding, simplifying setup and maintenance.
Compatible with Deye inverters to create an all-in-one stack system.
Supports remote monitoring and firmware upgrades via Deye’s platform.
Eco-Friendly
Manufactured with non-toxic and pollution-free materials, ensuring environmental sustainability.
Versatile Installation Options
Flat design supports wall-mounted installation with a wall bracket or floor-standing setup using a removable base, optimizing space.
Specifications
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Nominal Energy: 10.2 kWh
Usable Energy: 9.2 kWh (90% DOD)
Scalability: Supports up to 32 units in parallel (326 kWh max.)
Rated DC Power: 6 kW
Maximum DC Power: 12 kW
Operating Voltage: 43.2V ~ 57.6V
Charge/Discharge Current: Recommended: 100A; Maximum: 198A (charge), 240A (discharge)
Peak Discharge: 300A for 2 minutes (at 25°C)
Cycle Life: ≥6,000 cycles at 90% DOD (70% End of Life capacity at 25°C)
Enclosure Rating: IP65
Operating Temperature: Charge: 1°C ~ 55°C; Discharge: -20°C ~ 55°C
Weight: Approx. 104 kg
Dimensions: 600 mm (W) x 760 mm (H) x 200 mm (D)
KG110F DC 0-120V 400A Battery Capacity Tester Voltage Current Meter Battery Monitor Indicator 12V 24V 36V 48V 60V Coulomb Meter
We are a technically oriented solar service company that provides quality products, extensive service and support to our customers.
With years of accumulated expertise and rich experience, we will create professional and efficient system design solutions for you according to your different needs.
Specification：
Model： KG140F
Shunt voltage measurement range (externally powered) 0-120V
Voltage measurement range (self-powered) 10-120V
Voltage fraction 0.01V
Current measurement range 0-400A
Current fraction 0.01A
Temperature measurement range -20-120° C
Capacity display range 0%-100%
Power measurement range 0-72KW
Power fraction 0.01W
Ampere-time measurement range 0-9999.99AH
Capacity fraction 0.001AH
Watt-hour measurement range 0-9999.99kWH
Watt-hour fraction 0.001WH
Time measurement range 0~999:59:59S
Time division rate 1 second
Bluetooth communication distance Accessible up to 10m
Voltage Accuracy ±2%+3 words
Current accuracy 5%+10 words
Sampling rate 1 time/second
Power consumption of measurement board approx. 0.4W
Power consumption of display head approx. 0.5W
Over power protection 0-99999.99W
Negative overcurrent protection 0-400A
Positive overcurrent protection 0-400A
External over-temperature protection 0-120° C
Protection recovery time 0-99s
Enter standby time 0-60
Delay time setting 0-99S
Local warehouse, feel free to visit us, we can also ship orders all over the country.
KG110F DC 0-120V 100A Battery Capacity Tester Voltage Current Meter Battery Monitor Indicator 12V 24V 36V 48V 60V Coulomb Meter
We are a technically oriented solar service company that provides quality products, extensive service and support to our customers.
With years of accumulated expertise and rich experience, we will create professional and efficient system design solutions for you according to your different needs.
Specification：
Model： KG110F
Shunt voltage measurement range (externally powered) 0-120V
Voltage measurement range (self-powered) 10-120V
Voltage fraction 0.01V
Current measurement range 0-100A
Current fraction 0.01A
Temperature measurement range -20-120° C
Capacity display range 0%-100%
Power measurement range 0-72KW
Power fraction 0.01W
Ampere-time measurement range 0-9999.99AH
Capacity fraction 0.001AH
Watt-hour measurement range 0-9999.99kWH
Watt-hour fraction 0.001WH
Time measurement range 0~999:59:59S
Time division rate 1 second
Bluetooth communication distance Accessible up to 10m
Voltage Accuracy ±2%+3 words
Current accuracy 5%+10 words
Sampling rate 1 time/second
Power consumption of measurement board approx. 0.4W
Power consumption of display head approx. 0.5W
Over power protection 0-99999.99W
Negative overcurrent protection 0-100A
Positive overcurrent protection 0-100A
External over-temperature protection 0-120° C
Protection recovery time 0-99s
Enter standby time 0-60
Delay time setting 0-99S
Local warehouse, feel free to visit us, we can also ship orders all over the country.
The Deye BOS-G series is an advanced LiFePO4 battery system designed for reliable and efficient energy storage in homes and businesses. It offers various configurations and capacities to meet different energy needs.
Key Features:
High-quality LiFePO4 cells for safety and durability
Modular design with capacities from 15.36 kWh to 61.44 kWh
Flexible system voltage from 153.6V to 614.4V
Intelligent Battery Management System (BMS) for optimal performance
Compact and easy to install
10-year warranty for peace of mind
The BOS-G series uses LiFePO4 technology known for its safety, thermal stability, and long cycle life. Each battery module has 100Ah capacity and 5.12 kWh energy, allowing scalable storage solutions.
It offers a recommended depth of discharge (DOD) of 90% and a cycle life of over 6000 cycles at 25°C. With a wide operating temperature range of -20°C to 55°C, the system is suitable for diverse environments.
The system includes a high-voltage box (HVB750V/100A) that supports a voltage range of 120-750 Vdc and a maximum current of 125A, ensuring efficient integration with existing power systems and compatibility with various inverters and chargers.
Safety is prioritized with features like over-voltage, under-voltage, over-current, short-circuit, and temperature protection. The system’s IP20-rated enclosure ensures protection from dust, and built-in status indicators provide clear updates on system performance.
Model: HVB750V/100A-EU
High Voltage Battery cluster control box conforming to European or British Standards
Operating Voltage: 120 - 750Vdc
Nominal Charge/Discharge Current: 100A
Max.Charge/Discharge Current: 125A
DC Input Rating: 12 +- 2%V/4.15A
Operating Temperature Range: -20 - 65°C
Ingress Protection: IP20
Dimension (W/D/H): 440x570x150mm
Weight: 15.5kg
**This listing includes only the battery control box; the battery is not included.**
With a 10-year warranty, the Deye BOS-G series offers a reliable, long-lasting energy storage solution for any user.
The HBP1800 OS series is specifically designed for office use, providing a reliable and efficient power source. However, it is also versatile enough to power various household appliances, including PCs, laptops, stereos, and desktop computers. Equipped with a built-in 4-series LiFePO4 battery, the HBP1800 OS has a capacity of either 960Wh or 3072Wh, making it an ideal portable power station for a range of needs.
SPECIFICATIONS
Model: HBP18-3024 OS
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated power: 3000W
Output voltage waveform: Pure Sine Wave
Output voltage regulation: 230V ±5%
Output frequency: 50Hz / 60Hz (±0.2Hz)
Peak efficiency: 90%
Nominal DC input voltage: 24V (±0.3)
PV Input
Max solar power input: 1800W
PV max charging current: 60A (±3A)
Combined charging current: 80A (±4A)
Max efficiency: 98.0% max
PV array open circuit voltage: 145VDC
PV Array MPPT Voltage Range: 30~120VDC
AC Input
AC input voltage: 230Vac ±5%
Acceptable input voltage range: 90-280VAC
Nominal input frequency: 50Hz / 60Hz (Auto detection)
AC Charge
Charging current @ Nominal input voltage: 20A/30A (±4A)
Lithium Battery
Energy: 3072Wh
Nominal voltage: 25.6V
Battery capacity: 120Ah
Protection board: 140A
MECHANICAL SPECIFICATIONS
Dimensions (W*H*D) (mm): 288x348x490
The GE-F60 Energy Storage System (ESS) is a revolutionary solution designed for high-rate cyclic charging and discharging scenarios. This innovative system harnesses the power of Lithium Iron Phosphate (LiFePO4) technology, offering superior performance, exceptional safety, and unmatched flexibility.
Key Features:
High Performance: 5.12 kWh per module, expandable to 61.44 kWh, suitable for residential and commercial use.
Flexible Configuration: Supports up to 360 kWh (series) or 600 kWh (off-grid), meeting diverse energy needs.
Wide Temperature Range: Operates from -20°C to 55°C, ensuring reliability in extreme conditions.
Advanced Safety: Features gas detection, smoke/temperature alarms, and fire suppression for maximum protection.
Smart Management: BMS enables real-time monitoring, redundancy, black start, and off-grid functionality.
Durable & Efficient: IP55-rated, 6000+ cycles, and designed for easy floor-mounted installation.
Technical Specifications:
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Battery Module Specifications:
Energy Capacity: 5.12 kWh
Nominal Voltage: 51.2 V
Capacity: 100 Ah
System Voltage: 480-700 V
Weight: Approximately 1070 kg
Operating Humidity Range: 5% to 85% RH
Warranty: 10 years
Certifications: UN38.3, CB, CE, CEC, IEC62040
The GE-F60 Energy Storage System is the ideal choice for those seeking a reliable, efficient, and safe solution for their energy storage needs. Whether you’re looking to enhance your residential energy setup, optimize commercial operations, or establish an effective off-grid system, the GE-F60 delivers unparalleled performance and versatility.
Introducing the EITAI ELESHELL 10.75K Power Wall Lithium LiFePO4 48V 210Ah Solar Battery:
built for seamless communication with Victron, and Deye off/grid tie, goodwe, Growatt, BlueSun, MustPower,sofar
Advantages of Power-Wall Battery:
Wall-mounted / ground mounted.
Parallel up to 15pcs.
ip rated: 54
Capacity: 10.75kWh
Excellent Safety with cobalt-free LiFePO4 battery.
Easy installation with modular and stacked design.
Exceptional lifespan: 30 years of runtime with a 15-year warranty.
Technical Parameters:
Model: ELESHELL 10.75K
Battery Type: LiFePO4
Nominal Capacity: 210Ah
Nominal Voltage: 48V/51.2v (real 16 cells)
Total Energy: 10,750Wh
Depth of Discharge (90% DOD): 9,216Wh
Maximum Charging Voltage: 57.9V
End of Voltage: 46.4V
Nominal Charging Current: 100A
Maximum Charging Current: 100A
Maximum Charging Power: 5,120W
Working Humidity: =95%rh
Store Humidity: =95%rh
Working Altitude: =2000m
Maximum number of Parallel: 15 PCS
Protection Level: IP54
Net Weight: 89.50KG
Dimensions: 519 x 876 x 133mm
Product Certificate: CE, ROHS, UN38.3, MSDS
Cycle Life: =6500 Times at 25°C/0.5C, 60% End of Life (EOL)
Communication Port: CAN, RS485, RS232
Operating temperature: 0°C ~ 60°C
Storage temperature: =25°C for 12 months; =35°C for 6 months; =45°C for 3 months
Note: Operating current derating according to the cell voltage and temperature.
Introducing the EITAI ELECUBE 10.75K Power Wall Lithium LiFePO4 48V 210Ah Solar Battery:
built for seamless communication with Victron, and Deye off/grid tie, goodwe, Growatt, BlueSun, MustPower,sofar
Advantages of Power-Wall Battery:
Wall-mounted / ground mounted.
Parallel up to 15pcs.
ip rated: 54
Capacity: 10.75kWh
Excellent Safety with cobalt-free LiFePO4 battery.
Easy installation with modular and stacked design.
Exceptional lifespan: 30 years of runtime with a 15-year warranty.
Technical Parameters:
Model: ELECUBE 10.75K
Battery Type: LiFePO4
Nominal Capacity: 210Ah
Nominal Voltage: 48V/51.2v (real 16 cells)
Total Energy: 10,750Wh
Depth of Discharge (90% DOD): 9,216Wh
Maximum Charging Voltage: 57.9V
End of Voltage: 46.4V
Nominal Charging Current: 100A
Maximum Charging Current: 100A
Maximum Charging Power: 5,120W
Working Humidity: =95%rh
Store Humidity: =95%rh
Working Altitude: =2000m
Maximum number of Parallel: 15 PCS
Protection Level: IP54
Net Weight: 89.50KG
Dimensions: 674 x 420 x 346mm
Product Certificate: CE, ROHS, UN38.3, MSDS
Cycle Life: =6500 Times at 25°C/0.5C, 60% End of Life (EOL)
Communication Port: CAN, RS485, RS232
Operating temperature: 0°C ~ 60°C
Storage temperature: =25°C for 12 months; =35°C for 6 months; =45°C for 3 months
Note: Operating current derating according to the cell voltage and temperature.

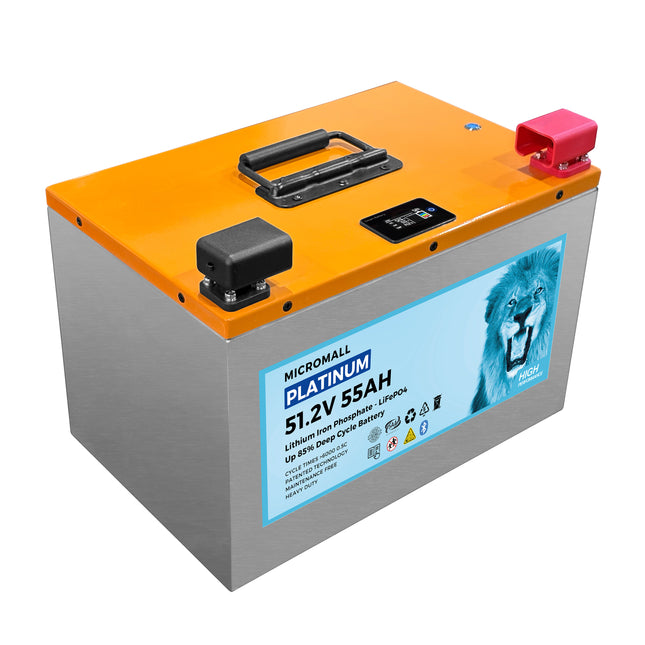

48V 55Ah Max CALB LiFePO4 Battery: Premium Power Solution for Diverse Applications
Key Highlights:
Premium Quality Cells: Featuring 16 Grade A CALB cells, designed originally for Ryobi Lawn Mower.
High Current Capability: With a true charge and discharge capacity of 100A, it stands as a top contender in the NZ market.
Long-Lasting and Durable: Engineered for 6000 cycles 0.5C at 90% depth of discharge, promising 20+ years of reliable service.
Intelligent Monitoring: Comes with a 2-smart BMS system and a Bluetooth app display for efficient battery management.
Safety Assured: Incorporates advanced safety features for risk reduction.
Exceptional Warranty: Provided with a 10-year full warranty and an additional 5-year repair warranty.
Technical Specifications:
Model: BTL-48V55M
Main Parameter
Battery Chemistry: LiFePO4
Capacity(Ah): Max 55Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2 - 57.6V
Energy(kWh): 2.6kWh
Usable Energy(kWh): 2.4kWh
Charge/Discharge Current (A)
Recommend: 25
Max: 52
Peak: 150 (500ms, 25°C)
Short-circuit: 1.444KA (1.12ms, 25°C)
Other Parameter
Recommend Depth of Discharge: 90%
Dimension (D/W/H, mm): 355x232x230mm
Weight Approximate (kg): 25kg
Master Indicator: LCD
IP Rating of Enclosure: IP20
Operating Temperature: Charge: 0 - 55°C (Optional heating) / Discharge: -20°C - 55°C
Humidity: 5% - 95%
Cycle Life: 6000 0.5C
Communication Port: BLUETOOTH
Energy Throughput: 8MWh@70%EOL
Certification: SAA, IEC62619, UN38.3

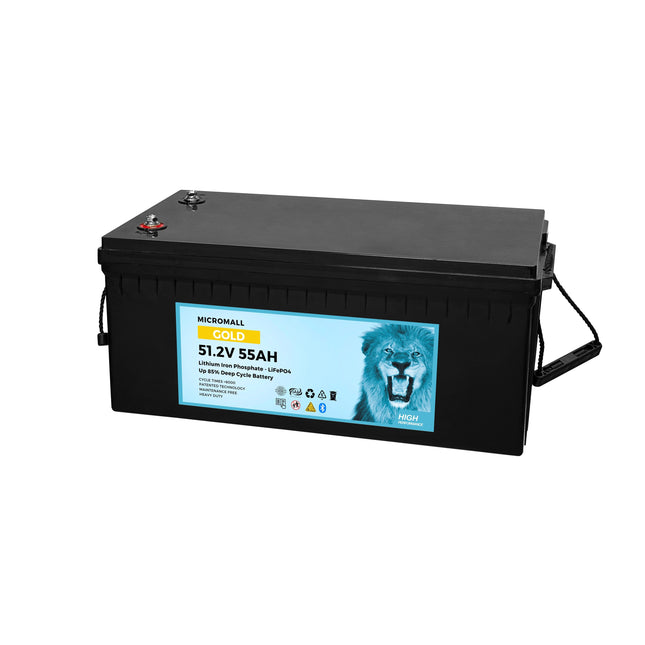

48V 55Ah Lithium Battery Golf Cart Battery
Key Highlights:
Premium Quality Cells: Featuring 16 Grade A CALB cells, designed originally for BMW electric vehicles.
High Current Capability: With a true charge and discharge capacity of 100A, it stands as a top contender in the NZ market.
Long-Lasting and Durable: Engineered for 3,500 cycles at 80% depth of discharge, promising 20+ years of reliable service.
Versatile Applications: Suitable for homes, boats, farms, small workshops, electric cars, and golf cars.
Intelligent Monitoring: Comes with a 2-smart BMS system and a Bluetooth app display for efficient battery management.
Expandable: Supports parallel connections for increased capacity.
Safety Assured: Incorporates advanced safety features for risk reduction.
Exceptional Warranty: Provided with a 10-year full warranty and an additional 5-year repair warranty.
Technical Specifications:
Type: Lithium Iron Phosphate (LFP)
Capacity: 55Ah
Energy: 2.4kWh
Configuration: 1P16S
Voltage: 44.8V - 57.6V DC
Charging Current: Standard - 50A DC; Max Continuous - 70A DC
Discharge Current: Standard - 100A DC; Max Continuous - 110A DC; Max Pulse (30s at 25°C) - 100A DC
Temperature Range: Charging: 0-55°C; Discharging: -20-55°C
Output Short-Circuit Current: 1.444KA (1.12ms)
IP Rating: IP21
Altitude: Up to 2000m
Self-Discharge: ≤5% at 25°C and 50% SOC
Factory Charge: 30%
Internal Resistance: 0.34±0.05mΩ (New battery, 30-40% SOC, 1kHz)
Dimensions: 523 x 269 x 218mm
Weight: 30kg
Installation: Indoor
Upgrade your power source with our commercial-grade CALB LiFePO4 battery, compatible with 48V lead-acid batteries, solar systems, MPPT controllers, and generators. Ideal for those seeking efficiency, longevity, and stellar performance.
48V 55Ah Max CALB LiFePO4 Battery: Premium Power Solution for Diverse Applications
Key Highlights:
Premium Quality Cells: Featuring 16 Grade A CALB cells, designed originally for BMW electric vehicles.
High Current Capability: With a true charge and discharge capacity of 100A, it stands as a top contender in the NZ market.
Long-Lasting and Durable: Engineered for 3,500 cycles at 80% depth of discharge, promising 20+ years of reliable service.
Versatile Applications: Suitable for homes, boats, farms, small workshops, electric cars, and golf cars.
Intelligent Monitoring: Comes with a 2-smart BMS system and a Bluetooth app display for efficient battery management.
Expandable: Supports parallel connections for increased capacity.
Safety Assured: Incorporates advanced safety features for risk reduction.
Exceptional Warranty: Provided with a 10-year full warranty and an additional 5-year repair warranty.
Technical Specifications:
Type: Lithium Iron Phosphate (LFP)
Capacity: 55Ah
Energy: 2.4kWh
Configuration: 1P16S
Voltage: 44.8V - 57.6V DC
Charging Current: Standard - 50A DC; Max Continuous - 70A DC
Discharge Current: Standard - 100A DC; Max Continuous - 110A DC; Max Pulse (30s at 25°C) - 100A DC
Temperature Range: Charging: 0-55°C; Discharging: -20-55°C
Output Short-Circuit Current: 1.444KA (1.12ms)
IP Rating: IP21
Altitude: Up to 2000m
Self-Discharge: ≤5% at 25°C and 50% SOC
Factory Charge: 30%
Internal Resistance: 0.34±0.05mΩ (New battery, 30-40% SOC, 1kHz)
Dimensions: 523 x 269 x 218mm
Weight: 30kg
Installation: Indoor
Upgrade your power source with our commercial-grade CALB LiFePO4 battery, compatible with 48V lead-acid batteries, solar systems, MPPT controllers, and generators. Ideal for those seeking efficiency, longevity, and stellar performance.

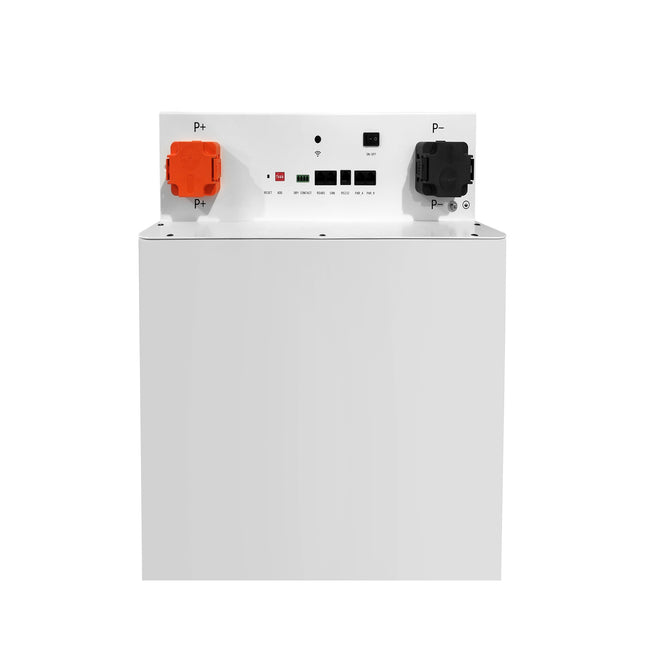

Introducing the Micromall 48V 51.2V 340Ah Lithium Battery LiFePO4 Battery Deep Cycle Solar Battery, a high-performance household energy storage solution.
Key Features:
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: MLFP-48340
Battery Chemistry: LiFePO4
Capacity(Ah): Max 340Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2-57.6V
Energy(kWh): 17.4kWh
Usable Energy(kWh): 15.6kWh
Charge/Discharge Current (A) Recommend, Max: 200, 200
Charge/Discharge Current (A) Peak, Short-circuit: 250 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (H/W/D, mm): 960x430x280mm
Weight Approximate (kg): 130±5kg
Master LED Indicator: 5LED(SOC:20%-SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure: IP20
Operating Temperature: Charge:0-55°C (Optional heating) / Discharge: -20°C-55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.18+-0.05mΩ
Storage Temperature: 0°C-35°C
Humidity: 5%-95%
Altitude: =10000
Installation: Floor-Mounted, Mobile - Mounted
Communication Port: CAN2.0, RS485
Energy Throughput: 32MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
Terminal: M8 bolted fence terminal
15 Years New Zealand Local Warranty

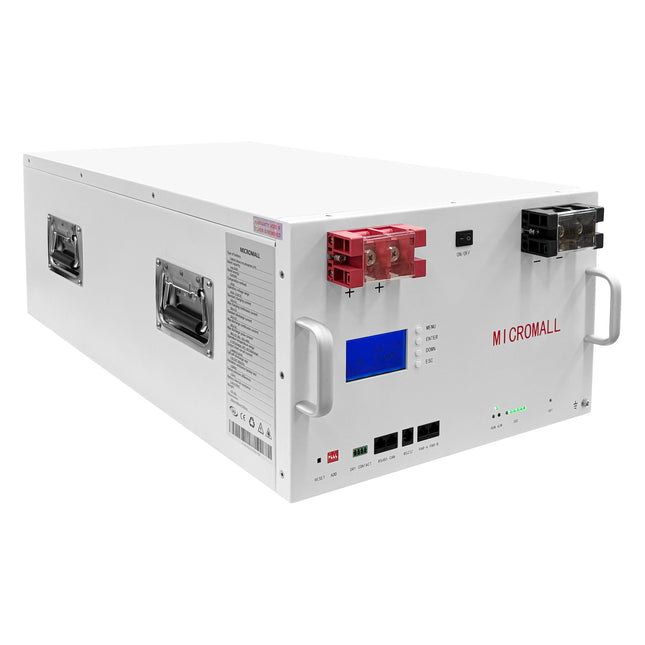

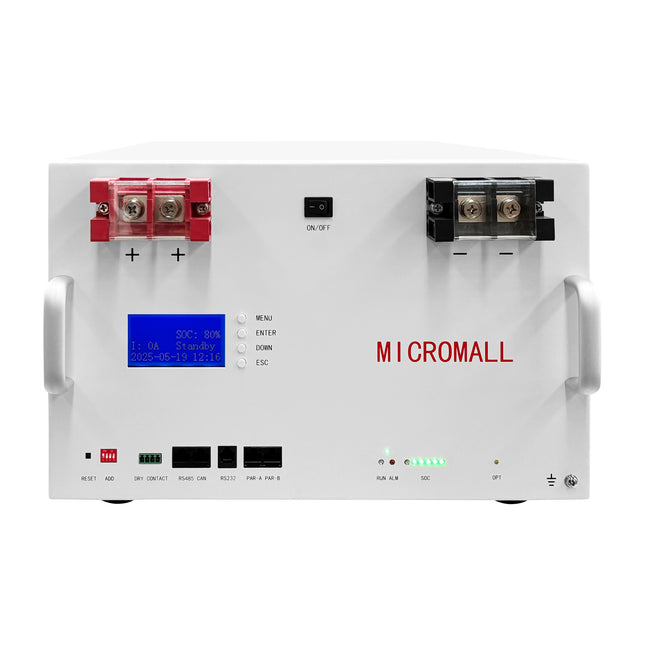

Introducing the Micromall 48V 51.2V 310Ah Lithium Battery LiFePO4 Battery Deep Cycle Solar Battery, a high-performance household energy storage solution.
Key Features:
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: MLFP-48310
Battery Chemistry: LiFePO4
Capacity(Ah): Max 310Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2-57.6V
Energy(kWh): 17.4kWh
Usable Energy(kWh): 15.6kWh
Charge/Discharge Current (A) Recommend, Max: 150, 200
Charge/Discharge Current (A) Peak, Short-circuit: 250 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (H/W/D, mm): 960(880)x430x280mm
Weight Approximate (kg): 110±5kg
Master LED Indicator: 5LED(SOC:20%-SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure: IP20
Operating Temperature: Charge:0-55°C (Optional heating) / Discharge: -20°C-55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.18+-0.05mΩ
Storage Temperature: 0°C-35°C
Humidity: 5%-95%
Altitude: =10000 (25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)
Installation: Floor-Mounted, Mobile - Mounted
Communication Port: CAN2.0, RS485
Energy Throughput: 78MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
Terminal: M8 bolted fence terminal
15 Years New Zealand Local Warranty

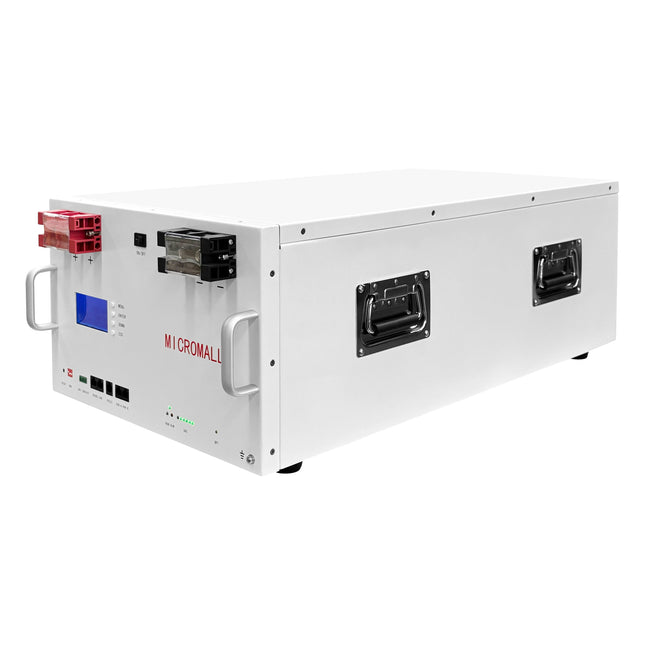

Introducing the Micromall 48V 51.2V 290Ah 300Ah Lithium Battery LiFePO4 Battery Deep Cycle Solar Battery, a high-performance household energy storage solution.
Key Features:
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: MLFP-48290
Battery Chemistry: LiFePO4
Capacity(Ah): 290Ah Max 300Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2-57.6V
Energy(kWh): 14.5kWh
Usable Energy(kWh): 13.6kWh
Charge/Discharge Current (A) Recommend, Max: 150, 200
Charge/Discharge Current (A) Peak, Short-circuit: 250 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (H/W/D, mm): 790 x 400 x 250mm
Weight Approximate (kg): 110±5kg
Master LED Indicator: 5LED(SOC:20%-SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure: IP20
Operating Temperature: Charge:0-55°C (Optional heating) / Discharge: -20°C-55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.18+-0.05mΩ
Storage Temperature: 0°C-35°C
Humidity: 5%-95%
Altitude: =10000 (25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)
Installation: Floor-Mounted, Mobile - Mounted
Communication Port: CAN2.0, RS485
Energy Throughput: 78MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
Terminal: M8 bolted fence terminal
15 Years New Zealand Local Warranty

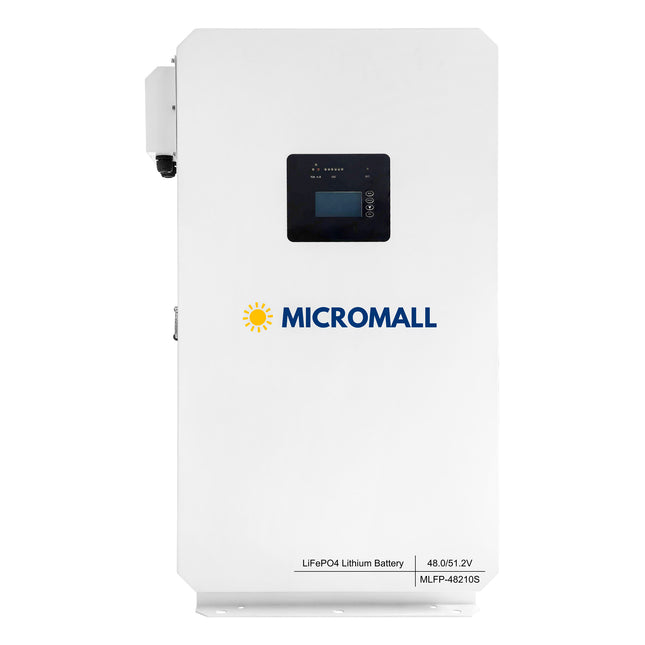

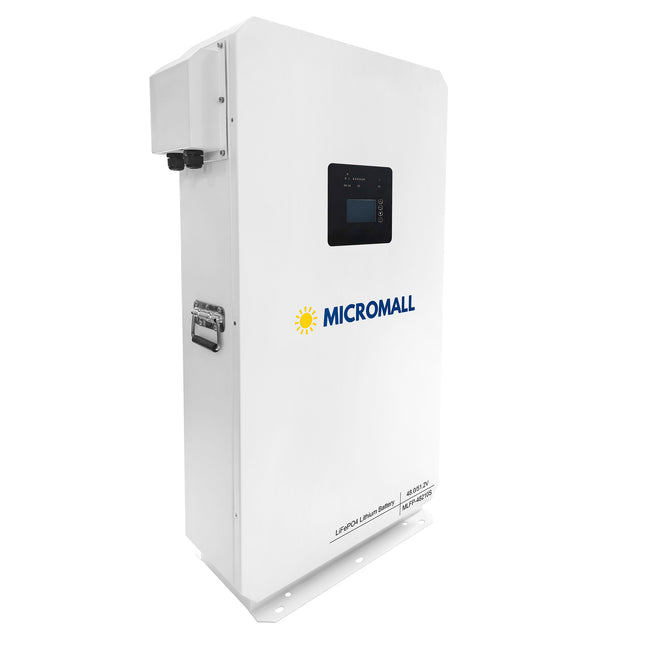

Introducing the 48V 51.2V 210Ah IP65 LiFePO4 Deep Cycle Lithium Battery for Solar Energy Storage, a high-performance household energy storage solution.
15 Years New Zealand Local Warranty
Key Features:
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: MLFP-48210S
Main Parameters
Battery Chemistry: LiFePO4
Capacity: Max 210 Ah
Nominal Voltage: 51.2 V
Operating Voltage: 43.2 – 57.6 V
Energy: 10.7 kWh
Usable Energy: 9.6 kWh
Charge/Discharge Current:
Recommended: 100 A
Max: 200 A
Peak: 250 A (500 ms, 25°C)
Short-circuit: 1.444 kA (1.12 ms, 25°C)
Other Parameters
Recommended Depth of Discharge: 90%
Dimensions (H × W × D): 930 × 550 × 230 (215) mm
Weight: 100 ± 5 kg
Master LED Indicator: 5 LEDs (SOC 20%–100%), 3 LEDs (Working, Alarming, Protecting)
IP Rating: IP65
Operating Temperature:
Charge: 0–55°C (Optional Heating)
Discharge: -20–55°C
Insulation Resistance (Factory Test): >100 MΩ
Initial Internal Resistance: 0.25 ± 0.05 mΩ
Storage Temperature: 0–35°C
Humidity: 5%–95%
Altitude: ≤2000 m
Cycle Life: ≥6000 cycles (25°C ±2°C, 0.5C/0.5C, 90% DOD, 70% EOL)
Installation: Floor-Mounted, Mobile-Mounted
Communication Port: CAN 2.0, RS485
Warranty Period: 15 years
Energy Throughput: 32 MWh @ 70% EOL
Certification: SAA, IEC 62619, UN38.3
15 Years New Zealand Local Warranty
Introducing the Micromall 48V 51.2V 200Ah 210Ah Lithium Battery LiFePO4 Battery Deep Cycle Solar Battery, a high-performance household energy storage solution.
Key Features:
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: MLFP-48210
Battery Chemistry: LiFePO4
Capacity(Ah): Max 210Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2-57.6V
Energy(kWh): 10.7kWh
Usable Energy(kWh): 9.6kWh
Charge/Discharge Current (A) Recommend, Max: 100, 100
Charge/Discharge Current (A) Peak, Short-circuit: 150 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (H/W/D, mm): 950x430x280mm
Weight Approximate (kg): 100±5kg
Master LED Indicator: 5LED(SOC:20%-SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure: IP20
Operating Temperature: Charge:0-55°C (Optional heating) / Discharge: -20°C-55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.25+-0.05mΩ
Storage Temperature: 0°C-35°C
Humidity: 5%-95%
Altitude: =6000
Installation: Floor-Mounted, Mobile - Mounted
Communication Port: CAN2.0, RS485
Energy Throughput: 32MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
Terminal: M8 bolted fence terminal
15 Years New Zealand Local Warranty
Warranty: 10 years full warranty + 5 additional years repair warranty.
Life Expectancy: Over 20 years. Guaranteed 6,000 cycle times.

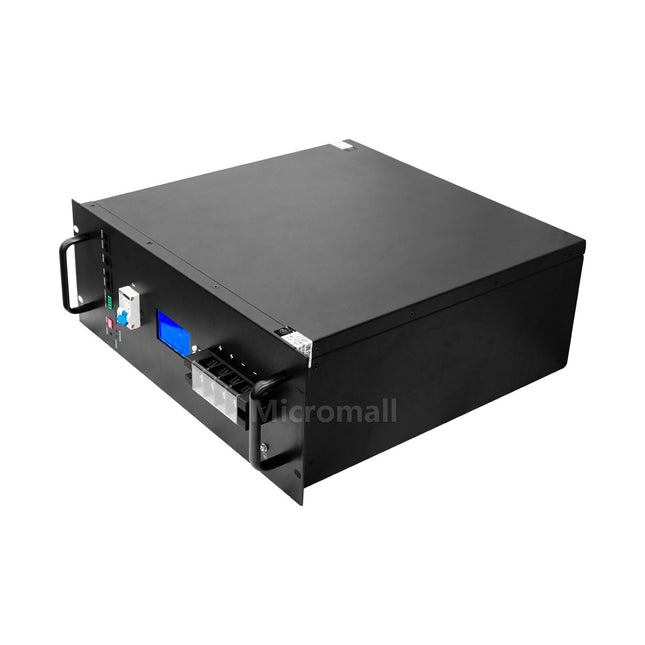

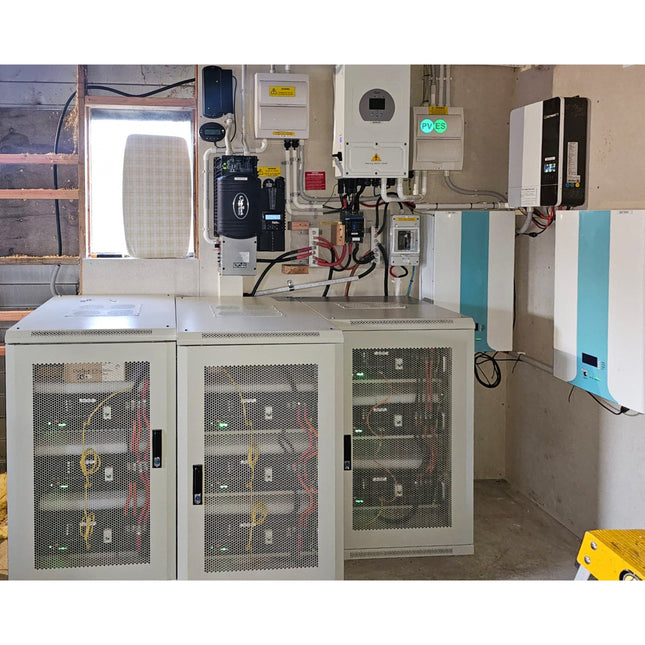

This commercial-grade LiFePO4 battery boasts 48V with a maximum capacity of 100Ah/110Ah and an energy rating of 5.0kWh. It is crafted using the latest long-cycle cell technology. With a daily discharge depth of 80%, this battery can be cycled 6,000 times, ensuring a lifespan of up to 20 years.
Real Cell Count: Features 16 genuine CATL brand new, Grade A cells that support 57.6V.
Performance: This battery can continuously charge and discharge at 100A. It stands out as one of the highest capacities in the NZ market, even suitable for electric vehicles.
Compatibility: This Grade A LiFePO4 battery is compatible with 48V lead acid batteries solar systems. It also supports most 48V MPPT controllers, 48V off-grid solar systems, and generators. Furthermore, it is built for seamless communication with Growatt, BlueSun, MustPower, Victron, and Deye off/on-grid systems.
Expansion: The battery allows for parallel connections to boost capacity. It also includes a 485 port, enabling computer monitoring using the provided software.
Technical Details:
Type of Battery: Lithium Iron Phosphate (LFP)
Rated Capacity: Max 110Ah
Rated Energy: 5.0kWh
Composition Method: 1P16S
Operating Voltage Range: 44.8V - 57.6V DC
Standard Charging Current: 100A DC
Max Charging Continuous Current: 110A DC
Standard Discharge Current: 100A DC
Max Discharge Continuous Current: 110A DC
Parallel Connections: 16
Max Discharge Pulse Current: 100A DC (30s, 25°C ± 2°C, SOC≥40%)
Operational Temperature Range: 0-55°C (charging), -20-55°C (discharging)
Output Short-Circuit Current: 1.444KA (1.12ms)
Altitude: Below 2000m
Cell Self-Discharge Rate: ≤5% (25°C, 50%SOC)
Insulation Resistance Factory Test: >100MΩ
Group Pressure Difference: ≤20mV
Battery Internal Resistance: 0.34±0.05mΩ (new battery state, 30-40% SOC, 1kHz, single cell)
Weight: 53kg
Dimensions: 460x500x200mm
Installation: Indoor

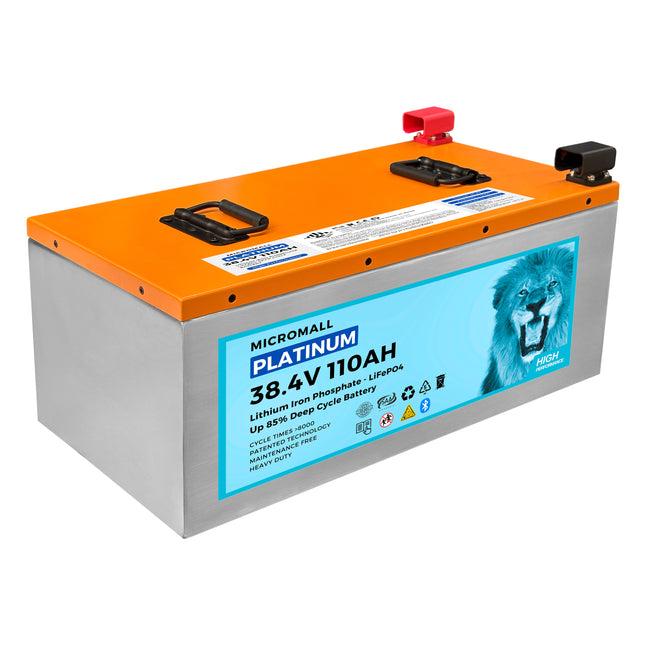

Introducing our Commercial-Grade LiFePO4 Battery - a 36V 110Ah/110Ah Max unit with a 3.2kWh energy rating, equipped with brand-new Grade-A CALB cells (utilized in BMW electric cars). These authentic cells support 43.8V and guarantee a reliable life cycle of 3500 times at an 80% discharge rate per day, translating to a durable service life of over 20 years.
Key Features:
Continuous 110A charge and discharge rate.
Incorporates 12 genuine, new Grade-A CALB cells.
Smart dual BMS system with protective functions and Bluetooth App display for real-time monitoring.
Ideal for various applications: homes, boats, farms, small workshops, electric cars, and golf cars.
Full 10-year warranty plus an additional 5-year repair warranty.
Unique Selling Points:
Commercial-grade quality compatible with 36V lead-acid battery solar systems.
Supports most 36V MPPT controllers, off-grid solar systems, and generators.
Designed for parallel connection, allowing for easy capacity expansion.
RRP $3299.00.
Technical Specifications:
Type: Lithium Iron Phosphate (LFP)
Capacity: 110Ah (Max 110Ah)
Energy Rating: 3.2kWh
Composition: 1P12S
Voltage 43.8V DC
Charging Current: Standard 80A, Max 110A
Discharge Current: Standard 110A, Max 110A
Parallel Connection: Unlimited
Pulse Discharge: Max 130A (30s, at 25°C±2°C, SOC≥40%)
Operating Temperature: 0-55°C (charge), -20-55°C (discharge)
Protection: IP21
Weight: 39kg
Dimensions: 550mm×270mm×260mm
Installation: Indoor only
Invest in a battery that promises not just longevity but also unmatched performance for over two decades!

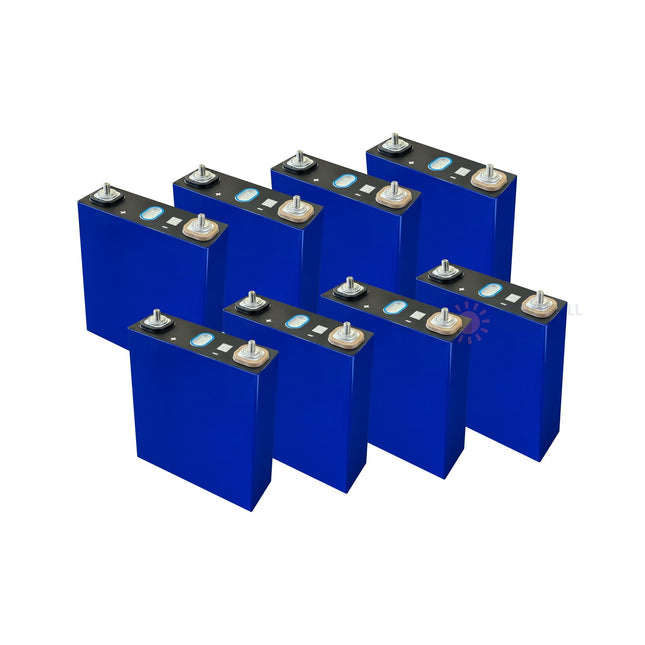

8X 3.2V 206Ah Lithium Battery LiFePO4 Battery Lithium Iron Phosphate Battery
*** New Arrival ***
*** Latest Technology ***
*** Grade A Guaranteed ***
*** Brand New ***
Introducing our Grade A lithium-ion LiFePO4 prismatic cells, optimized for both vehicles and energy storage applications. With a nominal voltage of 3.2V and a capacity of 206Ah, these cells deliver reliable performance across the board. Key features include:
Nominal Voltage: 3.2V
Capacity: 206Ah
Impedance: ≤0.3mΩ
Standard Charge Voltage: ≤3.65V
Standard Charge Current: 0.5C
Standard Discharge Current: 1C or 2C at 25℃
Max Continuous Discharge Current: 1C
Peak Discharge Current: 2C for 3 minutes and 3C for 60 seconds
Charge Temperature Range: 0℃ to 55℃
Discharge Temperature Range: -20℃ to 55℃
Cycle Life: Over 6000 cycles
Weight: Under 4Kg
Dimensions: 173mm x 54mm x 200mm
Ideal for a wide array of applications including RVs, EVs, solar systems, e-bikes, UPSs, energy storage systems, telecommunication base stations, e-scooters, e-tools, golf carts, forklifts, cleaning cars, electric wheelchairs, and other deep cycle uses. Experience dependable energy storage and advanced design with our premium cells.
2 years warranty
This listing is for 8 batteries.

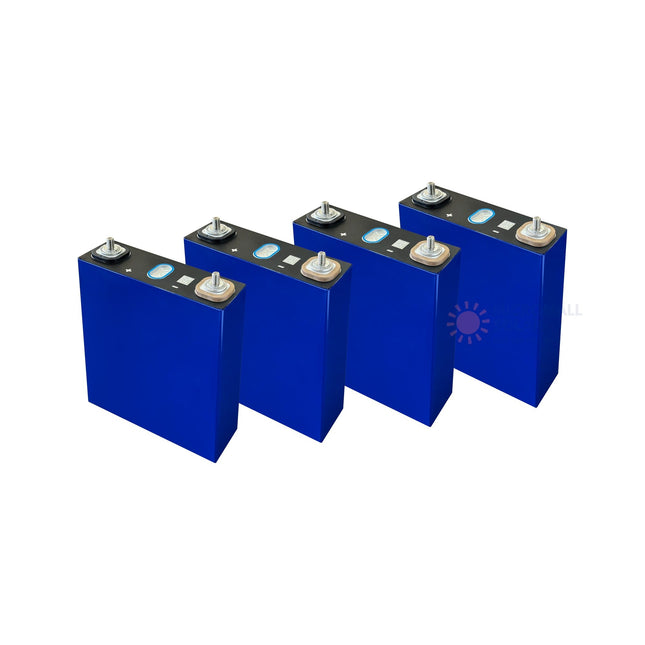

4X 3.2V 206Ah Lithium Battery LiFePO4 Battery Lithium Iron Phosphate Battery
*** New Arrival ***
*** Latest Technology ***
*** Grade A Guaranteed ***
*** Brand New ***
Introducing our Grade A lithium-ion LiFePO4 prismatic cells, optimized for both vehicles and energy storage applications. With a nominal voltage of 3.2V and a capacity of 206Ah, these cells deliver reliable performance across the board. Key features include:
Nominal Voltage: 3.2V
Capacity: 206Ah
Impedance: ≤0.3mΩ
Standard Charge Voltage: ≤3.65V
Standard Charge Current: 0.5C
Standard Discharge Current: 1C or 2C at 25℃
Max Continuous Discharge Current: 1C
Peak Discharge Current: 2C for 3 minutes and 3C for 60 seconds
Charge Temperature Range: 0℃ to 55℃
Discharge Temperature Range: -20℃ to 55℃
Cycle Life: Over 6000 cycles
Weight: Under 4Kg
Dimensions: 173mm x 54mm x 200mm
Ideal for a wide array of applications including RVs, EVs, solar systems, e-bikes, UPSs, energy storage systems, telecommunication base stations, e-scooters, e-tools, golf carts, forklifts, cleaning cars, electric wheelchairs, and other deep cycle uses. Experience dependable energy storage and advanced design with our premium cells.
2 years warranty
This listing is for 4 batteries.

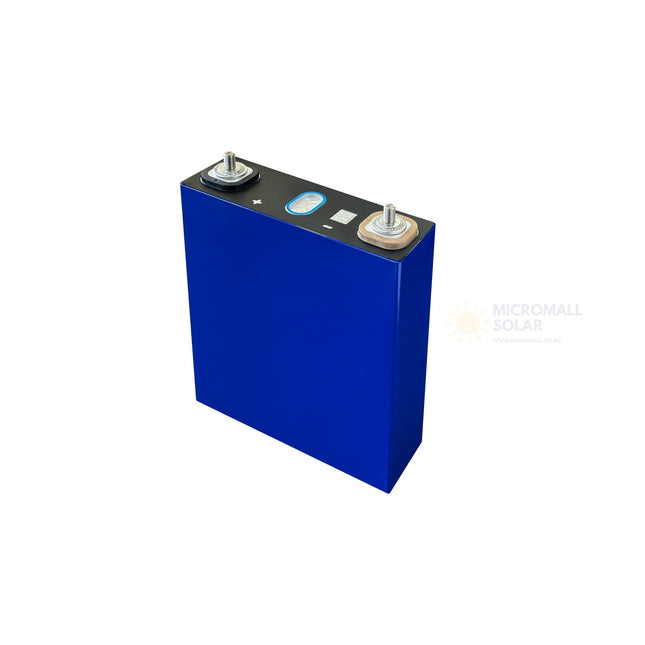

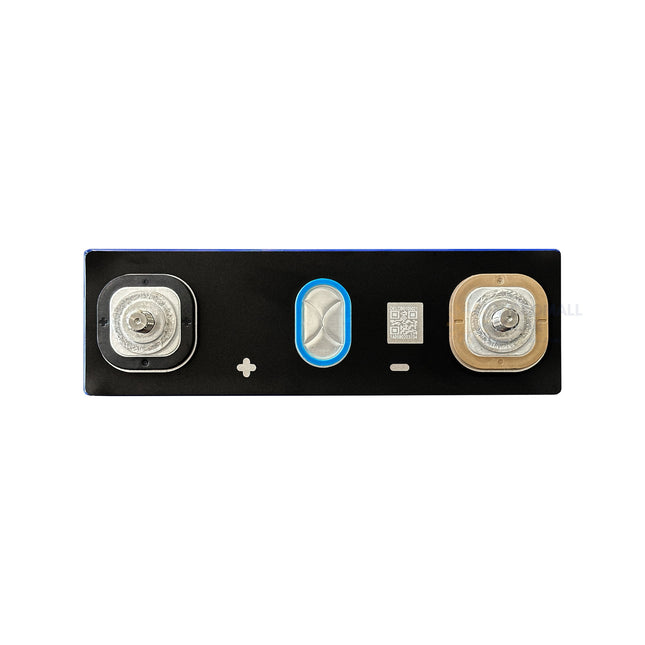

3.2V 206Ah Lithium Battery LiFePO4 Battery Lithium Iron Phosphate Battery
*** New Arrival ***
*** Latest Technology ***
*** Grade A Guaranteed ***
*** Brand New ***
**Save more when you buy more! Get 4 batteries for only $735, or 8 batteries for just $1470!**
Introducing our Grade A lithium-ion LiFePO4 prismatic cells, optimized for both vehicles and energy storage applications. With a nominal voltage of 3.2V and a capacity of 206Ah, these cells deliver reliable performance across the board. Key features include:
Nominal Voltage: 3.2V
Capacity: 206Ah
Impedance: ≤0.3mΩ
Standard Charge Voltage: ≤3.65V
Standard Charge Current: 0.5C
Standard Discharge Current: 1C or 2C at 25℃
Max Continuous Discharge Current: 1C
Peak Discharge Current: 2C for 3 minutes and 3C for 60 seconds
Charge Temperature Range: 0℃ to 55℃
Discharge Temperature Range: -20℃ to 55℃
Cycle Life: Over 6000 cycles
Weight: Under 4Kg
Dimensions: 173mm x 54mm x 200mm
Ideal for a wide array of applications including RVs, EVs, solar systems, e-bikes, UPSs, energy storage systems, telecommunication base stations, e-scooters, e-tools, golf carts, forklifts, cleaning cars, electric wheelchairs, and other deep cycle uses. Experience dependable energy storage and advanced design with our premium cells.
2 years warranty

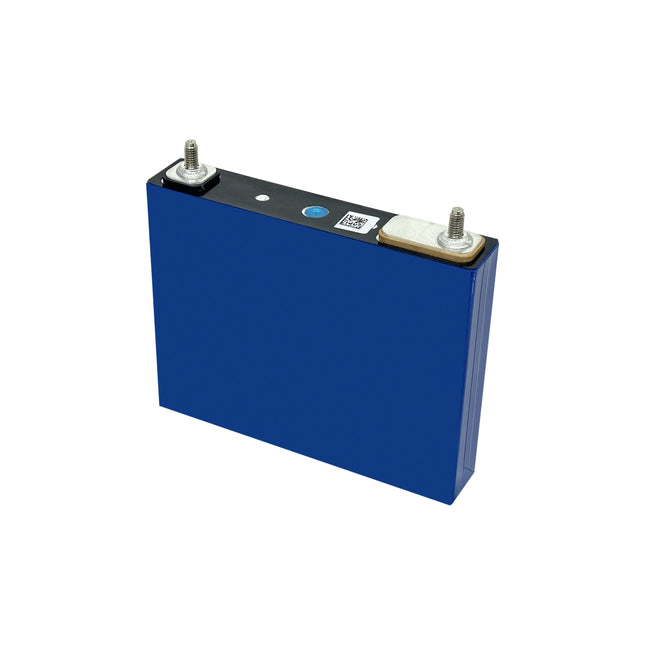

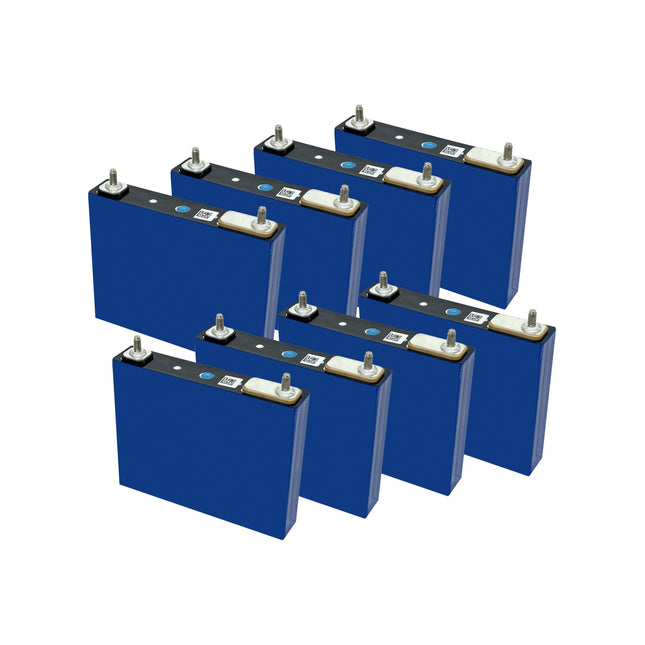

NEW 8X 3.2V 52Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery
*** New Arrival ***
*** Latest Technology ***
*** Grade A Guaranteed ***
*** Brand New ***
This battery is the latest Grade A aluminium-cased power lithium iron phosphate prismatic battery, which is especially suitable for power applications, such as electric cars, electric buses, mini electric vehicles, golf carts, etc.
Specification:
Battery Cell Type: Lithium Iron Phosphate (LiFePO4) battery cells
Nominal Capacity: 52Ah
Nominal Voltage: 3.2V
Charge and discharge voltage range: 2.0V-3.65V
AC internal resistance: (0.5~0.8)mΩ
DC internal resistance:
