Submersible Solar Power Pump System 750W
This is brand new submersible solar power pump with 90%+ solar energy efficiency, submersible, no need for batteries.
Warranty:
24 months warranty
Features:
Solar panel-powered pumps
submersible
not necessary to go with a battery.
3inch Centrifugal
MOTOR Permanent Magnet
Brushless
Parameters:
POWER: 750 W (1 HP)
RATED VOLTAGE: 96 VDC (42 ~ 150 VDC)
MAX. FLOW: 5,000 L/HR
MAX. HEAD 90 M
PUMP LENGTH: 55 CM
PUMP SIZE: 3 inch
OUTLET SIZE: 1.25 inch
MATERIAL & qualities:
OUTLET: 304 Stainless Steel
PUMP BODY: 304 Stainless Steel
IMPELLER: 304 Stainless Steel
MOTOR: Permanent Magnet Brushless DC Motor, Oil-filled
CONTROLLER SHELL Die-cast Aluminum Enclosure (IP67)
CONTROLLER: 32 Bit / MCU / FOC / Sine Wave, Current / MPPT
Package included:
304 Stainless Steel Submersible Solar Power Pump X1
Controller X1
440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell X2
96V 750W Submersible Solar Power Pump + Controller
This is a brand new 3-inch submersible solar power pump with controller, submersible, no need for batteries.
Warranty:
24 months warranty
Features:
solar panel powered pumps
submersible
not necessary to go with a battery.
3inch Centrifugal
MOTOR Permanent Magnet
Brushless
Parameters:
POWER: 750 W (1 HP)
RATED VOLTAGE: 96 VDC (42 ~ 150 VDC)
MAX. FLOW: 5,000 L/HR
MAX. HEAD 90 M
PUMP LENGTH: 55 CM
PUMP SIZE: 3 inch
OUTLET SIZE: 1.25 inch
MATERIAL & qualities:
OUTLET: 304 Stainless Steel
PUMP BODY: 304 Stainless Steel
IMPELLER: 304 Stainless Steel
MOTOR: Permanent Magnet Brushless DC Motor, Oil-filled
CONTROLLER SHELL Die-cast Aluminum Enclosure (IP67)
CONTROLLER: 32 Bit / MCU / FOC / Sine Wave, Current / MPPT
Package included:
304 Stainless Steel Submersible Solar Power Pump X1
Controller X1
The Solar Pumping System is designed for remote areas with unreliable or no access to electrical grid power. It utilizes a BLDC solar pump controller to directly harness DC power from the PV array, driving brushless DC pumps. On sunny days, it continuously pumps water without the need for batteries or energy storage devices. It's recommended to pump water into a reservoir for storage.
The portable QB pump includes a built-in controller with highly efficient MPPT functionality, eliminating the need for a separate controller installation. Simply connect the panels to the pump wires, and it operates directly and consistently during daylight hours, even on cloudy days.
Key Features:
MPPT controller build-in
Comes with a 1-year warranty
***Maximum pumping distance of 50 meters***
Max head: 50 meters
Power: 500 watts
Designed with reliability in mind, the controller ensures water delivery under adverse conditions by reducing output to protect system components, only shutting down in extreme cases. Normal operation is automatically restored when conditions improve.
Material:
MOTOR: Full Oil Permanent Magnet, Brushless DC Motor (Hall-free)
CONTROLLER: 32bit MCU / FOC / Sine Wave Current / MPPT
Pump Body/OUTLET/INLET: Cast Iron
MOTOR BODY: Die-cast Aluminium
IMPELLER: Brass
SCREW: 304 Stainless Steel
Technical Parameters:
Max head: 50 meters
Pipe diameter: 25mm
Rated Voltage: 48 VDC (30 - 80 VDC)
Max Flow: 2100L/HR
Max Suction: 8 meters
Packing Size: 29x16x24 CM
Gross Weight: 5 KGS
Maximum power at STC(Pmax): 300Wp
Voltage at Pmax(Vmp): 34.72V
Current at Pmax(Imp): 8.64A
Open-Circuit Voltage(Voc): 40.32V
Short-Circuit Current(Isc): 9.72A
Normal Operating Cell Temp(NOCT): 45 + 2°C
Maximum System Voltage: 1000V
Operating Temperature: -40°C to + 85°C
Application Class: Class A
Weight: 16kg
Dimension: 1545 x 880 x 30mm
Package Included:
1X Solar Pump (MPPT controller included)
2X Premium Quality Grade A+ 300w 12V/24V/31.5V Mono Solar Panel
1x 5m Twin Core Solar Cable
Our Solar Pumping System is designed for remote areas with unreliable or no electrical grid access. It uses a BLDC solar pump controller powered by DC from the PV array to drive brushless DC pumps. On sunny days, it continuously pumps water without batteries. Recommended for water storage.
The portable QB pump has a built-in MPPT controller—no separate installation needed. Just connect panels to pump wires for seamless daytime operation, even on cloudy days.
Key Features:
Built-in MPPT controller.
1-year warranty.
Max pumping distance: 50 meters.
Reliable design operates under adverse conditions, adjusting output to protect components. Shuts down only in extreme cases, automatically restoring full operation when conditions improve.
Materials:
MOTOR: Full Oil Permanent Magnet Brushless DC Motor (Without Hall)
CONTROLLER: 32-bit MCU / FOC / Sine Wave Current / MPPT
Pump Body/OUTLET/INLET: Cast Iron
MOTOR BODY: Die-cast Aluminium
IMPELLER: Brass
SCREW: Stainless Steel
CABLE: 2m Three-core copper cable / 2.0mm2
Technical Specs:
Max lift water head: 25 meters
Max flow rate: 2 m³/h
Pipe diameter: 25mm
Rated Voltage: 24 VDC
Max Open Voltage: 80 VDC
Under Protection Voltage: 17 VDC
Over Protection Voltage: 50 VDC
Rated Current: 12 A
Over Protection Current: 15 A
Peak Protection Current: 18 A
MCU and Controller Mode: 32-bit MCU / FOC / Sine Wave Current / MPPT
Cooling: Natural Heat Dissipation
Operating temperature: -20℃ ~ +50℃
Package Includes:
1X Solar pump with built-in MPPT controller
2X LONGi LR5-28HTH 225W Mono Solar Panel Low Light Performance (12 Years Material Workmanship Warranty, 25 Years Linear Power Output Warranty)
1x 5m Twin Core Solar Cable
**Pump - 2 Years Warranty**
**Panel - 12 Years Warranty, 30-year lifespan**
The 4SSC6-230 Solar Submersible Pump is a 4-inch high-head centrifugal solar pump designed for deep well water extraction and off-grid water supply systems.
It features a permanent magnet synchronous DC motor combined with an intelligent MPPT solar controller, delivering high efficiency, stable operation, and long service life.
This pump supports solar DC input as well as AC power (110–240Vac), making it suitable for a wide range of applications, including agricultural irrigation, livestock watering, rural water supply, and remote installations.
Solar powered with DC & AC input
2200W (3HP) high-performance motor
Max flow rate up to 6,000 L/h
Maximum head 230 meters
Full stainless steel construction
Intelligent MPPT controller
Multiple electrical protection functions
Ideal for deep wells, irrigation, farms, and remote water supply
Pump Specifications
Pump Size: 4 inch
Outlet Size: 1.5 inch
Rated Power: 2200 W (3 HP)
Rated Voltage:
DC: 300 Vdc (120–400 Vdc)
AC: 110–240 Vac
Rated Current: 13 A
Maximum Flow: 6,000 L/hour
Maximum Head: 230 meters
Operating Temperature: -10°C to +80°C (Recommended 0°C to +60°C)
The NIWA Black Series JW-HD96N-R2 is a high-performance N-Type bifacial dual glass solar module designed for maximum energy generation and long-term reliability. With a 30-year lifespan, it delivers 10 to 30 percent more power compared to conventional P-Type modules.
Model: JW-HD96N-R2
Electrical Properties (STC)
Peak Power (Pmax): 450 W
MPP Voltage (Vmp): 29.98 V
MPP Current (Imp): 15.01 A
Open Circuit Voltage (Voc): 34.91 V
Short Circuit Current (Isc): 15.86 A
Module Efficiency: 22.5%
Dimensions: 1762 × 1134 × 30 mm
Weight: 24.6 kg
What’s included:
1 x 4” Solar Submersible Pump 2200W – Max Head 230m Stainless Steel Deep Well Pump
6 x NIWA 450W N-Type Bifacial Solar Panel Transparent Black Dual Glass
4” Solar Submersible Pump 2200W – Max Head 230m Stainless Steel Deep Well Pump
**2 Years Warranty**
The 4SSC6-230 Solar Submersible Pump is a 4-inch high-head centrifugal solar pump designed for deep well water extraction and off-grid water supply systems.
It features a permanent magnet synchronous DC motor combined with an intelligent MPPT solar controller, delivering high efficiency, stable operation, and long service life.
This pump supports solar DC input as well as AC power (110–240Vac), making it suitable for a wide range of applications, including agricultural irrigation, livestock watering, rural water supply, and remote installations.
Solar powered with DC & AC input
2200W (3HP) high-performance motor
Max flow rate up to 6,000 L/h
Maximum head 230 meters
Full stainless steel construction
Intelligent MPPT controller
Multiple electrical protection functions
Ideal for deep wells, irrigation, farms, and remote water supply
Pump Specifications
Pump Size: 4 inch
Outlet Size: 1.5 inch
Rated Power: 2200 W (3 HP)
Rated Voltage:
DC: 300 Vdc (120–400 Vdc)
AC: 110–240 Vac
Rated Current: 13 A
Maximum Flow: 6,000 L/hour
Maximum Head: 230 meters
Operating Temperature: -10°C to +80°C (Recommended 0°C to +60°C)
Motor & Pump Materials
Motor Type: Permanent Magnet Synchronous DC Motor
Pump Body: Stainless Steel
Outlet: Stainless Steel
Impeller: Stainless Steel
Motor Housing: Stainless Steel
Shaft & Screws: Stainless Steel
Winding: Copper Wire
Controller Specifications
Enclosure: Aluminum + ABS
Protection Rating: IP65
Control Mode:
32-bit MCU
FOC (Field Oriented Control)
Sine Wave Current
MPPT Solar Tracking
Cooling Method: Fan-assisted heat dissipation
Optional Functions:
Remote Management
RS-485 Communication

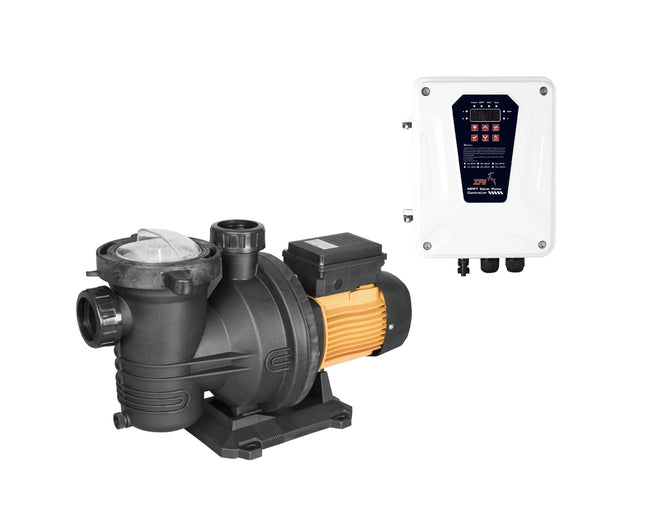

2025 Latest Model Solar Swimming Pool Pump Kit
Advanced Solar Technology: Equipped with a 1200W, 160V solar panel and an efficient MPPT (Maximum Power Point Tracking) controller.
Innovative Motor Design: Features a maintenance-free, brushless DC motor integrated with DSP (Digital Signal Processing).
Versatile Voltage Compatibility: Operates within a wide DC voltage range of 65-160V, suitable for diverse power setups.
Enhanced Safety Features: Includes control inputs for well probe and dry running protection, ensuring safe operation under various conditions.
Battery Operated with Protective Measures: Supports battery operation with a low voltage disconnect feature for battery life preservation. Also equipped with overload protection and high-speed motor control.
Temperature and Polarity Safeguards: Comes with built-in temperature protection and reverse polarity prevention for additional security.
Technical Specifications:
Model Number: ZSSP31-19-D110/1300
Voltage Range: 65-160V DC
Power Output: 820-1300W
Maximum Water Flow: 31 cubic meters per hour (m³/h)
Maximum Head Lift: 19 meters
Inlet/Outlet Size: 3x3 inches
Pipe Diameter Compatibility: 28mm, 14mm, 16mm
Package included:
1X 1200W Solar Swimming Pool Pump
3X 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell
Ideal for eco-friendly and efficient swimming pool maintenance, this upgraded solar pool pump represents the forefront of renewable energy solutions for residential and commercial applications.
***18-Month Warranty for Pump, 25-Year Warranty for Solar Panels***
3SSH1.3/50-D24/140 3inch Helical Rotor Solar Power Submersible Pump Combo
Key Features:
EC Drive DC Brushless Motors: Optimized for solar energy with over 90% efficiency.
Direct Solar Connection: Operates without a battery.
High MPPT Efficiency: 96% to 99% maximization of power usage from PV modules.
Rapid ROI: Maintenance-free with a quick return on investment.
Eco-Friendly: Competes favorably with diesel-powered pumps in reducing production costs and carbon emissions.
Easy Installation: Direct replacement for existing submersible pumps.
Smart Modular Design: Ensures simple and cost-effective maintenance.
Durable Materials: High-quality, non-corrosive materials including cast stainless steel components.
Characteristics:
Pump Size: 3 inches.
Outlet Size: 0.75 inch.
Power: 140 W (0.2 HP).
Rated Voltage: 24 Vdc (operational range 18-55 Vdc).
Rated Current: 15 A.
Maximum Flow: 1,300 L/hr.
Maximum Head: 50 meters.
Dimensions (Pump/Controller): 8.5 x 8.5 x 47.3 cm / 25 x 25 x 16 cm.
Gross Weight (Pump/Controller): 4 kg / 1.66 kg.
Pump Information:
Motor: Brushless DC (BLDC).
Outlet: 304 Stainless Steel.
Body: 304 Stainless Steel.
Helical Rotor: 304 Stainless Steel, Rubber.
Motor Body: 304 Stainless Steel.
Screw: 304 Stainless Steel.
Shaft: 304 Stainless Steel.
Winding: Copper wire.
Controller Information:
Enclosure: Aluminum + ABS.
IP Grade: IP65.
Control Mode: 32Bit MCU, FOC, Sine Wave Current, MPPT.
Cooling Mode: Natural Heat Dissipation.
Protection Functions: Anti-reverse, phase loss, under-voltage, over-voltage, over-current, overload, short circuit.
Operating Temperature: -10℃ to +80℃ (recommended 0℃ to +60℃).
Remote Management: Optional.
RS-485 Interface: Optional.
Package included:
1X 3SSH1.3/50-D24/140 3inch Helical Rotor Solar Power Submersible Pump + Controller
2X LONGi LR5-28HTH 225W Mono Solar Panel Low Light Performance
Designed specifically for solar water pumping applications, this high-performance pump offers a reliable and energy-efficient solution for remote and off-grid locations. Powered by DC voltage (80–400V DC), it’s perfectly suited for integration with photovoltaic solar panel systems, delivering eco-friendly operation without compromising performance.
Key Features:
Brushless DC Motor – Maintenance-free and highly efficient
Advanced MPPT Controller – Ensures maximum power output from solar panels
Integrated DSP Control – For precise and stable performance
Speed Control – Adjustable motor speed to match demand
Soft Start Protection – Reduces wear and prolongs motor life
Dry Running Protection – Prevents damage when water supply is low
Reverse Polarity Protection – Safeguards against incorrect wiring
Short-Circuit & Overcurrent Protection – Enhances operational safety
Low & Over Voltage Protection – Ensures stability and protects components
Temperature Protection – Prevents overheating during long operation
Compatible with Battery Systems – Supports battery backup and low-voltage disconnect

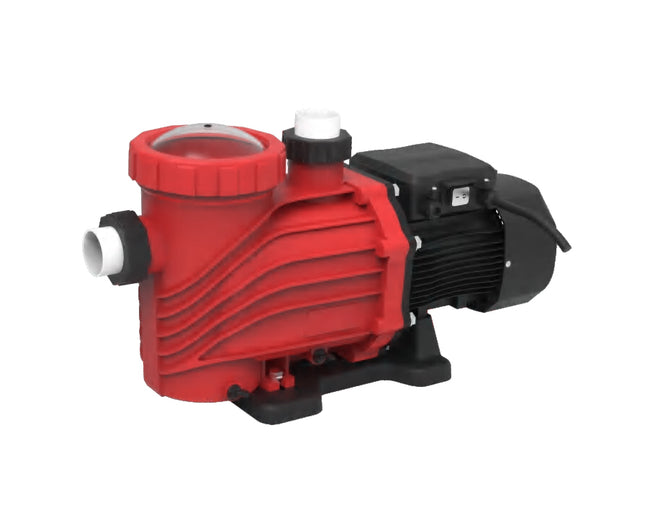

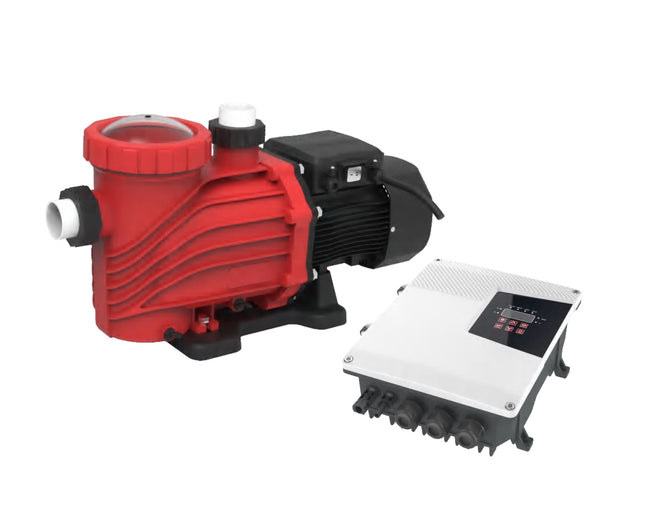

Technical Specifications:
Model: ZSSP35-22-300-2200-A/D
Operating Voltage: 80–280V AC / 80–400V DC
Power Rating: 2200W
Max. Flow Rate: 35 m³/h
Max. Head: 22 meters
Outlet Size: 3 × 3”
Cable Length: 2 meters
Solar Panel Requirements:
Open Circuit Voltage (VOC): = 1.3 × Pump Power
Designed specifically for solar water pumping applications, this high-performance pump offers a reliable and energy-efficient solution for remote and off-grid locations. Powered by DC voltage (80–400V DC), it’s perfectly suited for integration with photovoltaic solar panel systems, delivering eco-friendly operation without compromising performance.
Key Features:
Brushless DC Motor – Maintenance-free and highly efficient
Advanced MPPT Controller – Ensures maximum power output from solar panels
Integrated DSP Control – For precise and stable performance
Speed Control – Adjustable motor speed to match demand
Soft Start Protection – Reduces wear and prolongs motor life
Dry Running Protection – Prevents damage when water supply is low
Reverse Polarity Protection – Safeguards against incorrect wiring
Short-Circuit & Overcurrent Protection – Enhances operational safety
Low & Over Voltage Protection – Ensures stability and protects components
Temperature Protection – Prevents overheating during long operation
Compatible with Battery Systems – Supports battery backup and low-voltage disconnect
Technical Specifications:
Model: ZSSP27-19-150-1200-A/D
Operating Voltage: 80–280V AC / 80–400V DC
Power Rating: 1200W
Max. Flow Rate: 27 m³/h
Max. Head: 19 meters
Outlet Size: 2 × 2”
Cable Length: 2 meters
Solar Panel Requirements:
Open Circuit Voltage (VOC): = 1.3 × Pump Power
