***12 Years Product Warranty***
***25 Years Linear Power Warranty***
Product Description:

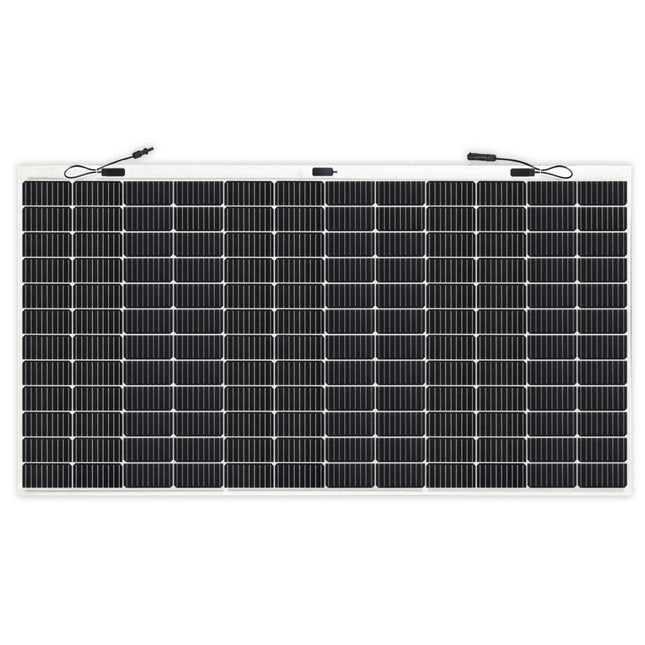

Introducing the DF-SMH520J-12X12UW, a 520W mono-crystalline flexible solar panel designed for optimal performance and convenience. This ultra-lightweight panel is perfect for applications where weight and flexibility are critical, such as RVs, boats, and mobile homes. With its high power output and advanced mono-crystalline technology, it offers exceptional energy efficiency and reliability. The panel’s durable, weather-resistant construction ensures long-lasting use in a variety of outdoor environments.
Why Choose the DF-SMH520J-12X12UW?
520W High Output: Achieve powerful energy production to support your electrical needs.
Mono-Crystalline Cells: Benefit from high efficiency and superior energy conversion rates.
Flexible & Lightweight: Easy to install on curved or uneven surfaces without adding excessive weight.
Robust & Weatherproof: Designed to withstand challenging outdoor conditions for dependable performance.
Versatile Use: Ideal for RVs, boats, off-grid systems, and other mobile applications.

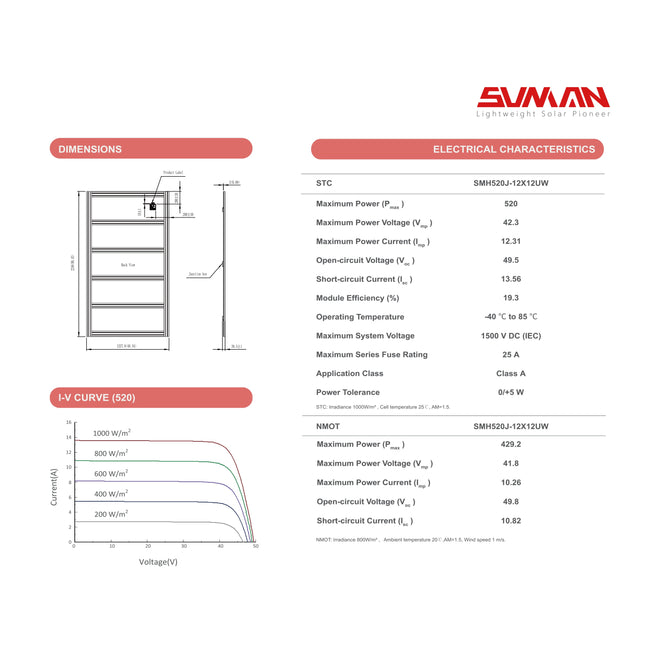

Specifications:
Maximum Power (Pmax): 520W
Maximum Power Voltage (Vmp): 42.3V
Maximum Power Current (Imp): 12.31A
Open-Circuit Voltage (Voc): 49.5V
Short-Circuit Current (Isc): 13.56A
Module Efficiency: 19.3%
Maximum System Voltage: 1500V DC
Maximum Series Fuse Rating: 25A
Solar Cell Type: Monocrystalline Silicon, 182mm half-cell
Number of Cells: 144
Dimensions: 2246 mm (L) x 1197 mm (W) x 2 mm (Thickness)
Weight: 11 kg

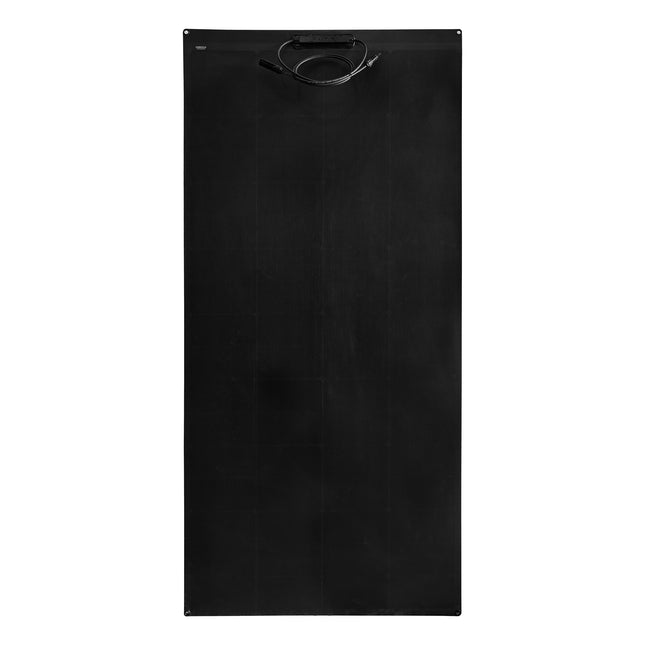

Introducing our latest solar panel model with 250W power outputs, compatible with both 12V and 18V systems. Its semi-flexible design makes it ideal for marine and caravan applications.
10 Years Warranty!
10 Bus Bars for enhanced efficiency.
Key Features:
Versatile Use: This solar panel's exceptional stability and durability make it suitable for a wide range of applications, including vehicles, homes, boats, motorcycles, and more. It's a perfect fit for car batteries, RVs, boats, ships, aircraft, satellites, outdoor setups, and even solar street lamps.
Flexible Design: With its semi-flexible build, the panel can bend up to 30° in both directions, adapting to various scenarios like RVs, fishing boats, wooden houses, tents, and outdoor environments.
Efficient Charging: Primarily designed for efficient charging of 12V lead-acid and lithium batteries. Its adaptable design allows easy installation on RVs, fishing boats, cabins, tents, and irregular surfaces. The eco-friendly operation makes it an ideal companion for outdoor activities, travel, or camping, offering energy-saving performance.
Enhanced Charging: The 18V 250W Solar Panel guarantees secure and stable charging. Its impressive conversion rate and high output efficiency ensure optimal energy conversion.
Adaptable Absorption: The semi-flexible design enhances sunlight absorption by allowing the panel to bend for better alignment.
Compact and Lightweight: With its slim and lightweight profile, this solar panel is highly portable, making transportation and setup convenient.
Specifications
Model: FSF-250W
Maximum Power at STC (Pmax): 250Wp
Voltage at Pmax (Vmp): 21.03V
Current at Pmax (Imp): 11.88A
Open-Circuit Voltage (Voc): 24.4V
Short-Circuit Current (Isc): 13.36A
Dimensions: 1625 x 770 x 3mm
Maximum System Voltage (Vmax): 1000VDC
Maximum series Fuse Rating: 25A
Cell Technology: Mono-Si
Package Contents:
1x 250W Solar Panel
2x MC4 Ports

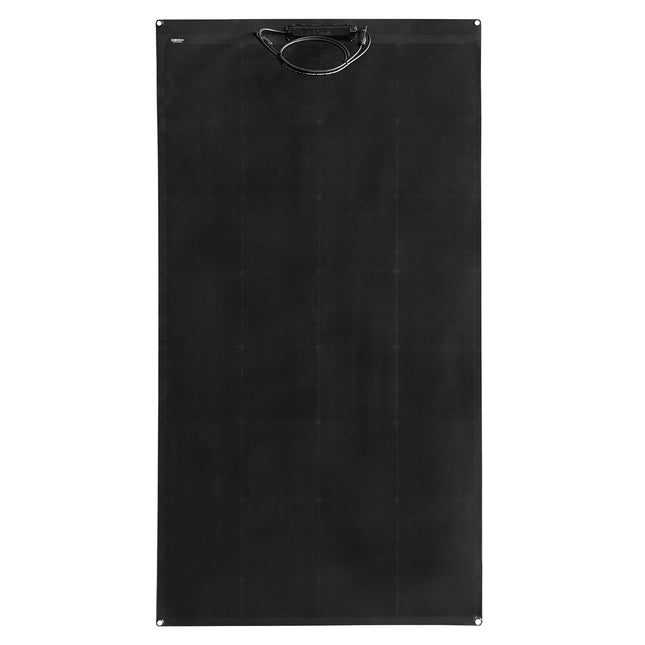

Introducing our latest 200W solar panel, features a semi-flexible design, making it perfect for marine and caravan use. Compatible with both 12V and 18V systems. Its semi-flexible design makes it ideal for marine and caravan applications.
Powered by HPBC new technology, it delivers reliable performance even on cloudy and rainy days.
Warranty: 10 Years
Key Features:
Versatile Applications: Designed for a wide range of uses, from vehicles and boats to RVs, homes, and outdoor setups.
Flexible Design: Bends up to 30° in both directions, suitable for RVs, boats, tents, and irregular surfaces.
Efficient Charging: Optimized for lead-acid and lithium batteries, providing eco-friendly, energy-saving performance for outdoor adventures.
High Conversion Rate: Ensures secure, stable charging with high efficiency.
Lightweight and Portable: Slim and easy to transport, making setup convenient.
Specifications:

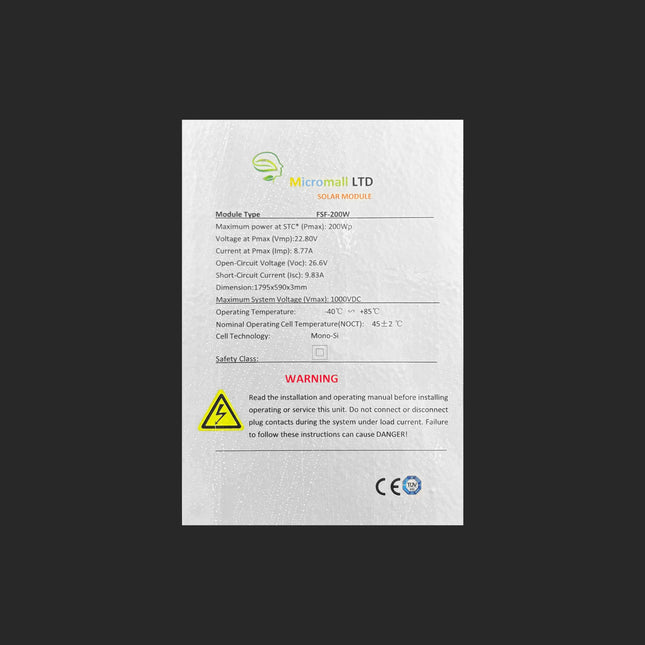

Model: FSF-200W
Maximum power at STC (Pmax): 200Wp
Voltage at Pmax (Vmp): 22.80V
Current at Pmax (Imp): 8.77A
Open-Circuit Voltage (Voc): 26.6V
Short- Circuit Current (Isc): 9.83A
Dimension: 1795x590x3mm
Maximum System Voltage (Vmax): 1000VDC
Package Includes:
1 x 200W Panel
2 x MC4 Ports
Introducing our latest 200W solar panel, features a semi-flexible design, making it perfect for marine and caravan use.
Warranty: 10 Years
Key Features:
Versatile Applications: Designed for a wide range of uses, from vehicles and boats to RVs, homes, and outdoor setups.
Flexible Design: Bends up to 30° in both directions, suitable for RVs, boats, tents, and irregular surfaces.
Efficient Charging: Optimized for lead-acid and lithium batteries, providing eco-friendly, energy-saving performance for outdoor adventures.
High Conversion Rate: Ensures secure, stable charging with high efficiency.
Lightweight and Portable: Slim and easy to transport, making setup convenient.

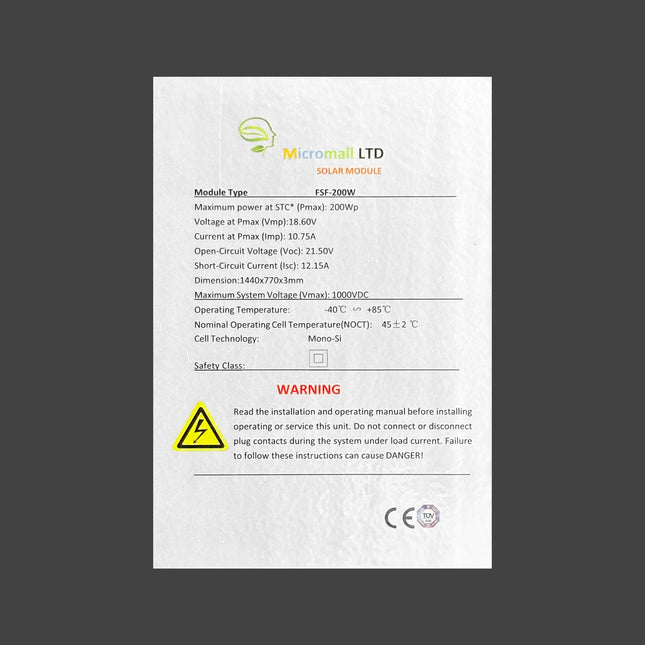

Specifications:
Module Type: FSF-200W
Maximum power at STC (Pmax): 200Wp
Voltage at Pmax (Vmp):18.60V
Current at Pmax (Imp): 10.75A
Open-Circuit Voltage (Voc): 21.50V
Short-Circuit Current (Isc): 12.15A
Dimension: 1440x770x3mm
Maximum System Voltage (Vmax): 1000VDC
Operating Temperature:
-40°C c +85°C
Nominal Operating Cell Temperature(NOCT): 45+-2°C
Cell Technology: Mono-Si
Package Includes:
1 x 200W Panel
2 x MC4 Ports

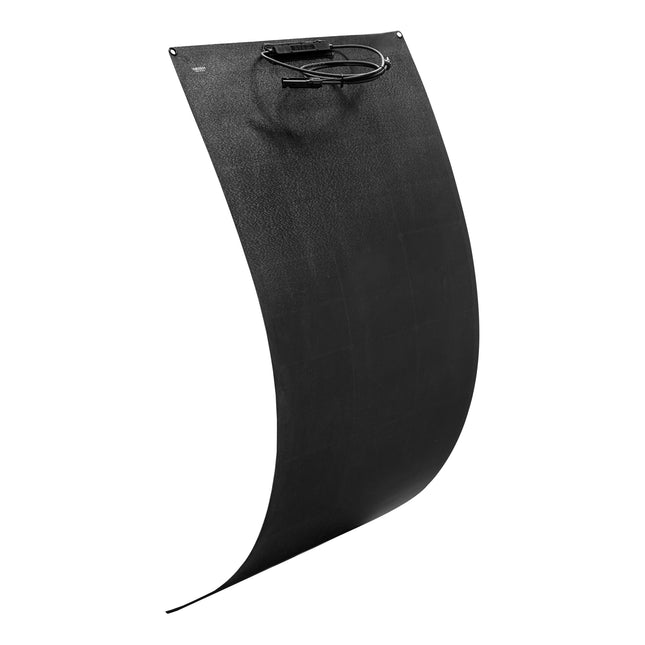

Introducing our latest solar panel model with a 150W power output, compatible with both 12V and 18V systems. Its semi-flexible design makes it ideal for marine and caravan applications.
Powered by HPBC new technology, it delivers reliable performance even on cloudy and rainy days.
10 Years Warranty
Key Features:
Versatile Use: This solar panel's exceptional stability and durability make it suitable for a wide range of applications, including vehicles, homes, boats, motorcycles, and more. It's a perfect fit for car batteries, RVs, boats, ships, aircraft, satellites, outdoor setups, and even solar street lamps.
Flexible Design: With its semi-flexible build, the panel can bend up to 30° in both directions, adapting to various scenarios like RVs, fishing boats, wooden houses, tents, and outdoor environments.
Efficient Charging: Primarily designed for efficient charging of 12V lead-acid and lithium batteries. Its adaptable design allows easy installation on RVs, fishing boats, cabins, tents, and irregular surfaces. The eco-friendly operation makes it an ideal companion for outdoor activities, travel, or camping, offering energy-saving performance.
Enhanced Charging: The 18V 150W/160W Solar Panel guarantees secure and stable charging. Its impressive conversion rate and high output efficiency ensure optimal energy conversion.
Adaptable Absorption: The semi-flexible design enhances sunlight absorption by allowing the panel to bend for better alignment.
Compact and Lightweight: With its slim and lightweight profile, this solar panel is highly portable, making transportation and setup convenient.
Specifications:

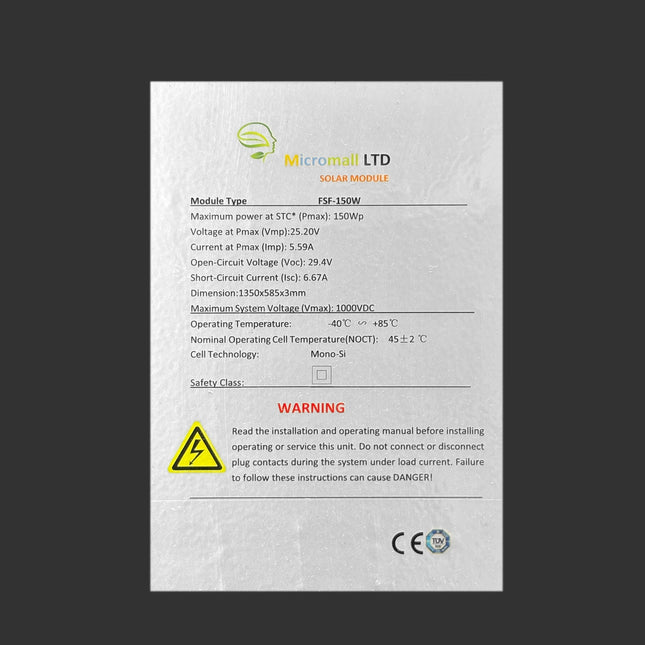

Maximum Power at STC (Pmax): 150Wp
Voltage at Pmax (Vmp): 25.20V
Current at Pmax (Imp): 5.59A
Open-Circuit Voltage (Voc): 29.4V
Short-Circuit Current (Isc): 6.67A
Dimensions: 1350mm x 585mm x 3mm
Maximum System Voltage (Vmax): 1000VDC
Cell Technology: Mono-Si

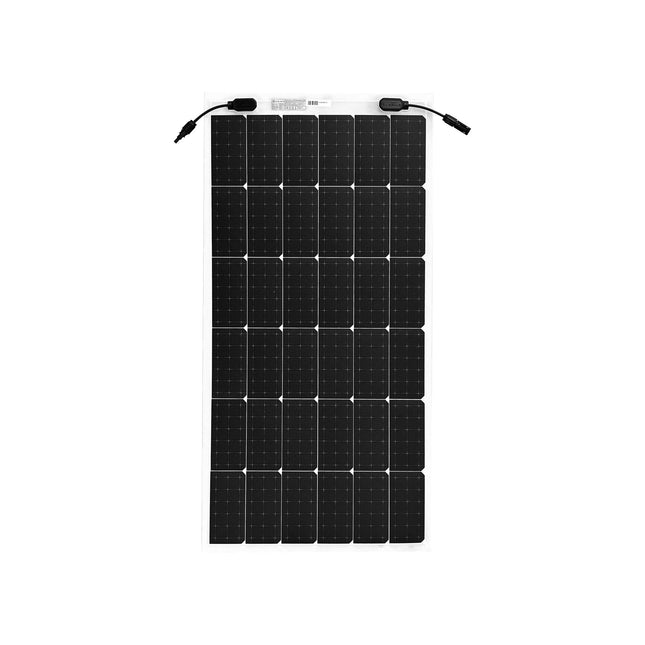

Experience Real Power with our 2024 12V/18V 100W Monocrystalline Semi-Flexible Solar Panel
10 Year Warranty
Key Features:
Grade A quality
Versatile application for vehicles (car, boat, motorcycle), home, outdoor activities, and more
Suitable for various battery types, including 12V lead-acid and lithium batteries
Semi-flexible design allows bending, folding, and easy installation
Highly efficient 18V output for safe and stable charging

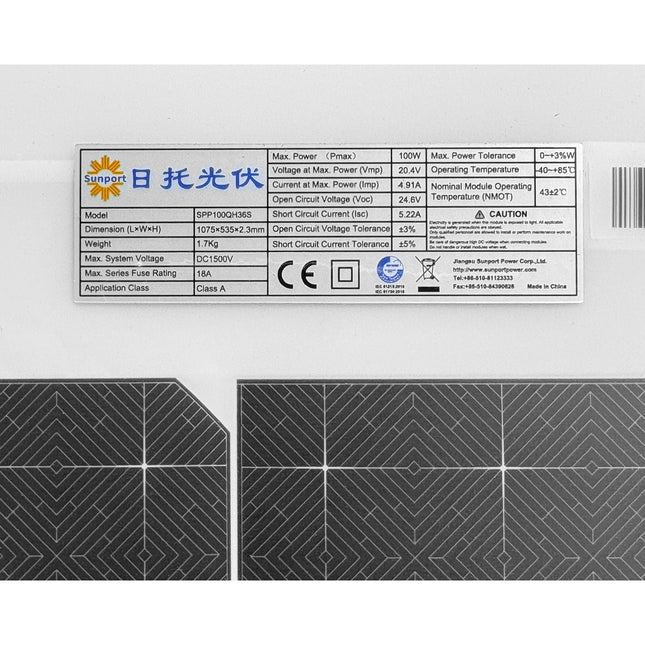

Model: SPP100QH36S
Max Power(Pmax): 100W
Voltage at Max Power(Vmp): 20.4V
Current at Max Power(Imp): 4.91A
Open Circuit Voltage(Voc): 24.6V
Short Circuit Current(Isc): 5.22A
Open Circuit Voltage Tolerance: +-3%
Short Circuit Current Tolerance: +-5%
Dimension: 1075 x 535 x 2.3mm
Weight: 1.7kg
Max System Voltage: DC1500V
Max Series Fuse Rating: 18A
Application Class: Class A
Package Includes:
1x 100W Flexible Solar Panel
2x MC4 Ports
Our solar panel offers high efficiency, flexibility, and durability, making it an ideal companion for various outdoor activities, travel, and camping. With its ability to charge different types of batteries and easy installation on irregular surfaces, this solar panel ensures a reliable and eco-friendly power supply wherever you go.
