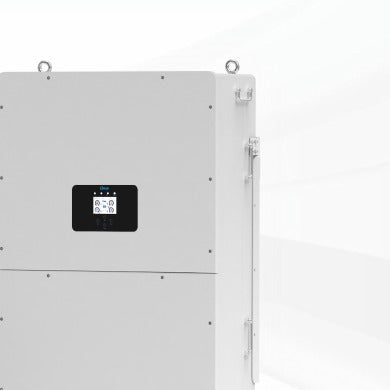

The Deye SUN-125K-SG02HP3-AU-GM10 is a 125kW three-phase high-voltage hybrid inverter developed for large commercial and industrial solar-plus-storage projects. Its ten independent MPPT trackers manage complex PV arrays while 250kW of PV access capacity, dual battery inputs and intelligent energy controls support high-demand sites, retrofits and resilient microgrid designs.
Product Highlights
125kW rated bidirectional AC input and output power
Ten MPPT trackers with twenty PV string inputs provide granular control across large or multi-orientation arrays
Up to 250kW PV access capacity and 200kW maximum PV input power
160-1000V high-voltage battery range reduces current and cable requirements
Two independent battery inputs support flexible storage-bank configuration
Maximum efficiency of 98.7% and MPPT efficiency above 99%
System Benefits and Applications
Suitable for commercial buildings, industrial sites, agricultural facilities and large distributed-energy projects
AC coupling supports retrofit installation alongside an existing solar inverter system
Up to ten inverter units can operate in parallel for on-grid and off-grid expansion
Multiple batteries can operate in parallel for scalable storage capacity
Six programmable battery charge and discharge periods support tariff optimisation and peak management
Diesel-generator energy storage support improves resilience at remote or critical sites
Key Features
Maximum 200A battery charging and discharging current
Self-adapting LiFePO4 battery control through the connected BMS
1.5 times rated off-grid peak power for 10 seconds
250A continuous AC passthrough from grid to load
LCD and LED interface with optional GPRS, Wi-Fi, Bluetooth, 4G and LAN monitoring
RS485, RS232 and CAN communication
IP65 enclosure with intelligent air cooling
Type II surge protection on both DC and AC sides
Integrated electrical, thermal, anti-islanding, insulation and residual-current protection
Specifications
Model / SKU: SUN-125K-SG02HP3-AU-GM10
Rated AC input/output active power: 125kW
Maximum PV access power: 250kW
Maximum PV input power: 200kW
Maximum PV input voltage: 1000V
PV start-up voltage: 180V
MPPT voltage range: 150-850V
Rated PV input voltage: 650V
MPPT trackers / strings: 10 / 20
Maximum operating PV input current: 42A x 10
Maximum PV short-circuit input current: 63A x 10
Battery type: LiFePO4
Battery voltage range: 160-1000V
Maximum charge/discharge current: 200A
Number of battery inputs: 2
Rated AC current: 181.2A
Rated AC voltage: 230/400V or 240/415V, 3L+N+PE
Maximum efficiency: 98.7%
Euro efficiency: 98.1%
Operating temperature: -40°C to 60°C; derating above 45°C
Maximum operating altitude: 3,000m
Noise level: no more than 65dB
Ingress protection: IP65
Dimensions excluding connectors and brackets: 734 x 1091 x 344mm
Actual product weight: 161.7kg
Grid regulation: AS/NZS 4777.2
Warranty
10-year warranty.

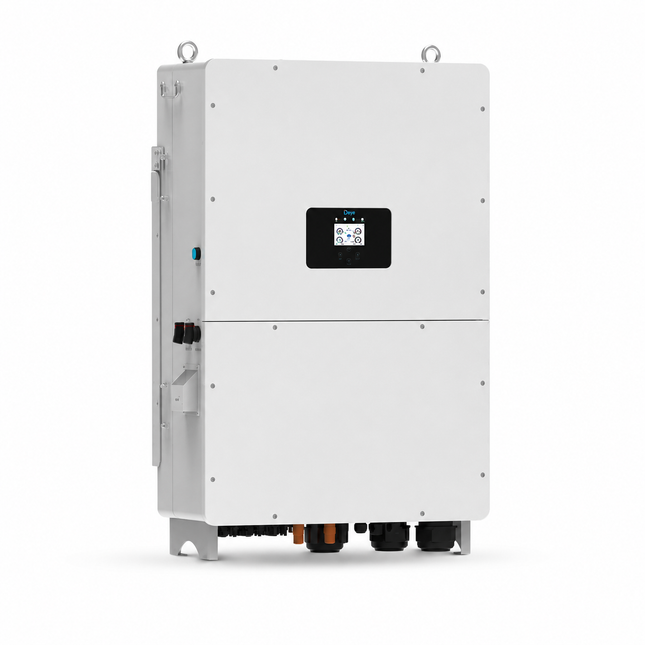

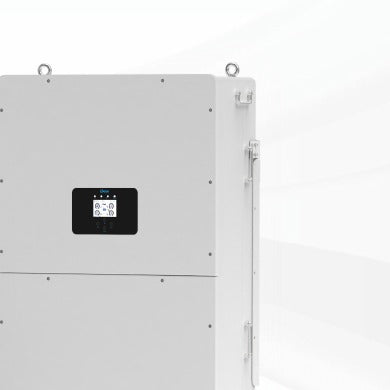

The Deye SUN-100K-SG02HP3-AU-GM8 is a 100kW three-phase high-voltage hybrid inverter for large commercial and industrial solar-storage projects. Its 8-MPPT architecture and 200kW PV access rating clearly position it within the GM series for projects requiring high solar input density and flexible battery integration.
Product Highlights
100kW rated bidirectional AC power for high-demand C&I systems
8 MPPT trackers provide granular control across complex rooftop or ground-mount arrays
Up to 200kW PV access capacity and 160kW maximum PV input
High-voltage 160-1000V battery input reduces current and cable requirements
System Benefits & Applications
AC coupling supports retrofit of existing PV plants
Up to 10 units can operate in parallel for on-grid and off-grid expansion
Six programmable operating periods support tariff and demand management
Diesel-generator integration adds resilience for remote or critical sites
Key Features
Two independent battery inputs
Maximum efficiency up to 98.7%
IP65 enclosure with intelligent air cooling
High-current PV string inputs and 1000V maximum PV voltage
Comprehensive DC and AC protection
Specifications
Model / SKU: SUN-100K-SG02HP3-AU-GM8
Rated AC input/output power: 100kW
Number of MPPT trackers: 8
Maximum PV access power: 200kW
Maximum PV input power: 160kW
Maximum PV input voltage: 1000V
MPPT voltage range: 150-850V
Battery voltage range: 160-1000V
Dimensions: 734 x 1091 x 344mm
Actual weight: 161.7kg
Warranty
10-year warranty.
**Solar Panel Warranty: Manufacturer warranty applies to the supplied JA Solar 460W panel model**
**Inverter Warranty: 10 Years Warranty**
**Battery Warranty: 15 Years Warranty**
Introducing an exceptional Smart Hybrid system that showcases the latest JA Solar 460W Solar Panels and a Deye premium hybrid solar inverter system.
Package Includes:
22 x JA Solar 460W Solar Panel

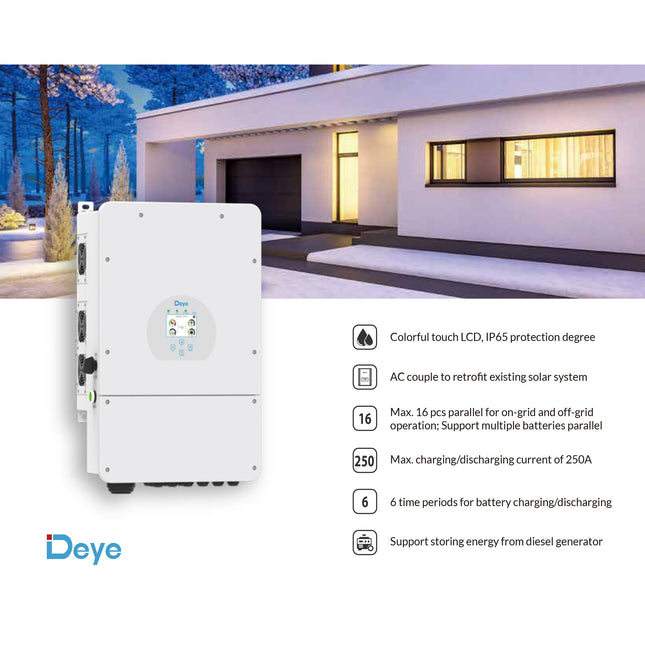

1 x Deye 10kW Single Phase 3 MPPT Hybrid Inverter SUN-10K-SG02LP1-AU (10 Years Warranty)
1 x Micromall 48V 51.2V 200Ah 210Ah LiFePO4 Battery with 6000 cycle times (15 Years Warranty, 30-year run life)
1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors
1 x PV Fuses
1 x PV Circuit Breaker
1 x Surge Protector
1 x Safety Switchboard
22 x Mounting Rail System
1 x Solar PV + Battery Label Kit
This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.
Model: SUN-10K-SG02LP1-AU
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 220
Max. Discharging Current (A): 220
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 9999
Max. AC Input/Output Apparent Power (VA): 9999
AC Output Rated Current (A): 43.5
**Vector Approved Inverter**
**DEYE New Zealand Distributor**

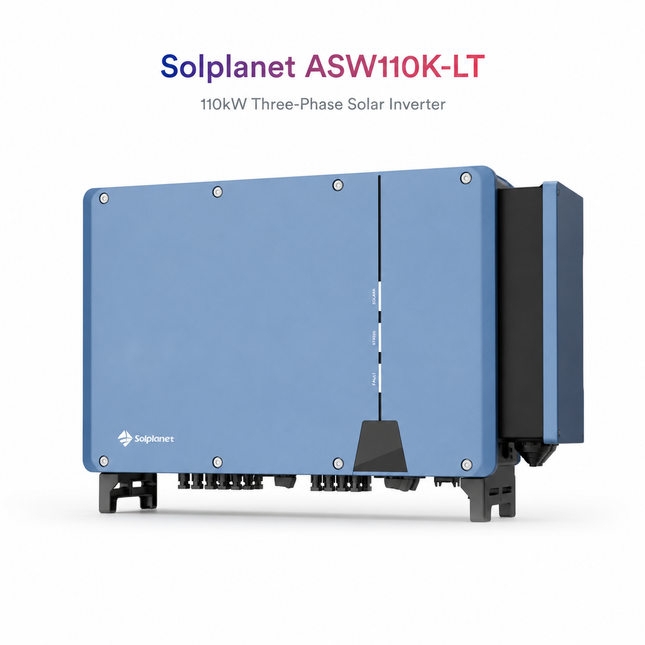

The Solplanet ASW110K-LT is a high-performance 110kW three-phase solar inverter designed for commercial and large-scale photovoltaic installations.
Featuring 10 independent MPPT inputs with two strings per MPPT, the ASW110K-LT provides flexible PV array design and improved energy yield. Each MPPT supports up to 32A operating input current, making the inverter suitable for modern high-current, bifacial and large-area PV modules.
With a maximum efficiency of 98.6%, IP66 protection and integrated Type II AC and DC surge protection, the ASW110K-LT is designed for reliable indoor and outdoor operation.
Key Features
110kW rated three-phase AC output
Maximum PV array power up to 165kWp
10 independent MPPTs with 2 strings per MPPT
32A maximum operating input current per MPPT
Maximum efficiency up to 98.6%
European efficiency up to 98.4%
ShadeSol technology for improved generation under non-ideal conditions
IP66 protection for indoor and outdoor installation
Type II AC and DC surge protection
Fuse-free design
24/7 system monitoring
Smart setup, commissioning and monitoring via Solplanet App
String-level management
RS485, Wi-Fi and LAN communication
Optional 4G communication
Modbus-SunSpec protocol support
10-Year Warranty
Specifications
Model: ASW110K-LTRated Active Power: 110,000WRated Apparent Power: 110,000VAMaximum Apparent Power: 121,000VA
DC Input
Maximum PV Array Power: 165,000Wp STCMaximum DC Input Voltage: 1100VMPP Voltage Range: 200–1000VRated Input Voltage: 630VMinimum Input Voltage: 200VInitial Feed-in Voltage: 250VMaximum Operating Input Current: 32A per MPPTMaximum Short-Circuit Current: 48AMPPTs / Strings per MPPT: 10 / 2
AC Output
AC Nominal Voltage: 220V / 380V, 230V / 400VAC Voltage Range: 312–528VGrid Frequency: 50Hz / 60Hz50Hz Operating Range: 45–55Hz60Hz Operating Range: 55–65HzNominal Output Current: 158.8AMaximum Output Current: 174.7APower Factor Range: 0.8 Leading to 0.8 LaggingFeed-in Phases: 3 / 3-N-PETHD at Rated Output: <3%
Efficiency
Maximum Efficiency: 98.6%European Efficiency: 98.4%
Protection
DC Surge Protection: Type IIAC Surge Protection: Type IIAnti-Islanding Protection: YesDC Reverse Polarity Protection: YesAC Short-Circuit Protection: YesAC Overcurrent Protection: YesResidual Current Monitoring: YesAFCI: Optional
General Data
Dimensions (W × H × D): 984 × 640 × 330mmWeight: 86kgOperating Temperature: -25°C to +60°CNight Self-Consumption: <3WCooling: Active CoolingProtection Rating: IP66Maximum Operating Altitude: 4000mMaximum Relative Humidity: 100% Non-condensing
Communication
Communication: RS485 / Wi-Fi / LAN / Optional 4GProtocol: Modbus-SunSpec
Certificates & Approvals
CE, IEC 62109-1/2, IEC 61727, IEC 62116, IEC 61683, EN50549-1/2, VDE4105

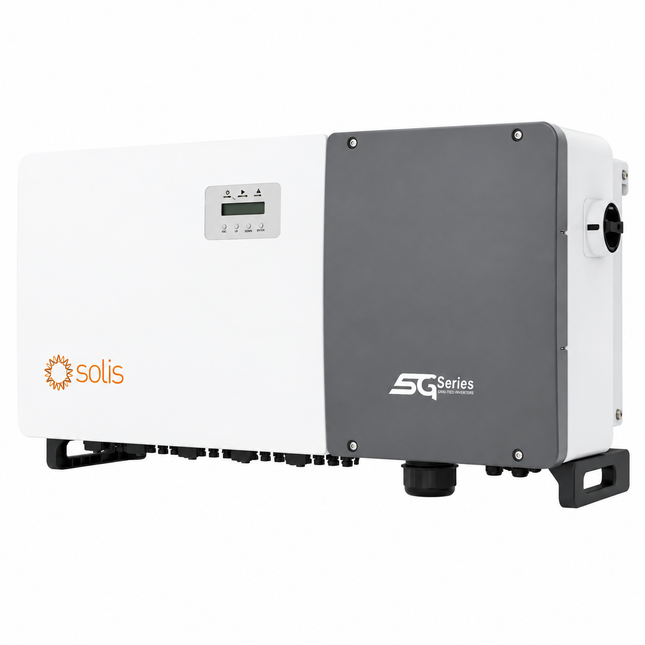

The Solis S5-GC110K-AU is a 110kW three-phase grid-tied string inverter for commercial solar PV systems. It supports 10 MPPTs and up to 20 input strings, with IP66 protection and intelligent fan cooling. This listing is for one inverter; solar panels and batteries are not included.
Key features
10 MPPTs with up to 32 A input current per MPPT
Integrated DC switch; optional AC switch
String monitoring and smart I-V curve scanning
Night SVG function and remote firmware upgrades
Optional AFCI 2.0, PID recovery and PLC communication
RS485 communication; optional Wi-Fi and GPRS

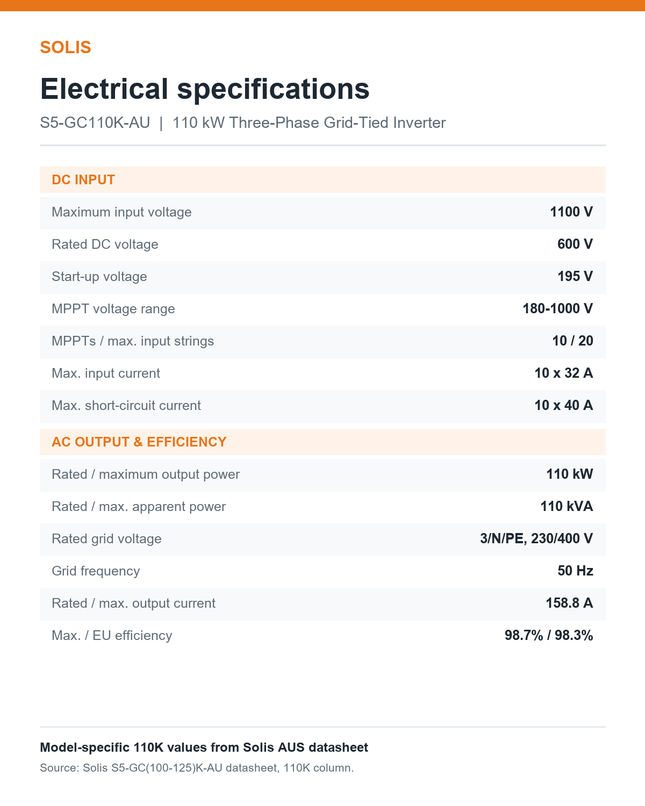

Technical specifications
Model: S5-GC110K-AU
Rated AC output: 110 kW / 110 kVA, three-phase 230/400 V, 50 Hz
Rated grid output current: 158.8 A
Maximum DC input voltage: 1100 V
MPPT voltage range: 180-1000 V
MPPTs / maximum input strings: 10 / 20
Maximum input current: 10 x 32 A
Maximum efficiency: 98.7%
Ingress protection: IP66
Dimensions (W x H x D): 1065 x 567 x 344.5 mm
Actual weight: 91 kg
Installation and grid connection must follow the manufacturer's manual and applicable local requirements. Optional functions and accessories are not included unless separately specified.
Downloads
Download Solis S5-GC110K-AU Datasheet (PDF)
Download Solis S5-GC110K-AU User Manual (PDF)
Certificates
Download S5-GC110K-AU Certificate of Conformity / Approval (PDF)
Download S5-GC110K-AU Certificate of Suitability (PDF)
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

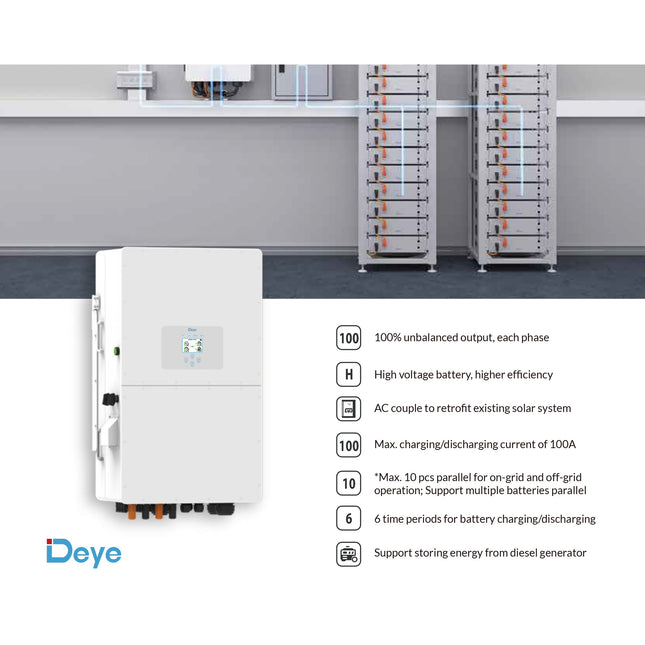

SUN-50K-SG01HP3-AU-BM4 | 50kW | Three Phase | 4 MPPT | Hybrid Inverter | HV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output；each phase
AC couple to retrofifit existing solar system
*Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-50K-SG01HP3-AU-BM4
Battery Input Data
Battery Type: LiFePO4
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Input: 2
PV String Input Data
Max. PV Input Power (W): 75000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 36+36+36+36
Max. Input Short-Circuit Current (A): 55+55+55+55
No. of MPP Trackers/No. of Strings MPP Tracker: 4/2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W): 50000
Max. AC Input/Output Apparent Power (VA): 50000
Rated AC Input/Output Current (A): 72.5
Max. AC Input/Output Current (A): 72.5
Max. Continuous AC Passthrough (grid to load) (A): 200
Peak Power (off-grid) (W): 1.5 times of rated power, 10s
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Cabinet Size (WxHxD mm): 527×894×294 (Excluding Connectors and Brackets)
Weight (kg): 80
Vector Approved InverterDeye New Zealand Distributor - Micromall Solar10-Year Warranty
The Deye SUN-30K-SG01HP3-AU-BM3 is a 30kW three-phase hybrid inverter for high-voltage lithium-ion battery systems. It provides three MPPT trackers, dual battery inputs and support for on-grid and off-grid operation.
Key features
High-voltage battery design for higher system efficiency
AC coupling for retrofitting an existing solar system
Up to 10 inverters in parallel for on-grid and off-grid operation
Supports multiple batteries in parallel
Six configurable battery charging and discharging time periods
Maximum combined charging/discharging current: 100A (50A + 50A)
Supports energy storage from a diesel generator
Technical specifications
Model: SUN-30K-SG01HP3-AU-BM3
Battery input
Battery type: Lithium-ion
Battery voltage range: 160-800V
Maximum charging/discharging current: 50A + 50A
Battery inputs: 2
Charging strategy: Self-adaption to BMS
PV input
Maximum PV access power: 60,000W
Maximum PV input power: 45,000W
Maximum PV input voltage: 1,000V
Start-up voltage: 180V
MPPT voltage range: 150-850V
Rated PV input voltage: 600V
Maximum operating PV input current: 36A + 36A + 36A
Maximum input short-circuit current: 55A + 55A + 55A
MPPT trackers / strings per tracker: 3 / 2 + 2 + 2
AC input/output
Rated active power: 30,000W
Rated/maximum apparent power: 30,000VA
Rated/maximum current: 43.5A
Maximum continuous AC passthrough (grid to load): 200A
Off-grid peak power: 1.5 times rated power for 10 seconds
Rated voltage: 230/400V or 240/415V, 3L + N + PE
Rated frequency/range: 50Hz / 45-55Hz
Power factor adjustment: 0.8 leading to 0.8 lagging
Total current harmonic distortion: <3% at nominal power
Efficiency and general data
Maximum efficiency: 97.6%
European efficiency: 97.0%
MPPT efficiency: >99%
Ingress protection: IP65
Dimensions (W × H × D): 527 × 894 × 294mm, excluding connectors and brackets
Actual weight: 80 kg
Operating temperature: -40°C to +60°C, derating above 45°C
Permissible humidity: 0-100%
Permissible altitude: 2,000m
Noise: ≤65dB
Cooling: Intelligent air cooling
Display and communications: LCD; Wi-Fi, RS485 and CAN
Surge protection: Type II (DC), Type II (AC)
Grid regulation: AS/NZS 4777.2
Warranty: 10 years
Installation and grid connection must follow the manufacturer's instructions and applicable local requirements.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-29.9K-SG01HP3-AU-BM3 | 29.9kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase
High voltage battery, higher efficiency
AC couple to retrofit existing solar system
Max. charging/discharging current of 100A
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-29.9K-SG01HP3-AU-BM3
Battery Input Data
Battery Type: LiFePO4
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 2
PV String Input Data
Max. DC Input Power (W): 44850
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Range (V): 150-850
Rated PV Input Voltage (V): 600
PV Input Current (A): 36+36+36
No.of MPP Trackers: 3
No.of Strings per MPP Tracker: 2+2+2
AC Output Data
Rated AC Output and UPS Power (W): 29900
Rated Apparent Output Power (VA): 29900
AC Output Rated Current (A): 43.4
Max. AC Output Current (A): 43.4
Max. Continuous AC Passthrough (A): 200
Peak Power (Off Grid): 1.5 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 80
Cabinet size (mm): 527W×894H×294D (Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**10-Year Warranty**

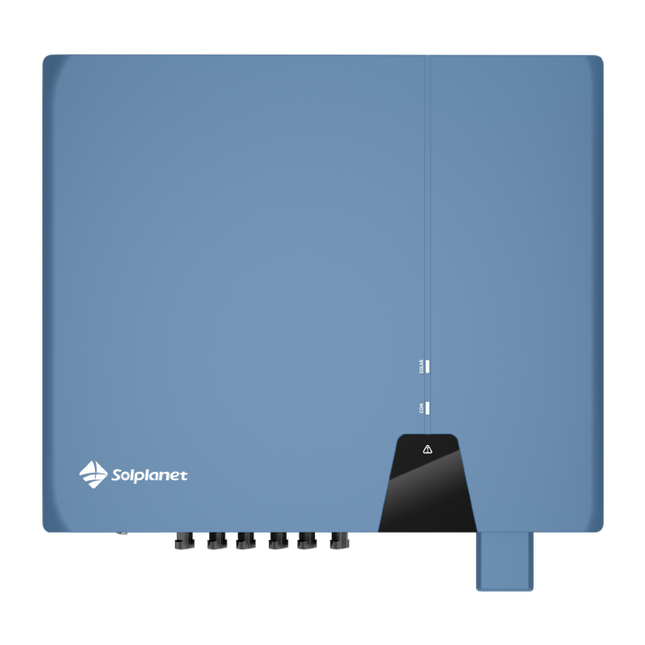

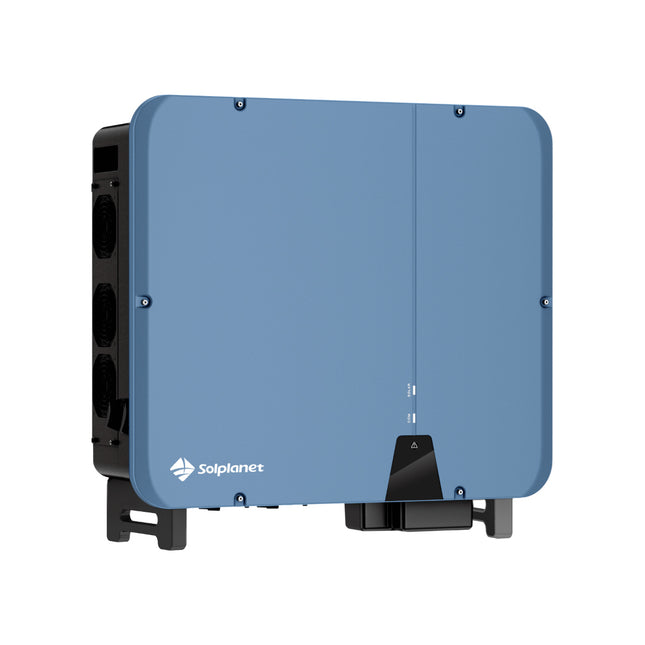

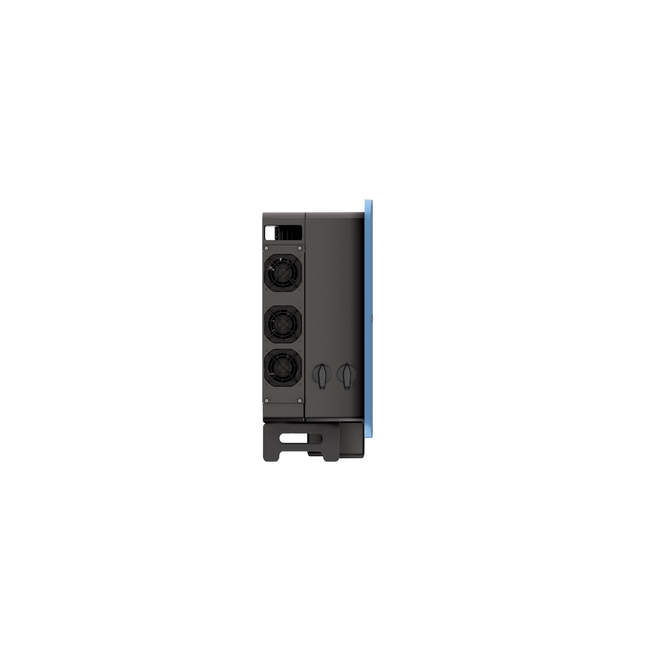

ASW50K-LT-G3 | 50kW | Three Phase | 5 MPPT | string Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
Easy-to-install
Features Phoenix Contact connectors for reliable, tool-free DC connections, a compact wall-mount design, and a fuse-free architecture to reduce BOS costs. Setup, commissioning, and monitoring are streamlined via the Solplanet app
Higher Yields
Supports 150% PV array oversizing for greater energy yields, with up to 5 MPPTs for flexible system design. Handles up to 20 A input per string—ideal for bifacial and large-area PV modules—and includes ShadeSol for improved performance in shaded conditions.
Reliable & Safe
Built-in Type II AC & DC surge protection with integrated DC switches and an IP66-rated design for reliable outdoor use.
Technical Datasheet
Input (DC)
Max. PV array power: 75000 Wp STC
Max. input voltage: 1100V
MPP voltage range / rated input voltage: 200 V - 1000 V / 630 V
Min. input voltage: 200V
Initial. feed-in voltage: 250V
Max. operating input current: 40 A / 32 A / 32 A / 40 A / 32 A
Max. short circuit current: 60 A / 48 A / 48 A / 60 A / 48 A
No. of independent MPPT inputs / strings per MPPT input: 5/2
Output (AC)
Rated active power: 50000 W
Rated apparent power: 50000 VA
Max. apparent power: 50000 VA
AC nominal voltage: 220 V / 380 V 230 V / 400 V
AC voltage range: 180 V to 305 V / 312 V to 528 V
AC grid frequency / range: 50 Hz / 45 Hz to 55 Hz, 60 Hz / 55 Hz to 65 Hz
Max. output current: 83.6A
Adjustable power factor range: 0.8 leading to 0.8 lagging
General data
Dimensions (W / H / D): 670 / 640 / 270 mm
Weight: 42.5kg
Degree of protection (according to IEC 60529): IP66
Relative humidity (non-condensing): 100%
Climatic category (according to IEC 60721-3-4): 4K4H
Max. operating altitude: 4000m
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

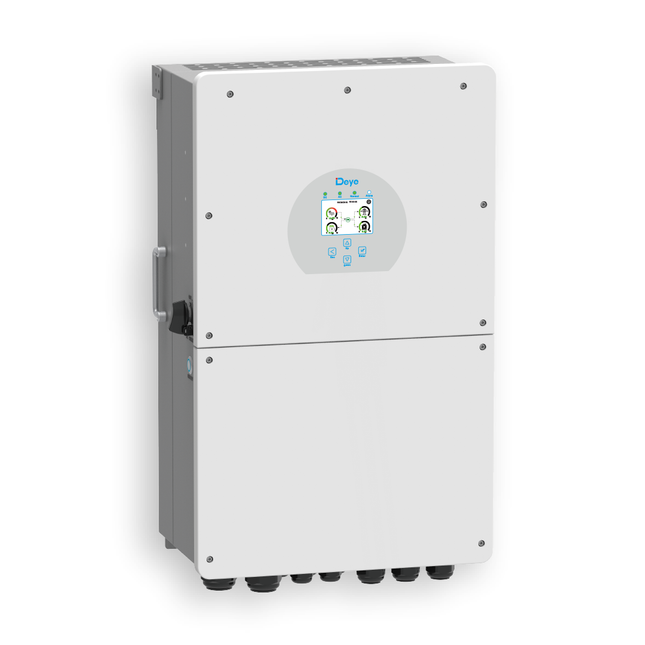

SUN-14K-SG01LP1-AU | 14kW | Single Phase | 3 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
Colorful touch LCD, IP65 protection degree.
AC couple to retrofit existing solar system.
Max.16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.
Max. charging/discharging current of 290A.
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-14K-SG01LP1-AU
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 250
Max. Discharging Current (A): 250
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 21000
Rated PV Input Voltage (V):500
Start-up Voltage (V): 125
MPPT Voltage Range (V):150-425
Rated DC Input Voltage(V):370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 14000
Max AC Output Active Power (W): 14000
AC Output Rated Current (A): 60.9
Max. AC Output Current (A): 60.9
Max. Continuous AC Passthrough (A):100
Peak Power (off grid): 2 time of rated power, 10 S
Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
Efficiency:
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg):48
Cabinet size (mm): 464W x 763H x282D(Excluding connectors and brackets)
Protection Degree: IP65
Grid Regulation: AS/NZS 4777.2
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

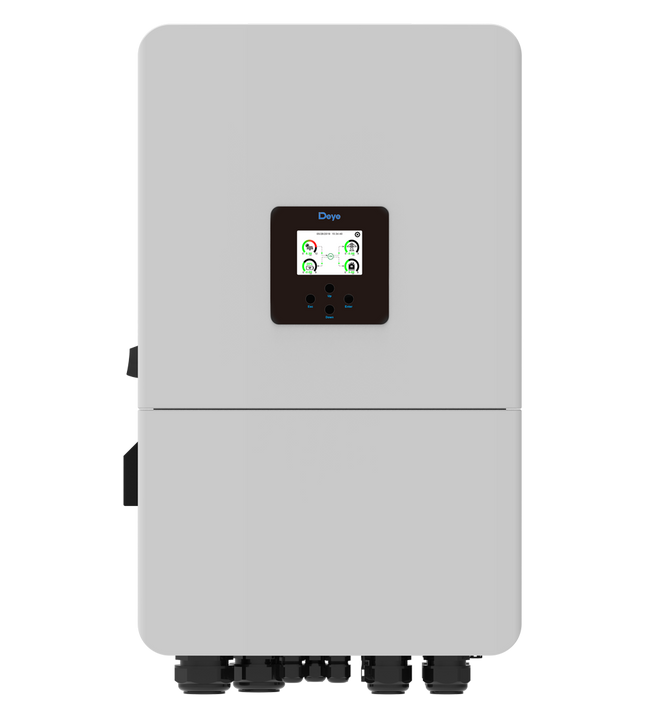

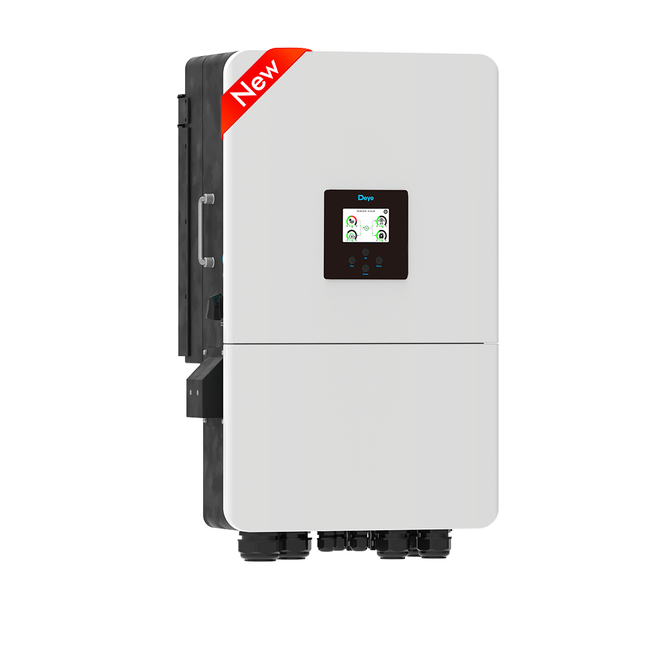

SUN-20K-SG05LP3-AU-SM2 | 20kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
Support storing energy from diesel generator
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Model: SUN-20K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 350
Max. Discharging Current (A): 350
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 30000
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Range (V): 160-650
Rated PV Input Voltage (V): 550
Max. Operating PV Input Current (A): 36+36
No.of MPP Trackers: 2
No.of Strings per MPP Tracker: 2+2
AC Output Data
Rated AC Output and UPS Power (W): 20000
Rated Apparent Output Power (VA): 20000
AC Output Rated Current (A): 29
Max. AC Output Current (A): 29
Max. Continuous AC Passthrough (A): 70
Peak Power (Off Grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 50.6
Cabinet size (mm): 456W×750H×268.5D (Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

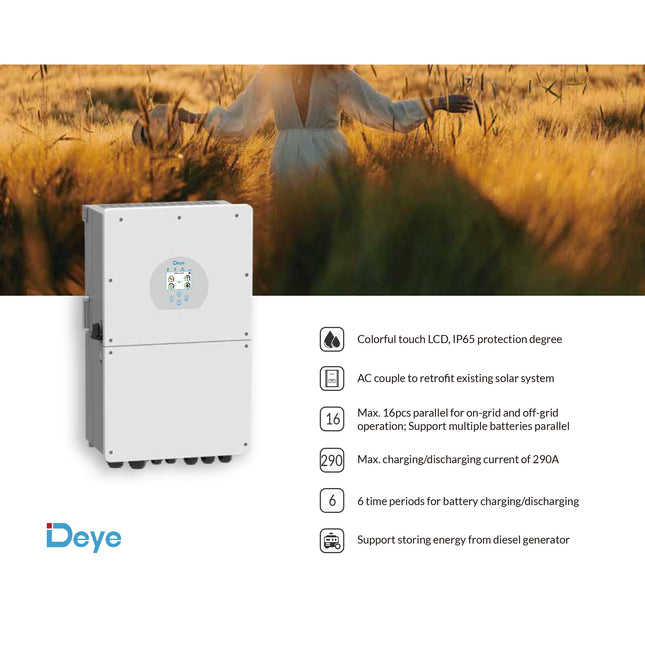

SUN-16K-SG01LP1-AU | 16kW | Single Phase | 3 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Colorful touch LCD, IP65 protection degree
6 time periods for battery charging/discharging
Max. charging/discharging current of 290A
Support storing energy from diesel generator
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Model: SUN-16K-SG01LP1-AU
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 290
Max. Discharging Current (A): 290
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 24000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 16000
Max AC Output Active Power (W): 16000
AC Output Rated Current (A): 69.6
Max. AC Output Current (A): 69.6
Max. Continuous AC Passthrough (A): 100
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 48
Cabinet size (mm): 464W x 763H x282D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

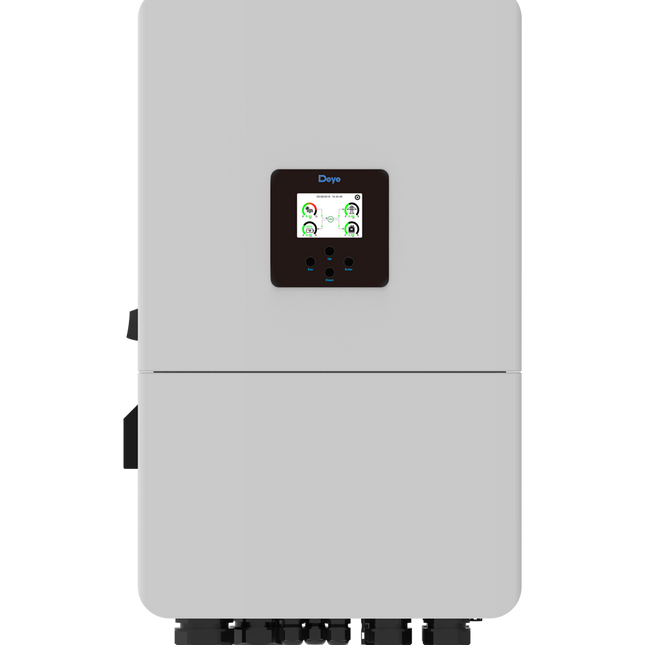

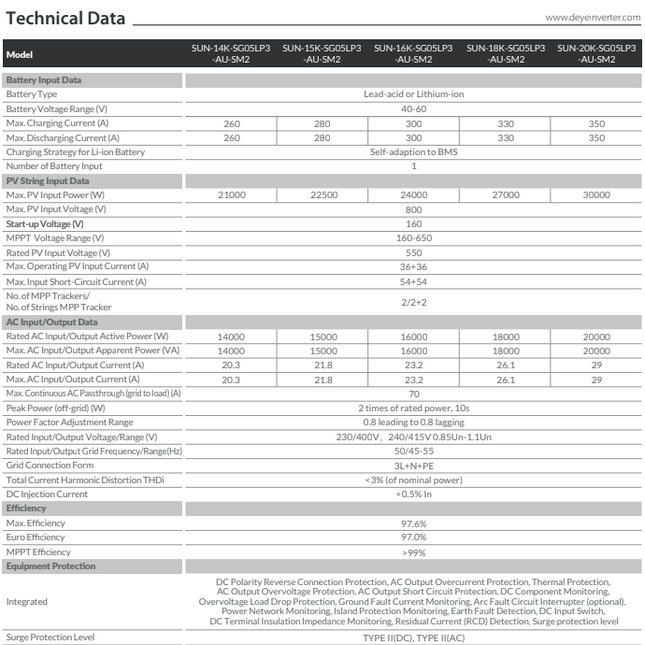

SUN-15K-SG05LP3-AU-SM2 | 15kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
Support storing energy from diesel generator
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Model: SUN-15K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 280
Max. Discharging Current (A): 280
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 22500
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Range (V): 160-650
Rated PV Input Voltage (V): 550
Max. Operating PV Input Current (A): 36+36
No.of MPP Trackers: 2
No.of Strings per MPP Tracker: 2+2
AC Output Data
Rated AC Output and UPS Power (W): 15000
Rated Apparent Output Power (VA): 15000
AC Output Rated Current (A): 21.8
Max. AC Output Current (A): 21.8
Max. Continuous AC Passthrough (A): 70
Peak Power (Off Grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 50.6
Cabinet size (mm): 456W×750H×268.5D (Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-25K-SG01HP3-AU-AM2 | 25kW | Three Phase | 2 MPPT
Hybrid Inverter | High-Voltage Battery Supported
Smart Monitoring Platform
Through Deye’s smart monitoring platform, the inverter supports remote monitoring, parameter configuration, firmware updates and remote shutdown when required, making system operation and maintenance easier and more efficient.
100% unbalanced three-phase output
AC coupling for retrofitting existing solar systems
Maximum 16 units in parallel for on-grid and off-grid operation
Supports multiple batteries in parallel
Maximum charging and discharging current of 50A
High-voltage battery support for improved system efficiency
Six programmable battery charging and discharging periods
Supports energy storage from a diesel generator
Model: SUN-25K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: LiFePO4
Battery Voltage Range (V): 160–700
Max. Charging Current (A): 50
Max. Discharging Current (A): 50
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Inputs: 1
PV String Input Data
Max. PV Access Power (kW): 50
Max. PV Input Power (kW): 40
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150–850
Rated PV Input Voltage (V): 700
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings per MPP Tracker: 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (kW): 25
Max. AC Input/Output Apparent Power (kVA): 27.5
Rated AC Input/Output Current (A): 37.9/36.3
Max. AC Input/Output Current (A): 41.7/39.9
Max. Continuous AC Passthrough – Grid to Load (A): 80
Peak Off-Grid Power: 1.5 Times Rated Power for 10 Seconds
Grid Connection: 3L+N+PE
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Operating Temperature Range: -40°C to +60°C, Derating Above 45°C
Ingress Protection Rating: IP65
Noise Level: ≤55dB
Cooling: Intelligent Air Cooling
Communication Interface: Wi-Fi, RS485 and CAN
Cabinet Size (mm): 408W × 638H × 237D
(Excluding Connectors and Brackets)
Weight (kg): 30.5
Warranty: 10 Years
Grid Regulation: AS/NZS 4777.2
Safety/EMC Standards: IEC/EN 61000-6-1/2/3/4,
IEC/EN 62109-1 and IEC/EN 62109-2
**Vector Approved Inverter**
**10-Year Warranty**

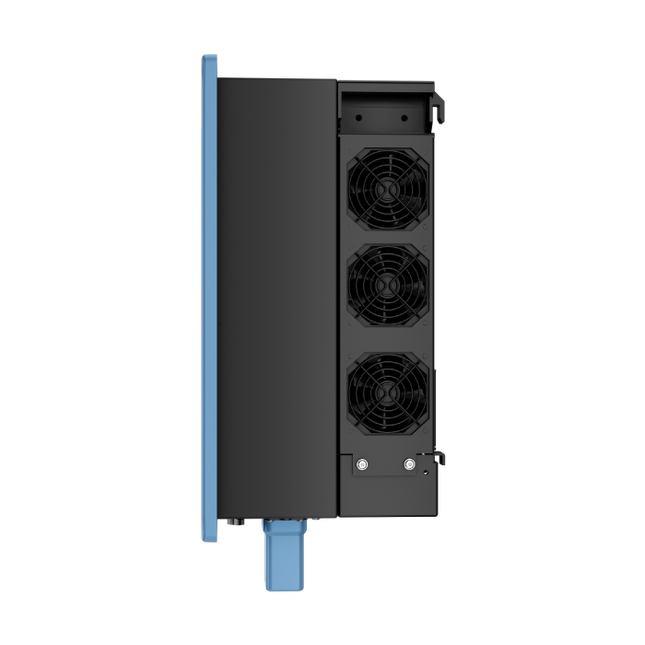

ASW30K-LT-G3 | 30kW | Three Phase | 3 MPPT | string Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
Easy-to-install
Quick to install with basic tools, featuring a compact wall-mount design and fast setup and commissioning via Solplanet apps.
Reliable
Complies with international quality standards, supports 150% PV array oversizing for higher energy yields, and features an IP66-rated design for dependable outdoor use.
User-friendly
Supports 20 A input current—ideal for bifacial and large-area PV modules—with 3 MPPTs for flexible system design. A wide MPP voltage range (180V–1000V) and ShadeSol technology ensure optimal performance, even in shaded conditions.
Technical Datasheet
Input (DC)
Max. PV array power: 45000 Wp STC
Max. input voltage: 1100V
MPP voltage range / rated input voltage: 180 V - 1000 V / 630 V
Min. input voltage: 160V
Initial. feed-in voltage: 200V
Max. operating input current: 32A / 32 A /32A
Max. short circuit current: 48 A / 48A /48A
No. of independent MPPT inputs / strings per MPPT input: 3 / A:2;B:2;C:2
Output (AC)
Rated active power: 30000W
Rated apparent power: 30000 VA
Max. apparent power: 30000 VA
AC nominal voltage: 220 V / 380 V, 230 V / 400 V, 240 V / 415 V
AC voltage range: 180 V to 305 V / 312 V to 528V
AC grid frequency / range: 50 Hz / 45 Hz to 55 Hz, 60 Hz / 55 Hz to 65 Hz
Max. output current: 47.8A
Adjustable power factor range: 0.8 leading to 0.8 lagging
Feed-in phases: 3 / 3-N-PE
Harmonic distortion (THD) at rated output: < 3%
General data
Dimensions (W / H / D): 543 / 520 / 235 mm
Weight: 29kg
Self-consumption (at night): < 1 W
Topology: Non-isolated
Cooling concept: Active cooling
Degree of protection (according to IEC 60529): IP66
Climatic category (according to IEC 60721-3-4): 4K4H
Max. operating altitude: 3000 m
**Vector Approved Inverter**
**10-Year Warranty**

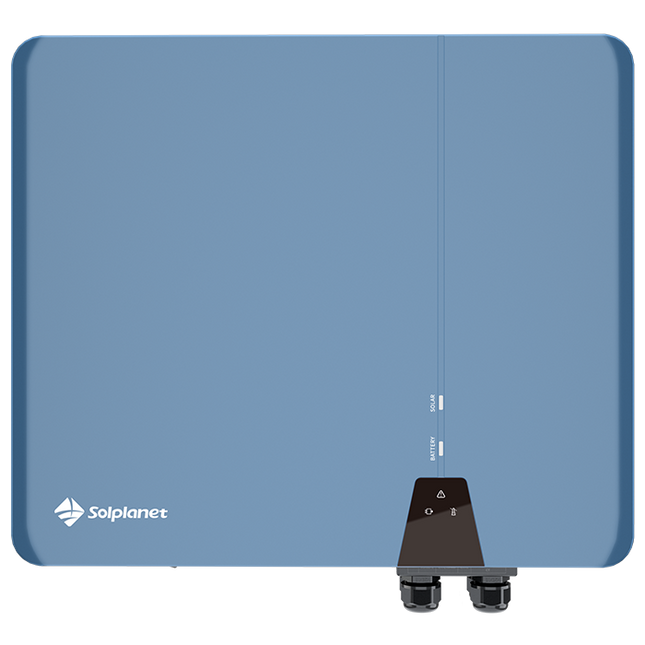

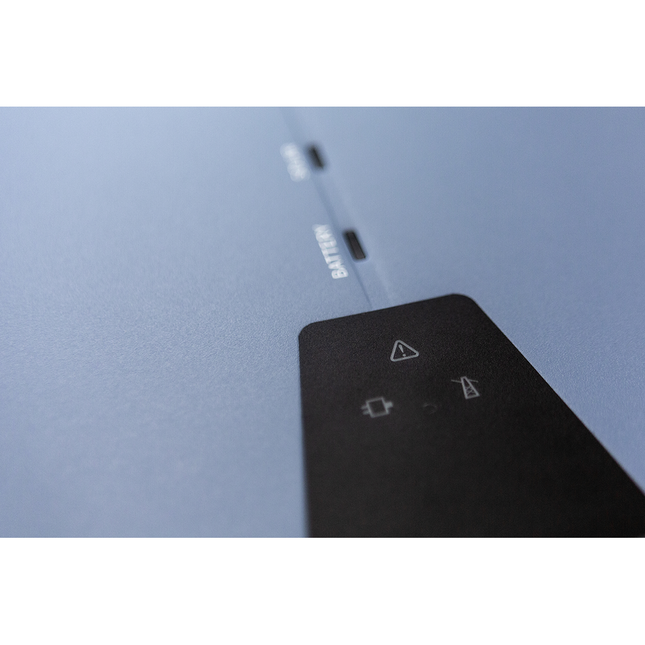

ASW10KH-T3 | 10kW | Three Phase | 3 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
Easy-to-install
Quick and easy to install using basic tools, the compact wall-mount design features simple battery and smart meter interfaces for faster installation.
Reliable
Designed for maximum performance, it supports up to 150% PV array oversizing for higher yields, delivers 100% unbalanced three-phase AC output, ensures UPS-level switching times of under 10 ms, and features an IP66-rated enclosure for reliable outdoor use.
User-friendly
With 3 independent MPPTs for flexible, high-kWp PV design, the system supports easy setup and monitoring via the Solplanet app. Intelligent modes and customizable battery management (DOD, Time of Use, Power Settings) optimize energy use. Supports up to 16 A input—ideal for bifacial and large PV modules.
PV input
Max. PV array power: 1500Wp
Max. input voltage: 1100V
MPP voltage range / rated input voltage: 200 V to 950 V / 630 V
Min. input voltage / start voltage: 60V/180V
No. of independent MPPT trackers /strings per MPPT input: 3/1
Max. input current per MPP tracker: 16A
Max. short-circuit current per MPP tracker: 24A
Battery input
Battery voltage range: 120V to 600V
Max. charging / discharging power: 10000W
Max. charging current / Max. discharging current: 30A
Battery type: LiFePO4
AC output
AC voltage range / nominal AC voltage: 270 V to 480 V / 3/N/PE, 220 / 380 V; 230 / 400 V; 240 / 415 V
Rated AC grid frequency: 50 Hz / 60 Hz
AC grid frequency range: 45 ~ 55 Hz / 55 ~ 65 Hz
Rated apparent power: 10000VA
Max. apparent power: 10000VA
Rated grid output current (@400 V): 14.5A
Max. grid output current (@400 V): 16.0A
General data
Dimensions (W / H / D): 545 mm / 465 mm / 205 mm
Weight: 26kg
Degree of protection (as per IEC 60529): IP66

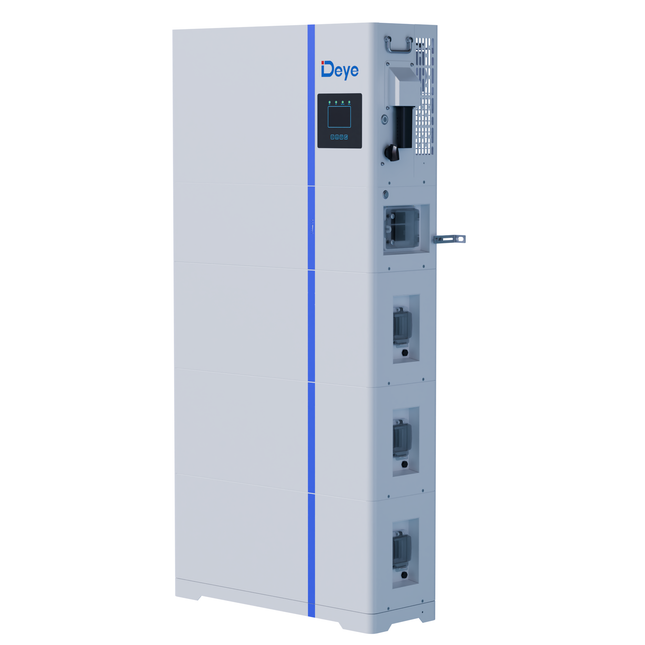

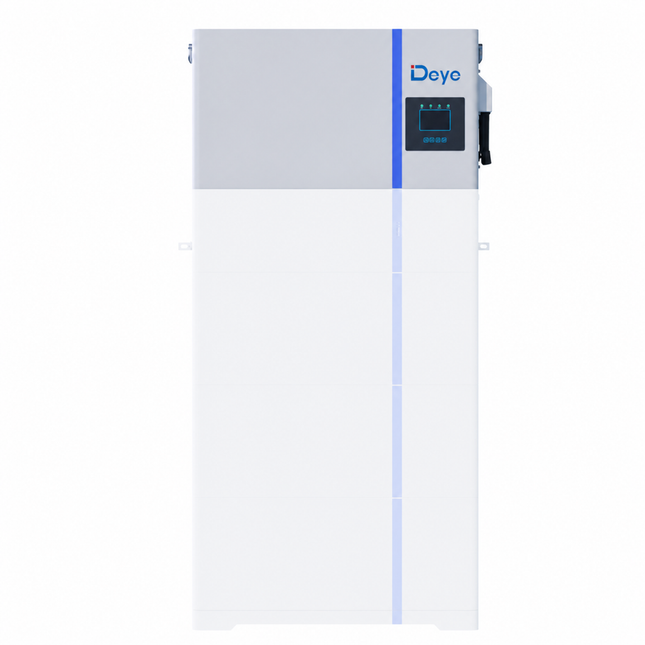

Deye 6kW Three Phase Hybrid All-in-One Energy Storage Inverter IP65
Important: This listing is for the inverter module only. It does not include the battery modules or the complete All-in-One energy storage system shown in the faded portion of the images.This Deye inverter features 2x rated power output for 10 seconds, quick and simple setup, one-click diagnostics via Deye Cloud, smart EMS with real-time monitoring, and IP65 protection for reliable long-term outdoor operation.Features
All-in-One: Hybrid inverter and LFP battery in one sleek system.
Smarter Energy Use: Peak-shaving, smart load, AC coupling, time of use.
Scalable Capacity: Modular design expandable from 5 kWh to 50 kWh.
Uninterrupted Supply: 4 ms seamless switchover from grid to back-up for energy security.
Effortless Installation: Tool-free stacking for quick and easy installation.
Smart Control: Convenient management via App, PC, or touch display.
Ideal ApplicationsSuitable for residential solar + storage systems in villas and single-family homes.For off-grid or weak-grid power supply in remote rural areas and islands.Enables retrofit and upgrade of old PV systems.Specifications
Operating Temperature Range: -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity: 0-100%
Permissible Altitude: 2000m
Noise: ≤ 55 dB
Ingress Protection(IP) Rating: IP65
Protection Level: Class I
Weight(kg): 39.75
Type of Cooling: Intelligent Air Cooling
Warranty: 10 years
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-20K-SG01HP3-AU-AM2 | 20kW | Three Phase | 2 MPPT | Hybrid Inverter | HV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 50A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-20K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: LiFePO4
Battery Voltage Range (V): 160-700
Max. Charging Current (A): 37
Max. Discharging Current (A): 37
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 30000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated DC Input Voltage(V): 600
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Data
Rated AC Output Active Power (W): 20000
Max AC Output Active Power (W): 20000
AC Output Rated Current (A): 29
Max. AC Output Current (A): 29
Max. Continuous AC Passthrough (grid to load) (A): 80
Peak Power (off grid): 1.5 times of rated power, 10s
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 30.5
Cabinet size (mm): 408W x 638H x237D(Excluding connectors and brackets)
Protection Degree: IP65

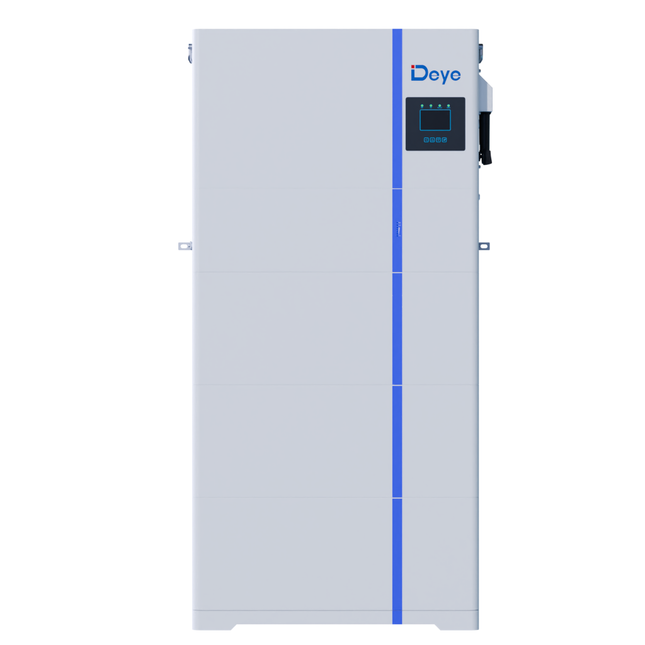

Deye 5kW Three Phase Hybrid All-in-One Energy Storage Inverter IP65
Important: This listing is for the inverter module only. It does not include the battery modules or the complete All-in-One energy storage system shown in the faded portion of the images.This Deye inverter features 2x rated power output for 10 seconds, quick and simple setup, one-click diagnostics via Deye Cloud, smart EMS with real-time monitoring, and IP65 protection for reliable long-term outdoor operation.Features
All-in-One: Hybrid inverter and LFP battery in one sleek system.
Smarter Energy Use: Peak-shaving, smart load, AC coupling, time of use.
Scalable Capacity: Modular design expandable from 5 kWh to 50 kWh.
Uninterrupted Supply: 4 ms seamless switchover from grid to back-up for energy security.
Effortless Installation: Tool-free stacking for quick and easy installation.
Smart Control: Convenient management via App, PC, or touch display.
Ideal ApplicationsSuitable for residential solar + storage systems in villas and single-family homes.For off-grid or weak-grid power supply in remote rural areas and islands.Enables retrofit and upgrade of old PV systems.Specifications
Operating Temperature Range: -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity: 0-100%
Permissible Altitude: 2000m
Noise: ≤ 55 dB
Ingress Protection(IP) Rating: IP65
Protection Level: Class I
Weight(kg): 39.75
Type of Cooling: Intelligent Air Cooling
Warranty: 10 years
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-12K-SG05LP3-AU-SM2 | 12kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Intuitive: 48V low voltage battery, transformer isolation design.
Intelligent: 6 time periods for battery charging/discharging.
Flexible: AC couple to retrofit existing solar system.
Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries paralle.
Reliable: Max. charging/discharging current of 240A.
Support storing energy from diesel generator.
100% unbalanced output, max. output up to 50% rated power for each phase.
Model: SUN-12K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging/Discharging Current (A): 240
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV access power(W): 24000
Max. PV Input Power (W): 18000
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated PV Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W): 12000
Max AC Input/Output Apparent Power (VA): 12000
Rated AC Input/Output Current (A): 17.4
Max. AC Input/Output Current (A): 17.4
Max. Continuous AC Passthrough (grid to load) (A): 45
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: > 99.0%
General Data
Weight (kg): 35.2
Cabinet size (mm): 386×660×250 (Excluding Connectors and Brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-12K-SG04LP3-AU | 12kW | Three Phase | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-12K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 240
Max. Discharging Current (A): 240
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 18000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+13
Max. Input Short-Circuit Current (A): 39+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 12000
Max AC Output Active Power (W): 12000
AC Output Rated Current (A): 17.4
Max. AC Output Current (A): 17.4
Max. Continuous AC Passthrough (A): 45
Peak Power (off grid): 2 time of rated power, 10 S

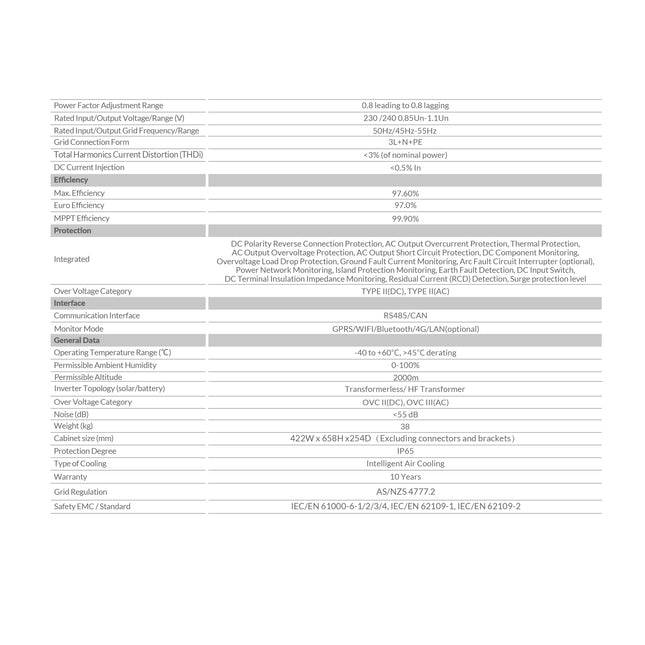

Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
Protection Degree: IP65
Deye 12kW Three Phase Hybrid All-in-One Energy Storage Inverter IP65
Important: This listing is for the inverter module only. It does not include the battery modules or the complete All-in-One energy storage system shown in the faded portion of the images.This Deye inverter features 2x rated power output for 10 seconds, quick and simple setup, one-click diagnostics via Deye Cloud, smart EMS with real-time monitoring, and IP65 protection for reliable long-term outdoor operation.Features
All-in-One: Hybrid inverter and LFP battery in one sleek system.
Smarter Energy Use: Peak-shaving, smart load, AC coupling, time of use.
Scalable Capacity: Modular design expandable from 5 kWh to 50 kWh.
Uninterrupted Supply: 4 ms seamless switchover from grid to back-up for energy security.
Effortless Installation: Tool-free stacking for quick and easy installation.
Smart Control: Convenient management via App, PC, or touch display.
Ideal ApplicationsSuitable for residential solar + storage systems in villas and single-family homes.For off-grid or weak-grid power supply in remote rural areas and islands.Enables retrofit and upgrade of old PV systems.Specifications
Operating Temperature Range: -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity: 0-100%
Permissible Altitude: 2000m
Noise: ≤ 55 dB
Ingress Protection(IP) Rating: IP65
Protection Level: Class I
Weight(kg): 39.75
Type of Cooling: Intelligent Air Cooling
Warranty: 10 years

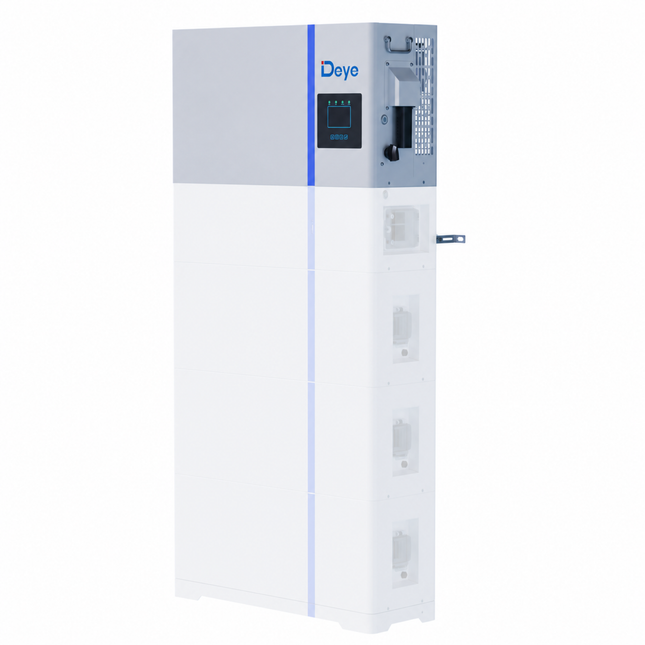

Deye 10kW Three Phase Hybrid All-in-One Energy Storage Inverter IP65
Important: This listing is for the inverter module only. It does not include the battery modules or the complete All-in-One energy storage system shown in the faded portion of the images.This Deye inverter features 2x rated power output for 10 seconds, quick and simple setup, one-click diagnostics via Deye Cloud, smart EMS with real-time monitoring, and IP65 protection for reliable long-term outdoor operation.Features
All-in-One: Hybrid inverter and LFP battery in one sleek system.
Smarter Energy Use: Peak-shaving, smart load, AC coupling, time of use.
Scalable Capacity: Modular design expandable from 5 kWh to 50 kWh.
Uninterrupted Supply: 4 ms seamless switchover from grid to back-up for energy security.
Effortless Installation: Tool-free stacking for quick and easy installation.
Smart Control: Convenient management via App, PC, or touch display.
Ideal ApplicationsSuitable for residential solar + storage systems in villas and single-family homes.For off-grid or weak-grid power supply in remote rural areas and islands.Enables retrofit and upgrade of old PV systems.Specifications
Operating Temperature Range: -40 to +60℃, >45℃ Derating
Permissible Ambient Humidity: 0-100%
Permissible Altitude: 2000m
Noise: ≤ 55 dB
Ingress Protection(IP) Rating: IP65
Protection Level: Class I
Weight(kg): 39.75
Type of Cooling: Intelligent Air Cooling
Warranty: 10 years
