Low Light Performance12 Years Material Workmanship Warranty25 Years Linear Power Output WarrantyFeaturesHalf-cut TechnologyNew circuit design with lower internal current and reduced internal resistance loss.Significantly avoiding heat spotThe unique circuit design significantly reduces the temperature of hotspots, thereby lowering power loss and increasing module output.Lower costIncreasing power generation helps reduce the cost per kilowatt-hour.Excellent performance of PID resistanceThe PID (Potential-Induced Degradation) resistance performance meets the TÜV Nord standard, ensuring stable module output.Excellent light blocking performanceThe module delivers higher power output under low-light conditions, such as haze and cloudy days.High efficiency output powerHigh conversion efficiency.Specifications

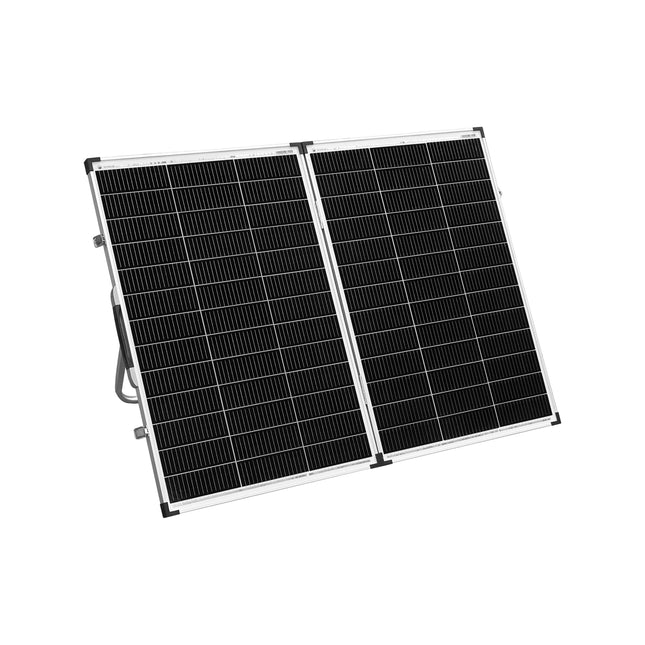

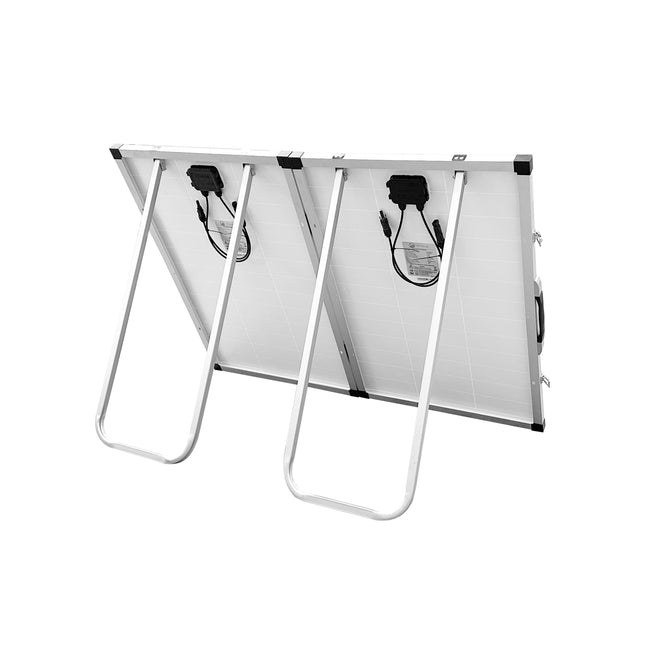

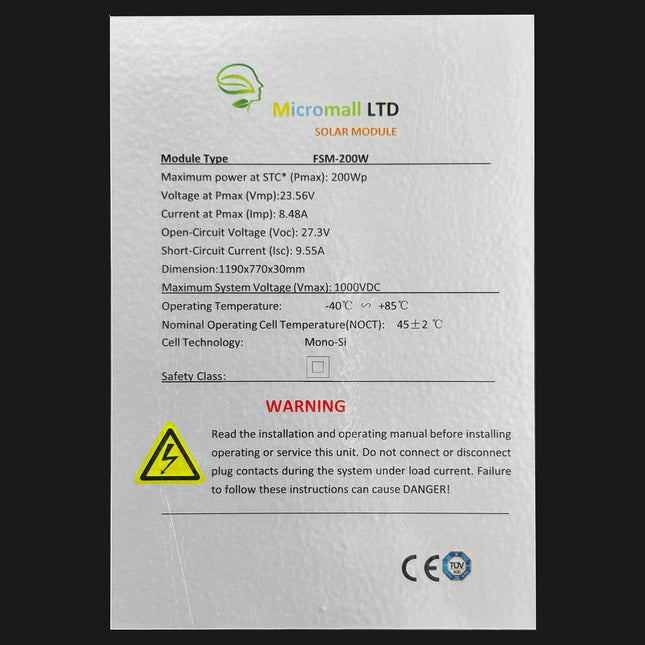

Model number: FSM-200W
Maximum power at STC (Pmax): 200Wp
Voltage at Pmax (Vmp): 23.56V
Current at Pmax (Imp): 8.48A
Open-Circuit Voltage (Voc): 27.3V
Short-Circuit Current (Isc): 9.55A
Dimension: 1190x770x30mm
Maximum System Voltage (Vmax): 1000VDC
Operating Temperature: -40°C - +85°C
Nominal Operating Cell Temperature (NOCT): 45 +- 2°C
Cell Technology: Mono-Si
MECHANICAL CHARACTERISRTICS
Dimensions: 1190x770x30mm
Weight: 10.0kg
Note: This product is designed to provide free electricity permanently and is built to withstand high wind pressure and snow load.
Low Light Performance12 Years Material Workmanship Warranty25 Years Linear Power Output WarrantyFeaturesHalf-cut TechnologyNew circuit design with lower internal current and reduced internal resistance loss.Significantly avoiding heat spotThe unique circuit design significantly reduces the temperature of hotspots, thereby lowering power loss and increasing module output.Lower costIncreasing power generation helps reduce the cost per kilowatt-hour.Excellent performance of PID resistanceThe PID (Potential-Induced Degradation) resistance performance meets the TÜV Nord standard, ensuring stable module output.Excellent light blocking performanceThe module delivers higher power output under low-light conditions, such as haze and cloudy days.High efficiency output powerHigh conversion efficiency.Specifications
Model number: FSM-150W
Maximum power at STC (Pmax): 150Wp
Voltage at Pmax (Vmp): 23.40V
Current at Pmax (Imp): 6.41A
Open-Circuit Voltage (Voc): 28.2V
Short-Circuit Current (Isc): 6.71A
Dimension: 1230x580x30mm
Maximum System Voltage (Vmax): 1000VDC
Operating Temperature: -40°C - +85°C
Nominal Operating Cell Temperature (NOCT): 45 +- 2°C
Cell Technology: Mono-Si
Note: This product is designed to provide free electricity permanently and is built to withstand high wind pressure and snow load.
HPBC
Low Light Performance
12 Years Material Workmanship Warranty
25 Years Linear Power Output Warranty
Features
Half-cut Technology
New circuit design with lower internal current and reduced internal resistance loss.
Significantly avoiding heat spot
The unique circuit design significantly reduces the temperature of hotspots, thereby lowering power loss and increasing module output.
Lower cost
Increasing power generation helps reduce the cost per kilowatt-hour.
Excellent performance of PID resistance
The PID (Potential-Induced Degradation) resistance performance meets the TÜV Nord standard, ensuring stable module output.
Excellent light blocking performance
The module delivers higher power output under low-light conditions, such as haze and cloudy days.
High efficiency output power
High conversion efficiency.
Specifications
Module Type: FSM-250W
Maximum power at STC* (Pmax): 250Wp
Voltage at Pmax (Vmp): 18.25V
Current at Pmax (Imp): 13.69A
Open-Circuit Voltage (Voc): 21.46V
Short-Circuit Current (Isc): 15.22A
Dimension: 1520x770x35mm
Maximum System Voltage (Vmax): 1000VDC
Operating Temperature:
-40°C - +85°C
Nominal Operating Cell Temperature(NOCT): 45+-2 °C
Cell Technology: Mono-Si
Note: This product is designed to provide free electricity permanently and is built to withstand high wind pressure and snow load.

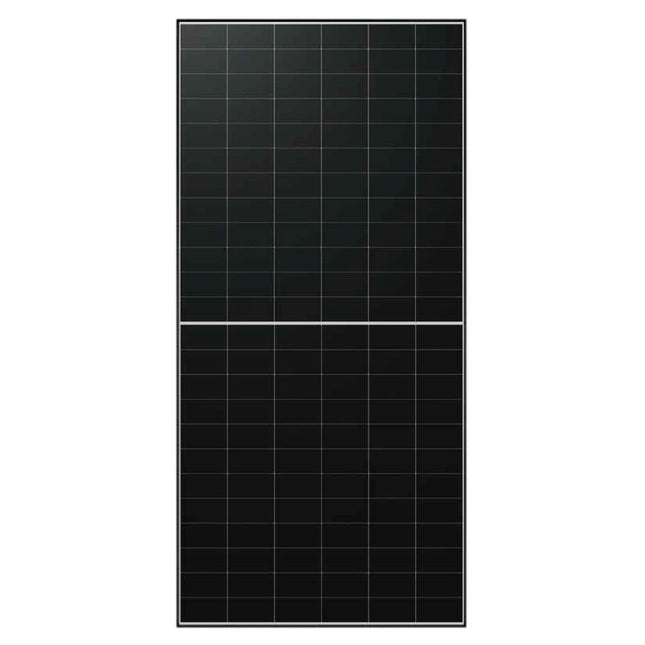

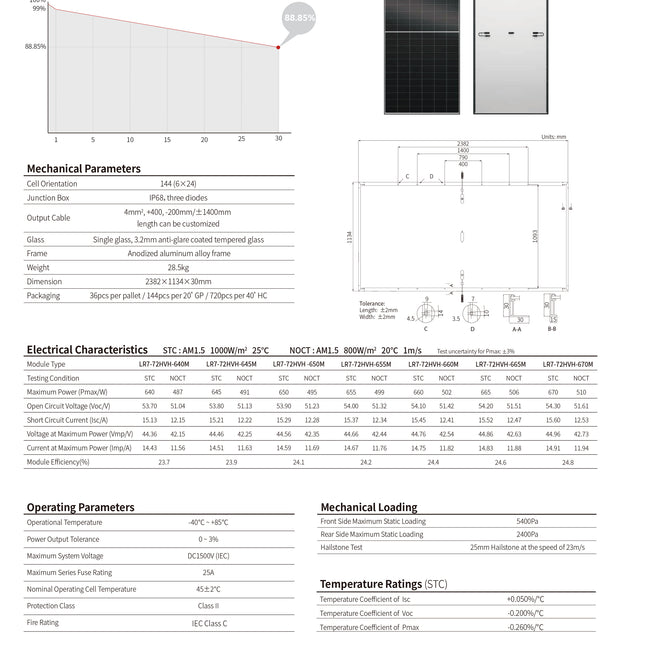

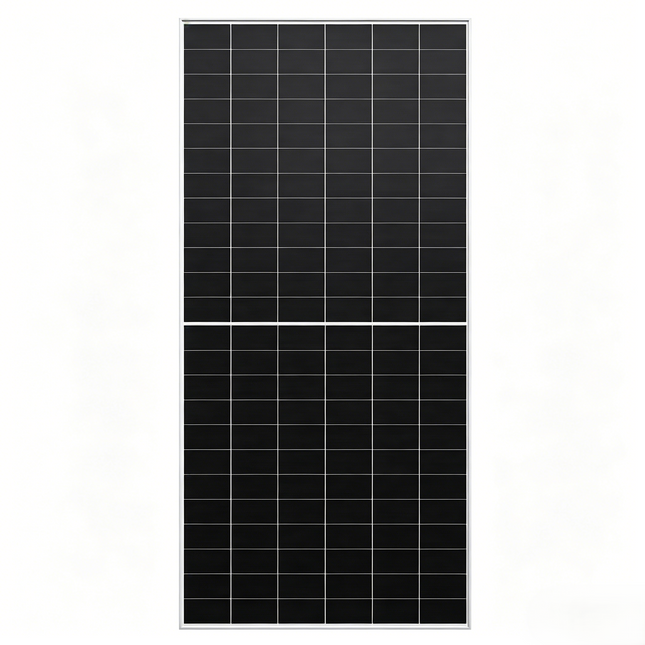

LONGi Hi-MO X10 HPBC2.0 650W Solar Panel LR7-72HVH-650M15-year Warranty for Materials and Processing30-year Warranty for Extra Linear Power OutputKey FeaturesSuitable for glare-sensitive scenarios such as airports, highways, and residential householdsUse high-transparency and low-reflection glass to enhance the anti-glare effectPeak efficiency with top power generation performanceTaiRay wafer & BC technology enhances high product reliabilityMechanical Parameters
Cell Orientation: 144 (6×24)
Junction Box: IP68, three diodes
Output Cable: 4mm2, +400, -200mm/+-1400mm
Glass: Single glass, 3.2mm anti-glare coated tempered glass
Frame: Anodized aluminum alloy frame
Weight: 28.5kg
Dimension: 2382x1134x30mm
Packaging: 36pcs per pallet
Electrical Characteristics
Module Type: LR7-72HVH-650M
Testing Condition: STC
Maximum Power (Pmax/W) : 650
Open Circuit Voltage (Voc/V): 53.90
Short Circuit Current (Isc/A) : 15.29
Voltage at Maximum Power (Vmp/V) : 44.56
Current at Maximum Power (Imp/A) : 14.59
Module Efficiency(%) : 24.1
Operating Parameters
Operational Temperature: -40°C - +85°C
Power Output Tolerance : 0 - 3%
Maximum System Voltage: DC1500V (IEC)
Maximum Series Fuse Rating: 25A
Protection Class: Class II
Nominal Operating Cell Temperature: 45+-2°C
Fire Rating: IEC Class C
Ideal for utility-scale, commercial, and high-efficiency residential projects seeking maximum performance, product longevity, and bankable solar solutions backed by LONGi’s global reputation and innovation.

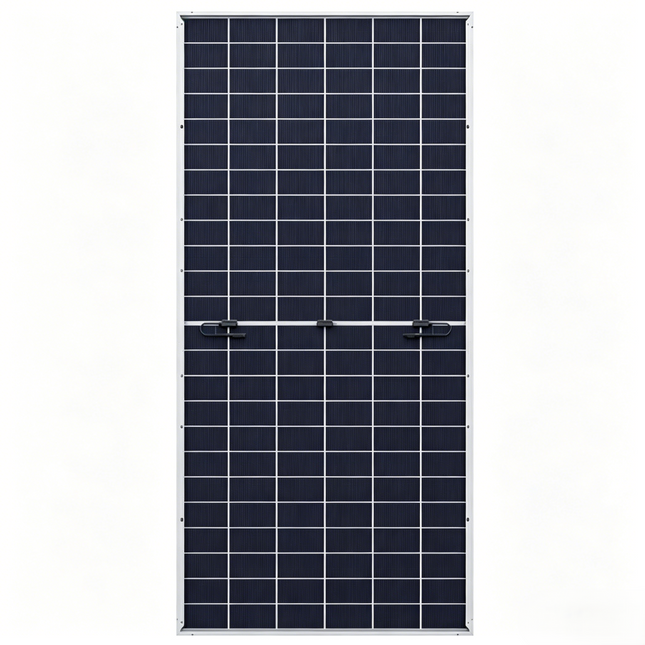

LONGi Hi-MO X10 Guardian HPBC2.0 Bifacial Dual Glass 645W Solar Panel LR8-66HVDF-645M15-year Warranty for Materials and Processing30-year Warranty for Extra Linear Power OutputFeatures
Advanced: N-Type TaiRay Wafer + HPBC2.0 + 0BB.
Aesthetic: No Frontal Gridlines, Scenario Integration.
Safe: Less Micro-Crack, Prevent Localized Overheating, Anti-Shading.
Anti-Dust Design: Patented Frame, Reduce Dust Accumulation.
Electrical Characteristics:
Type: LR8-66HVDF-645M
Testing Condition: STC
Maximum Power (Pmax/W): 645W
Open Circuit Voltage (Voc/V): 49.62V
Short Circuit Current (Isc/A): 16.46A
Voltage at Maximum Power (Vmp/V): 40.88V
Current at Maximum Power (Imp/A): 15.78A
Module Efficiency(%): 23.88%
Mechanical Parameters:
Junction Box: IP68, three diodes
Output Cable: 4mm2, +400, -200mm/±1400mm length can be customized
Glass: Dual glass, 2.0+2.0mm semi-tempered glass
Frame: Anodized aluminum alloy frame
Weight: 32.5kg
Dimension: 2382×1134×30mm
Mechanical Loading:
Front Side Maximum Static Loading: 5400Pa
Rear Side Maximum Static Loading: 2400Pa
Hailstone Test: 25mm Hailstone at the speed of 23m/s
Temperature Ratings (STC):
Temperature Coefficient of Isc: +0.050%/℃
Temperature Coefficient of Voc: -0.200%/℃
Temperature Coefficient of Pmax: -0.260%/℃
Ideal for utility-scale, commercial, and high-efficiency residential projects seeking maximum performance, product longevity, and bankable solar solutions backed by LONGi’s global reputation and innovation.
ALL BLACK MONO 2024 NEW TECH CELL10 Years Material & Workmanship Warranty25 Years Linear Power Output WarrantyFeaturesMax watt: 200W, with increased solidity to withstand hail.German TUV Approval ensures the highest quality and specifications.Perfect for outdoor use in caravans, mobile homes, or garden sheds.Waterproof design for all weather conditions.High-efficiency solar cell with 18% efficiency.Tempered glass and corrosion-resistant aluminium frame for durability.Outstanding electrical performance in high temperature and low irradiance conditions.Includes 2 pcs 600mm extension cables with MC4 connectors.Suitable for grid-tie or off-grid applications.Excellent low-light performance.High transmission tempered glass (4.0mm).SpecificationsModule Type: FSHPBC-200WMaximum power at STC* [Pmax]: 200Wp
Voltage at Pmax [Vmp]: 20.75V
Current at Pmax [Imp]:9.63A
Open-Circuit Voltage [Voc]: 24.13V
Short-Circuit Current [Isc]: 10.83A
Maximum System Voltage [Vmax]: 1000VDC
Operating Temperature: -40°C---+85°C
Nominal Operating Cell Temperature (NOCT): 45±2°C
Cell Technology: MONO-SI
Dimension: 1595x585x35mm
Note: This product is designed to provide free electricity permanently and is built to withstand high wind pressure and snow load.
Low Light Performance
12 Years Material Workmanship Warranty
25 Years Linear Power Output Warranty
Features
Half-cut Technology
New circuit design with lower internal current and reduced internal resistance loss.
Significantly avoiding heat spot
The unique circuit design significantly reduces the temperature of hotspots, thereby lowering power loss and increasing module output.
Lower cost
Increasing power generation helps reduce the cost per kilowatt-hour.
Excellent performance of PID resistance
The PID (Potential-Induced Degradation) resistance performance meets the TÜV Nord standard, ensuring stable module output.
Excellent light blocking performance
The module delivers higher power output under low-light conditions, such as haze and cloudy days.
High efficiency output power
High conversion efficiency.
Specifications
ELECTRICAL DATA (STC)

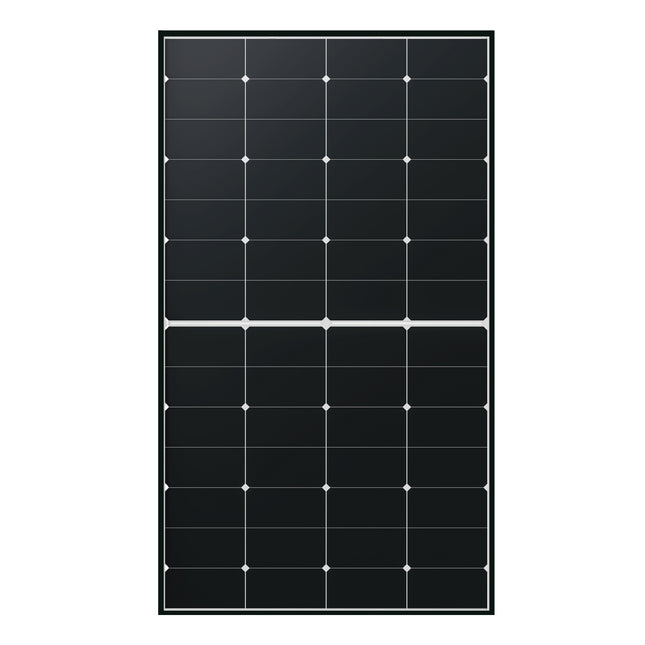

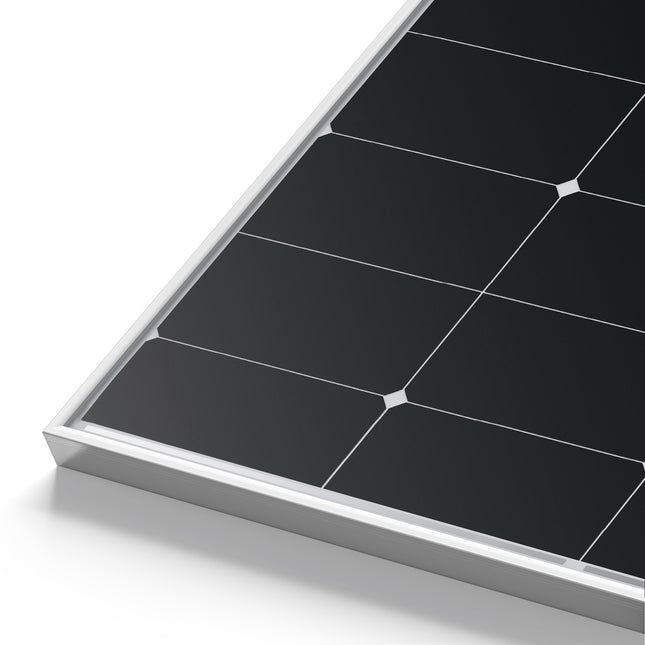

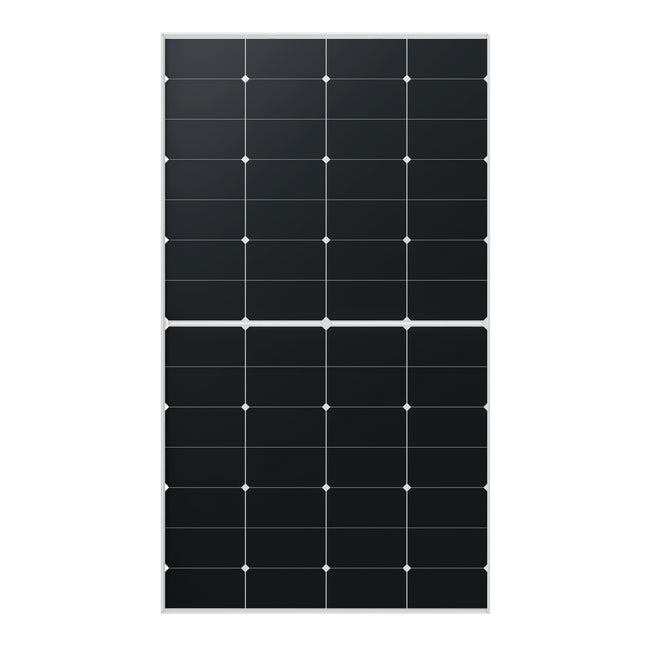

MODEL: LR5-28HTH-225W
Maximum Power(Pmax/w): 250
Open Circuit Voltage (Voc/V): 22.66
Short Circuit Current (lsc/A): 13.95
Voltage at maximum Power (Vmp/V): 19.03
Current at maximum Power (Vmp/V): 13.14
Module Efficiency (%): 18.9
STC(Standard Testing Conditions):irradiance 1000W/m ,Cell Temperature25℃, Spectra at AM1.5
ELECTRICAL DATA (NOCT)
Maximum Power(Pmax/w): 186
Open Circuit Voltage (Voc/V): 16.16
Short Circuit Current (lsc/A): 11.51
Voltage at maximum Power (Vmp/V): 13.75
Current at Maximum Power (lmp/A): 10.86
NOCT(Normal Operating Cell Temperature):lrradiance800W/m%, Ambient Temperature20℃, Wind speed 1m/s
TEMPERATURE & MAXIMUM RATING
Maximum System Voltage(V): 1000V
Maximum Series Fuse Rating(A): 15A
Power Tolerance: 0 - +3W
NOCT Nominal Operating Cell Temperature(c): 45 +- 2℃
Operating and Storage Temperature(C): -40 - +85℃
MECHANICAL CHARACTERISRTICS
Cell Type: 182x91mm
Dimensions: 1354x767x30mm
Weight: 12.4kg
Note: This product is designed to provide free electricity permanently and is built to withstand high wind pressure and snow load.
**Authorised Longi distributor in New Zealand**
25-Year Warranty for Materials and Processing
30-Year Warranty for Extra Linear Power Output
Extreme Efficiency 24.0%

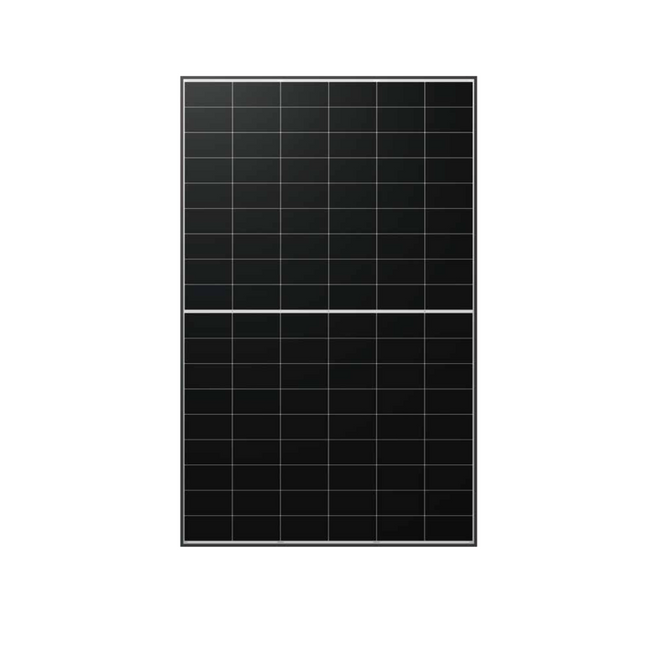

LONGi Explorer X10 Series – 475M HPBC Solar Panel
Superior Performance and Style for Residential Rooftops
The LONGi Explorer X10 series combines high efficiency and elegant design for the discerning homeowner. Using advanced HPBC 2.0 cell technology, these panels deliver exceptional power generation—up to 24.0% efficiency—in the same space as conventional modules.
Built with durability in mind, the panels feature 3.2mm coated tempered glass, anti-shading functionality, and resistance to hot spots. They are backed by a 30-year product and performance warranty, ensuring long-term reliability. Eco-conscious customers will appreciate the low-carbon manufacturing and full international certifications.
Highlights:
475W output | 24.0% efficiency
HPBC 2.0 technology for better low-light and temperature performance
30-year warranty | IEC Class C fire rating
Module Type: LR7-54HVH-475M
Testing Condition: STC
Maximum Power (Pmax/W): 475
Open Circuit Voltage (Voc/V): 40.18
Short Circuit Current (Isc/A): 15.03
Voltage at Maximum Power (Vmp/V): 33.16
Current at Maximum Power (Imp/A): 14.33
Module Efficiency(%): 23.3
Mechanical Parameters
Cell Orientation: 108 (6×18)
Junction Box: IP68, three diodes
Output Cable: 4mm2, +400, -200mm/±1200mm length can be customized
Glass: Single glass, 3.2mm coated tempered glass
Frame: Anodized aluminum alloy frame
Weight: 21.6kg
Dimension: 1800×1134×30mm
Ideal for space-limited and high-end residential installations
Choose LONGi Explorer X10—where power meets beauty.
**Authorised Longi distributor in New Zealand**
30-Year Warranty for Materials and Processing
30-Year Warranty for Extra Linear Power Output
Extreme Efficiency 23.3%

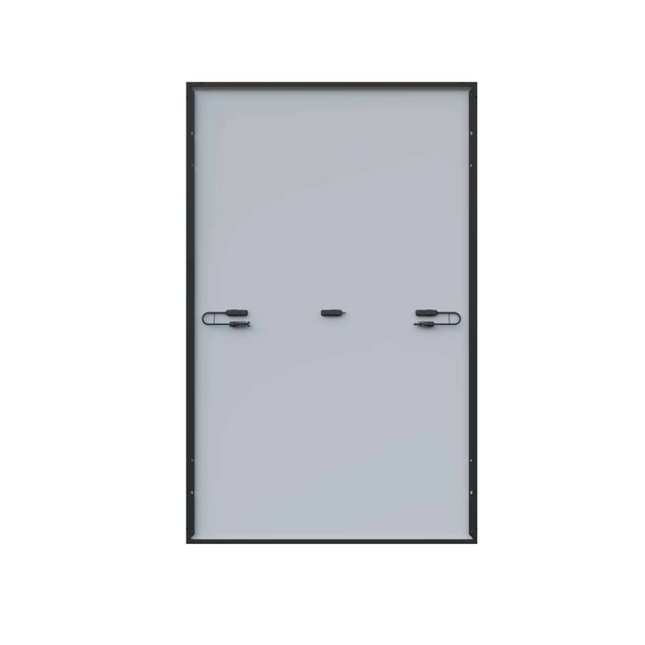

LONGi EcoLife X10 Series – 475M HPBC Solar Panel
Superior Performance and Style for Residential Rooftops
The LONGi EcoLife X10 series combines high efficiency and elegant design for the discerning homeowner. Using advanced HPBC 2.0 cell technology, these panels deliver exceptional power generation—up to 23.3% efficiency—in the same space as conventional modules. Their all-black, grid-free appearance offers a sleek, low-glare look that integrates perfectly with premium architectural styles.
Built with durability in mind, the panels feature 3.2mm tempered glass, anti-shading functionality, and resistance to hot spots. They are backed by a 30-year product and performance warranty, ensuring long-term reliability. Eco-conscious customers will appreciate the low-carbon manufacturing and full international certifications.
Highlights:
475W output | 23.3% efficiency
HPBC 2.0 technology for better low-light and temperature performance
Pure black aesthetic, no visible grid lines
30-year warranty | IEC Class C fire rating

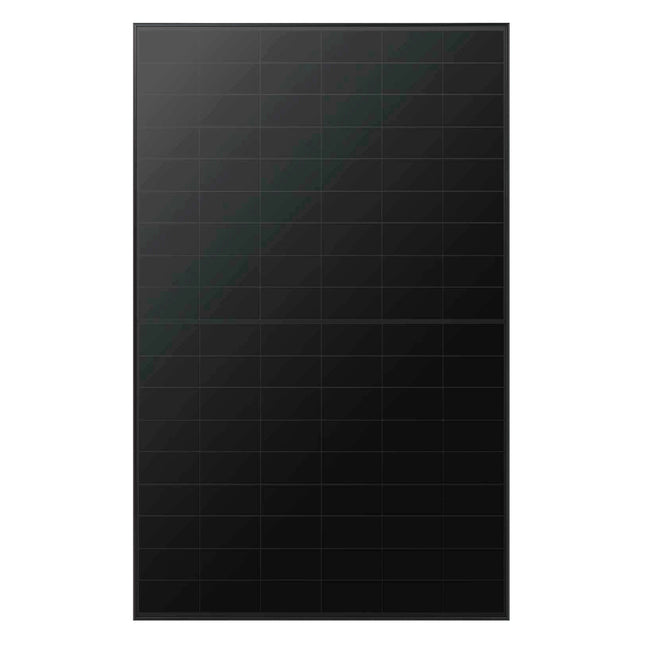

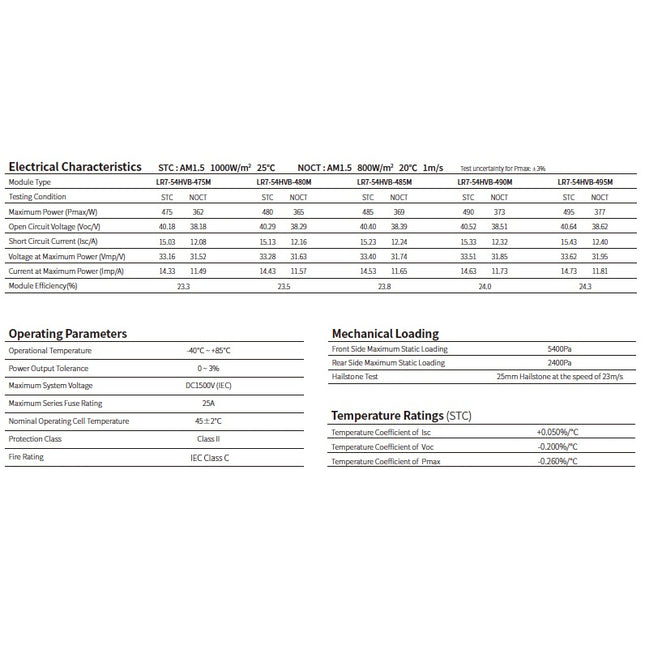

Module Type: LR7-54HVB-475M
Testing Condition: STC
Maximum Power (Pmax/W): 475
Open Circuit Voltage (Voc/V): 40.18
Short Circuit Current (Isc/A): 15.03
Voltage at Maximum Power (Vmp/V): 33.16
Current at Maximum Power (Imp/A): 14.33
Module Efficiency(%): 23.3
Mechanical Parameters
Cell Orientation: 108 (6×18)
Junction Box: IP68
Output Cable: 4mm2, +400, -200mm/±1200mm length can be customized
Glass: Single glass, 3.2mm coated tempered glass
Frame: Black anodized aluminum alloy frame
Weight: 21.6kg
Dimension: 1800×1134×30mm
Ideal for space-limited and high-end residential installations
Choose LONGi EcoLife X10—where power meets beauty.
Introducing our latest solar panel model with a 150W power output, compatible with both 12V and 18V systems. Its semi-flexible design makes it ideal for marine and caravan applications.
Powered by HPBC new technology, it delivers reliable performance even on cloudy and rainy days.
10 Years Warranty
Key Features:
Versatile Use: This solar panel's exceptional stability and durability make it suitable for a wide range of applications, including vehicles, homes, boats, motorcycles, and more. It's a perfect fit for car batteries, RVs, boats, ships, aircraft, satellites, outdoor setups, and even solar street lamps.
Flexible Design: With its semi-flexible build, the panel can bend up to 30° in both directions, adapting to various scenarios like RVs, fishing boats, wooden houses, tents, and outdoor environments.
Efficient Charging: Primarily designed for efficient charging of 12V lead-acid and lithium batteries. Its adaptable design allows easy installation on RVs, fishing boats, cabins, tents, and irregular surfaces. The eco-friendly operation makes it an ideal companion for outdoor activities, travel, or camping, offering energy-saving performance.
Enhanced Charging: The 18V 150W/160W Solar Panel guarantees secure and stable charging. Its impressive conversion rate and high output efficiency ensure optimal energy conversion.
Adaptable Absorption: The semi-flexible design enhances sunlight absorption by allowing the panel to bend for better alignment.
Compact and Lightweight: With its slim and lightweight profile, this solar panel is highly portable, making transportation and setup convenient.
Specifications:
Maximum Power at STC (Pmax): 150Wp
Voltage at Pmax (Vmp): 25.20V
Current at Pmax (Imp): 5.59A
Open-Circuit Voltage (Voc): 29.4V
Short-Circuit Current (Isc): 6.67A
Dimensions: 1350mm x 585mm x 3mm
Maximum System Voltage (Vmax): 1000VDC
Cell Technology: Mono-Si
Harness clean solar energy anywhere with the FSF-HB50WP 50W flexible solar panel, designed for portability, durability, and high efficiency. Ideal for RVs, boats, off-grid cabins, and outdoor use, this ultra-lightweight panel delivers reliable power even in challenging conditions.Key Features
Power Output: 50W ±3%
Voltage at Max Power (Vmp): 18.3V
Current at Max Power (Imp): 2.73A
Open Circuit Voltage (Voc): 21.2V
Short-Circuit Current (Isc): 3.08A
Solar Cells: LONGI HPBC, 3 × 10 cells
Efficiency: High-efficiency mono cells for maximum energy harvest
Dimensions: 525 × 585 × 3 mm
Weight: 0.8 kg – ultra-light for easy installation
Front Material: ETFE
Junction Box: IP68 rated
Output Cables: TUV/UL certified, 900 mm ± 900 mm, MC4 twist-lock connectors
Maximum System Voltage: 1000VDC (IEC) / 600VDC (UL)
Operating Temperature: -20°C to +65°C
Durability & Flexibility:Can be walked on or stepped on safelyFlexible and lightweight design makes it easy to install on curved or uneven surfacesRugged, waterproof, and suitable for outdoor useTemperature Performance:
Pmax Temperature Coefficient: -0.44%/°C
Voc Temperature Coefficient: -0.33%/°C
Isc Temperature Coefficient: 0.055%/°C
Warranty:3 years on material and workmanship5 years on power outputWhether for mobile off-grid setups, boats, or compact solar kits, the FSF-HB50WP 50W flexible solar panel delivers portable, efficient, and reliable solar energy wherever you need it.

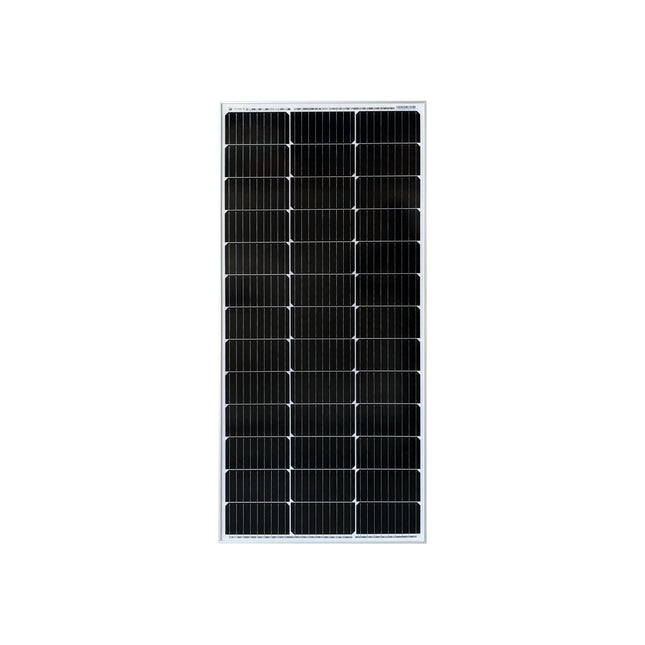

Upgrade your solar energy setup with the FSHB30-120WS 120W solar panel, designed for high efficiency, durability, and reliable performance. Ideal for residential, RV, marine, or off-grid solar applications, this panel delivers consistent power output while maintaining a sleek, full-black design.Key Features
Type: HPBC Solar Cells (30 pcs)
Power Output: 120W ±3%
Voltage at Max Power (Vmp): 18.6V
Current at Max Power (Imp): 6.45A
Open Circuit Voltage (Voc): 21.5V
Short Circuit Current (Isc): 7.29A
Module Efficiency: 20.93%
Module Size: 980 × 585 × 30 mm
Weight: 5.8 kg
Front Cover: 3.2 mm Tempered Safety Glass
Frame: Anodized Aluminium
Connectors: MC4 / 4 mm² cables (customizable length)
Maximum System Voltage: 1000V
Durability & Warranty:10-year performance warranty to 90% of rated power25-year performance warranty to 80% of rated power5-year warranty against production and material defectsDesigned to withstand harsh weather conditions with high-quality materialsWhether you are powering an off-grid cabin, RV, or backup system, the FSHB30-120WS 120W solar panel offers reliable, efficient solar energy in a compact, lightweight, and robust package—performing well even in low-light conditions and fully compatible with your existing solar setup.
Introducing our latest 200W solar panel, features a semi-flexible design, making it perfect for marine and caravan use.
Warranty: 10 Years
Key Features:
Versatile Applications: Designed for a wide range of uses, from vehicles and boats to RVs, homes, and outdoor setups.
Flexible Design: Bends up to 30° in both directions, suitable for RVs, boats, tents, and irregular surfaces.
Efficient Charging: Optimized for lead-acid and lithium batteries, providing eco-friendly, energy-saving performance for outdoor adventures.
High Conversion Rate: Ensures secure, stable charging with high efficiency.
Lightweight and Portable: Slim and easy to transport, making setup convenient.
Specifications:
Module Type: FSF-200W
Maximum power at STC (Pmax): 200Wp
Voltage at Pmax (Vmp):18.60V
Current at Pmax (Imp): 10.75A
Open-Circuit Voltage (Voc): 21.50V
Short-Circuit Current (Isc): 12.15A
Dimension: 1440x770x3mm
Maximum System Voltage (Vmax): 1000VDC
Operating Temperature:
-40°C c +85°C
Nominal Operating Cell Temperature(NOCT): 45+-2°C
Cell Technology: Mono-Si
Package Includes:
1 x 200W Panel
2 x MC4 Ports
Harness the power of the sun with the FSF-HB100WP 100W flexible solar panel, designed for durability, portability, and efficiency. Ideal for RVs, boats, off-grid cabins, and other mobile applications, this ultra-lightweight panel combines cutting-edge technology with rugged flexibility.Key Features
Power Output: 100W ±3%
Voltage at Max Power (Vmp): 18.5V
Current at Max Power (Imp): 5.4A
Open Circuit Voltage (Voc): 21.4V
Short Circuit Current (Isc): 6.1A
Solar Cells: LONGI HPBC, 3 × 10 cells
Efficiency: High-efficiency mono cells
Dimensions: 985 × 585 × 3 mm
Weight: 1.5 kg
Front Material: ETFE
Frame: None (flexible design)
Junction Box: IP68 rated
Output Cables: TUV, UL certified, 900 mm ± 900 mm
Connectors: Integrated SOLAR MC4 twist-lock connectors
Durability & Flexibility:Can withstand foot traffic—walk or step on the panel with confidenceOperates reliably in temperatures from -20°C to +65°C
Maximum system voltage: 1000VDC (IEC) / 600VDC (UL)
Maximum series fuse rating: 10A
Temperature Performance:
Temperature coefficient of Pmax: -0.44%/°C
Temperature coefficient of Voc: -0.33%/°C
Temperature coefficient of Isc: 0.055%/°C
Warranty:
3-year warranty on materials and workmanship5-year warranty on power outputWith its flexible design, advanced HPBC solar cells, and superior low-light performance, the FSF-HB100WP 100W flexible solar panel is perfect for mobile and off-grid solar installations, even in rainy or cloudy conditions, while remaining compatible with your existing solar setup.
Introducing our latest 200W solar panel, features a semi-flexible design, making it perfect for marine and caravan use. Compatible with both 12V and 18V systems. Its semi-flexible design makes it ideal for marine and caravan applications.
Powered by HPBC new technology, it delivers reliable performance even on cloudy and rainy days.
Warranty: 10 Years
Key Features:
Versatile Applications: Designed for a wide range of uses, from vehicles and boats to RVs, homes, and outdoor setups.
Flexible Design: Bends up to 30° in both directions, suitable for RVs, boats, tents, and irregular surfaces.
Efficient Charging: Optimized for lead-acid and lithium batteries, providing eco-friendly, energy-saving performance for outdoor adventures.
High Conversion Rate: Ensures secure, stable charging with high efficiency.
Lightweight and Portable: Slim and easy to transport, making setup convenient.
Specifications:
Model: FSF-200W
Maximum power at STC (Pmax): 200Wp
Voltage at Pmax (Vmp): 22.80V
Current at Pmax (Imp): 8.77A
Open-Circuit Voltage (Voc): 26.6V
Short- Circuit Current (Isc): 9.83A
Dimension: 1795x590x3mm
Maximum System Voltage (Vmax): 1000VDC
Package Includes:
1 x 200W Panel
2 x MC4 Ports

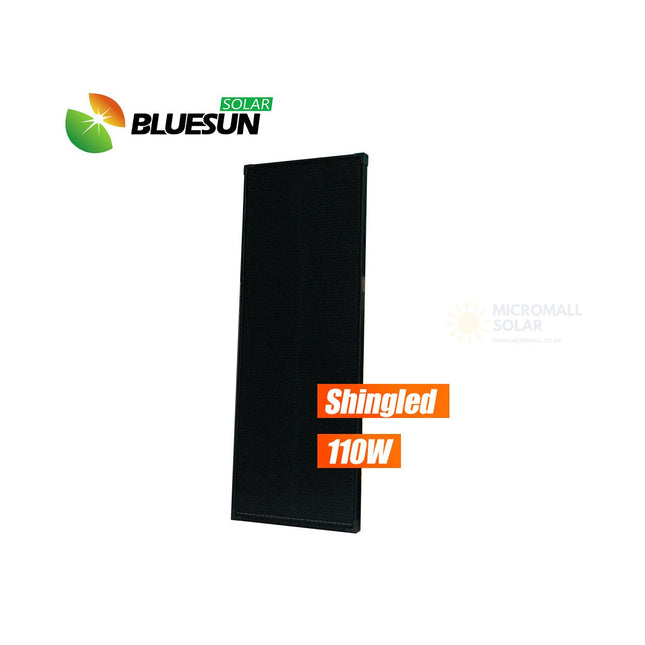

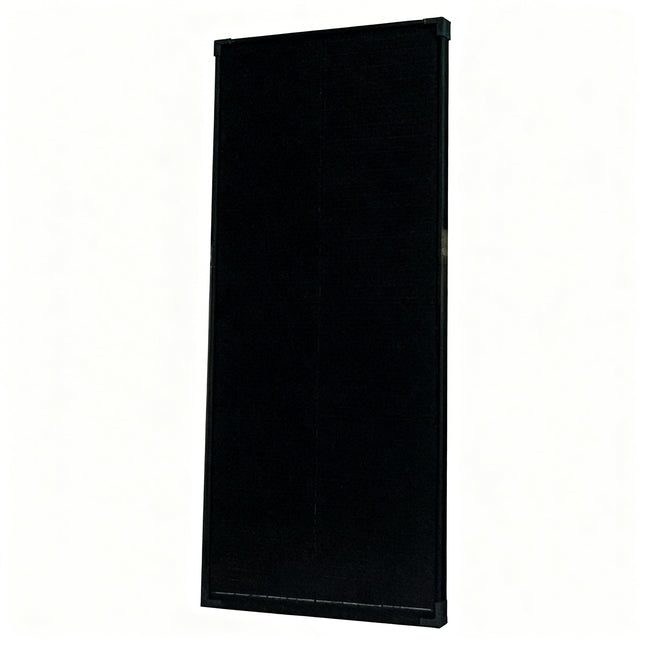

Bluesun Shingled Half-Cell Monocrystalline Solar Panel (100W/110W, All Black)
Crafted with high-efficiency monocrystalline silicon wafers, this solar panel delivers up to 22% efficiency for maximum energy production.
Key Benefits of the Shingled Solar Panel:
Seamless design with no gaps between cells for a sleek, uniform appearance
Easy to install and visually appealing
Resistant to wind and high temperatures
Outstanding performance in low-light conditions
Operating costs for solar-powered ships are only 17% of those for conventional diesel-powered vessels
Specifications:
Model: BSM110PM5-S
Cell Type: Monocrystalline
Power Output: 110W
Vmp: 18.15V
Imp: 6.06A
Voc: 21.45V
Isc: 6.42A
Max System Voltage: 500V (IEC)
Max Fuse Rating: 20A
Dimensions: 1160 x 450 x 30 mm
Weight: 6 kg
Output Tolerance: 0-+5W
Backed by a 15-year warranty, the Bluesun Shingled Solar Panel ensures long-lasting performance and reliability.
Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.(Powered by Micromall battery)
Package includes:
1 x 12000W Deye Single Phase Hybrid Inverter SUN-12K-SG01LP1-EU (5 years warranty)
9 x JA Solar Deep Blue 4.0 Pro 455W N-Type Double Glass Solar Module
2 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x PV Safety System with Fuse Box
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
9 x Commercial Mounting Kits with Adjustable Angle Version
This is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
Model: SUN-12K-SG01LP1-EU
Features
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 290A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Specifications
Rated AC Input/Output Active Power (W): 12000
Max. AC Input/Output Apparent Power (VA): 13200
Rated AC Input/Output Current (A): 54.5/52.2
Max. AC Input/Output Current (A): 60/57.4
Max. Continuous AC Passthrough (grid to load) (A): 100
Weight: 52kg
Dimension: 464 x 763 x 282 (Excluding Connectors and Brackets)
Protection Degree: IP65
Temperature: -40 - 60°C, >45°C Derating
Cooling Method: Intelligent Air Cooling
Warranty: 5 years

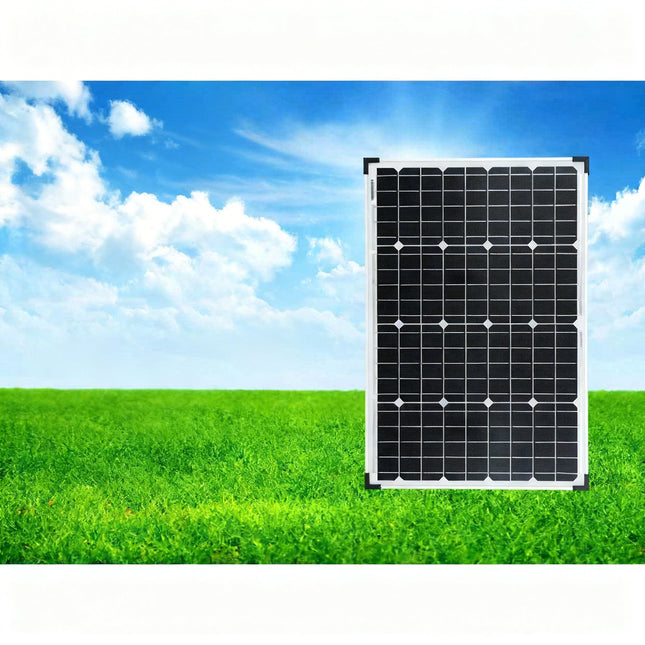

Introducing our 100% brand new premium grade A+ 50W 12V monocrystalline solar panel with tempered glass cells!Key FeaturesAmazing Size: 455 mm X 670 mm X 25 mm20-year warrantyHigh efficiency with a maximum output of 50 wattsSturdy aluminum frame for durabilityResistant to hail and extreme weather conditionsGerman TUV Approval for quality assuranceProduct Description:Keep your caravan, mobile home, or garden shed battery charged with this high-quality solar panel from Micromall. Designed for outdoor use, it provides permanent and free electricity. The waterproof design ensures usability in all weather conditions.Featuring SUNPOWER solar cells with an efficiency of 18% to 22%, this panel offers excellent power efficiency despite its compact size. The tempered glass and corrosion-resistant aluminum frame allow it to withstand high wind (2400Pa) and snow loads (5400Pa), enhancing its durability and value.This solar panel also delivers outstanding electrical performance in high-temperature and low-irradiance conditions. It is suitable for both grid-tie and off-grid applications.Specifications
Border color: Silver
Model: FSM-50W
Max power at STC* (Pmax): 50Wp
Voltage at Pmax (Vmp): 18.6V
Current at Pmax (Imp): 2.69A
Open-Circuit Voltage (Voc): 22.8V
Short-Circuit Current (Isc): 2.89A
Max system Voltage (Vmax): 1000VDC
Cell Technology: Mono-Si
Size: 455X670X25mm
Key Features

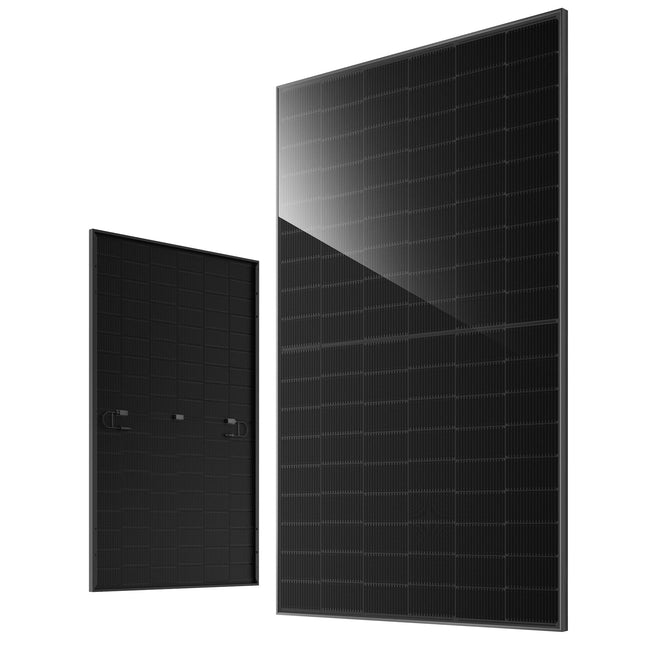

High Power Output: Up to 445W, maximizing electricity generation per square meter
Superior Efficiency: Half-cell technology improves performance and reliability
Durable Construction: Designed to resist harsh weather and mechanical stress
Elegant Full-Black Design: Modern appearance that enhances rooftop aesthetics
Safe & Reliable: Optimized electrical design reduces hot-spot risks
Rated Maximum Power(Pmax): 445W
Open Circuit Voltage(Voc): 39.10V
Short Circuit Current(Vmp): 32.65A
Maximum Power Current(Isc): 14.40A
Module Efficiency: 13.63%
Power Tolerance: 22.3%
Whether for home solar systems or commercial installations, the JAM54D41 445W Full Black solar panel is a smart investment that reduces electricity bills, supports sustainability, and delivers long-lasting performance
Specifications
High Power Output: Up to 445W, maximizing electricity generation per square meter.
Superior Efficiency: Half-cell technology improves performance and reliability.
Durable Construction: Designed to resist harsh weather and mechanical stress.
Elegant Full-Black Design: Modern appearance that enhances rooftop aesthetics.
Safe & Reliable: Optimized electrical design reduces hot-spot risks.
Model: JAM54D41 445/LB
Rated Maximum Power(Pmax): 445W
Open Circuit Voltage(Voc): 39.10V
Short Circuit Current(Vmp): 32.65A
Maximum Power Current(Isc): 14.40A
Module Efficiency: 13.63%
Power Tolerance: 22.3%
Weight: 22kg
Dimensions: 1762x1134x30mm

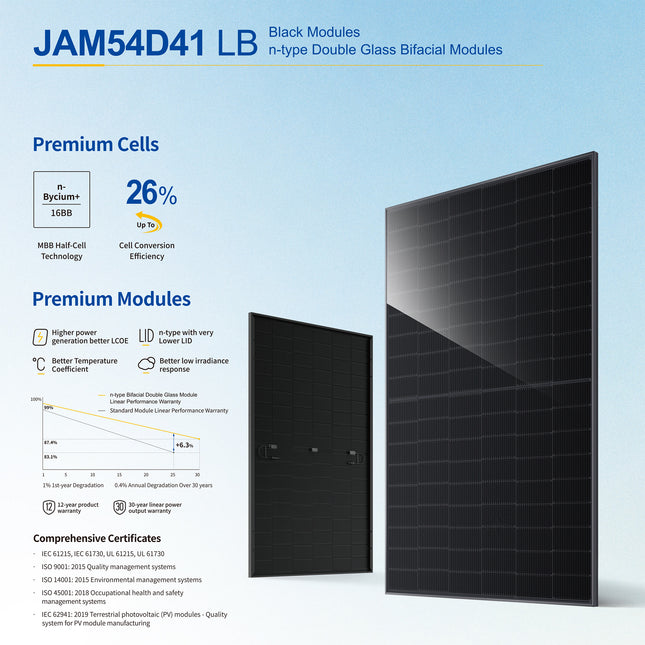

Key Features
455W rated maximum power
N-type Bycium+ cell technology
16BB MBB half-cell technology
Double-glass bifacial module
22.8% module efficiency
Cell conversion efficiency up to 26%
Higher power generation for improved LCOE
Very low LID performance
Improved temperature coefficient
Better low-irradiance response
80% ±10% bifaciality
25-year product warranty
30-year linear power output warranty
Specifications
Model: JAM54D41-455/LB
Rated Maximum Power (Pmax): 455W
Module Efficiency: 22.8%
Open Circuit Voltage (Voc): 40.50V
Maximum Power Voltage (Vmp): 33.33V
Short Circuit Current (Isc): 14.42A
Maximum Power Current (Imp): 13.65A
Power Tolerance: 0 to +3%
Cell: Mono
Number of Cells: 108 (6 × 18)
Dimensions: 1762 ±2 × 1134 ±2 × 30 ±1 mm
Weight: 22 kg
Cable Cross Section: 4 mm² (IEC), 12 AWG (UL)
Junction Box: IP68, 3 diodes
Connector: QC 4.10-351 / MC4-EVO2A
Cable Length, Portrait: 300 mm (+) / 400 mm (-)
Cable Length, Landscape: 1200 mm (+) / 1200 mm (-)
Front Glass / Back Glass: 1.6 mm / 1.6 mm
Maximum System Voltage: 1500V DC
Operating Temperature: -40°C to +85°C
Maximum Series Fuse Rating: 30A
Maximum Static Load, Front: 5400Pa
Maximum Static Load, Back: 2400Pa
NOCT: 45 ±2°C
Bifaciality: 80% ±10%
Safety Class: Class II
Fire Performance: UL Type 38 / Class C
Packaging: 36 pcs/pallet, 936 pcs/40HQ container
Key Features
460W rated maximum power
N-type Bycium+ cell technology
16BB MBB half-cell technology
Double-glass monofacial module
High-density module design
Module efficiency of 23.0%
0 to +3% positive power tolerance
25-year product warranty
30-year linear power output warranty
1% first-year degradation
0.4% annual degradation over 30 years
Specifications
Model: JAM54D41-460/LR
Rated Maximum Power (Pmax): 460W
Module Efficiency: 23.0%
Open Circuit Voltage (Voc): 40.60V
Maximum Power Voltage (Vmp): 33.68V
Short Circuit Current (Isc): 14.43A
Maximum Power Current (Imp): 13.66A
Power Tolerance: 0 to +3%
Cell: Mono
Number of Cells: 108 (6 × 18)
Dimensions: 1762 ±2 × 1134 ±2 × 30 ±1 mm
Weight: 21.5 kg
Front Glass: 1.6 mm anti-reflection coated glass
Back Glass: 1.6 mm heat-strengthened glass
Frame: Anodized aluminium alloy
Junction Box: IP68, 3 diodes
Cable Cross Section: 4 mm² (IEC), 12 AWG (UL)
Cable Length, Portrait: 400 mm (+) / 200 mm (-)
Cable Length, Landscape: 1200 mm (+) / 1200 mm (-)
Maximum System Voltage: 1500V DC
Maximum Series Fuse Rating: 25A
Operating Temperature: -40°C to +70°C
Maximum Static Load, Front: 5400Pa
Maximum Static Load, Back: 2400Pa
NOCT: 45 ±2°C
Safety Class: Class II
Fire Performance: UL Type 38 / Class C
Packaging: 36 pcs/pallet, 936 pcs/40HQ container
Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.
Package Includes:
1 x 12000W Deye Single Phase Hybrid Inverter SUN-12K-SG01LP1-EU (5 years warranty)
9 x JA Solar Deep Blue 4.0 Pro 455W N-Type Double Glass Solar Module
8 x Narada 6REXC-300 6V 300Ah Ultra Lead Carbon Deep Cycle Solar Battery (5 Years Warranty)
1 x PV Safety System with Fuse Box
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
9 x Commercial Mounting Kits with Adjustable Angle Version
This is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
Model: SUN-12K-SG01LP1-EU
Features
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 290A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Specifications
Rated AC Input/Output Active Power (W): 12000
Max. AC Input/Output Apparent Power (VA): 13200
Rated AC Input/Output Current (A): 54.5/52.2
Max. AC Input/Output Current (A): 60/57.4
Max. Continuous AC Passthrough (grid to load) (A): 100
Weight: 52kg
Dimension: 464 x 763 x 282 (Excluding Connectors and Brackets)
Protection Degree: IP65
Temperature: -40 - 60°C, >45°C Derating
Cooling Method: Intelligent Air Cooling
Warranty: 5 years
**Solar Panel Warranty: 25 Years Linear Power Output Warranty**
**Inverter Warranty: 10 Years Warranty**
**Battery Warranty: 15 Years Warranty**
Introducing an exceptional Smart Hybrid system that showcases the latest LONGi HPBC solar panels and a Deye premium hybrid solar inverter system.
Package Includes:
22 x JA Solar Deep Blue 4.0 Pro 455W N-Type Double Glass Solar Module
1 x Deye 10kW Single Phase 3 MPPT Hybrid Inverter SUN-10K-SG02LP1-AU (10 Years Warranty)
1 x Micromall 48V 51.2V 200Ah 210Ah LiFePO4 Battery with 6000 cycle times (15 Years Warranty, 30-year run life)
1 x 20m Twin 6mm PV Extension Cables with MC4 Connectors
1 x PV Fuses
1 x PV Circuit Breaker
1 x Surge Protector
1 x Safety Switchboard
22 x Mounting Rail System
1 x Solar PV + Battery Label Kit
This inverter is a versatile inverter that combines the functions of an inverter, solar charger, and battery charger, providing uninterrupted power support in a portable size. Its comprehensive LCD display offers user-configurable settings and easy-access button operations, such as battery charging, AC/solar charging, and adjustable input voltage for various applications.
Model: SUN-10K-SG02LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 220
Max. Discharging Current (A): 220
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 9999
Max. AC Input/Output Apparent Power (VA): 9999
AC Output Rated Current (A): 43.5
**Vector Approved Inverter**
**DEYE New Zealand Distributor**

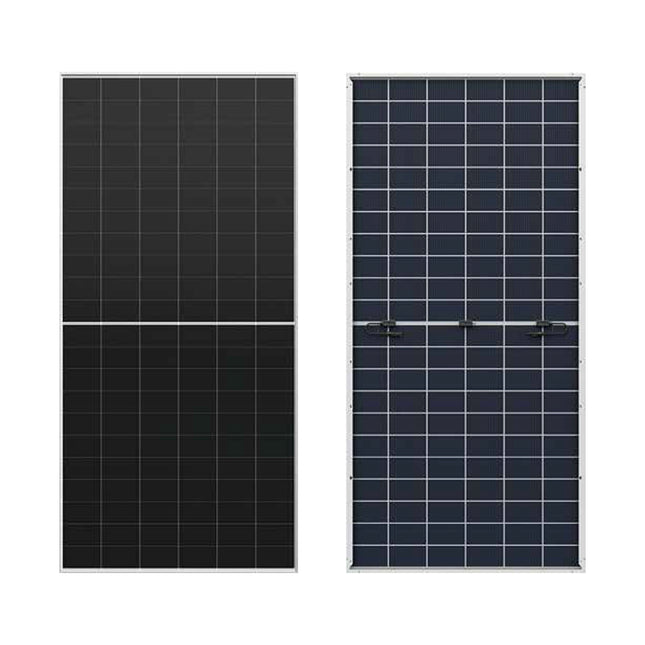

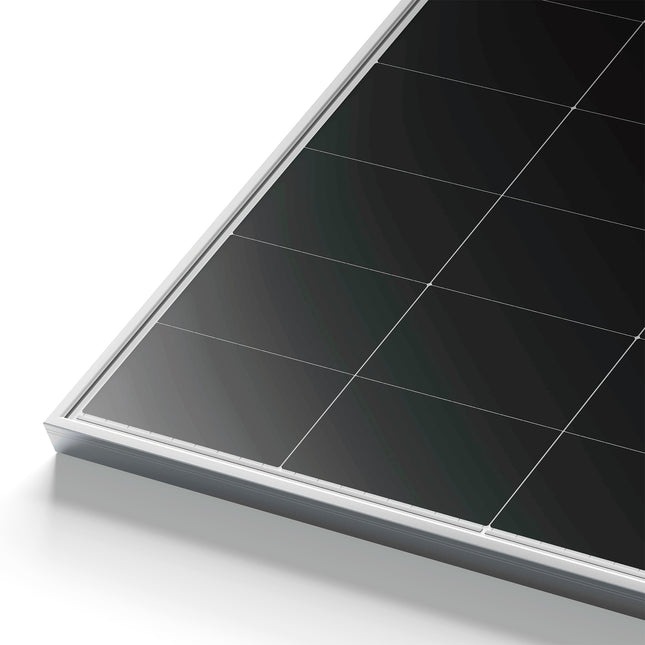

LONGi Hi-MO X10 Scientist HPBC2.0 Bifacial 645W Solar Panel LR7-72HYD-645M15-year Warranty for Materials and Processing30-year Warranty for Extra Linear Power OutputKey Features
Advanced: N-TaiRay + HPBC 2.0 + 0BB
Value-Added: Power Leads by 30W+, A+ Anti-Shading
Aesthetic: No Frontal Gridlines, Scenario Integration
Safe: Prevent Localized Overheating, Less Micro-Crack
Extended Warranty15-year warranty for materials and workmanship30-year warranty for extra linear power output performanceMechanical Parameters
Cell Orientation: 144
Junction Box: IP68, three diodes
Output Cable: 4mm², +400mm, -200mm / ±1400mm
Glass: Dual glass, 2.0mm + 2.0mm heat strengthened glass
Frame: Anodized aluminum alloy frame
Weight: 33.5kg
Dimension: 2382×1134×30mm
Packaging: 36pcs per pallet
Electrical Characteristics
Module Type: LR7-72HYD-645M
Testing Condition: STC
Maximum Power (Pmax/W): 645
Open Circuit Voltage (Voc/V): 54.12
Short Circuit Current (Isc/A): 15.06
Voltage at Maximum Power (Vmp/V): 44.77
Current at Maximum Power (Imp/A): 14.41
Module Efficiency (%): 23.9
Operating Parameters
Operational Temperature: -40°C ~ +85°C
Power Output Tolerance: 0 ~ +3%
Maximum System Voltage: DC1500V IEC/UL
Maximum Series Fuse Rating: 30A
Protection Class: Class II
Nominal Operating Cell Temperature: 45±2°C
Bifaciality: 70±5%
Fire Rating: IEC Class C
Ideal for utility-scale, commercial, and high-efficiency residential projects seeking maximum performance, product longevity, and bankable solar solutions backed by LONGi’s global reputation and innovation.
