Introducing the Portable Power Station Solar Power Station Power Bank 3000W 3840Wh (310Ah@12V) – Your Ultimate Backup. This Portable Solar Power Station is ideal for areas prone to power outages, as well as for camping, RV use, travel, and individuals who prefer an off-grid power solution. It's also suited for environmentally conscious users and off-grid living enthusiasts.
The product's exceptional design includes an MPPT controller and pure sine wave inverter output, ensuring compatibility with various loads, even those with high starting currents. The independent solar three-stage charge management enhances battery efficiency and lifespan.
With universal 5VDC-USB and 12VDC output ports, you can easily charge mobile devices and DC loads. Its applications are diverse, ranging from households and schools to remote monitoring stations, industrial setups, and more.
Flexible Charging Options:
AC 230V Input
DC 14.4V Input
Solar Power Input (Max 400W)
Designed for versatility, this system supports extension with up to 10 parallel batteries. It's equipped to handle solar power with an open voltage of 100V and 30A capacity. Control and monitor the system effortlessly through the Bluetooth app.
Key Features:
3000W Pure Sine Wave AC Output (6000W Peak)
Bluetooth App Support
MPPT Charger Controller (30A)
Supports Parallel Extension (Up to 10 Batteries)
Solar Power Compatibility (100V, 30A)
Generator Charging Support
Compact Design: 62cm x 29cm x 44cm, 20kg
Battery Specifications:
Voltage: 12V
Capacity: 310Ah
Charge Voltage: 13.8-14.0V
Float Voltage: 13.8V
Cut-Off Voltage: 10.8V
Maximum Current: 150A
Continuous Current: 125A
Chemistry: LiFePO4 (LFP)
Discharge Operating Temp: -20 to 80°C
Weight: 29kg
Dimensions: 530 x 270 x 220mm
Package Includes:
1x 3000W 12V 230V Solar Portable Power Station (2 Years Warranty)
1x Micromall 12V 310Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar Battery (10 Years Warranty)
All-in-one Backup Power Station
This Portable Solar Power Station is perfect for areas prone to continuous power outages, camping trips, RV setups, and travellers who need a reliable power supply. It's also ideal for environmentalists and those living off-grid.
The Portable Solar Power Station boasts a digital design with an MPPT controller and a pure sine wave inverter, providing dependable power for high-starting-current loads. It includes overcurrent protection and intelligent solar three-stage charge management for efficient battery charging and extended battery life.
Flexible Charging Options:
AC 230V input
DC 14.4V input
Solar power input (Max 400W)
Equipped with universal USB (5VDC) and 12VDC outputs, it can charge mobile devices and DC loads. This makes it suitable for small solar power applications in homes, schools, street and forest monitoring, and remote areas, thanks to its excellent performance and MCU intelligent control.
Key Features:
Pure sine wave AC output for a wide range of loads
Convenient USB (5VDC) and 12VDC output ports
Solar array and battery common-anode system input
Optional mains supply charging for flexible use
Digital LCD for operational status
Comprehensive protection and alarms, including overload and short-circuit protection
Power Station Specifications:
MPPT Charger Controller: 12V/24V/30A
Output Voltage: DC 5V/12V, AC 230V (2000W, peak 4000W)
Ambient Temperature: -5 to +45°C
USB Output: 1000mA, DC 12V Output: 60W
Size: 58cm x 54cm x 25cm
Weight: 20kg
Battery Specifications:
Voltage: 12V
Maximum Capacity: 210Ah
Charge Voltage: 13.8-14.4V
Float Voltage: 13.6V
Cut-Off Voltage: 11.2V
Max Current: 220A
Continuous Current: 120A
Chemistry: LiFePO4 (LFP)
Dimensions: 501 x 185 x 235mm
Weight: 22kg
Package Includes:
1x 2000W 12V 230V Portable Solar Power Station (2 Years Warranty)
1x Micromall Bronze - 12V 200Ah 210Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar Battery (10 Years Warranty)
All-in-One Backup Power Station

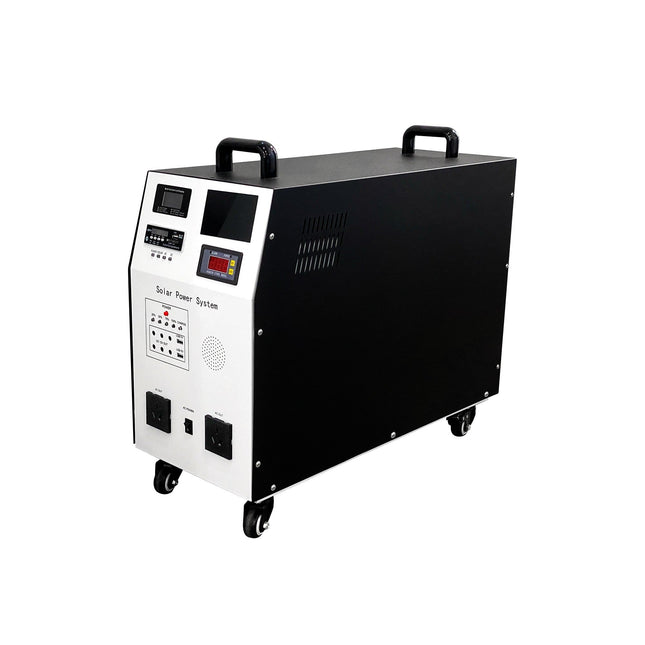

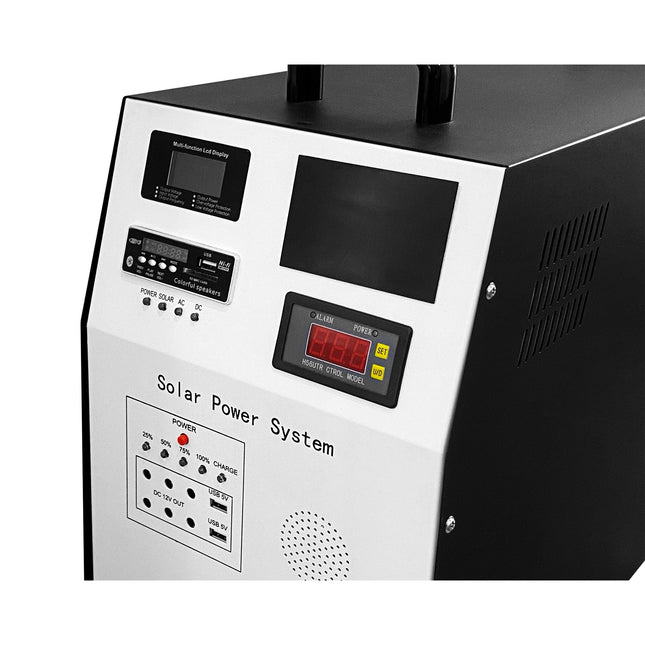

Portable Solar Power Station
This portable solar power station is ideal for areas prone to power outages, camping, RV use, travel, and those who prefer an off-grid power solution. It's also perfect for environmentally conscious users and off-grid living enthusiasts.
Flexible Charging Options
AC 230V in
DC 14.4V in
Solar power in (Max 400W)
Key Features
Versatile Use: Suitable for homes, schools, street and forest monitoring, industrial sites, remote areas, and small-scale solar projects.
Advanced Technology: Features a digital design, MPPT controller, pure sine wave inverter for stable AC output, and comprehensive overcurrent protection.
Efficient Charging: Incorporates a three-stage solar charge management system to enhance battery charge efficiency and extend battery life.
Multiple Outputs: Offers a universal 5VDC-USB port and 12VDC output for charging mobile devices and DC appliances.
Smart Control: Utilizes MCU intelligent control technology for exceptional performance and a wide range of load compatibility.
Safety and Protection: Equipped with overall automatic protection, including overcharge and over-discharge protection, AC output overload, and short circuit protection. Features a digital LCD for monitoring operation status.
Technical Specifications:
MPPT Charger Controller: 12V/24V/30A
Output Voltage: DC 5V/12V, AC 220V (Pure Sine Wave)
Ambient Temperature: -5 to +45°C
USB Output Power: 1000mA
DC Output Power: 60W
AC Output Power: 1000W
Dimensions: 620mm x 245mm x 520mm
Weight: 15kg
Battery Specifications:
Voltage: 12V
Capacity: 110Ah
Chemistry: LiFePO4
Operating Temperature: -30 to 65°C
Dimensions: 330mm x 170mm x 225mm
Weight: 11kg
Package Includes:
1x 1000W 12V/230V Portable Solar Power Station (2 Years Warranty)
1x Micromall Bronze - 12V 100Ah 110Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar Battery (10 Years Warranty)

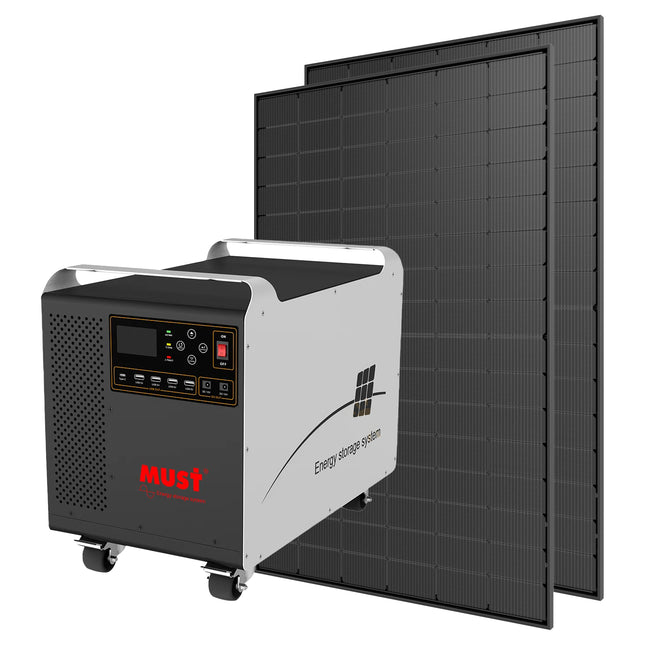

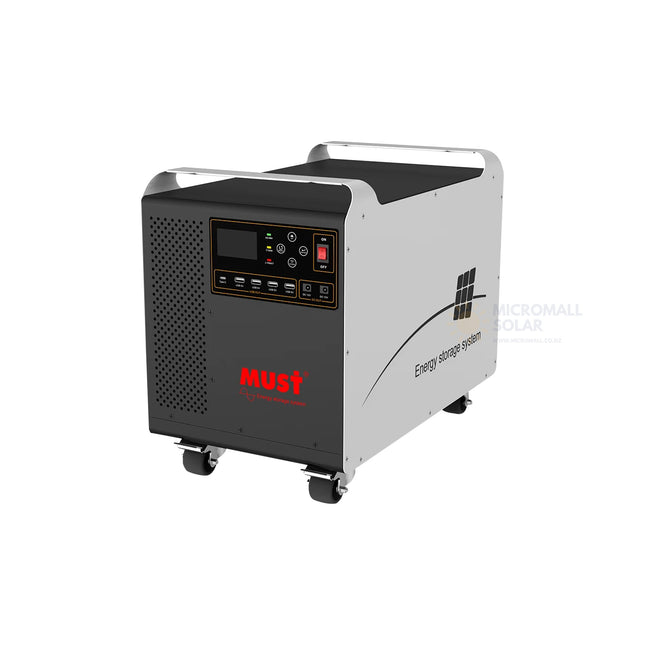

The HBP1800 OS series is specifically designed for office use, providing a reliable and efficient power source. However, it is also versatile enough to power various household appliances, including PCs, laptops, stereos, and desktop computers. Equipped with a built-in 4-series LiFePO4 battery, the HBP1800 OS has a capacity of either 960Wh or 3072Wh, making it an ideal portable power station for a range of needs.
SPECIFICATIONS
Model: HBP18-3024 OS
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated power: 3000W
Output voltage waveform: Pure Sine Wave
Output voltage regulation: 230V ±5%
Output frequency: 50Hz / 60Hz (±0.2Hz)
Peak efficiency: 90%
Nominal DC input voltage: 24V (±0.3)
PV Input
Max solar power input: 1800W
PV max charging current: 60A (±3A)
Combined charging current: 80A (±4A)
Max efficiency: 98.0% max
PV array open circuit voltage: 145VDC
PV Array MPPT Voltage Range: 30~120VDC
AC Input
AC input voltage: 230Vac ±5%
Acceptable input voltage range: 90-280VAC
Nominal input frequency: 50Hz / 60Hz (Auto detection)
AC Charge
Charging current @ Nominal input voltage: 20A/30A (±4A)
Lithium Battery
Energy: 3072Wh
Nominal voltage: 25.6V
Battery capacity: 120Ah
Protection board: 140A
MECHANICAL SPECIFICATIONS
Dimensions (W*H*D) (mm): 288x348x490

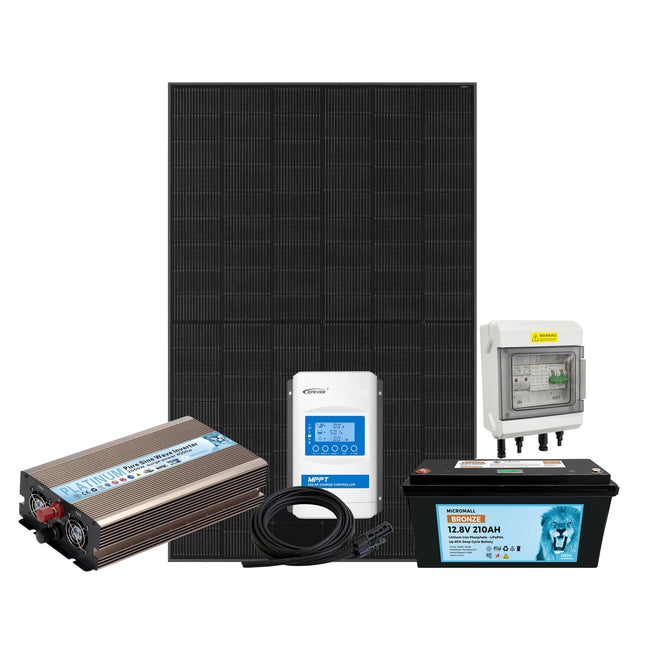

Introducing our small solar energy system, designed for 1-2 people in New Zealand, cabins, motorhomes, and workshops. This system generates 5160 watt-hours of electricity daily. The mono solar panels come with a 20-year warranty, and the batteries have a 6 years warranty + 4 years repair warranty with a lifespan of up to 30 years. Installation is easy with detailed diagrams provided. The system supports various household appliances like stoves, ovens, washing machines, heaters, kettles, and televisions.
You can expand the system in the future, supporting up to 16 solar panels and 16 batteries (new and old mixed). Advanced features include temperature monitoring, capacity detection, over-discharge, overcharge, and short-circuit protection.
The standout feature is the upgraded lithium battery with a 30-year lifespan, 6 years warranty + 4 years repair warranty, and remarkable performance. It stores over 2300 watt-hours, supports 100A continuous discharge, cycles 5000 times, with 80% capacity retained after cycles, and over 90% capacity throughout its life. The battery serves as the core and supports up to 16 parallel connections, allowing for cost-effective expansion with new and old mixed batteries.
Package includes:
2 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell
1 x SRNE 60A MPPT Solar Charge Controller 12/24VDC
1 x 2000W/4000W Pure Sine Wave Inverter

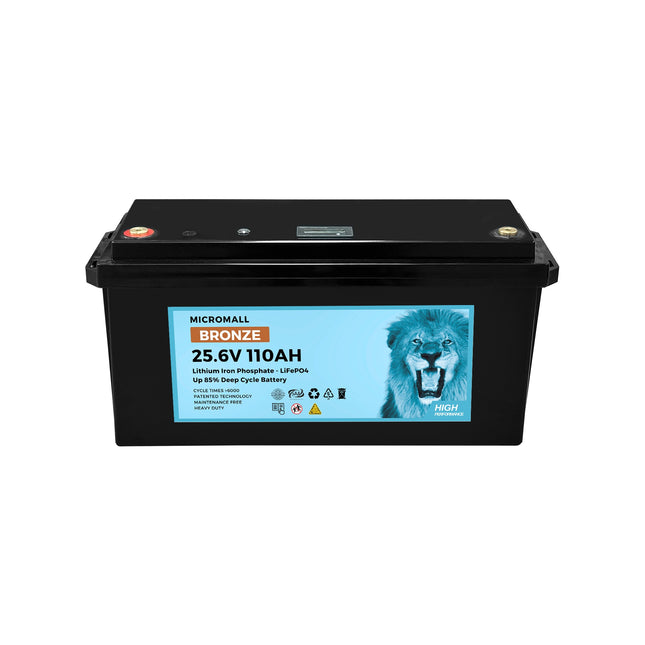

1 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
1 x 5m Twin 4mm PV Extension Cable with MC4 Connectors
1 X 2 in 1 - MC4 Solar Connectors
1 x 30a Fuse
1 x 160v 32a Circuit Breaker
1 x 600v Surge Protector
2 x Solar Panel Mounting Kits Z Brackets
5KWH daily output with a 6-hour charging time calculated based on average sunlight hours in NZ's winter & summer seasons.
**Solar Panel 25 Years Linear Power Output Warranty**
**Battery 10 Years Warranty**

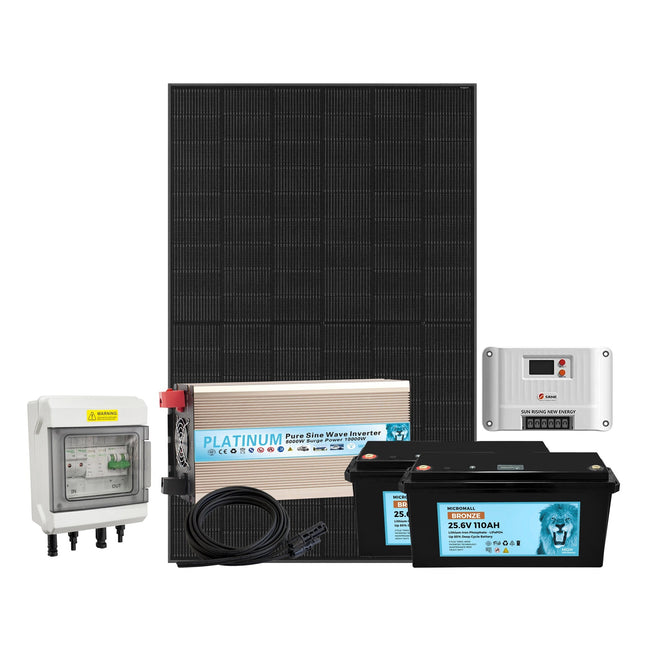

Introducing our small solar energy system, designed for 1-2 people in New Zealand, cabins, motorhomes, and workshops. The mono solar panels come with a 25-year warranty, and the batteries have a 10-year warranty with a lifespan of up to 30 years. Installation is easy with detailed diagrams provided. The system supports various household appliances like stoves, ovens, washing machines, heaters, kettles, and televisions.
You can expand the system in the future, supporting up to 16 solar panels and 16 batteries (new and old mixed). Advanced features include over-discharge, overcharge, and short-circuit protection.
The standout feature is the upgraded lithium battery with a 30-year lifespan, 6 years warranty + 4 years repair warranty, and remarkable performance. It stores over 2300 watt-hours, supports 100A continuous discharge, cycles 5000 times, with 80% capacity retained after cycles, and over 90% capacity throughout its life. The battery serves as the core and supports up to 16 parallel connections, allowing for cost-effective expansion with new and old mixed batteries.
Package includes:

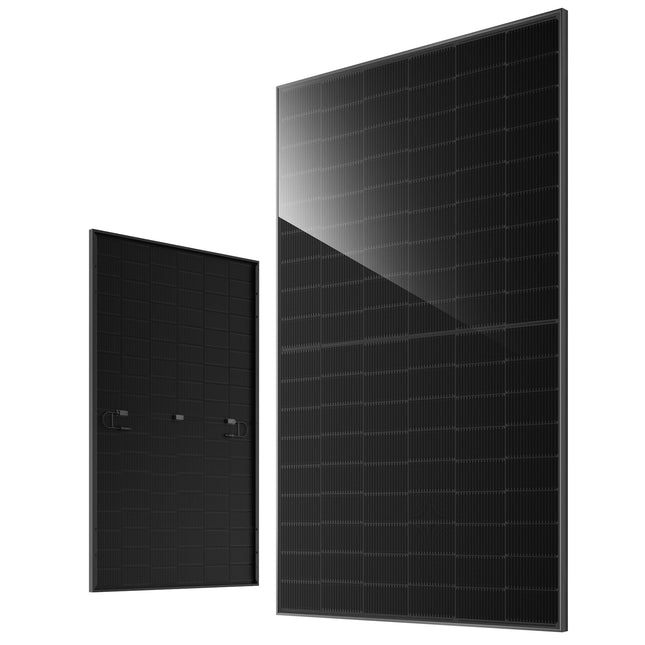

4 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell
1 x SRNE 60A MPPT Solar Charge Controller 12/24VDC
1 x 5000W/10000W Pure Sine Wave Inverter
2 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors

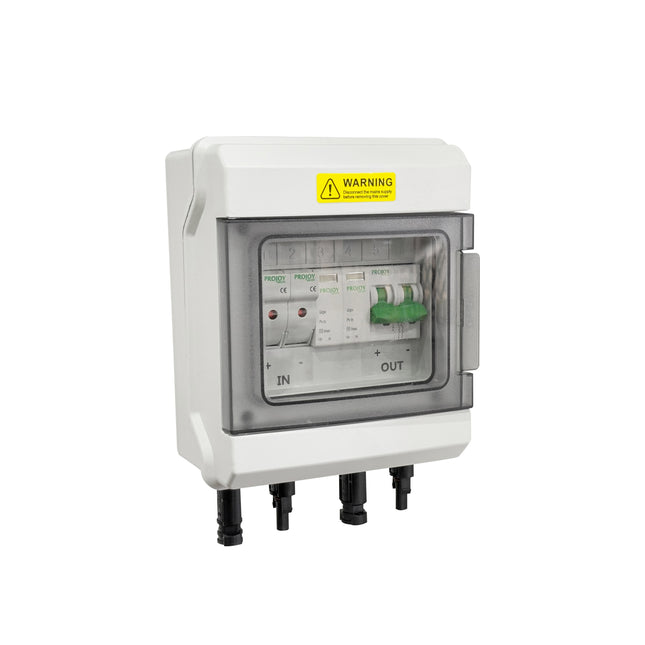

1 x PV Safety System
4 x Solar Panel Mounting Kits Z Brackets

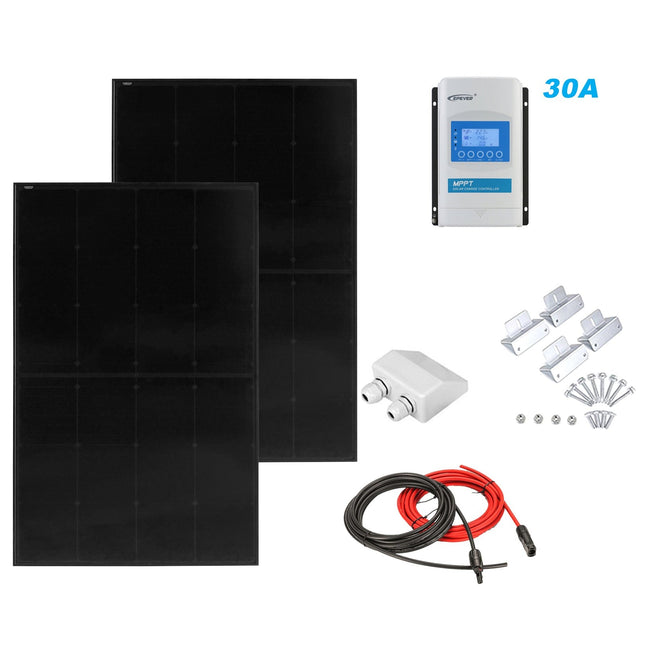

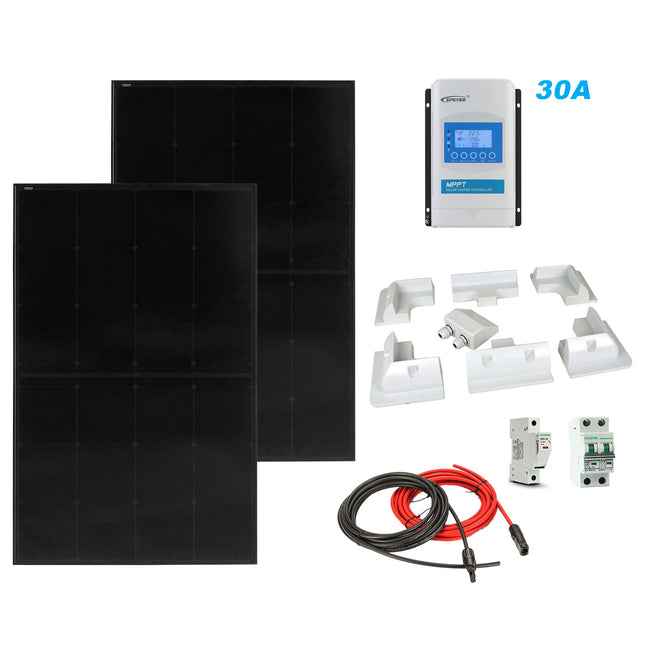

Introducing the RV Solar Kit: EPEVER XTRA3210N with 400W Mono Panel and Aluminium Mounting!
As a technical solar service provider, we offer high-quality products, comprehensive services, and support. Our team's extensive expertise ensures professional and efficient system design solutions tailored to your unique needs.
Package Includes:
2x 200W A-Grade Mono Solar Panels
1x EPEVER XTRA3210N MPPT Solar Charge Controller (30A)
2x 4-Piece Aluminium Mounting Kits
1x Weatherproof Solar Double Cable Entry
2x 2.5m 4mm PV Single Core Cables with MC4 Connectors

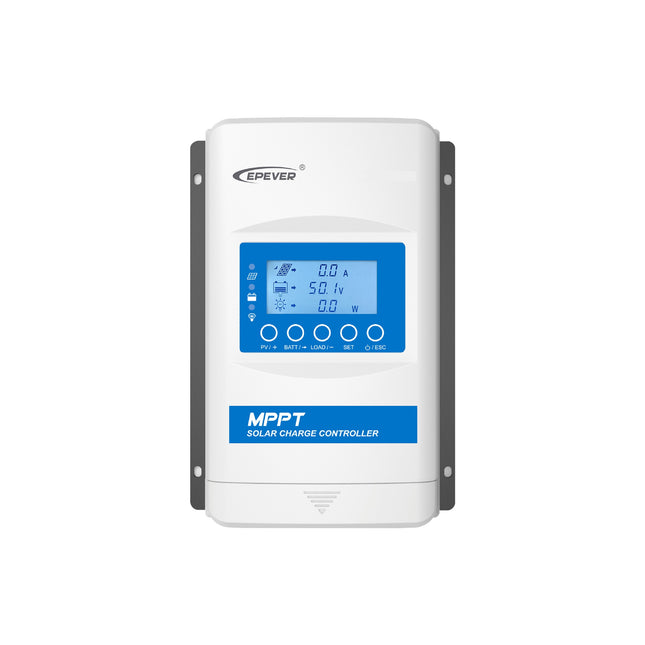

EPEVER XTRA3210N MPPT Controller Features:
Model: XTRA3210N
30A Rated Charge Current
390W/12V, 780W/24V Rated Charge Power
580W/12V, 1170W/24V Max PV Array Power
Max PV Open Circuit Voltage: 92V at 25°C, 100V at minimum operating temperature
A-Grade Mono Solar Panel Specs:
Specifications:
Model number: FSM-200W
Maximum power at STC (Pmax): 200Wp
Voltage at Pmax (Vmp): 23.56V
Current at Pmax (Imp): 8.48A
Open-Circuit Voltage (Voc): 27.3V
Short-Circuit Current (Isc): 9.55A
Dimension: 1190x770x30mm
Maximum System Voltage (Vmax): 1000VDC
Operating Temperature: -40°C - +85°C
Nominal Operating Cell Temperature (NOCT): 45 +- 2°C
Cell Technology: Mono-Si
Visit our local warehouse or enjoy nationwide shipping on your orders.
EPEVER XTRA3210N 30A MPPT A-GRADE 400W MONO PERC MPPT WITH FUSE AND BREAKER has Arrived!
We are a technically oriented solar service company that provides quality products, extensive service and support to our customers.
With years of accumulated expertise and rich experience, we will create professional and efficient system design solutions for you according to your different needs.
Package includes:
2x 200W A-Grade Mono Solar Panel
1x EPEVER XTRA3210N MPPT Solar Charge Controller 30A
2x 7 PIECES ABS MOUNTING KIT
(Include WEATHER PROOF SOLAR DOUBLE CABLE ENTRY)
2x 5 meters 2.5mm PV single core cable with MC4 connector
1x suntree 16a fuse
1x suntree 160v 25a breaker
EPEVER XTRA3210N MPPT Solar Charge Controller
Model: XTRA3210N
Rated charge current: 30A
Rated charge power:
390W/12V
780W/24V
Max.PV Array Power:
580W/12V
1170W/24V
Max.PV open circuit voltage:
92V(25°C)
100V (minimum operating temperature)

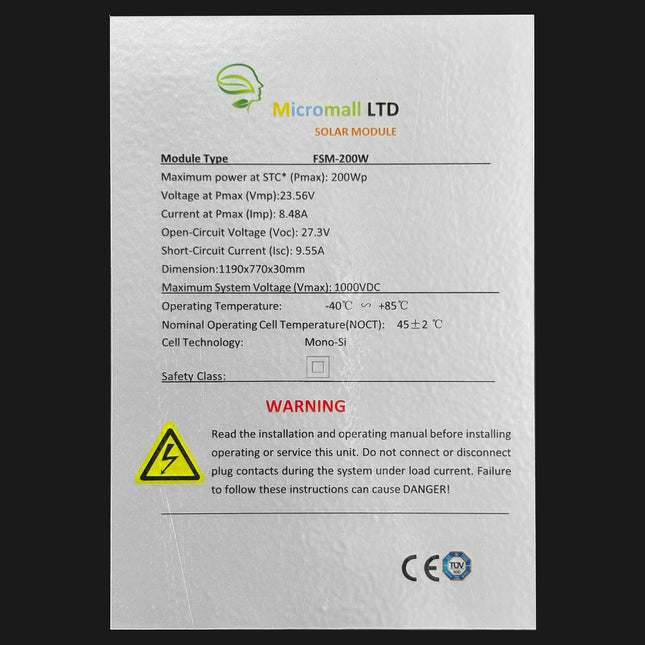

A-Grade Mono Solar Panel
Specifications:
Model number: FSM-200W
Maximum power at STC (Pmax): 200Wp
Voltage at Pmax (Vmp): 23.56V
Current at Pmax (Imp): 8.48A
Open-Circuit Voltage (Voc): 27.3V
Short-Circuit Current (Isc): 9.55A
Dimension: 1190x770x30mm
Maximum System Voltage (Vmax): 1000VDC
Operating Temperature: -40°C - +85°C
Nominal Operating Cell Temperature (NOCT): 45 +- 2°C
Cell Technology: Mono-Si
Local warehouse, feel free to visit us, we can also ship orders all over the country.

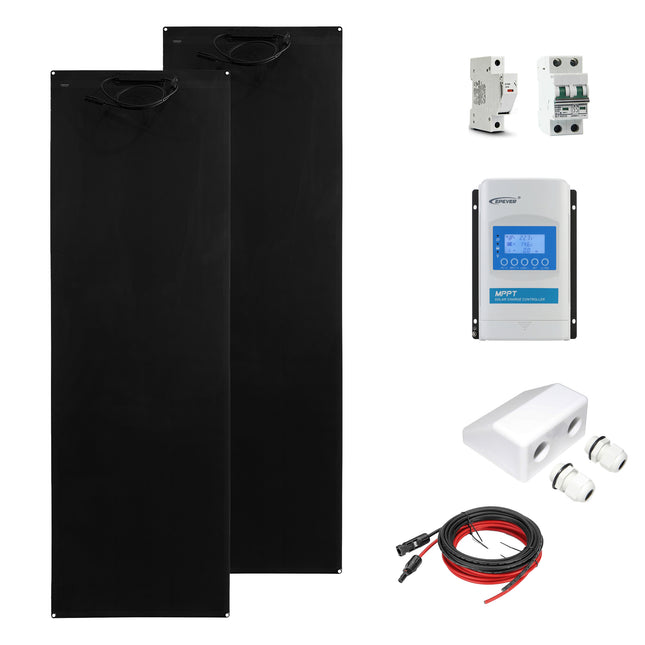

Introducing the 400W Flexible Solar Panel Package with EPEVER XTRA3210N 30A MPPT Controller!
Welcome to our state-of-the-art solar solutions. As a technology-driven solar service company, we pride ourselves on offering superior products, comprehensive services, and unwavering support to all our esteemed customers. Drawing on years of expertise and vast experience, we are committed to crafting professional and efficient system design solutions tailored to your unique needs.
Package Contents:
2x NEW - HPBC 200W Flexible Monocrystalline Outdoor Solar Panel
1x EPEVER XTRA3210N 30A MPPT Solar Charge Controller
2x Glue
1x Weatherproof Solar Double Cable Entry
2x 5 meters 2.5mm PV Single Core Cable with MC4 Connectors
1x PV 20a Fuse
1x PV 160v 25a Breaker
EPEVER XTRA3210N MPPT Solar Charge Controller Details:
Model: XTRA3210N
Rated Charge Current: 30A
Rated Charge Power:
390W for 12V Systems
780W for 24V Systems
Max. PV Open Circuit Voltage:
92V at 25°C
100V at Minimum Operating Temperature

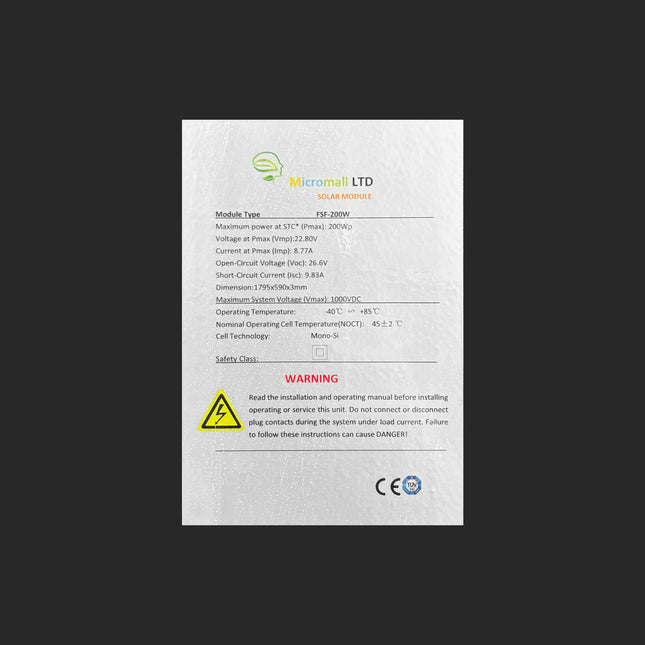

HPBC 200W Flexible Solar Panel Specifications:
Model: FSF-200W
Maximum power at STC (Pmax): 200Wp
Voltage at Pmax (Vmp): 22.80V
Current at Pmax (Imp): 8.77A
Open-Circuit Voltage (Voc): 26.6V
Short- Circuit Current (Isc): 9.83A
Dimension: 1795x590x3mm
Maximum System Voltage (Vmax): 1000VDC
We have a local warehouse available for visitations. Should you wish to inspect our offerings in person, you're more than welcome! Alternatively, we're fully equipped to ship orders nationwide for your convenience. Choose us for your solar needs and harness the power of the sun with utmost efficiency!
**Solar Panel 25 Years Linear Power Output Warranty**
**Battery 10 Years Warranty**

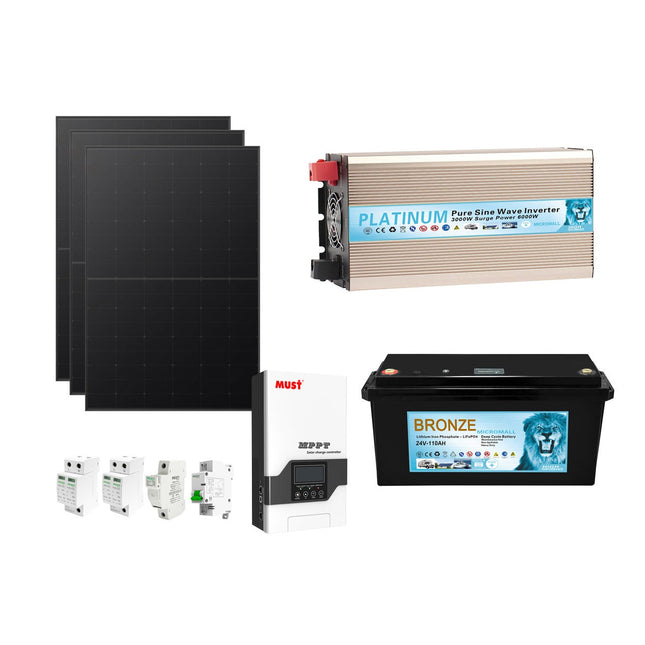

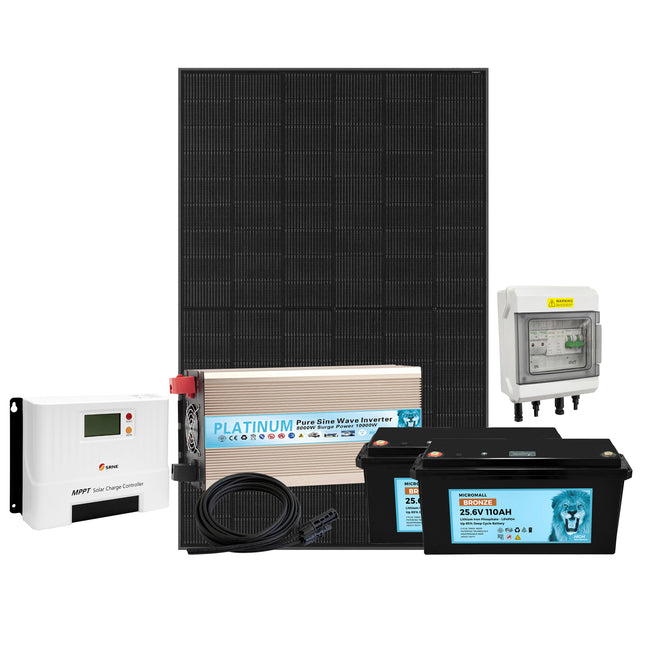

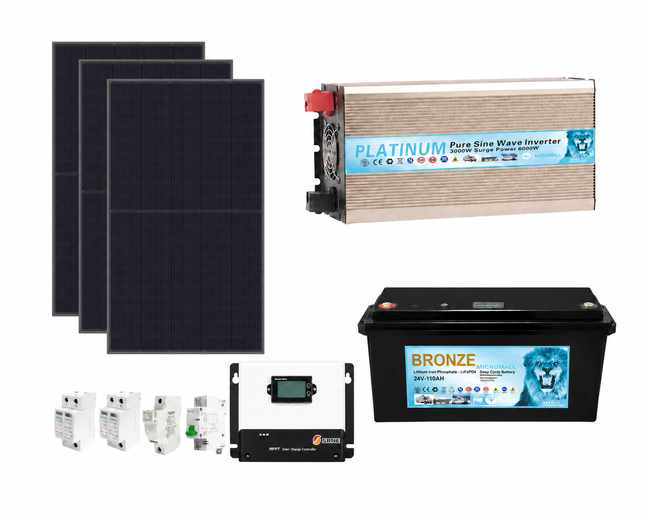

Introducing our small solar energy system, designed for 1-2 people in New Zealand, cabins, motorhomes, and workshops. The mono solar panels come with a 25-year warranty, and the batteries have a 10-year warranty with a lifespan of up to 30 years. Installation is easy with detailed diagrams provided. The system supports various household appliances like stoves, ovens, washing machines, heaters, kettles, and televisions.
You can expand the system in the future, supporting up to 16 solar panels and 16 batteries (new and old mixed). Advanced features include over-discharge, overcharge, and short-circuit protection.
The standout feature is the upgraded lithium battery with a 30-year lifespan, 6 years warranty + 4 years repair warranty, and remarkable performance. It stores over 2300 watt-hours, supports 100A continuous discharge, cycles 5000 times, with 80% capacity retained after cycles, and over 90% capacity throughout its life. The battery serves as the core and supports up to 16 parallel connections, allowing for cost-effective expansion with new and old mixed batteries.
Package includes:
4 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell
1 x SRNE 60A MPPT Solar Charge Controller 12/24VDC

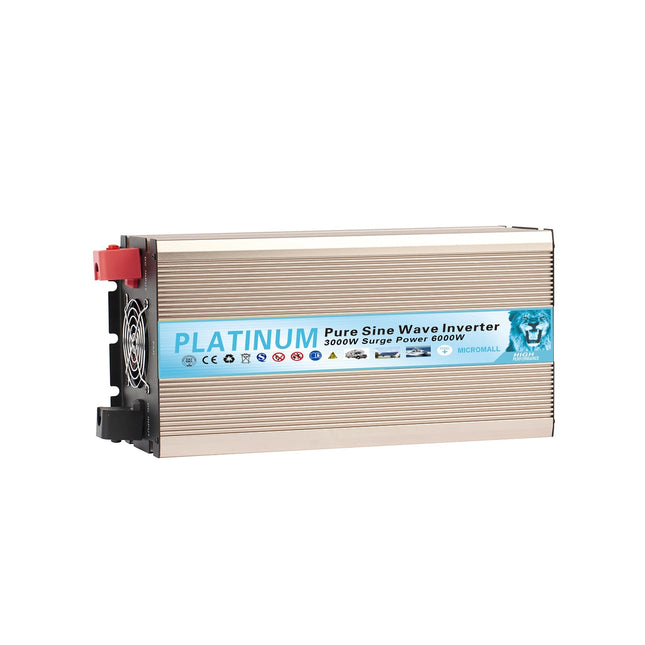

1 x 3000W/6000W Pure Sine Wave Inverter
2 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Safety System
4 x Solar Panel Mounting Kits Z Brackets

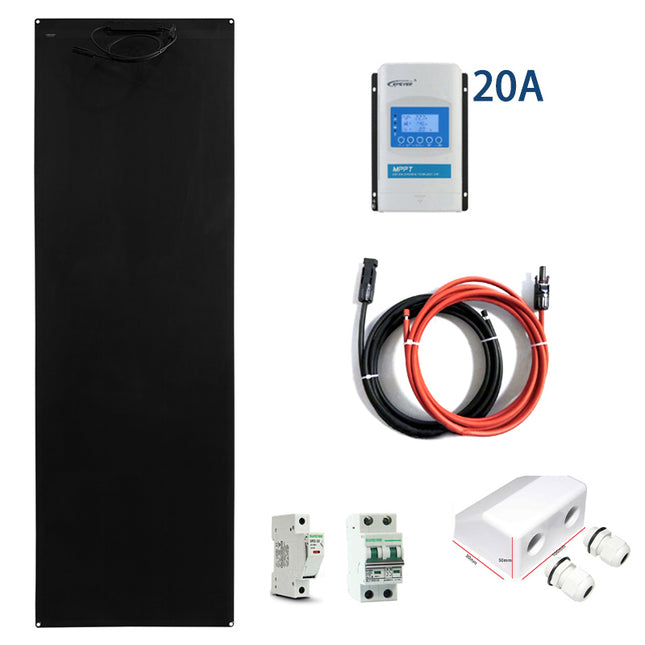

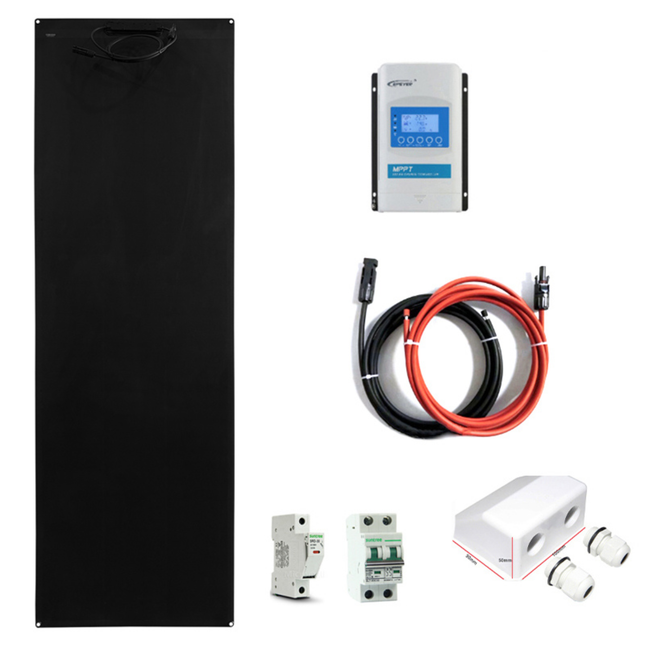

Introducing the A-GRADE 200W Flexible Solar Panel with EPEVER 20A MPPT Controller Package!
Key Features:
Technical Expertise: As a technically oriented solar service provider, we combine top-tier products with unparalleled service and support.
Custom Solutions: With years of expertise under our belt, we design systems tailored to your unique requirements, ensuring efficiency and satisfaction.
Package Contents:
1x NEW - HPBC 200W Flexible Monocrystalline Outdoor Solar Panel
1x EPEVER MPPT Solar Charge Controller 20A
2x Glue
1x Weatherproof Solar Double Cable Entry
2x 5 meters 2.5mm PV single core cable with MC4 connector
1x PV Fuse
1x PV Breaker
EPEVER 2210AN MPPT Solar Charge Controller Specifications:
Model: Tracer 2210AN
Auto Voltage: 12V / 24V DC
Max Input Power: 12V @ 260W | 24V @ 520W
Max. PV Open Circuit Voltage: 100VDC (92V at 25°C)
Compatible Battery Types: Lead-acid (Gel, Sealed, Flooded) and Lithium
Battery Voltage Range: 9V~32V
Feature: Common-Negatived Ground Controller with Charging Power and Current Limitation Functions. Fully programmable for battery types, load control, and more.
Weight: 0.96kg
Dimensions: 21715856.5(mm)
NEW - HPBC Flexible Solar Panel Specifications:
Model: FSF-200W
Maximum power at STC (Pmax): 200Wp
Voltage at Pmax (Vmp): 22.80V
Current at Pmax (Imp): 8.77A
Open-Circuit Voltage (Voc): 26.6V
Short- Circuit Current (Isc): 9.83A
Dimension: 1795x590x3mm
Maximum System Voltage (Vmax): 1000VDC
Visit or Ship: Our local warehouse is open for visits! Drop by to check out our products. Alternatively, we can ship to any location countrywide.
**Solar Panel Warranty: 25 Years Linear Power Output Warranty**
**Battery Warranty: 10 Years Warranty**
Introducing our small solar energy system, designed for 1-2 people in New Zealand, cabins, motorhomes, and workshops. The mono solar panels come with a 25-year warranty, and the batteries have a 10-year warranty with a lifespan of up to 30 years. Installation is easy with detailed diagrams provided. The system supports various household appliances like stoves, ovens, washing machines, heaters, kettles, and televisions.
You can expand the system in the future, supporting up to 16 solar panels and 16 batteries (new and old mixed). Advanced features include over-discharge, overcharge, and short-circuit protection.
The standout feature is the upgraded lithium battery with a 30-year lifespan, 10-year warranty, and remarkable performance. It stores over 2300 watt-hours, supports 100A continuous discharge, cycles 5000 times, with 80% capacity retained after cycles, and over 90% capacity throughout its life. The battery serves as the core and supports up to 16 parallel connections, allowing for cost-effective expansion with new and old mixed batteries.
Package includes:
1 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell
1 x EPEVER MPPT Solar Charger Controller 40A XTRA4210N 12V/24V
1 x 2000W/4000W Pure Sine Wave Inverter
1 x Micromall Bronze 12V 210Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
1 x 5m Twin 4mm PV Extension Cable with MC4 Connectors
1 x PV Safety System
1 x Solar Panel Mounting Kits Z Brackets
Combining high-efficiency 440W N-Type Mono Bifacial Topcon Half-Cell Solar Panels with a premium Deye Hybrid Inverter for exceptional performance and reliability.
**Solar Panel Warranty: 25 Years Linear Power Output Warranty**
**Battery Warranty: 10 Years Warranty**
Introducing our small solar energy system, designed for 1-2 people in New Zealand, cabins, motorhomes, and workshops. The mono solar panels come with a 25-year warranty, and the batteries have a 10-year warranty with a lifespan of up to 30 years. Installation is easy with detailed diagrams provided. The system supports various household appliances like stoves, ovens, washing machines, heaters, kettles, and televisions.
You can expand the system in the future, supporting up to 16 solar panels and 16 batteries (new and old mixed). Advanced features include over-discharge, overcharge, and short-circuit protection.
The standout feature is the upgraded lithium battery with a 30-year lifespan, 10-year warranty, and remarkable performance. It stores over 2300 watt-hours, supports 100A continuous discharge, cycles 5000 times, with 80% capacity retained after cycles, and over 90% capacity throughout its life. The battery serves as the core and supports up to 16 parallel connections, allowing for cost-effective expansion with new and old mixed batteries.

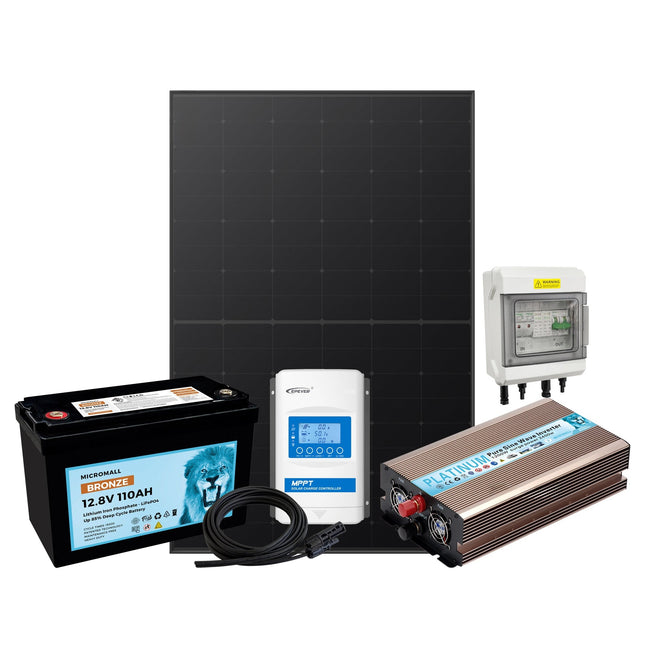

Package includes:
1 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell
1 x EPEVER MPPT Solar Charger Controller 40A XTRA4210N 12V/24V
1 x 1200W/2400W Pure Sine Wave Inverter
1 x Micromall Bronze 12V 110Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
1 x 5m Twin 4mm PV Extension Cable with MC4 Connectors
1 x PV Safety System
1 x Solar Panel Mounting Kits Z Brackets
Introducing our small solar energy system, designed for 1-2 people in New Zealand, cabins, motorhomes, and workshops. This system generates 7740 watt-hours of electricity daily. The mono solar panels come with a 25-year warranty, and the batteries have a 6 years warranty + 4 years repair warranty with a lifespan of up to 30 years. Installation is easy with detailed diagrams provided. The system supports various household appliances like stoves, ovens, washing machines, heaters, kettles, and televisions.
You can expand the system in the future, supporting up to 16 solar panels and 16 batteries (new and old mixed). Advanced features include over-discharge, overcharge, and short-circuit protection.
The standout feature is the upgraded lithium battery with a 30-year lifespan, 6 years warranty + 4 years repair warranty, and remarkable performance. It stores over 2300 watt-hours, supports 100A continuous discharge, cycles 5000 times, with 80% capacity retained after cycles, and over 90% capacity throughout its life. The battery serves as the core and supports up to 16 parallel connections, allowing for cost-effective expansion with new and old mixed batteries.
Package includes:
3 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell
1 x SRNE 12V 24V 60A MPPT Solar Charge Controller
1 x 3000W/6000W Pure Sine Wave Inverter
1 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 16a PV Fuse
1 x 160v 25a PV Circuit Breaker
1 x Surge Protector
3 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $90. If you wish to upgrade, please contact us.**
7KWH daily output with a 6-hour charging time calculated based on average sunlight hours in NZ's winter & summer seasons.
The HBP1800 OS series is specifically designed for office use, providing a reliable and efficient power source. However, it is also versatile enough to power various household appliances, including PCs, laptops, stereos, and desktop computers. Equipped with a built-in 4-series LiFePO4 battery, the HBP1800 OS has a capacity of either 960Wh or 3072Wh, making it an ideal portable power station for a range of needs.
Specifications
Model: HBP18-3024 OS
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated power: 3000W
Output voltage waveform: Pure Sine Wave
Output voltage regulation: 230V ±5%
Output frequency: 50Hz / 60Hz (±0.2Hz)
Peak efficiency: 90%
Nominal DC input voltage: 24V (±0.3)
PV Input
Max solar power input: 1800W
PV max charging current: 60A (±3A)
Combined charging current: 80A (±4A)
Max efficiency: 98.0% max
PV array open circuit voltage: 145VDC
PV Array MPPT Voltage Range: 30~120VDC
AC Input
AC input voltage: 230Vac ±5%
Acceptable input voltage range: 90-280VAC
Nominal input frequency: 50Hz / 60Hz (Auto detection)
AC Charge
Charging current @ Nominal input voltage: 20A/30A (±4A)
Lithium Battery
Energy: 3072Wh
Nominal voltage: 25.6V
Battery capacity: 120Ah
Protection board: 140A
MECHANICAL SPECIFICATIONS
Dimensions (WxHxD) (mm): 288x348x490
Solar Panel Specifications:
Electrical Properties (STC)
Peak Power (Pmax): 450 W
MPP Voltage (Vmp): 29.98 V
MPP Current (Imp): 15.01 A
Open Circuit Voltage (Voc): 34.91 V
Short Circuit Current (Isc): 15.86 A
Module Efficiency: 22.5%
Number of Cells: 96 pcs
Dimensions: 1762 × 1134 × 30 mm
Weight: 24.6 kg
Front / Rear Glass: 2.0 mm / 2.0 mm heat-strengthened glass
Frame: Anodized aluminium alloy
Package included:
1x Mustpower HBP18-3024 OS Portable Power Station
2x NIWA 450W N-Type Bifacial Solar Panel Transparent Black Dual Glass
1x PV Safety System
1x Premium 5m Twin Core Solar Extension Cable 10/12 AWG 4.0mm² with Connectors
1x MC4 Ports - pair
