**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**
SUN-5K-SG04LP1-AU | 5kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 120A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-5K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 120
Max. Discharging Current (A): 120
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 7500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 5000
Max AC Output Active Power (W): 5000
AC Output Rated Current (A): 21.7
Max. AC Output Current (A): 21.7
Max. Continuous AC Passthrough (A): 35
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-10K-SG02LP1-AU-AM3 | 10kW | Single Phase | 3 MPPT | Hybrid Inverter | LV-Baterio Subtenita
Higher yields / Safe & Reliable / Smart / User-friendly
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-10K-SG02LP1-AU-AM3
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 220
Max. Discharging Current (A): 220
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 9999
Max. AC Input/Output Apparent Power (VA): 9999
AC Output Rated Current (A): 43.5
Max. AC Output Current (A): 43.5
Max. Continuous AC Passthrough (A): 60
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Cabinet size (mm): 420W×670H×233 D(Excluding connectors and brackets)
Weight (kg): 35.6
Protection Degree: IP65
Grid Regulation: AS/NZS 4777.2
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
Higher yields / Safe & Reliable / Smart / User-friendly
Suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN-8K-SG05LP1-AU. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 190A
Support storing energy from diesel generator
Model: SUN-8K-SG05LP1-AU
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 190
Max. Discharging Current (A): 190
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 12000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 34+34
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Data
Rated AC Output Active Power (W): 8000
Max AC Output Active Power (W): 8000
AC Output Rated Current (A): 34.8
Max. AC Output Current (A): 34.8
Max. Continuous AC Passthrough (A): 50
Peak Power (off grid): 2 time of rated power, 10 S
Max. Efficiency: 97.60%
General Data
Weight (kg): 24.9
Cabinet size (mm): 330W x 580H x232D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-6K-SG04LP1-AU | 6kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 135A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-6K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 135
Max. Discharging Current (A): 135
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 9000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 6000
Max AC Output Active Power (W): 6000
AC Output Rated Current (A): 26.1
Max. AC Output Current (A): 26.1
Max. Continuous AC Passthrough (A): 40
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
Dedicated communication with battery service assistance.
DEYE WiFi Plug Stick Logger LSW-3
Characteristics:
Type: WiFi Plug Stick Logger
Model: LSW-3
Connectivity: WiFi
Installation: Plug & Play
Compatibility: Compatible with DEYE inverters
Monitoring: Real-time
Operating Range: Wide Range for Stable Wireless Connection
Energy efficiency: Low energy consumption
Dimensions: Compact design for easy installation
Warranty: 2 years
Application:
The DEYE WiFi Plug Stick Logger LSW-3 is designed for wireless monitoring of DEYE inverters. This device offers an easy and fast way to connect and monitor the performance of your PV system in real-time. With the help of a WiFi connection, users can monitor the parameters of their inverters through a mobile application or web platform, thus gaining access to important information about the status of the system and energy production. Ideal for home and small commercial installations that want to optimize the efficiency and reliability of their solar systems.

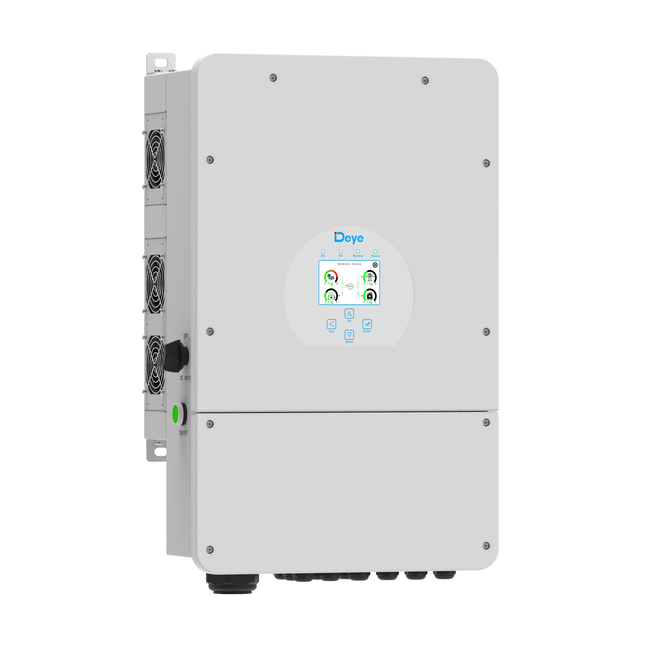

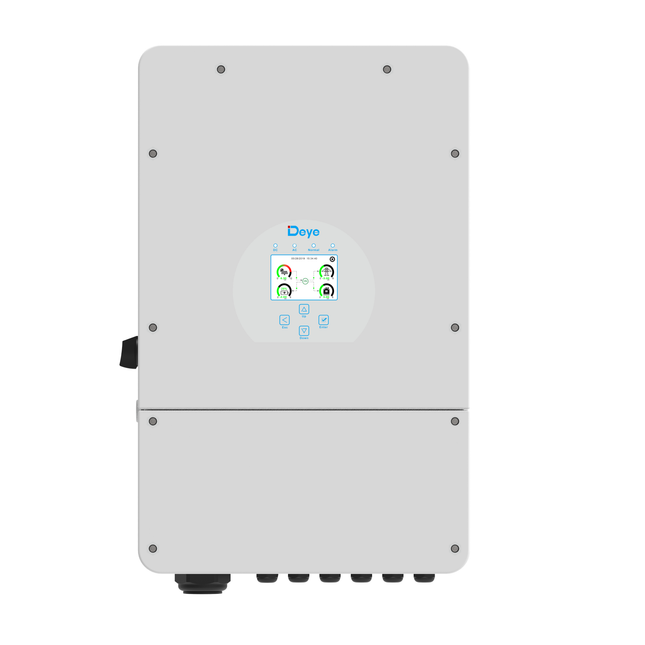

The Deye SUN-12K-SG02LP1-AU-AM3 is a 12kW single-phase hybrid inverter with three MPPT trackers for flexible solar and battery system design. It supports reliable energy management, backup operation and high-yield PV generation for New Zealand residential and commercial installations.Key Features
Vector Approved Inverter
DEYE New Zealand Distributor - Micromall Solar
10-Year Warranty
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Specifications
Model: SUN-12K-SG02LP1-AU-AM3
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 250
Max. Discharging Current (A): 250
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
Max. PV access power(W): 24000
Max. DC Input Power (W): 18000
Max. PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated PV Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers
No. of Strings MPP Tracker: 3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W): 12000
Max AC Input/Output Apparent Power (VA): 12000
Rated AC Input/Output Current (A): 52.2
Max. AC Input/Output Current (A): 52.2
Max. Continuous AC Passthrough (grid to load) (A): 60
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: > 99.90%
Weight (kg): 35.6
Cabinet size (mm): 420W x 670H x 233D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-12K-SG02LP1-AU-AM3 | 12kW | Single Phase | 3 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-12K-SG02LP1-AU-AM3
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 250
Max. Discharging Current (A): 250
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV access power(W): 24000
Max. DC Input Power (W): 18000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/
No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 12000
Max AC Output Active Power (W): 12000
AC Output Rated Current (A): 52.2
Max. AC Output Current (A): 52.2
Max. Continuous AC Passthrough (A): 60
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 35.6
Cabinet size (mm): 420W x 670H x 233D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**
SUN-3K-SG04LP1-24-AU |24V | 3kW | Single Phase | MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 140A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-3K-SG04LP1-24-AU
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 20V-30V
Max. Charging Current (A): 140
Max. Discharging Current (A): 140
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 4500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13
Max. Input Short-Circuit Current (A): 17
No. of MPP Trackers/No. of Strings MPP Tracker: 1/1
AC Output Data
Rated AC Output Active Power (W): 3000
Max AC Output Active Power (W): 3000
AC Output Rated Current (A): 13
Max. AC Output Current (A): 13
Max. Continuous AC Passthrough (A): 35
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
SRNE LSW-5 WiFi Monitor Module Stick Logger
Wireless Monitoring for SRNE MPPT Hybrid Solar Inverters
Product Overview
The LSW-5 WiFi Module is a plug-and-play wireless monitoring device designed specifically for SRNE MPPT Hybrid Inverters (HF / ASF / ASP Series). It enables real-time remote monitoring of your solar power system via web portal or mobile app, helping you stay informed and in control—anytime, anywhere.
Compatibility Notice:
This WiFi module is only compatible with SRNE MPPT Hybrid Inverters from the HF, ASF, and ASP Series.
It is not compatible with HES or HESP series inverters.
Key Features
Seamless WiFi Connectivity
Connects directly to your inverter via the dedicated WiFi port, enabling real-time system data monitoring through your smartphone or computer.
Web & Mobile App Access
Monitor key performance indicators such as input/output power, battery status, and load levels from the official SRNE monitoring platform.
Wide Compatibility Range
Supports inverter models with output power from 2kW to 5.5kW, including:
2kW / 3kW / 3.5kW / 5kW / 5.5kW.
Optimized for MPPT Solar Hybrid Systems
Designed to work with SRNE hybrid inverters that combine solar and grid power, ensuring efficient energy conversion and stable backup power.
Remote System Diagnostics & Alerts
Enables fault detection, performance tracking, and system alerts to ensure your energy system is running smoothly.
Why Choose LSW-5?
Hassle-free installation and intuitive setup
Real-time performance insights at your fingertips
Compact, durable design for long-term operation
Ideal for home solar, RV, off-grid cabins, and backup systems
Model: LSW-5
Input: DC 5V-12V 1.5W
Vector Approved InverterDeye New Zealand Distributor - Micromall Solar10-Year Warranty
The Deye SUN-30K-SG01HP3-AU-BM3 is a 30kW three-phase hybrid inverter for high-voltage lithium-ion battery systems. It provides three MPPT trackers, dual battery inputs and support for on-grid and off-grid operation.
Key features
High-voltage battery design for higher system efficiency
AC coupling for retrofitting an existing solar system
Up to 10 inverters in parallel for on-grid and off-grid operation
Supports multiple batteries in parallel
Six configurable battery charging and discharging time periods
Maximum combined charging/discharging current: 100A (50A + 50A)
Supports energy storage from a diesel generator
Technical specifications
Model: SUN-30K-SG01HP3-AU-BM3
Battery input
Battery type: Lithium-ion
Battery voltage range: 160-800V
Maximum charging/discharging current: 50A + 50A
Battery inputs: 2
Charging strategy: Self-adaption to BMS
PV input
Maximum PV access power: 60,000W
Maximum PV input power: 45,000W
Maximum PV input voltage: 1,000V
Start-up voltage: 180V
MPPT voltage range: 150-850V
Rated PV input voltage: 600V
Maximum operating PV input current: 36A + 36A + 36A
Maximum input short-circuit current: 55A + 55A + 55A
MPPT trackers / strings per tracker: 3 / 2 + 2 + 2
AC input/output
Rated active power: 30,000W
Rated/maximum apparent power: 30,000VA
Rated/maximum current: 43.5A
Maximum continuous AC passthrough (grid to load): 200A
Off-grid peak power: 1.5 times rated power for 10 seconds
Rated voltage: 230/400V or 240/415V, 3L + N + PE
Rated frequency/range: 50Hz / 45-55Hz
Power factor adjustment: 0.8 leading to 0.8 lagging
Total current harmonic distortion: <3% at nominal power
Efficiency and general data
Maximum efficiency: 97.6%
European efficiency: 97.0%
MPPT efficiency: >99%
Ingress protection: IP65
Dimensions (W × H × D): 527 × 894 × 294mm, excluding connectors and brackets
Actual weight: 80 kg
Operating temperature: -40°C to +60°C, derating above 45°C
Permissible humidity: 0-100%
Permissible altitude: 2,000m
Noise: ≤65dB
Cooling: Intelligent air cooling
Display and communications: LCD; Wi-Fi, RS485 and CAN
Surge protection: Type II (DC), Type II (AC)
Grid regulation: AS/NZS 4777.2
Warranty: 10 years
Installation and grid connection must follow the manufacturer's instructions and applicable local requirements.
HF Series All-in-One Hybrid Solar Inverter
Integrated Solar Charging, Energy Storage, and Pure Sine Wave AC Output
The HF Series is a next-generation, all-in-one hybrid inverter that combines solar energy conversion, battery charging/storage, and pure sine wave AC output in a compact and high-performance system. Built with DSP control and an advanced control algorithm, it delivers fast response, high reliability, and meets industrial-grade standards.
Key Features
Full Digital Control & SPWM Technology
Dual Output Modes
Flexible Charging Modes
High-Efficiency MPPT Charging
Power Saving Mode
Smart Cooling System
Compatible with 24V storage batteries
Multiple charging and on-load modes to maximise energy use
Efficient heat dissipation, prolonging system life
Support remote monitoring of equipment operating parameters
MODEL: HF2430S60-100
INVERTER OUTPUT
Rated Output Power: 3000W
Max.Peak Power: 6000VA
Rated Output Voltage: 230Vac Single-Phase
Load Motor Capacity: 2HP
Rated Frequency: 50/60Hz
Waveform: Pure sine wave
BATTERY
Battery Type: Lead-Acid / Li-ion / User-Define
Rated Battery Voltage: 24V
Battery Volatge Range: 20 - 33Vdc
Max. Solar Charging Current: 60A
Max. Grid/Generator Charging Current: 80A
Max. Hybrid Charging Current: 140A
SOLAR INPUT
No. Of MPPT: 1
Max.PV Array Power: 1600W
Max. Input Current: 40A
Max. Open Circuit Voltage: 108Vdc
MPPT Voltage Range: 30 - 90Vdc
GRID/GENERATOR INPUT
Input Voltage Range: 170 - 280Vac
Input Frequency Range: 50/60Hz
Bypass Overload Current: 30A
EFFICIENCY
MPPT Tracking Efficiency: 99.9%
Max. Efficiency: 92%
GENERAL DATA
Dimension: 378 x 280 x 103mm
Weight: 6.8kg
Protection Degree: IP20 Only Indoor
External Module (Optional): Wi-Fi/GPRS
Communication: RS485/CAN/USB/Dry Contact
Warranty: 2 years
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-15K-SG05LP3-AU-SM2 | 15kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
Support storing energy from diesel generator
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Model: SUN-15K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 280
Max. Discharging Current (A): 280
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 22500
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Range (V): 160-650
Rated PV Input Voltage (V): 550
Max. Operating PV Input Current (A): 36+36
No.of MPP Trackers: 2
No.of Strings per MPP Tracker: 2+2
AC Output Data
Rated AC Output and UPS Power (W): 15000
Rated Apparent Output Power (VA): 15000
AC Output Rated Current (A): 21.8
Max. AC Output Current (A): 21.8
Max. Continuous AC Passthrough (A): 70
Peak Power (Off Grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 50.6
Cabinet size (mm): 456W×750H×268.5D (Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-12K-SG04LP3-AU | 12kW | Three Phase | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-12K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 240
Max. Discharging Current (A): 240
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 18000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+13
Max. Input Short-Circuit Current (A): 39+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 12000
Max AC Output Active Power (W): 12000
AC Output Rated Current (A): 17.4
Max. AC Output Current (A): 17.4
Max. Continuous AC Passthrough (A): 45
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-12K-SG05LP3-AU-SM2 | 12kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Intuitive: 48V low voltage battery, transformer isolation design.
Intelligent: 6 time periods for battery charging/discharging.
Flexible: AC couple to retrofit existing solar system.
Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries paralle.
Reliable: Max. charging/discharging current of 240A.
Support storing energy from diesel generator.
100% unbalanced output, max. output up to 50% rated power for each phase.
Model: SUN-12K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging/Discharging Current (A): 240
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV access power(W): 24000
Max. PV Input Power (W): 18000
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated PV Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W): 12000
Max AC Input/Output Apparent Power (VA): 12000
Rated AC Input/Output Current (A): 17.4
Max. AC Input/Output Current (A): 17.4
Max. Continuous AC Passthrough (grid to load) (A): 45
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: > 99.0%
General Data
Weight (kg): 35.2
Cabinet size (mm): 386×660×250 (Excluding Connectors and Brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-25K-SG01HP3-AU-AM2 | 25kW | Three Phase | 2 MPPT
Hybrid Inverter | High-Voltage Battery Supported
Smart Monitoring Platform
Through Deye’s smart monitoring platform, the inverter supports remote monitoring, parameter configuration, firmware updates and remote shutdown when required, making system operation and maintenance easier and more efficient.
100% unbalanced three-phase output
AC coupling for retrofitting existing solar systems
Maximum 16 units in parallel for on-grid and off-grid operation
Supports multiple batteries in parallel
Maximum charging and discharging current of 50A
High-voltage battery support for improved system efficiency
Six programmable battery charging and discharging periods
Supports energy storage from a diesel generator
Model: SUN-25K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: LiFePO4
Battery Voltage Range (V): 160–700
Max. Charging Current (A): 50
Max. Discharging Current (A): 50
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Inputs: 1
PV String Input Data
Max. PV Access Power (kW): 50
Max. PV Input Power (kW): 40
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150–850
Rated PV Input Voltage (V): 700
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings per MPP Tracker: 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (kW): 25
Max. AC Input/Output Apparent Power (kVA): 27.5
Rated AC Input/Output Current (A): 37.9/36.3
Max. AC Input/Output Current (A): 41.7/39.9
Max. Continuous AC Passthrough – Grid to Load (A): 80
Peak Off-Grid Power: 1.5 Times Rated Power for 10 Seconds
Grid Connection: 3L+N+PE
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Operating Temperature Range: -40°C to +60°C, Derating Above 45°C
Ingress Protection Rating: IP65
Noise Level: ≤55dB
Cooling: Intelligent Air Cooling
Communication Interface: Wi-Fi, RS485 and CAN
Cabinet Size (mm): 408W × 638H × 237D
(Excluding Connectors and Brackets)
Weight (kg): 30.5
Warranty: 10 Years
Grid Regulation: AS/NZS 4777.2
Safety/EMC Standards: IEC/EN 61000-6-1/2/3/4,
IEC/EN 62109-1 and IEC/EN 62109-2
Growatt WiFi-F is a plug-and-play monitoring device to help monitor the status of the PV system. This device is installed on the inverter or controller for uploading and receiving data from the server.
Application:
Cable-Free
Easy Installation
50 Metre coverage
Built-in storage for 1 month of data
Online Monitoring and Maintenance
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
Deye SUN-8K-SG01HP3-AU-AM2 Three Phase Hybrid Inverter
SUN-8K-SG01HP3-AU-AM2 | 8kW | Three Phase | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase.
AC couple to retrofit existing solar system.
Max. 16pcs parallel for on-grid and off-grid operation;
Max. charging/discharging current of 50A.
High voltage battery, higher efficiency.
6 time periods for battery charging/discharging
Support storing energy from diesel generator.
Model:SUN-8K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: LiFePO4
Battery Voltage Range (V): 160-700
Max. Charging Current (A): 37
Max. Discharging Current (A):37
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 12000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 20+20
Max. Input Short-Circuit Current (A): 30+30
No. of MPP Trackers/ No. of Strings MPP Tracker: 2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W):8000
Max. AC Input/Output Apparent Power (VA):8000
Rated AC Input/Output Current (A): 11.6
Max. AC Input/Output Current (A): 11.6
Max. Continuous AC Passthrough (grid to load) (A):40
Peak Power (off-grid) (W): 1.5 times of rated power, 10s
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
Ingress Protection(IP) Rating: IP65
Cabinet Size (WxHxD mm):408×638×237 (Excluding Connectors and Brackets)
Weight (kg):30.5
Grid Regulation: AS/NZS 4777.2
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-20K-SG05LP3-AU-SM2 | 20kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
Support storing energy from diesel generator
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Model: SUN-20K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 350
Max. Discharging Current (A): 350
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 30000
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Range (V): 160-650
Rated PV Input Voltage (V): 550
Max. Operating PV Input Current (A): 36+36
No.of MPP Trackers: 2
No.of Strings per MPP Tracker: 2+2
AC Output Data
Rated AC Output and UPS Power (W): 20000
Rated Apparent Output Power (VA): 20000
AC Output Rated Current (A): 29
Max. AC Output Current (A): 29
Max. Continuous AC Passthrough (A): 70
Peak Power (Off Grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 50.6
Cabinet size (mm): 456W×750H×268.5D (Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-10K-SG05LP3-AU-SM2 | 10kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Intuitive: 48V low voltage battery, transformer isolation design.
Intelligent: 6 time periods for battery charging/discharging.
Flexible: AC couple to retrofit existing solar system.
Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries paralle.
Reliable: Max. charging/discharging current of 240A.
Support storing energy from diesel generator.
100% unbalanced output, max. output up to 50% rated power for each phase.
Model: SUN-10K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or LiFePO4
Battery Voltage Range (V): 40-60
Max. Charging/Discharging Current (A): 210
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV access power(W): 20000
Max. PV Input Power (W): 15000
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated PV Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W): 10000
Max AC Input/Output Apparent Power (VA): 10000
Rated AC Input/Output Current (A): 14.5
Max. AC Input/Output Current (A): 14.5
Max. Continuous AC Passthrough (grid to load) (A): 45
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: > 99.0%
General Data
Weight (kg): 35.2
Cabinet size (mm): 386×660×250 (Excluding Connectors and Brackets)
Protection Degree: IP65
*** 2 Years Warranty ***
*** Wi-Fi ***
The Growatt SPF 5000 ES is an off-grid inverter. It is suitable for a maximum circuit voltage of 450VDC. The inverter can be used with batteries, but can also work without. The integrated solar charger optimizes the charging and discharging of the battery. Priorities can be assigned, where for example charging from the grid can be preferred overcharging from the PV installation. Monitoring will be possible when adding a separate Wi-Fi or GPRS dongle.
Technical Data
Model: Growatt SPF 5000 ES
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid/AGM/GEL
Rated Power: 5000VA/5000W
Parallel Capability: Yes, 6 units maximum
Waveform: Pure sine wave
Maximum PV Array Power: 6000W
MPPT Range @ Operating Voltage: 120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charge Current: 100A
AC Charge Current: 80A
Dimensions: 330x485x135mm
Weight: 12kg
Introducing the Mustpower INVERTER PV30-3024PRO!
The Mustpower PV30-3024 PRO is an off-grid hybrid inverter designed for versatile usage. It features an 80A MPPT controller, a 3000W low-frequency inverter (with a peak power of 9000W), and is compatible with off-grid systems and generators.
Key Features:
Pure sine-wave output, suitable for various domestic appliances such as TVs, refrigerators, fans, air conditioners, induction cookers, and microwave ovens.
Superior performance thanks to CPU control technology.
Wide input voltage range with accurate output and AVR (Automatic Voltage Regulation) function.
Equipped with internal protection against overloads, short circuits, over-voltage, low-voltage, and over-heating.
Easy monitoring of inverter status with LED indication (upgradeable to LCD display).
Compatible with generators and allows for external battery connection.
Intelligent battery management system with protection against overcharging and over-discharging, among others.
Generator compatible.
Specifications:
Model Name: PV3000
Model Designation: PV30-3024PRO
Operating Temperature: 0°C to 40°C
Protection Degree: IP 20
Rated Power: 3000W
DC Input: 24VDC
AC Output: 230VAC 50/60Hz
AC Input: 230VAC 50/60Hz
Rated Current: 80A
System Voltage: 24VDC
MPPT Voltage Range: 30-130VDC
Maximum Solar Voltage (VOC): 145VDC
Maximum Charge Current: 80A
Dimensions (W*H*D): 423*247*197mm
Storage Temperature: -15°C to 60°C
Audible Noise: 60dB MAX
Display: LED+LCD
Standard Warranty: 1 year
This inverter fully complies with AS/NZS4777 and the new AS/NZS5033+ IEC 62109-1 & IEC 62109-2 + AS/NZS 5033:2014 Compliance, meeting the latest NZ 2015 specification requirements.
PV1900 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1900 EXP Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage is 150 - 450Vdc, which Can help customers make full use of solar energy.
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 500V (450V for parallel)
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
WIFI remote monitoring (optional)
Dual outputs for smart load management(optional)
Can communicate with lithium batteries
MODEL: PV19-6048 EXP
Nominal Battery System Voltage: 48VDC
INVERTER OUTPUT
Rated Power: 6000VA / 6000W
Surge Power: 12000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC+-5%(Setting)
Inverter Efficiency(Peak): 92%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC
Selectable Voltage Range: 170 - 280VAC(UPS) / 90 - 280VAC(APL) / 184 - 253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 48VDC
Floating Charge Voltage: 54.8VDC
Overcharge Protection: 60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 500VDC (450V for parallel)
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 6000W
Maximum Solar Charge Current: 120A
Maximum AC Charge Current: 100A
Maximum Charge Current: 120A
Dimensions (WxHxD): 309 x 505 x 147mm
2 Years Warranty
PV1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy.
Features:
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 450V
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
Parallel operation with up to 3 units
WIFI remote monitoring (optional)
MODEL: PV18-3024 PRO
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated Power: 3000VA / 3000W
Surge Power: 6000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC±5%(Setting)
Inverter Efficiency(Peak): 90%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC±5%
Selectable Voltage Range: 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 24VDC
Floating Charge Voltage: 27.4VDC
Overcharge Protection: 30VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 450VDC
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 4000W
PV Array MPPT Voltage Range: 150~430 VDC
Maximum Solar Charge Current: 80A/100A
Maximum AC Charge Current: 60A/80A
Maximum Charge Current: 80A/100A
MECHANICAL SPECIFICATIONS
Machine Dimensions: 322 x 486 x 134mm
Package Dimensions: 426 x 560 x 260.5mm
Net Weight: 8kg
Gross Weight: 9.5kg
2 Years Warranty
The HP-AHP20A series is a high-frequency inverter charger. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings. This high-quality product provides a stable power supply and is suitable for hybrid power generation systems that combine solar, utility, and oil engine sources. It meets the application requirements for customers seeking cost-effective residential power supply solutions.
Features
Pure sine wave output
Supports battery or non-battery modes
PFC technology reduces the demand on the power grid capacity
Advanced MPPT technology, with max. tracking efficiency higher than 99.5%
Supports charging from multiple types of generators
Battery charging or discharging current limits are compatible with various types of batteries
Adjustable maximum utility charging current for flexible configuration of utility charging power
Large size LCD display for better status monitoring
RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring
Comprehensive electronic protections
AC output supports parallel operation, standard configuration of 12 units in parallel
AC output parallel operation supports single-phase and three-phase settings
Model: HP3522-AH1250P20A
Utility Voltage: 176VAC - 264VAC (Default) 90VAC - 280VAC (Configurable)
Utility Frequency: 45Hz - 65Hz
Maximum Utility Charging Current: 110A
Inverter output
Inverter Rated Power: 3500W
3-second Transient Surge Output Power: 7000W
Inverter Output Voltage: 220 / 230VAC +-3%
Inverter Frequency: 50/60Hz +-0.2%
Output Voltage Waveform: Pure sine wave
Dimension(mm): 654L × 291.4W × 163H
Net Weight: 15.3 kg
