EPEVER EP Solar Tracer MPPT Remote MT-52 for BN and A Series MT52 Remote Meter
The MT52 remote meter, compatible with controllers featuring RS485 communication, enables real-time monitoring of the controller's operation and parameter programming. Key features include easy installation and operation, real-time display of fault alarms, local reading of parameters, direct power supply from the controller, and an RJ45 communication port.
Features
Easy to install and operate.
Locally reading of real-time parameters.
Equipped with an RJ45 communication port.
Real-time display of fault alarm.
Powered by the controller directly.
Electrical Parameter
Self-consumption: Backlight ON
Introducing the brand-new EPEVER XTRA N Series Solar Charge Controller, a state-of-the-art product designed for optimal solar system performance and durability.
The XTRA N Series Controller boasts a digitally controlled self-adaptive three-stage charging mode, extending battery lifespan and enhancing system performance. With comprehensive electronic protection, it safeguards against overcharge, overdischarge, and PV & battery reverse polarity, making your solar system more reliable and durable. This versatile controller is ideal for various applications including RVs, household systems, and field monitoring.
Product Details:
Model: Tracer 4210AN MPPT Charge Controller
12V / 24V DC Auto
Rated Charge Current: 40A
Max Input Power: 12V @ 520W | 24V @ 1040W
Max PV Open Circuit Voltage: 100VDC (92V at 25°C)
Battery Type: Lead-acid (Gel, Sealed, Flooded) and Lithium
Battery Voltage Range: 9V~32V
Common-Negative Ground Controller
Charging Power and Current Limitation Function
User Programmable for Battery Types, Load Control, etc.
Key Features:
CE Certified (LVD EN/IEC62109, EMC EN61000-6-1/3)
Operates efficiently across a wide range of temperatures, with 100% charging and discharging
Optional LCD display units available: XDB1/XDS1/XDS2
Crafted with high-quality, low-failure-rate components from ST or IR to ensure longevity
Advanced MPPT technology with ultra-fast tracking speed, delivering up to 99.5% tracking efficiency
High transfer efficiency of 98.3% DC/DC, and full load efficiency of up to 97.3%
Weight: 2.3kg
Package Includes:
1 x Tracer 4210AN MPPT Charge Controller
Warranty:
Covered by a 12-month warranty for your peace of mind.
Invest in the EPEVER XTRA N Series Controller for a dependable and enduring solar system experience!
Introducing the XTRA N Series Solar Charge Controller:
Brand new epever solar charge controller
Self-adaptive three-stage charging mode for extended battery lifespan and improved system performance
Comprehensive electronic protection against overcharge, overdischarge, PV & battery reverse polarity, ensuring reliability and durability
Suitable for various applications such as RVs, household systems, field monitoring, and more
12 months warranty included
Specifications (Tracer 2210AN MPPT Charge Controller):
Voltage: 12V / 24V DC (Auto)
Max Input Power: 12V @ 260W | 24V @ 520W
Max PV Open Circuit Voltage: 100VDC (92V at 25°C temperature)
Battery Types: Lead-acid (Gel, Sealed, Flooded) and Lithium
Battery Voltage Range: 9V~32V
Common-Negatived Ground Controller
Charging Power and Current Limitation Function
User programmable for battery types, load control, etc.
Key Features:
CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)
100% charging and discharging in working environment temperature range
Optional LCD display units available (XDB1/XDS1/XDS2)
High-quality components ensure reliability with low failure rate (ST or IR)
Advanced MPPT technology with ultra-fast tracking speed (efficiency up to 99.5%)
Maximum DC/DC transfer efficiency as high as 98.3%, full load efficiency up to 97.3%
Accurate recognition and tracking of multi-peaks maximum power point
Lightweight design (0.96kg) and compact dimensions (21715856.5mm)
Included in the package:
1 x Tracer 2210AN MPPT Charge Controller
Upgrade your solar charging system with the XTRA N Series Solar Charge Controller for enhanced performance and reliability.

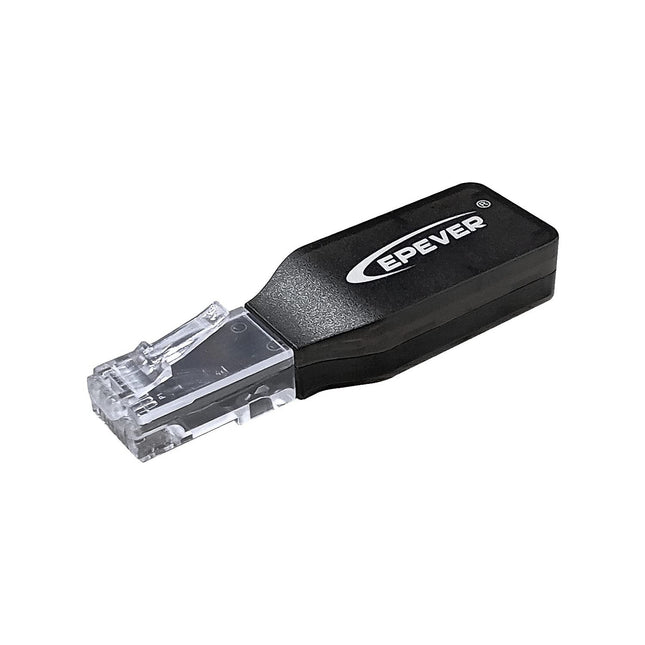

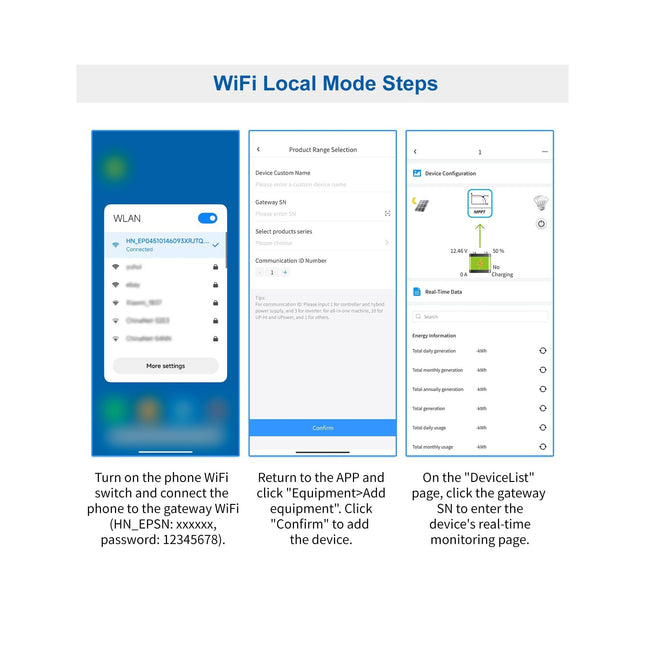

EPEVER WiFi Adapter Accessories for MPPT solar charge controller, Through a local 2.4G WiFi network, the EPEVER WiFi 2.4G RJ45 D can transmit all operational data from the EPEVER solar controller, inverter, or inverter/charger to the EPEVER cloud server in real time. Users can remotely monitor the connected devices and program parameters via the EPEVER server platform and mobile APP.
Parameter :
Model: EPEVER WiFi 2.4G RJ45 D (APP: Solar Guardian)
Working voltage: 5V± 0.5V(Powered by RS485 com. port)
Power consumption Peak emission: 150mA; Idle: 310uA
Enclosure: IP30
Communication method: RS485 Communication parameters: 115200Bps, 8N1
Interface standard: EPEVER communication standard V1-1.0
Work frequency: 2.4 ~ 2.4835GHz
Work temperature range: -40℃~ 85℃
Dimension: 63mm x 19mm x 10mm
Net weight: 7.7g
Package List:
1 X EPEVER WiFi Adapter
1 X Manual
RM-6 Remote Meter LCD Display for SRNE MC Series MPPT Solar ControllersReal-Time Monitoring of System Data and Operating StatusThe RM-6 Remote Meter is a convenient external display designed for SRNE MC Series MPPT solar charge controllers. It allows users to remotely monitor key system information in real time, providing clear visibility of the solar system’s operating status without needing to access the controller directly.Equipped with a clear LCD screen, the RM-6 displays essential system data such as battery status, charging current, voltage, and system faults. This makes it easier to manage and maintain your solar power system efficiently.The remote meter connects directly to compatible SRNE controllers, enabling easy installation and reliable communication. It is ideal for off-grid solar systems, RVs, boats, cabins, and home solar setups where the charge controller may be installed in a less accessible location.Key FeaturesCompatible with SRNE MC Series MPPT solar charge controllersReal-time monitoring of system data and operating statusClear LCD display for easy readingDisplays important information including battery voltage, charging current, and system statusRemote monitoring capability for convenient system managementSimple plug-and-play installationSpecifications
Model: RM-6
Display Type: LCD Screen
Compatible Controllers: SRNE MC Series MPPT Solar Controllers
Origin: China
Package Includes1 × RM-6 Remote Meter LCD Display
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA3210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 30A
Rated Discharging Current: 30A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
390W/12V
780W/24V
Maximum Conversion Efficiency: 98.60%
Maximum Load Efficiency: 96.60%
Dimension(LxWxH): 230x165x63mm
Net Weight: 1.30kg
Introducing the EPEVER XTRA4415N-XDS2 40A MPPT Solar Charge Controller, a high-performance device designed for 12/24/36/48V systems, capable of handling up to 150V.
Key Features:
Utilizes advanced MPPT technology with up to 99.5% tracking efficiency.
Achieves DC/DC transfer efficiency up to 98%, with full load efficiency at 97.4%.
Offers a broad MPP operating voltage range.
Features low temperature protection and a lithium battery charging self-activation function.
Includes power and current limitation beyond rated specifications.
Equipped with real-time energy monitoring.
Supports multiple load operation modes.
Provides comprehensive electronic protection for safety.
Compatible with both lead acid and lithium-ion batteries.
Over temperature protection with power reduction in high heat.
Optional LCD display units (XDB1/XDS1/XDS2) for enhanced usability.
Built with high-quality, durable components from ST or IR.
Isolated RS485 with protected 5V/200mA output, using standard Modbus protocol.
Remote monitoring and settings adjustment via APP or PC software.
Dust and waterproof with an IP32 rating.
CE certified (LVD IEC62109, EMC EN3/1-6-61000).
Specifications:
Nominal voltage: Auto 12/24/36/48VDC
Charge/discharge current: 40A
Battery voltage range: 8-68V
Max PV open circuit voltage: 150V
Max PV input power: 520W (12V), 1040W (24V), 1560W (36V), 2080W (48V)
Conversion efficiency: 98.5%; Load efficiency: 97.2%
Dimensions: 255x189x83.2mm; Weight: 2.47kg
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA4210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 40A
Rated Discharging Current: 40A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
520W/12V
1040W/24V
Maximum Conversion Efficiency: 98.60%
Maximum Load Efficiency: 96.50%
Dimension(LxWxH): 255x185x67.8mm
Net Weight: 1.72kg
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA2210N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 100V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.40%
Dimension(LxWxH): 217x158x56.5mm
Net Weight: 0.97kg

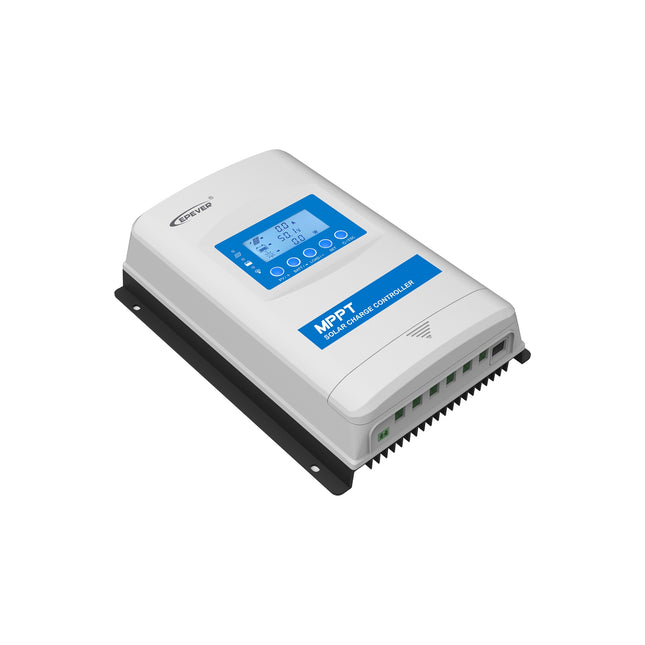

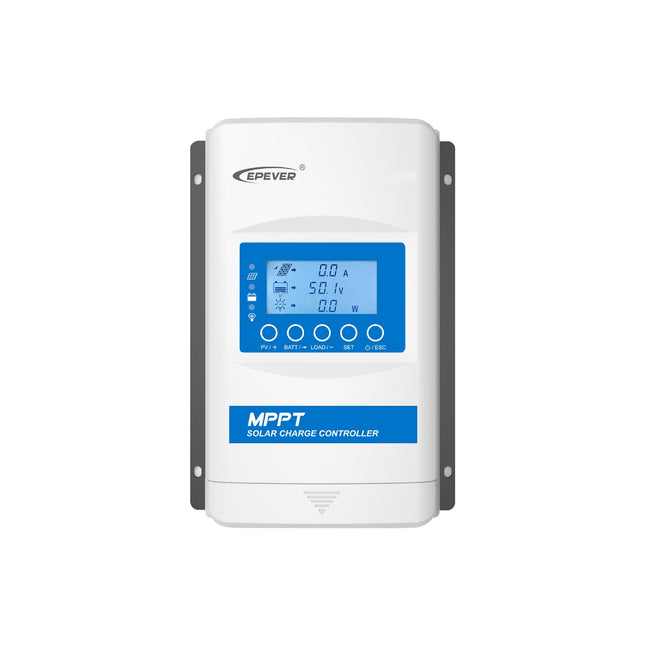

Introducing the Epever Solar Charge Controller - XTRA2206N (20A):
Brand new Epever solar charge controller
XTRA N series controller featuring self-adaptive three-stage charging mode for extended battery lifespan and improved system performance
Comprehensive electronic protection for overcharge, overdischarge, PV & battery reverse polarity, ensuring reliability and durability in your solar system
Suitable for various applications including RV, household systems, field monitoring, and more
Comes with a 12-month warranty
Specifications:
Model: XTRA2206N G3
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8~32V
PV Maximum Open-circuit Voltage:
60V(At minimum operating environment temperature)
46V(At 25℃ environment temperature)
MPPT Voltage Range: (Battery voltage+2V)~36V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.70%
RS485 Port: 5VDC/200mA(RJ45)
Dimension (L x W x H): 217×158×56.5mm
Mounting Size (L x W): 160×149mm
Net Weight: 0.97kg
Upgrade your solar system with the Epever XTRA2206N Solar Charge Controller for efficient and reliable power management.
Comes with 5 year warranty
Tracer-AN Series is the largest charge controller series in EPEVER's product range and can take up to 5KW solar panels. For even more power, the user can use PAL-ADP-5ON to connect max. 6 units of a controller in parallel for up to 30kW system. The multiple dry contact signals are designed for a diversified application.
Features
MPPT tracking efficiency above 99.5%
Maximum charge conversion efficiency as high as 98%
Support lead-acid and lithium-ion batteries
Common negative grounding, Charging current up to 100A
Charging power and current limitation function
High-temperature charging power derating function
3 relays design for different demand: utility, generator and load
Support up to 6 units in parallel
Remote temperature and voltage sensor design
Isolated Rs-485 with 5VDC/200mA and MODBUS protocol
Model: Tracer10420AN
Nominal system voltage: 12/24/36/48VDC/Auto
Battery type: Lead-acid/Lithium/User
Battery input voltage range: 8V - 68V
Rated charge current: 100A
Rated charge power:
1250W/12V
2500W/24V
3750W/36V
5000W/48V
Max. conversion efficiency: 98.50%
Tracking efficiency: >=99.5%
Max. PV open circuit voltage: 200V
MPP voltage range: (Battery Voltage+2V) - 144V
Enclosure: IP20
Communication interface: RS485
Dimensions(LxWxH)(mm): 394x242x143
Net weight: 7.4kg
The SRNE ML2440 is a high-efficiency MPPT solar charge controller designed for off-grid solar systems. With 99.9% MPPT efficiency, it ensures maximum solar power utilization.
Key Features:
Wide Compatibility – Supports multiple battery types (Lead-acid, Lithium, User-defined).
Smart Charging – Advanced MPPT technology boosts charging efficiency.
User-Friendly – Simple installation, natural cooling, and quiet operation.
Versatile Load Control – Multiple working modes for different applications.
Reliable Protection – Comprehensive charge & discharge safety mechanisms.
Smart Monitoring – Supports RS232, RS485, Bluetooth, and mobile app control.
Durable & Compact – IP32-rated, built with high-quality components for stable performance.
ML2440 Specifications:
System Voltage: 12V/24V Auto
Rated Charging Current: 40A
Max PV Input Power:
550W (12V)
1100W (24V)
MPPT Voltage Range: (Battery voltage +2V) - 75V
Max PV Open Circuit Voltage: 100V
Efficiency:
MPPT Tracking Efficiency: >99%
Max Charging Conversion Efficiency: ≤98%
Load Control: Supports Resistive, Capacitive, and Inductive loads
Load Working Modes: Light Control, Time Control, Manual, Debugging, and Always On
Communication: RS232 / RS485, Bluetooth (via optional module)
Operating Temperature: -35°C to 45°C
Protection Level: IP32
Weight: 2kg
Dimensions: 238 × 173 × 72.5mm
Perfect for caravans, RVs, and small off-grid solar systems, the ML2440 offers a compact, intelligent, and efficient power management solution.
SRNE MD1250N05 MD Series DC-DC Charger with MPPT Dual-Battery Controller
Smart Charging. Anytime, Anywhere.
Designed for off-grid and mobile applications such as RVs, caravans, boats, and 4WD vehicles.
Versatile Charging for Dual-Battery Systems
Supports charging from both solar panels (PV) and vehicle alternator
Charges both starter battery and leisure (auxiliary) battery simultaneously
Compatible with 12V and 24V alternator systems
For off-grid application
Can be connected to both PV and an alternator
Can charge both the leisure battery and the starter battery
User-Friendly
Easy to install and simple to use
Natural cooling, absolutely quiet
Safety
360 degrees of security from hardware to software
All-in-One
4 charging modes，be your reliable power steward
Helps you save space and wire
Efficient
MPPT with up to 99.9% efficiency
Support solar panels 2 in series/2 in parallel connection
Intelligent
Supports RV-C communication
MODEL: MD1250N05
PV INPUT
Max.Voltage of Open Circuit: 55Vdc
MPPT Voltage Range: 17-36Vdc
Max.PV Input Current: 45A
Max.PV Input Power: 700W
LEISURE BATTERY
Battery Type: Lead-acid / Li-ion / User Defined
Rated Battery Voltage: 12Vdc
Battery Voltage Range: 9-16Vdc
Max.MPPT Charging Current: 50A
Max.Alternator Charging Current: 60A
STARTER BATTERY / ALTERNATOR
Battery Type: Lead-acid
Rated Battery Voltage: 12/24Vdc
Max.MPPT Charging Voltage: 13.8V
Max.MPPT Charging Current: ≤15A
Max.Alternator Input Voltage
Conventional Alternator: 13.2-16Vdc / 26.4-32Vdc
Euro 6 Standard Alternator: 12-16Vdc / 24-32Vdc
Alternator Charging Mode: Buck, Boost, Buck-Boost
EFFICIENCY
MPPT Tracking Efficiency: >99%
Max. Charging Conversion Efficiency: 98%
COMMUNICATION
Embedded Interfaces: TTL, Remote Switch
External Modules: Bluetooth (with APP)
GENERAL
Weight: 2.15kg
Dimension: 221x175.8x92.4mm
Protection Degree: IP32
Operating Temperature Range: -35°C - 65°C
The SRNE MC2450N10 is a high-efficiency MPPT solar charge controller designed for off-grid solar systems. It ensures maximum solar energy utilization, stable battery charging, and intelligent system monitoring. With compact design, multiple battery compatibility, and Bluetooth support, it provides a reliable and user-friendly solar power solution.
High-Efficiency MPPT Charging – 99.9% tracking efficiency, 98% conversion efficiency
Wide Battery Compatibility – Supports FLD, GEL, LI, SLD, and user-defined batteries
Smart Monitoring – TTL, RS485, CAN (RV-C), Bluetooth with mobile app support
Safe & Reliable – Full charge/discharge protection, IP32 indoor design
Quiet & Compact – Natural cooling, lightweight, and easy installation
Specifications
PV Input
Max. Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72V
Max. PV Input Power: 660W (12V) / 1320W (24V)
Battery
Battery Type: FLD / GEL / LI / SLD / User Defined
Rated Battery Voltage: 12V / 24VDC
Battery Voltage Range: 9-32VDC
Max. Charging Current: 50A
Charging Mode: MPPT Buck
Efficiency
MPPT Tracking Efficiency: >99%
Max. Charging Conversion Efficiency: ≤98%
General
Protection Degree: IP32
Operating Temperature: -35°C to 60°C
Cooling Method: Natural Cooling
Weight: 1.34kg
Dimensions: 183×127×69.5mm
Communication & Monitoring
Built-in: TTL / RS485 / CAN (RV-C)
Optional Accessories: RM-6/RM-7 display screens, BT-2 Bluetooth module, GP-2 IoT module
DuoRacer Series MPPT Dual Battery Solar Charge Controller 20A is designed for charging two batteries at the same time in a solar system. This controller supports multiple life battery types, including Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn, which is suitable for RV, Camper, Boat, and small applications. The device recognizes the start battery system voltage automatically, and trickle charges the battery when the conditions are satisfied. The controller adopts the advanced MPPT control algorithm by Epsolar, which will minimize the maximum power point loss rate and loss time and fast-track the maximum power point(MPP) of the PV array to obtain the maximum energy from the solar array under any conditions.
Features:
Maximum Power Point Tracking technology with ultra-fast tracking speed and tracking efficiency at no less than 99.5% guaranteed
Advanced MPPT control algorithm to minimize the MPPlost rate and lost time
A wider range of the MPP operation voltage to improve the PV module utilization
Auto control function of charging power & charging current limitation(BATT1)
High quality and low failure rate components of ST, TI and Infineon to ensure the product life
Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life
BATT1 type can be set via LED/LCD
The DuoRacer switches into the low-power mode when there is no manual operation for a long time and charging conditions are not satisfied (PV
Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, offering high efficiency, advanced protection, and user-friendly operation. Now with Bluetooth connectivity for convenient mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485, CAN communication, and Bluetooth support with mobile app for real-time monitoring.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design saves space and reduces noise.Shiner2430B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72VDC
Max PV Input Power: 400W (12V) / 800W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 30A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 187 × 133 × 72 mm
Weight: 1.2 kg
Ideal for off-grid solar systems, caravans, cabins, and remote applications, the Shiner Series delivers stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.
Efficient | Intelligent | Reliable | Bluetooth EnabledThe Shiner Series MPPT Solar Charge Controller is designed for off-grid solar applications, providing high efficiency, advanced protection, and user-friendly operation. Now with Bluetooth connectivity for convenient mobile monitoring and control.Key FeaturesHigh MPPT Efficiency – Up to 99.9% tracking efficiency for optimal solar power utilization.Broad Compatibility – Supports 12V and 24V battery systems, including lead-acid and lithium batteries.Smart Connectivity – RS485 and CAN communication, plus Bluetooth support with mobile app for real-time monitoring and control.Multiple Load Control Modes – Light control, time control, manual control, and more.Reliable Protection – Overcharge, over-discharge, and load protection ensure system safety.Compact & Quiet – Natural cooling design saves space and reduces noise.Shiner2440B Specifications:
MPPT Efficiency: >99%
Max Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72VDC
Max PV Input Power: 520W (12V) / 1040W (24V)
Battery Voltage: 12/24VDC
Battery Type: Lead-acid / Lithium / User-defined
Rated Charging Current: 40A
Load Type: Resistive, Capacitive, Inductive
Load Voltage: Equal to battery voltage
Communication: RS485 (default), CAN (optional), Bluetooth (optional)
Protection Level: IP32
Operating Temperature: -35°C to 65°C
Dimensions: 228 × 160 × 72 mm
Weight: 1.75 kg
Ideal for off-grid solar systems, caravans, cabins, and remote applications, the Shiner Series delivers stable, intelligent solar charging performance with the convenience of Bluetooth mobile monitoring.
The XTRA-N G3 BLE series is a new generation of MPPT solar charge and discharge controllers with an integrated Bluetooth module. Users can easily read or modify settings parameters through the EPEVER APP. It boasts rapid tracking speed and response for high-power points, ensuring maximal utilization of solar energy. The device features an adaptive three-stage charging mode and a stable function for lithium battery activation, which safeguards battery charging and enhances the overall system performance and lifespan. It also offers a constant voltage output function, which allows the PV to directly supply power to the load in sunlight without a battery, significantly broadening the system's applications. With an IP33 protection and a low self-consumption, along with optimized EMC and comprehensive protection functions, it is suitable for various fields including RVs, residential systems, and field monitoring, meeting a variety of needs.
**Built-in Bluetooth module**
Constant voltage output
Rated Charging Power & Current Limitation
Support Bluetooth for parameter reading and modification via app
Operates at full load within the working temperature range
Innovative MPPT technology & ultra-fast tracking speed
Tracking efficiency is no less than 99.5%
Compatible with various types of batteries: lithium, gel, sealed, etc
Wide MPPT voltage range, maximizes the utilization of PV modules
Automatic temperature compensation for lead-acid batteries and stable self-activation for lithium batteries RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
Low self-consumption, lower than 10mA
IP33 enclosure
Model: XTRA2206N G3 BLE
Battery Rated Voltage: 12/24VDC Auto
Rated Charging Current: 20A
Rated Discharging Current: 20A
Controller Work Voltage Range: 8-32V
PV Maximum Open-circuit Voltage: 60V
Rated Charging Power:
260W/12V
520W/24V
Maximum Conversion Efficiency: 98.30%
Maximum Load Efficiency: 96.70%
Dimension(LxWxH): 217x158x56.5mm
Net Weight: 0.97kg
Comes with 2 years warranty

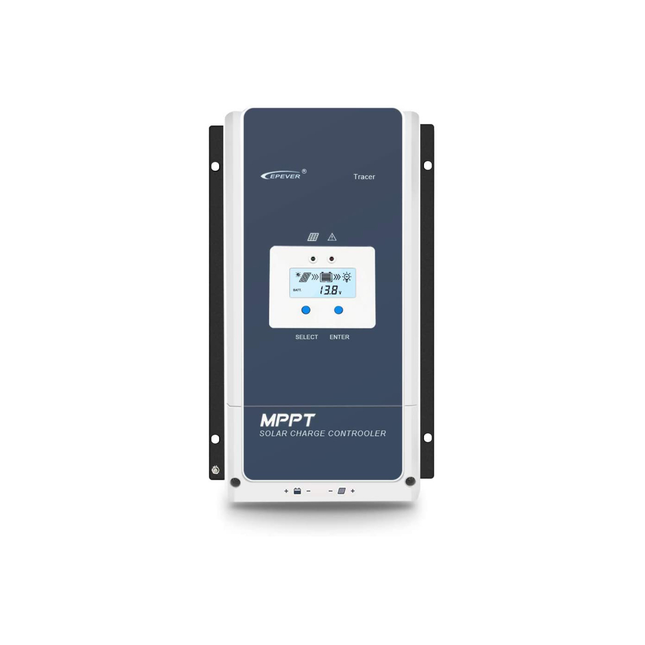

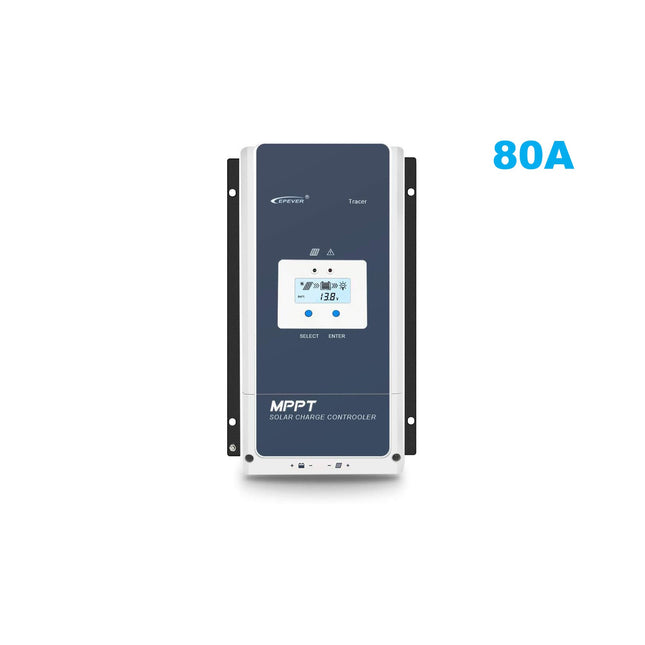

Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard.
Features:12V/24V/36V/48VDC AutoHigh quality & low failure rate components of ST and Infineon to ensure the product’s lifeThe accuracy of the recognition and tracking at the highest point of multiple-peaks MPPAuto control system to limit the charging power & current go over the rated valueBattery temperature compensation function, Real-time energy recording and statistical function, Automatic over-temperature power reduction functionLoad relay control external load switch signal to realize diversified load work modesAll-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time.
MODEL: TRACER 8420AN12VDC / 24VDC /36VDC/48VDC Auto selectRated Battery Current 80AMax. Solar Input Voltage 200VDCMax. PV input power:12V/ 1000W , 24V /2000W, 36V/3000W, 48V/4000WDimension 394x 240 x 134 / mmWeight 6.1kg
Come with 5 years warranty
Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard.
Features:
CE certification(LVD EN/IEC62109, EMC EN61000-6-1/3)
High quality & low failure rate components of ST and Infineon to ensure the product’s life
The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
Auto control system to limit the charging power & current go over the rated value
Battery temperature compensation function, Real-time energy recording and statistical function, Automatic over-temperature power reduction function
Load relay control external load switch signal to realize diversified load work modes
All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time.
MODEL: TRACER 6420AN
12VDC / 24VDC /36VDC/48VDC Auto select
Rated Battery Current 60A
Max. Solar Input Voltage 200VDC
Max. PV input power:12V/ 750W , 24V /1500W, 36V/2250W, 48V/3000W
Dimension 340x 236 x 119 / mm
Weight 4.5kg
Tracer series AN controller adopts MPPT technology (Maximum Power Point Tracking). The advanced tracking algorithm make the solar module operate at ideal voltage which the solar modules can produce the maximum available power. Compared to conventional PWM controller, MPPT technology increase charge efficiency up to 25% and decrease the power of solar array needed. Tracer has the ability to step-down the higher voltage solar array to recharge a lower voltage battery bank.
come with 5 years warranty.
New A-series Tracer has all the features of earlier Tracer models, and has a built in display. Fully USER definable settings using optional MT-50 ($49) or PC cable ($15) suitable for a wide range of battery types, and load timer, day/night, or disconnect settings - this makes it compatible with most LITHIUM BATTERIES. The MT-50 display is not required for selecting any of the three standard battery settings. 3 Stage charging: Bulk, Boost and Float, plus Equalize function. Settings for Flooded, Gel, Sealed batteries or user defined settings, contain algorithms to suit all lead acid battery types. Temperature Probe $25；eBOX WIFI $35
Suitable for use on 12 and 24 VDC systems
MPPT Technology is around 98% efficient, which is much better than the old PWM type charging that is around 75% efficient
MPPT technology takes the difference in voltage between your batteries and your solar panels and converts it into CHARGING AMPS for up to 45% + more output from your panels!
Can take any Solar Input that is higher than your Battery Voltage and charge your batteries!
Example: You can have a 24VDC solar panel and a 12VDC battery system, and the MPPT controller will turn the extra voltage into Amps!
Peak conversion efficiency of 97 %
High Tracking efficiency of 99%
MODEL: TRACER 3210AN
12VDC / 24VDC Auto
Rated Battery Current 30A
Max. Solar Input Voltage 100VDC
Max. PV input power:12V/ 390W , 24V /780W
Dimension 228x 164 x 55 / mm
Weight 1.2kg
The SRNE ML2430 is a high-efficiency MPPT solar charge controller designed for off-grid solar systems. With 99.9% MPPT efficiency, it ensures maximum solar power utilization.
Key Features:
Wide Compatibility – Supports multiple battery types (Lead-acid, Lithium, User-defined).
Smart Charging – Advanced MPPT technology boosts charging efficiency.
User-Friendly – Simple installation, natural cooling, and quiet operation.
Versatile Load Control – Multiple working modes for different applications.
Reliable Protection – Comprehensive charge & discharge safety mechanisms.
Smart Monitoring – Supports RS232, RS485, Bluetooth, and mobile app control.
Durable & Compact – IP32-rated, built with high-quality components for stable performance.
ML2430 Specifications:
System Voltage: 12V/24V Auto
Rated Charging Current: 30A
Max PV Input Power:
400W (12V)
800W (24V)
MPPT Voltage Range: (Battery voltage +2V) - 75V
Max PV Open Circuit Voltage: 100V
Efficiency:
MPPT Tracking Efficiency: >99%
Max Charging Conversion Efficiency: ≤98%
Load Control: Supports Resistive, Capacitive, and Inductive loads
Load Working Modes: Light Control, Time Control, Manual, Debugging, and Always On
Communication: RS232 / RS485, Bluetooth (via optional module)
Operating Temperature: -35°C to 45°C
Protection Level: IP32
Weight: 2kg
Dimensions: 238 × 173 × 72.5mm
Perfect for caravans, RVs, and small off-grid solar systems, the ML2430 offers a compact, intelligent, and efficient power management solution.
The SRNE MC48100N25 is a high-performance MPPT solar charge controller, ideal for off-grid solar systems. With 99.9% MPPT tracking efficiency, it ensures maximum power output from solar panels.
Key Features:
For off-grid application: Connect to photovoltaic and supply power to the battery.
User-Friendly
Easy to install and simple to use
Natural cooling, absolutely quiet
Safety
Complete charge protection mechanism
High-quality components for stable operation
All-in-One
Supports multiple battery types
Support 1-10 PCS in parallel
Efficient
MPPT with up to 99.9% efficiency
Support solar panel 2 in series/more in parall
Intelligent
Supports TTL, RS485 communication
Supports Bluetooth with mobile APP
Specifications:
Model: MC48100N25
PV INPUT
Max.Voltage of Open Circuit: 250Vdc
MPPT Voltage Range : (Battery voltage + 2V) - 180V
System Voltage: 12V/24V/36V/48V Auto
Rated Charging Current: 100A
Max PV Input Power:
1320W/12V
2640W/24V
3960W/36V
5280W/48V
Efficiency:
MPPT Tracking Efficiency: >99%
Max Charging Conversion Efficiency: ≤98%
Communication: TTL/RS485/Built-in Bluetooth
Operating Temperature: -35°C to 65°C
Protection Level: IP32
Weight: 5.7kg
Dimensions: 314 × 227 × 121mm
Perfect for large off-grid solar systems, the MC48100N25 provides high efficiency, intelligent control, and reliable performance for solar power management.
The SRNE MC2440N10 is a high-efficiency MPPT solar charge controller designed for off-grid solar systems. It ensures maximum solar energy utilization, stable battery charging, and intelligent system monitoring. With compact design, multiple battery compatibility, and Bluetooth support, it provides a reliable and user-friendly solar power solution.
High-Efficiency MPPT Charging – 99.9% tracking efficiency, 98% conversion efficiency
Wide Battery Compatibility – Supports FLD, GEL, LI, SLD, and user-defined batteries
Smart Monitoring – TTL, RS485, CAN (RV-C), Bluetooth with mobile app support
Safe & Reliable – Full charge/discharge protection, IP32 indoor design
Quiet & Compact – Natural cooling, lightweight, and easy installation
Specifications
PV Input
Max. Open Circuit Voltage: 100VDC
MPPT Voltage Range: Battery voltage +2V to 72V
Max. PV Input Power: 550W (12V) / 1100W (24V)
Battery
Battery Type: FLD / GEL / LI / SLD / User Defined
Rated Battery Voltage: 12V / 24VDC
Battery Voltage Range: 9-32VDC
Max. Charging Current: 40A
Charging Mode: MPPT Buck
Efficiency
MPPT Tracking Efficiency: >99%
Max. Charging Conversion Efficiency: ≤98%
General
Protection Degree: IP32
Operating Temperature: -35°C to 60°C
Cooling Method: Natural Cooling
Weight: 1.04kg
Dimensions: 183×127×65.5mm
Communication & Monitoring
Built-in: TTL / RS485 / CAN (RV-C)
Optional Accessories: RM-6/RM-7 display screens, BT-2 Bluetooth module, GP-2 IoT module
