Key Features
Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system
Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation
Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations
Fast installation: Standard 19-inch rack design allows easy integration into data center or industrial environments
Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations
Environmentally friendly: Completely free of toxic substances and built from recyclable materials
Specifications
Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system.
Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation.
Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations.
Fast installation: Standard 19-inch rack design allows easy integration into data center or industrial environments.
Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations.
Environmentally friendly: Completely free of toxic substances and built from recyclable materials.

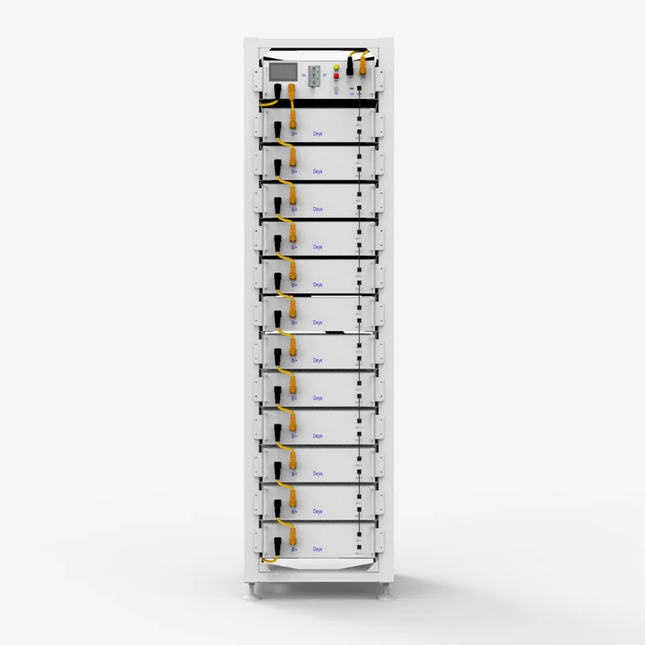

System capacity: Max 61.44 kWh (12 × 5.12kWh modules)
Nominal system voltage: 614.4 V(12 × 51.2V modules)
Usable energy: ~55.3 kWh (at 90% DoD)
Dimensions (W × H × D): 530 × 602 × 2219 mm
Weight: approx. 622 kg (including batteries)
Ingress protection: IP20
Communication: CAN2.0 / RS485
Recommended depth of discharge (DoD): 90%
Certifications: UN38.3, CE, CE-EMC, IEC62040, VDE, etc.

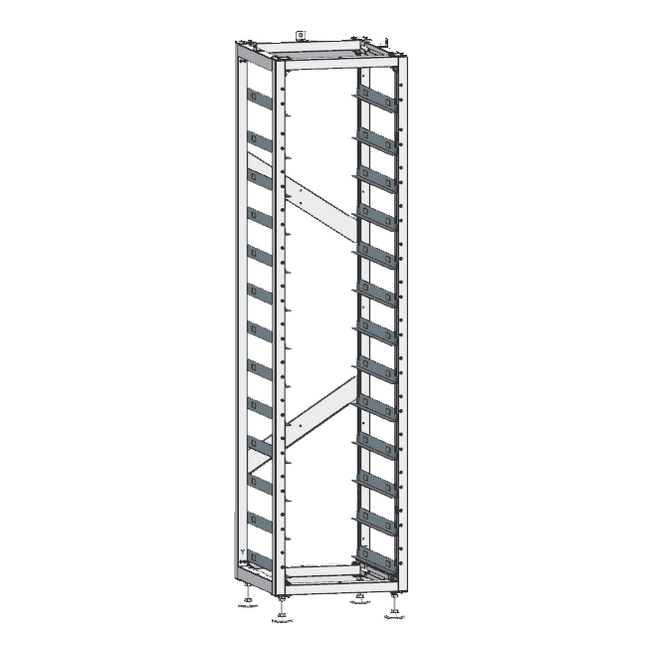

3U-HRACK:
Dimension (W×D×H): 530×602×2219mm
Weight Approximate: 51kg
Key Features
Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system
Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation
Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations
Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations
Environmentally friendly: Completely free of toxic substances and built from recyclable materials
Specifications
Modular design: The system is built from 5.12 kWh LiFePO₄ (lithium iron phosphate) battery modules which, when connected in series, form a high-voltage battery system.
Safety and long service life: LiFePO₄ technology provides excellent cycle life (≥6000 cycles at 70% EOL) and reliable operation.
Intelligent BMS: The integrated Battery Management System protects against overcharge, over-discharge, overcurrent, and temperature fluctuations.
Wide temperature range: Operates from -20°C to +55°C, suitable for outdoor or less temperature-controlled locations.
Environmentally friendly: Completely free of toxic substances and built from recyclable materials.

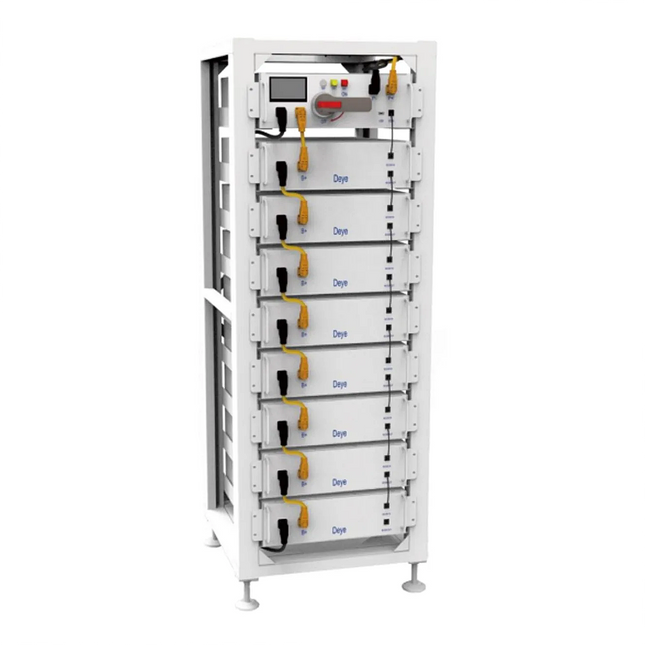

System capacity: Max 40.96 kWh (8 × 5.12kWh modules)
Nominal system voltage: 409.6 V(8 × 51.2V modules)
Usable energy: 36.86 kWh (at 90% DoD)
Dimensions (W × H × D): 530 × 602 × 1629 mm
Weight: approx. 428 kg (including batteries)
Ingress protection: IP20
Communication: CAN2.0 / RS485
Recommended depth of discharge (DOD): 90%
Certifications: UN38.3, CE, CE-EMC, IEC62040, VDE, etc.

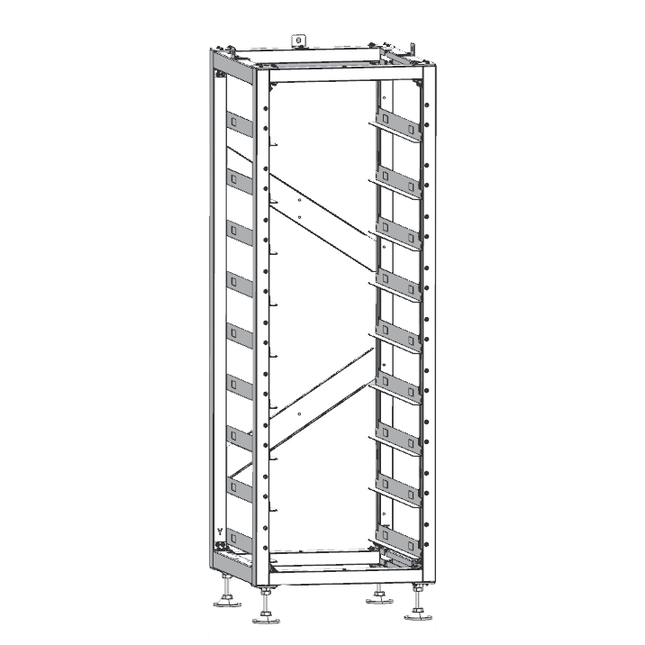

3U-HRACK:
Dimension (W×D×H): 530 × 602 × 1629mm
Weight Approximate: 51kg
The GE-F60 Energy Storage System (ESS) is a revolutionary solution designed for high-rate cyclic charging and discharging scenarios. This innovative system harnesses the power of Lithium Iron Phosphate (LiFePO4) technology, offering superior performance, exceptional safety, and unmatched flexibility.
Key Features:
High Performance: 5.12 kWh per module, expandable to 61.44 kWh, suitable for residential and commercial use.
Flexible Configuration: Supports up to 360 kWh (series) or 600 kWh (off-grid), meeting diverse energy needs.
Wide Temperature Range: Operates from -20°C to 55°C, ensuring reliability in extreme conditions.
Advanced Safety: Features gas detection, smoke/temperature alarms, and fire suppression for maximum protection.
Smart Management: BMS enables real-time monitoring, redundancy, black start, and off-grid functionality.
Durable & Efficient: IP55-rated, 6000+ cycles, and designed for easy floor-mounted installation.
Technical Specifications:
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Battery Module Specifications:
Energy Capacity: 5.12 kWh
Nominal Voltage: 51.2 V
Capacity: 100 Ah
System Voltage: 480-700 V
Weight: Approximately 1070 kg
Operating Humidity Range: 5% to 85% RH
Warranty: 10 years
Certifications: UN38.3, CB, CE, CEC, IEC62040
The GE-F60 Energy Storage System is the ideal choice for those seeking a reliable, efficient, and safe solution for their energy storage needs. Whether you’re looking to enhance your residential energy setup, optimize commercial operations, or establish an effective off-grid system, the GE-F60 delivers unparalleled performance and versatility.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

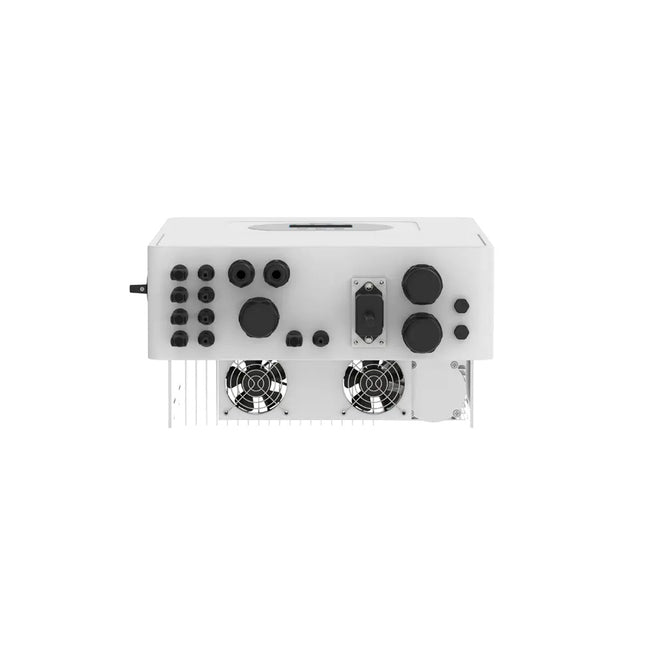

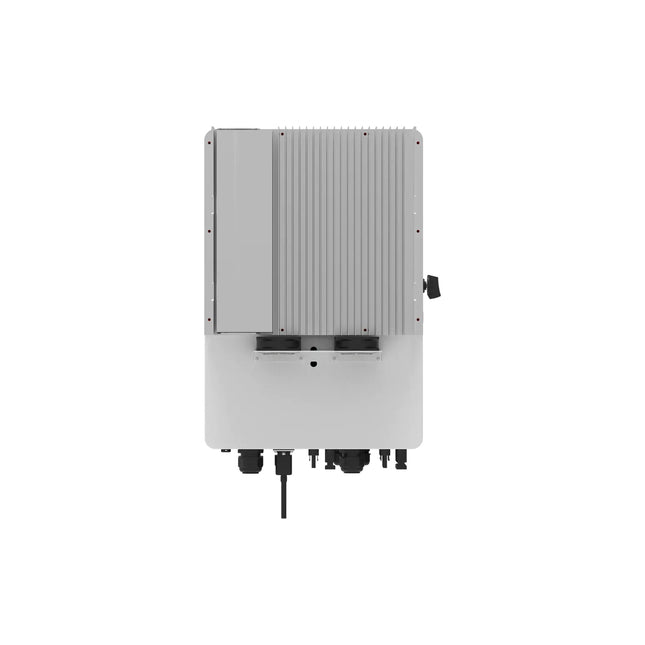

SUN-50K-SG01HP3-AU-BM4 | 50kW | Three Phase | 4 MPPT | Hybrid Inverter | HV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output；each phase
AC couple to retrofifit existing solar system
*Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-50K-SG01HP3-AU-BM4
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Max. PV Input Power (W): 75000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated PV Input Voltage (V): 600
No. of MPP Trackers/No. of Strings MPP Tracker: 4/2+2+2+2
Rated AC Input/Output Active Power (W): 50000
Max. AC Input/Output Apparent Power (VA): 50000
Rated AC Input/Output Current (A): 72.5
Max. AC Input/Output Current (A): 72.5
Max. Efficiency: 97.60%
Cabinet Size (WxHxD mm): 527×894×294 (Excluding Connectors and Brackets)
Weight (kg): 80

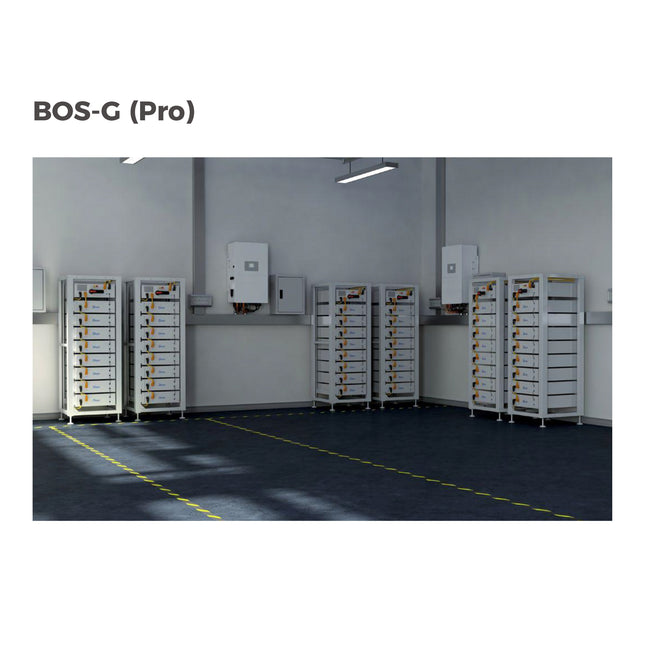

Model: B0S-G Pro
Warranty: 10 years
Cell Chemistry: LiFePO4
Energy (kWh): 5.12
Nominal Voltage (V): 51.2
Capacity (Ah): 100
Battery Module Qty in series: 8
System Nominal Voltage (V): 409.6
System Operating voltage (V): 332.8 - 467.2
System Energy (kWh): 40.96
System Usable Energy (kWh): 36.86
Charge/Discharge Max Current (A)
Recommend: 50
Max: 100
Peak Discharge: 125
IP Rating of Enclosure: IP20
Dimension (W×D×H, mm): 589x590x1640
Weight: 434kg

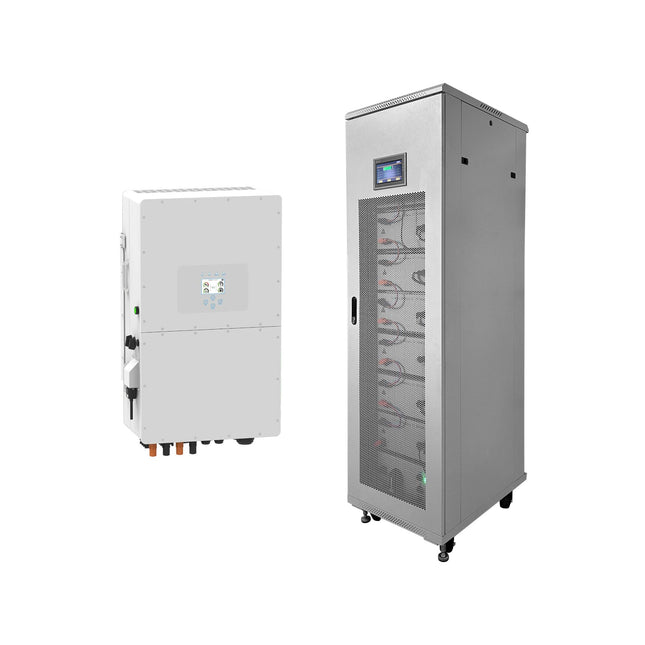

Package included:

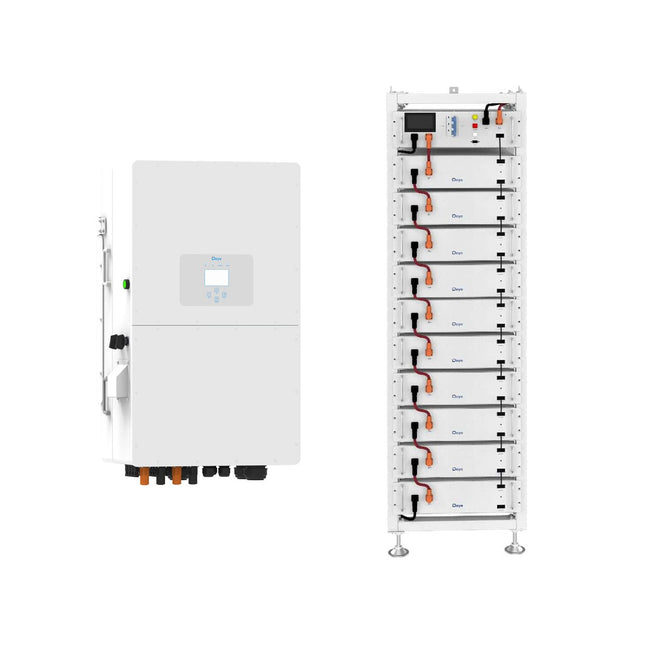

1x Deye 50kW Three Phase Hybrid Inverter SUN-50K-SG01HP3-AU-BM4
10X Deye B0S-G Pro 51.2V 100Ah LiFePO4 Battery
