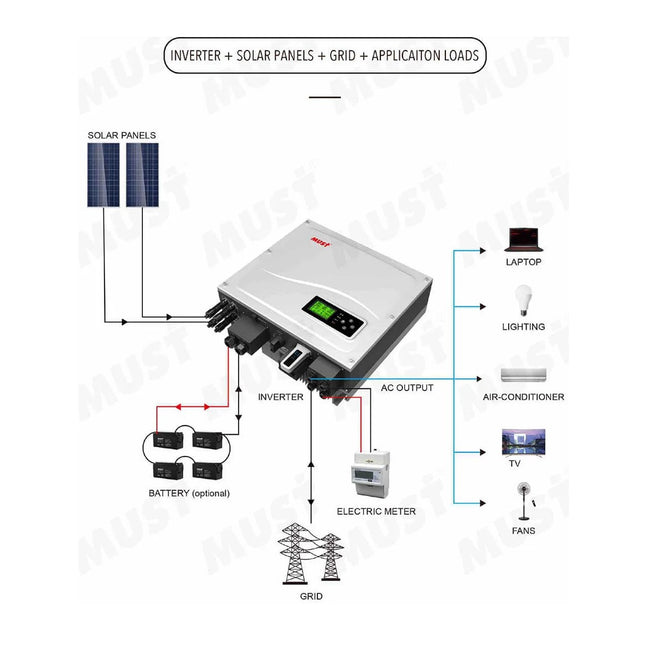

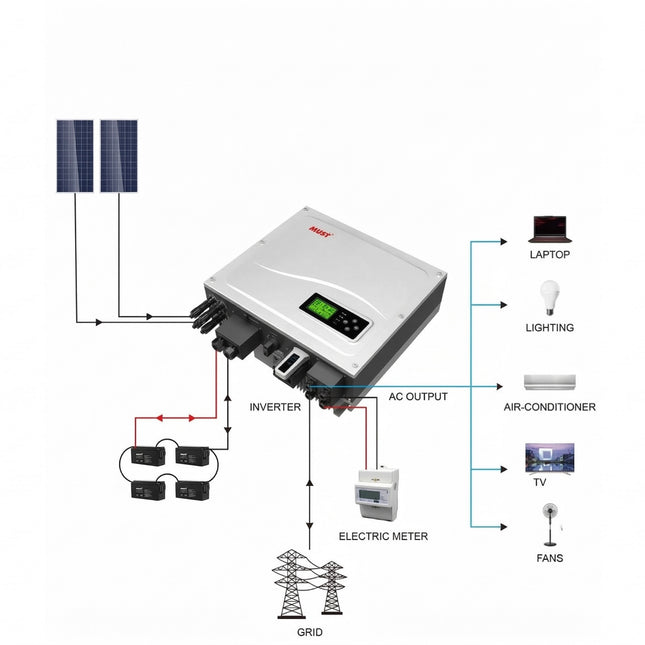

Introducing the Mustpower PH10-5048A High Frequency Hybrid Solar Inverter
Series: PH1000, 5KW
Key Features:
Wide MPPT voltage range: 120-550V
Multiple modes: Grid-tie, off-grid, grid-tie with backup
LCD display & Smart LCD settings
Export Power Manager
Multiple communication options: USB, RS485, GPRS, WiFi
Remote monitoring via computer or mobile phone
Full protection: Over-voltage, over-frequency, over-current, over-temperature, AC short-circuit
Intelligent BMS battery management
Fanless, low-noise design
IP65 Dust-proof and waterproof
Specifications:
Model: PH10-5048A
Rated Power: 5000W
Nominal Battery System Voltage: 48V
PV Input (DC):
Max recommended DC power: 5750W
Nominal DC operating voltage: 360V
Max DC voltage: 580V
MPPT voltage range: 120~550V
Max input current: 11/11A
Max short circuit current: 15/15A
2 MPP trackers, 1 string per tracker
Inverter Output (AC):
Nominal AC output power: 5000W
Nominal output voltage; range: 220/230/240V; 180-280V
Nominal output current: 21.8A
Max output current: 22.8A
Battery & Charger:
Compatible with Lead-acid and Lithium batteries
Battery voltage: 48V
Battery voltage range: 40~60V
Max charging/discharging power: 2500/2500W
Max charging/discharging current: 50/50A
Dimensions & Weight:
480 x 420 x 215 mm
Net weight: 27 kg

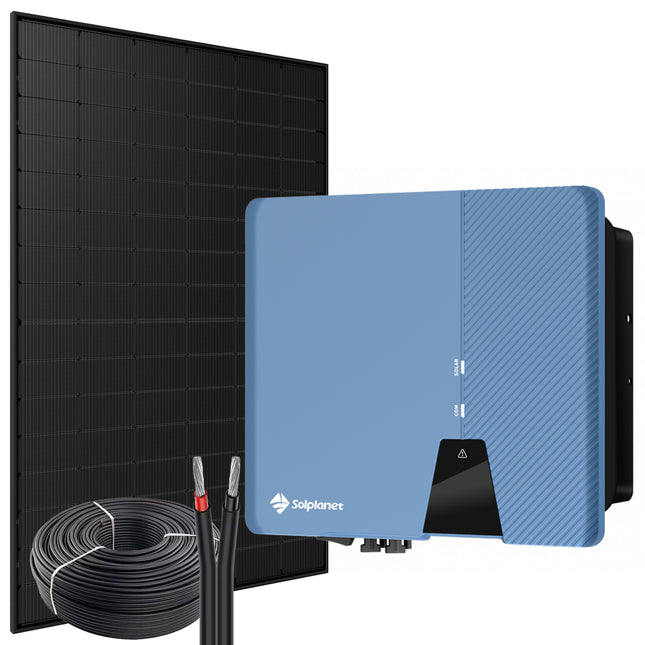

3kW Grid-Tied Solar System with 7 Panels – Home On-Grid Solar Power Kit
Warranties:
Solar panel linear power output: 30 years
Solar panels: 25 years
Inverter: 10 years
Package Includes:
7× 450W N-Type Bifacial Solar Panel – Transparent Black Dual Glass, High Efficiency (JW-HD96N-R2)
1× Solplanet 3kW Single-Phase Grid-Tie Solar Inverter with WiFi (ASW3000-S-G2)
1× MC4 Connector Pair
1× 20m Twin-Core Solar DC Cable
7× Mounting Rail System
Reliable & Durable System Design
Engineered to meet global safety and performance standards, this system ensures dependable long-term operation.
The Solplanet inverter features IP66 protection, DC reverse polarity protection, and AC residual current monitoring — delivering safe, efficient and stable grid-connected performance even in harsh outdoor environments.
High-Efficiency Energy Production
Optimized MPPT tracking enables maximum solar harvest, with a wide voltage range and low 60V start-up voltage to boost daily output.
Supports up to 150% PV oversizing, allowing flexible roof layouts and higher yield during low-light conditions.
Easy Installation & Smart Monitoring
Plug-and-play wiring with Phoenix Contact connectors ensures straightforward installation.
Built-in WiFi (and optional 4G dongle) enables real-time monitoring via the Solplanet app — track performance, receive alerts, and adjust settings from your smartphone with ease.
Technical Highlights – ASW3000-S-G2 (Inverter)
Max PV array power: 4500Wp STC
MPPT voltage range: 60V – 560V
Max input voltage: 600V
Max input current: 16A
Rated output: 3000W
AC voltage range: 180V – 295V
Dimensions: 368 × 325 × 145 mm
Weight: 9.5 kg
Protection level: IP66

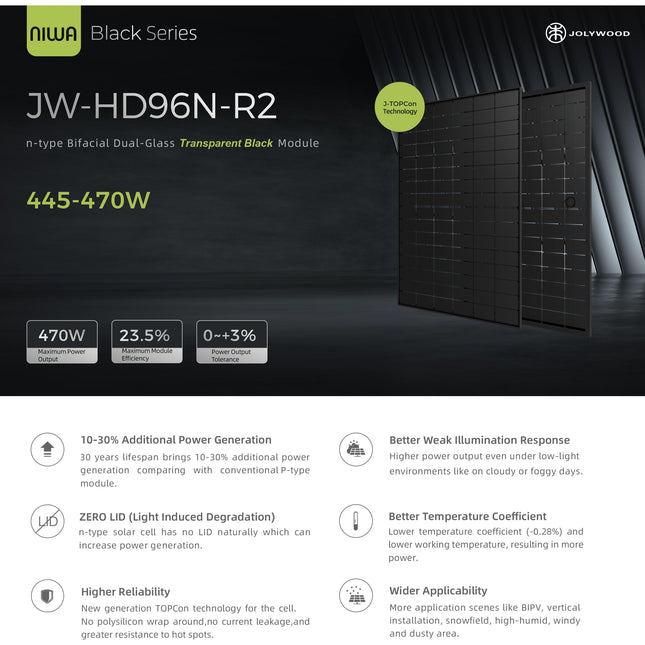

Technical Highlights – JW-HD96N-R2 (Solar Panels)
Electrical Properties (STC)
Peak Power (Pmax): 450W
MPP Voltage (Vmp): 29.98V
MPP Current (Imp): 15.01A
Open Circuit Voltage (Voc): 34.91V
Short Circuit Current (Isc): 15.86A
Module Efficiency: 22.5%
Cell Count: 96 pcs
Dimensions: 1762 × 1134 × 30 mm
Weight: 24.6 kg

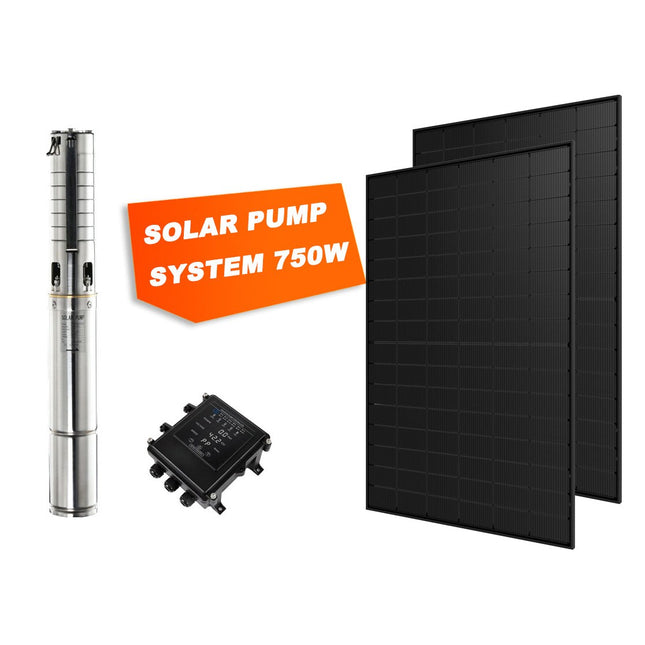

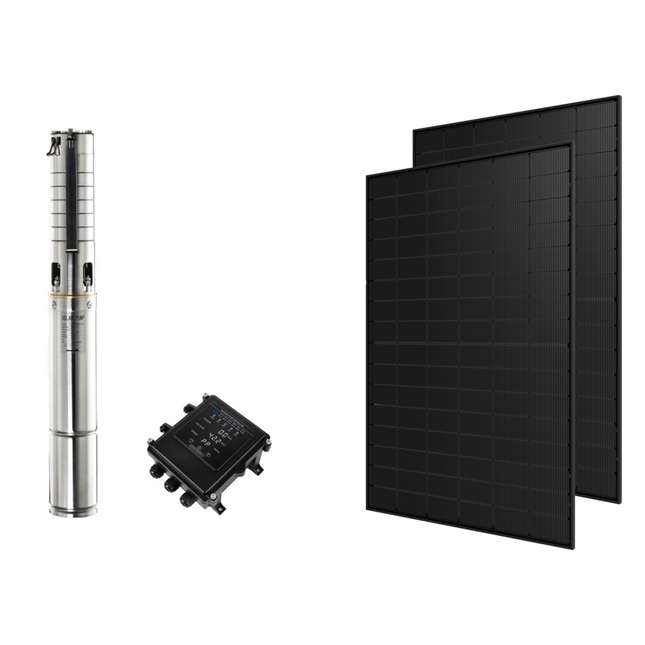

Submersible Solar Power Pump System 750W
This is brand new submersible solar power pump with 90%+ solar energy efficiency, submersible, no need for batteries.
Warranty:
24 months warranty
Features:
Solar panel-powered pumps
submersible
not necessary to go with a battery.
3inch Centrifugal
MOTOR Permanent Magnet
Brushless
Parameters:
POWER: 750 W (1 HP)
RATED VOLTAGE: 96 VDC (42 ~ 150 VDC)
MAX. FLOW: 5,000 L/HR
MAX. HEAD 90 M
PUMP LENGTH: 55 CM
PUMP SIZE: 3 inch
OUTLET SIZE: 1.25 inch
MATERIAL & qualities:
OUTLET: 304 Stainless Steel
PUMP BODY: 304 Stainless Steel
IMPELLER: 304 Stainless Steel
MOTOR: Permanent Magnet Brushless DC Motor, Oil-filled
CONTROLLER SHELL Die-cast Aluminum Enclosure (IP67)
CONTROLLER: 32 Bit / MCU / FOC / Sine Wave, Current / MPPT
Package included:
304 Stainless Steel Submersible Solar Power Pump X1
Controller X1
440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell X2

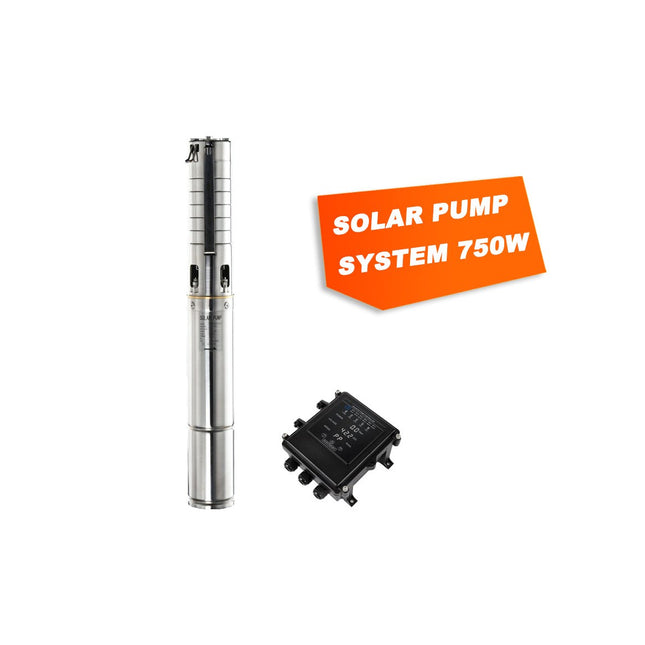

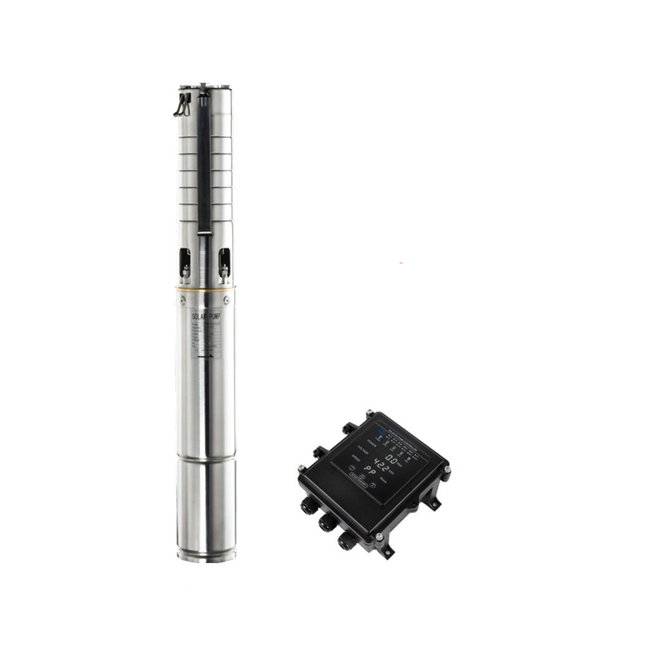

96V 750W Submersible Solar Power Pump + Controller
This is a brand new 3-inch submersible solar power pump with controller, submersible, no need for batteries.
Warranty:
24 months warranty
Features:
solar panel powered pumps
submersible
not necessary to go with a battery.
3inch Centrifugal
MOTOR Permanent Magnet
Brushless
Parameters:
POWER: 750 W (1 HP)
RATED VOLTAGE: 96 VDC (42 ~ 150 VDC)
MAX. FLOW: 5,000 L/HR
MAX. HEAD 90 M
PUMP LENGTH: 55 CM
PUMP SIZE: 3 inch
OUTLET SIZE: 1.25 inch
MATERIAL & qualities:
OUTLET: 304 Stainless Steel
PUMP BODY: 304 Stainless Steel
IMPELLER: 304 Stainless Steel
MOTOR: Permanent Magnet Brushless DC Motor, Oil-filled
CONTROLLER SHELL Die-cast Aluminum Enclosure (IP67)
CONTROLLER: 32 Bit / MCU / FOC / Sine Wave, Current / MPPT
Package included:
304 Stainless Steel Submersible Solar Power Pump X1
Controller X1

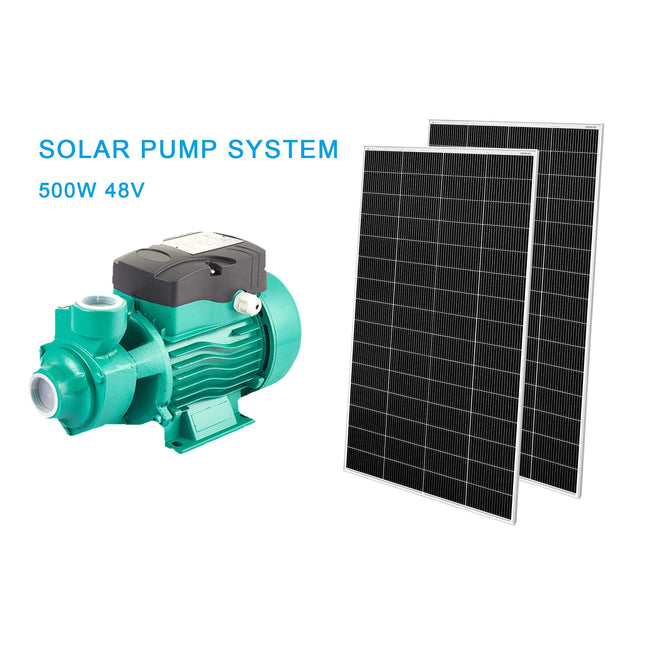

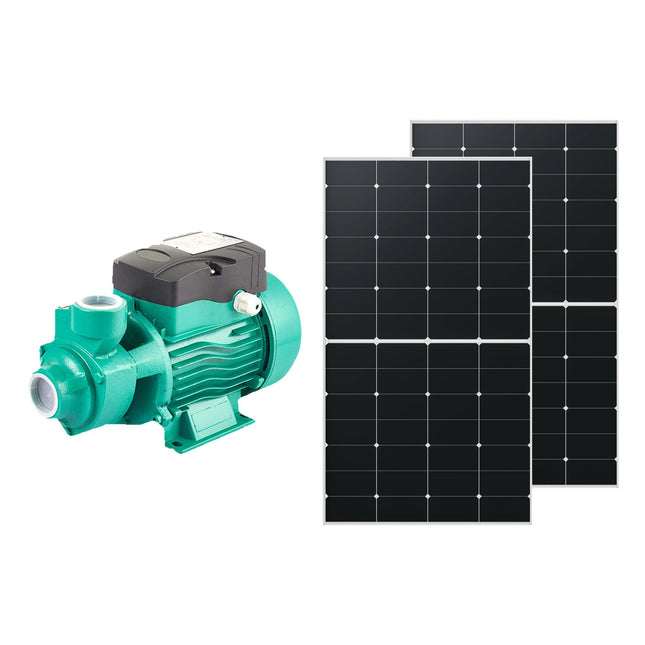

The Solar Pumping System is designed for remote areas with unreliable or no access to electrical grid power. It utilizes a BLDC solar pump controller to directly harness DC power from the PV array, driving brushless DC pumps. On sunny days, it continuously pumps water without the need for batteries or energy storage devices. It's recommended to pump water into a reservoir for storage.
The portable QB pump includes a built-in controller with highly efficient MPPT functionality, eliminating the need for a separate controller installation. Simply connect the panels to the pump wires, and it operates directly and consistently during daylight hours, even on cloudy days.
Key Features:
MPPT controller build-in
Comes with a 1-year warranty
***Maximum pumping distance of 50 meters***
Max head: 50 meters
Power: 500 watts
Designed with reliability in mind, the controller ensures water delivery under adverse conditions by reducing output to protect system components, only shutting down in extreme cases. Normal operation is automatically restored when conditions improve.
Material:
MOTOR: Full Oil Permanent Magnet, Brushless DC Motor (Hall-free)
CONTROLLER: 32bit MCU / FOC / Sine Wave Current / MPPT
Pump Body/OUTLET/INLET: Cast Iron
MOTOR BODY: Die-cast Aluminium
IMPELLER: Brass
SCREW: 304 Stainless Steel
Technical Parameters:
Max head: 50 meters
Pipe diameter: 25mm
Rated Voltage: 48 VDC (30 - 80 VDC)
Max Flow: 2100L/HR
Max Suction: 8 meters
Packing Size: 29x16x24 CM
Gross Weight: 5 KGS
Maximum power at STC(Pmax): 300Wp
Voltage at Pmax(Vmp): 34.72V
Current at Pmax(Imp): 8.64A
Open-Circuit Voltage(Voc): 40.32V
Short-Circuit Current(Isc): 9.72A
Normal Operating Cell Temp(NOCT): 45 + 2°C
Maximum System Voltage: 1000V
Operating Temperature: -40°C to + 85°C
Application Class: Class A
Weight: 16kg
Dimension: 1545 x 880 x 30mm
Package Included:
1X Solar Pump (MPPT controller included)
2X Premium Quality Grade A+ 300w 12V/24V/31.5V Mono Solar Panel
1x 5m Twin Core Solar Cable

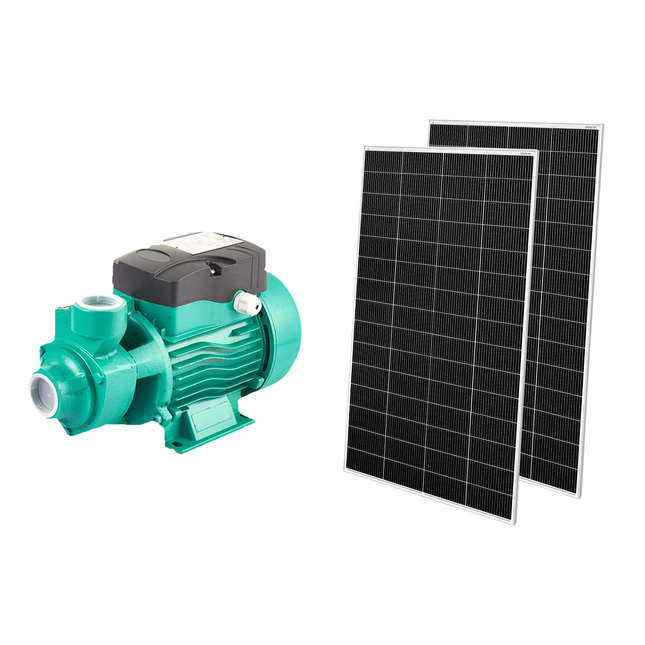

Our Solar Pumping System is designed for remote areas with unreliable or no electrical grid access. It uses a BLDC solar pump controller powered by DC from the PV array to drive brushless DC pumps. On sunny days, it continuously pumps water without batteries. Recommended for water storage.
The portable QB pump has a built-in MPPT controller—no separate installation needed. Just connect panels to pump wires for seamless daytime operation, even on cloudy days.
Key Features:
Built-in MPPT controller.
1-year warranty.
Max pumping distance: 50 meters.
Reliable design operates under adverse conditions, adjusting output to protect components. Shuts down only in extreme cases, automatically restoring full operation when conditions improve.
Materials:
MOTOR: Full Oil Permanent Magnet Brushless DC Motor (Without Hall)
CONTROLLER: 32-bit MCU / FOC / Sine Wave Current / MPPT
Pump Body/OUTLET/INLET: Cast Iron
MOTOR BODY: Die-cast Aluminium
IMPELLER: Brass
SCREW: Stainless Steel
CABLE: 2m Three-core copper cable / 2.0mm2
Technical Specs:
Max lift water head: 25 meters
Max flow rate: 2 m³/h
Pipe diameter: 25mm
Rated Voltage: 24 VDC
Max Open Voltage: 80 VDC
Under Protection Voltage: 17 VDC
Over Protection Voltage: 50 VDC
Rated Current: 12 A
Over Protection Current: 15 A
Peak Protection Current: 18 A
MCU and Controller Mode: 32-bit MCU / FOC / Sine Wave Current / MPPT
Cooling: Natural Heat Dissipation
Operating temperature: -20℃ ~ +50℃
Package Includes:
1X Solar pump with built-in MPPT controller
2X LONGi LR5-28HTH 225W Mono Solar Panel Low Light Performance (12 Years Material Workmanship Warranty, 25 Years Linear Power Output Warranty)
1x 5m Twin Core Solar Cable

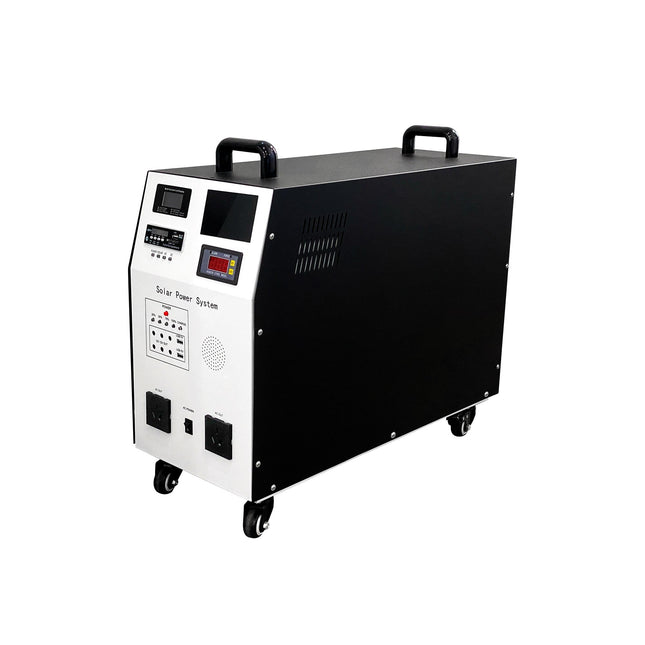

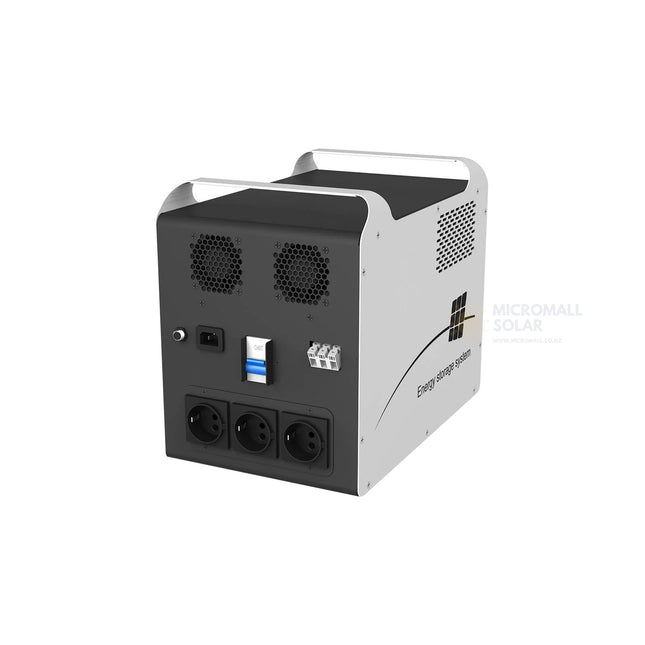

Introducing the Portable Power Station Solar Power Station Power Bank 3000W 3840Wh (310Ah@12V) – Your Ultimate Backup. This Portable Solar Power Station is ideal for areas prone to power outages, as well as for camping, RV use, travel, and individuals who prefer an off-grid power solution. It's also suited for environmentally conscious users and off-grid living enthusiasts.
The product's exceptional design includes an MPPT controller and pure sine wave inverter output, ensuring compatibility with various loads, even those with high starting currents. The independent solar three-stage charge management enhances battery efficiency and lifespan.
With universal 5VDC-USB and 12VDC output ports, you can easily charge mobile devices and DC loads. Its applications are diverse, ranging from households and schools to remote monitoring stations, industrial setups, and more.
Flexible Charging Options:
AC 230V Input
DC 14.4V Input
Solar Power Input (Max 400W)
Designed for versatility, this system supports extension with up to 10 parallel batteries. It's equipped to handle solar power with an open voltage of 100V and 30A capacity. Control and monitor the system effortlessly through the Bluetooth app.
Key Features:
3000W Pure Sine Wave AC Output (6000W Peak)
Bluetooth App Support
MPPT Charger Controller (30A)
Supports Parallel Extension (Up to 10 Batteries)
Solar Power Compatibility (100V, 30A)
Generator Charging Support
Compact Design: 62cm x 29cm x 44cm, 20kg
Battery Specifications:
Voltage: 12V
Capacity: 310Ah
Charge Voltage: 13.8-14.0V
Float Voltage: 13.8V
Cut-Off Voltage: 10.8V
Maximum Current: 150A
Continuous Current: 125A
Chemistry: LiFePO4 (LFP)
Discharge Operating Temp: -20 to 80°C
Weight: 29kg
Dimensions: 530 x 270 x 220mm
Package Includes:
1x 3000W 12V 230V Solar Portable Power Station (2 Years Warranty)
1x Micromall 12V 310Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar Battery (10 Years Warranty)

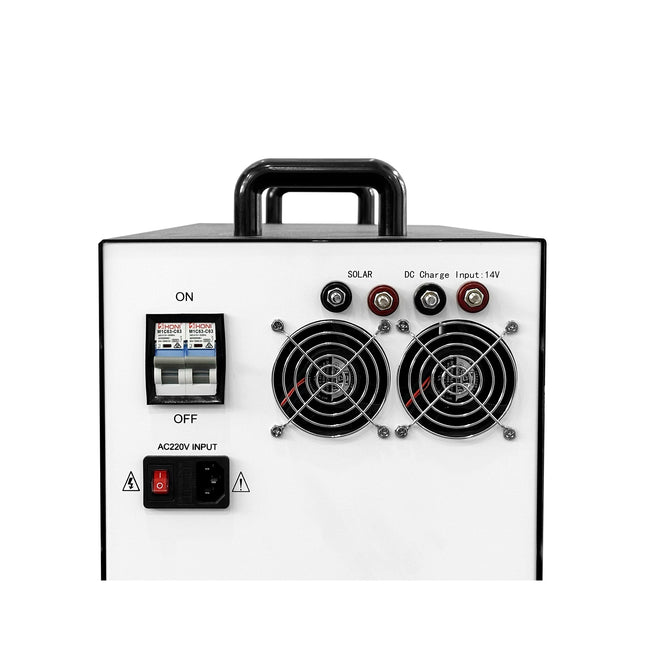

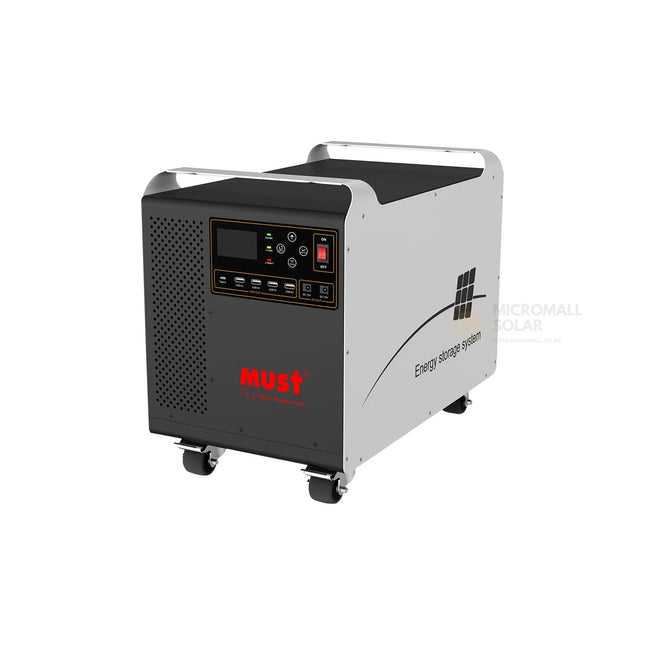

All-in-one Backup Power Station
This Portable Solar Power Station is perfect for areas prone to continuous power outages, camping trips, RV setups, and travellers who need a reliable power supply. It's also ideal for environmentalists and those living off-grid.
The Portable Solar Power Station boasts a digital design with an MPPT controller and a pure sine wave inverter, providing dependable power for high-starting-current loads. It includes overcurrent protection and intelligent solar three-stage charge management for efficient battery charging and extended battery life.
Flexible Charging Options:
AC 230V input
DC 14.4V input
Solar power input (Max 400W)
Equipped with universal USB (5VDC) and 12VDC outputs, it can charge mobile devices and DC loads. This makes it suitable for small solar power applications in homes, schools, street and forest monitoring, and remote areas, thanks to its excellent performance and MCU intelligent control.
Key Features:
Pure sine wave AC output for a wide range of loads
Convenient USB (5VDC) and 12VDC output ports
Solar array and battery common-anode system input
Optional mains supply charging for flexible use
Digital LCD for operational status
Comprehensive protection and alarms, including overload and short-circuit protection
Power Station Specifications:
MPPT Charger Controller: 12V/24V/30A
Output Voltage: DC 5V/12V, AC 230V (2000W, peak 4000W)
Ambient Temperature: -5 to +45°C
USB Output: 1000mA, DC 12V Output: 60W
Size: 58cm x 54cm x 25cm
Weight: 20kg
Battery Specifications:
Voltage: 12V
Maximum Capacity: 210Ah
Charge Voltage: 13.8-14.4V
Float Voltage: 13.6V
Cut-Off Voltage: 11.2V
Max Current: 220A
Continuous Current: 120A
Chemistry: LiFePO4 (LFP)
Dimensions: 501 x 185 x 235mm
Weight: 22kg
Package Includes:
1x 2000W 12V 230V Portable Solar Power Station (2 Years Warranty)
1x Micromall Bronze - 12V 200Ah 210Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar Battery (10 Years Warranty)
All-in-One Backup Power Station

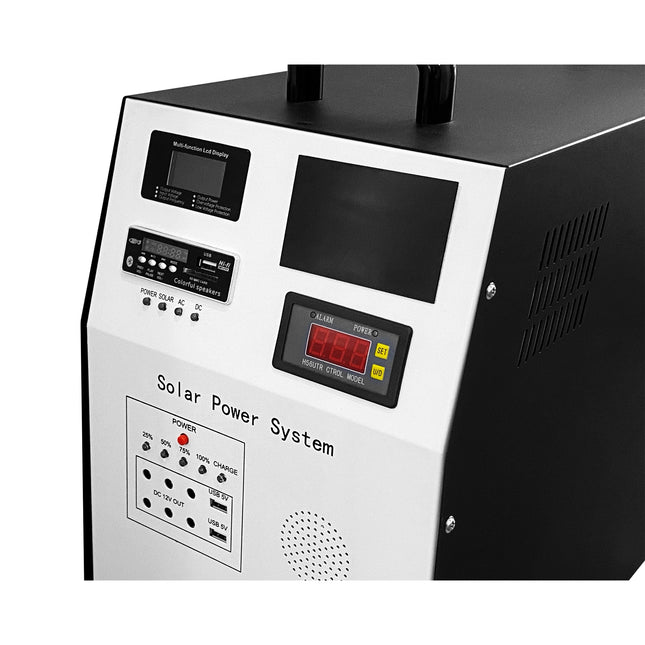

Portable Solar Power Station
This portable solar power station is ideal for areas prone to power outages, camping, RV use, travel, and those who prefer an off-grid power solution. It's also perfect for environmentally conscious users and off-grid living enthusiasts.
Flexible Charging Options
AC 230V in
DC 14.4V in
Solar power in (Max 400W)
Key Features
Versatile Use: Suitable for homes, schools, street and forest monitoring, industrial sites, remote areas, and small-scale solar projects.
Advanced Technology: Features a digital design, MPPT controller, pure sine wave inverter for stable AC output, and comprehensive overcurrent protection.
Efficient Charging: Incorporates a three-stage solar charge management system to enhance battery charge efficiency and extend battery life.
Multiple Outputs: Offers a universal 5VDC-USB port and 12VDC output for charging mobile devices and DC appliances.
Smart Control: Utilizes MCU intelligent control technology for exceptional performance and a wide range of load compatibility.
Safety and Protection: Equipped with overall automatic protection, including overcharge and over-discharge protection, AC output overload, and short circuit protection. Features a digital LCD for monitoring operation status.
Technical Specifications:
MPPT Charger Controller: 12V/24V/30A
Output Voltage: DC 5V/12V, AC 220V (Pure Sine Wave)
Ambient Temperature: -5 to +45°C
USB Output Power: 1000mA
DC Output Power: 60W
AC Output Power: 1000W
Dimensions: 620mm x 245mm x 520mm
Weight: 15kg
Battery Specifications:
Voltage: 12V
Capacity: 110Ah
Chemistry: LiFePO4
Operating Temperature: -30 to 65°C
Dimensions: 330mm x 170mm x 225mm
Weight: 11kg
Package Includes:
1x 1000W 12V/230V Portable Solar Power Station (2 Years Warranty)
1x Micromall Bronze - 12V 100Ah 110Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar Battery (10 Years Warranty)
**Pump - 2 Years Warranty**
**Panel - 12 Years Warranty, 30-year lifespan**

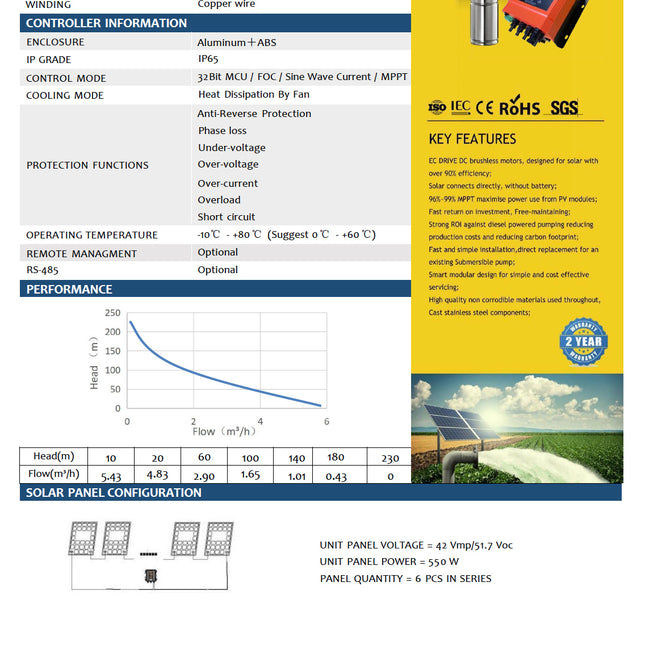

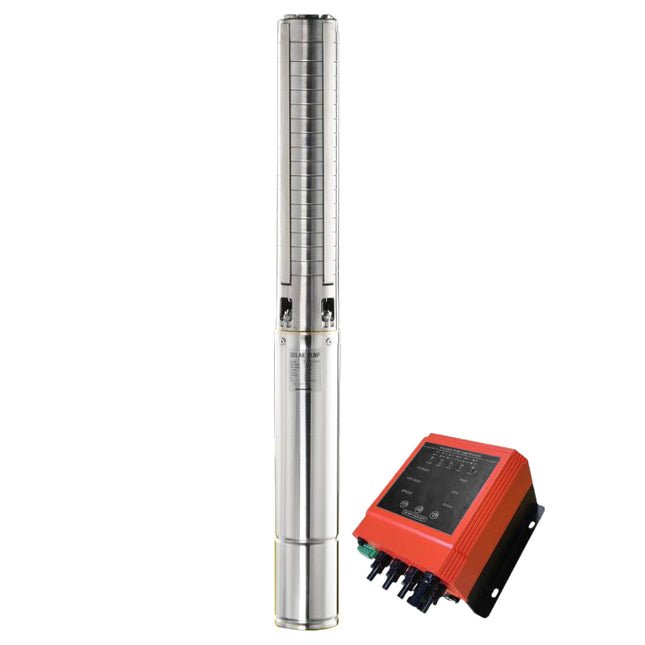

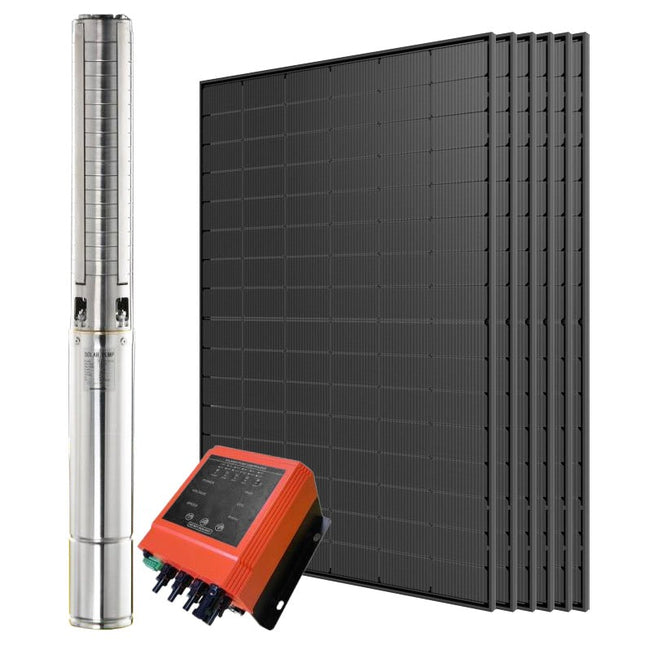

The 4SSC6-230 Solar Submersible Pump is a 4-inch high-head centrifugal solar pump designed for deep well water extraction and off-grid water supply systems.
It features a permanent magnet synchronous DC motor combined with an intelligent MPPT solar controller, delivering high efficiency, stable operation, and long service life.
This pump supports solar DC input as well as AC power (110–240Vac), making it suitable for a wide range of applications, including agricultural irrigation, livestock watering, rural water supply, and remote installations.
Solar powered with DC & AC input
2200W (3HP) high-performance motor
Max flow rate up to 6,000 L/h
Maximum head 230 meters
Full stainless steel construction
Intelligent MPPT controller
Multiple electrical protection functions
Ideal for deep wells, irrigation, farms, and remote water supply
Pump Specifications
Pump Size: 4 inch
Outlet Size: 1.5 inch
Rated Power: 2200 W (3 HP)
Rated Voltage:
DC: 300 Vdc (120–400 Vdc)
AC: 110–240 Vac
Rated Current: 13 A
Maximum Flow: 6,000 L/hour
Maximum Head: 230 meters
Operating Temperature: -10°C to +80°C (Recommended 0°C to +60°C)
The NIWA Black Series JW-HD96N-R2 is a high-performance N-Type bifacial dual glass solar module designed for maximum energy generation and long-term reliability. With a 30-year lifespan, it delivers 10 to 30 percent more power compared to conventional P-Type modules.
Model: JW-HD96N-R2
Electrical Properties (STC)
Peak Power (Pmax): 450 W
MPP Voltage (Vmp): 29.98 V
MPP Current (Imp): 15.01 A
Open Circuit Voltage (Voc): 34.91 V
Short Circuit Current (Isc): 15.86 A
Module Efficiency: 22.5%
Dimensions: 1762 × 1134 × 30 mm
Weight: 24.6 kg
What’s included:
1 x 4” Solar Submersible Pump 2200W – Max Head 230m Stainless Steel Deep Well Pump
6 x NIWA 450W N-Type Bifacial Solar Panel Transparent Black Dual Glass
4” Solar Submersible Pump 2200W – Max Head 230m Stainless Steel Deep Well Pump
**2 Years Warranty**
The 4SSC6-230 Solar Submersible Pump is a 4-inch high-head centrifugal solar pump designed for deep well water extraction and off-grid water supply systems.
It features a permanent magnet synchronous DC motor combined with an intelligent MPPT solar controller, delivering high efficiency, stable operation, and long service life.
This pump supports solar DC input as well as AC power (110–240Vac), making it suitable for a wide range of applications, including agricultural irrigation, livestock watering, rural water supply, and remote installations.
Solar powered with DC & AC input
2200W (3HP) high-performance motor
Max flow rate up to 6,000 L/h
Maximum head 230 meters
Full stainless steel construction
Intelligent MPPT controller
Multiple electrical protection functions
Ideal for deep wells, irrigation, farms, and remote water supply
Pump Specifications
Pump Size: 4 inch
Outlet Size: 1.5 inch
Rated Power: 2200 W (3 HP)
Rated Voltage:
DC: 300 Vdc (120–400 Vdc)
AC: 110–240 Vac
Rated Current: 13 A
Maximum Flow: 6,000 L/hour
Maximum Head: 230 meters
Operating Temperature: -10°C to +80°C (Recommended 0°C to +60°C)
Motor & Pump Materials
Motor Type: Permanent Magnet Synchronous DC Motor
Pump Body: Stainless Steel
Outlet: Stainless Steel
Impeller: Stainless Steel
Motor Housing: Stainless Steel
Shaft & Screws: Stainless Steel
Winding: Copper Wire
Controller Specifications
Enclosure: Aluminum + ABS
Protection Rating: IP65
Control Mode:
32-bit MCU
FOC (Field Oriented Control)
Sine Wave Current
MPPT Solar Tracking
Cooling Method: Fan-assisted heat dissipation
Optional Functions:
Remote Management
RS-485 Communication

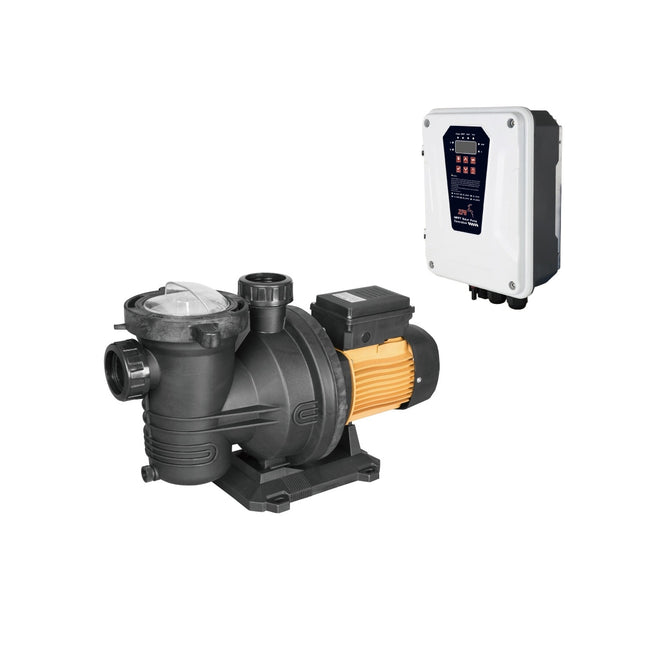

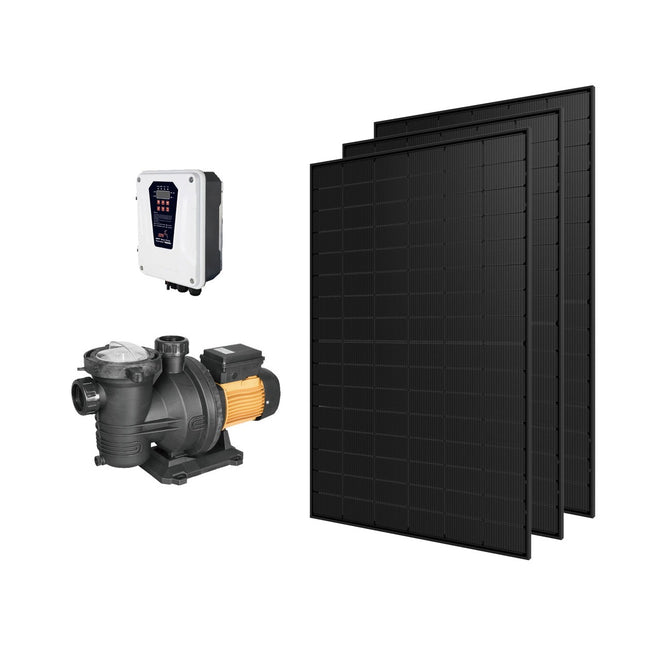

2025 Latest Model Solar Swimming Pool Pump Kit
Advanced Solar Technology: Equipped with a 1200W, 160V solar panel and an efficient MPPT (Maximum Power Point Tracking) controller.
Innovative Motor Design: Features a maintenance-free, brushless DC motor integrated with DSP (Digital Signal Processing).
Versatile Voltage Compatibility: Operates within a wide DC voltage range of 65-160V, suitable for diverse power setups.
Enhanced Safety Features: Includes control inputs for well probe and dry running protection, ensuring safe operation under various conditions.
Battery Operated with Protective Measures: Supports battery operation with a low voltage disconnect feature for battery life preservation. Also equipped with overload protection and high-speed motor control.
Temperature and Polarity Safeguards: Comes with built-in temperature protection and reverse polarity prevention for additional security.
Technical Specifications:
Model Number: ZSSP31-19-D110/1300
Voltage Range: 65-160V DC
Power Output: 820-1300W
Maximum Water Flow: 31 cubic meters per hour (m³/h)
Maximum Head Lift: 19 meters
Inlet/Outlet Size: 3x3 inches
Pipe Diameter Compatibility: 28mm, 14mm, 16mm
Package included:
1X 1200W Solar Swimming Pool Pump
3X 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell
Ideal for eco-friendly and efficient swimming pool maintenance, this upgraded solar pool pump represents the forefront of renewable energy solutions for residential and commercial applications.
***18-Month Warranty for Pump, 25-Year Warranty for Solar Panels***

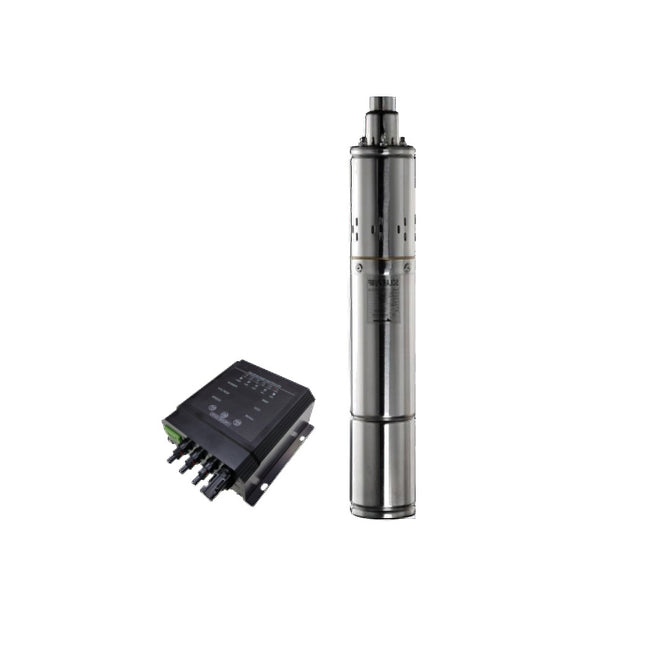

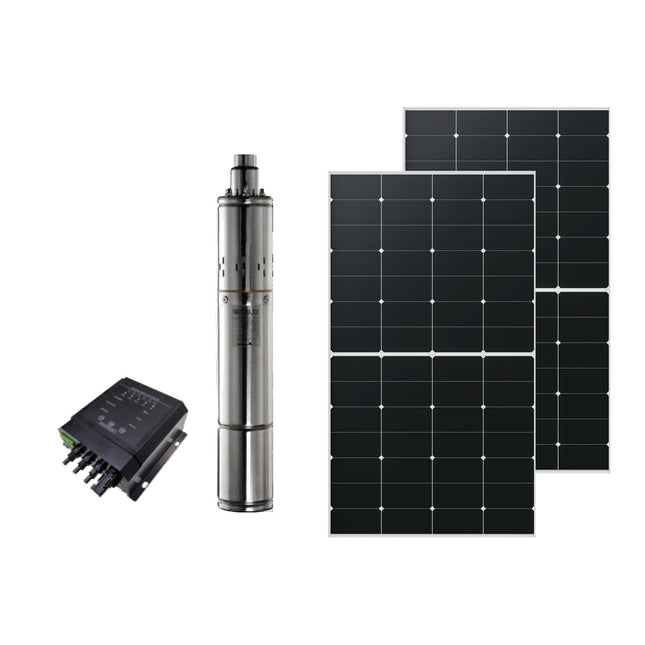

3SSH1.3/50-D24/140 3inch Helical Rotor Solar Power Submersible Pump Combo
Key Features:
EC Drive DC Brushless Motors: Optimized for solar energy with over 90% efficiency.
Direct Solar Connection: Operates without a battery.
High MPPT Efficiency: 96% to 99% maximization of power usage from PV modules.
Rapid ROI: Maintenance-free with a quick return on investment.
Eco-Friendly: Competes favorably with diesel-powered pumps in reducing production costs and carbon emissions.
Easy Installation: Direct replacement for existing submersible pumps.
Smart Modular Design: Ensures simple and cost-effective maintenance.
Durable Materials: High-quality, non-corrosive materials including cast stainless steel components.
Characteristics:
Pump Size: 3 inches.
Outlet Size: 0.75 inch.
Power: 140 W (0.2 HP).
Rated Voltage: 24 Vdc (operational range 18-55 Vdc).
Rated Current: 15 A.
Maximum Flow: 1,300 L/hr.
Maximum Head: 50 meters.
Dimensions (Pump/Controller): 8.5 x 8.5 x 47.3 cm / 25 x 25 x 16 cm.
Gross Weight (Pump/Controller): 4 kg / 1.66 kg.
Pump Information:
Motor: Brushless DC (BLDC).
Outlet: 304 Stainless Steel.
Body: 304 Stainless Steel.
Helical Rotor: 304 Stainless Steel, Rubber.
Motor Body: 304 Stainless Steel.
Screw: 304 Stainless Steel.
Shaft: 304 Stainless Steel.
Winding: Copper wire.
Controller Information:
Enclosure: Aluminum + ABS.
IP Grade: IP65.
Control Mode: 32Bit MCU, FOC, Sine Wave Current, MPPT.
Cooling Mode: Natural Heat Dissipation.
Protection Functions: Anti-reverse, phase loss, under-voltage, over-voltage, over-current, overload, short circuit.
Operating Temperature: -10℃ to +80℃ (recommended 0℃ to +60℃).
Remote Management: Optional.
RS-485 Interface: Optional.
Package included:
1X 3SSH1.3/50-D24/140 3inch Helical Rotor Solar Power Submersible Pump + Controller
2X LONGi LR5-28HTH 225W Mono Solar Panel Low Light Performance
Designed specifically for solar water pumping applications, this high-performance pump offers a reliable and energy-efficient solution for remote and off-grid locations. Powered by DC voltage (80–400V DC), it’s perfectly suited for integration with photovoltaic solar panel systems, delivering eco-friendly operation without compromising performance.
Key Features:
Brushless DC Motor – Maintenance-free and highly efficient
Advanced MPPT Controller – Ensures maximum power output from solar panels
Integrated DSP Control – For precise and stable performance
Speed Control – Adjustable motor speed to match demand
Soft Start Protection – Reduces wear and prolongs motor life
Dry Running Protection – Prevents damage when water supply is low
Reverse Polarity Protection – Safeguards against incorrect wiring
Short-Circuit & Overcurrent Protection – Enhances operational safety
Low & Over Voltage Protection – Ensures stability and protects components
Temperature Protection – Prevents overheating during long operation
Compatible with Battery Systems – Supports battery backup and low-voltage disconnect
Technical Specifications:
Model: ZSSP35-22-300-2200-A/D
Operating Voltage: 80–280V AC / 80–400V DC
Power Rating: 2200W
Max. Flow Rate: 35 m³/h
Max. Head: 22 meters
Outlet Size: 3 × 3”
Cable Length: 2 meters
Solar Panel Requirements:
Open Circuit Voltage (VOC): = 1.3 × Pump Power
Designed specifically for solar water pumping applications, this high-performance pump offers a reliable and energy-efficient solution for remote and off-grid locations. Powered by DC voltage (80–400V DC), it’s perfectly suited for integration with photovoltaic solar panel systems, delivering eco-friendly operation without compromising performance.
Key Features:
Brushless DC Motor – Maintenance-free and highly efficient
Advanced MPPT Controller – Ensures maximum power output from solar panels
Integrated DSP Control – For precise and stable performance
Speed Control – Adjustable motor speed to match demand
Soft Start Protection – Reduces wear and prolongs motor life
Dry Running Protection – Prevents damage when water supply is low
Reverse Polarity Protection – Safeguards against incorrect wiring
Short-Circuit & Overcurrent Protection – Enhances operational safety
Low & Over Voltage Protection – Ensures stability and protects components
Temperature Protection – Prevents overheating during long operation
Compatible with Battery Systems – Supports battery backup and low-voltage disconnect

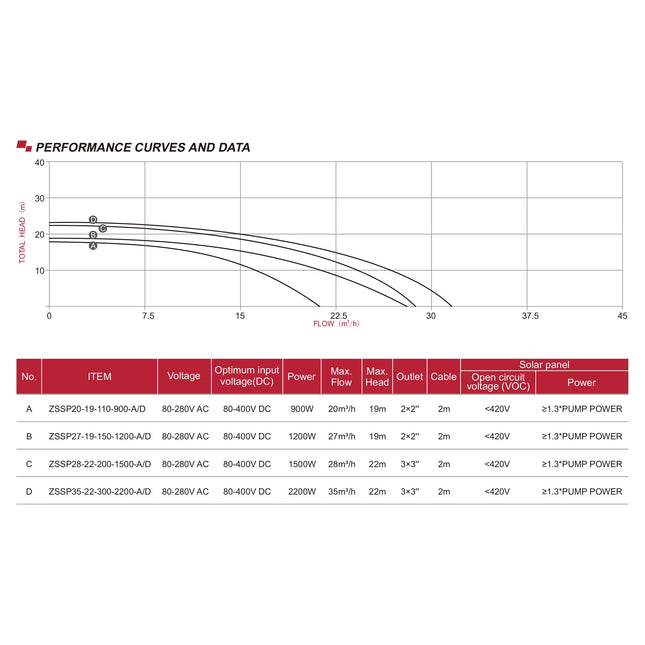

Technical Specifications:
Model: ZSSP27-19-150-1200-A/D
Operating Voltage: 80–280V AC / 80–400V DC
Power Rating: 1200W
Max. Flow Rate: 27 m³/h
Max. Head: 19 meters
Outlet Size: 2 × 2”
Cable Length: 2 meters
Solar Panel Requirements:
Open Circuit Voltage (VOC): = 1.3 × Pump Power

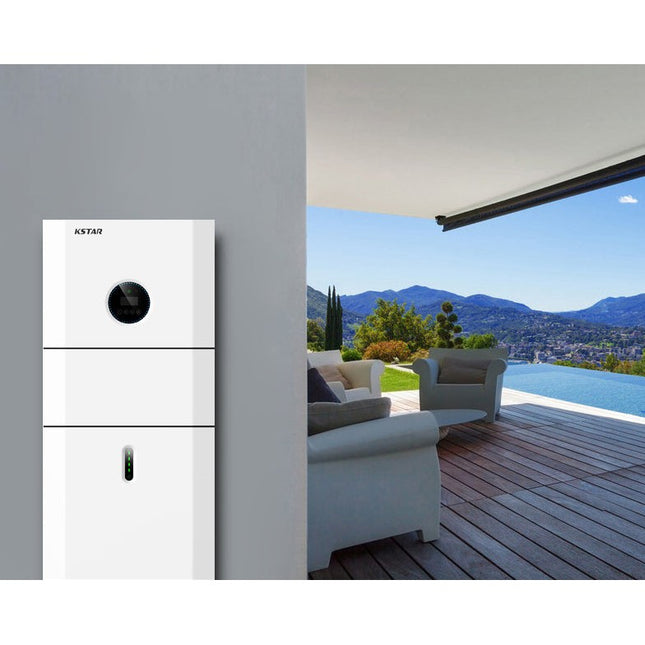

The KSTAR BluE Series represents a premium choice in hybrid energy storage solutions. It integrates CATL's advanced battery technology with KSTAR's innovative inverter solution. This all-in-one single-phase system prioritizes safety, reliability, and superior energy yields. Manufactured under the joint venture of CATL-KSTAR, it embodies a fusion of leading-edge technology and industry expertise.
Key Features:
All-In-One Design
High Efficiency
IP65 Protection
String Monitoring
Easy Installation
Digital Controller
DC/AC Surge Protection
Reactive Power Controller
Battery Model: BluE-PACK5.1
Battery type: LiFePO4
Weight: 54KG
Dimensions W x H x D: 540x490x240mm
IP Protection: IP65
Energy Capacity: 5.12kwh
Usable Capacity: 4.6kwh
Depth of Discharge (DoD): 90%
Nominal Voltage: 51.2V
DC Circuit Breaker: 125A
Operating Voltage Range: 44.8-56.5V
Cycle Life: 10000cycle
Hybrid Inverter Model: BluE-S 5000D
PV String Input
Max. DC Voltage: 580V
Nominal Voltage: 400V
MPPT Voltage Range: 80V-560V
Start Voltage: 130V
Number of MPPT Tracker: 2
Strings Per MPPT Tracker: 1
Max. Input Current Per MPPT: 15A
Max. Short-circuit Current Per MPPT: 18A
AC Output (Grid)
Nominal AC Output Power: 5000W
Max. AC Output Power: 5000W
Nominal AC Voltage: 230Vac
Battery Input
Battery Type: LFP (LiFePO4)
Nominal Battery Voltage: 48V
Charging Voltage Range: 40-60V
Max. Charging Current: 100A
Max. Discharging Current: 100A
Dimensions W x H x D: 540x590x240mm
Weight: 32kg
Package included:
2 X Kstar BluE-PACK5.1 Lifepo4 Battery 5.12KWh
1 X Kstar BluE-S 5000D 5000W Hybrid Inverter

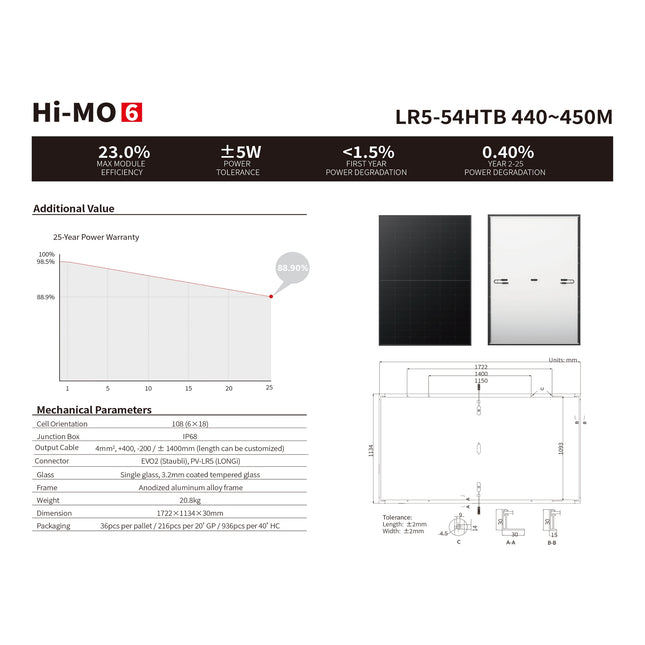

12 X LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
12 X Adjustable Solar Panel Mounting Bracket Tilt Mount
Ideal Use: This system is especially suited for residential or small commercial setups requiring a reliable, high-performance single-phase energy storage solution.
The KSTAR BluE Series represents a premium choice in hybrid energy storage solutions. It integrates CATL's advanced battery technology with KSTAR's innovative inverter solution. This all-in-one single-phase system prioritizes safety, reliability, and superior energy yields. Manufactured under the joint venture of CATL-KSTAR, it embodies a fusion of leading-edge technology and industry expertise.
Key Features:
All-In-One Design
High Efficiency
IP65 Protection
String Monitoring
Easy Installation
Digital Controller
DC/AC Surge Protection
Reactive Power Controller
Battery Model: BluE-PACK5.1
Battery type: LiFePO4
Weight: 54KG
Dimensions W x H x D: 540x490x240mm
IP Protection: IP65
Energy Capacity: 5.12kwh
Usable Capacity: 4.6kwh
Depth of Discharge (DoD): 90%
Nominal Voltage: 51.2V
DC Circuit Breaker: 125A
Operating Voltage Range: 44.8-56.5V
Cycle Life: 10000cycle
Hybrid Inverter Model: BluE-S 5000D
PV String Input
Max. DC Voltage: 580V
Nominal Voltage: 400V
MPPT Voltage Range: 80V-560V
Start Voltage: 130V
Number of MPPT Tracker: 2
Strings Per MPPT Tracker: 1
Max. Input Current Per MPPT: 15A
Max. Short-circuit Current Per MPPT: 18A
AC Output (Grid)
Nominal AC Output Power: 5000W
Max. AC Output Power: 5000W
Nominal AC Voltage: 230Vac
Battery Input
Battery Type: LFP (LiFePO4)
Nominal Battery Voltage: 48V
Charging Voltage Range: 40-60V
Max. Charging Current: 100A
Max. Discharging Current: 100A
Dimensions W x H x D: 540x590x240mm
Weight: 32kg
Package included:
1 X Kstar BluE-PACK5.1 Lifepo4 Battery 5.12KWh
1 X Kstar BluE-S 5000D 5000W Hybrid Inverter
9 X LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
9 X Adjustable Solar Panel Mounting Bracket Tilt Mount
Ideal Use: This system is especially suited for residential or small commercial setups requiring a reliable, high-performance single-phase energy storage solution.

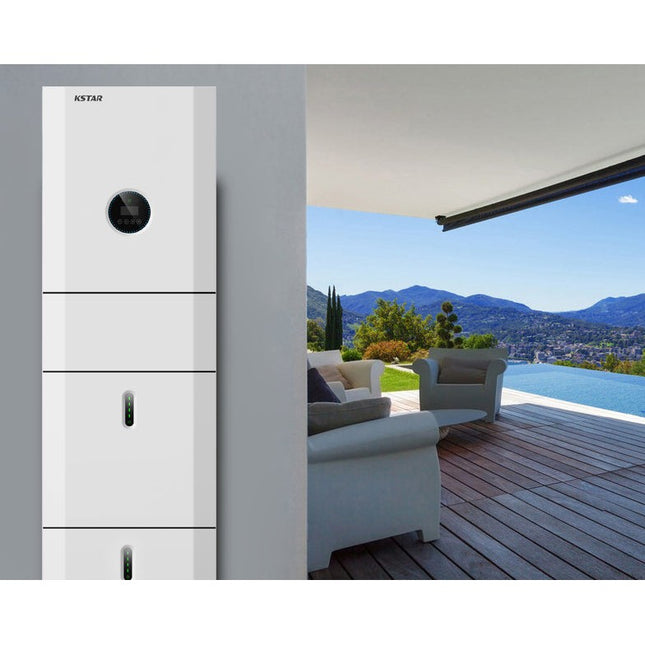

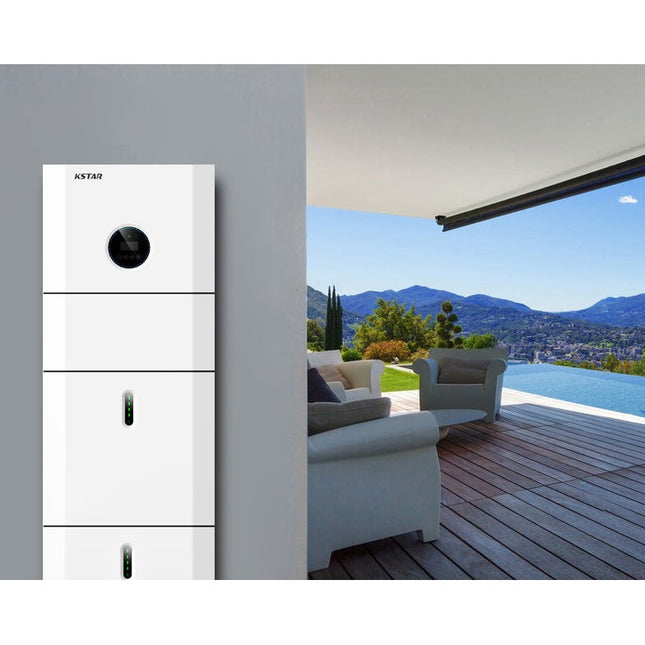

KSTAR BluE series energy storage solution is the optimal choice for residential PV+ESS application. The AC capacity is 3 phase 10KW. The energy storage capacity can be configured as 10.2KWH.
Key Features:
All-In-One Design
High Efficiency
Easy Installation
Equipped with CATL's Advanced LFP Battery
Supports 20KW PV Input, 10KW Charging, and 10KW AC Output
Modular Design for Easy Expansion with 5.12KWH Units
10KW 3-Phase Backup Output with Fast
The HBP1800 OS series is specifically designed for office use, providing a reliable and efficient power source. However, it is also versatile enough to power various household appliances, including PCs, laptops, stereos, and desktop computers. Equipped with a built-in 4-series LiFePO4 battery, the HBP1800 OS has a capacity of either 960Wh or 3072Wh, making it an ideal portable power station for a range of needs.
SPECIFICATIONS
Model: HBP18-3024 OS
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated power: 3000W
Output voltage waveform: Pure Sine Wave
Output voltage regulation: 230V ±5%
Output frequency: 50Hz / 60Hz (±0.2Hz)
Peak efficiency: 90%
Nominal DC input voltage: 24V (±0.3)
PV Input
Max solar power input: 1800W
PV max charging current: 60A (±3A)
Combined charging current: 80A (±4A)
Max efficiency: 98.0% max
PV array open circuit voltage: 145VDC
PV Array MPPT Voltage Range: 30~120VDC
AC Input
AC input voltage: 230Vac ±5%
Acceptable input voltage range: 90-280VAC
Nominal input frequency: 50Hz / 60Hz (Auto detection)
AC Charge
Charging current @ Nominal input voltage: 20A/30A (±4A)
Lithium Battery
Energy: 3072Wh
Nominal voltage: 25.6V
Battery capacity: 120Ah
Protection board: 140A
MECHANICAL SPECIFICATIONS
Dimensions (W*H*D) (mm): 288x348x490
3-4 Years Pay Back
Solar Panel Warranty: 25 Years Linear Power Output Warranty
Inverter Warranty: 10 Years Warranty

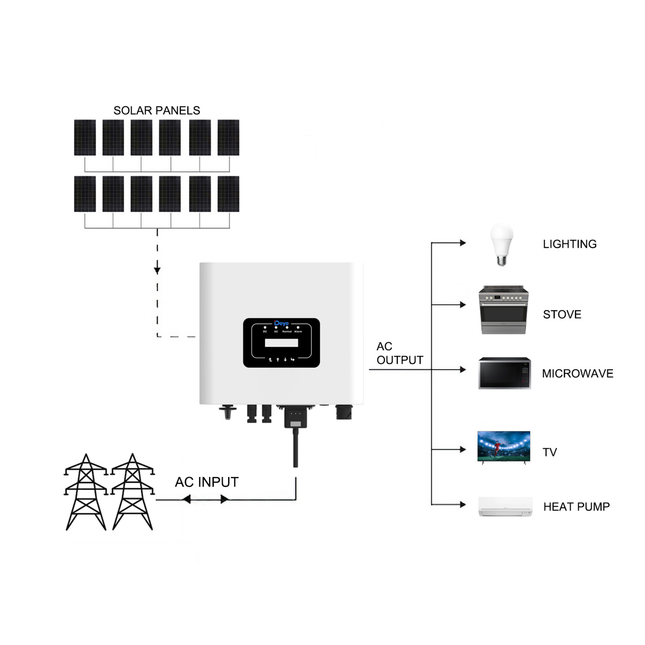

This on-grid solar power system is specifically designed to reduce your home's electricity costs throughout the year. This kit ensures that you can enjoy the comforts of home and power your everyday household appliances using solar energy during sunny days. Appliances such as lights, fridge, microwave, toaster, coffee machine, washing machine, vacuum cleaner, power tools, office equipment, and more can be powered during daytime hours.
Package Includes:
12 x JA Solar 440W Bifacial Topcon N-Type Mono Half-Cell Solar Panel (dimensions: 1762x1134x30mm)
1 x Deye SUN-6K-G04-AU On Grid Single Phase String Inverter 2 MPPT
1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors
1 x PV Safety System with Fuse breaker surge
12 x Mounting Rail Systems
Introducing the Deye SUN-6K-G04-AU Single Phase String Inverter, ideal for residential solar setups. Boasting a maximum efficiency of 97.5%, it supports zero export and VSG applications, enhancing overall performance. Safety features include a smart monitoring platform for remote shutdown in emergencies, while user-friendly design features a local LCD display for easy operation. With remote monitoring capabilities and a wide output voltage range, it ensures reliable and efficient solar power generation for your home.
Model: SUN-6K-G04-AU
Max. DC Input Power: 7.8kW
DC Input Voltage: 550V
Start-up Voltage: 80V
MPPT Voltage Range: 70-500V
Rated PV Input Voltage: 360V
PV Input Current:
Max. Operating Current: 13+13A
Max. Input Short Circuit Current: 19.5+19.5A
MPP Trackers/Strings per Tracker: 2/1+1
Current: 27.3/26.1A
Max. AC Output Current: 30/28.7A
Rated Output Voltage/Range: 220/230V
Max. Efficiency: 97.5%
3-4 Years Pay Back

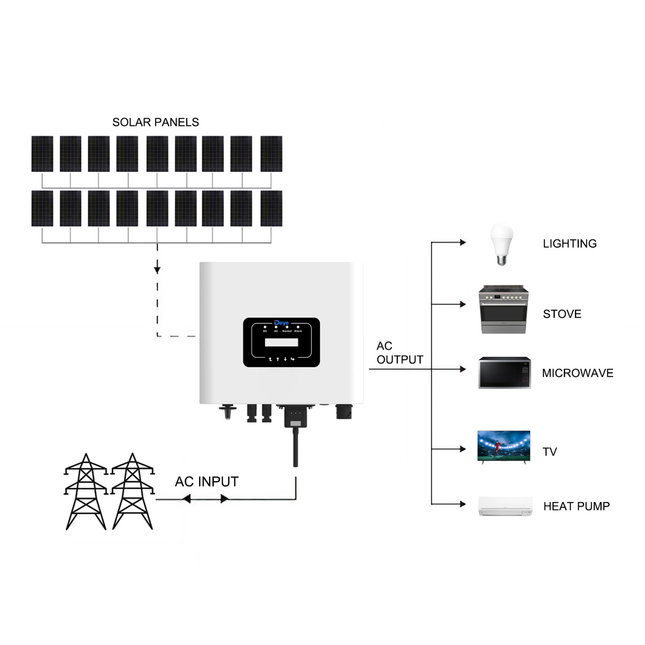

This on-grid solar power system is specifically designed to reduce your home's electricity costs throughout the year. Featuring 7920W of Longi solar panels, this kit ensures that you can enjoy the comforts of home and power your everyday household appliances using solar energy during sunny days. Appliances such as lights, fridge, microwave, toaster, coffee machine, washing machine, vacuum cleaner, power tools, office equipment, and more can be powered during daytime hours.
Package Includes:
18 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x Deye SUN-6K-G04-AU Grid Tied Single Phase String Inverter 2 MPPT (5 Years Manufacturer Warranty + 5 Years Local Warranty)
1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors
1 x PV Safety System with Fuse Box
18 x Mounting Rail Systems
Introducing the Deye SUN-6K-G04-AU Single Phase String Inverter, ideal for residential solar setups. Boasting a maximum efficiency of 97.5%, it supports zero export and VSG applications, enhancing overall performance. Safety features include a smart monitoring platform for remote shutdown in emergencies, while user-friendly design features a local LCD display for easy operation. With remote monitoring capabilities and a wide output voltage range, it ensures reliable and efficient solar power generation for your home.
Specifications:
Model: SUN-6K-G04-AU
Max. DC Input Power: 9kW
DC Input Voltage: 550V
Start-up Voltage: 80V
MPPT Voltage Range: 70-500V
Rated PV Input Voltage: 360V
PV Input Current:
Max. Operating Current: 13+13A
Max. Input Short Circuit Current: 19.5+19.5A
MPP Trackers/Strings per Tracker: 2/1
Active Power: 6kW
Apparent Power: 6kVA
Current: 26.1A
Max. AC Output Current: 26.1A
Rated Output Voltage/Range: 230 0.85Un-1.1Un
The system generates a daily output of 39KWH with a 5-hour charging time, based on average sunlight hours during New Zealand's winter and summer seasons.
3-4 Years Pay Back
This on-grid solar power system is specifically designed to reduce your home's electricity costs throughout the year. Featuring 5280W of Longi solar panels, this kit ensures that you can enjoy the comforts of home and power your everyday household appliances using solar energy during sunny days. Appliances such as lights, fridge, microwave, toaster, coffee machine, washing machine, vacuum cleaner, power tools, office equipment, and more can be powered during daytime hours.
Package Includes:
12 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x Deye SUN-6K-G04-AU On Grid Single Phase String Inverter 2 MPPT (10 Years Warranty)
1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors
1 x PV Safety System with Fuse breaker surge etc
12 x Mounting Rail Systems
Introducing the Deye SUN-6K-G04-AU Single Phase String Inverter, ideal for residential solar setups. Boasting a maximum efficiency of 97.5%, it supports zero export and VSG applications, enhancing overall performance. Safety features include a smart monitoring platform for remote shutdown in emergencies, while user-friendly design features a local LCD display for easy operation. With remote monitoring capabilities and a wide output voltage range, it ensures reliable and efficient solar power generation for your home.
Model: SUN-6K-G04-AU
Max. DC Input Power: 9kW
DC Input Voltage: 550V
Start-up Voltage: 80V
MPPT Voltage Range: 70-500V
Rated PV Input Voltage: 360V
PV Input Current:
Max. Operating Current: 13+13A
Max. Input Short Circuit Current: 19.5+19.5A
MPP Trackers/Strings per Tracker: 2/1
Current: 26.1A
Max. AC Output Current: 26.1A
Rated Output Voltage/Range: 230 0.85Un-1.1Un
Max. Efficiency: 97.5%
The system generates a daily output of 26KWH with a 5-hour charging time, based on average sunlight hours during New Zealand's winter and summer seasons.
3-4 Years Pay Back

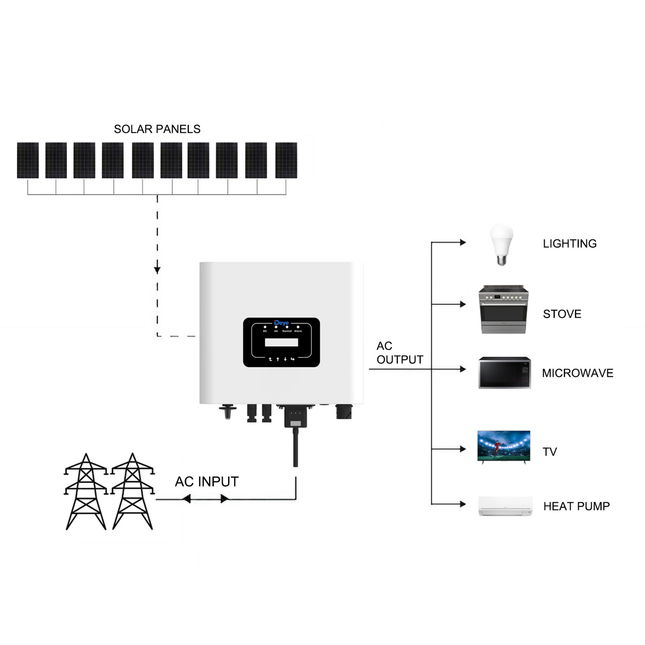

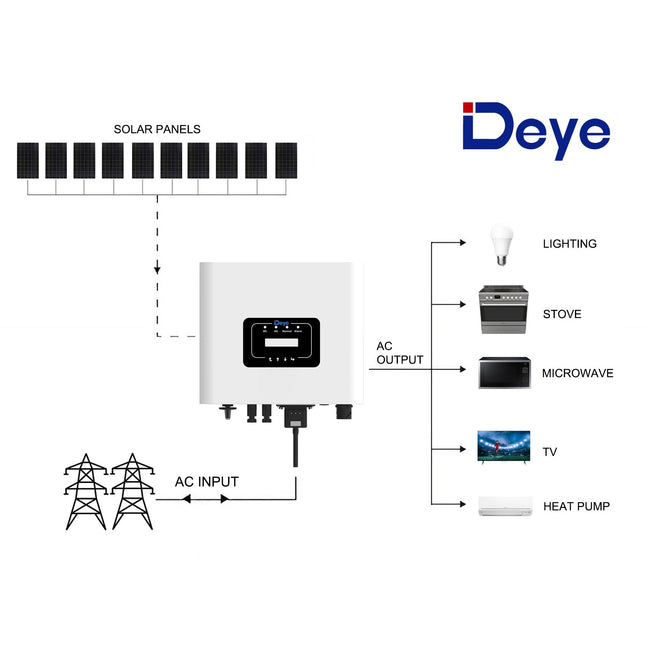

This on-grid solar power system is specifically designed to reduce your home's electricity costs throughout the year. Featuring 4400W of Longi solar panels, this kit ensures that you can enjoy the comforts of home and power your everyday household appliances using solar energy during sunny days. Appliances such as lights, fridge, microwave, toaster, coffee machine, washing machine, vacuum cleaner, power tools, office equipment, and more can be powered during daytime hours.
Package Includes:
10 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)
1 x Deye SUN-6K-G04-AU On Grid Single Phase String Inverter 2 MPPT (5 Years Manufacturer Warranty + 5 Years Local Warranty)
1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors
1 x PV Safety System with Fuse breaker surge etc
10 x Mounting Rail Systems
Introducing the Deye SUN-6K-G04-AU Single Phase String Inverter, ideal for residential solar setups. Boasting a maximum efficiency of 97.5%, it supports zero export and VSG applications, enhancing overall performance. Safety features include a smart monitoring platform for remote shutdown in emergencies, while user-friendly design features a local LCD display for easy operation. With remote monitoring capabilities and a wide output voltage range, it ensures reliable and efficient solar power generation for your home.
Model: SUN-6K-G04-AU
Max. DC Input Power: 9kW
DC Input Voltage: 550V
Start-up Voltage: 80V
MPPT Voltage Range: 70-500V
Rated PV Input Voltage: 360V
PV Input Current:
Max. Operating Current: 13+13A
Max. Input Short Circuit Current: 19.5+19.5A
MPP Trackers/Strings per Tracker: 2/1
Apparent Power: 6kVA
Current: 26.1A
Max. AC Output Current: 26.1A
Rated Output Voltage/Range: 230 0.85Un-1.1Un
The system generates a daily output of 22KWH with a 5-hour charging time, based on average sunlight hours during New Zealand's winter and summer seasons.
3-4 Years Pay Back
Solar Panel Warranty: 25 Years Linear Power Output Warranty
Inverter Warranty: 10 Years Warranty
This Grid-Tied solar power system is specifically designed to reduce your home's electricity costs throughout the year. This kit ensures that you can enjoy the comforts of home and power your everyday household appliances using solar energy during sunny days. Appliances such as lights, fridge, microwave, toaster, coffee machine, washing machine, vacuum cleaner, power tools, office equipment, and more can be powered during daytime hours.

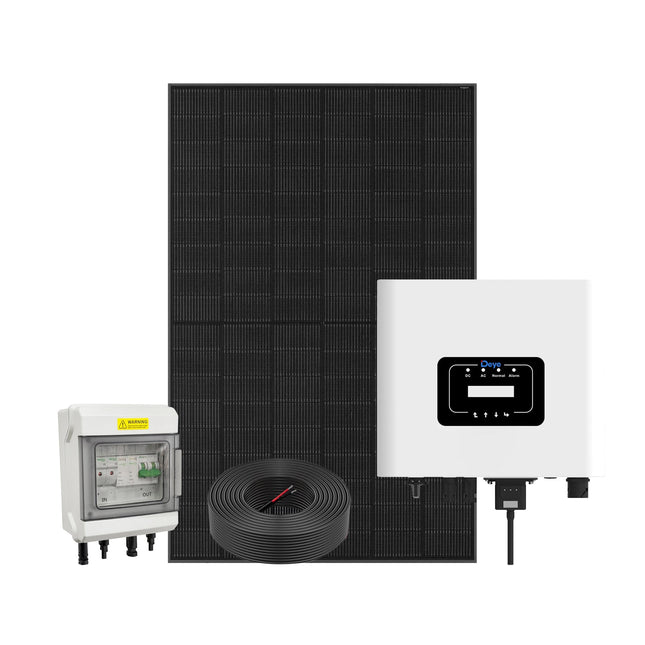

Package Includes:
12 x JA Solar 440W Bifacial Topcon N-Type Mono Half-Cell Solar Panel (dimensions: 1762x1134x30mm)
1 x Deye SUN-5K-G04-AU Grid Tied Single Phase String Inverter 2 MPPT
1 x 30m Twin 6mm PV Extension Cables with MC4 Connectors
1 x PV Safety System with Fuse breaker surge
12 x Black Anodized Aluminum Solar Mounting Rail
Introducing the Deye SUN-5K-G04-AU Single Phase String Inverter, ideal for residential solar setups. Boasting a maximum efficiency of 97.5%, it supports zero export and VSG applications, enhancing overall performance. Safety features include a smart monitoring platform for remote shutdown in emergencies, while user-friendly design features a local LCD display for easy operation. With remote monitoring capabilities and a wide output voltage range, it ensures reliable and efficient solar power generation for your home.
Model: SUN-5K-G04-AU
PV String Input Data
Max. PV Input Power (kW): 7.5
Max. PV Input Voltage (V): 550
Start-up Voltage (V): 80
MPPT Voltage Range (V): 70-500
Rated PV Input Voltage (V): 360
Max. Operating PV Input Current (A): 13+13
Max. Input Short Circuit Current (A): 19.5+19.5
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/1
AC Output Data
Rated AC Output Active Power(kW): 5
Max. AC Output Apparent Power(kVA): 5
Rated AC Output current (A): 21.7
Max. AC Output Current(A): 21.7
Efficiency:
Max. Efficiency: 97.5%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
