**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**
SUN-5K-SG04LP1-AU | 5kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 120A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-5K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 120
Max. Discharging Current (A): 120
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 7500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 5000
Max AC Output Active Power (W): 5000
AC Output Rated Current (A): 21.7
Max. AC Output Current (A): 21.7
Max. Continuous AC Passthrough (A): 35
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-10K-SG02LP1-AU-AM3 | 10kW | Single Phase | 3 MPPT | Hybrid Inverter | LV-Baterio Subtenita
Higher yields / Safe & Reliable / Smart / User-friendly
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-10K-SG02LP1-AU-AM3
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 220
Max. Discharging Current (A): 220
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 9999
Max. AC Input/Output Apparent Power (VA): 9999
AC Output Rated Current (A): 43.5
Max. AC Output Current (A): 43.5
Max. Continuous AC Passthrough (A): 60
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Cabinet size (mm): 420W×670H×233 D(Excluding connectors and brackets)
Weight (kg): 35.6
Protection Degree: IP65
Grid Regulation: AS/NZS 4777.2
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
Higher yields / Safe & Reliable / Smart / User-friendly
Suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN-8K-SG05LP1-AU. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 190A
Support storing energy from diesel generator
Model: SUN-8K-SG05LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 190
Max. Discharging Current (A): 190
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 12000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 34+34
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Data
Rated AC Output Active Power (W): 8000
Max AC Output Active Power (W): 8000
AC Output Rated Current (A): 34.8
Max. AC Output Current (A): 34.8
Max. Continuous AC Passthrough (A): 50
Peak Power (off grid): 2 time of rated power, 10 S
Max. Efficiency: 97.60%
General Data
Weight (kg): 24.9
Cabinet size (mm): 330W x 580H x232D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-6K-SG04LP1-AU | 6kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 135A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-6K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 135
Max. Discharging Current (A): 135
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 9000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 6000
Max AC Output Active Power (W): 6000
AC Output Rated Current (A): 26.1
Max. AC Output Current (A): 26.1
Max. Continuous AC Passthrough (A): 40
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
Dedicated communication with battery service assistance.
DEYE WiFi Plug Stick Logger LSW-3
Characteristics:
Type: WiFi Plug Stick Logger
Model: LSW-3
Connectivity: WiFi
Installation: Plug & Play
Compatibility: Compatible with DEYE inverters
Monitoring: Real-time
Operating Range: Wide Range for Stable Wireless Connection
Energy efficiency: Low energy consumption
Dimensions: Compact design for easy installation
Warranty: 2 years
Application:
The DEYE WiFi Plug Stick Logger LSW-3 is designed for wireless monitoring of DEYE inverters. This device offers an easy and fast way to connect and monitor the performance of your PV system in real-time. With the help of a WiFi connection, users can monitor the parameters of their inverters through a mobile application or web platform, thus gaining access to important information about the status of the system and energy production. Ideal for home and small commercial installations that want to optimize the efficiency and reliability of their solar systems.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-10K-SG04LP3-AU | 10kW | Three Phase | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-10K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 210
Max. Discharging Current (A): 210
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+13
Max. Input Short-Circuit Current (A): 39+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 10000
Max AC Output Active Power (W): 10000
AC Output Rated Current (A): 14.5
Max. AC Output Current (A): 14.5
Max. Continuous AC Passthrough (A): 45
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**
SUN-3K-SG04LP1-24-AU |24V | 3kW | Single Phase | MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 140A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-3K-SG04LP1-24-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 20V-30V
Max. Charging Current (A): 140
Max. Discharging Current (A): 140
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 4500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13
Max. Input Short-Circuit Current (A): 17
No. of MPP Trackers/No. of Strings MPP Tracker: 1/1
AC Output Data
Rated AC Output Active Power (W): 3000
Max AC Output Active Power (W): 3000
AC Output Rated Current (A): 13
Max. AC Output Current (A): 13
Max. Continuous AC Passthrough (A): 35
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

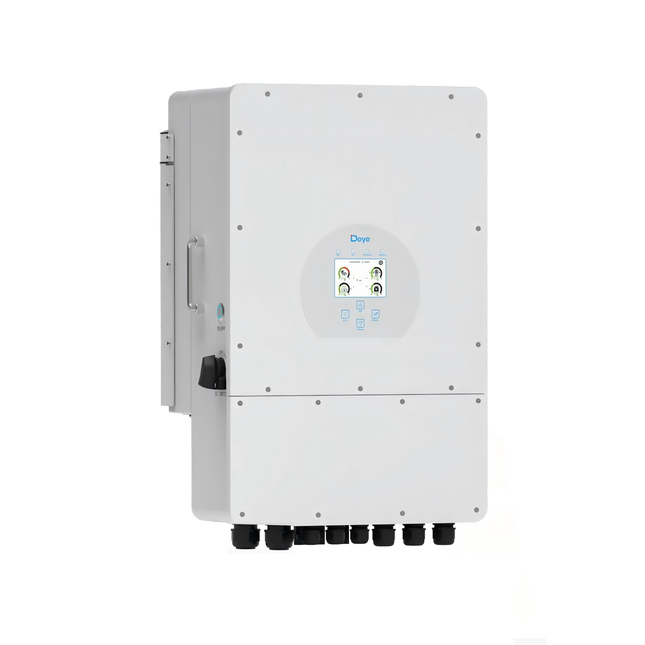

SUN-12K-SG04LP3-AU | 12kW | Three Phase | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-12K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 240
Max. Discharging Current (A): 240
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 18000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+13
Max. Input Short-Circuit Current (A): 39+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 12000
Max AC Output Active Power (W): 12000
AC Output Rated Current (A): 17.4
Max. AC Output Current (A): 17.4
Max. Continuous AC Passthrough (A): 45
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-25K-SG01HP3-AU-AM2 | 25kW | Three Phase | 2 MPPT
Hybrid Inverter | High-Voltage Battery Supported
Smart Monitoring Platform
Through Deye’s smart monitoring platform, the inverter supports remote monitoring, parameter configuration, firmware updates and remote shutdown when required, making system operation and maintenance easier and more efficient.
100% unbalanced three-phase output
AC coupling for retrofitting existing solar systems
Maximum 16 units in parallel for on-grid and off-grid operation
Supports multiple batteries in parallel
Maximum charging and discharging current of 50A
High-voltage battery support for improved system efficiency
Six programmable battery charging and discharging periods
Supports energy storage from a diesel generator
Model: SUN-25K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160–700
Max. Charging Current (A): 50
Max. Discharging Current (A): 50
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Inputs: 1
PV String Input Data
Max. PV Access Power (kW): 50
Max. PV Input Power (kW): 40
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150–850
Rated PV Input Voltage (V): 700
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings per MPP Tracker: 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (kW): 25
Max. AC Input/Output Apparent Power (kVA): 27.5
Rated AC Input/Output Current (A): 37.9/36.3
Max. AC Input/Output Current (A): 41.7/39.9
Max. Continuous AC Passthrough – Grid to Load (A): 80
Peak Off-Grid Power: 1.5 Times Rated Power for 10 Seconds
Grid Connection: 3L+N+PE
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Operating Temperature Range: -40°C to +60°C, Derating Above 45°C
Ingress Protection Rating: IP65
Noise Level: ≤55dB
Cooling: Intelligent Air Cooling
Communication Interface: Wi-Fi, RS485 and CAN
Cabinet Size (mm): 408W × 638H × 237D
(Excluding Connectors and Brackets)
Weight (kg): 30.5
Warranty: 10 Years
Grid Regulation: AS/NZS 4777.2
Safety/EMC Standards: IEC/EN 61000-6-1/2/3/4,
IEC/EN 62109-1 and IEC/EN 62109-2
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

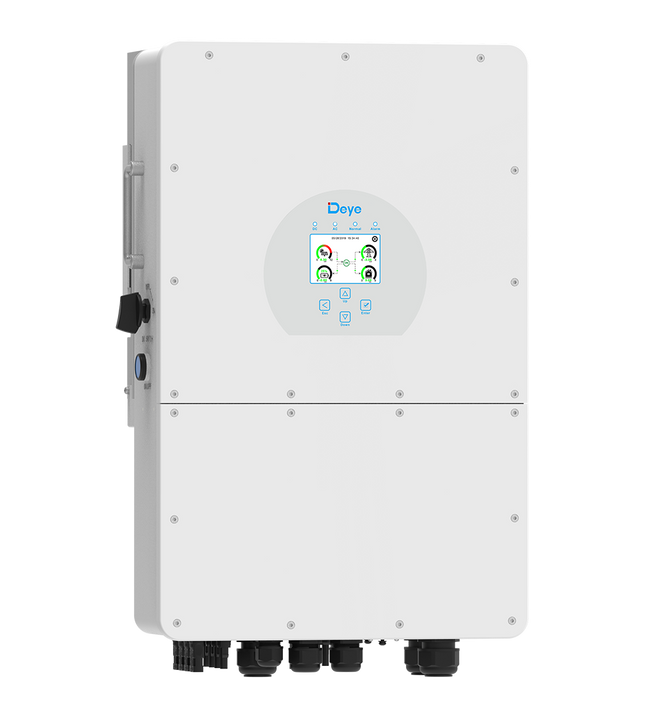

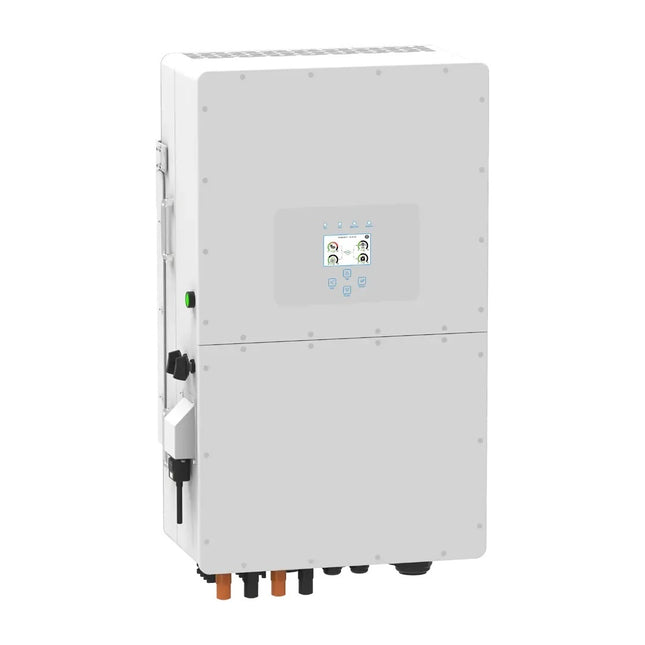

Deye SUN-8K-SG01HP3-AU-AM2 Three Phase Hybrid Inverter
SUN-8K-SG01HP3-AU-AM2 | 8kW | Three Phase | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase.
AC couple to retrofit existing solar system.
Max. 16pcs parallel for on-grid and off-grid operation;
Max. charging/discharging current of 50A.
High voltage battery, higher efficiency.
6 time periods for battery charging/discharging
Support storing energy from diesel generator.
Model:SUN-8K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-700
Max. Charging Current (A): 37
Max. Discharging Current (A):37
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 12000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 20+20
Max. Input Short-Circuit Current (A): 30+30
No. of MPP Trackers/ No. of Strings MPP Tracker: 2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W):8000
Max. AC Input/Output Apparent Power (VA):8000
Rated AC Input/Output Current (A): 11.6
Max. AC Input/Output Current (A): 11.6
Max. Continuous AC Passthrough (grid to load) (A):40
Peak Power (off-grid) (W): 1.5 times of rated power, 10s
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
Ingress Protection(IP) Rating: IP65
Cabinet Size (WxHxD mm):408×638×237 (Excluding Connectors and Brackets)
Weight (kg):30.5
Grid Regulation: AS/NZS 4777.2
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Introducing the Mustpower INVERTER PV30-3024PRO!
The Mustpower PV30-3024 PRO is an off-grid hybrid inverter designed for versatile usage. It features an 80A MPPT controller, a 3000W low-frequency inverter (with a peak power of 9000W), and is compatible with off-grid systems and generators.
Key Features:
Pure sine-wave output, suitable for various domestic appliances such as TVs, refrigerators, fans, air conditioners, induction cookers, and microwave ovens.
Superior performance thanks to CPU control technology.
Wide input voltage range with accurate output and AVR (Automatic Voltage Regulation) function.
Equipped with internal protection against overloads, short circuits, over-voltage, low-voltage, and over-heating.
Easy monitoring of inverter status with LED indication (upgradeable to LCD display).
Compatible with generators and allows for external battery connection.
Intelligent battery management system with protection against overcharging and over-discharging, among others.
Generator compatible.
Specifications:
Model Name: PV3000
Model Designation: PV30-3024PRO
Operating Temperature: 0°C to 40°C
Protection Degree: IP 20
Rated Power: 3000W
DC Input: 24VDC
AC Output: 230VAC 50/60Hz
AC Input: 230VAC 50/60Hz
Rated Current: 80A
System Voltage: 24VDC
MPPT Voltage Range: 30-130VDC
Maximum Solar Voltage (VOC): 145VDC
Maximum Charge Current: 80A
Dimensions (W*H*D): 423*247*197mm
Storage Temperature: -15°C to 60°C
Audible Noise: 60dB MAX
Display: LED+LCD
Standard Warranty: 1 year
This inverter fully complies with AS/NZS4777 and the new AS/NZS5033+ IEC 62109-1 & IEC 62109-2 + AS/NZS 5033:2014 Compliance, meeting the latest NZ 2015 specification requirements.

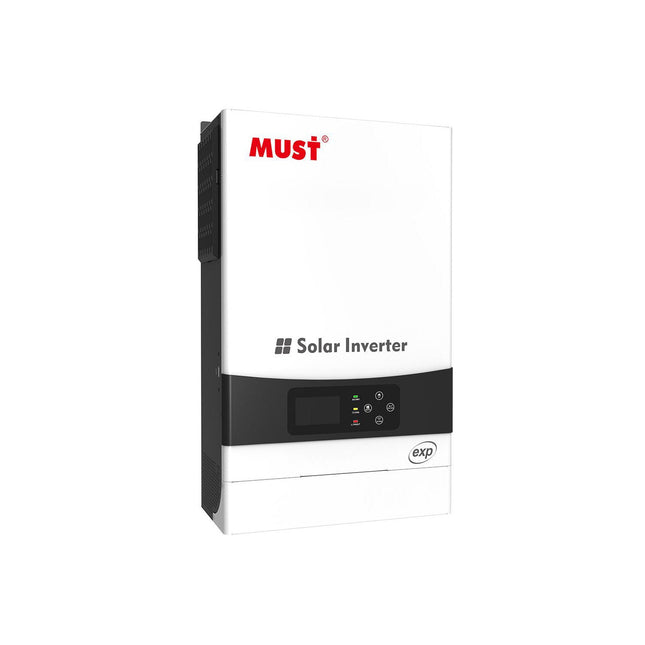

PV1900 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1900 EXP Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage is 150 - 450Vdc, which Can help customers make full use of solar energy.
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 500V (450V for parallel)
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
WIFI remote monitoring (optional)
Dual outputs for smart load management(optional)
Can communicate with lithium batteries
MODEL: PV19-6048 EXP
Nominal Battery System Voltage: 48VDC
INVERTER OUTPUT
Rated Power: 6000VA / 6000W
Surge Power: 12000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC+-5%(Setting)
Inverter Efficiency(Peak): 92%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC
Selectable Voltage Range: 170 - 280VAC(UPS) / 90 - 280VAC(APL) / 184 - 253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 48VDC
Floating Charge Voltage: 54.8VDC
Overcharge Protection: 60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 500VDC (450V for parallel)
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 6000W
Maximum Solar Charge Current: 120A
Maximum AC Charge Current: 100A
Maximum Charge Current: 120A
Dimensions (WxHxD): 309 x 505 x 147mm
2 Years Warranty

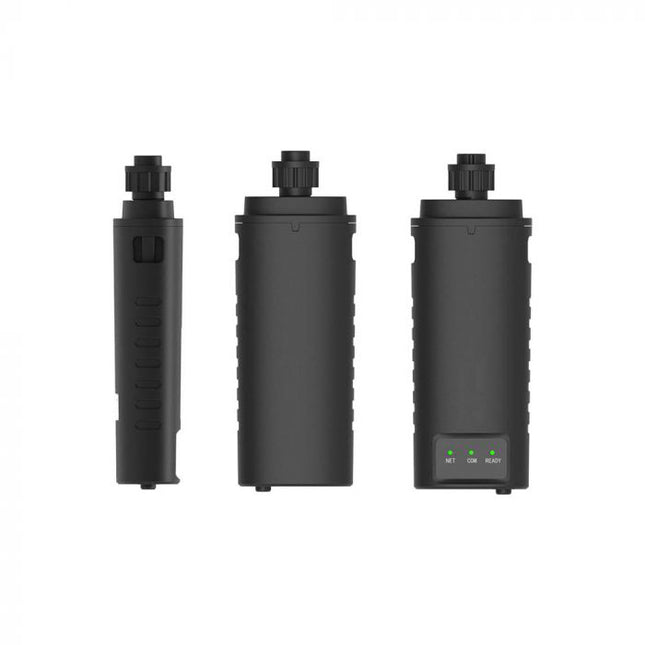

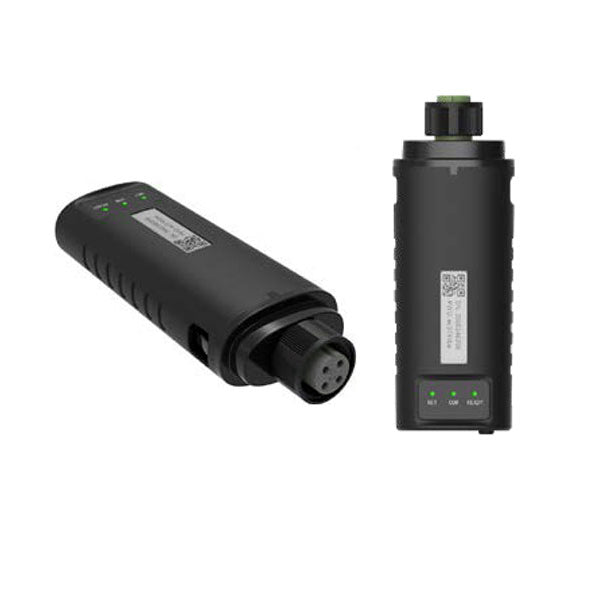

SRNE LSW-5 WiFi Monitor Module Stick Logger
Wireless Monitoring for SRNE MPPT Hybrid Solar Inverters
Product Overview
The LSW-5 WiFi Module is a plug-and-play wireless monitoring device designed specifically for SRNE MPPT Hybrid Inverters (HF / ASF / ASP Series). It enables real-time remote monitoring of your solar power system via web portal or mobile app, helping you stay informed and in control—anytime, anywhere.
Compatibility Notice:
This WiFi module is only compatible with SRNE MPPT Hybrid Inverters from the HF, ASF, and ASP Series.
It is not compatible with HES or HESP series inverters.
Key Features
Seamless WiFi Connectivity
Connects directly to your inverter via the dedicated WiFi port, enabling real-time system data monitoring through your smartphone or computer.
Web & Mobile App Access
Monitor key performance indicators such as input/output power, battery status, and load levels from the official SRNE monitoring platform.
Wide Compatibility Range
Supports inverter models with output power from 2kW to 5.5kW, including:
2kW / 3kW / 3.5kW / 5kW / 5.5kW.
Optimized for MPPT Solar Hybrid Systems
Designed to work with SRNE hybrid inverters that combine solar and grid power, ensuring efficient energy conversion and stable backup power.
Remote System Diagnostics & Alerts
Enables fault detection, performance tracking, and system alerts to ensure your energy system is running smoothly.
Why Choose LSW-5?
Hassle-free installation and intuitive setup
Real-time performance insights at your fingertips
Compact, durable design for long-term operation
Ideal for home solar, RV, off-grid cabins, and backup systems
Model: LSW-5
Input: DC 5V-12V 1.5W
The HP-AHP20A series is a high-frequency inverter charger. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings. This high-quality product provides a stable power supply and is suitable for hybrid power generation systems that combine solar, utility, and oil engine sources. It meets the application requirements for customers seeking cost-effective residential power supply solutions.
Features
Pure sine wave output
Supports battery or non-battery modes
PFC technology reduces the demand on the power grid capacity
Advanced MPPT technology, with max. tracking efficiency higher than 99.5%
Supports charging from multiple types of generators
Battery charging or discharging current limits are compatible with various types of batteries
Adjustable maximum utility charging current for flexible configuration of utility charging power
Large size LCD display for better status monitoring
RS485 communication interface with optional 4G, WiFi, or TCP modules for remote monitoring
Comprehensive electronic protections
AC output supports parallel operation, standard configuration of 12 units in parallel
AC output parallel operation supports single-phase and three-phase settings
Model: HP3522-AH1250P20A
Utility Voltage: 176VAC - 264VAC (Default) 90VAC - 280VAC (Configurable)
Utility Frequency: 45Hz - 65Hz
Maximum Utility Charging Current: 110A
Inverter output
Inverter Rated Power: 3500W
3-second Transient Surge Output Power: 7000W
Inverter Output Voltage: 220 / 230VAC +-3%
Inverter Frequency: 50/60Hz +-0.2%
Output Voltage Waveform: Pure sine wave
Dimension(mm): 654L × 291.4W × 163H
Net Weight: 15.3 kg
HF Series All-in-One Hybrid Solar Inverter
Integrated Solar Charging, Energy Storage, and Pure Sine Wave AC Output
The HF Series is a next-generation, all-in-one hybrid inverter that combines solar energy conversion, battery charging/storage, and pure sine wave AC output in a compact and high-performance system. Built with DSP control and an advanced control algorithm, it delivers fast response, high reliability, and meets industrial-grade standards.
Key Features
Full Digital Control & SPWM Technology
Dual Output Modes
Flexible Charging Modes
High-Efficiency MPPT Charging
Power Saving Mode
Smart Cooling System
Compatible with 24V storage batteries
Multiple charging and on-load modes to maximise energy use
Efficient heat dissipation, prolonging system life
Support remote monitoring of equipment operating parameters
MODEL: HF2430S60-100
INVERTER OUTPUT
Rated Output Power: 3000W
Max.Peak Power: 6000VA
Rated Output Voltage: 230Vac Single-Phase
Load Motor Capacity: 2HP
Rated Frequency: 50/60Hz
Waveform: Pure sine wave
BATTERY
Battery Type: Lead-Acid / Li-ion / User-Define
Rated Battery Voltage: 24V
Battery Volatge Range: 20 - 33Vdc
Max. Solar Charging Current: 60A
Max. Grid/Generator Charging Current: 80A
Max. Hybrid Charging Current: 140A
SOLAR INPUT
No. Of MPPT: 1
Max.PV Array Power: 1600W
Max. Input Current: 40A
Max. Open Circuit Voltage: 108Vdc
MPPT Voltage Range: 30 - 90Vdc
GRID/GENERATOR INPUT
Input Voltage Range: 170 - 280Vac
Input Frequency Range: 50/60Hz
Bypass Overload Current: 30A
EFFICIENCY
MPPT Tracking Efficiency: 99.9%
Max. Efficiency: 92%
GENERAL DATA
Dimension: 378 x 280 x 103mm
Weight: 6.8kg
Protection Degree: IP20 Only Indoor
External Module (Optional): Wi-Fi/GPRS
Communication: RS485/CAN/USB/Dry Contact
Warranty: 2 years
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-30K-SG01HP3-AU-BM3 | 30kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase
High voltage battery, higher efficiency
AC couple to retrofit existing solar system
Max. charging/discharging current of 100A
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-30K-SG01HP3-AU-BM3
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 2
PV String Input Data
Max. DC Input Power (W): 44850
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Range (V): 150-850
Rated PV Input Voltage (V): 600
PV Input Current (A): 36+36+36
No.of MPP Trackers: 3
No.of Strings per MPP Tracker: 2+2+2
AC Output Data
Rated AC Output and UPS Power (W): 29900
Rated Apparent Output Power (VA): 29900
AC Output Rated Current (A): 43.4
Max. AC Output Current (A): 43.4
Max. Continuous AC Passthrough (A): 200
Peak Power (Off Grid): 1.5 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 80
Cabinet size (mm): 527W×894H×294D (Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-20K-SG01HP3-AU-AM2 | 20kW | Three Phase | 2 MPPT | Hybrid Inverter | HV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 50A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-20K-SG01HP3-AU-AM2
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-700
Max. Charging Current (A): 37
Max. Discharging Current (A): 37
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 30000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated DC Input Voltage(V): 600
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Data
Rated AC Output Active Power (W): 20000
Max AC Output Active Power (W): 20000
AC Output Rated Current (A): 29
Max. AC Output Current (A): 29
Max. Continuous AC Passthrough (grid to load) (A): 80
Peak Power (off grid): 1.5 times of rated power, 10s
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 30.5
Cabinet size (mm): 408W x 638H x237D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-8K-SG05LP3-AU-SM2 | 8kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Intuitive: 48V low voltage battery, transformer isolation design.
Intelligent: 6 time periods for battery charging/discharging.
Flexible: AC couple to retrofit existing solar system.
Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries paralle.
Reliable: Max. charging/discharging current of 240A.
Support storing energy from diesel generator.
100% unbalanced output, max. output up to 50% rated power for each phase.
Model: SUN-8K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging/Discharging Current (A): 190
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV access power(W): 16000
Max. PV Input Power (W): 12000
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated PV Input Voltage(V): 550
Max. Operating PV Input Current (A): 20+20
Max. Input Short-Circuit Current (A): 30+30
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W): 8000
Max AC Input/Output Apparent Power (VA): 8000
Rated AC Input/Output Current (A): 11.6
Max. AC Input/Output Current (A): 11.6
Max. Continuous AC Passthrough (grid to load) (A): 45
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: > 99.0%
General Data
Weight (kg): 35.2
Cabinet size (mm): 386×660×250 (Excluding Connectors and Brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-10K-SG05LP3-AU-SM2 | 10kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Intuitive: 48V low voltage battery, transformer isolation design.
Intelligent: 6 time periods for battery charging/discharging.
Flexible: AC couple to retrofit existing solar system.
Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries paralle.
Reliable: Max. charging/discharging current of 240A.
Support storing energy from diesel generator.
100% unbalanced output, max. output up to 50% rated power for each phase.
Model: SUN-10K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging/Discharging Current (A): 210
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV access power(W): 20000
Max. PV Input Power (W): 15000
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated PV Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W): 10000
Max AC Input/Output Apparent Power (VA): 10000
Rated AC Input/Output Current (A): 14.5
Max. AC Input/Output Current (A): 14.5
Max. Continuous AC Passthrough (grid to load) (A): 45
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: > 99.0%
General Data
Weight (kg): 35.2
Cabinet size (mm): 386×660×250 (Excluding Connectors and Brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**

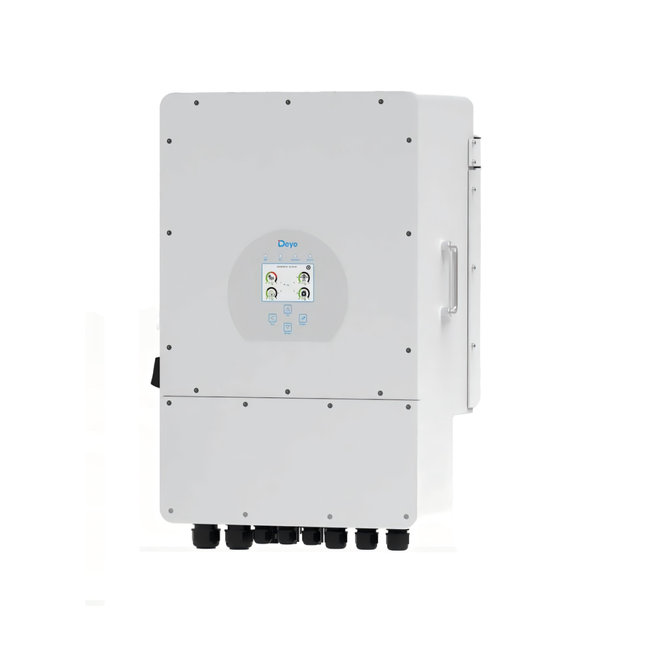

SUN-12K-SG05LP3-AU-SM2 | 12kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Intuitive: 48V low voltage battery, transformer isolation design.
Intelligent: 6 time periods for battery charging/discharging.
Flexible: AC couple to retrofit existing solar system.
Max. 10 pcs parallel for on-grid and off-grid operation; support multiple batteries paralle.
Reliable: Max. charging/discharging current of 240A.
Support storing energy from diesel generator.
100% unbalanced output, max. output up to 50% rated power for each phase.
Model: SUN-12K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging/Discharging Current (A): 240
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV access power(W): 24000
Max. PV Input Power (W): 18000
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated PV Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 39+39
No. of MPP Trackers/
No. of Strings MPP Tracker: 2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W): 12000
Max AC Input/Output Apparent Power (VA): 12000
Rated AC Input/Output Current (A): 17.4
Max. AC Input/Output Current (A): 17.4
Max. Continuous AC Passthrough (grid to load) (A): 45
Efficiency
Max. Efficiency: 97.6%
Euro Efficiency: 97.0%
MPPT Efficiency: > 99.0%
General Data
Weight (kg): 35.2
Cabinet size (mm): 386×660×250 (Excluding Connectors and Brackets)
Protection Degree: IP65
Growatt WiFi-F is a plug-and-play monitoring device to help monitor the status of the PV system. This device is installed on the inverter or controller for uploading and receiving data from the server.
Application:
Cable-Free
Easy Installation
50 Metre coverage
Built-in storage for 1 month of data
Online Monitoring and Maintenance
5 YEARS WARRANTY
Compatible with Lithium Batteries!
UPower series is an inverter/charger with power from 1KVA to 5KVA, which combines MPPT solar charge controller, pure sine wave inverter, and AC/DC charger in one unit. The inverter and AC/DC charger can work simultaneously,
makes UPower perfectly suits residential applications, schools, cottages and the area where the electricity is not stable
or the applications that need uninterruptible power.
Features
A new type of all-digital intelligent energy storage and management Inverter/charger
MPPT technology, Max. tracking efficiency 99.5%, Max. DC-DC conversion efficiency 98.5%
Advanced all-digital control technology for AC-DC charging modules
SPWM technology, with high efficiency up to 95%
With the function of Utility & Solar charging ratio selection, and total charging current setting
Four charging mode and two output mode
Rich set of options
RS485 isolated communication interface with standard Modbus protocol
Extensive electronic protections
Variety of accessories can be selected according to user’s requirements
Specifications
Model: UP5000-M10342
Nominal battery voltage: 48VDC
Battery input voltage range: 43.2～64VDC
Inverter output
Continuous output power: 4000W
Output power 15min: 5000W
Output voltage range: 220V ± 5%; 230V(-10% ～ +5%)
Output frequency: 50/60 ± 0.1Hz
Output wave: Pure Sine Wave
Max.efficiency: 95%
Solar charging
Max. PV open circuit voltage:
200V (At minimum operating environment temperature)
180V (At 25°C environment temperature)
Max. PV input power: 5000W
Max. PV charging current: 100A
Dimensions(HxWxL) : 605x315x178mm
Net weight: 17.8kg

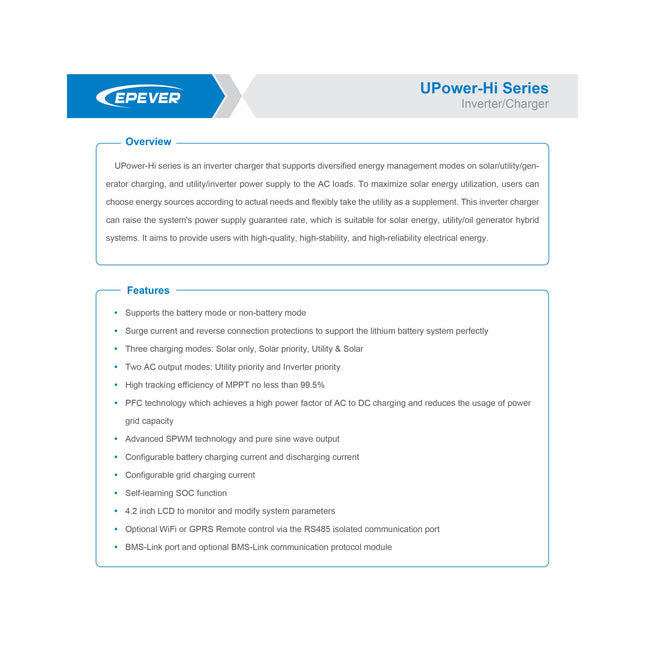

UPower-Hi series is an inverter charger that supports diversified energy management modes on solar/utility/generator charging, and utility/inverter power supply to the AC loads. To maximize solar energy utilization, users can
choose energy sources according to actual needs and flexibly take the utility as a supplement. This inverter charger
can raise the system's power supply guarantee rate, which is suitable for solar energy, utility/oil generator hybrid
systems. It aims to provide users with high-quality, high-stability, and high-reliability electrical energy.
Supports the battery mode or non-battery mode
Surge current and reverse connection protections to support the lithium battery system perfectly
Three charging modes: Solar only, Solar priority, Utility & Solar
Two AC output modes: Utility priority and Inverter priority
High tracking efficiency of MPPT no less than 99.5%
PFC technology which achieves a high power factor of AC to DC charging and reduces the usage of power
grid capacity
Advanced SPWM technology and pure sine wave output
Configurable battery charging current and discharging current
Configurable grid charging current
Self-learning SOC function
4.2 inch LCD to monitor and modify system parameters
Optional WiFi or GPRS Remote control via the RS485 isolated communication port
BMS-Link port and optional BMS-Link communication protocol module
Specifications

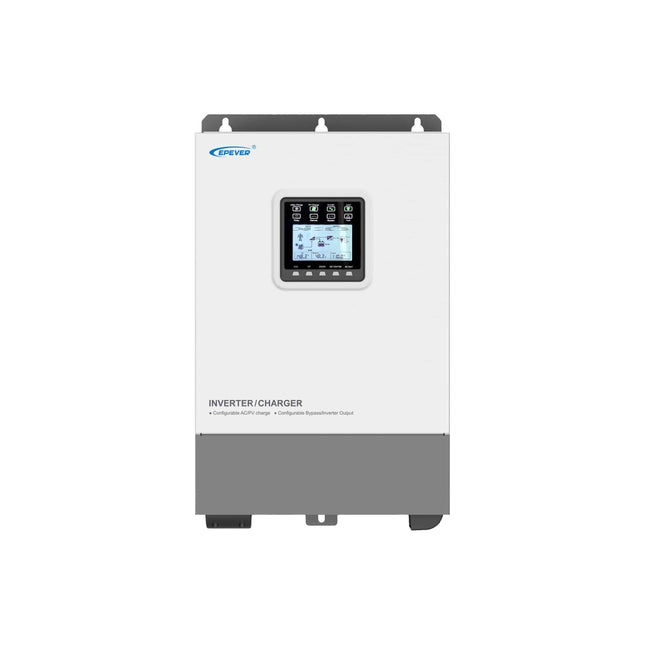

Model: UP5000-HM8042
Rated battery voltage: 48VDC
Battery input voltage: 43.2 ~ 64VDC
Max. battery charging current: 80A
Inverter output
Continuous output power: 5000W
Max. surge pow er(3S): 8000W
Output voltage range: 220VAC
Output wave: Pure Sine Wave
Solar charging
Max. PV input power: 4000W
Max. PV charging power: 4000W
Max. PV charging current: 80A
Surge current: 95A
Dimension(H x W x D): 642.5x381.6x149mm
Net Weight: 19kg
