Description

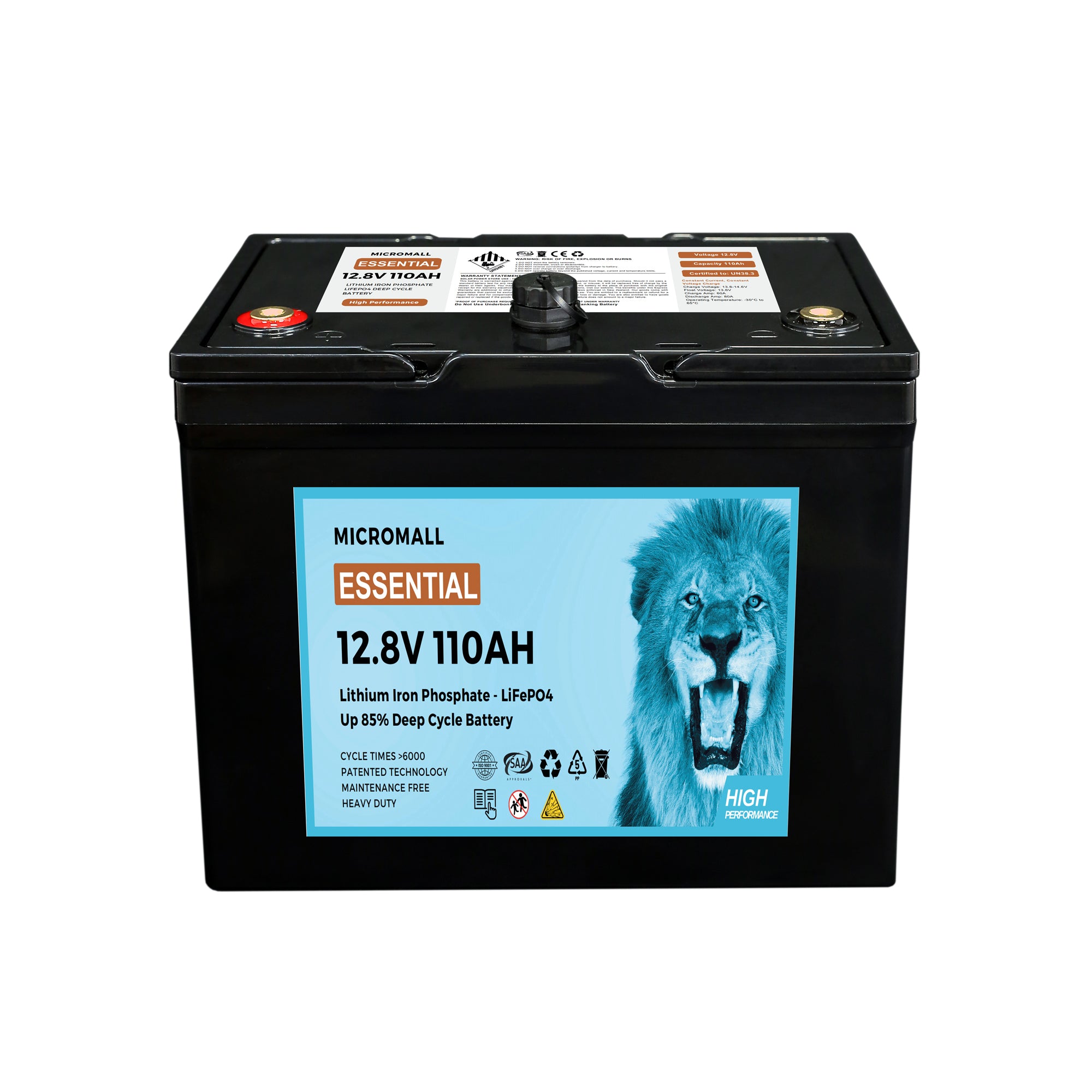

This 12.8V 110Ah LiFePO4 battery provides approximately 1.4kWh of nominal energy for solar, RV, marine and other deep-cycle applications. Its high usable capacity and lithium iron phosphate chemistry offer an efficient, durable alternative to conventional lead-acid batteries.
Key Features

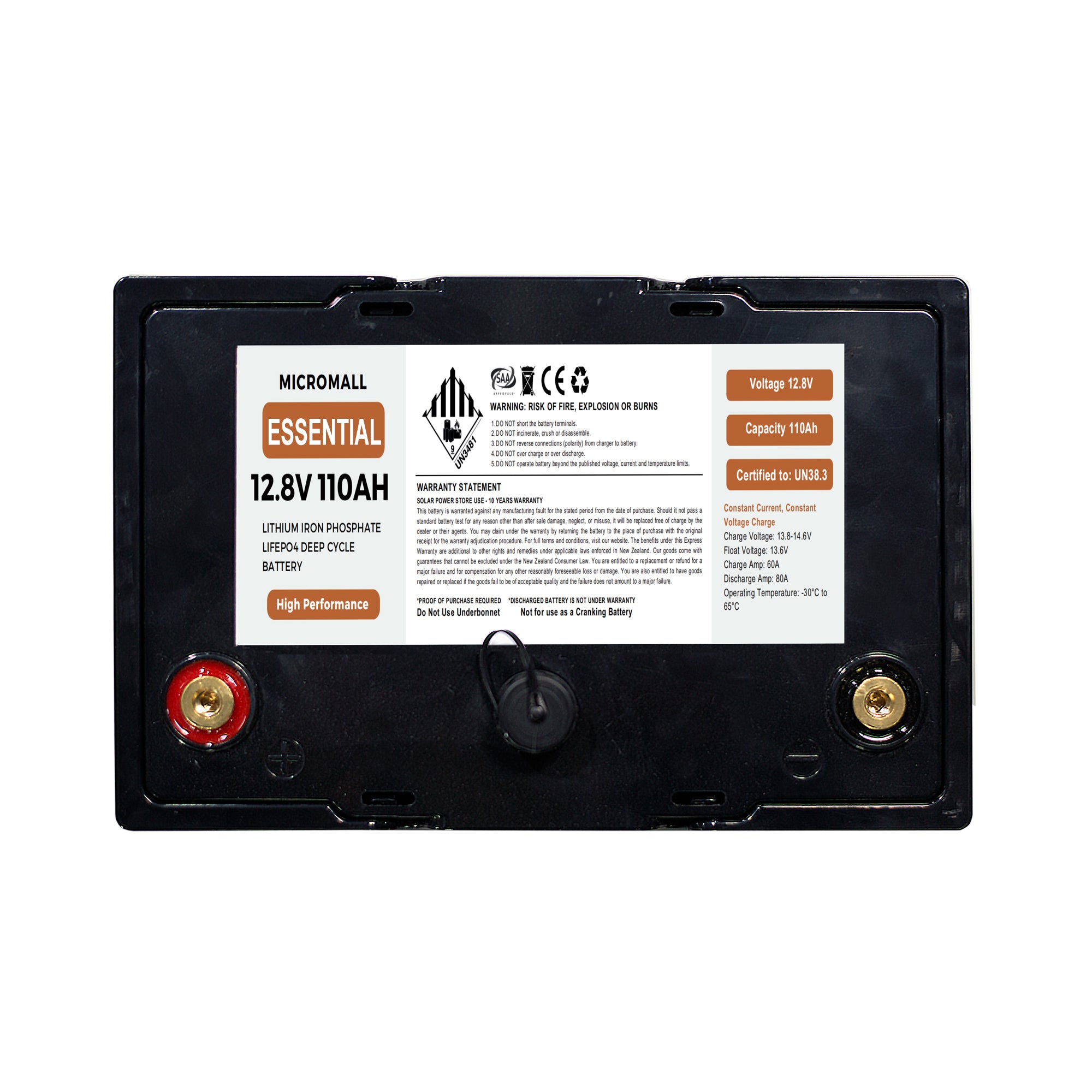

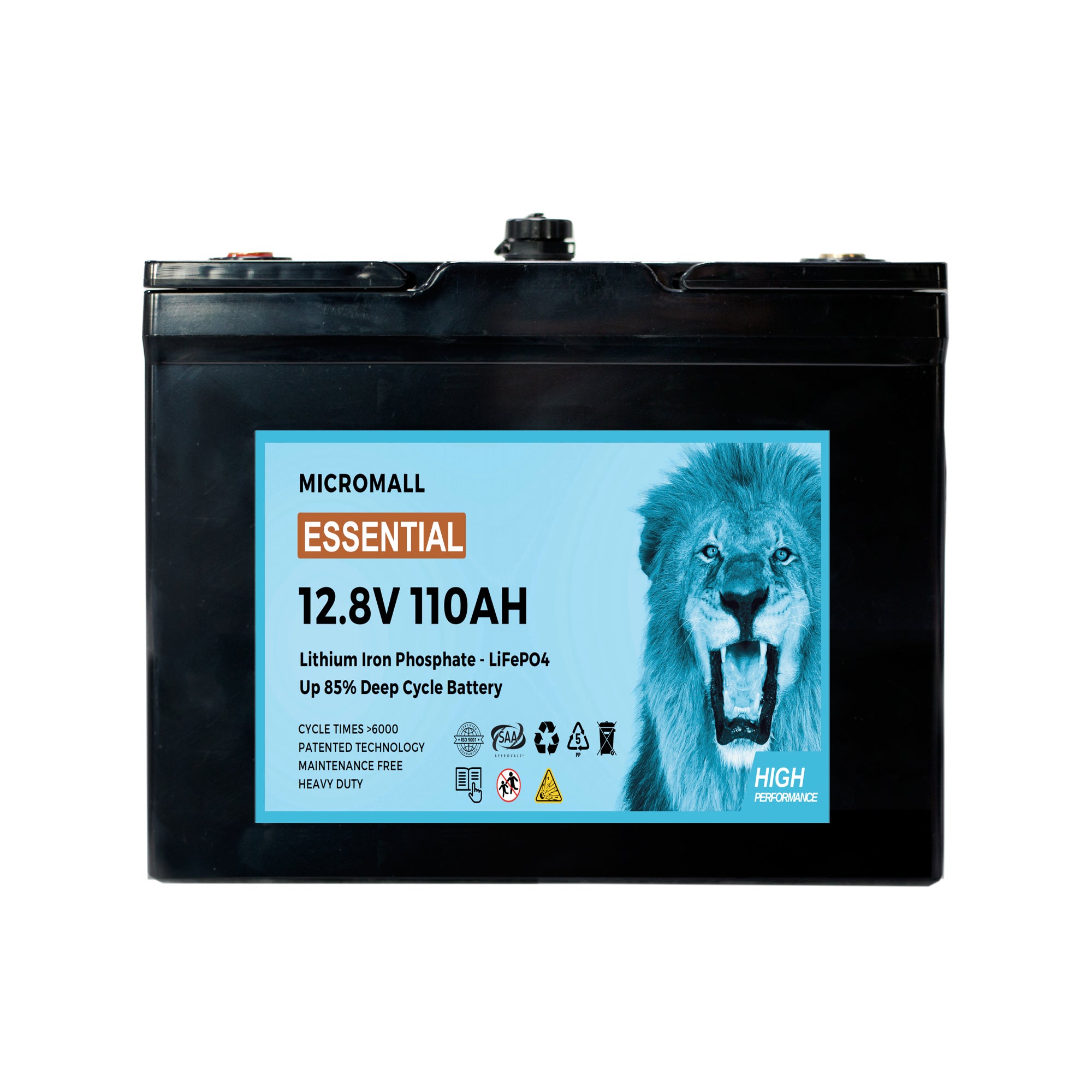

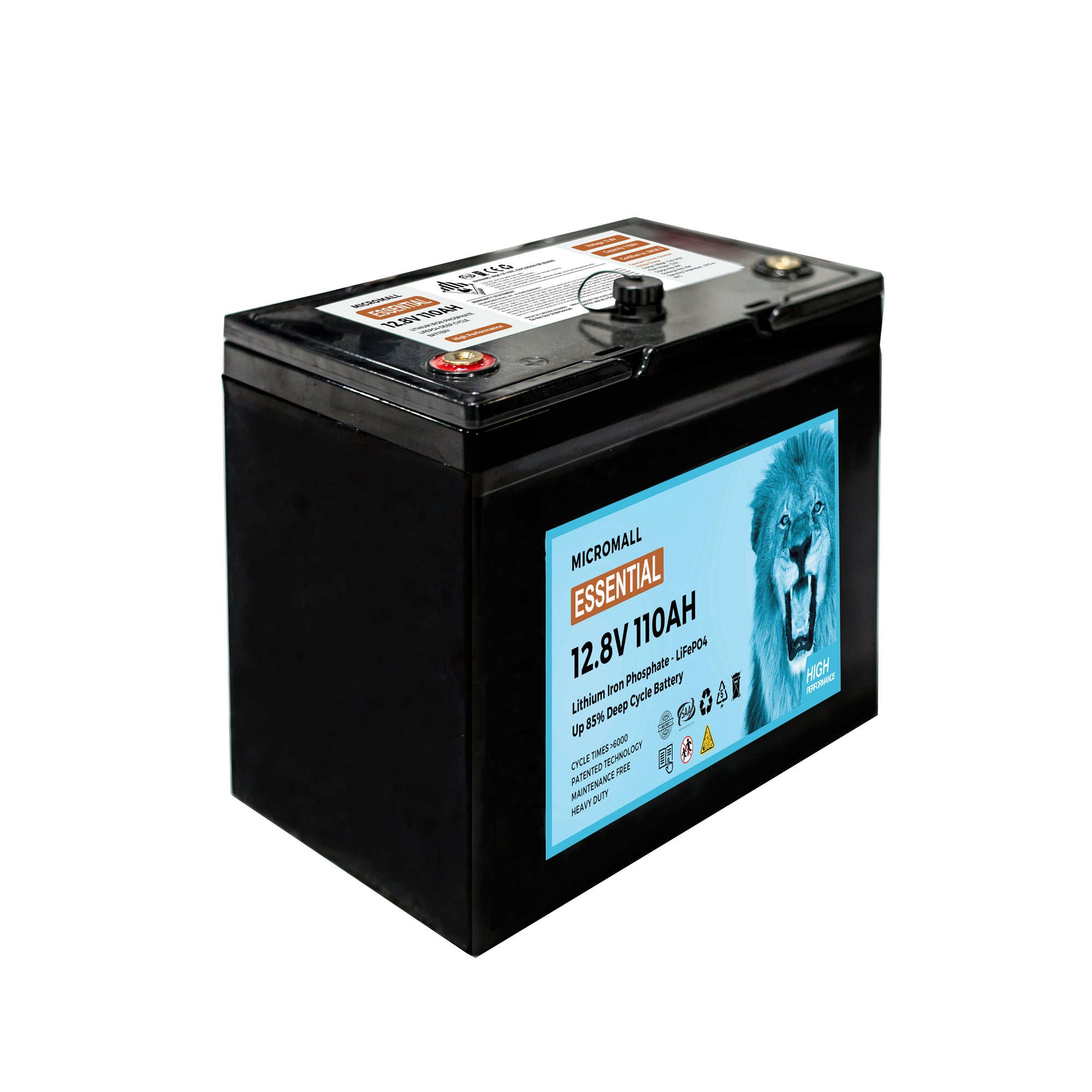

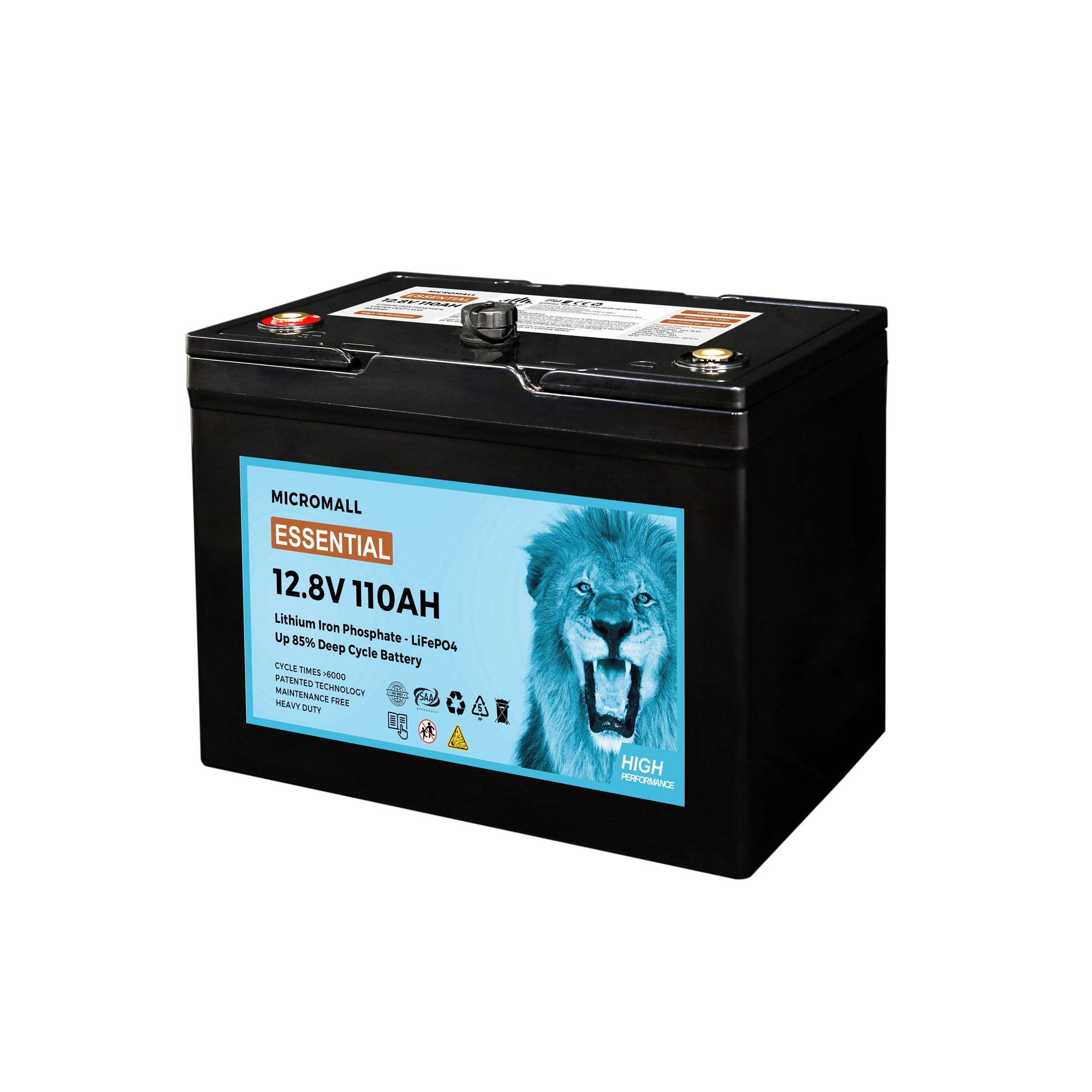

- 12.8V 110Ah LiFePO4 Battery
- 1.4kWh Nominal Energy
- 1.2kWh Usable Energy
- 90% Recommended Depth of Discharge
- 50A Recommended Charge / Discharge Current
- 100A Maximum Charge / Discharge Current
- 200A Peak Current (500ms at 25°C)
-
≥6000 Cycle Life under specified test conditions
- LCD Display
- IP54 Enclosure
- Compact size: 255 × 168 × 208mm
- Approximate weight: 11 ± 2kg
- Suitable for Solar, Caravan, RV, Marine and Off-Grid Applications
- Essential Non-Communication Version
Specifications
Model: NZ-12110
Battery Chemistry: LiFePO4
Capacity: Max. 110Ah
Nominal Voltage: 12.8V
Operating Voltage: 10.8–14.4V
Nominal Energy: 1.4kWh
Usable Energy: 1.2kWh
Recommended Charge / Discharge Current: 50A
Maximum Charge / Discharge Current: 100A
Peak Current: 200A (500ms, 25°C)
Short-Circuit Current: 1.444kA (1.12ms, 25°C)
Recommended Depth of Discharge (DOD): 90%
Dimensions (H × W × D): 255 × 168 × 208mm
Approximate Weight: 11 ± 2kg
Display: LCD
IP Rating: IP54
Operating Conditions
Charging Temperature: 0°C to 55°C (Optional Heating)
Discharging Temperature: -20°C to 55°C
Storage Temperature: 0°C to 35°C
Humidity: 5%–95%
Maximum Operating Altitude: ≤2000m
Electrical Characteristics
Insulation Resistance (Factory Test): >100MΩ
Initial Battery Internal Resistance: 0.5 ± 0.05mΩ

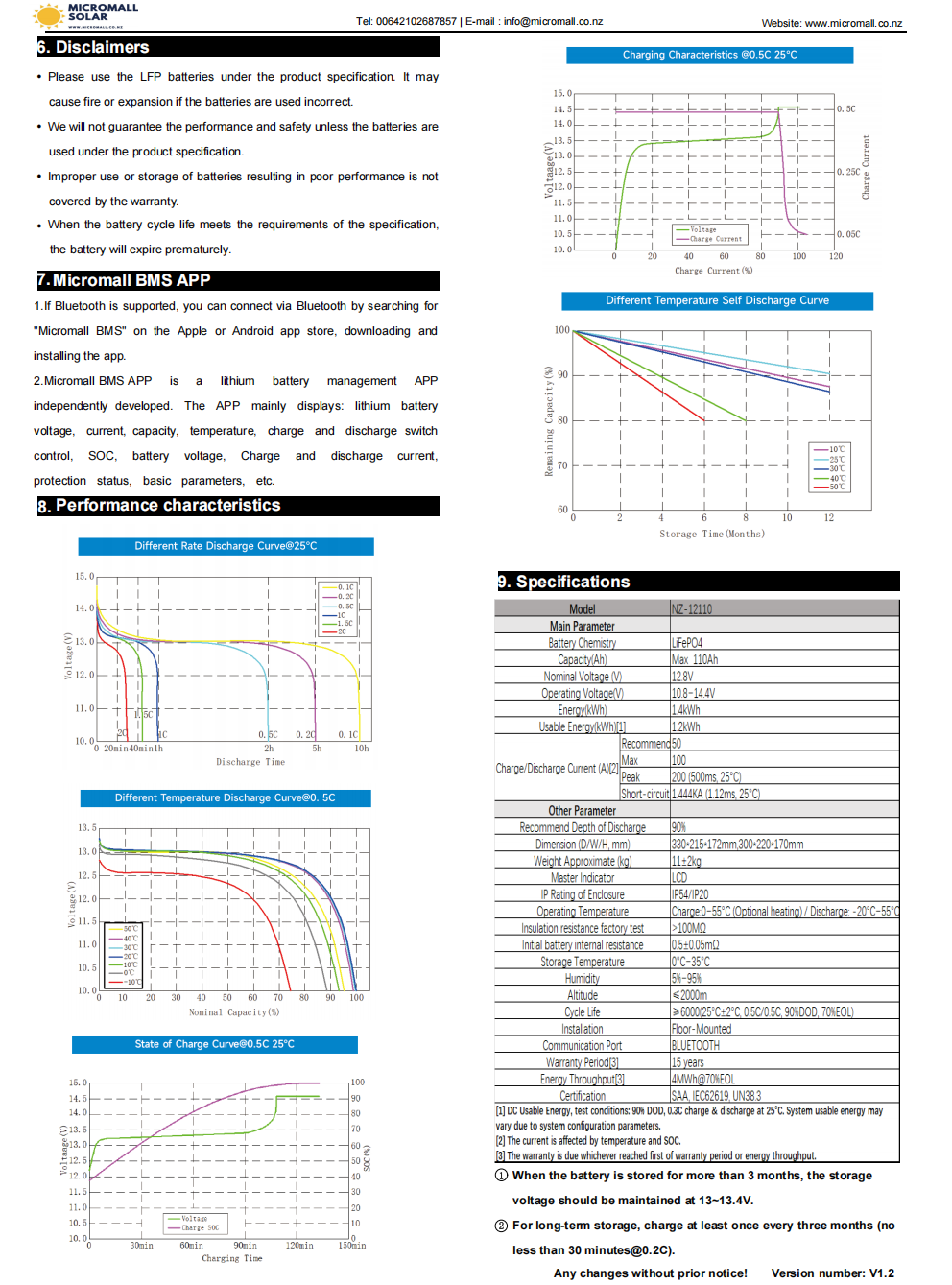

Cycle Life & Performance
Cycle Life: ≥6000 cycles
(25°C ±2°C, 0.5C / 0.5C, 90% DOD, 70% EOL)
Energy Throughput: 4MWh @ 70% EOL
Certification
Warranty
15 Years New Zealand Local Warranty
