Description

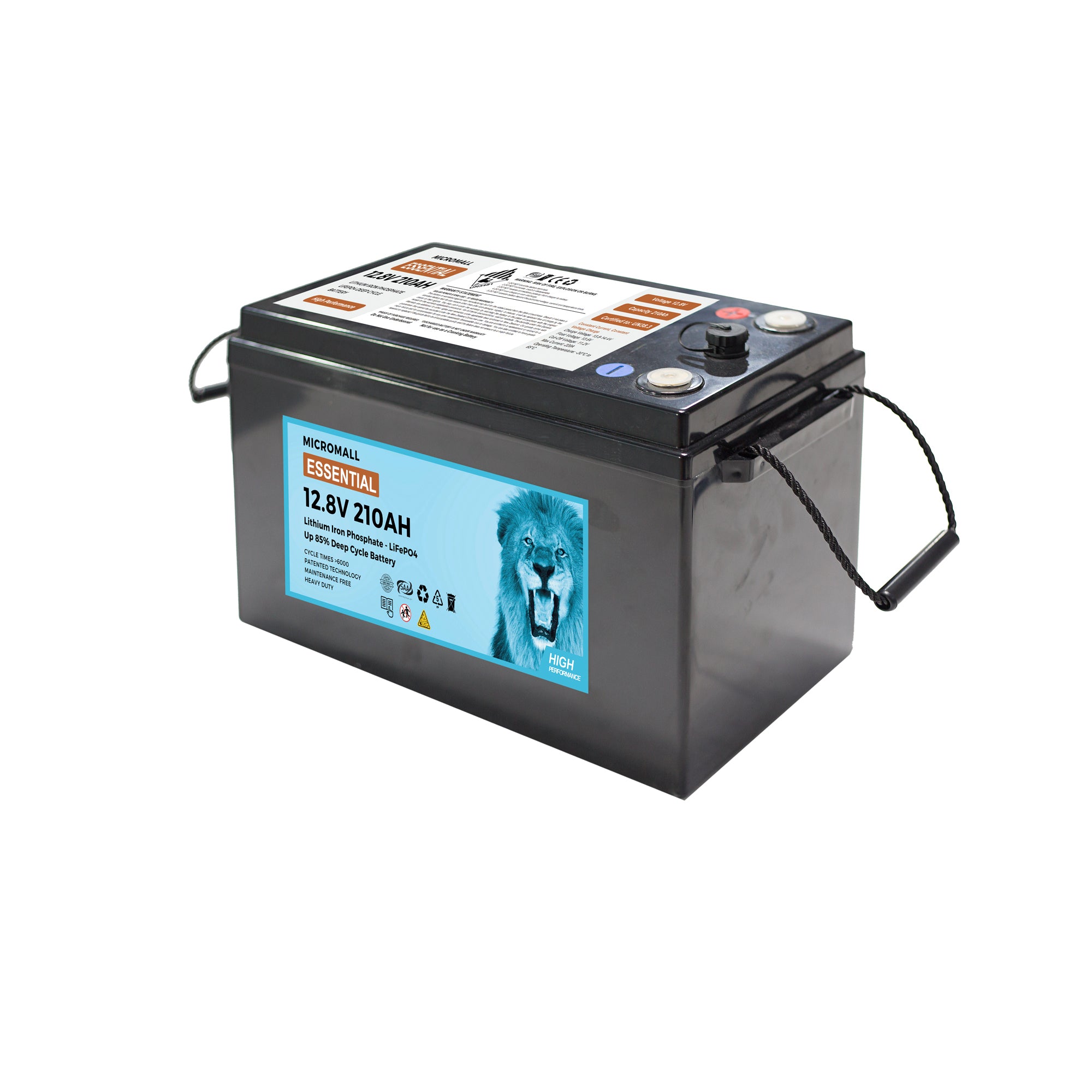

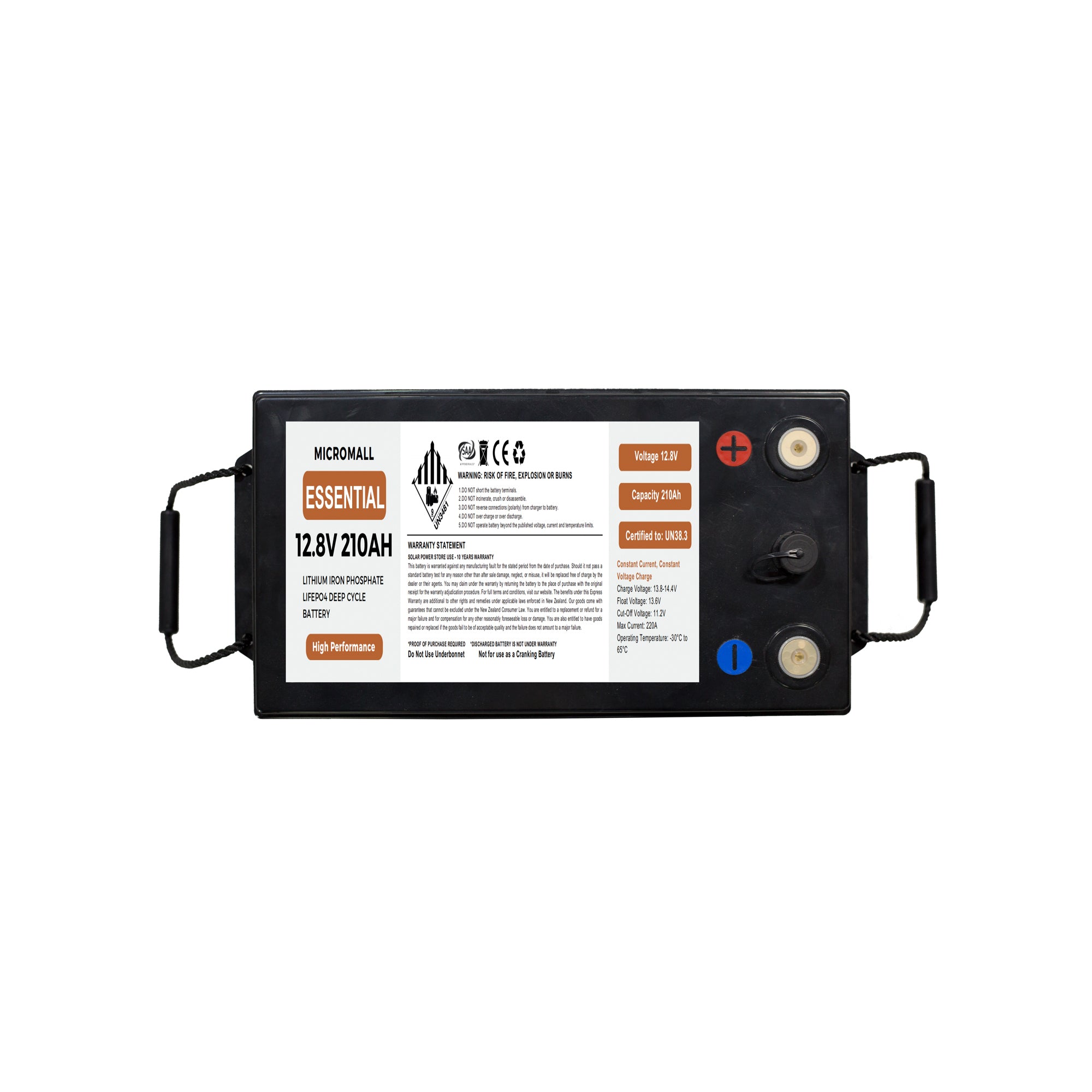

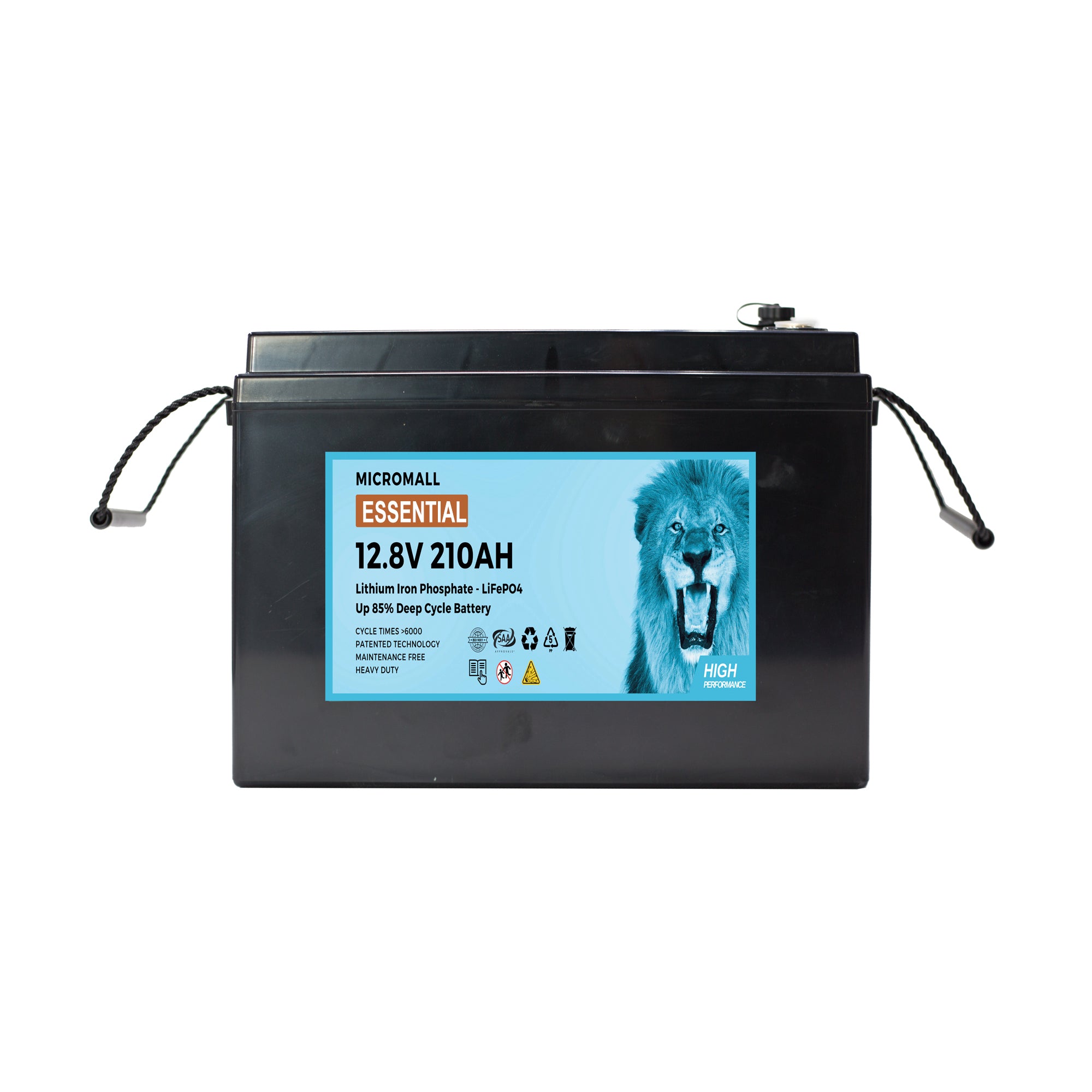

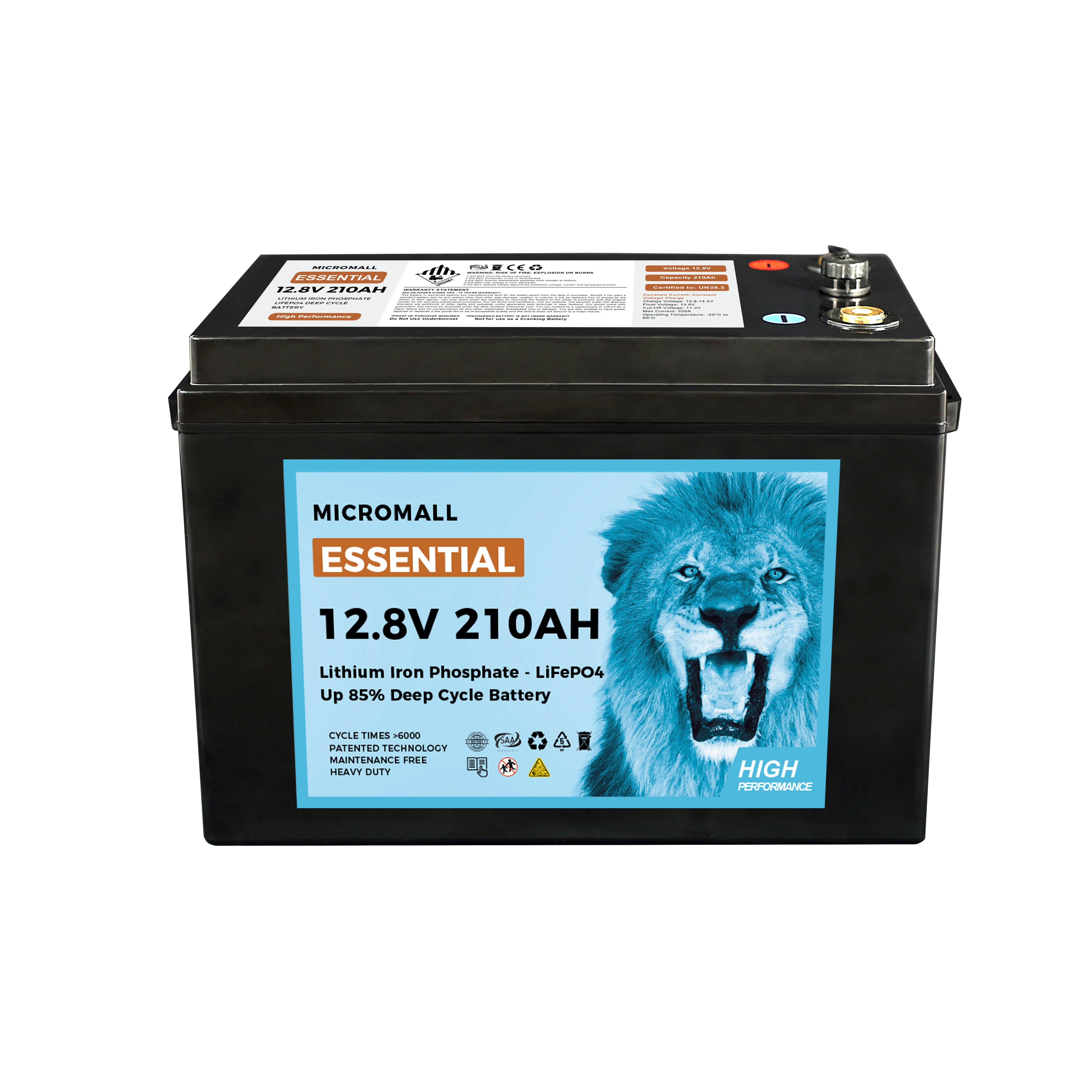

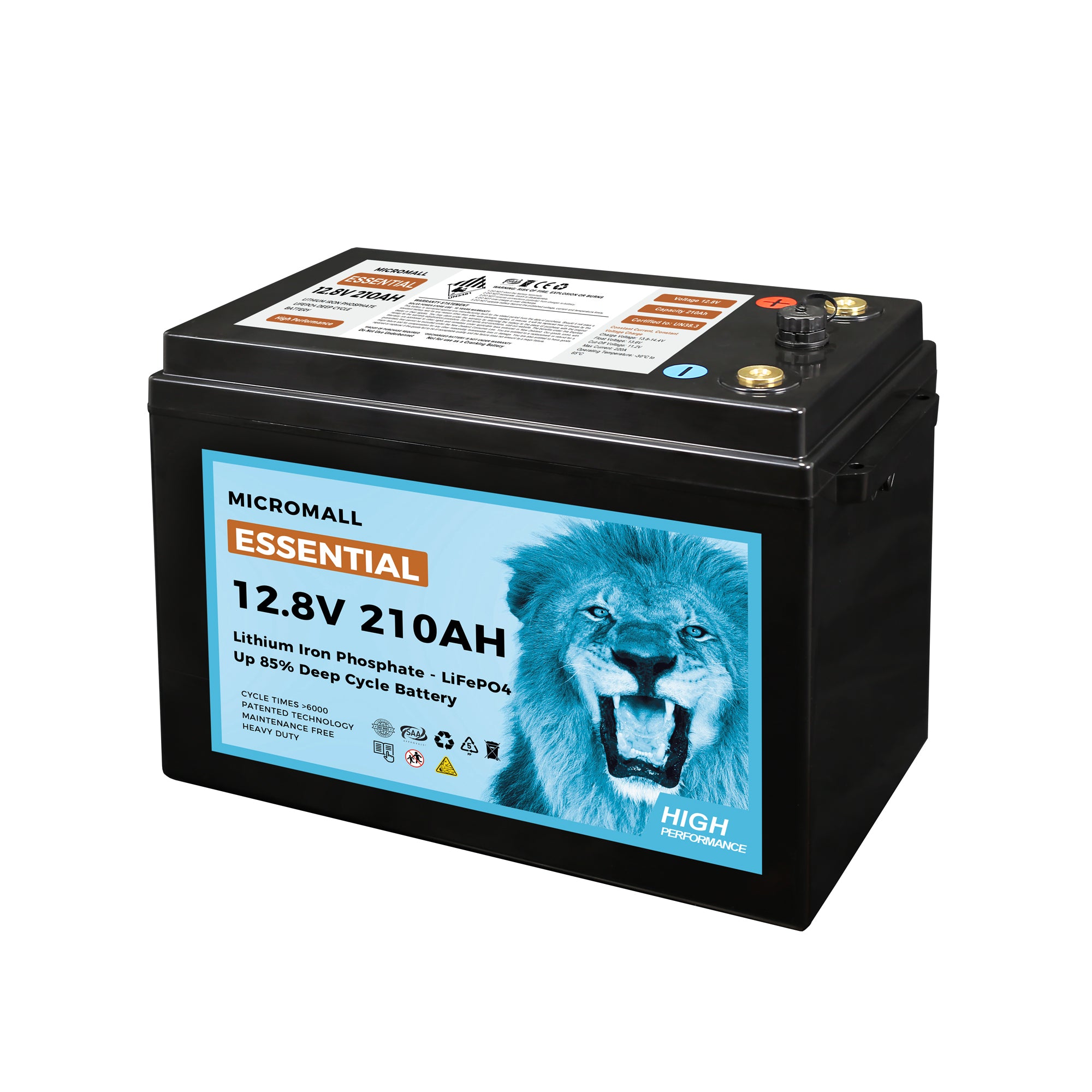

Introducing the Micromall 12.8V 210Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar Battery, a high-performance household energy storage solution.
Key Features
- Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
- Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
- Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
- Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.

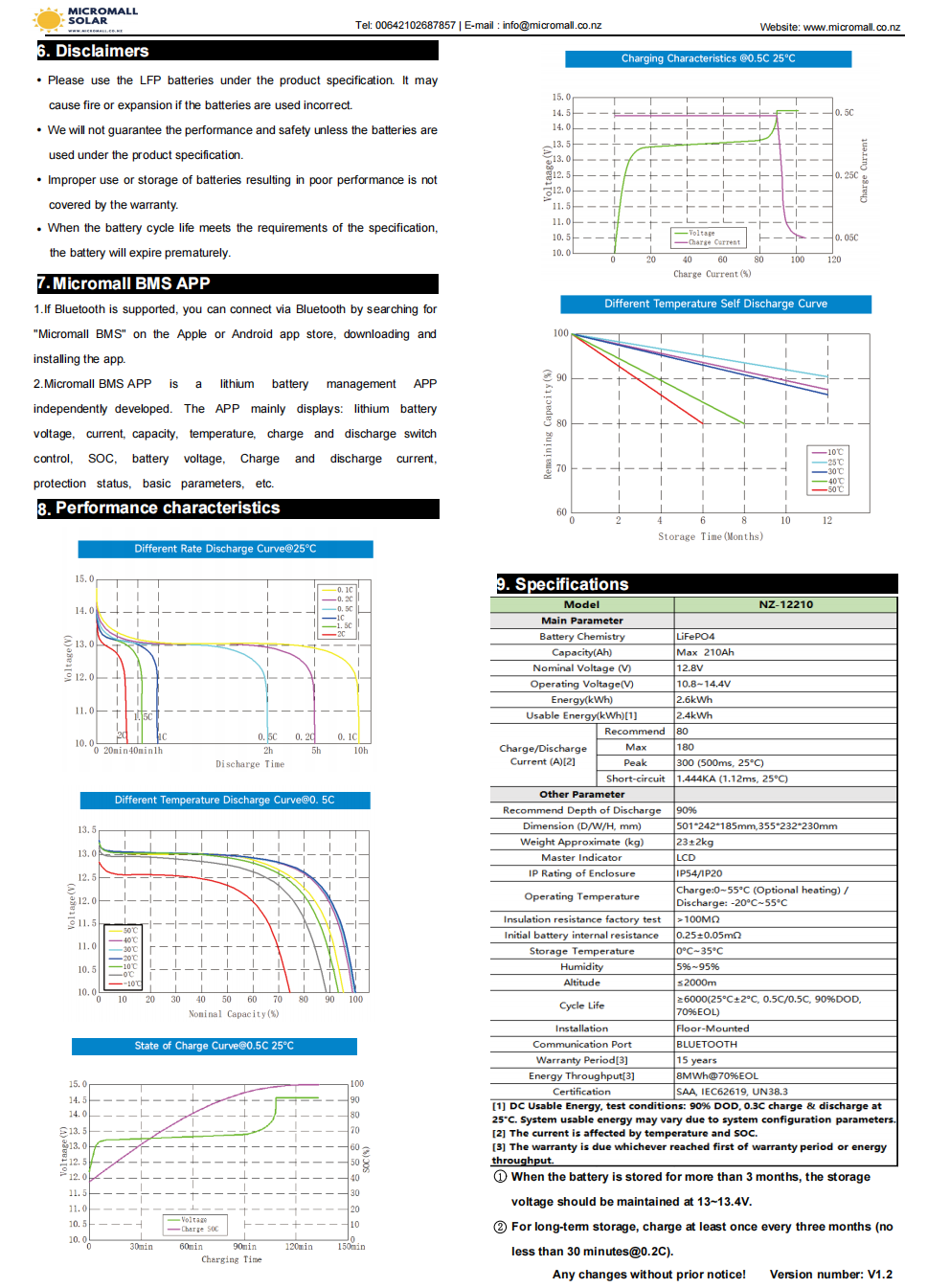

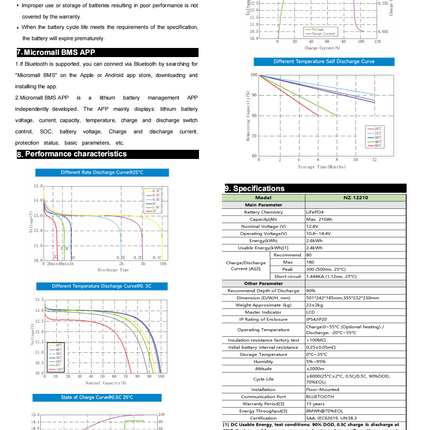

Specifications
- Model: NZ-12210
- Battery Chemistry: LiFePO4
- Capacity(Ah): Max 210Ah
- Nominal Voltage (V): 12.8V
- Operating Voltage(V): 10.8 - 14.4V
- Energy(kWh): 2.6kWh
- Usable Energy(kWh): 2.4kWh
- Charge/Discharge Current (A) Recommend, Max: 80, 180
- Charge/Discharge Current (A) Peak, Short-circuit: 300 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
- Recommend Depth of Discharge: 90%
- Dimension (H/W/D, mm): 501 x 242 x 185mm, 355 x 232 x 230mm
- Weight Approximate (kg): 23+-2kg
- Master Indicator: LCD
- IP Rating of Enclosure: IP54 / IP20
- Operating Temperature: Charge:0 - 55°C (Optional heating) / Discharge: -20°C - 55°C
- Insulation resistance factory test: >100MΩ
- Initial battery internal resistance: 0.22+-0.05mΩ
- Storage Temperature: 0°C - 35°C
- Humidity: 5% - 95%
- Altitude: <=2000m
- Cycle Life: >=6000(25°C+-2°C 0.5C / 0.5C, 90%DOD, 70%EOL)
- Installation: Floor-Mounted
- Communication Port: BUUETOOTH
- Energy Throughput: 8MWh@70%EOL
- Certification: SAA, IEC62619, UN38.3
15 Years New Zealand Local Warranty
