Description

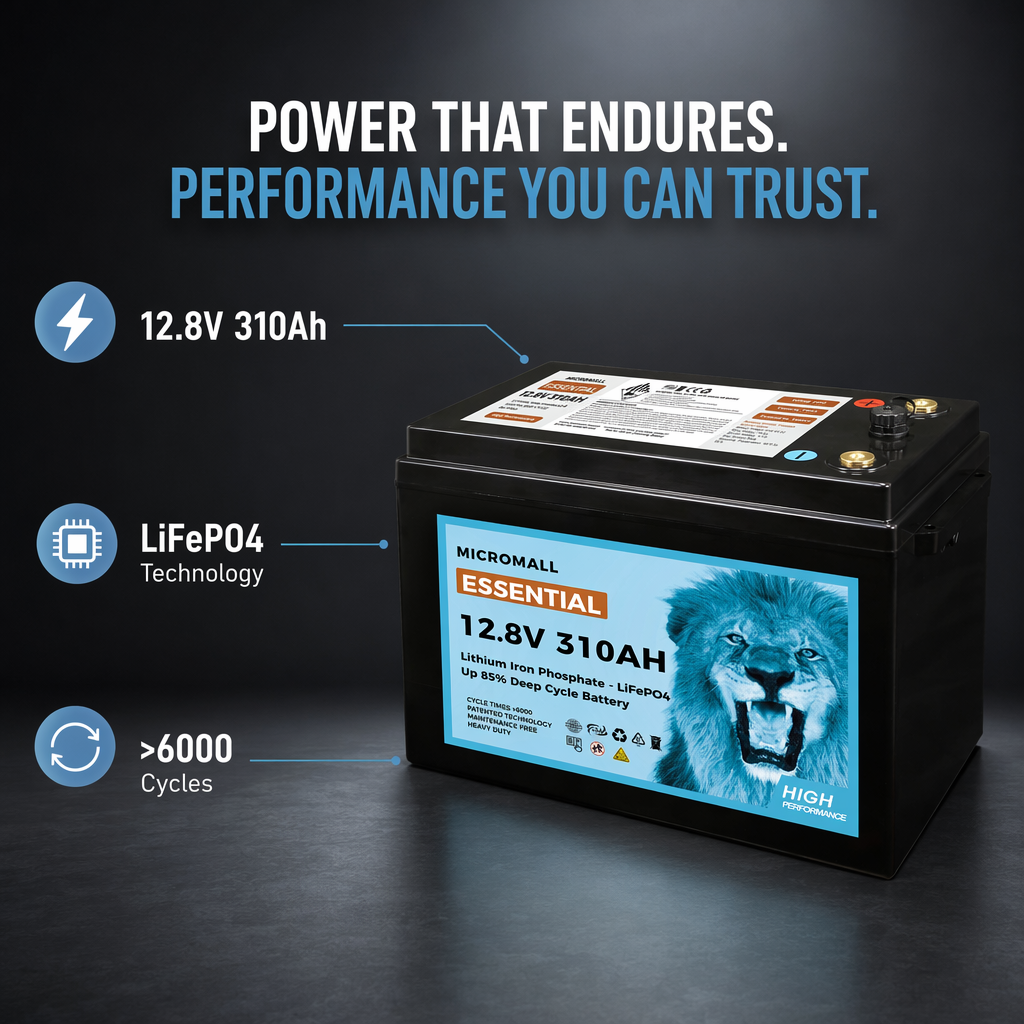

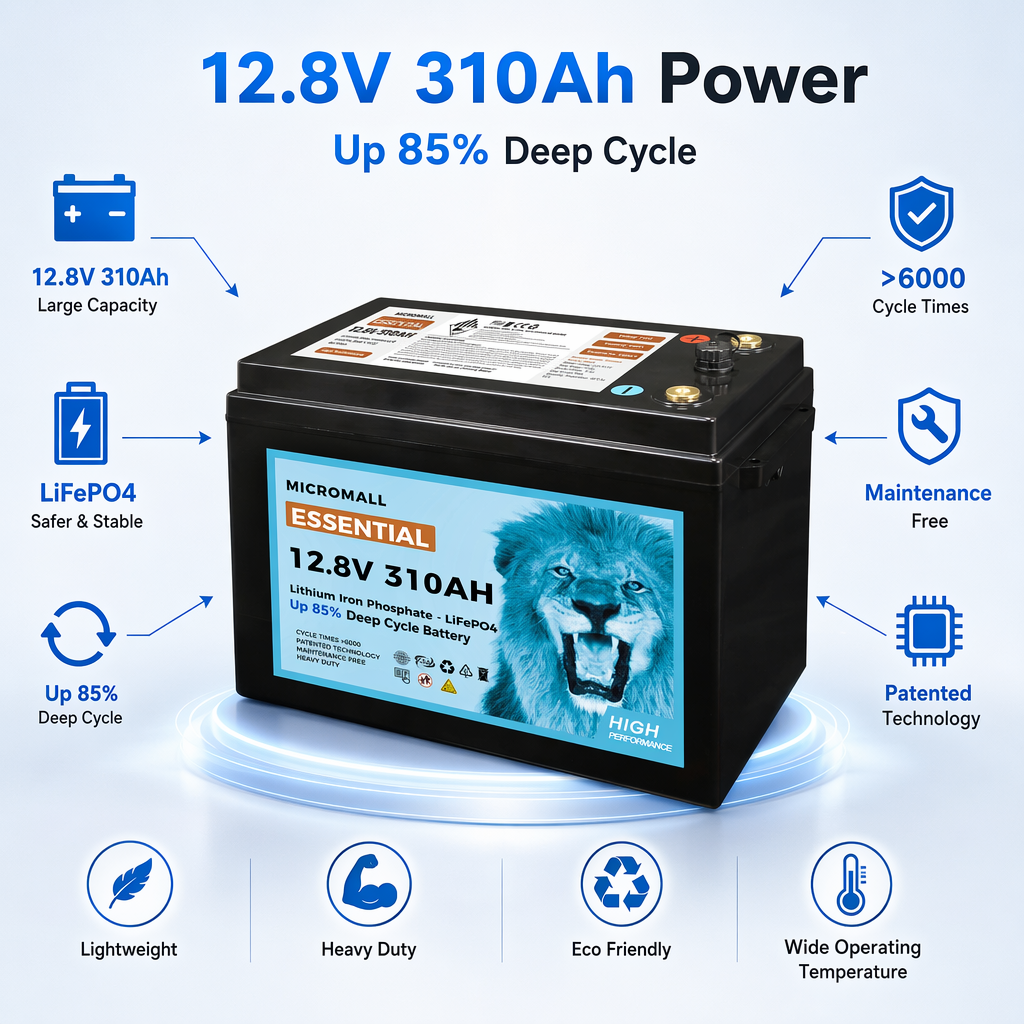

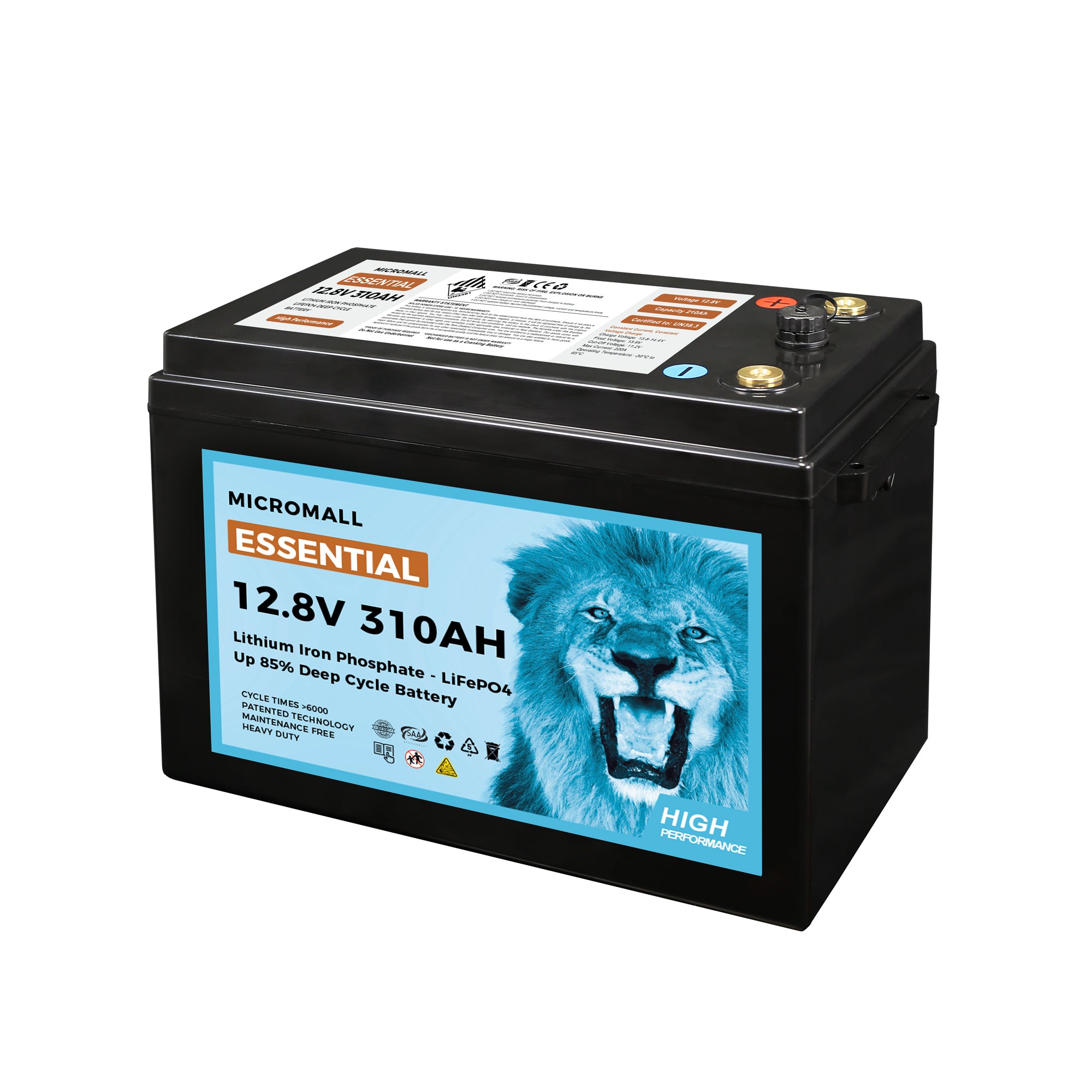

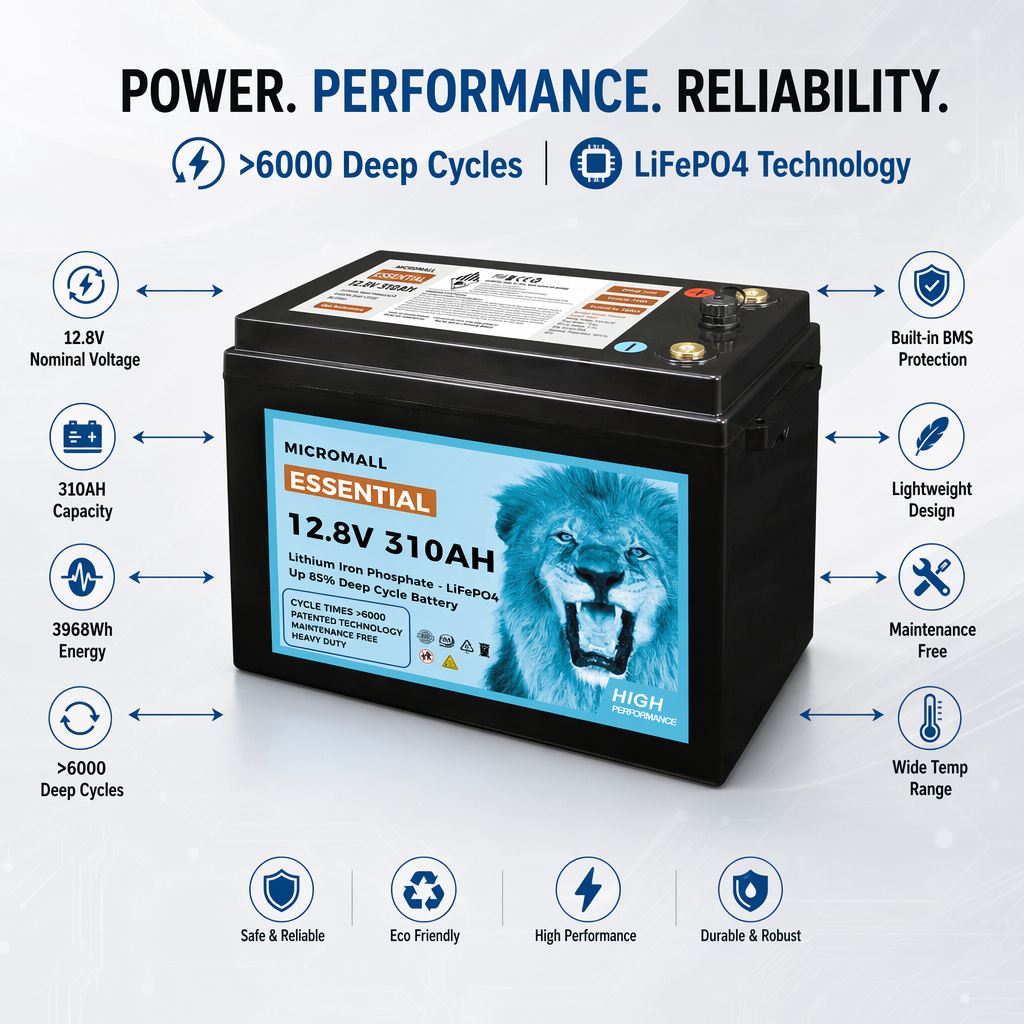

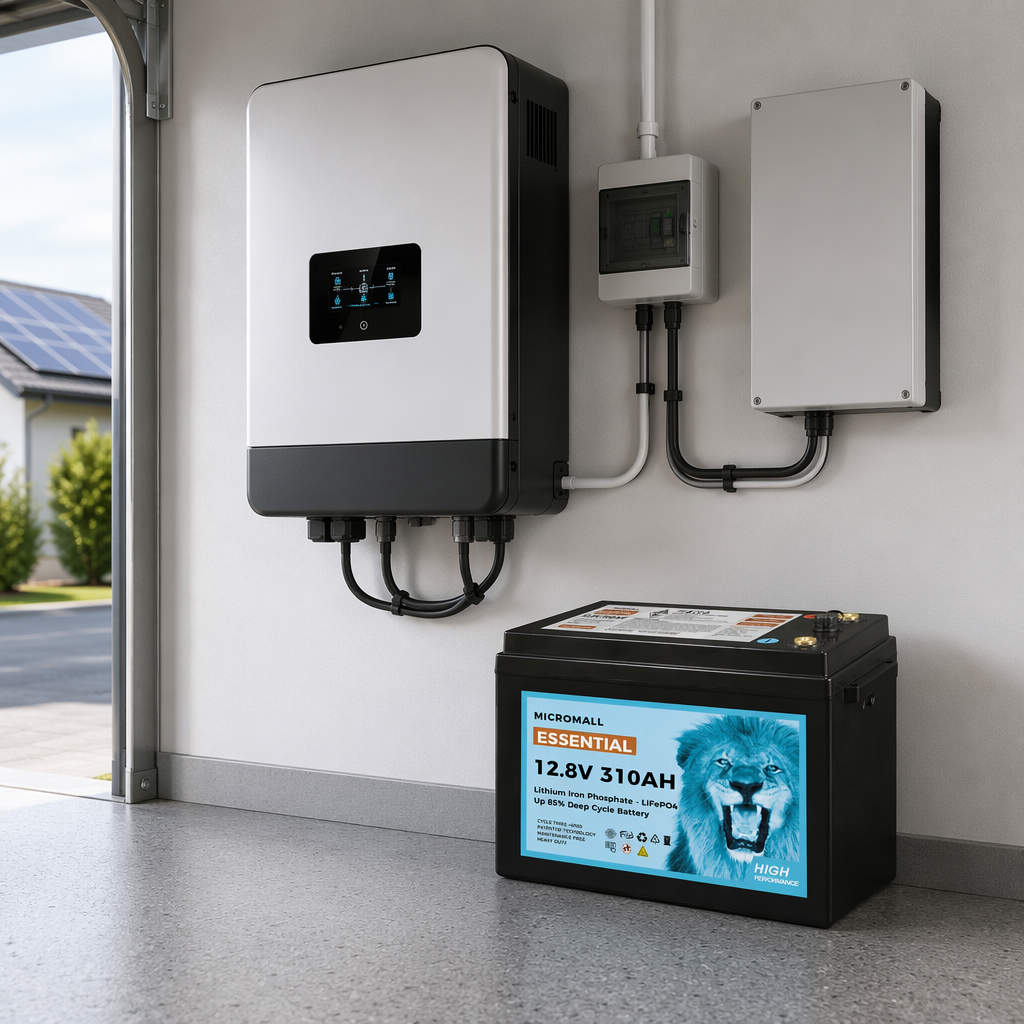

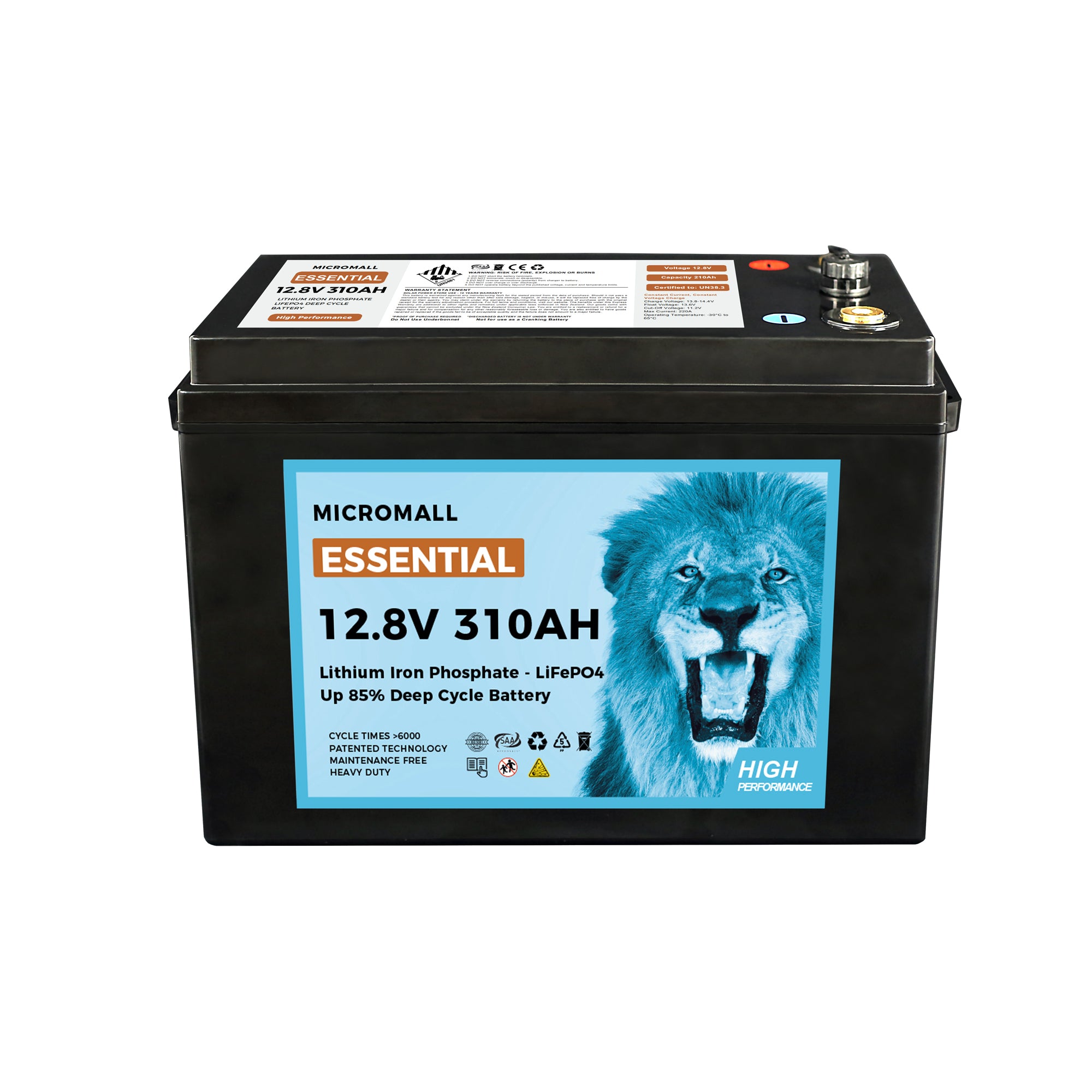

This 12.8V 310Ah LiFePO4 battery is a high-capacity deep-cycle energy source for solar storage, home backup, camping and mobile applications. Its active balancing system, integrated protection features and long cycle life support safe, efficient and dependable operation.

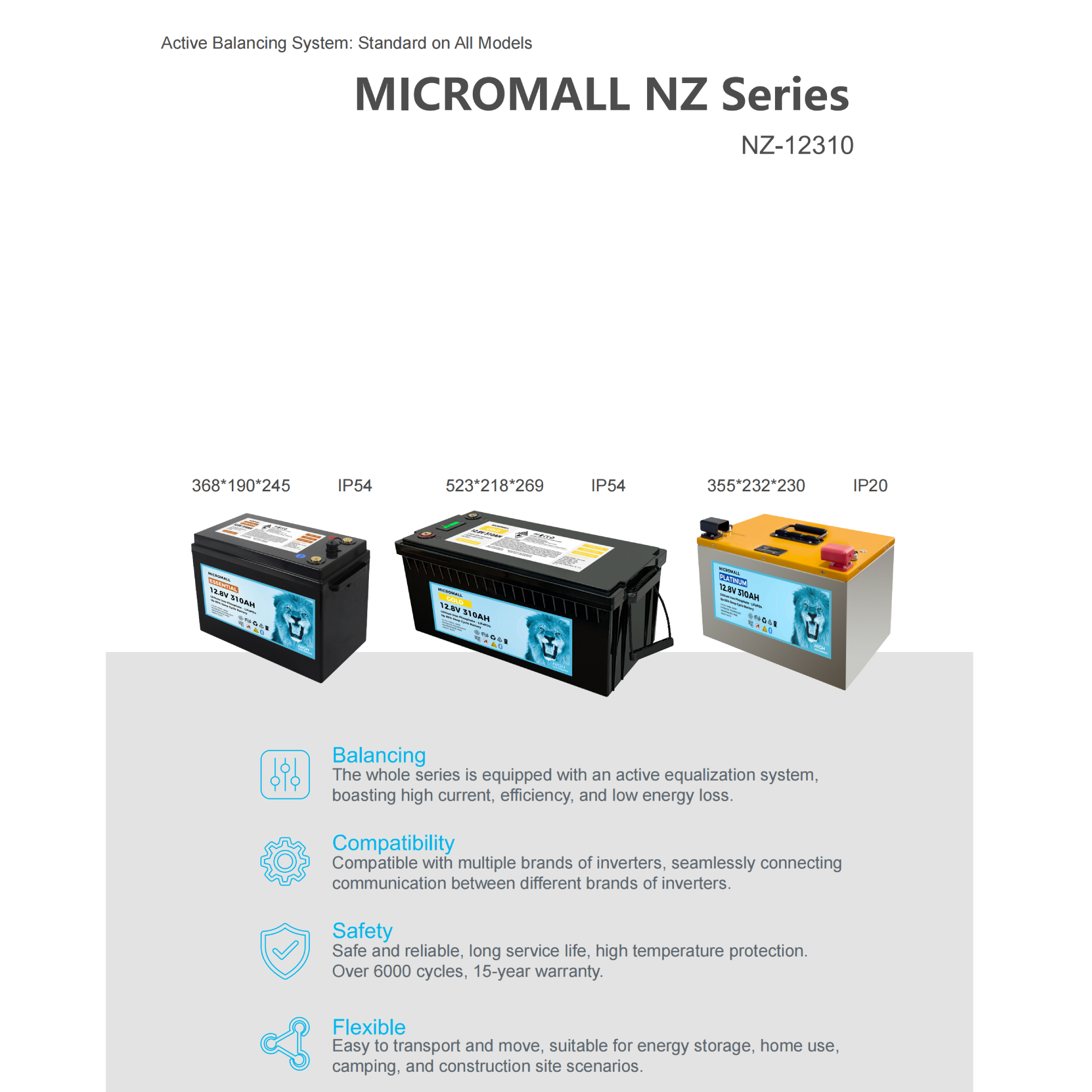

Key Features
- Balancing: The whole series is equipped with an active equalization system, boasting high current, efficiency, and low energy loss
- Compatibility: Compatible with multiple brands of inverters, seamlessly connecting communication between different brands of inverters
- Safety: Safe and reliable, long service life, high temperature protection. Over 6000 cycles.

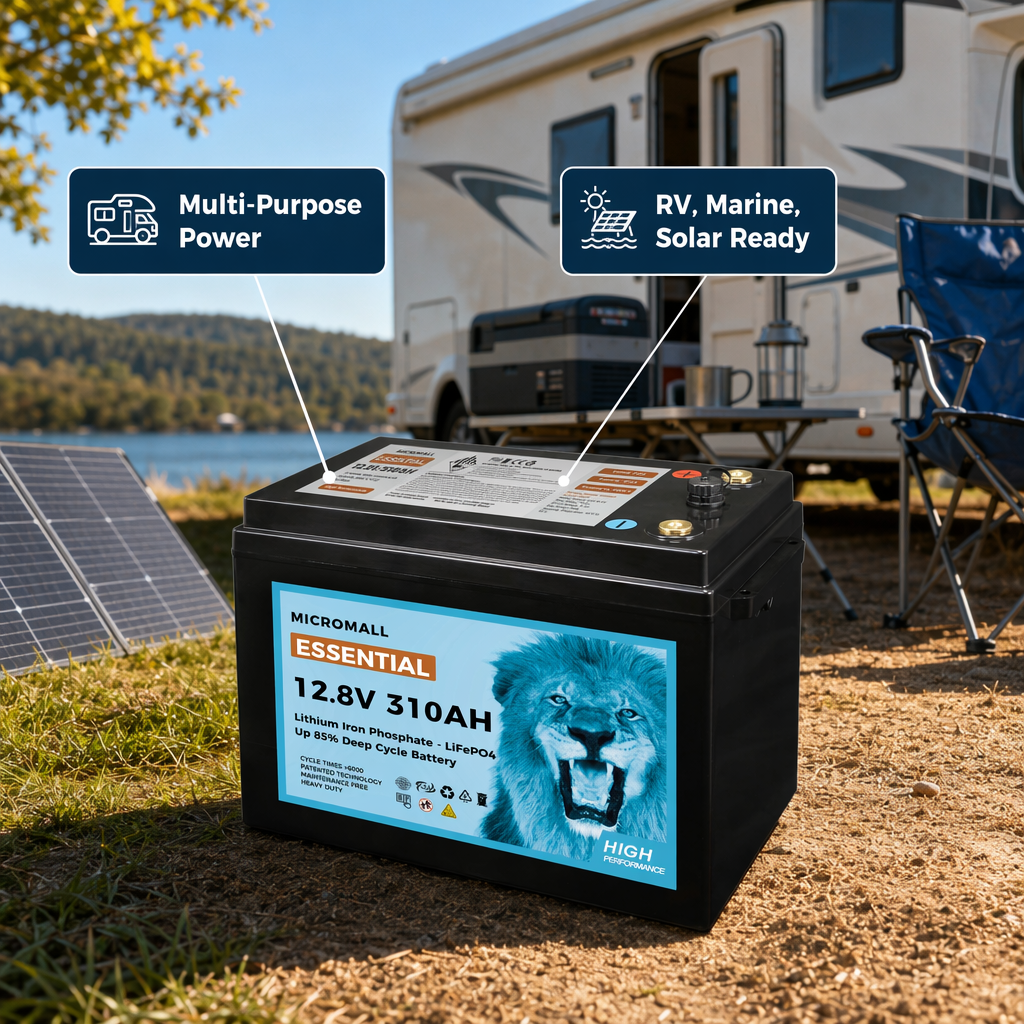

- Flexible: Easy to transport and move, suitable for energy storage, home use, camping, and construction site scenarios
Specifications
- Balancing: The whole series is equipped with an active equalization system, boasting high current, efficiency, and low energy loss.
- Compatibility: Compatible with multiple brands of inverters, seamlessly connecting communication between different brands of inverters.
- Safety: Safe and reliable, long service life, high temperature protection. Over 6000 cycles.
- Flexible: Easy to transport and move, suitable for energy storage, home use, camping, and construction site scenarios.

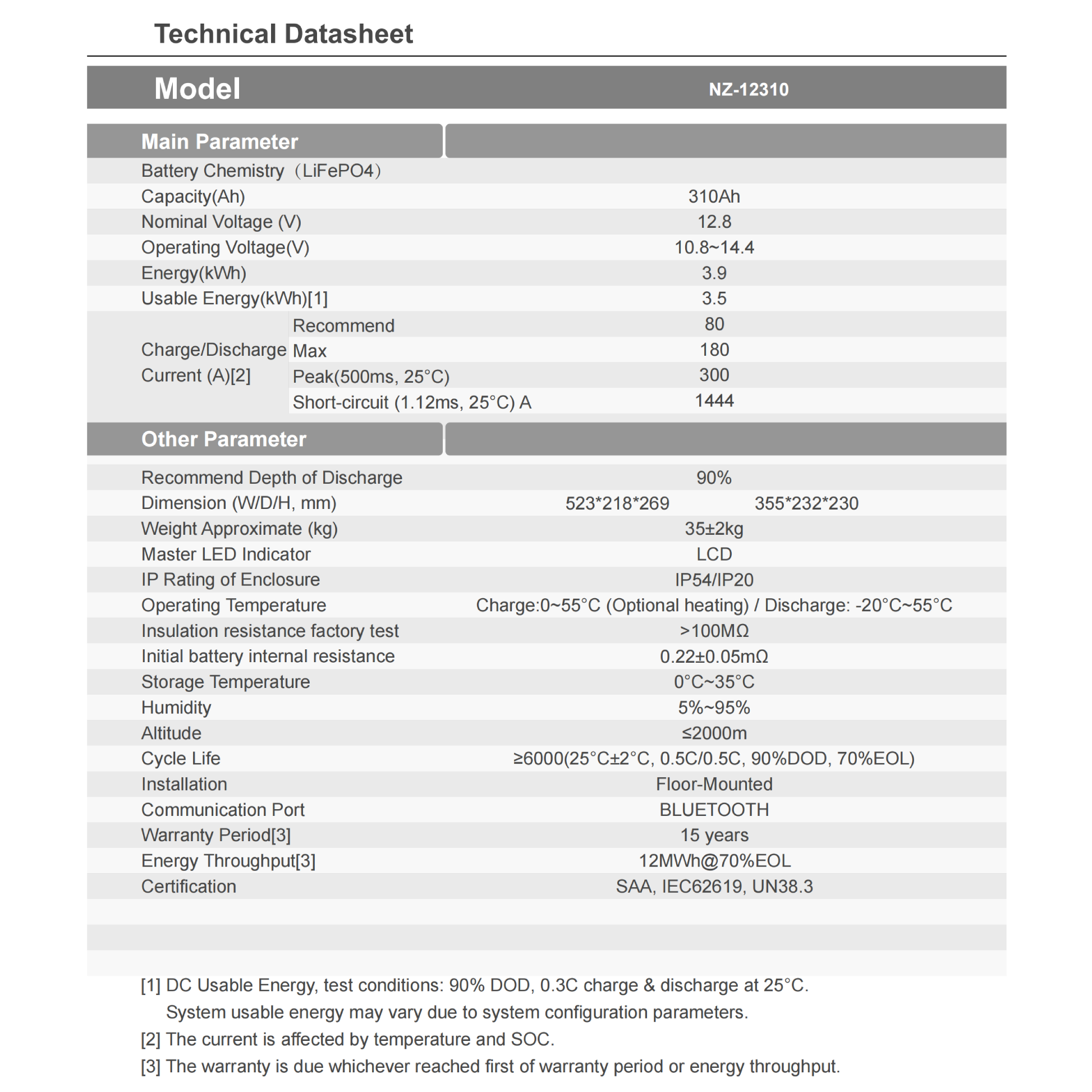

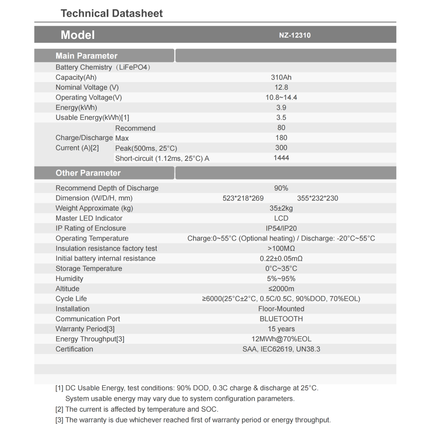

- Model: NZ-12310
- Battery Chemistry: LiFePO4
- Capacity(Ah): 310Ah
- Nominal Voltage (V): 12.8V
- Operating Voltage(V): 10.8 - 14.4V
- Energy(kWh): 3.9kWh
- Usable Energy(kWh): 3.5kWh
- Charge/Discharge Current (A) Recommend, Max: 80, 180
- Charge/Discharge Current (A) Peak, Short-circuit: 300 (500ms, 25°C), 1.444A (1.12ms, 25°C)
- Recommend Depth of Discharge: 90%
- Dimensions (Length × Width × Height): 368 × 190 × 245 mm
- Weight Approximate (kg): 35+-2kg
- IP Rating of Enclosure: IP54
- Operating Temperature: Charge:0 - 55°C (Optional heating) / Discharge: -20°C - 55°C
- Insulation resistance factory test: >100MΩ
- Initial battery internal resistance: 0.22+-0.05mΩ
- Storage Temperature: 0°C - 35°C
- Humidity: 5% - 95%
- Altitude: <=2000m
- Cycle Life: >=6000(25°C+-2°C 0.5C / 0.5C, 90%DOD, 70%EOL)
- Energy Throughput: 12MWh@70%EOL
- Certification: SAA, IEC62619, UN38.3
10 Years New Zealand Local Warranty
