10-year warranty
Designed by Micromall Solar, specialists in advanced energy solutions, this battery utilizes laser welding and internal resistance equalizer technology. It features four patented innovations to maintain over 80% capacity after 10 years and over 70% after 20 years, offering a lifespan of up to 6000 cycles, which can extend to 30 years.
Made with brand-new A-grade cells, this battery offers a true 110Ah capacity with up to 90% depth of discharge (DOD) per cycle, providing 2.3 times the usable energy of a typical AGM battery. Its actual usable capacity is equivalent to replacing more than two AGM batteries.
It is fully compatible with lead-acid, flooded, AGM, and gel battery systems, and works with 14.4V lead-acid chargers. It also integrates seamlessly with PWM and MPPT solar controllers, making it an easy drop-in replacement for caravans, motorhomes, boats, and off-grid setups.
Key Features
Latest Generation Cells: Incorporates the newest, safest A-grade global cells.
Precision BMS: Equipped with dual patented BMS systems for accurate voltage monitoring, balancing, and protection.
High Safety: Enhanced construction offers greater safety compared to traditional battery designs.
Easy Replacement: No modifications required for swapping old batteries.
Rapid recharging capabilities
Water-resistant
Applications
RVs and caravans
Solar energy storage
Yachts and marine systems
Vehicles and water pumps
Specifications
Chemistry: LiFePO4
Capacity: 110Ah
Nominal Voltage: 12.8V
Voltage Range: 10.8V - 14.4V
Energy: 1.4kWh (1.2kWh usable)
Recommended Current: 50A
Max Current: 100A
Peak Current (500ms): 200A
Short Circuit: 1.444kA (1.12ms)
Recommended DOD: 90%
Size (L x W x H): 330 X 172 X 215mm
Weight: Approx. 11kg
Temp (Charge/Discharge): 0 - 55°C / -20 - 55°C
Storage Temp: 0-35°C
Humidity: 5-95%
Altitude:
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**4th Generation AU Version Inverter**
**10-Year Warranty**
SUN-5K-SG04LP1-AU | 5kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 120A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-5K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 120
Max. Discharging Current (A): 120
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 7500
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 5000
Max AC Output Active Power (W): 5000
AC Output Rated Current (A): 21.7
Max. AC Output Current (A): 21.7
Max. Continuous AC Passthrough (A): 35
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Install info professional service support! Communication with battery service support!
Trinasolar Vertex S+ N-type i-TOPCon 460W Mono Solar Panel DUAL GLASS MONOCRYSTALLINE MODULE
Trinasolar NEG9R.28 black frame product is built on the 210R innovative platform, combined with n-type i-TOPCon cell technology, achieving up to 460W of power and 23% efficiency. Its 1.6+1.6mm dual-glass structure outperforms conventional backsheet modules, offering superior reliability, extended warranty, higher energy yield, and easier handling.
Key Advantages:
1.6+1.6mm Lightweight Dual-Glass: Exceptional durability, resistant to high temperatures and humidity.
High Power, High Efficiency: 460W+ power output, 23% efficiency.
High Reliability, High Safety: Front load 5400 Pa, back load 4000 Pa, capable of withstanding extreme weather conditions.
ELECTRICAL DATA (STC):
Peak Power Watts-PMAX(Wp): 460W
Power Selection (W): 0 - +5
Maximum Power Voltage-VMPP (V): 44.6
Maximum Power Current-IMPP (A): 10.09
Open Circuit Voltage-VOC (V): 52.9
Short Circuit Current-ISC (A): 10.74
Module Eciency η m (%): 22.5
ELECTRICAL DATA (NOCT):
Peak Power Watts-PMAX(Wp): 344
Maximum Power Voltage-VMPP (V): 42
Maximum Power Current-IMPP (A): 8.19
Open Circuit Voltage-VOC (V): 50.2
Short Circuit Current-ISC (A): 8.66
MECHANICAL DATA:
Solar Cells: N-type i-TOPCon Monocrystalline
Module Dimensions: 1762 x 1134 x 30 mm (69.37 x 44.65 x 1.18 inches)
Weight: 21.0 kg (46.30lb)
J-Box: IP68 rated
Cables: Photovoltaic Technology Cable 4.0mm2 (0.006 inches2)
Portrait: 350/280 mm(13.78/11.02 inches) Length can be customized
Connector: MC4 EVO2 / TS4 Plus / TS4
Extended Warranty: 25-year product warranty, 30-year power warranty.
2025 12V 200/210Ah Max LiFePO4 (Lithium Iron Phosphate) Battery GOLD version : Advanced Energy Storage
Key Features:
State-of-the-Art Design: Features the latest EVE Grade A cells, making it one of the safest LiFePO4 batteries globally.
Longevity: 80% capacity retention after 6000 deep cycles, promising a 20-year lifespan.
Integrated Monitoring: Comes with a professional extension monitor for precise cell detail visualization and an AI BMS system for optimal cell equalization.
Warranty: A 10-year full warranty with an added 5 years repair warranty ensures confidence in its durability.
Performance & Application:
High Energy Density: This next-gen lithium battery outperforms lead-acid batteries in energy density, offering significant weight savings.
Versatile Use: Ideal for RVs, solar energy storage, yachts, vehicles, and water pumps. It's a direct replacement for original batteries without the need for circuit modifications.
Advanced BMS: The built-in Battery Management System offers protection from over-discharge, over-charge, short circuits, and thermal runaway.
Water-resistant
Technical Specifications:
Battery Chemistry: LiFePO4
Capacity(Ah): Max 210Ah
Nominal Voltage (V): 12.8V
Operating Voltage(V): 10.8 - 14.4V
Energy(kWh): 2.6kWh
Usable Energy(kWh): 2.4kWh
Charge/Discharge Current
Recommend: 80A
Max: 180A
Peak: 300A (500ms, 25°C)
Short-circuit 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimensions: 501mm (L) x 185mm (W) x 235mm (H)
Weight: 22kg
Protection & Features:
BMS System
Bluetooth Connectivity
Overload & Short Circuit Protection
3A Equalizer for High Current Equalization
Over-discharge & Overcharge Protection
Equip yourself with the future of energy storage: a reliable, safe, and high-performance LiFePO4 battery.
15-Year Warranty
Power your adventures with our advanced 12V 110Ah LiFePO4 battery, designed for superior performance, long life, and seamless compatibility.
Key Features
Latest EVE CellsBuilt with the newest generation EVE cells for maximum safety and reliability.
Extended LifespanUp to 8000 cycles at 90% DOD, delivering over 20 years of reliable service.
Triple BMS ProtectionPatented 3-BMS system ensures precise voltage monitoring (±0.004mV), balancing, and full protection against overcharge, over-discharge, and short-circuits.
Bluetooth 5.1Easily monitor battery status with the latest Bluetooth technology.
Wide CompatibilityWorks with caravan systems, lead-acid chargers, and lithium chargers — no modifications needed.
Performance Highlights
High OutputDelivers up to 1.2kW continuous power for demanding applications.
Superior Energy DensityLighter and more compact than lead-acid batteries, offering greater efficiency and portability.
Fast Recharge & Strong Discharge RatesEnsures rapid energy recovery and high discharge performance when needed most.
Applications
Ideal for RVs, solar systems, yachts, vehicles, and water pumps.
Water-resistant
SpecificationsChemistry: LiFePO4Capacity: 110AhNominal Voltage: 12.8VVoltage Range: 10.8V - 14.4VEnergy: 1.4kWh (1.2kWh usable)Recommended Current: 50AMax Current: 100APeak Current (500ms): 200AShort Circuit: 1.444kA (1.12ms)Recommended DOD: 90%Size (L x W x H): 330 X 172 X 215mmWeight: Approx. 11kgDisplay: LCD IndicatorTemp (Charge/Discharge): 0 - 55°C / -20 - 55°CStorage Temp: 0-35°CHumidity: 5-95%Altitude:
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-6K-SG04LP1-AU | 6kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 135A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-6K-SG04LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 135
Max. Discharging Current (A): 135
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 9000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 13+13
Max. Input Short-Circuit Current (A): 17+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 6000
Max AC Output Active Power (W): 6000
AC Output Rated Current (A): 26.1
Max. AC Output Current (A): 26.1
Max. Continuous AC Passthrough (A): 40
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 17
Cabinet size (mm): 330W x 433H x229D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
Dedicated communication with battery service assistance.

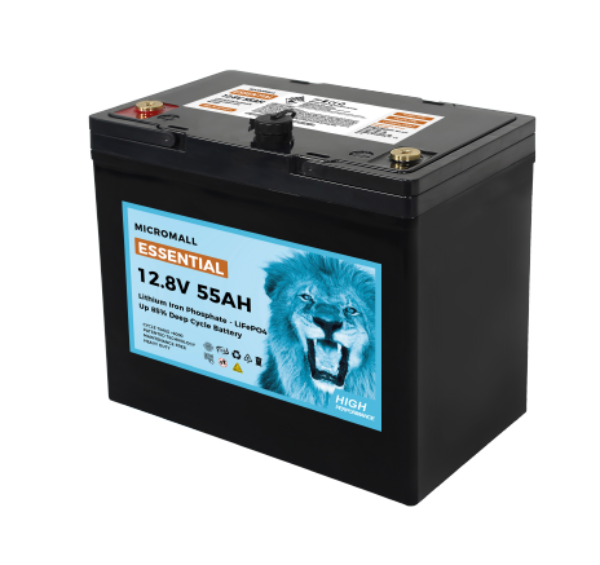

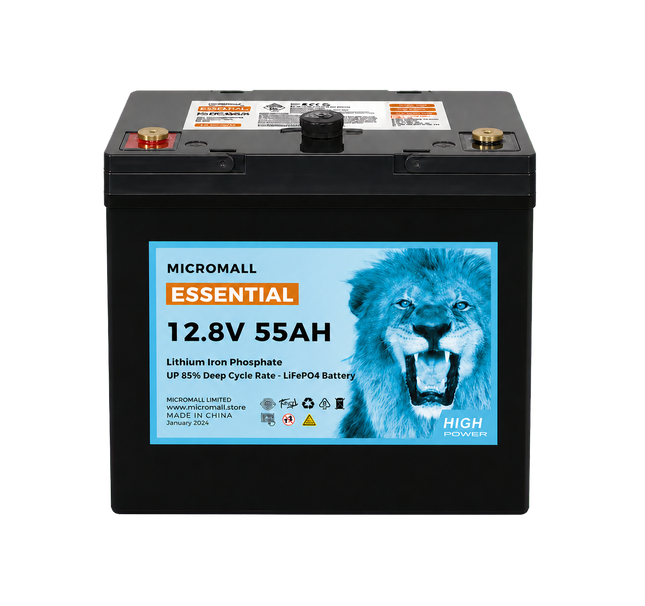

12V 50Ah 55Ah Lithium Battery LiFePO4 Battery Deep Cycle Battery Solar BatteryKey FeaturesHigh-Grade Cells: Incorporates Grade A cells for unparalleled performance and longevity.Extended Cycle Life: Delivers a significant cycle lifespan of 5,000 times, ensuring reliable power for diverse applications.Extended Warranty: 10-year full warranty complemented by an additional 5-year repair warranty.Safety First: Safe high-current charging with no risk of thermal runaway or combustion.Universal Compatibility: Seamlessly integrates with caravan charge systems, lead acid chargers, and lithium chargers.Compact Design ideal for RVs, solar setups, yachts, cars, and water pumps.Direct Replacement: Easily replaces the original battery without necessitating circuit alterations.Advanced BMS: Inbuilt Battery Management System offers protection against over-charge, over-discharge, short circuits, and thermal events.Water-resistantTechnical Specifications:
Voltage: 12V
Capacity: 55Ah
Charge Voltage Range: 13.8-14.4V
Float Voltage: 14V
Output Current: 60A
Continuous Discharge: 100A
Self-Discharge: <3%
Cut-Off Voltage: 10.8V
Chemistry: LiFePO4 (LFP)
Operational Temperature: -30 to 65°C
Dimensions: 229x144x215mm
Weight: 7kg
Safety Priority: Designed with advanced safety mechanisms, outperforming traditional batteries.Elevate your power storage experience with our LiFePO4 Deep Cycle Battery. Combining advanced technology and safety features, it stands as a testament to efficiency, reliability, and performance. The future of energy storage, now at your fingertips.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-10K-SG02LP1-AU-AM3 | 10kW | Single Phase | 3 MPPT | Hybrid Inverter | LV-Baterio Subtenita
Higher yields / Safe & Reliable / Smart / User-friendly
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-10K-SG02LP1-AU-AM3
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 220
Max. Discharging Current (A): 220
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 9999
Max. AC Input/Output Apparent Power (VA): 9999
AC Output Rated Current (A): 43.5
Max. AC Output Current (A): 43.5
Max. Continuous AC Passthrough (A): 60
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Cabinet size (mm): 420W×670H×233 D(Excluding connectors and brackets)
Weight (kg): 35.6
Protection Degree: IP65
Grid Regulation: AS/NZS 4777.2
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
24V 110Ah LiFePO4 Battery: Next-Gen Energy SolutionHighlights:
Extended Warranty: 10 years full coverage, plus an additional 5 years for repairs.
Durability: Engineered to last over 20 years with the latest CATL cell technology, ensuring its position as the safest lithium iron phosphate battery in the market.
High Performance: 80% deep cycle capacity maintained through 6,000 deep cycle times.
Smart Monitoring: Comes with a user-friendly app for both Android and iPhone, offering real-time insights on cell status, including input/output watts, capacity, and temperature.
Versatility: Ideal for RVs, solar storage, yachts, cars, and water pumps. Compatible as a direct replacement without circuit adjustments.
Enhanced Lifecycle: Outlasts standard LiFePO4 batteries in both cycle lifespan and charge rate, offering a faster recharge than lead-acid equivalents.
Built-in Safety: Integrated BMS for protection against overcharge, over-discharge, short circuits, and thermal events.
Water-resistantSpecifications
Voltage: 24V
Capacity: 110Ah
Charge Volt: 27.6-28.8V
Float Volt: 28V
Cut-Off Volt: 22.4V
Max Amp: 150A
Continuous Discharge: 125A
Technology: LiFePO4 (LFP)
Operating Temperature: -30 to 65°C
Dimensions: 501mm L x 185mm W x 245mm H
Weight: 22kg
Choose our advanced LiFePO4 battery for superior energy storage, versatile applications, and utmost safety. Your next-generation power solution is here.
Introducing the Micromall 12.8V 110Ah Lithium Battery Essential LiFePO4 Battery Deep Cycle Battery Solar Battery, a high-performance household energy storage solution.
Key Features
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: NZ-12110
Battery Chemistry: LiFePO4
Capacity(Ah): Max 110Ah
Nominal Voltage (V): 12.8V
Operating Voltage(V): 10.8 - 14.4V
Energy(kWh): 1.4kWh
Usable Energy(kWh): 1.2kWh
Charge/Discharge Current (A) Recommend, Max: 50, 100
Charge/Discharge Current (A) Peak, Short-circuit: 200 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (H/W/D, mm): 255 x 168 x 208mm,
Weight Approximate (kg): 11+-2kg
Master Indicator: LCD
IP Rating of Enclosure: IP54
Operating Temperature: Charge:0 - 55°C (Optional heating) / Discharge: -20°C - 55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.5+-0.05mΩ
Storage Temperature: 0°C - 35°C
Humidity: 5% - 95%
Altitude: <=2000m
Cycle Life: >=6000(25°C+-2°C 0.5C / 0.5C, 90%DOD, 70%EOL)
Installation: Floor-Mounted
Energy Throughput: 4MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
15 Years New Zealand Local Warranty
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
Higher yields / Safe & Reliable / Smart / User-friendly
Suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN-8K-SG05LP1-AU. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 190A
Support storing energy from diesel generator
Model: SUN-8K-SG05LP1-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 190
Max. Discharging Current (A): 190
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 12000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26
Max. Input Short-Circuit Current (A): 34+34
No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Data
Rated AC Output Active Power (W): 8000
Max AC Output Active Power (W): 8000
AC Output Rated Current (A): 34.8
Max. AC Output Current (A): 34.8
Max. Continuous AC Passthrough (A): 50
Peak Power (off grid): 2 time of rated power, 10 S
Max. Efficiency: 97.60%
General Data
Weight (kg): 24.9
Cabinet size (mm): 330W x 580H x232D(Excluding connectors and brackets)
Protection Degree: IP65
Professional installation and service support.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-30K-SG01HP3-AU-BM3 | 30kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase
High voltage battery, higher efficiency
AC couple to retrofit existing solar system
Max. charging/discharging current of 100A
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-30K-SG01HP3-AU-BM3
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 2
PV String Input Data
Max. DC Input Power (W): 44850
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Range (V): 150-850
Rated PV Input Voltage (V): 600
PV Input Current (A): 36+36+36
No.of MPP Trackers: 3
No.of Strings per MPP Tracker: 2+2+2
AC Output Data
Rated AC Output and UPS Power (W): 29900
Rated Apparent Output Power (VA): 29900
AC Output Rated Current (A): 43.4
Max. AC Output Current (A): 43.4
Max. Continuous AC Passthrough (A): 200
Peak Power (Off Grid): 1.5 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 80
Cabinet size (mm): 527W×894H×294D (Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-10K-SG04LP3-AU | 10kW | Three Phase | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-10K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 210
Max. Discharging Current (A): 210
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 15000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+13
Max. Input Short-Circuit Current (A): 39+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 10000
Max AC Output Active Power (W): 10000
AC Output Rated Current (A): 14.5
Max. AC Output Current (A): 14.5
Max. Continuous AC Passthrough (A): 45
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)

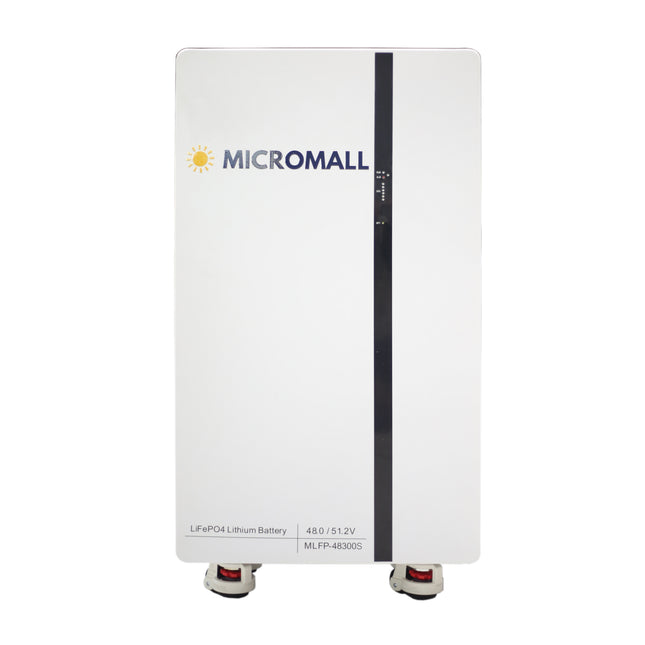

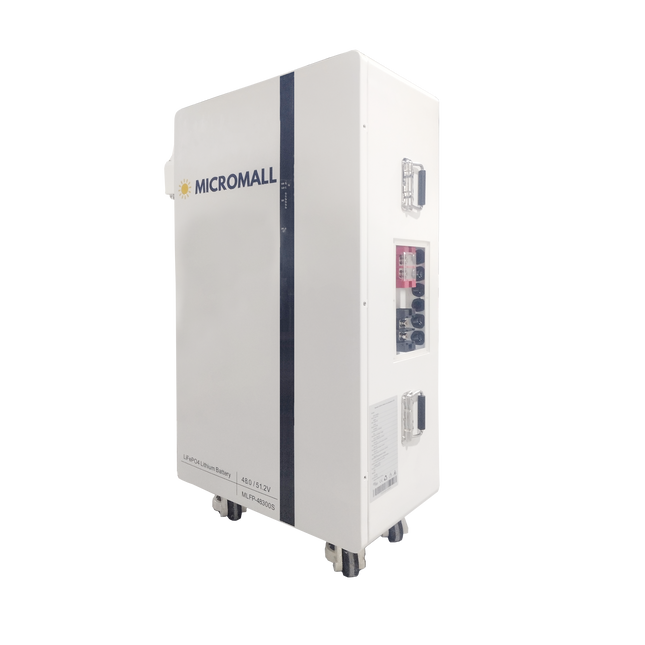

Introducing the Micromall 48V 51.2V 280Ah 310Ah 14.336KWh LiFePO4 Lithium Battery IP65 Waterproof Deep Cycle Solar Battery, a high-performance household energy storage solution.Key Features:
Equipped with an integrated heating function to support reliable charging and operation during low-temperature winter conditions. It is particularly suitable for areas such as the South Island, Central Otago, alpine regions, and other cold locationsBalancing: The whole series is equipped with an active equalization system, boasting high current, efficiency, and low energy loss.Compatibility: Compatible with multiple brands of inverters, seamlessly connecting communication between different brands of inverters.Safety: Safe and reliable, long service life, high temperature protection. Over 10000 cycles, 15-year warranty.Flexible: Modular connection enhances safety, stability, and efficiency. Battery modules: 2~3 (optional).SpecificationsModel: MLFP-48300SBattery Chemistry: LiFePO4Rated Capacity(Ah): 280AhMax Capacity(Ah): 310AhNominal Voltage (V): 51.2VOperating Voltage(V): 43.2 - 57.6VEnergy(kWh): 17.4kWhUsable Energy(kWh): 15.6kWhCharge/Discharge Current (A) Recommend, Max: 150, 200Charge/Discharge Current (A) Peak, Short-circuit: 200 (500ms, 25°C), 1.444KA (1.12ms, 25°C)Recommend Depth of Discharge: 90%Dimension (H/W/D, mm): 860(940) x 500 x 275mmWeight Approximate (kg): 135+-5kgMaster LED Indicator: 5LED(SOC:20%~SOC100%), 3LED (working, alarming, protecting)IP Rating of Enclosure: IP65Operating Temperature: Charge:0 - 55°C (Optional heating) / Discharge: -20°C - 55°CInsulation resistance factory test: >100MΩInitial battery internal resistance: 0.18±0.05mΩStorage Temperature: 0°C - 35°CHumidity: 5% - 95%Altitude: <=2000mCycle Life: >=10000(25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)Installation: Floor-Mounted, Mobile-MountedCommunication Port: CAN2.0, RS485Energy Throughput: 65MWh@70%EOLCertification: SAA, IEC62619, UN38.315 Years New Zealand Local Warranty
Introducing our Commercial-Grade LiFePO4 Battery - a 36V 110Ah/110Ah Max unit with a 3.2kWh energy rating, equipped with brand-new Grade-A CALB cells (utilized in BMW electric cars). These authentic cells support 43.8V and guarantee a reliable life cycle of 3500 times at an 80% discharge rate per day, translating to a durable service life of over 20 years.
Key Features:
Continuous 110A charge and discharge rate.
Incorporates 12 genuine, new Grade-A CALB cells.
Smart dual BMS system with protective functions and Bluetooth App display for real-time monitoring.
Ideal for various applications: homes, boats, farms, small workshops, electric cars, and golf cars.
Full 10-year warranty plus an additional 5-year repair warranty.
Unique Selling Points:
Commercial-grade quality compatible with 36V lead-acid battery solar systems.
Supports most 36V MPPT controllers, off-grid solar systems, and generators.
Designed for parallel connection, allowing for easy capacity expansion.
RRP $3299.00.
Technical Specifications:
Type: Lithium Iron Phosphate (LFP)
Capacity: 110Ah (Max 110Ah)
Energy Rating: 3.2kWh
Composition: 1P12S
Voltage 43.8V DC
Charging Current: Standard 80A, Max 110A
Discharge Current: Standard 110A, Max 110A
Parallel Connection: Unlimited
Pulse Discharge: Max 130A (30s, at 25°C±2°C, SOC≥40%)
Operating Temperature: 0-55°C (charge), -20-55°C (discharge)
Protection: IP21
Weight: 39kg
Dimensions: 550mm×270mm×260mm
Installation: Indoor only
Invest in a battery that promises not just longevity but also unmatched performance for over two decades!
Introducing the latest generation of 12V 310Ah GOLD LiFePO4 (lithium iron phosphate) battery with CATL A-grade cells, offering enhanced safety and reliability.
Features
EVE real grade A cells ensure superior performance and safety.
10-year full warranty and 5-year repair warranty for long-lasting peace of mind.
Compatible with lead-acid chargers and alternators (isolator installed).
Equipped with two temperature sensors for optimized performance.
High energy density and weight savings compared to lead-acid batteries.
Direct replacement without circuit modifications in various applications.
Ideal for RVs, solar energy storage, yachts, automobiles, and water pumps.
High Safety: Constructed with safety in mind, reducing risks associated with traditional batteries.
Water-resistant
Benefits
Exceptional longevity with a service life of over 20 years.
Higher energy density and weight savings for improved efficiency.
High cycle life, faster recharge, and higher maximum discharge rate compared to lead-acid batteries.
Built-in Battery Management System (BMS) for comprehensive protection.
80% capacity retention after 6000 deep cycles.
Automatic overload, short circuit, over-discharge, and overcharge protection.
Maximum continuous discharge current of 150 amps.
Technical Specifications:
Voltage: 12V
Capacity: 310Ah
Charge voltage: 13.8-14.0V
Float voltage: 13.8V
Cut-Off Voltage: 10.8V
Maximum Amp: 150A
Current Amp: 125A
Chemistry: LiFePO4 (LFP)
Discharge operating Temp: -20 to 80°C
Weight: 29kg
Dimensions: 520mm L x 267mm W x 220mm H(228mm include bolt)
The Micromall Essential 12.8V 55Ah LiFePO4 battery is a compact deep-cycle energy-storage battery for solar, RV, marine and general auxiliary-power applications. Its lithium iron phosphate chemistry provides long cycle life, high usable capacity and dependable everyday performance.Key Features
12.8V nominal voltage and up to 55Ah capacity
Approximately 0.7kWh total energy and 0.6kWh usable energy
Recommended 90% depth of discharge
Recommended charge/discharge current of 25A and maximum current of 50A
Peak current of 100A for 500ms at 25 C
Bluetooth communication for convenient battery monitoring
At least 6,000 cycles under the datasheet test conditions
Compact floor-mounted enclosure
Specifications
Model: NZ-1255
SKU: BTL-12.8V55
Battery chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal voltage: 12.8V
Operating voltage: 10.8-14.4V
Capacity: Up to 55Ah
Total energy: 0.7kWh
Usable energy: 0.6kWh
Recommended current: 25A
Maximum charge/discharge current: 50A
Peak current: 100A for 500ms at 25 C
Recommended depth of discharge: 90%
Dimensions (W x D x H): 229 x 138 x 208 mm
Actual weight: Approximately 8 kg (datasheet tolerance +/- 2 kg)
Communication: Bluetooth
Operating temperature: Charge 0 to 55 C; discharge -20 to 55 C
Storage temperature: 0 to 35 C
Operating humidity: 5%-95%
Maximum altitude: 2,000m
Cycle life: At least 6,000 cycles under specified test conditions
Installation: Floor-mounted
Certifications: SAA, IEC 62619 and UN 38.3
Use a compatible LiFePO4 charger and follow the installation and operating requirements supplied with the battery.
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-20K-SG05LP3-AU-SM2 | 20kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
Support storing energy from diesel generator
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Model: SUN-20K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 350
Max. Discharging Current (A): 350
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 30000
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Range (V): 160-650
Rated PV Input Voltage (V): 550
Max. Operating PV Input Current (A): 36+36
No.of MPP Trackers: 2
No.of Strings per MPP Tracker: 2+2
AC Output Data
Rated AC Output and UPS Power (W): 20000
Rated Apparent Output Power (VA): 20000
AC Output Rated Current (A): 29
Max. AC Output Current (A): 29
Max. Continuous AC Passthrough (A): 70
Peak Power (Off Grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 50.6
Cabinet size (mm): 456W×750H×268.5D (Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-15K-SG05LP3-AU-SM2 | 15kW | Three Phase | 2 MPPT | Hybrid Inverter
Higher yields / Safe & Reliable / Smart / User-friendly
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
Support storing energy from diesel generator
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Model: SUN-15K-SG05LP3-AU-SM2
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 280
Max. Discharging Current (A): 280
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV Input Power (W): 22500
Max. PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Range (V): 160-650
Rated PV Input Voltage (V): 550
Max. Operating PV Input Current (A): 36+36
No.of MPP Trackers: 2
No.of Strings per MPP Tracker: 2+2
AC Output Data
Rated AC Output and UPS Power (W): 15000
Rated Apparent Output Power (VA): 15000
AC Output Rated Current (A): 21.8
Max. AC Output Current (A): 21.8
Max. Continuous AC Passthrough (A): 70
Peak Power (Off Grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Weight (kg): 50.6
Cabinet size (mm): 456W×750H×268.5D (Excluding connectors and brackets)
Protection Degree: IP65

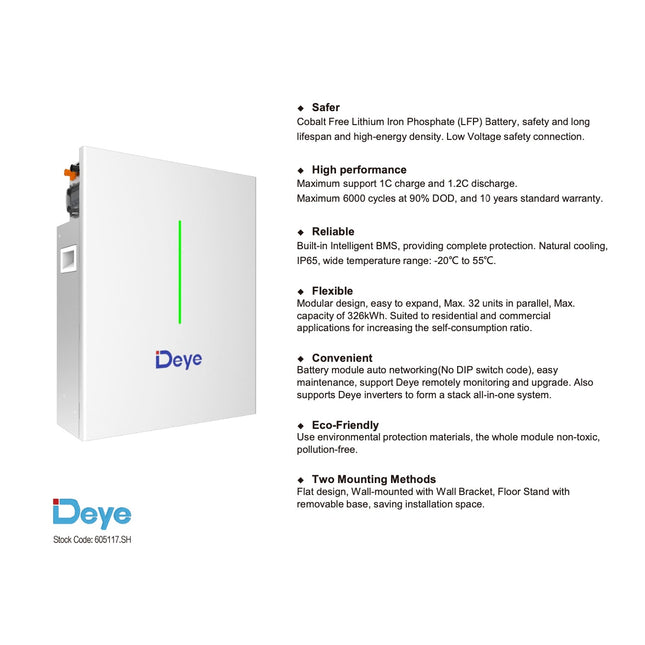

Key Features
Safer
Cobalt-free Lithium Iron Phosphate (LFP) battery ensures safety and long lifespan with high energy density.
Low-voltage safety connection for added protection.
High Performance
Supports maximum 1C charge and 1.2C discharge rates.
Offers up to 6,000 cycles at 90% Depth of Discharge (DOD).
Backed by a standard 10-year warranty.
Reliable
Built-in intelligent Battery Management System (BMS) provides comprehensive protection.
Features natural cooling and an IP65 rating, operating reliably across a wide temperature range (-20°C to 55°C).
Flexible
Modular design allows easy expansion, supporting up to 32 units in parallel with a maximum capacity of 326 kWh.
Ideal for both residential and commercial applications, enhancing self-consumption ratios.
Convenient
Auto-networking battery module eliminates the need for DIP switch coding, simplifying setup and maintenance.
Compatible with Deye inverters to create an all-in-one stack system.
Supports remote monitoring and firmware upgrades via Deye’s platform.
Eco-Friendly
Manufactured with non-toxic and pollution-free materials, ensuring environmental sustainability.
Versatile Installation Options
Flat design supports wall-mounted installation with a wall bracket or floor-standing setup using a removable base, optimizing space.
Specifications
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Nominal Energy: 10.2 kWh
Usable Energy: 9.2 kWh (90% DOD)
Scalability: Supports up to 32 units in parallel (326 kWh max.)
Rated DC Power: 6 kW
Maximum DC Power: 12 kW
Operating Voltage: 43.2V ~ 57.6V
Charge/Discharge Current: Recommended: 100A; Maximum: 198A (charge), 240A (discharge)
Peak Discharge: 300A for 2 minutes (at 25°C)
Cycle Life: ≥6,000 cycles at 90% DOD (70% End of Life capacity at 25°C)
Enclosure Rating: IP65
Operating Temperature: Charge: 1°C ~ 55°C; Discharge: -20°C ~ 55°C
Weight: Approx. 104 kg
Dimensions: 600 mm (W) x 760 mm (H) x 200 mm (D)
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-50K-SG01HP3-AU-BM4 | 50kW | Three Phase | 4 MPPT | Hybrid Inverter | HV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output；each phase
AC couple to retrofifit existing solar system
*Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
High voltage battery, higher efficiency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-50K-SG01HP3-AU-BM4
Battery Input Data
Battery Type: Lithium-ion
Battery Voltage Range (V): 160-800
Max. Charging Current (A): 50+50
Max. Discharging Current (A): 50+50
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of Battery Input: 2
PV String Input Data
Max. PV Input Power (W): 75000
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 180
MPPT Voltage Range (V): 150-850
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 36+36+36+36
Max. Input Short-Circuit Current (A): 55+55+55+55
No. of MPP Trackers/No. of Strings MPP Tracker: 4/2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W): 50000
Max. AC Input/Output Apparent Power (VA): 50000
Rated AC Input/Output Current (A): 72.5
Max. AC Input/Output Current (A): 72.5
Max. Continuous AC Passthrough (grid to load) (A): 200
Peak Power (off-grid) (W): 1.5 times of rated power, 10s
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: >99%
General Data
Cabinet Size (WxHxD mm): 527×894×294 (Excluding Connectors and Brackets)
Weight (kg): 80
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-12K-SG04LP3-AU | 12kW | Three Phase | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Remotely shutdown function
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofifit existing solar system
Max. 16pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-12K-SG04LP3-AU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 240
Max. Discharging Current (A): 240
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. DC Input Power (W): 18000
Rated PV Input Voltage (V): 800
Start-up Voltage (V): 160
MPPT Voltage Range (V): 200-650
Rated DC Input Voltage(V): 550
Max. Operating PV Input Current (A): 26+13
Max. Input Short-Circuit Current (A): 39+17
No. of MPP Trackers/No. of Strings MPP Tracker: 2/1+1
AC Output Data
Rated AC Output Active Power (W): 12000
Max AC Output Active Power (W): 12000
AC Output Rated Current (A): 17.4
Max. AC Output Current (A): 17.4
Max. Continuous AC Passthrough (A): 45
Peak Power (off grid): 2 time of rated power, 10 S
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.0%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 38
Cabinet size (mm): 422W x 658H x254D(Excluding connectors and brackets)
Protection Degree: IP65
**Vector Approved Inverter**
**DEYE New Zealand Distributor - Micromall Solar**
**10-Year Warranty**
SUN-12K-SG02LP1-AU-AM3 | 12kW | Single Phase | 3 MPPT | Hybrid Inverter | LV Battery Supported
Higher yields / Safe & Reliable / Smart / User-friendly
Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Model: SUN-12K-SG02LP1-AU-AM3
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 250
Max. Discharging Current (A): 250
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
Number of Battery Input: 1
PV String Input Data
Max. PV access power(W): 24000
Max. DC Input Power (W): 18000
Rated PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated DC Input Voltage(V): 370
Max. Operating PV Input Current (A): 26+26+26
Max. Input Short-Circuit Current (A): 44+44+44
No. of MPP Trackers/
No. of Strings MPP Tracker: 3/2+2+2
AC Output Data
Rated AC Output Active Power (W): 12000
Max AC Output Active Power (W): 12000
AC Output Rated Current (A): 52.2
Max. AC Output Current (A): 52.2
Max. Continuous AC Passthrough (A): 60
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
General Data
Weight (kg): 35.6
Cabinet size (mm): 420W x 670H x 233D(Excluding connectors and brackets)
Protection Degree: IP65
48V 55Ah Max CALB LiFePO4 Battery: Premium Power Solution for Diverse Applications
Key Highlights:
Premium Quality Cells: Featuring 16 Grade A CALB cells, designed originally for Ryobi Lawn Mower.
High Current Capability: With a true charge and discharge capacity of 100A, it stands as a top contender in the NZ market.
Long-Lasting and Durable: Engineered for 6000 cycles 0.5C at 90% depth of discharge, promising 20+ years of reliable service.
Intelligent Monitoring: Comes with a 2-smart BMS system and a Bluetooth app display for efficient battery management.
Safety Assured: Incorporates advanced safety features for risk reduction.
Exceptional Warranty: Provided with a 10-year full warranty and an additional 5-year repair warranty.
Technical Specifications:
Model: BTL-48V55M
Main Parameter
Battery Chemistry: LiFePO4
Capacity(Ah): Max 55Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2 - 57.6V
Energy(kWh): 2.6kWh
Usable Energy(kWh): 2.4kWh
Charge/Discharge Current (A)
Recommend: 25
Max: 52
Peak: 150 (500ms, 25°C)
Short-circuit: 1.444KA (1.12ms, 25°C)
Other Parameter
Recommend Depth of Discharge: 90%
Dimension (D/W/H, mm): 355x232x230mm
Weight Approximate (kg): 25kg
Master Indicator: LCD
IP Rating of Enclosure: IP20
Operating Temperature: Charge: 0 - 55°C (Optional heating) / Discharge: -20°C - 55°C
Humidity: 5% - 95%
Cycle Life: 6000 0.5C
Communication Port: BLUETOOTH
Energy Throughput: 8MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
