🔥 FACTORY DIRECT LAUNCH SPECIAL: $364 NZD 🔥
Micromall 12V 110Ah Essential Series LiFePO4 Lithium Battery
In-House R&D | Grade A+ Cells | Smart BMS | 10-Year NZ Warranty
Buy direct from our Micromall Auckland team and save! Designed in-house and manufactured in our own factory, this battery delivers top-tier performance at a factory-direct price of $364.
Every unit is strictly tested for maximum safety, stability, and durability—fully supported by our local New Zealand after-sales team.
🌟 Key Features
Grade A+ LiFePO4 Cells: Delivers a true 110Ah capacity (10% more power than standard 100Ah models) with high efficiency and long cycle life.
In-House Quality Control: Built in our own facility with full oversight from cell selection to final assembly.
Smart BMS Protection: Real-time monitoring for overcharge, over-discharge, over-voltage, over-current, short circuit, plus high/low temperature charging protection.
BMS Wake-Up Port: Easily reactivate and start charging your battery if it ever enters deep discharge protection mode.
IP65 Waterproof: Sealed enclosure built for rugged marine, RV, and outdoor environments.
Compact Design: Fits easily into tight battery compartments in campervans, boats, or tiny homes.
10-Year Local Warranty: Built for up to 30 years design life, backed by local Auckland customer service.
Electrician Compliant: Suitable for professional installation across RV, Marine, Tiny House, and Off-Grid applications.
🚐 Best For
Caravans, Campervans & Motorhomes
Marine & Boat Dual-Battery Systems
Tiny Houses & Off-Grid Cabins
Solar Energy Storage

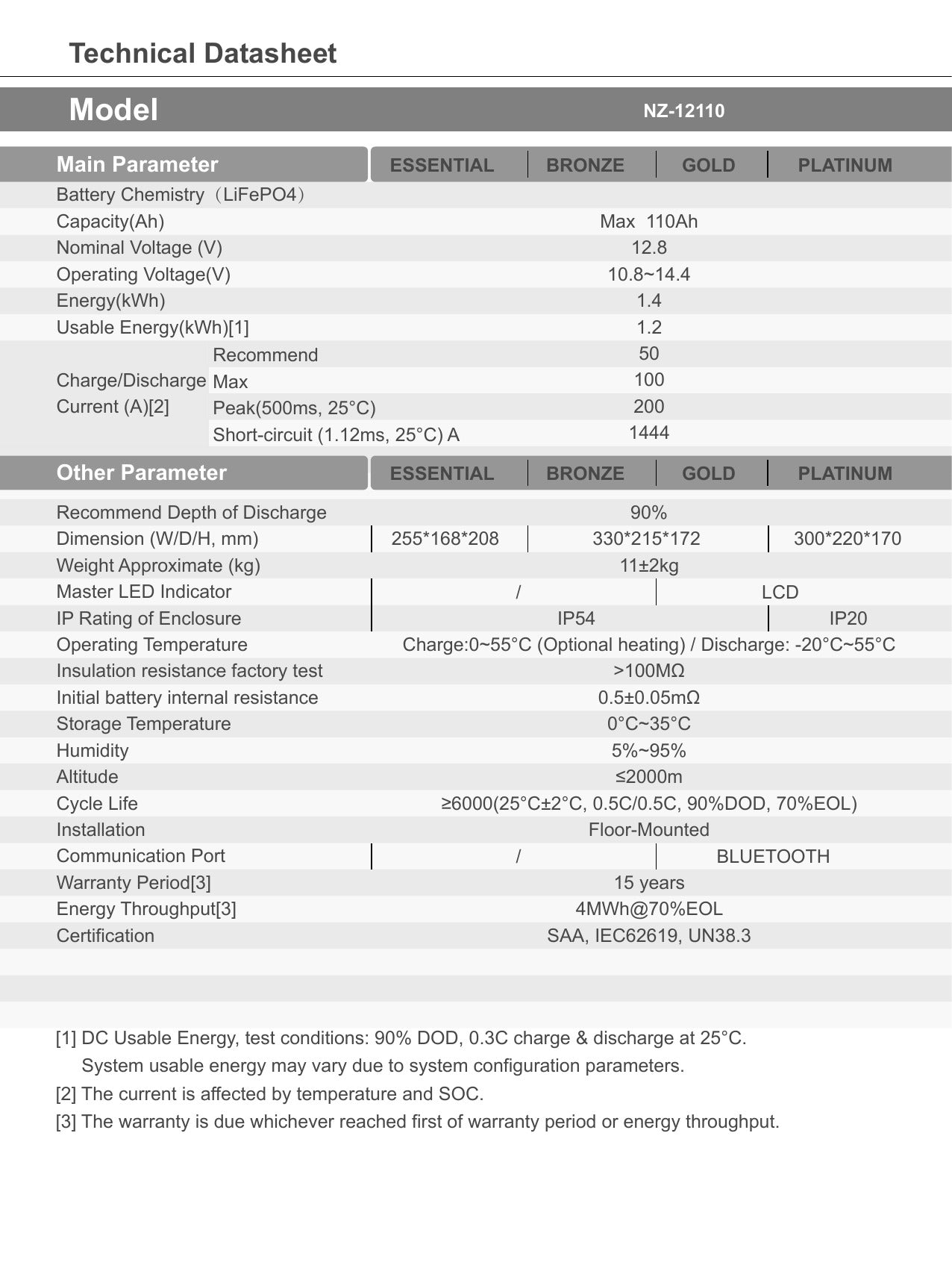

Technical Specifications
-
Battery chemistry: Lithium Iron Phosphate (LiFePO4)
-
Maximum capacity: 110Ah
-
Nominal voltage: 12.8V
-
Operating voltage: 10.8–14.4V
-
Nominal energy: 1.4kWh
-
Usable energy: 1.2kWh at 90% DoD, tested at 0.3C charge/discharge and 25°C
-
Recommended charge/discharge current: 50A
-
Maximum charge/discharge current: 100A
-
Peak current: 200A for 500ms at 25°C
-
Short-circuit current: 1,444A for 1.12ms at 25°C
-
Recommended depth of discharge: 90%
-

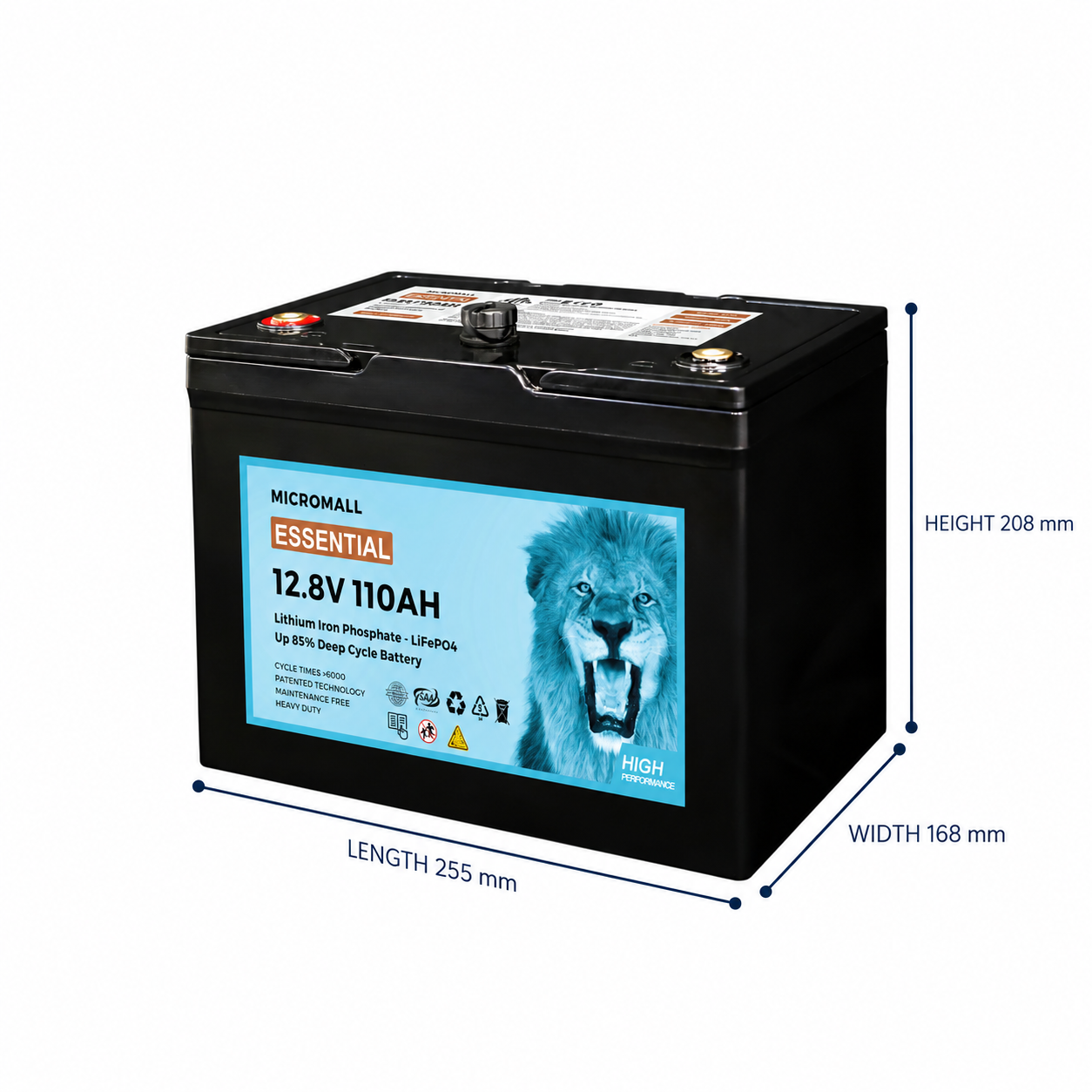

Dimensions (L × W × H): 255 × 168 × 208mm
-
Approximate weight: 11 ± 2kg
-
Protection: Complete smart BMS protection with dedicated BMS wake-up port
-
Active balancing: Standard
-
Enclosure rating: IP65 waterproof and dustproof
-
Charging temperature: 0°C to 55°C (optional heating)
-
Discharging temperature: -20°C to 55°C
-
Storage temperature: 0°C to 35°C
-
Insulation resistance: >100MΩ (factory test)
-
Initial battery internal resistance: 0.5 ± 0.05mΩ
-
Operating humidity: 5% to 95%
-
Maximum operating altitude: ≤2,000m
-
Cycle life: ≥6,000 cycles at 25°C ± 2°C, 0.5C/0.5C, 90% DoD to 70% EOL
-
Energy throughput: 4MWh at 70% EOL
-
Installation: Floor-mounted
-
Certifications: SAA, IEC 62619 and UN38.3
-
Warranty: 10-Year Local NZ Warranty (30-Year Design Life)
