Description

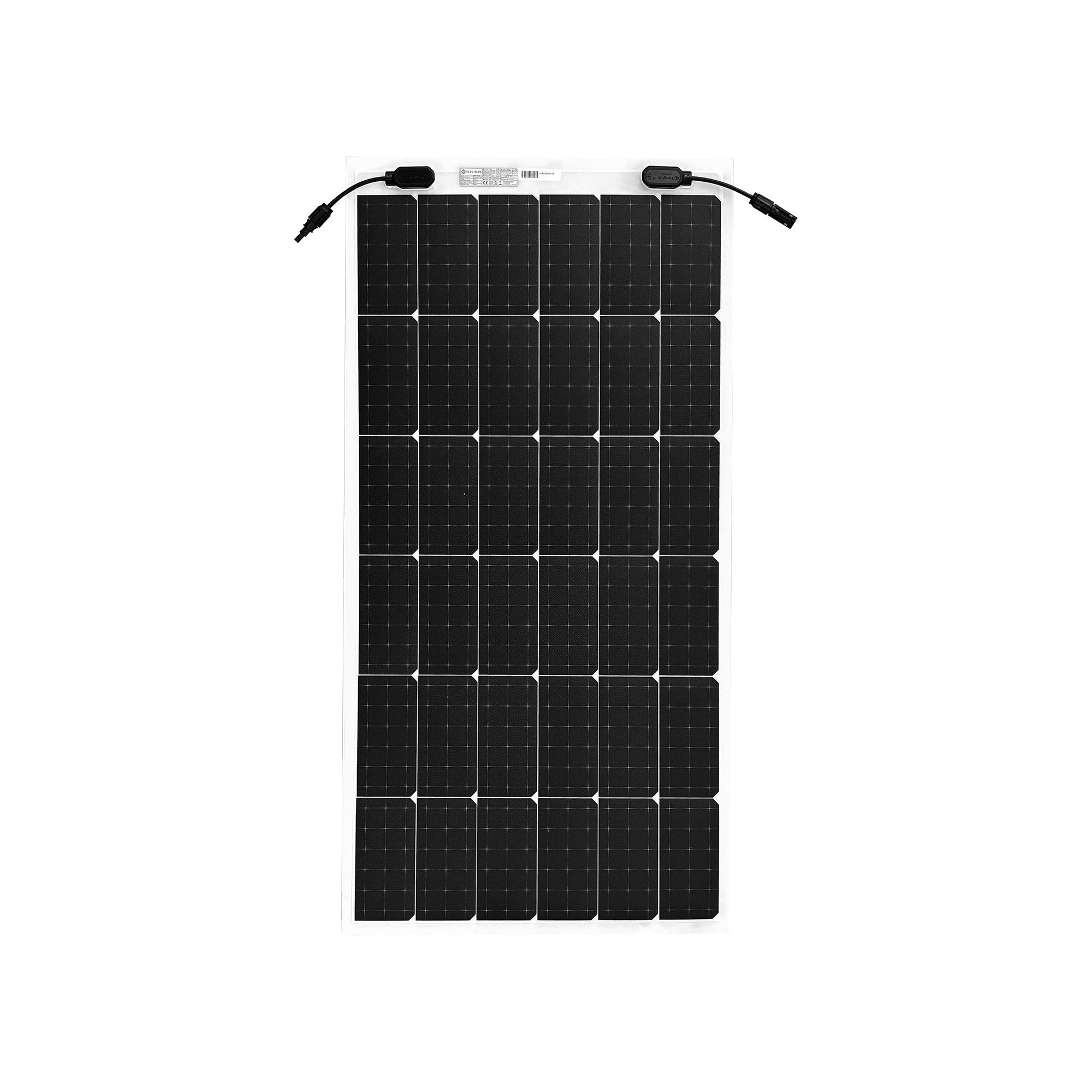

Harness the power of the sun with the FSF-HB100WP 100W flexible solar panel, designed for durability, portability, and efficiency. Ideal for RVs, boats, off-grid cabins, and other mobile applications, this ultra-lightweight panel combines cutting-edge technology with rugged flexibility.
Key Features

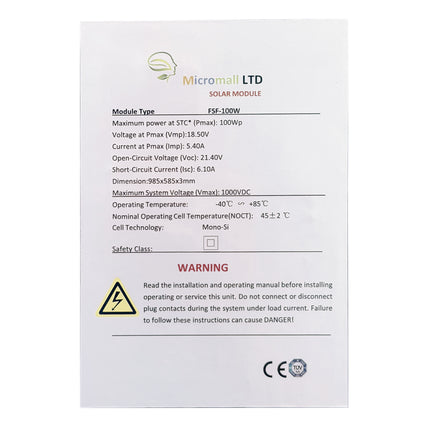

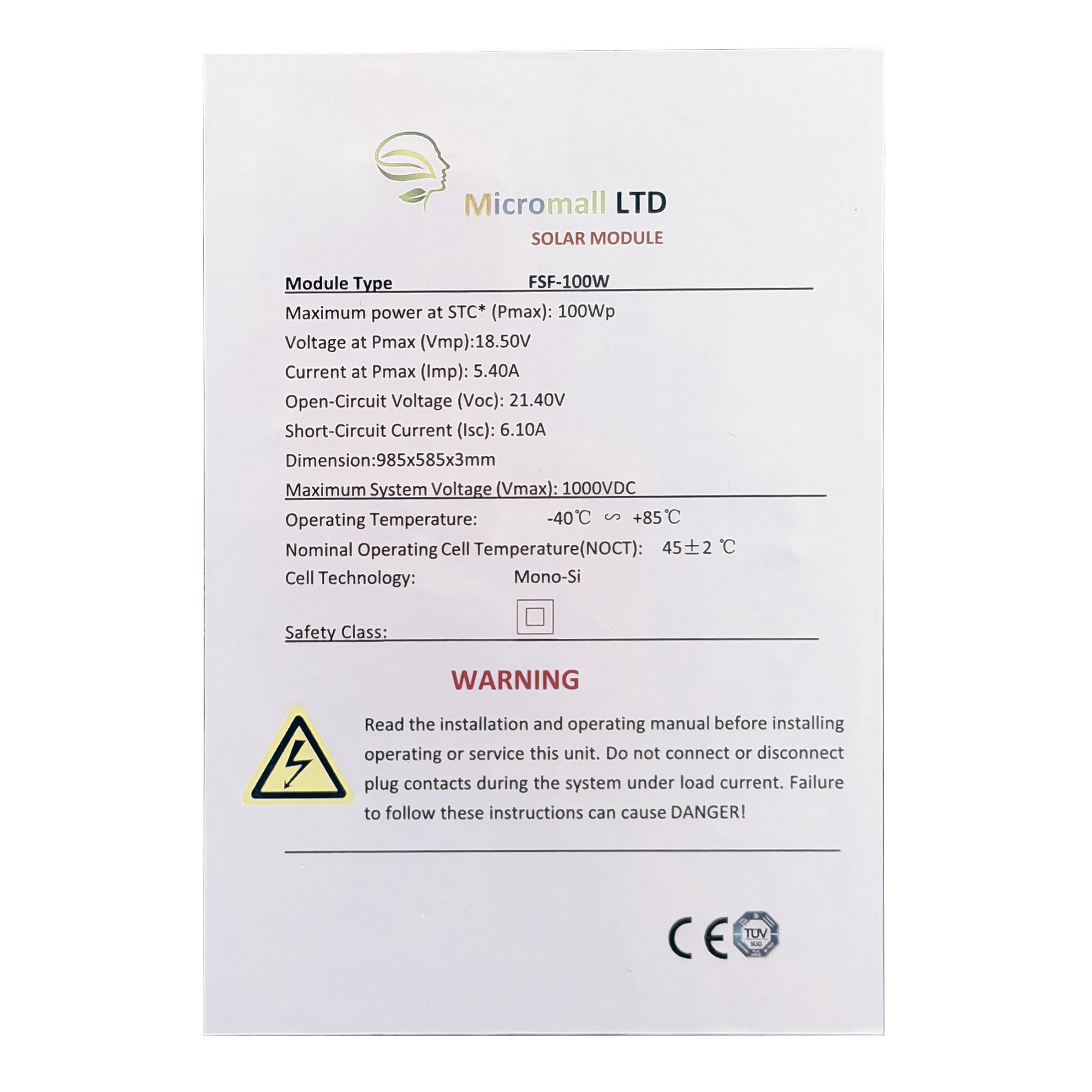

- Power Output: 100W ±3%
- Voltage at Max Power (Vmp): 18.5V
- Current at Max Power (Imp): 5.4A
- Open Circuit Voltage (Voc): 21.4V
- Short Circuit Current (Isc): 6.1A

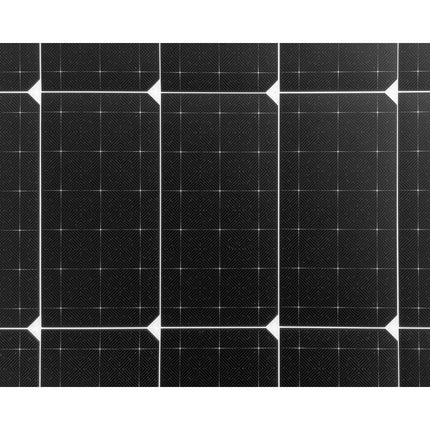

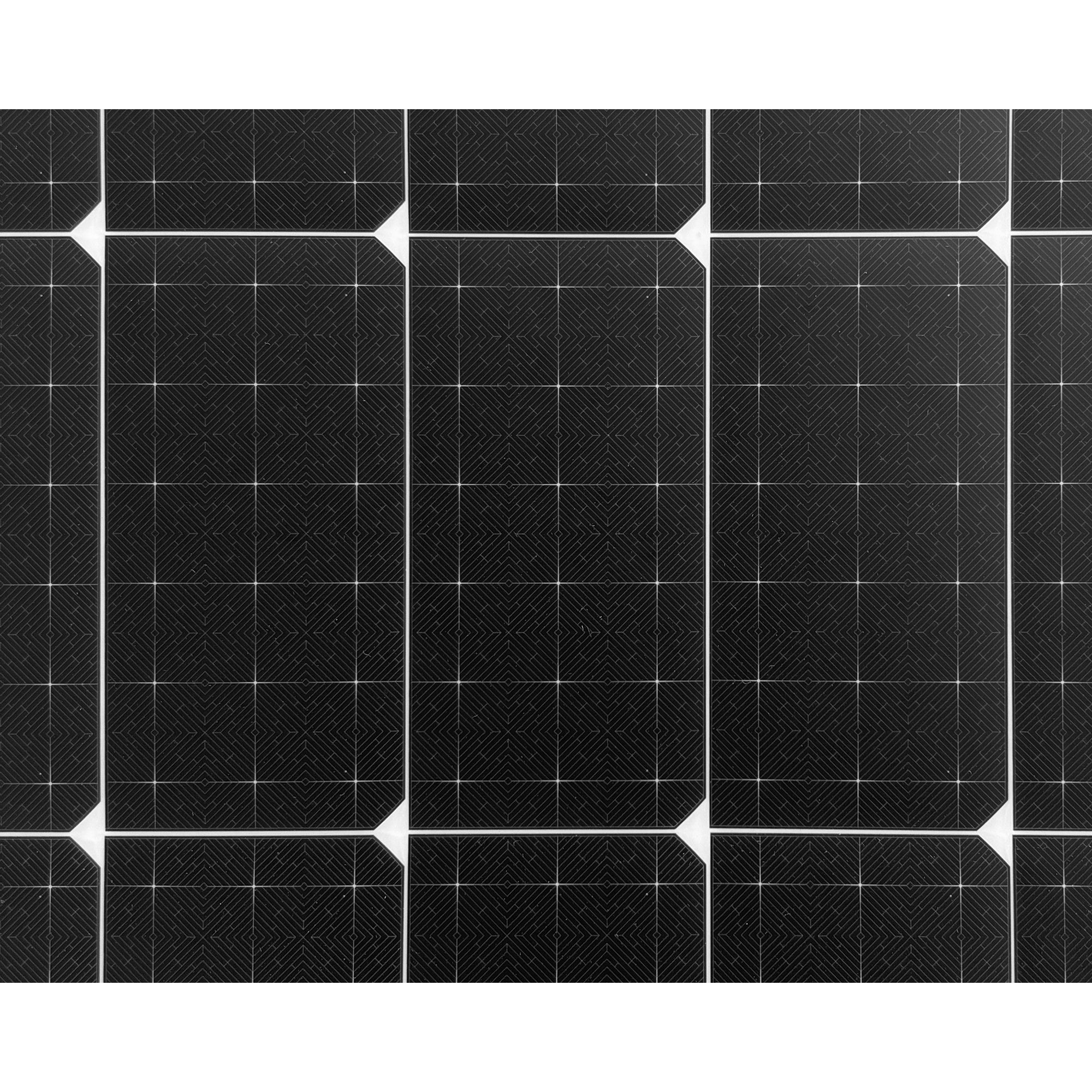

- Solar Cells: LONGI HPBC, 3 × 10 cells
- Efficiency: High-efficiency mono cells
- Dimensions: 985 × 585 × 3 mm
- Weight: 1.5 kg
- Front Material: ETFE
- Frame: None (flexible design)
- Junction Box: IP68 rated
- Output Cables: TUV, UL certified, 900 mm ± 900 mm
- Connectors: Integrated SOLAR MC4 twist-lock connectors
Durability & Flexibility:
Can withstand foot traffic—walk or step on the panel with confidence
Operates reliably in temperatures from -20°C to +65°C
- Maximum system voltage: 1000VDC (IEC) / 600VDC (UL)
- Maximum series fuse rating: 10A
- Temperature Performance:
- Temperature coefficient of Pmax: -0.44%/°C
- Temperature coefficient of Voc: -0.33%/°C
- Temperature coefficient of Isc: 0.055%/°C
- Warranty:
3-year warranty on materials and workmanship
5-year warranty on power output
With its flexible design, advanced HPBC solar cells, and superior low-light performance, the FSF-HB100WP 100W flexible solar panel is perfect for mobile and off-grid solar installations, even in rainy or cloudy conditions, while remaining compatible with your existing solar setup.
