Description

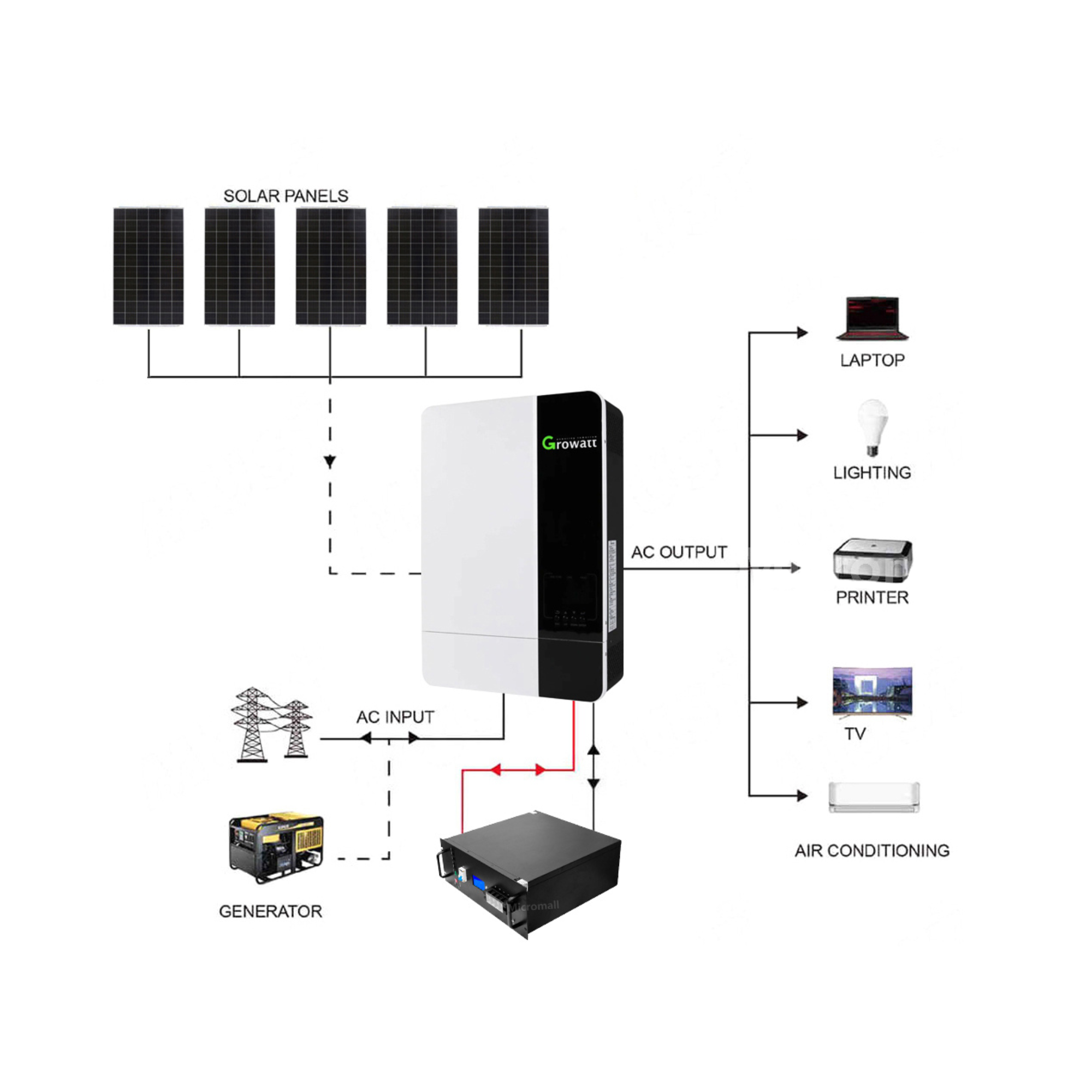

Introducing our exceptional solar off-grid system, equipped with grade A solar panels and a high-quality hybrid solar inverter system.
Package Includes:

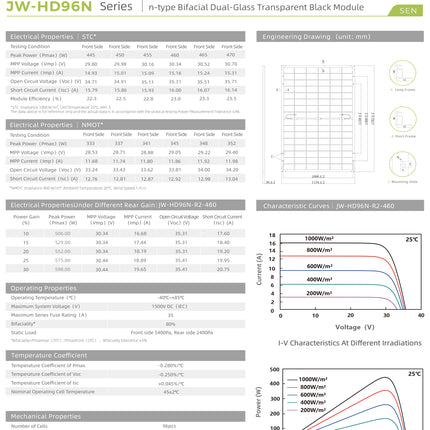

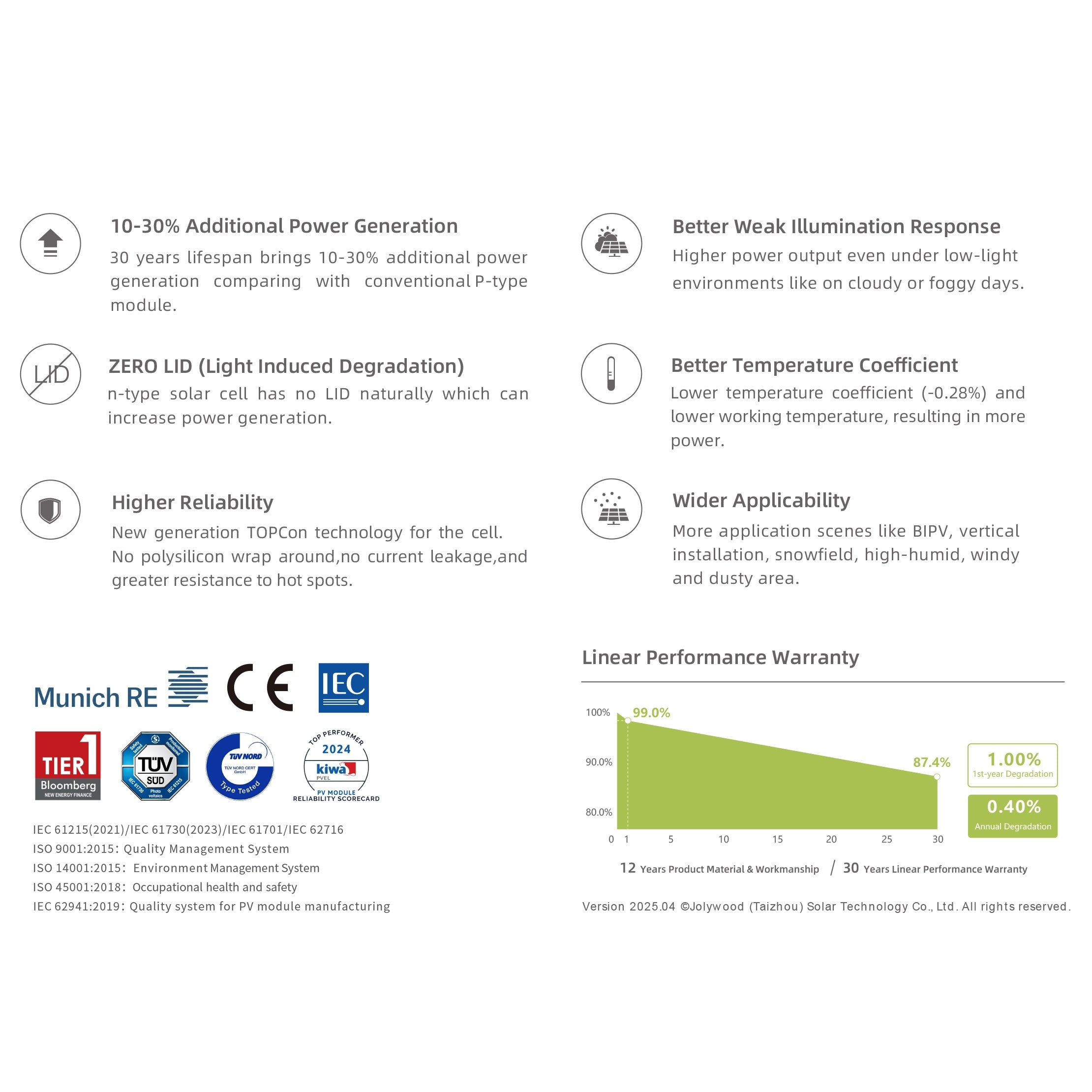

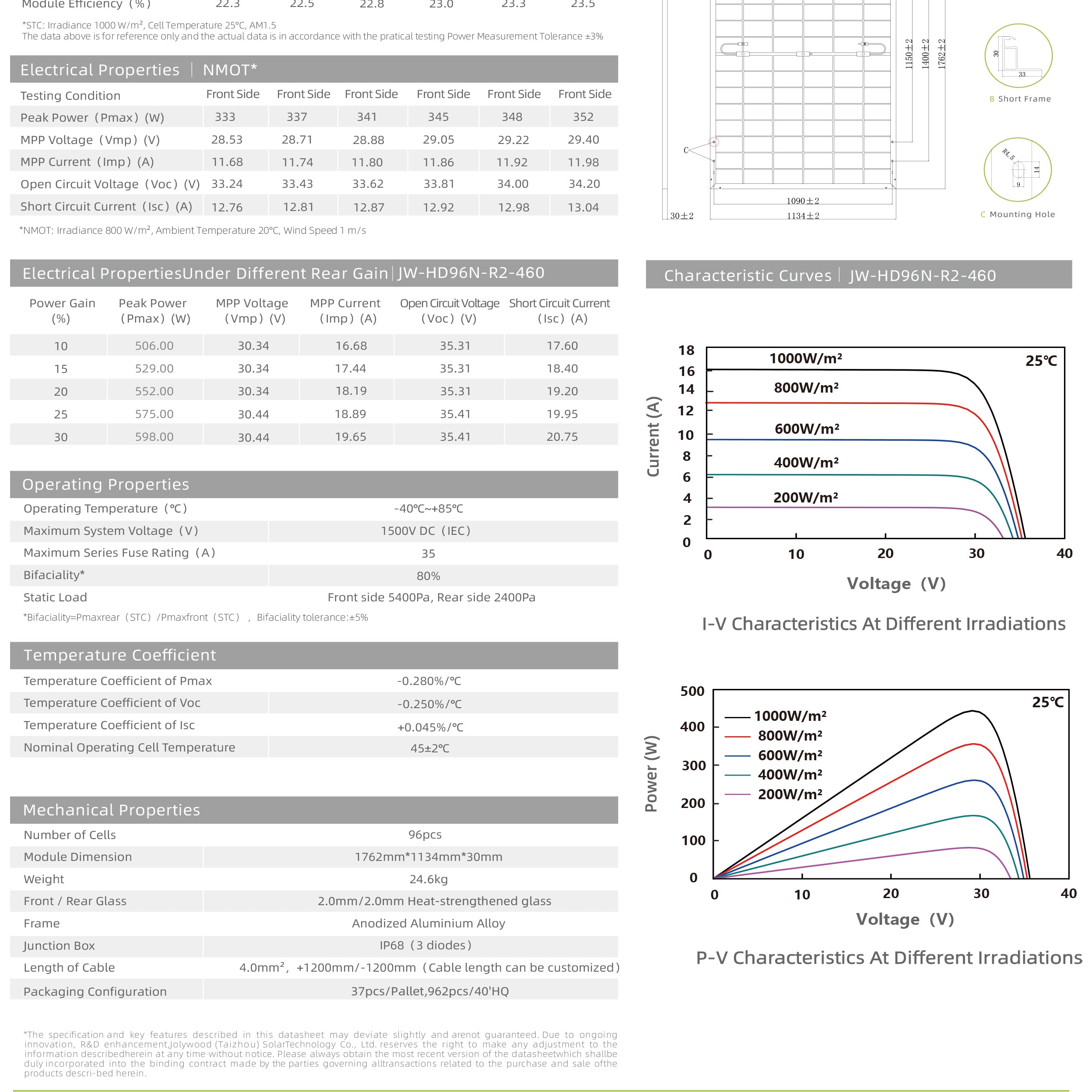

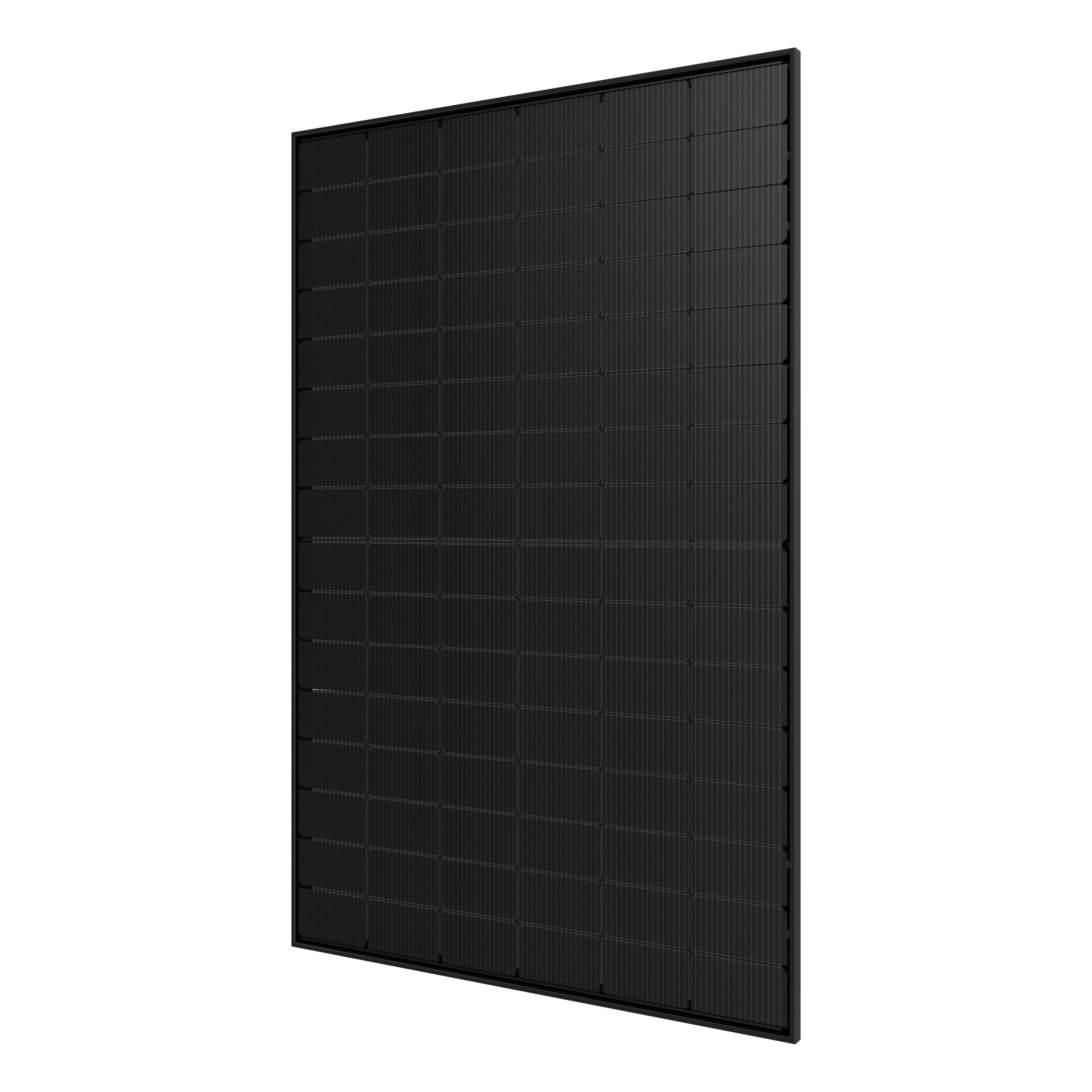

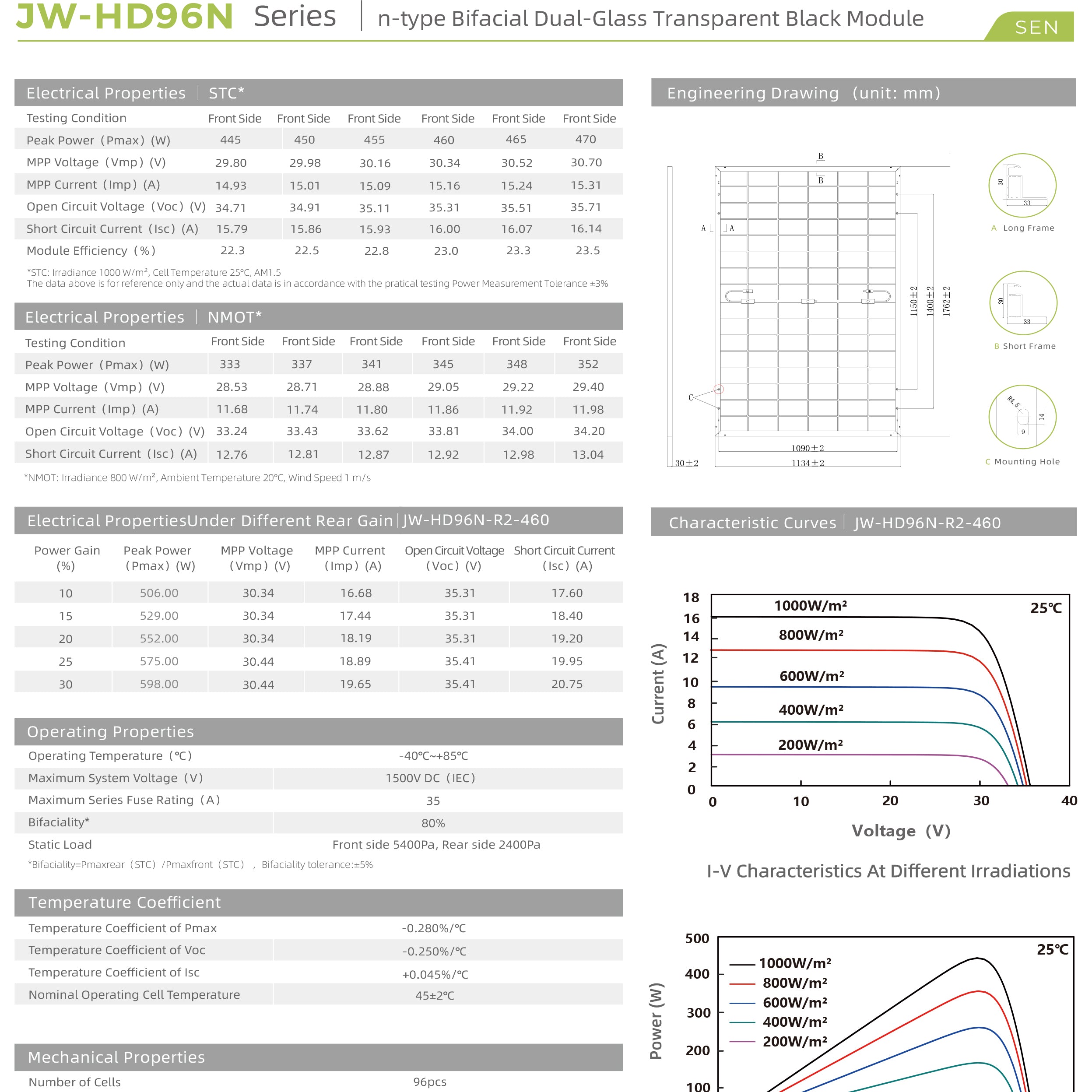

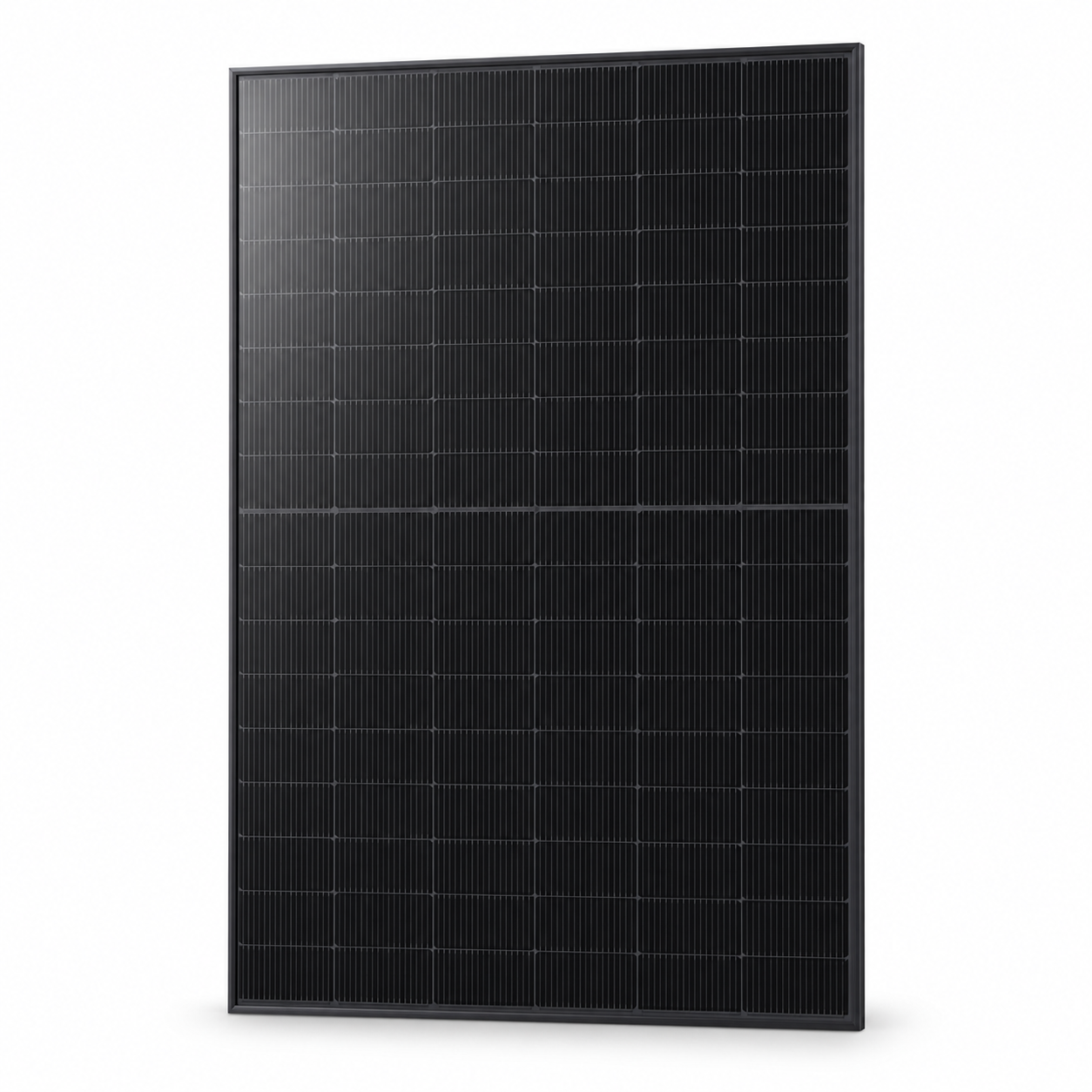

5 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell
1 x GROWATT SPF 5000ES 48V 5000W HYBRID Charger Inverter (2 years warranty)

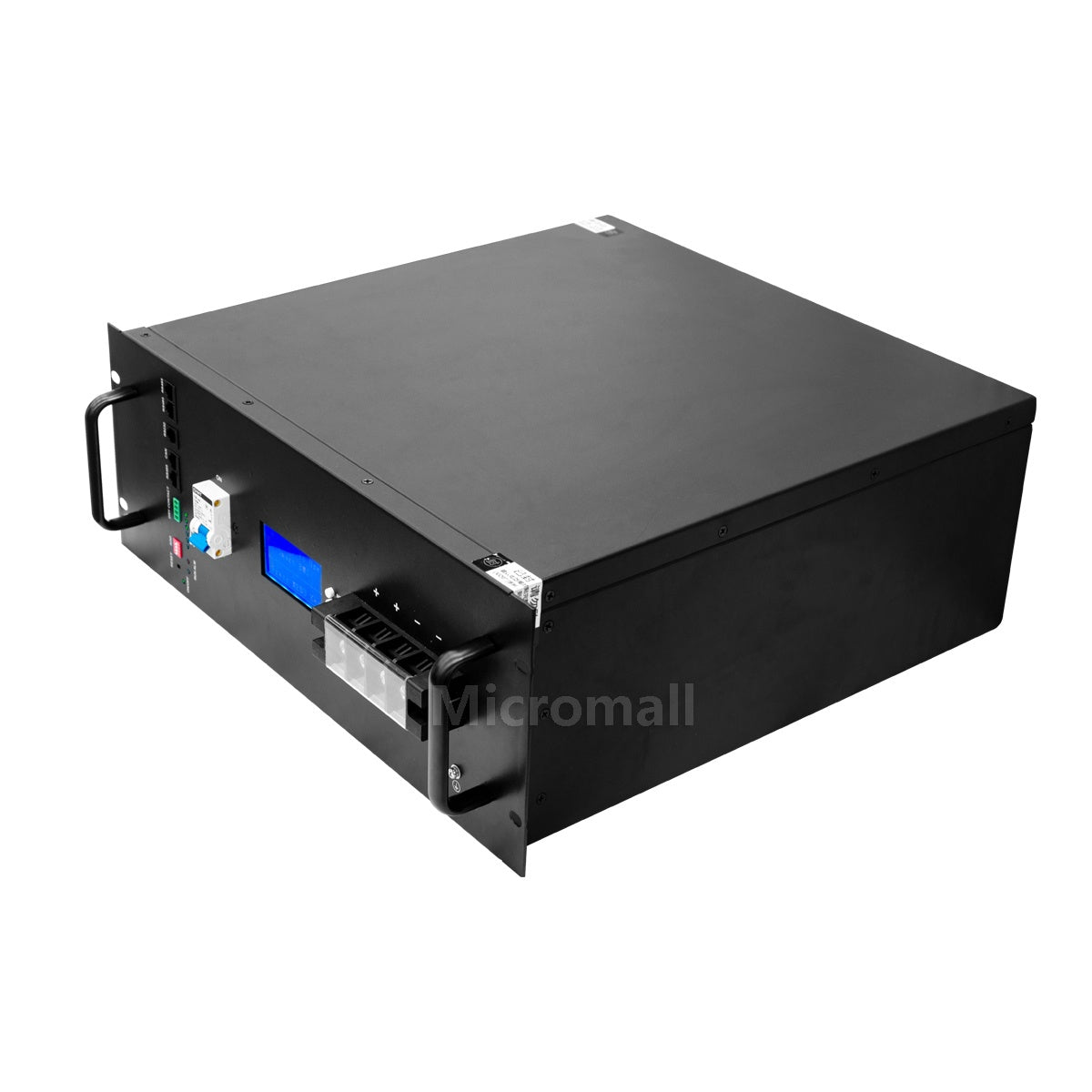

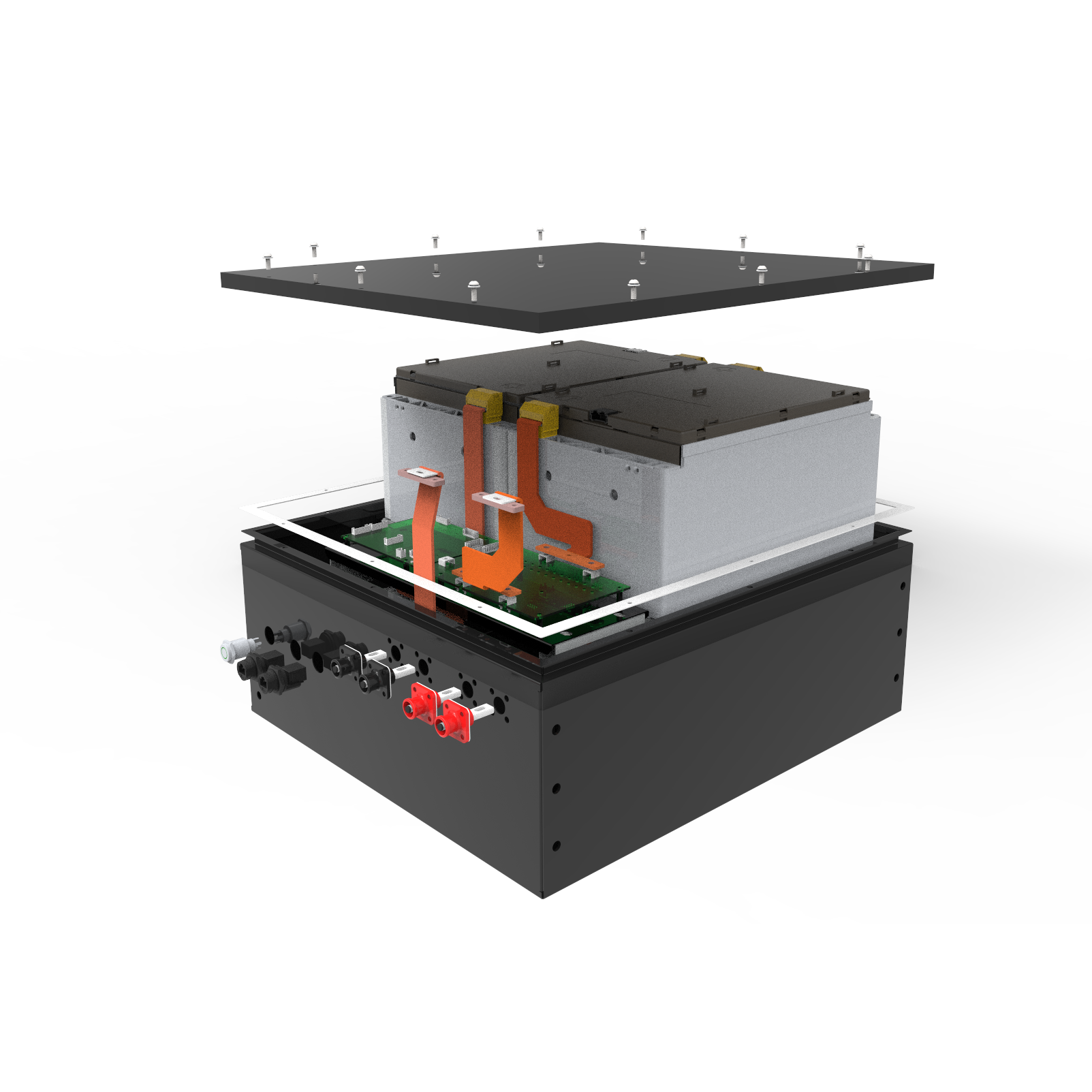

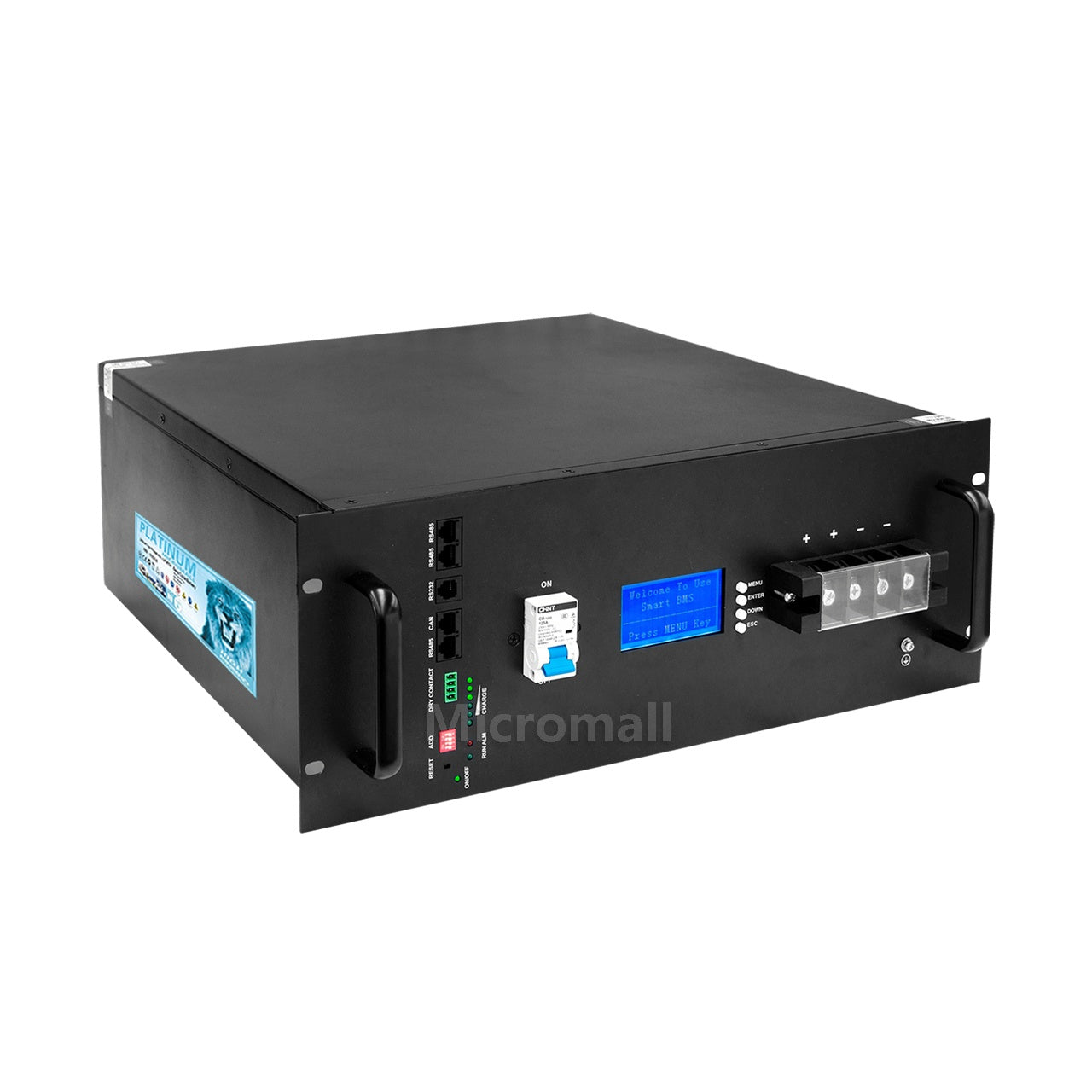

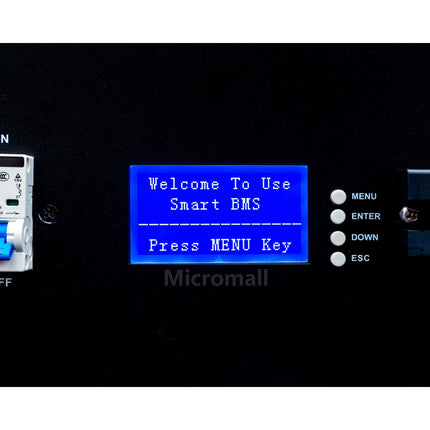

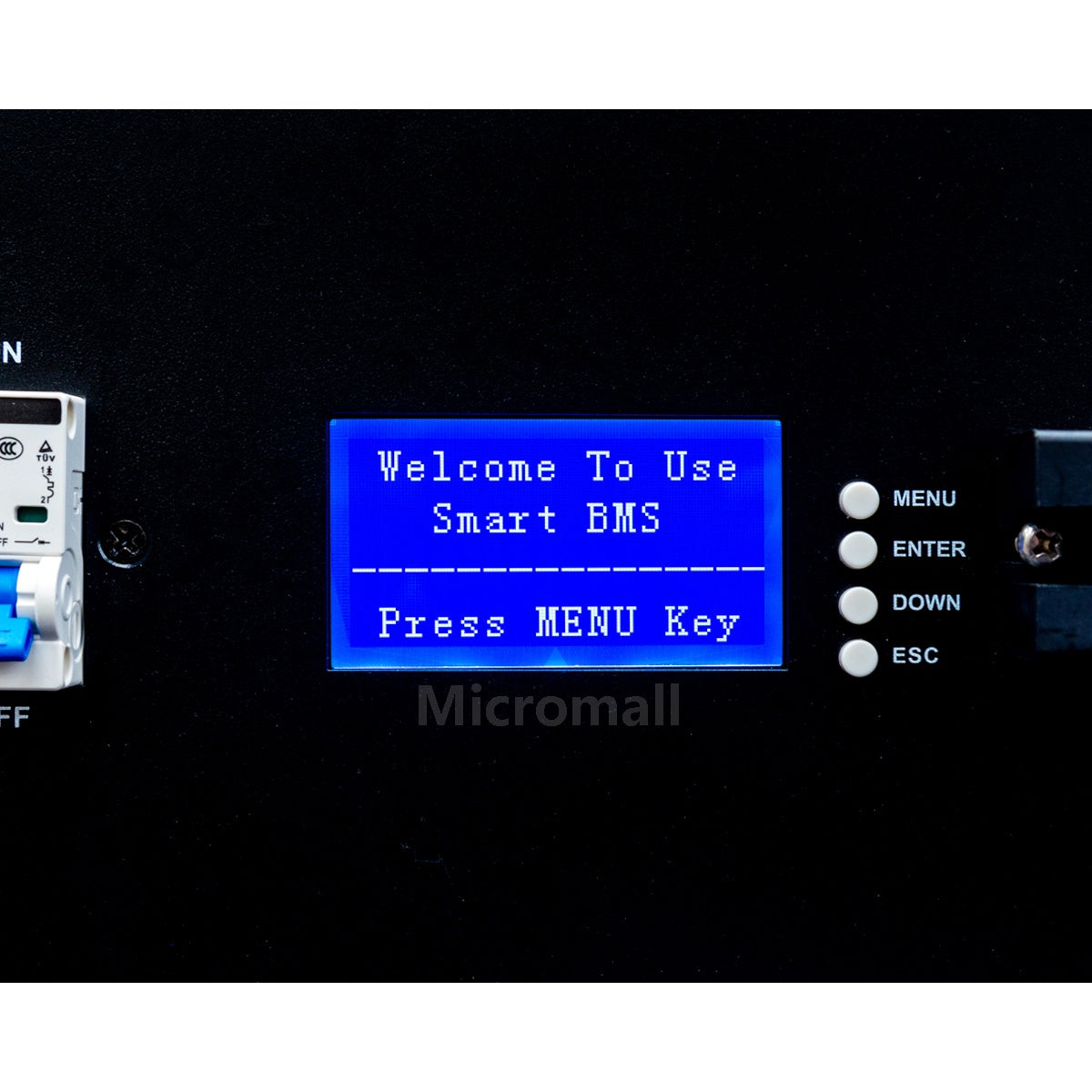

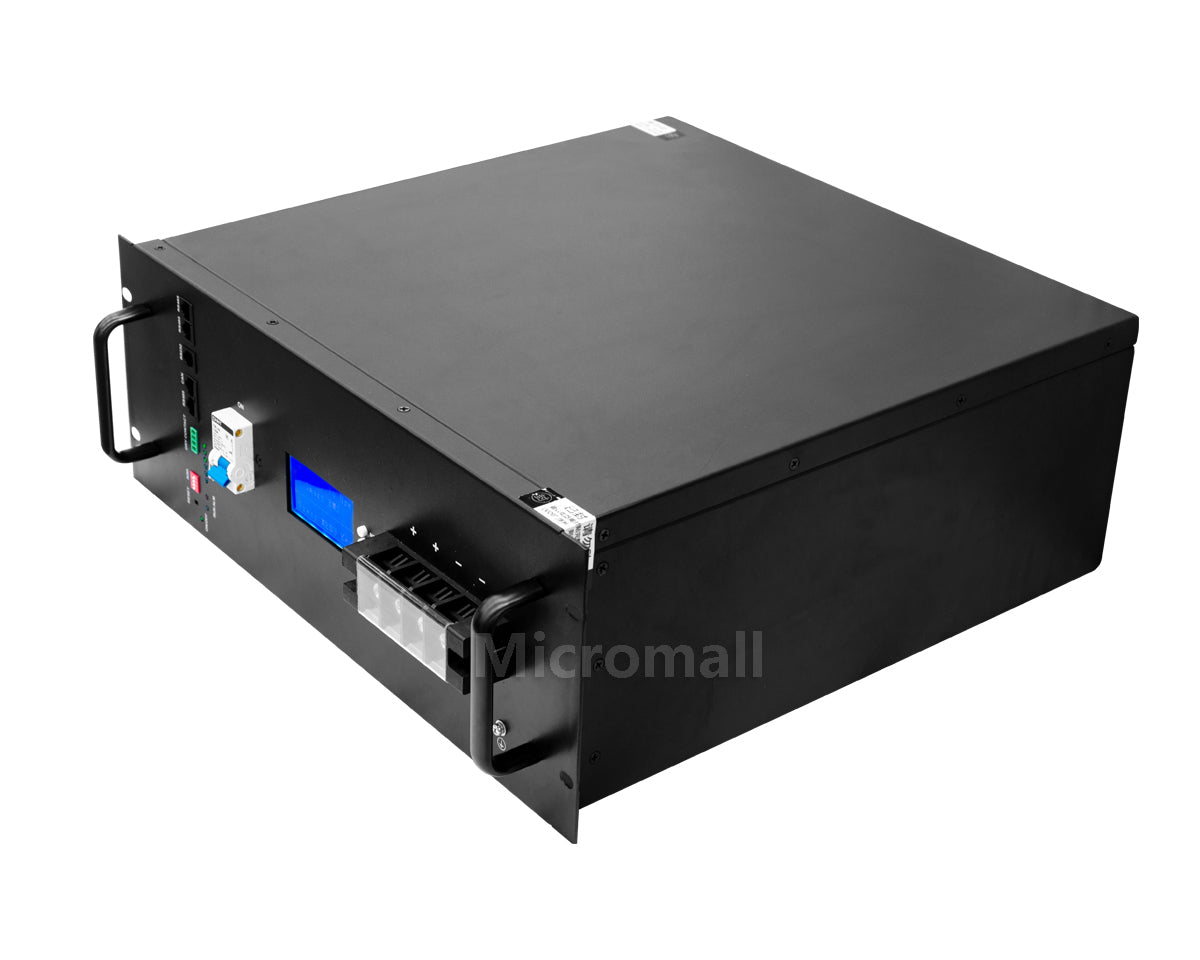

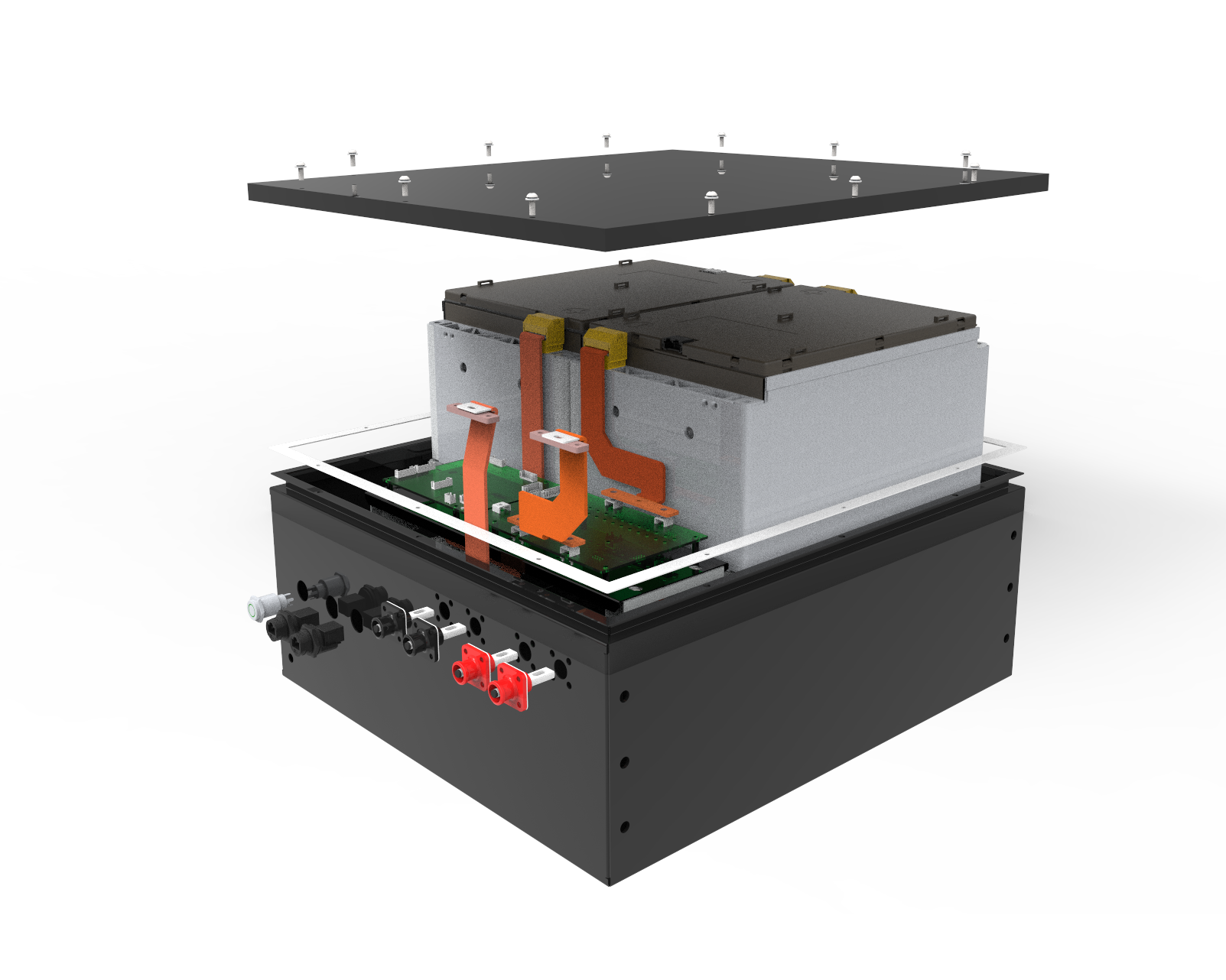

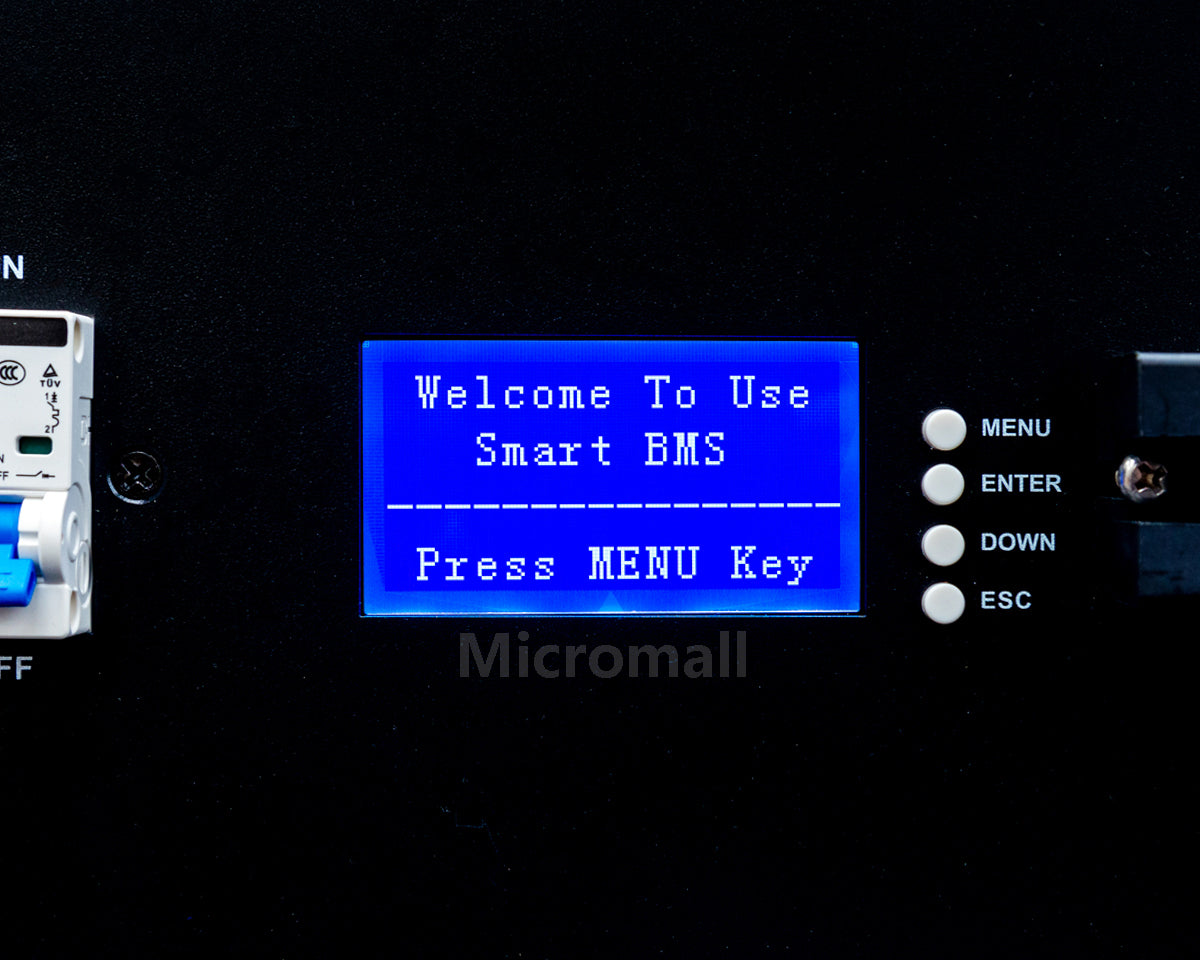

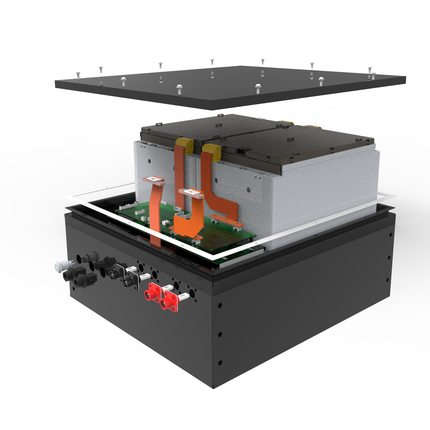

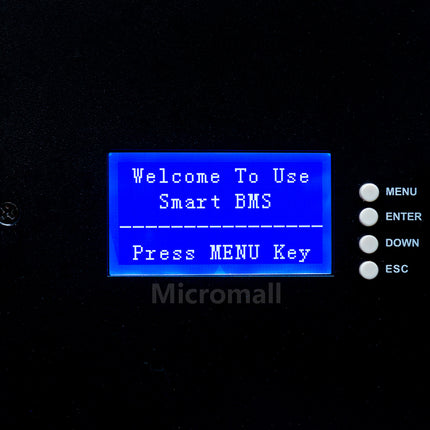

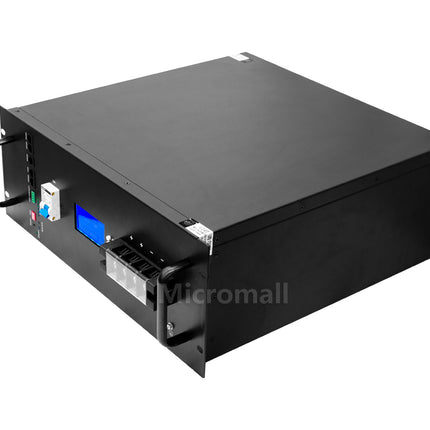

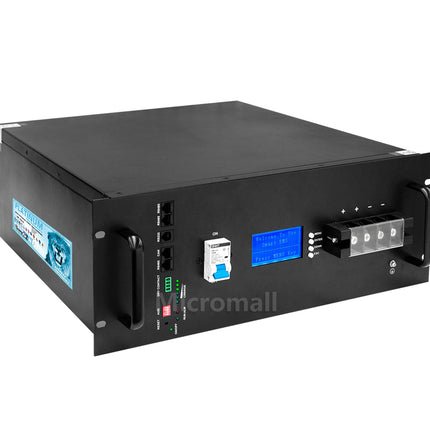

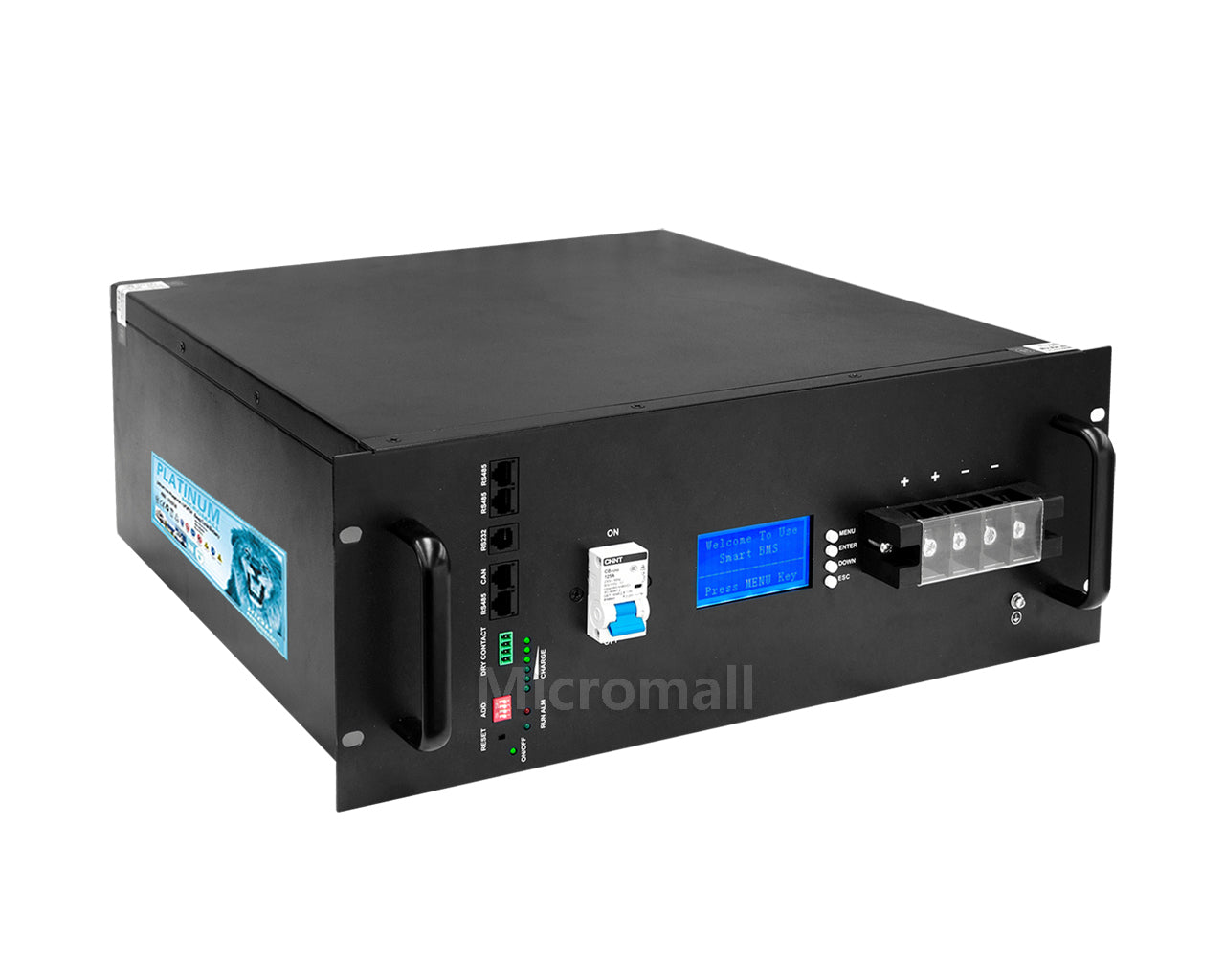

1 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
1 x 10m Twin 6mm PV Extension Cable with MC4 Connectors
2 x 16a PV Fuses
1 x 500v 25a PV Circuit Breaker

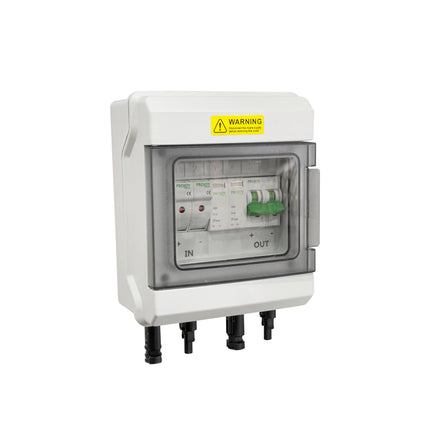

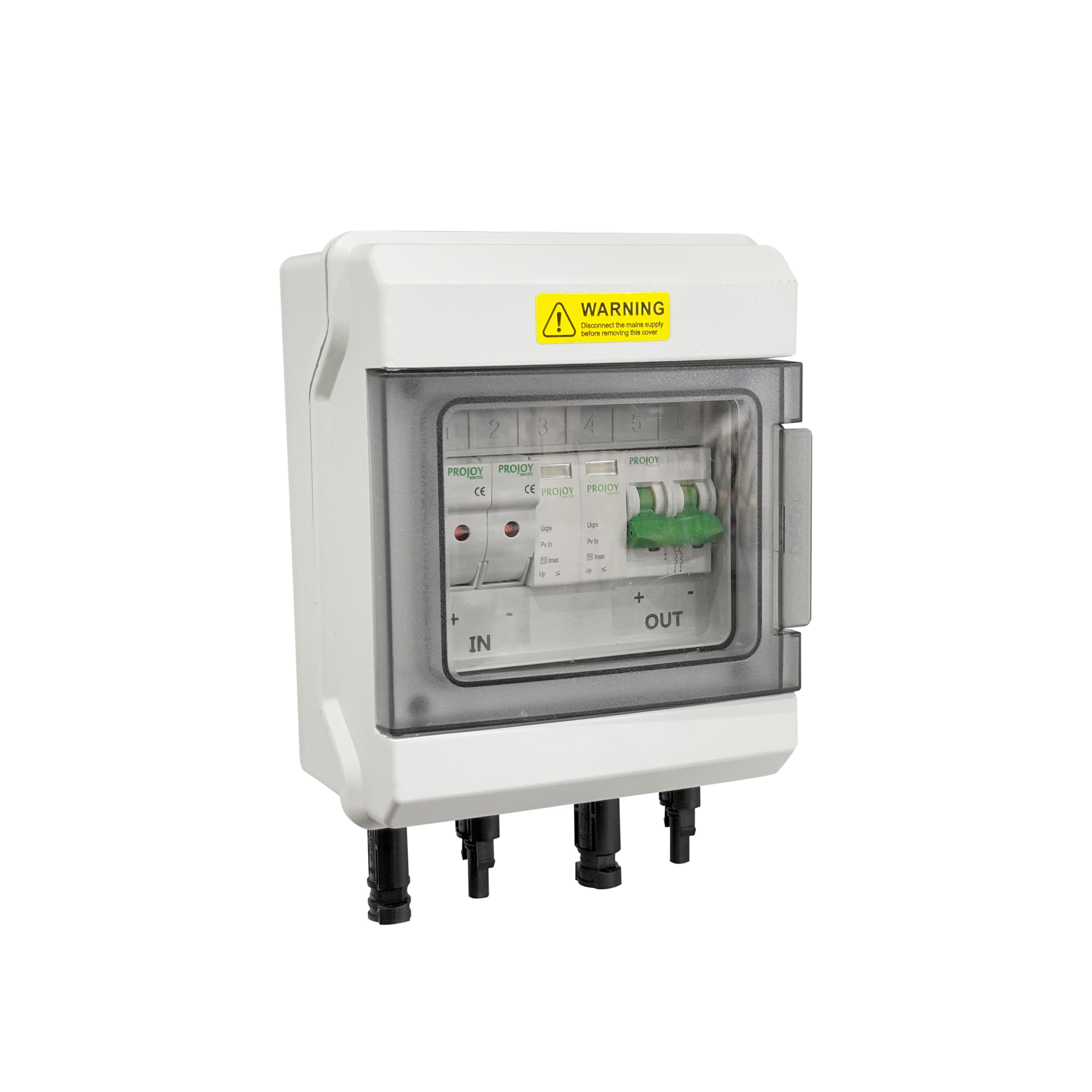

1 x Surge Protector
1 X 6 way Fuse Box

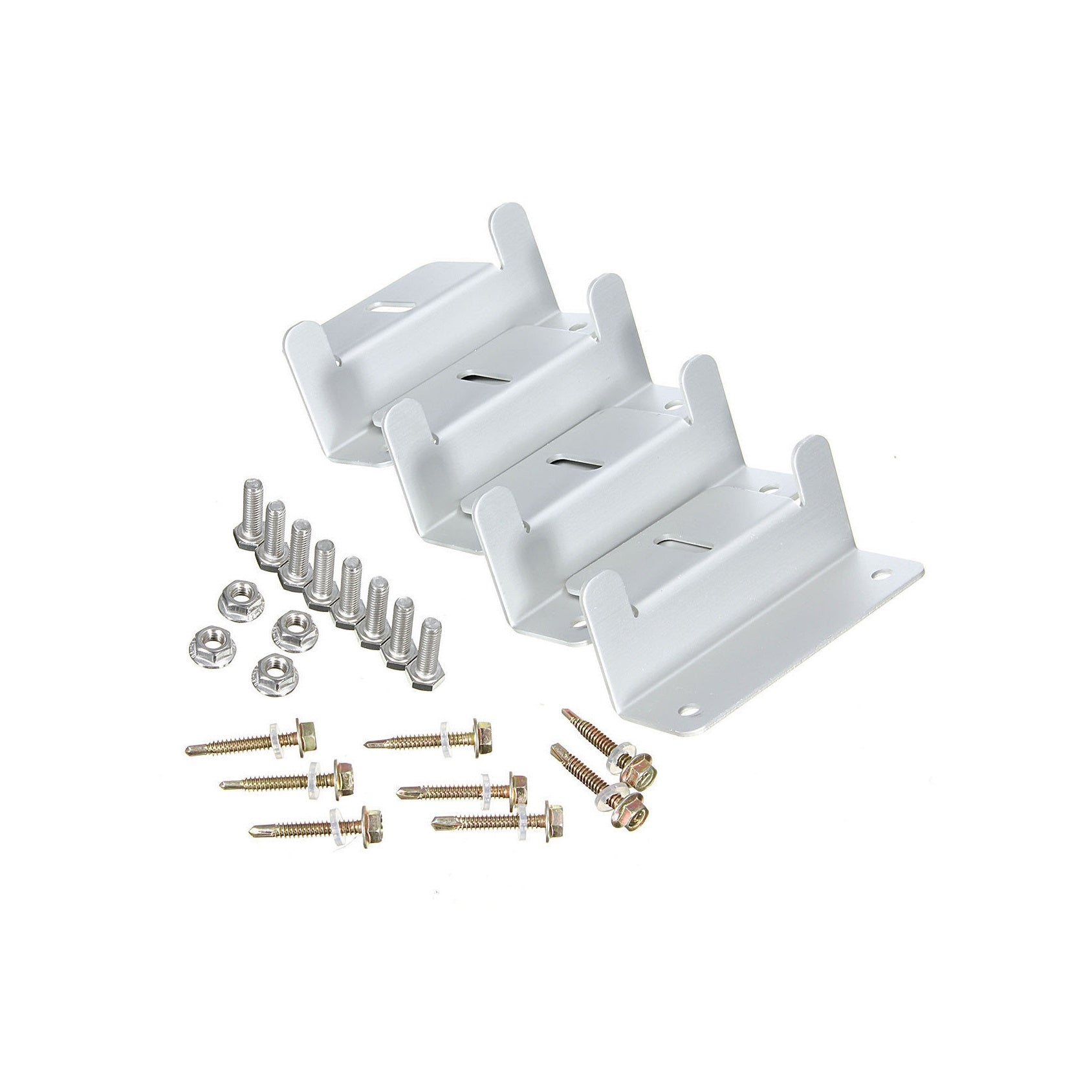

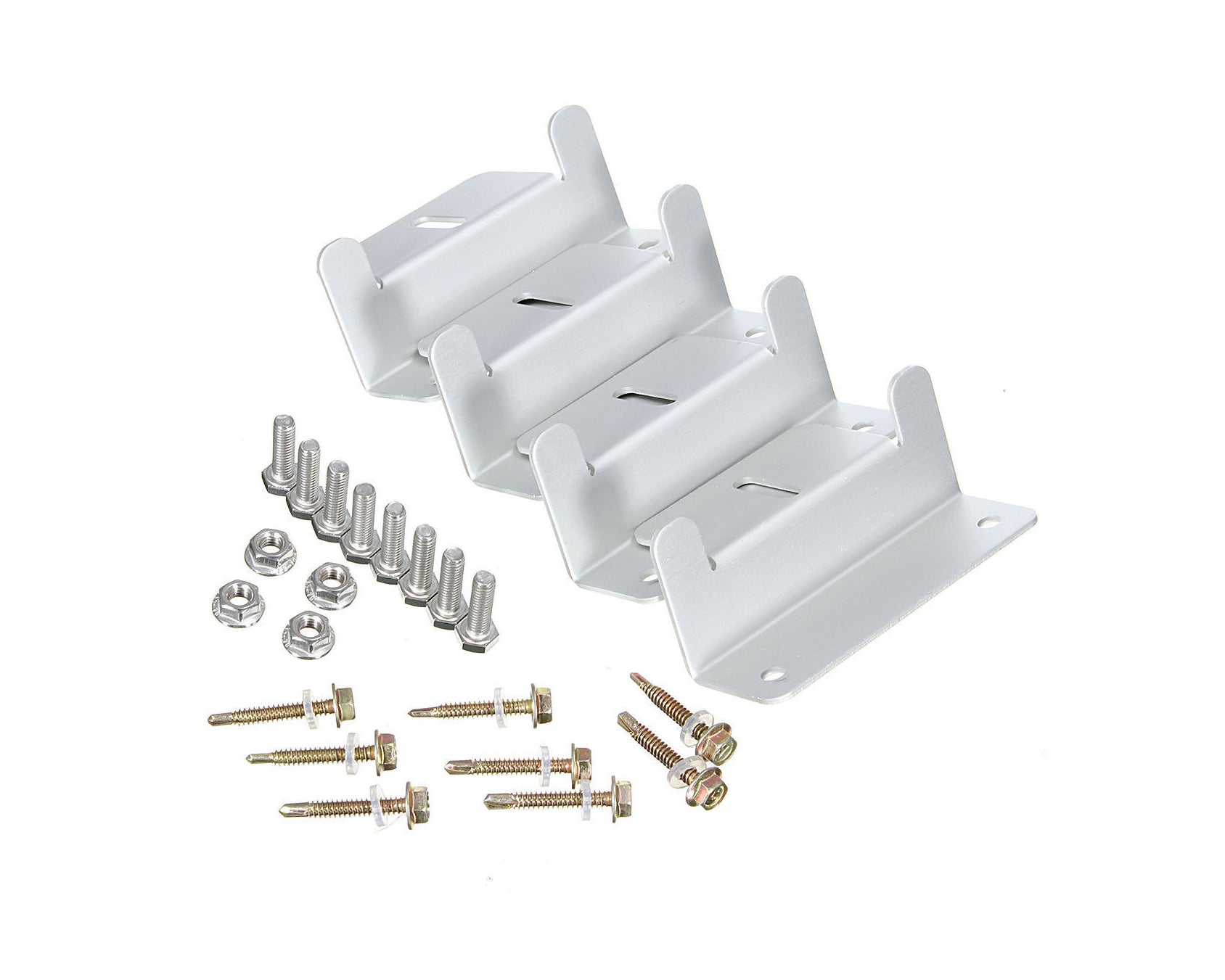

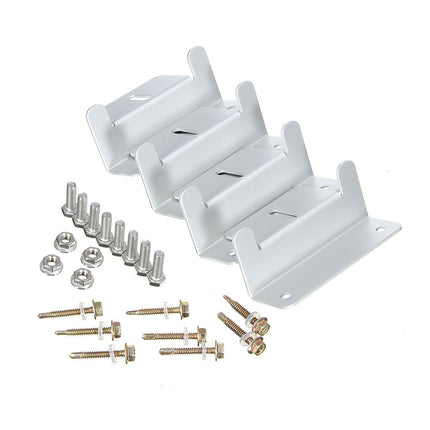

5 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $150. If you wish to upgrade, please contact us.**

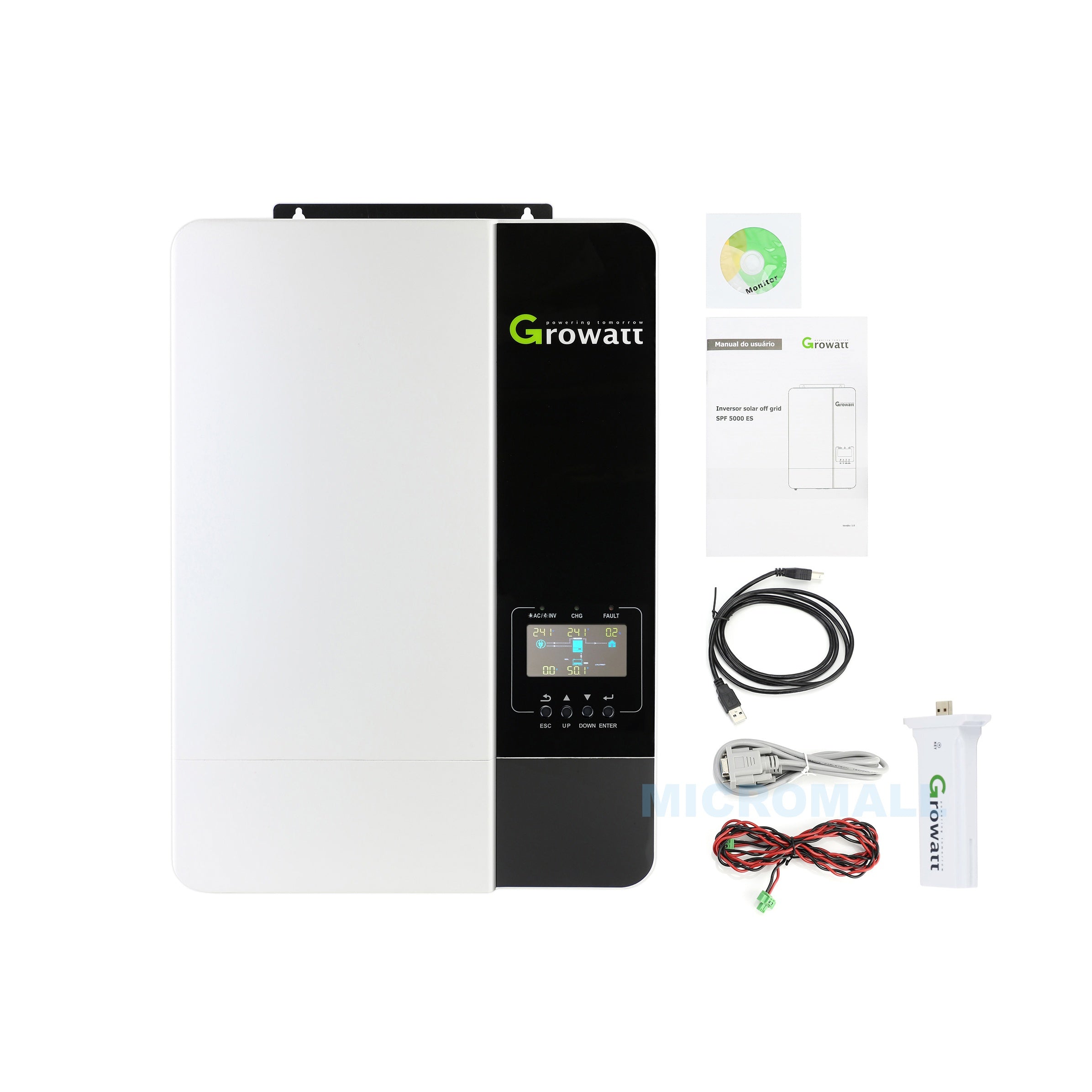

The GROWATT SPF 5000 ES is a versatile off-grid inverter suitable for a maximum circuit voltage of 450VDC. It can be used with batteries or independently. The integrated solar charger optimizes battery charging and discharging, allowing for prioritization between grid charging and PV installation charging. For monitoring purposes, a separate Wi-Fi or GPRS dongle can be added.

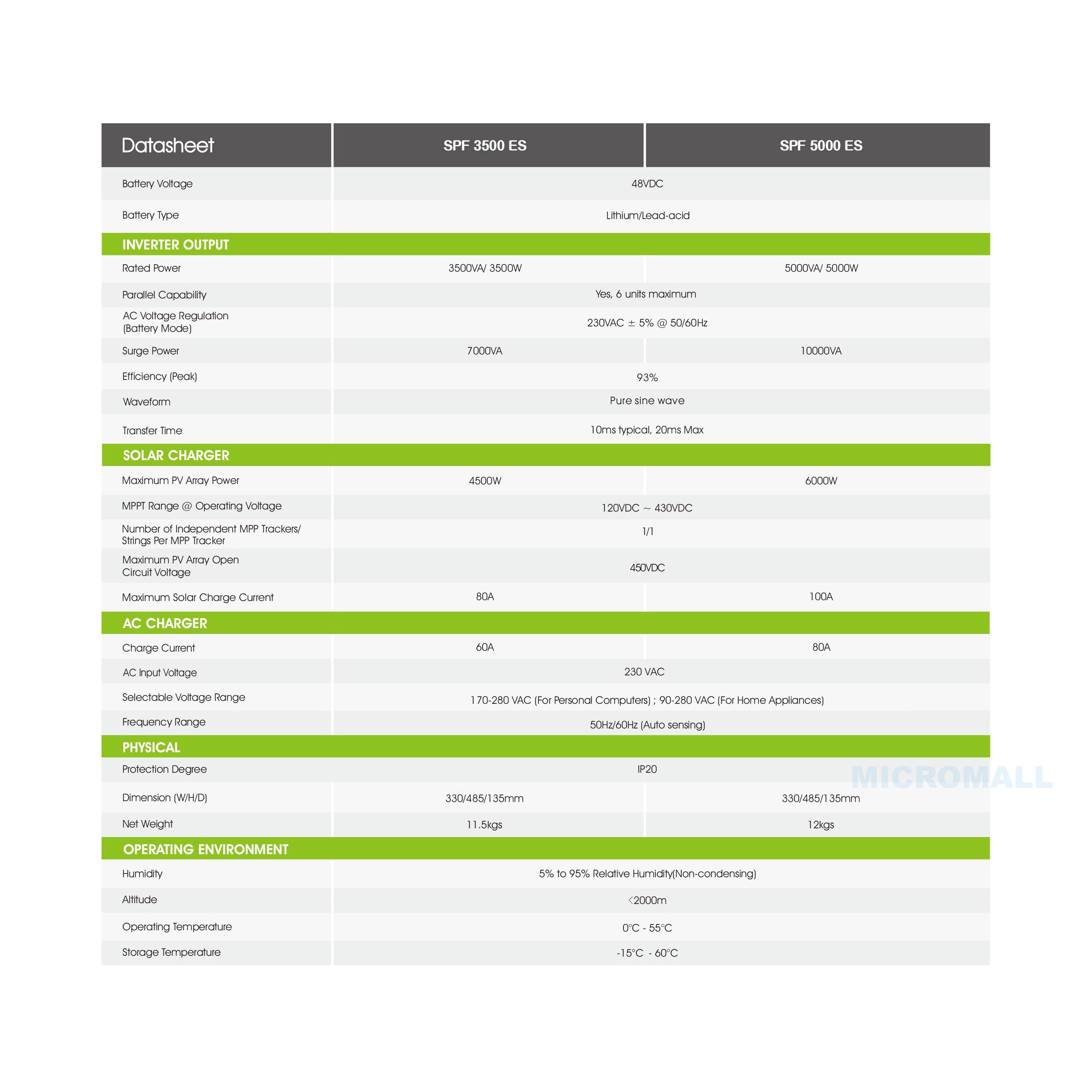

Technical Data:
Model: GROWATT SPF 5000 ES
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid/AGM/GEL
Rated Power: 5000VA/5000W
Parallel Capability: Yes, maximum 6 units
Waveform: Pure sine wave
Maximum PV Array Power: 6000W
MPPT Range @ Operating Voltage: 120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charge Current: 100A
AC Charge Current: 80A
Dimensions: 330x485x135mm
Weight: 12kg
This inverter fully complies with AS/NZS4777 and the new AS/NZS5033+ IEC 62109-1 & IEC 62109-2 + AS/NZS 5033:2014 Compliance (latest NZ 2015 spec requirements).
Daily Output 11KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
