Description

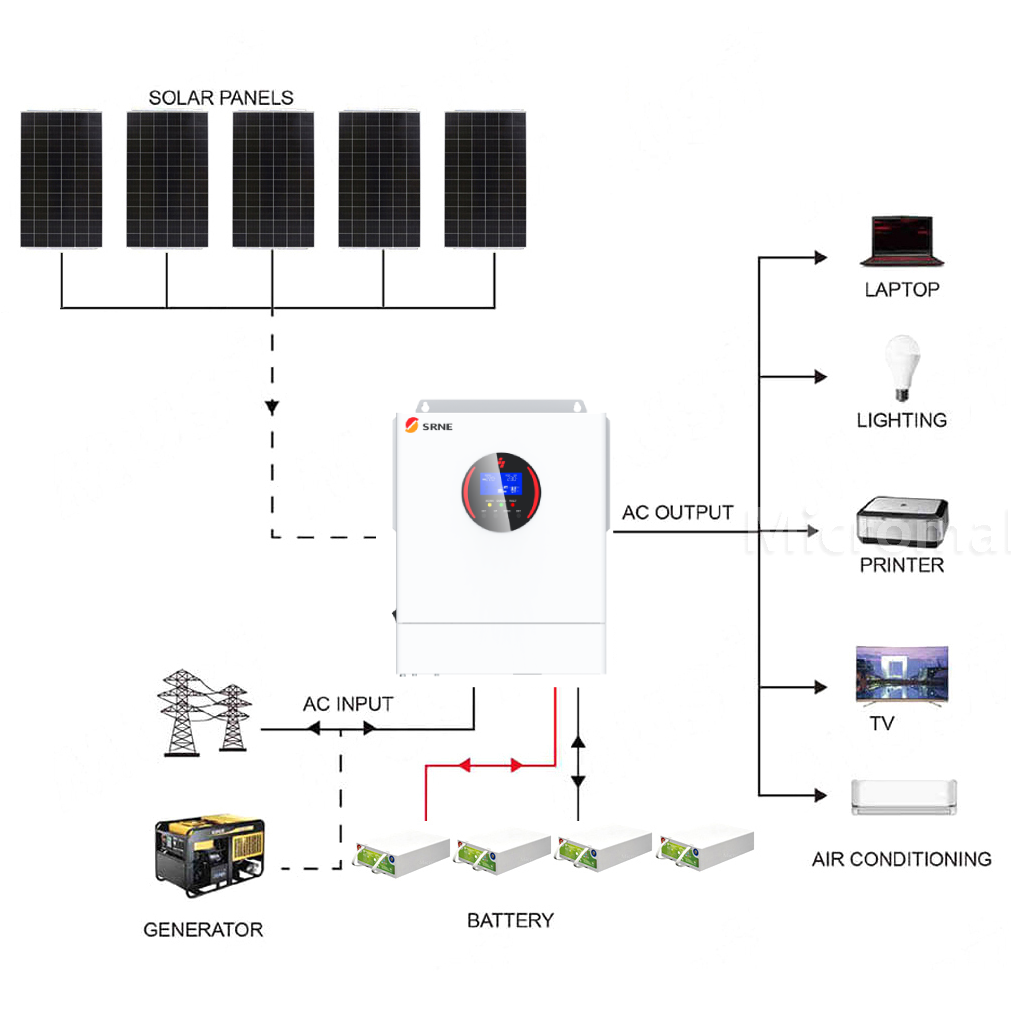

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
Package includes:

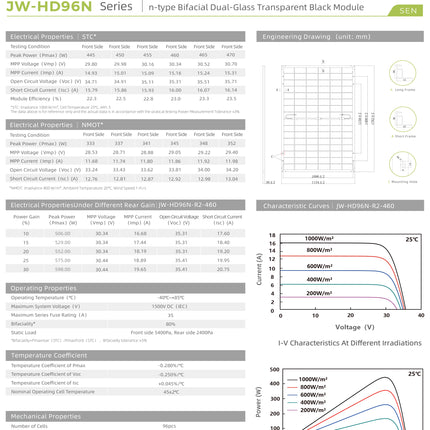

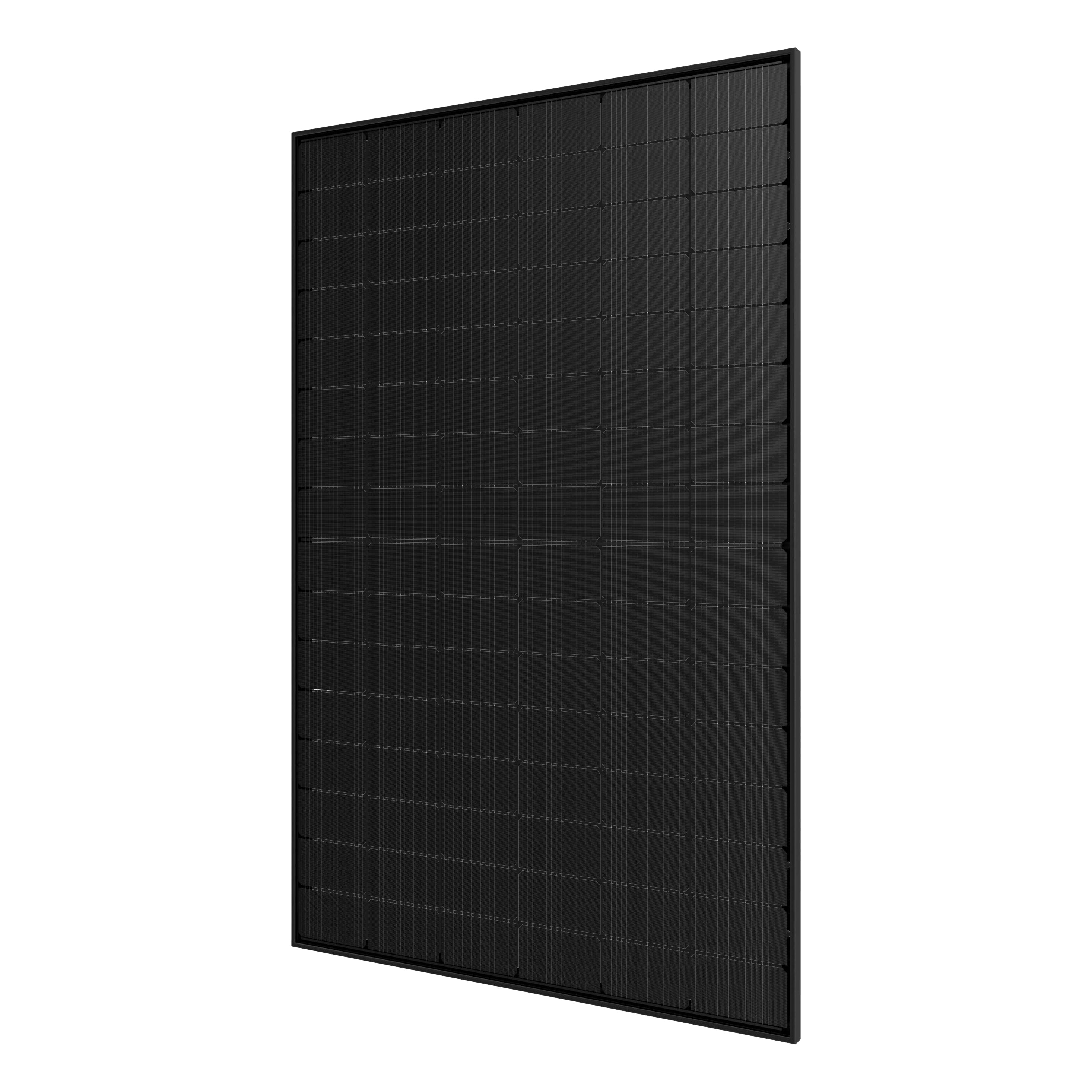

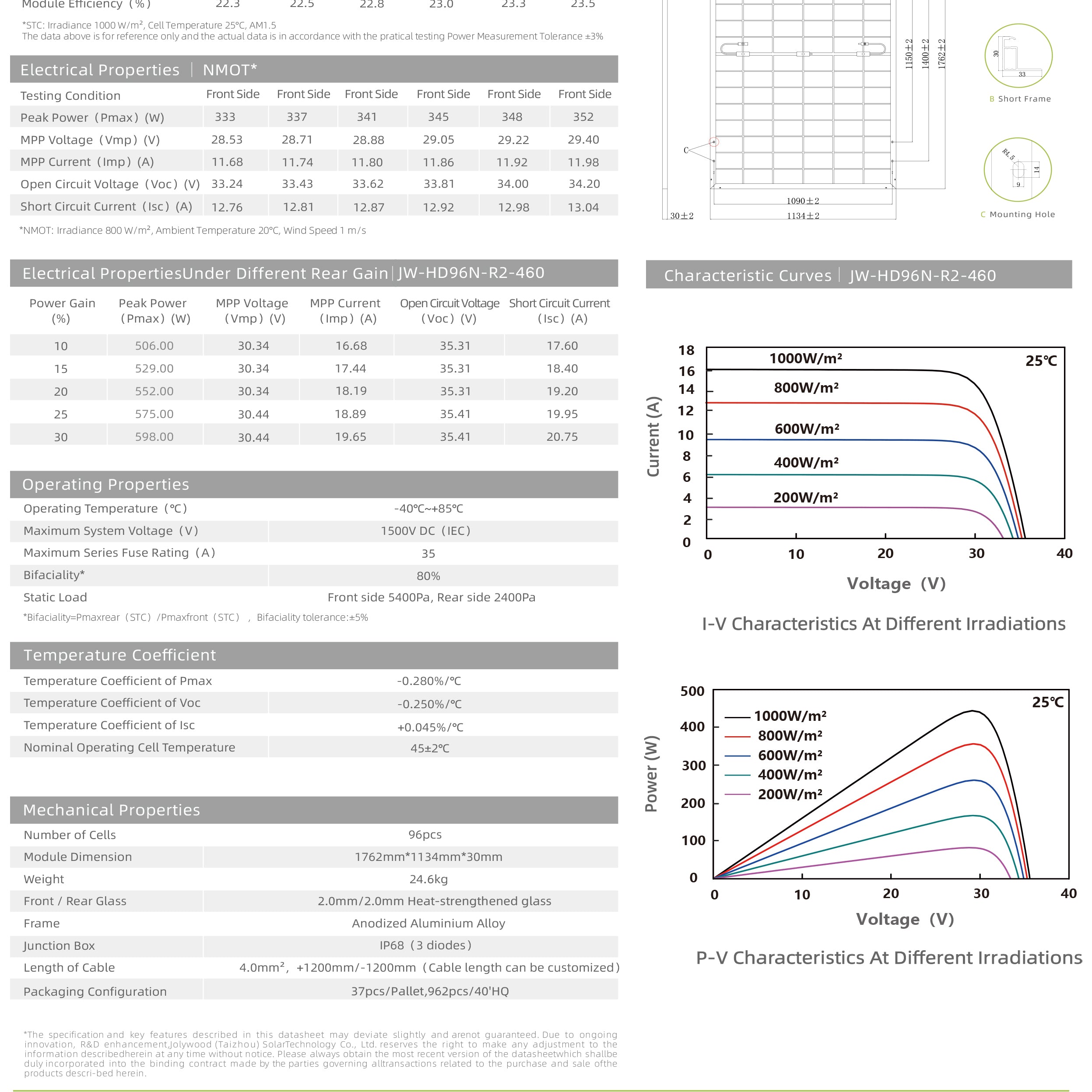

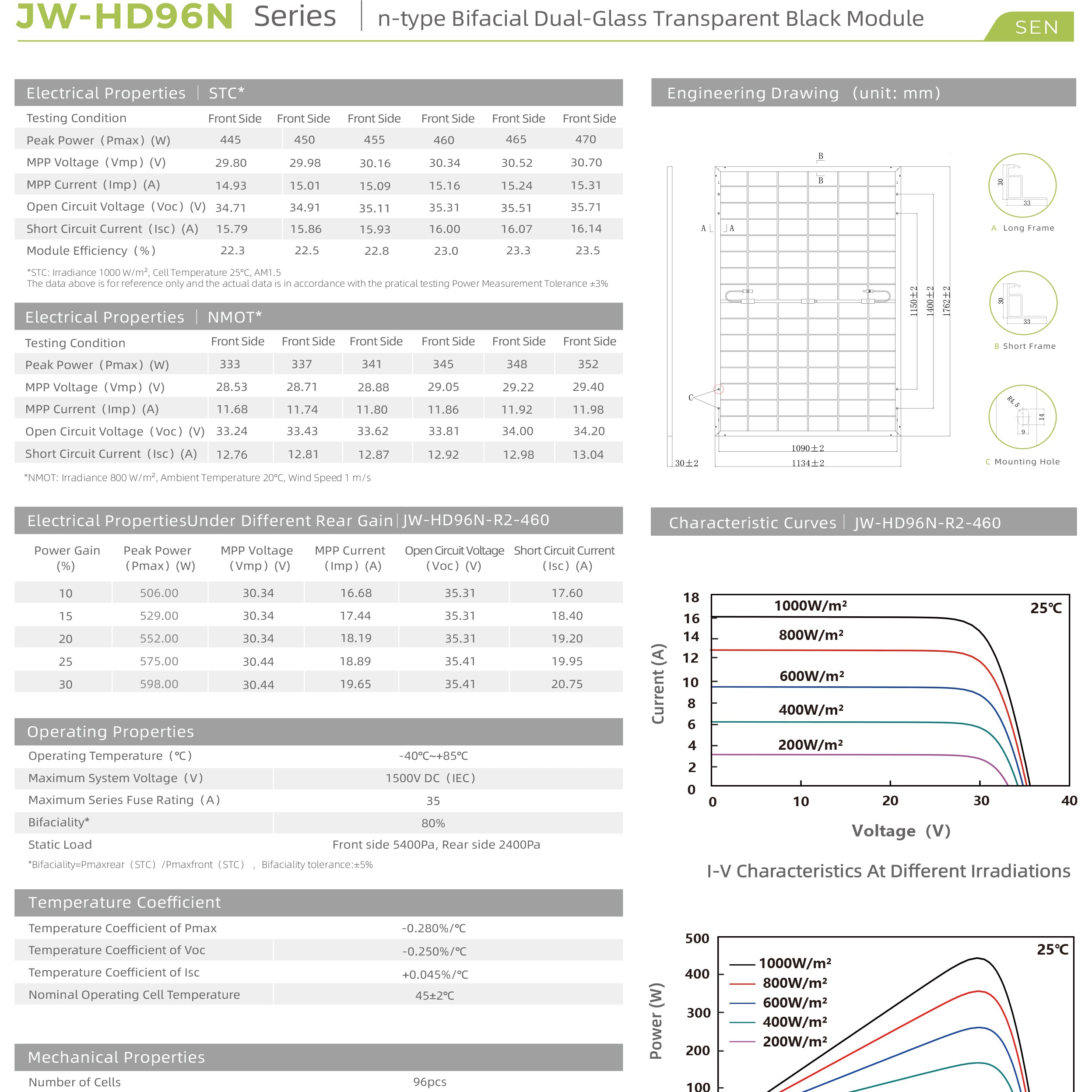

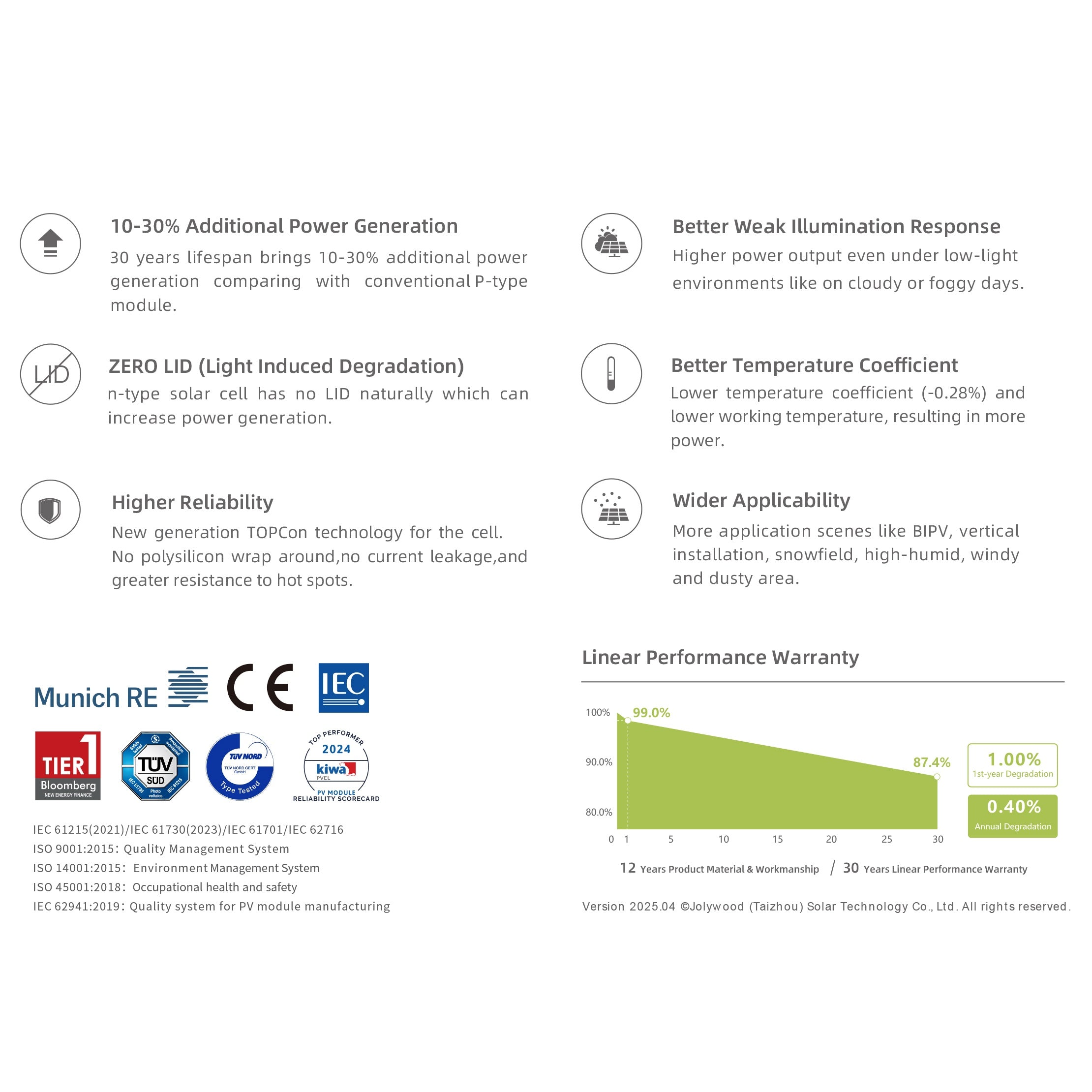

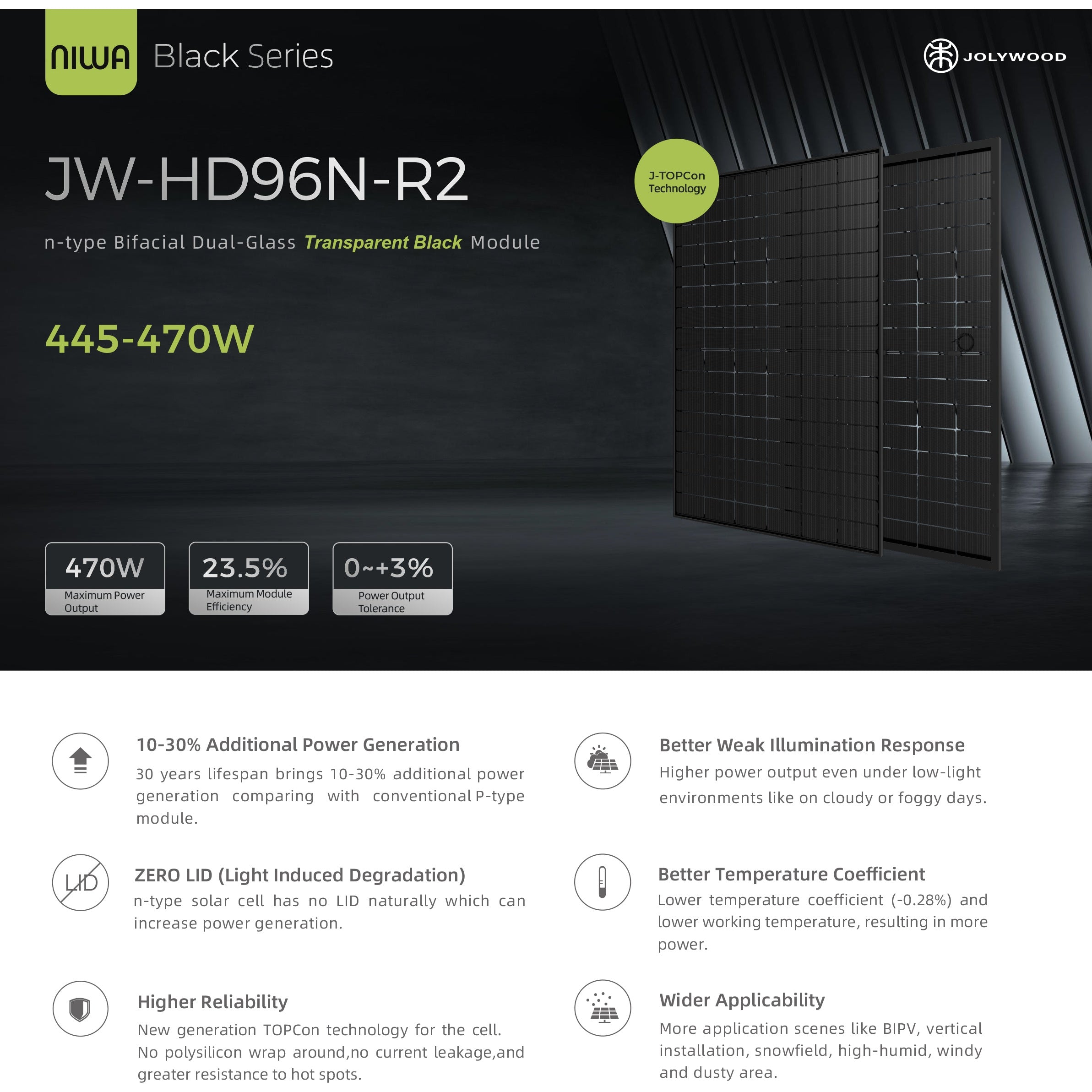

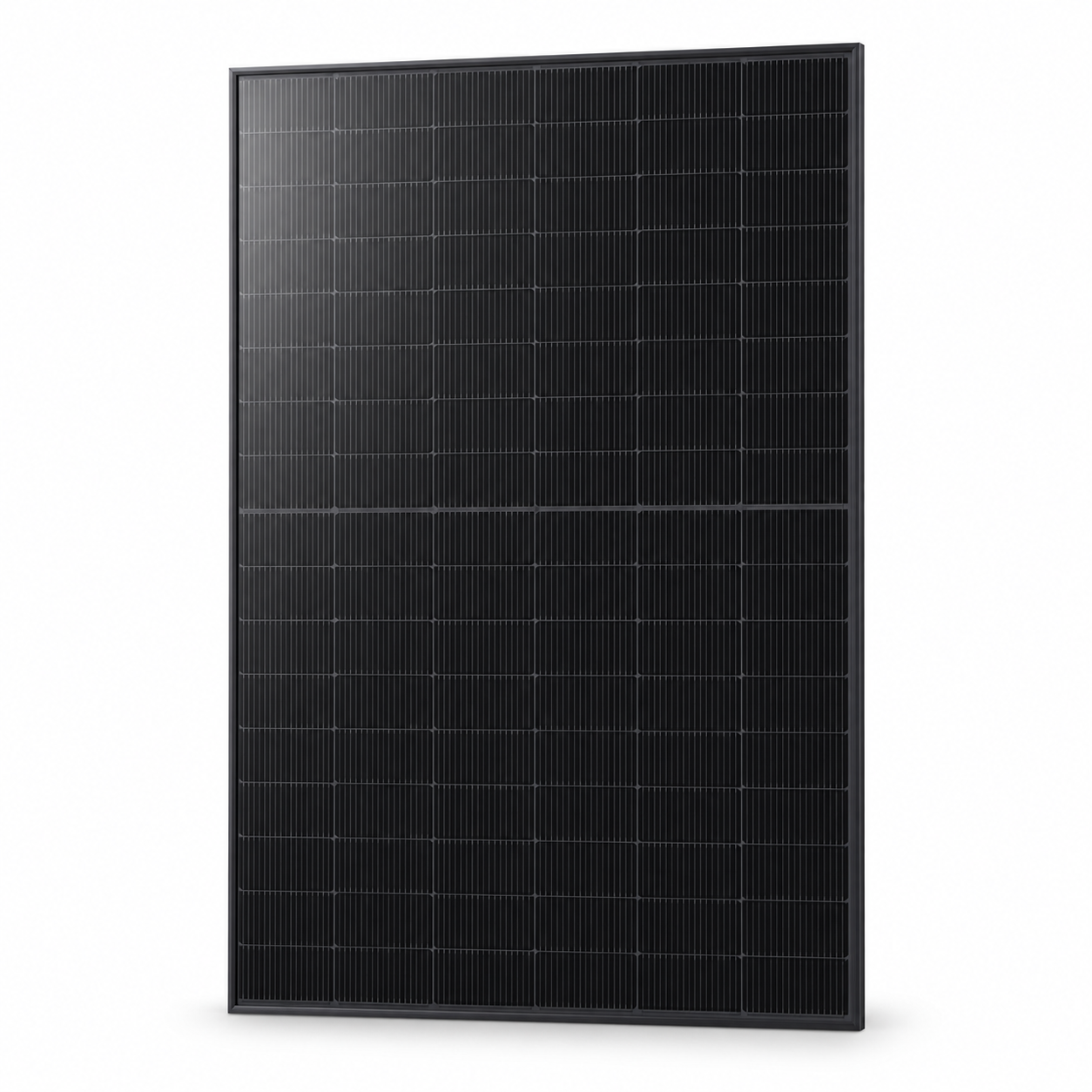

5 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell

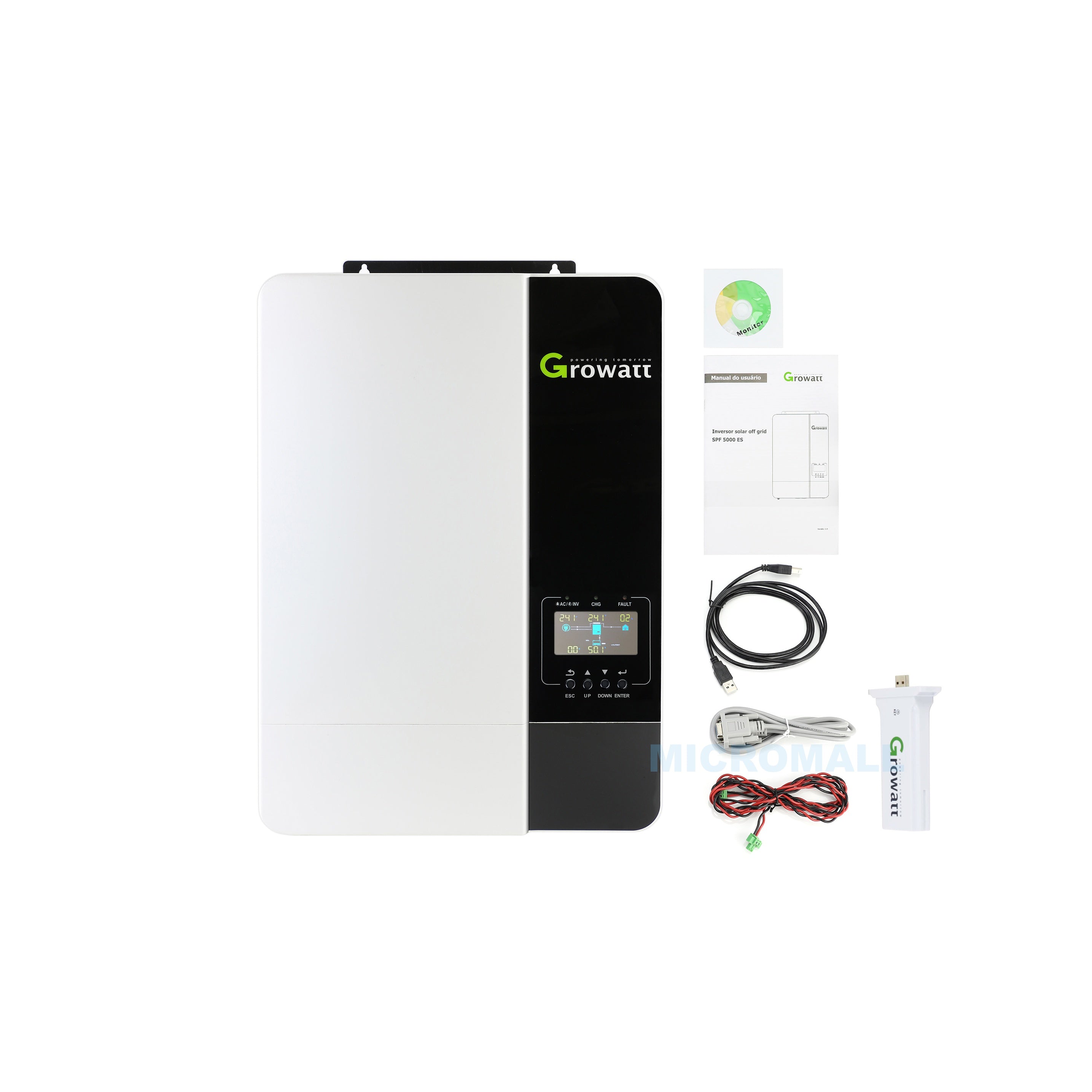

1 x GROWATT SPF 5000ES 48V 5000W HYBRID Charger Inverter (2 years warranty)

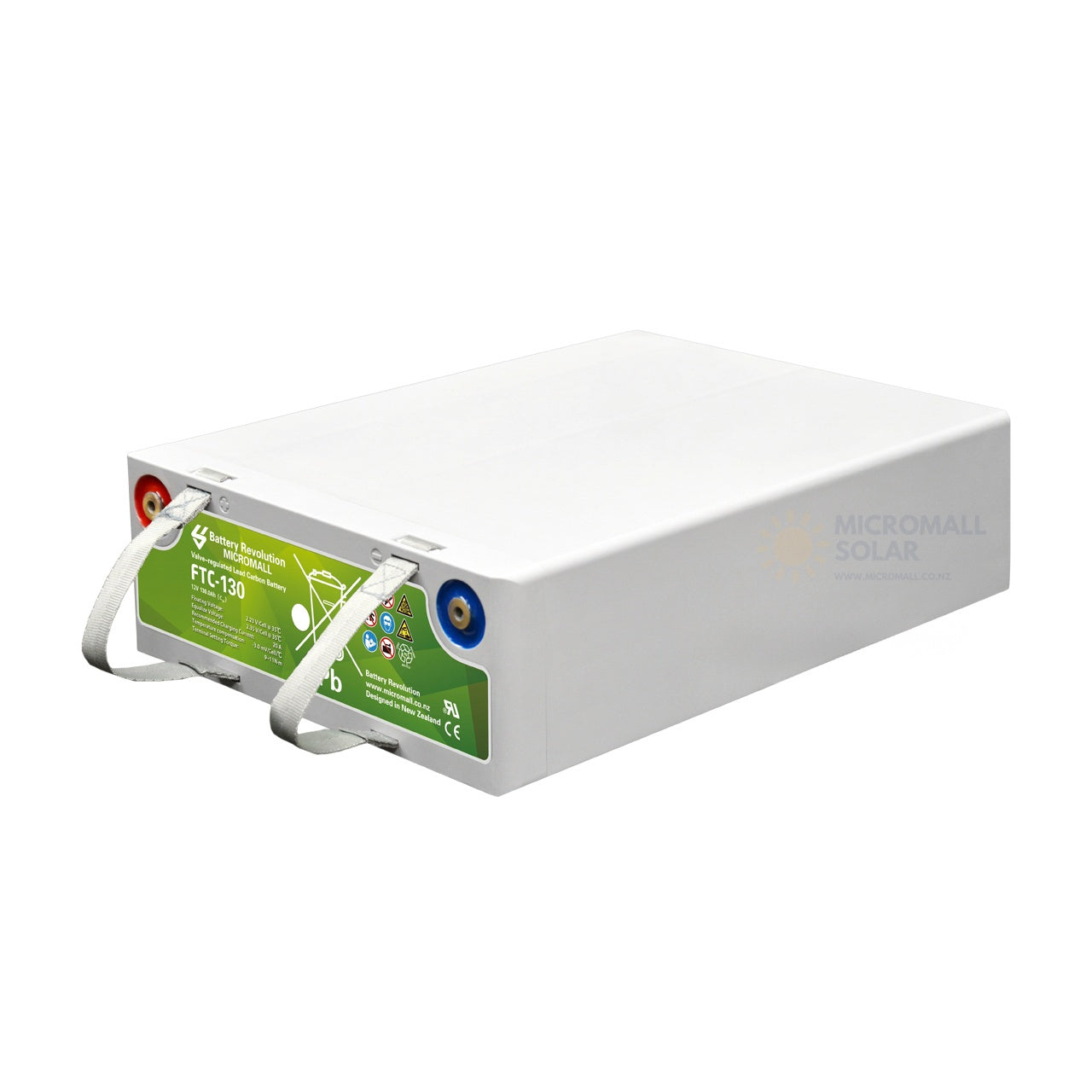

4 x 12V 130Ah Ultra Lead Carbon Batteries (2 Years Warranty)
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV 16a Fuse

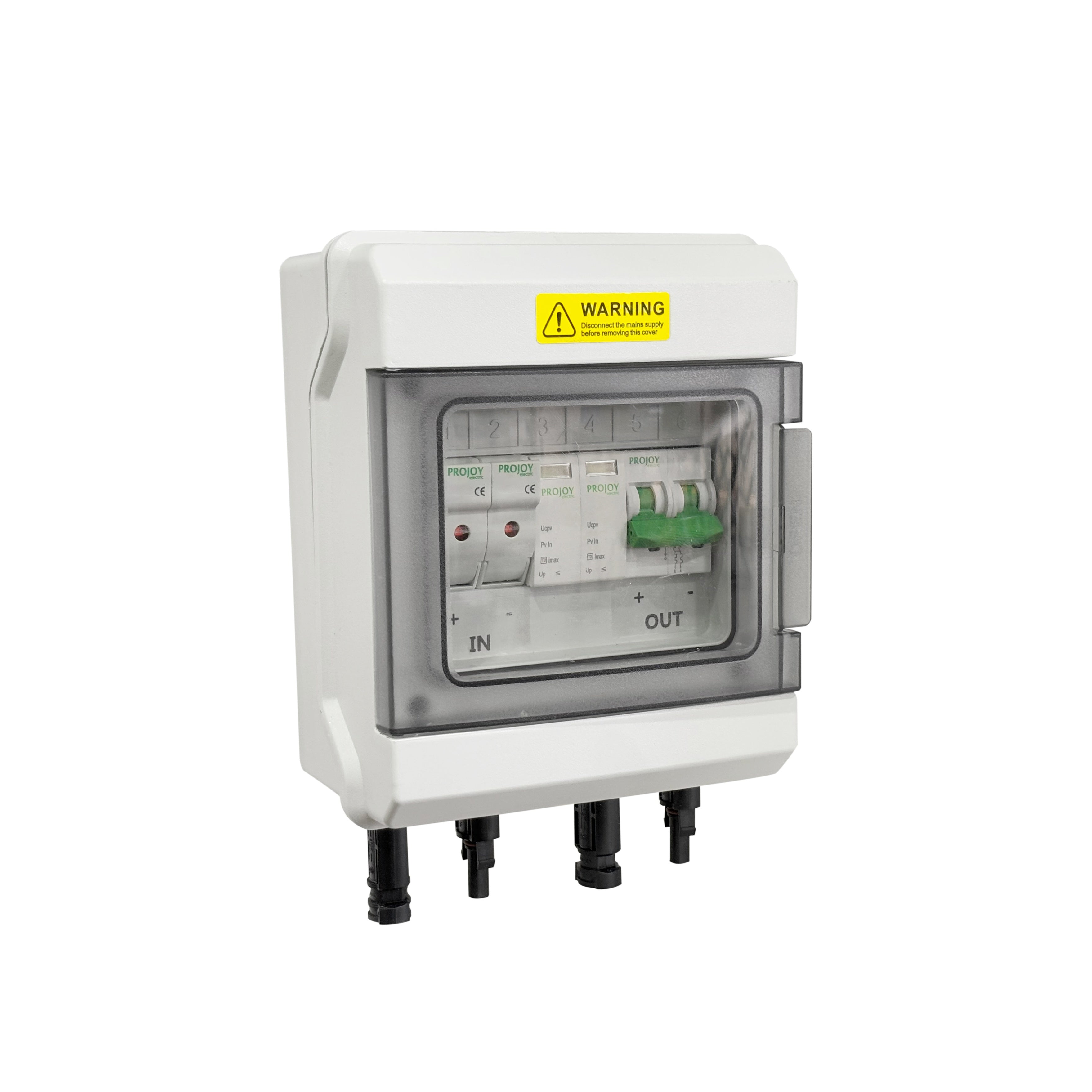

1 x PV Circuit Breaker 500v 25a

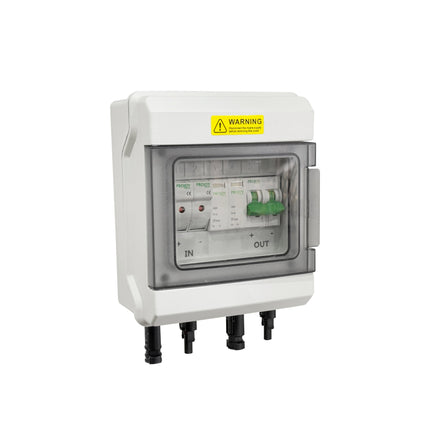

1 x Surge
1 x Isolator
5 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $150. If you wish to upgrade, please contact us.**

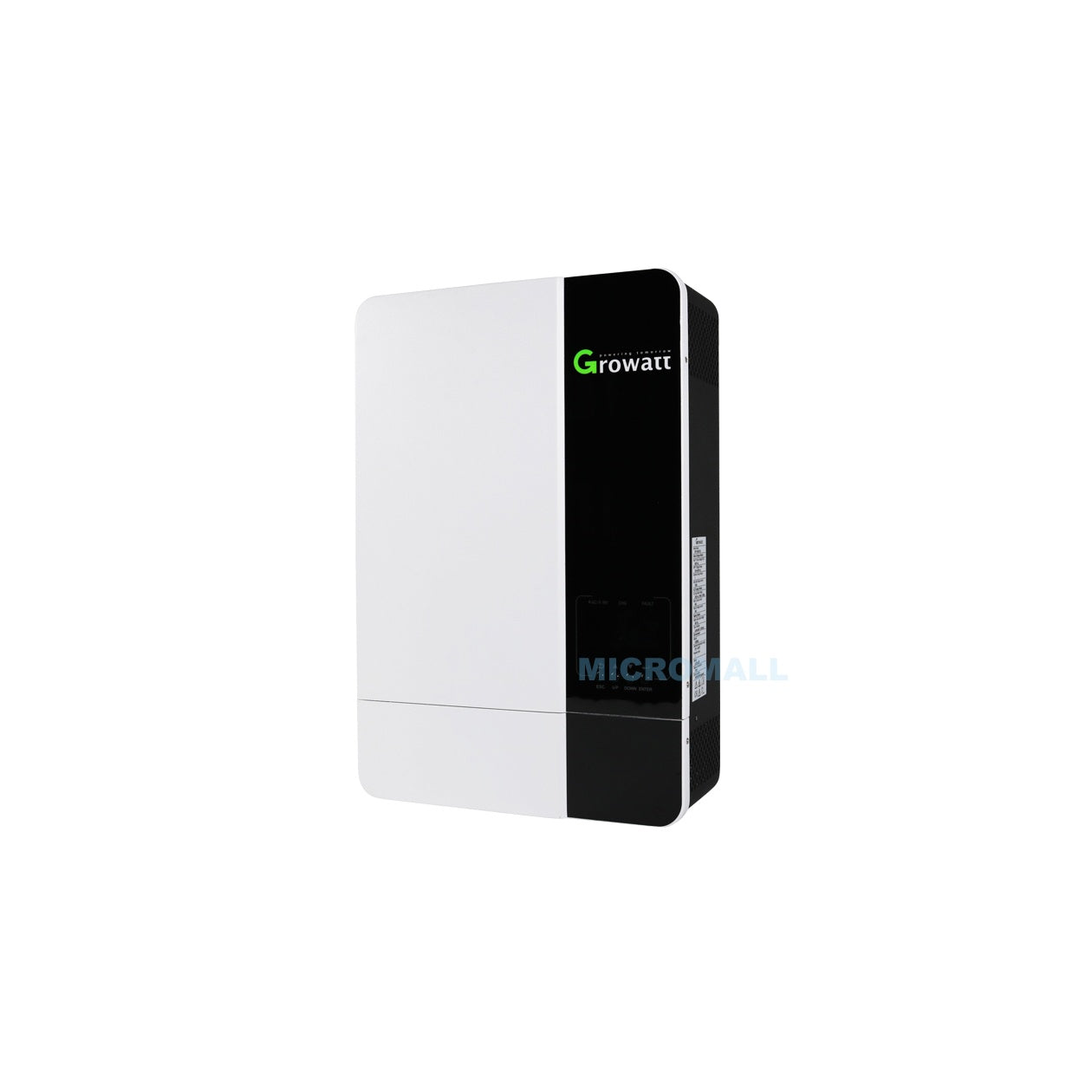

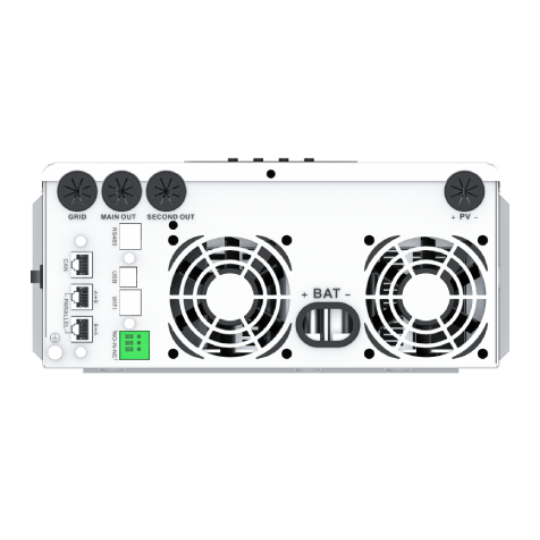

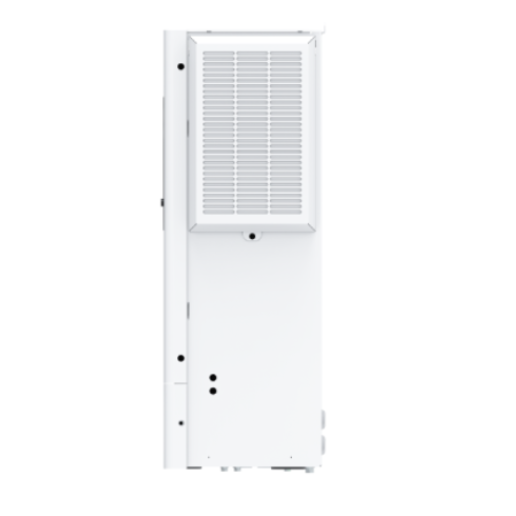

The Growatt SPF 5000 ES is an off-grid inverter. It is suitable for a maximum circuit voltage of 450VDC. The inverter can be used with batteries, but can also work without. The integrated solar charger optimizes the charging and discharging of the battery. Priorities can be assigned, where for example charging from the grid can be preferred overcharging from the PV installation. Monitoring will be possible when adding a separate Wi-Fi or GPRS dongle.

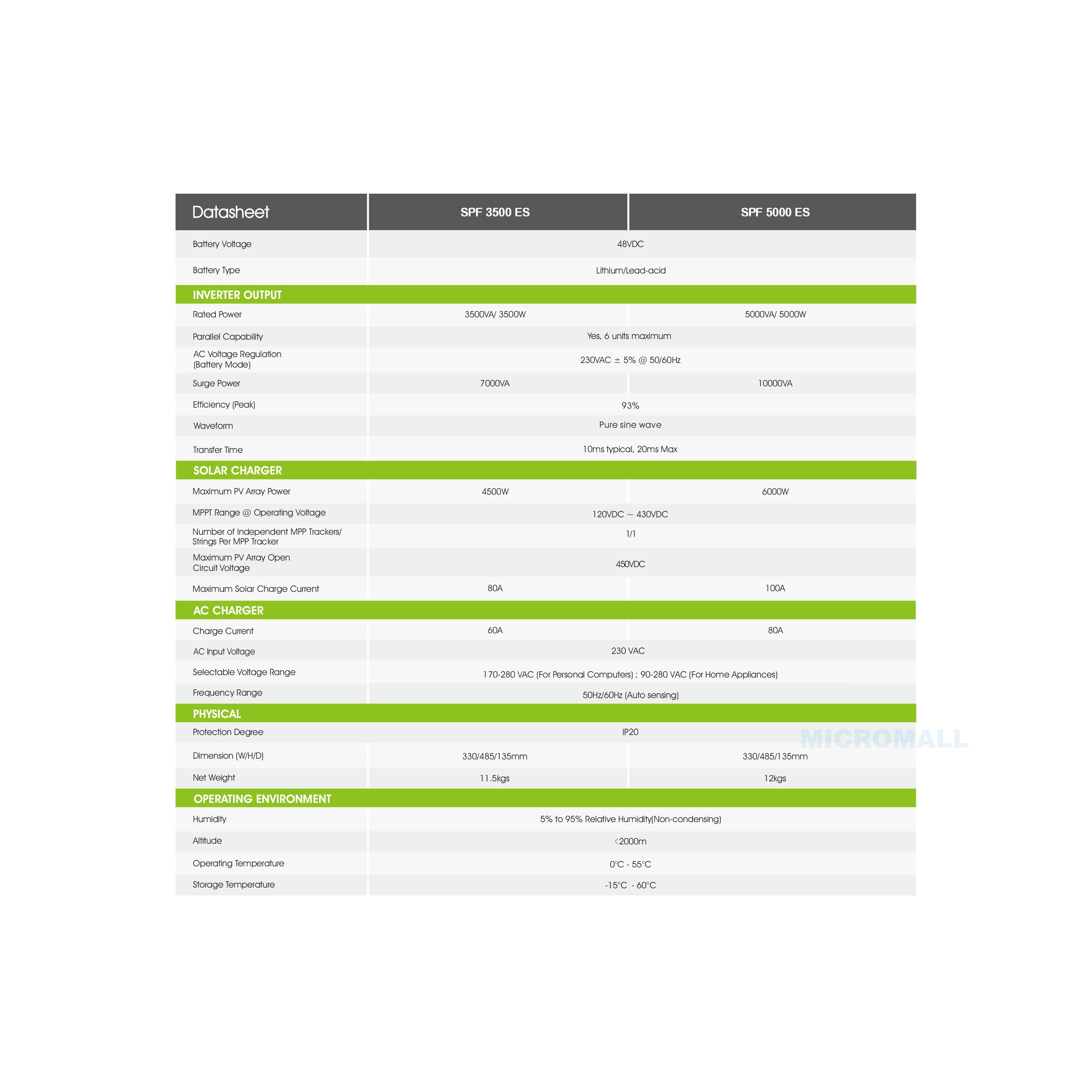

Technical Data
Model: Growatt SPF 5000 ES
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid/AGM/GEL
Rated Power: 5000VA/5000W
Parallel Capability: Yes, 6 units maximum
Waveform: Pure sine wave
Maximum PV Array Power: 6000W
MPPT Range @ Operating Voltage: 120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Solar Charge Current: 100A
AC Charge Current: 80A
Dimensions: 330x485x135mm
Weight: 12kg
Daily Output 13KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
Fully complies with AS/NZS4777 and the new AS/NZS5033+ IEC 62109-1 & IEC 62109-2 + AS/NZS 5033:2014 Compliance (latest NZ 2015 spec requirements).
SAA NZ Certificated Inverter
