Description

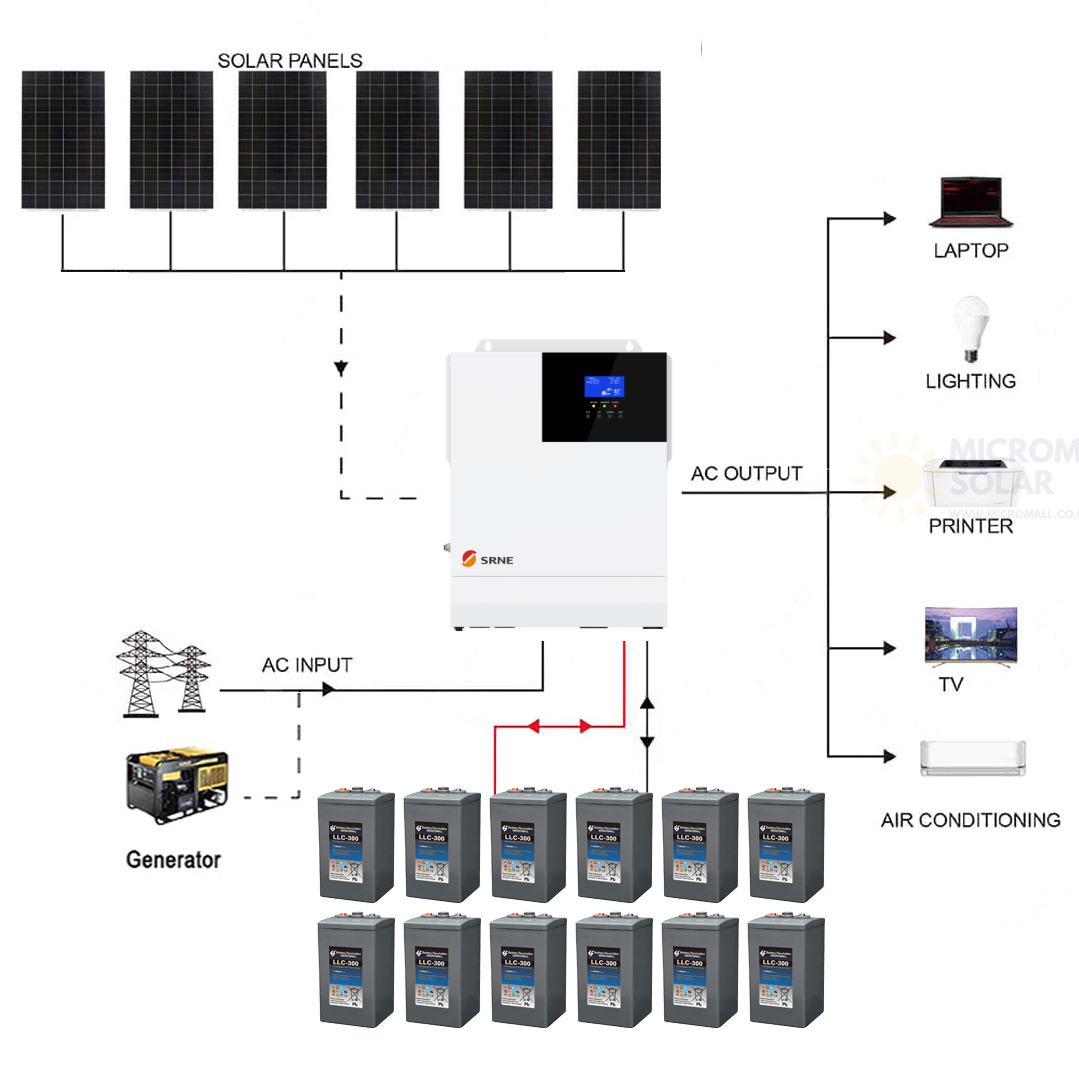

Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.
Package includes

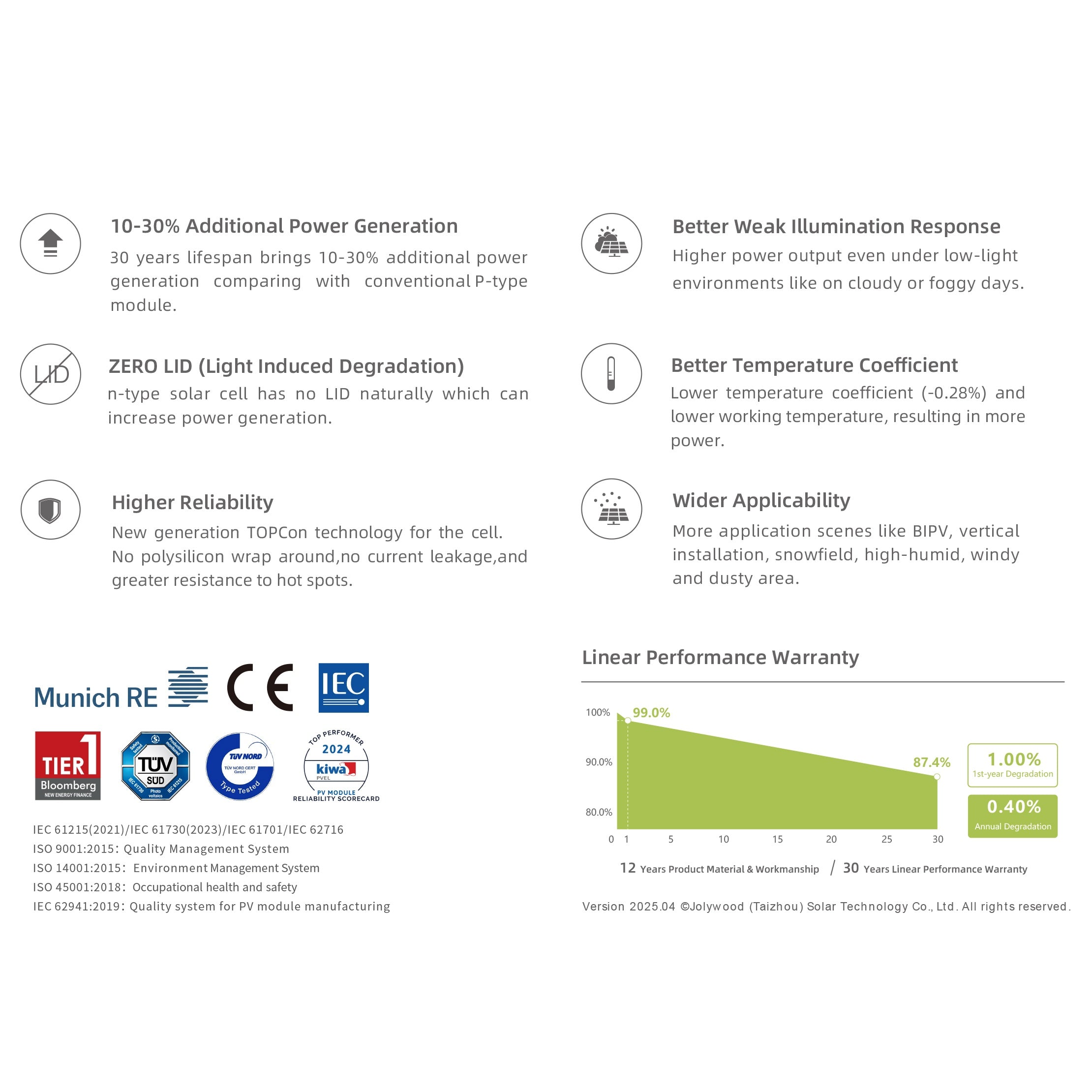

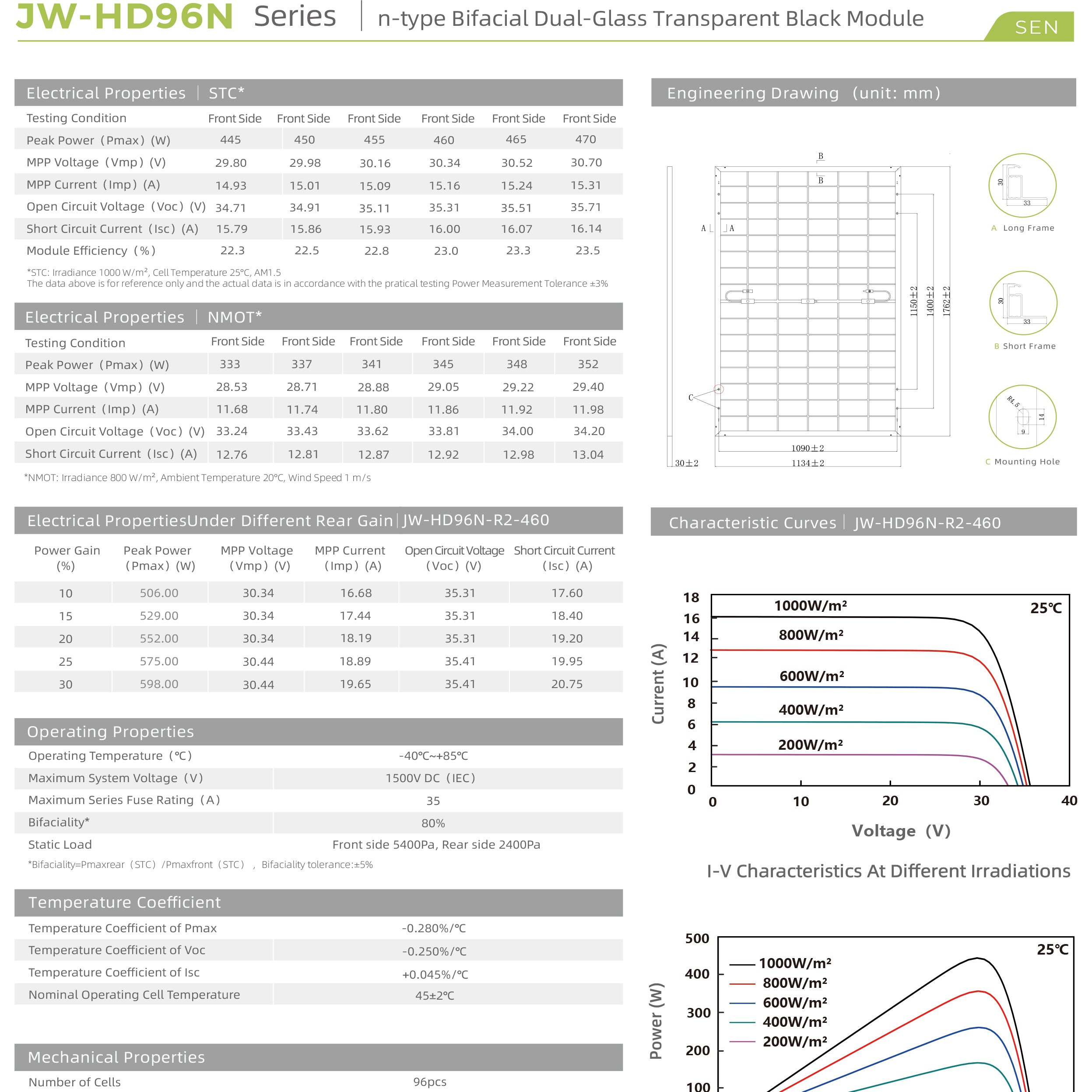

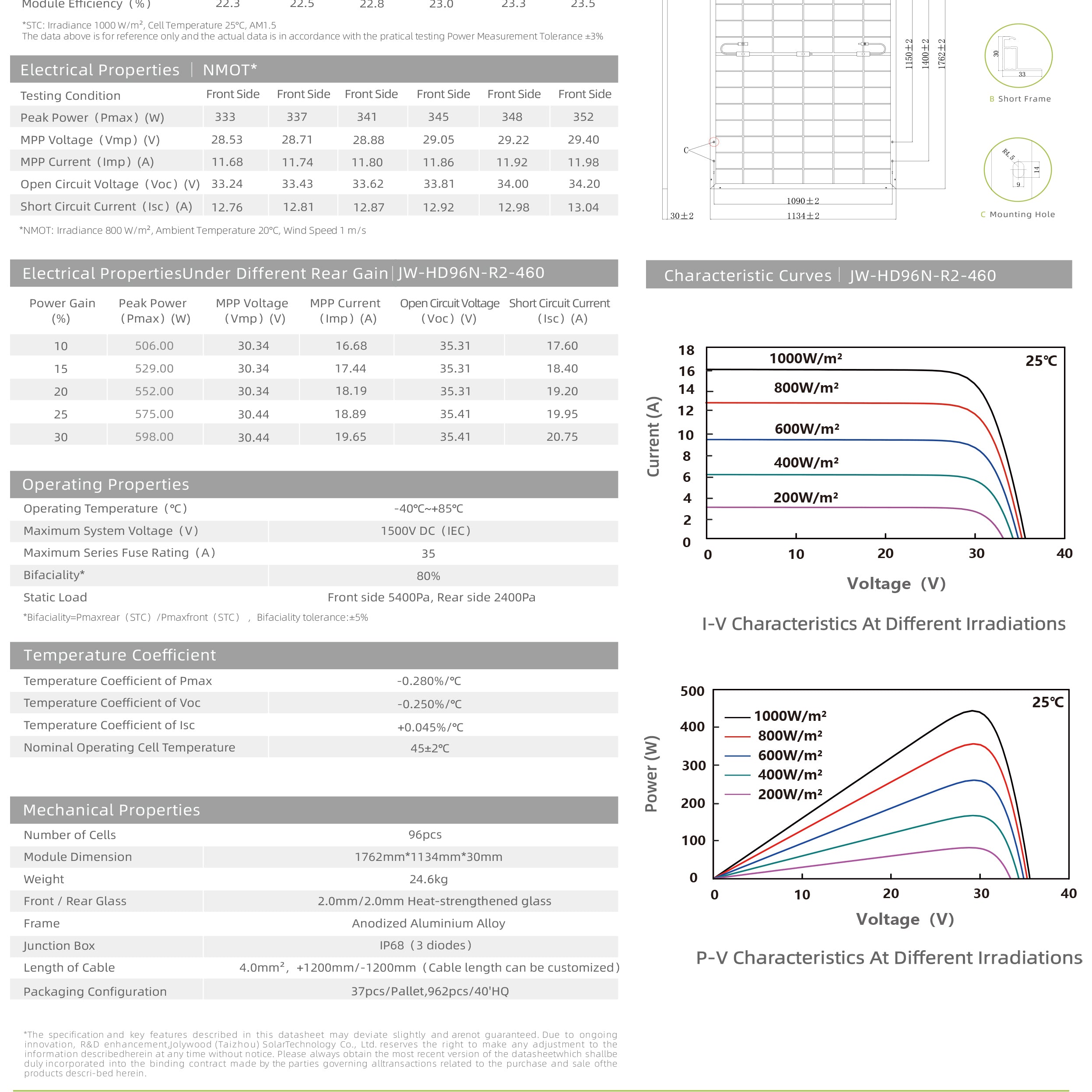

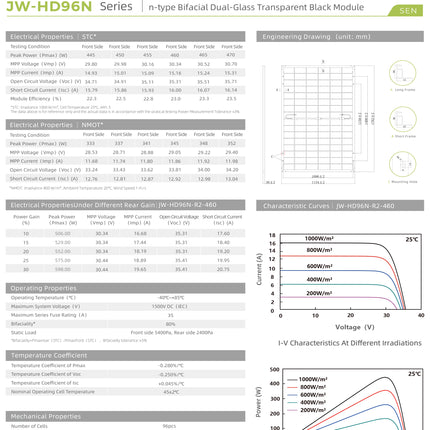

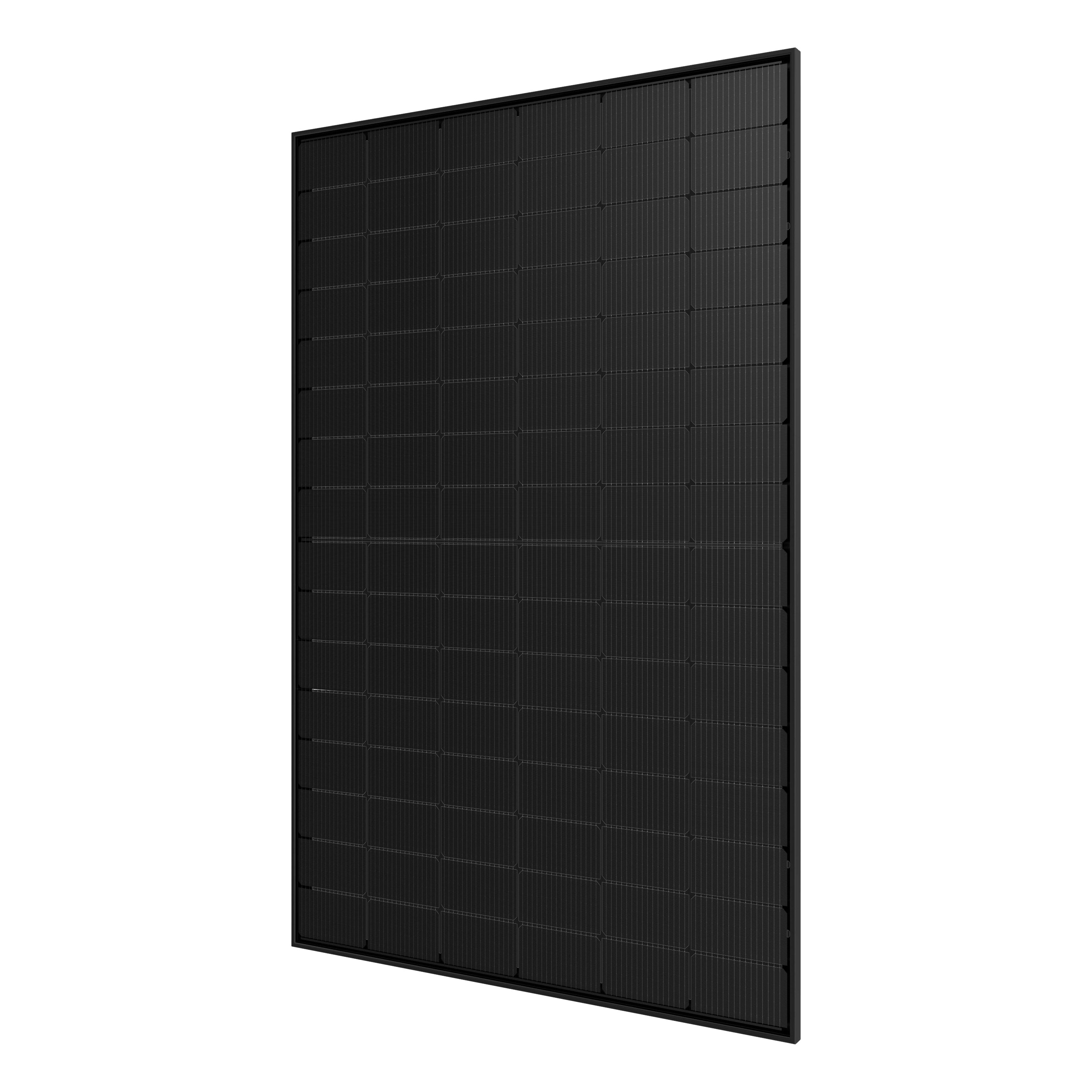

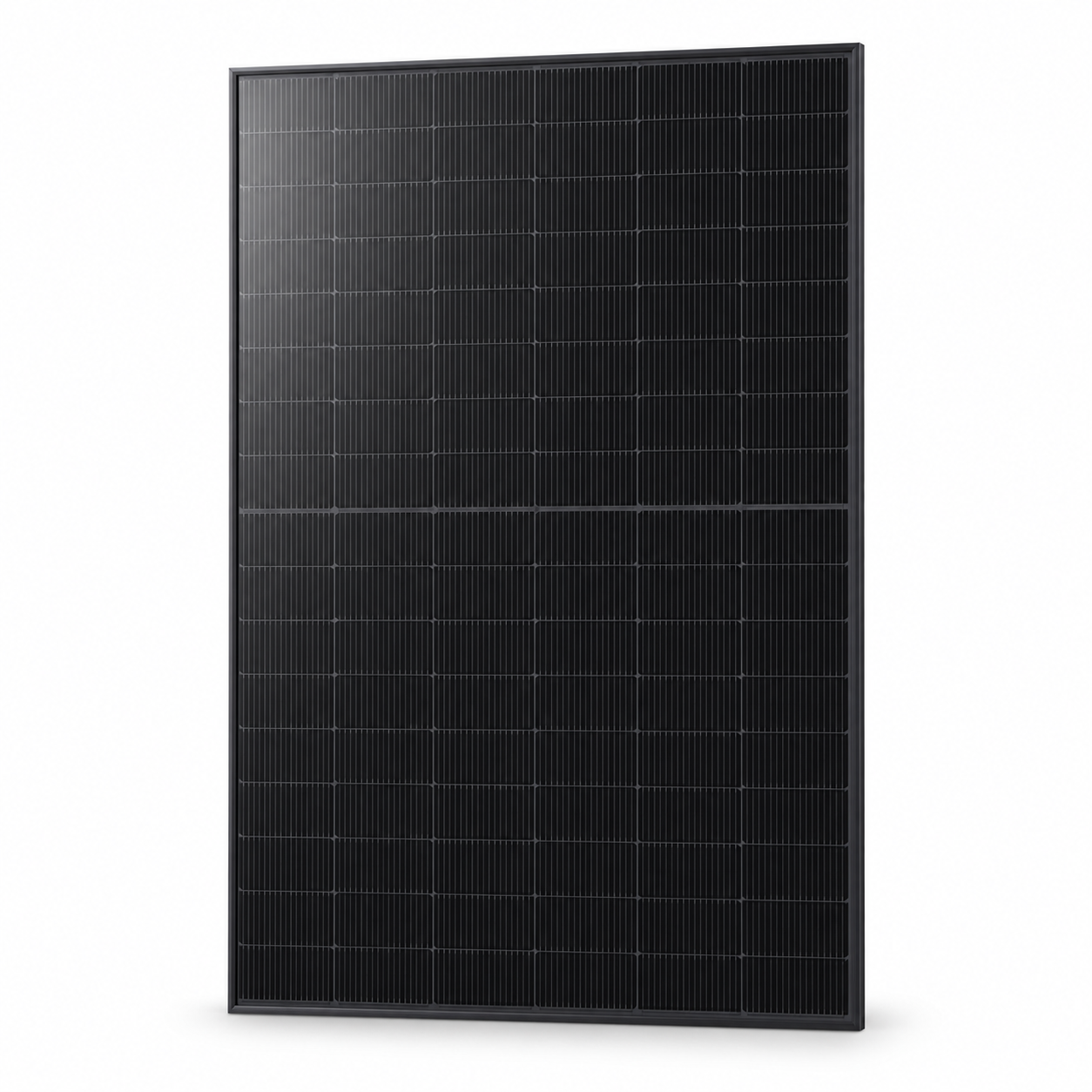

6 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell

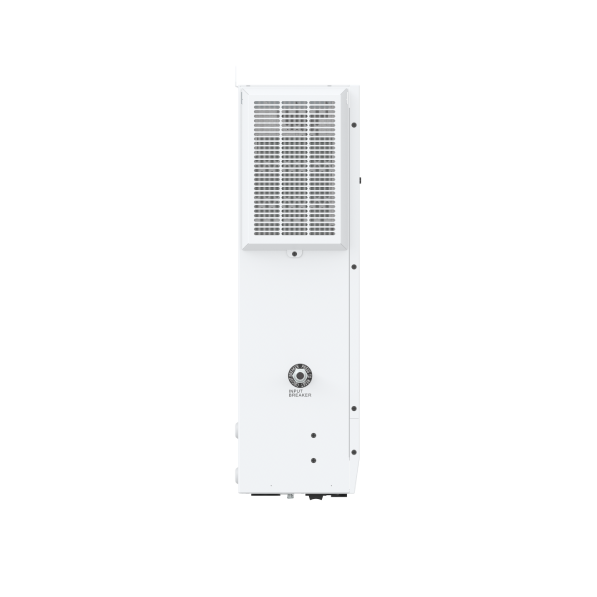

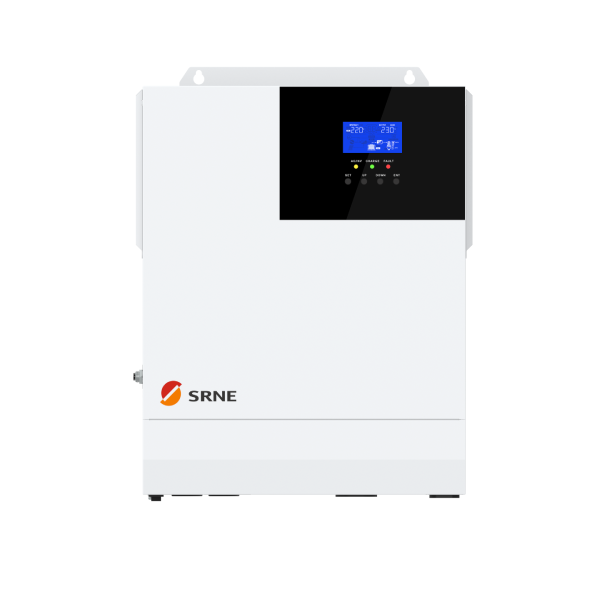

1 x 3000W SRNE Single Phase Off-Grid Solar Storage Inverter HF2430S60-100 (2 years warranty)

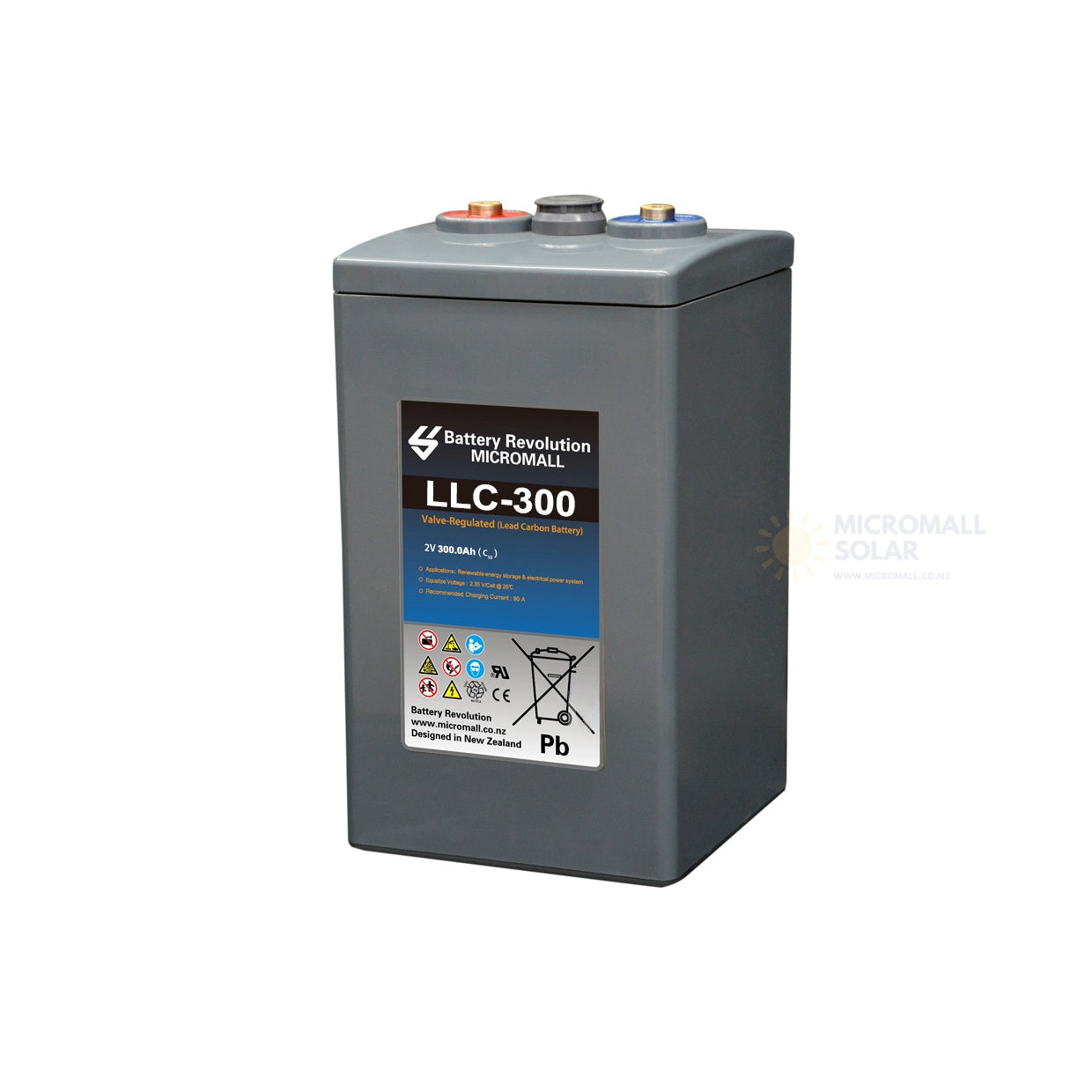

12 x 2V 300Ah Ultra Carbon Battery (2 Years Warranty)
1 x 10m Twin 6mm PV Extension Cables with MC4 Connectors
1 x 2 in 1 MC4 Connectors
2 x PV Fuse

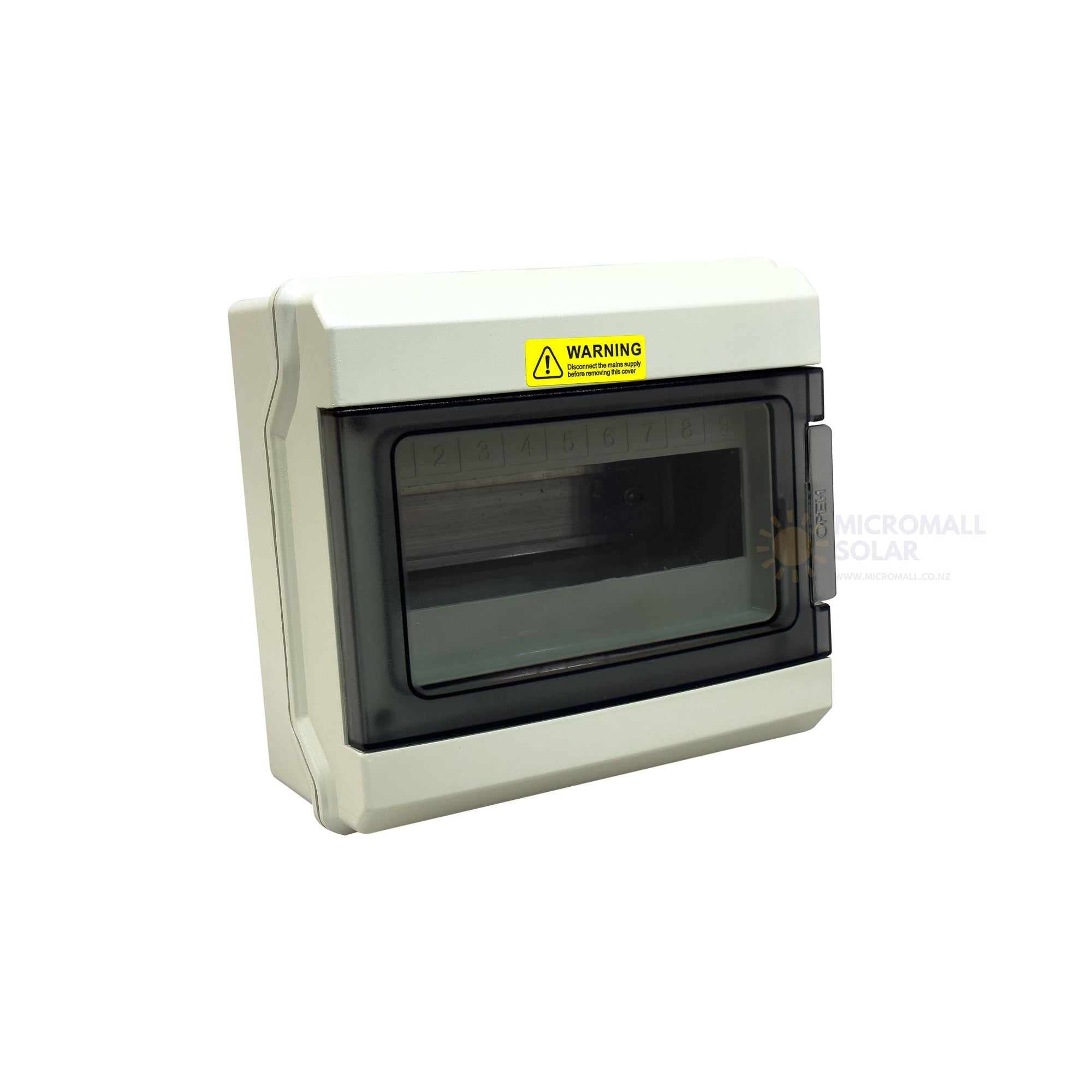

1 x PV Circuit Breaker
1 x Surge Protector

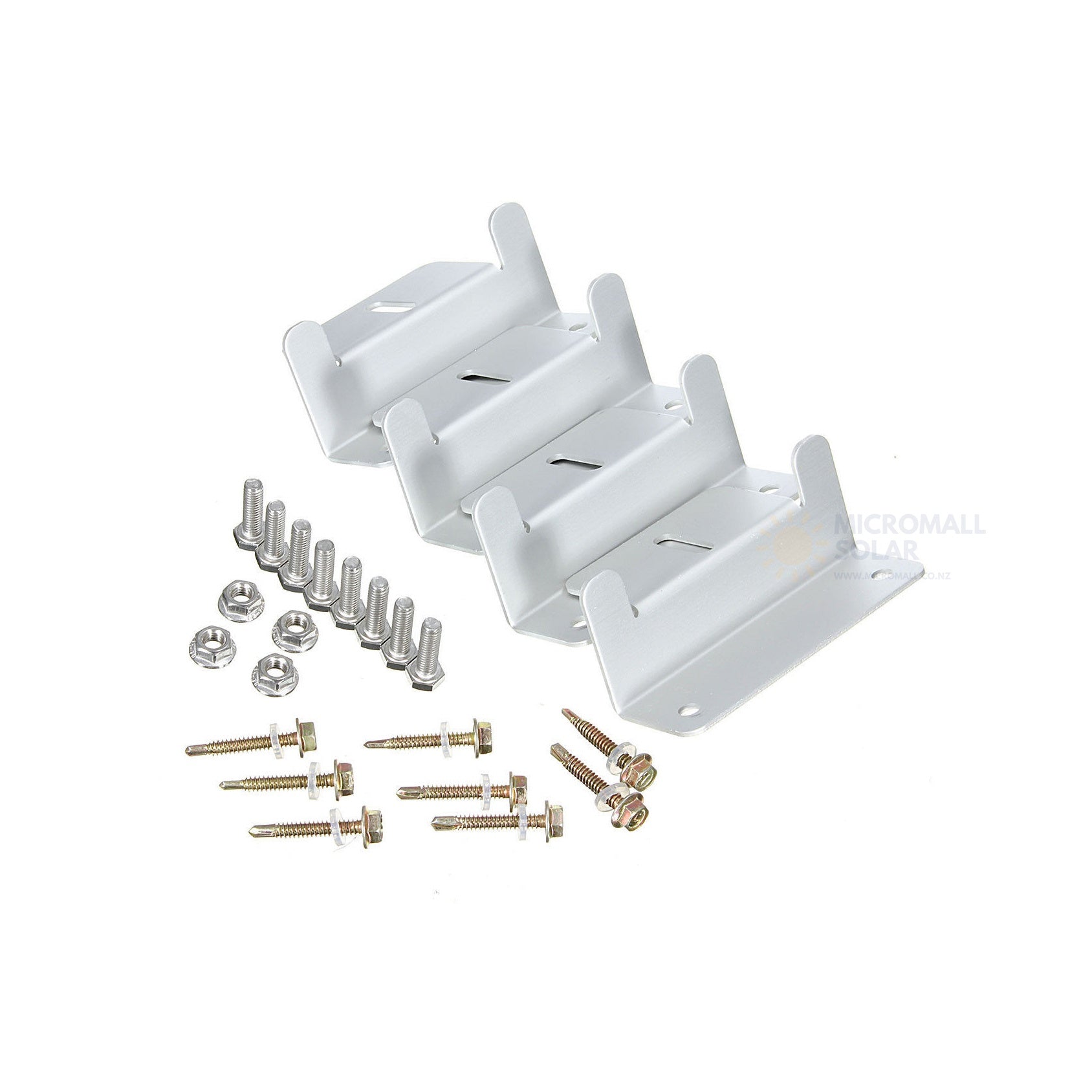

6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Features
Compatible with 48V storage batteries.
Multiple charging and on-load modes to maximise energy use.
Efficient heat dissipation, prolonging system life.
Support remote monitoring of equipment operating parameters.
Equipped with unique functions such as dual activation for lithium batteries.

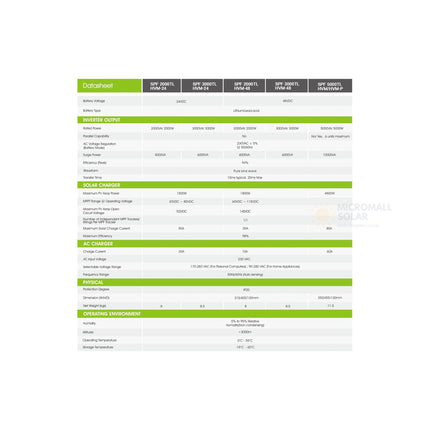

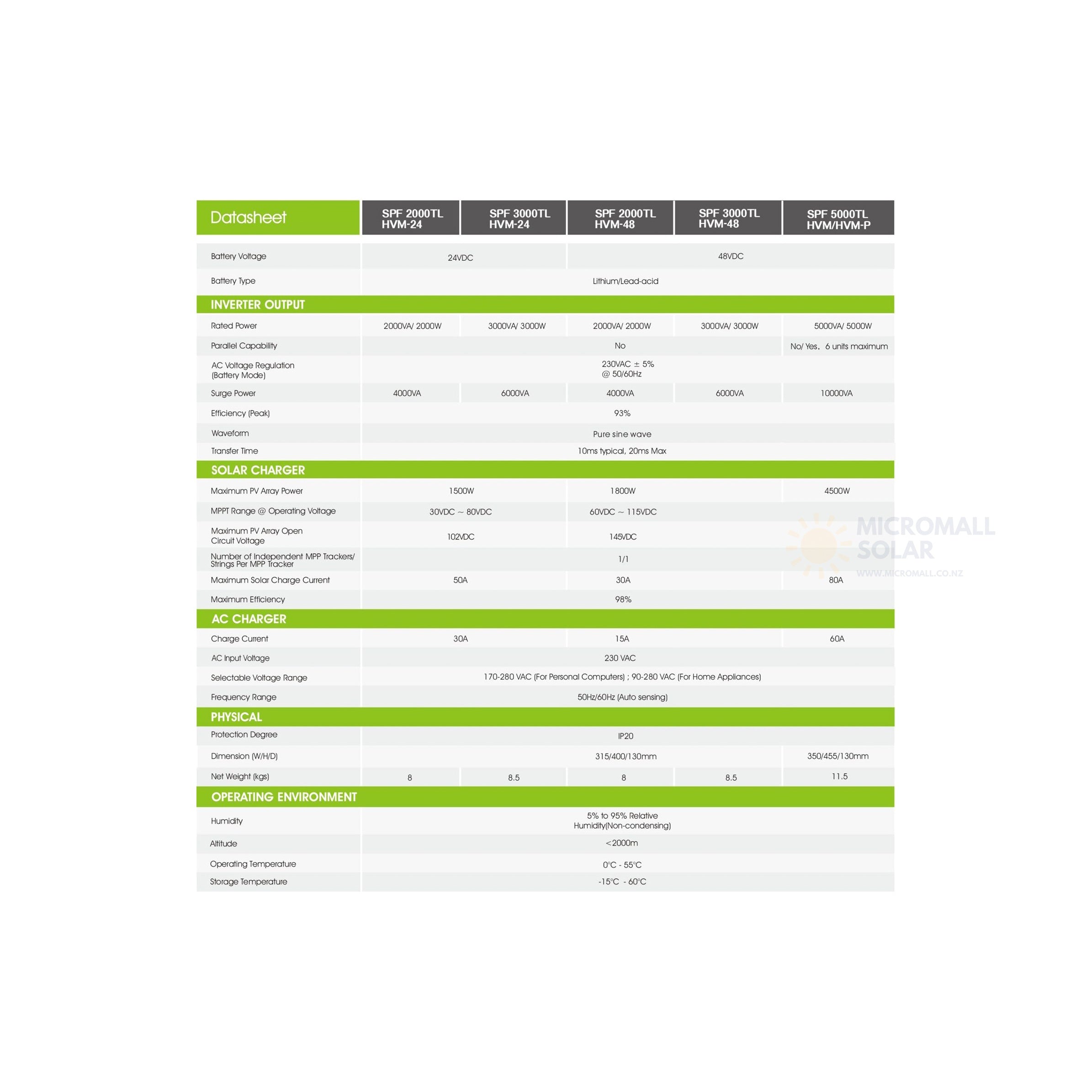

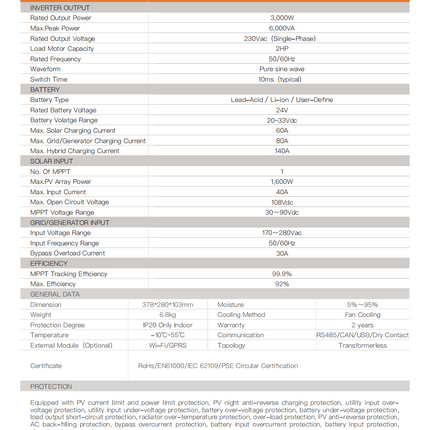

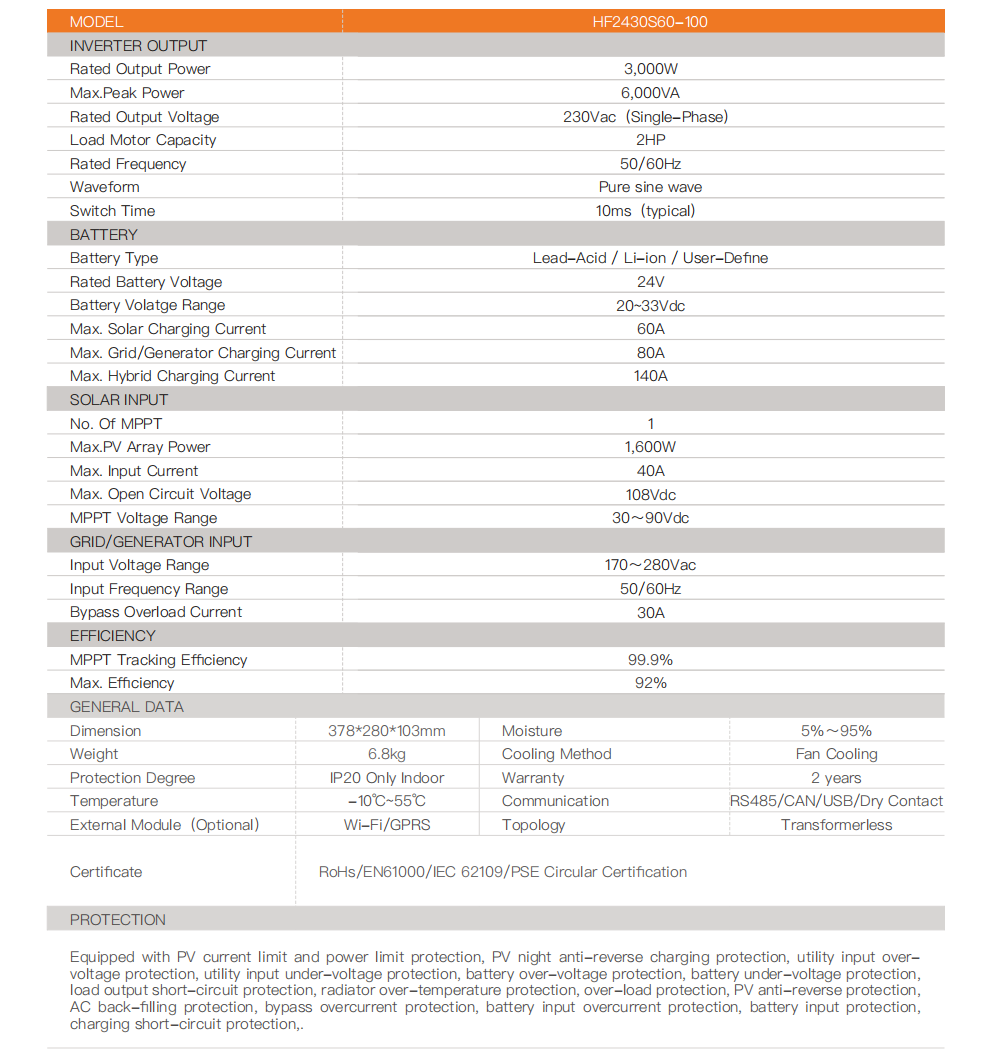

Specifications
- Rated Output Power: 3000W
- Max.Peak Power: 6000VA
- Rated Output Voltage: 230Vac
- Load Motor Capacity: 2HP
- Rated Frequency: 50/60Hz
- Waveform: Pure sine wave
- Switch Time: 10ms（typical）
- Weight: 6.8kg
- Dimension: 378 x 280 x 103mm
- Protection Degree: IP20 Only Indoor
- Temperature: -10℃-55℃
External Module（Optional）: Wi-Fi/GPRS
- Moisture: 5%～95%
- Cooling Method: Fan Cooling
This product is equipped with PV current limit and power limit protection, PV night anti-reverse charging protection, utility input over-voltage protection, utility input under-voltage protection, battery over-voltage protection and so on.
