Description

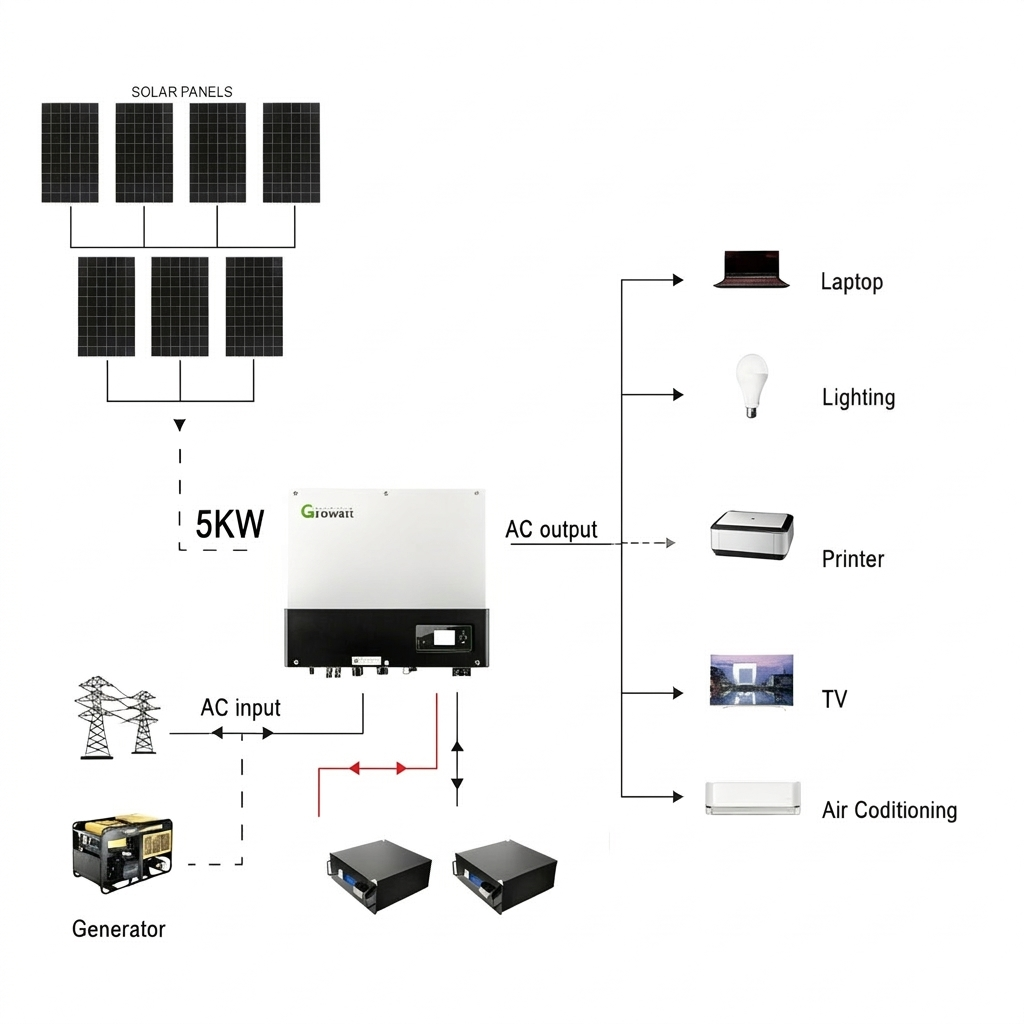

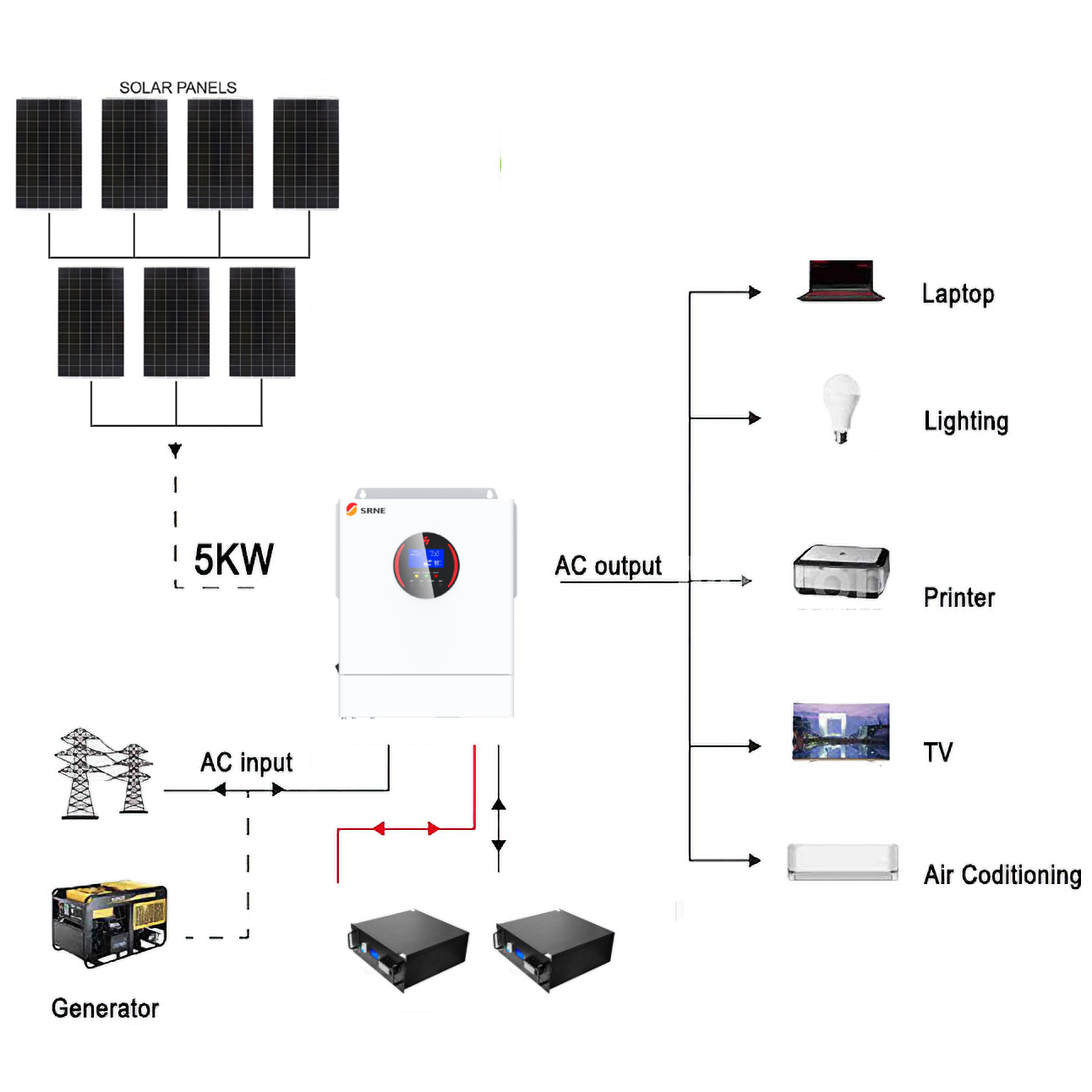

Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.
Package includes

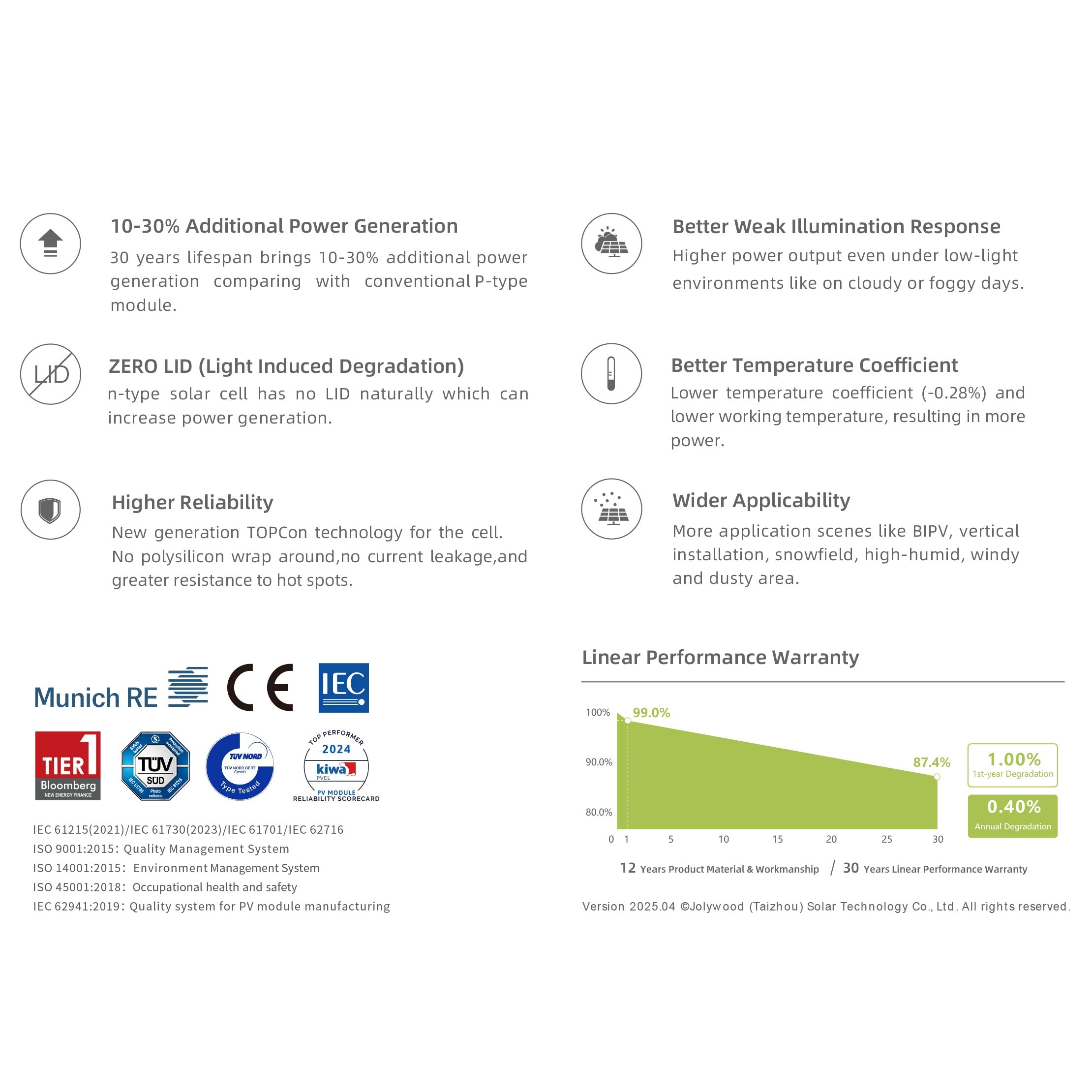

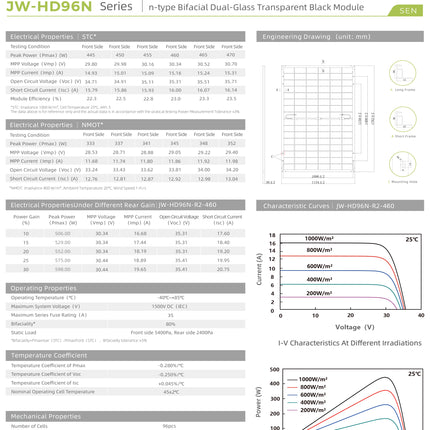

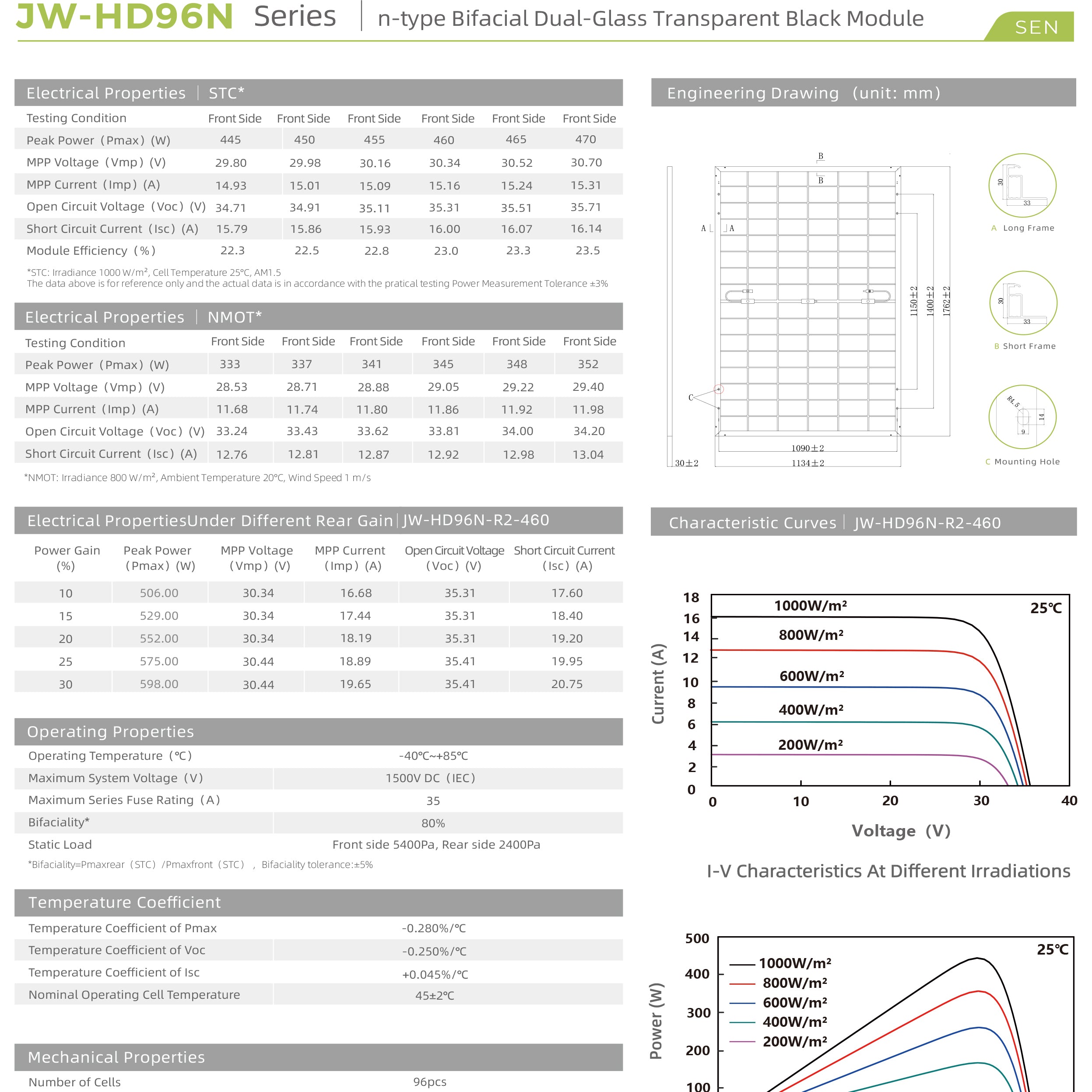

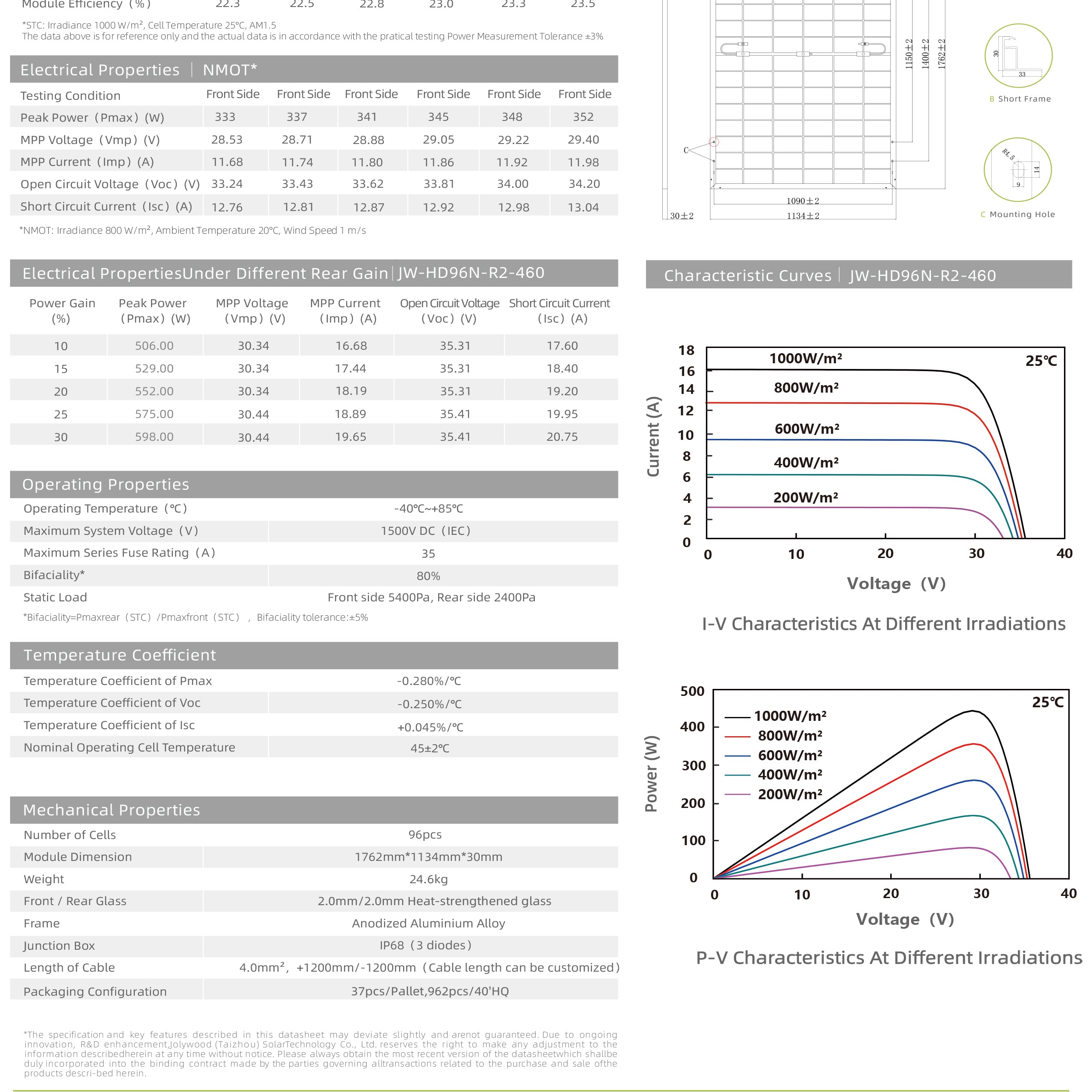

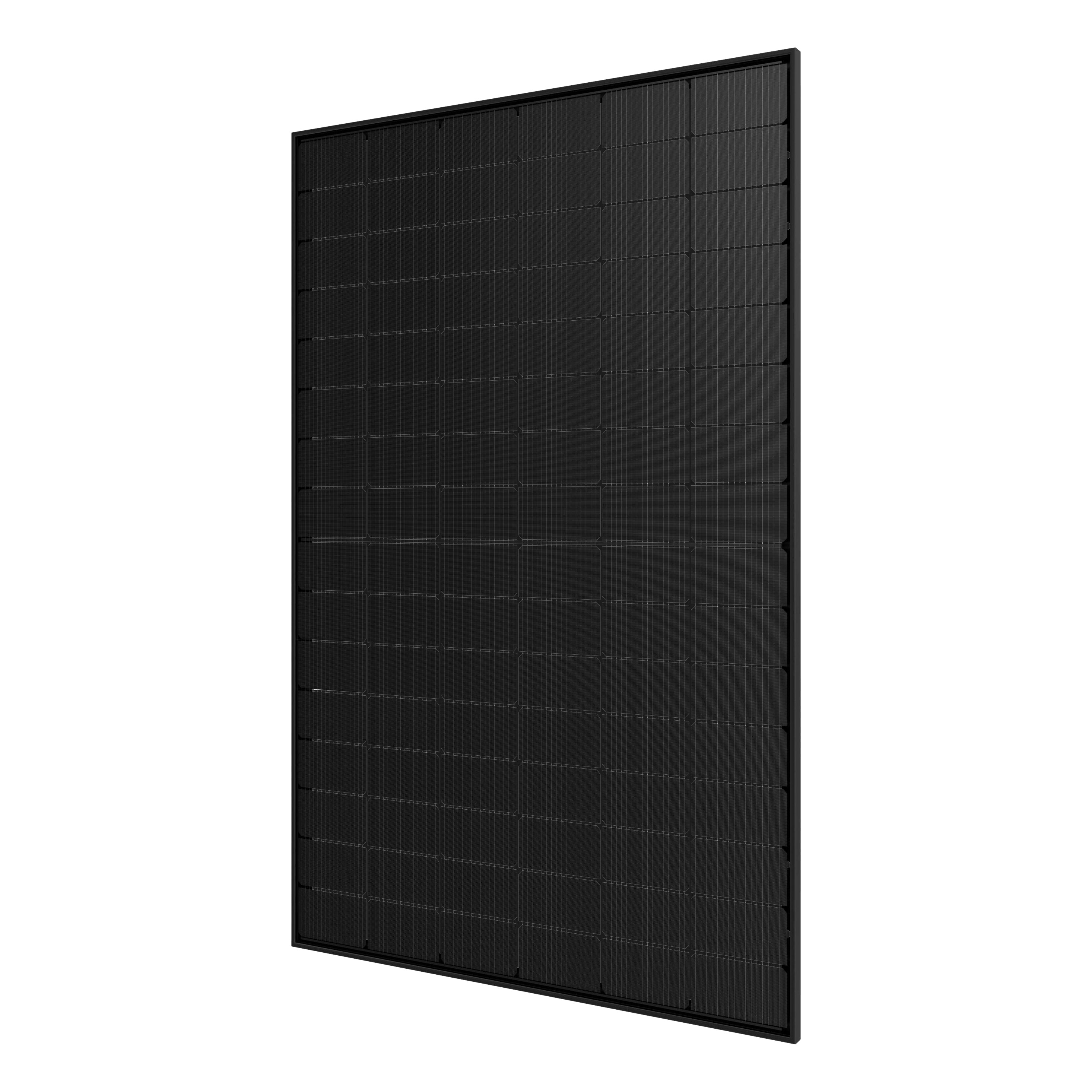

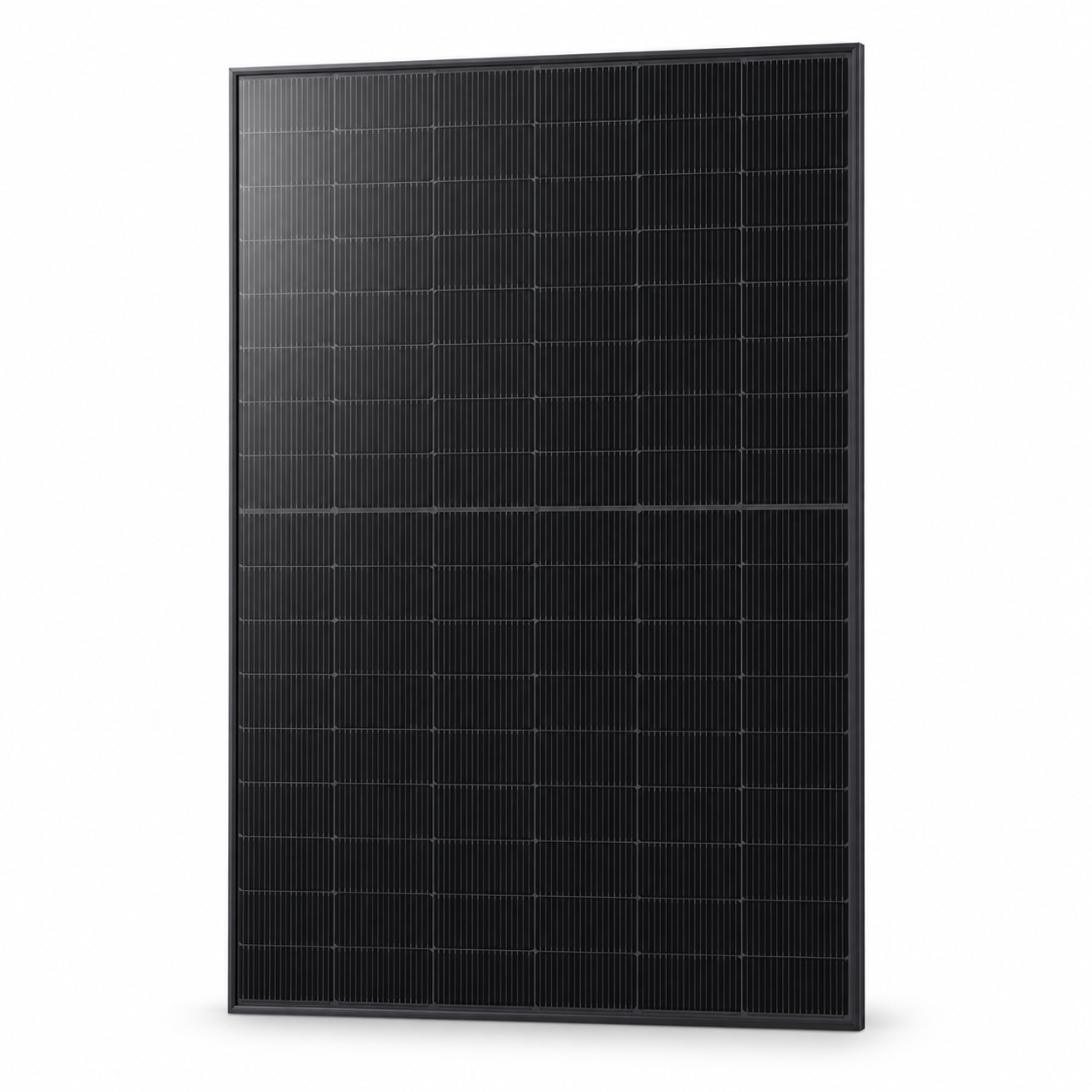

7 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell

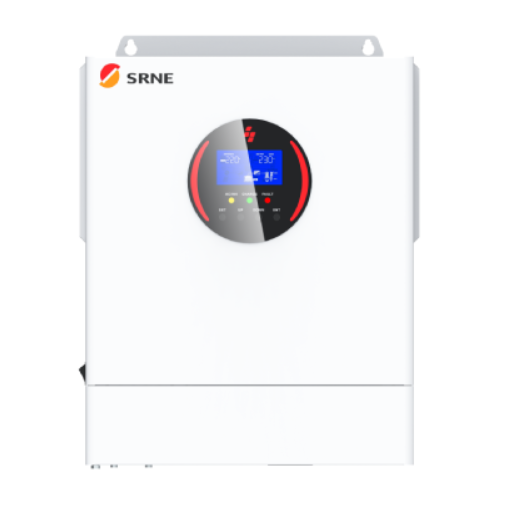

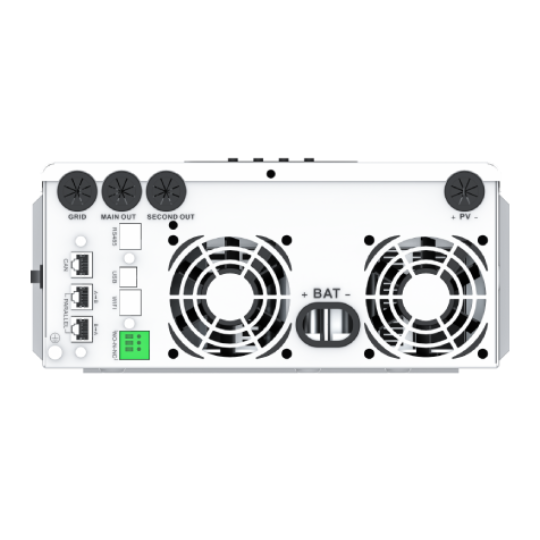

1 x 5000W SRNE Single Phase Off-Grid Solar Storage Inverter AFP4850S100-H (2 years warranty)

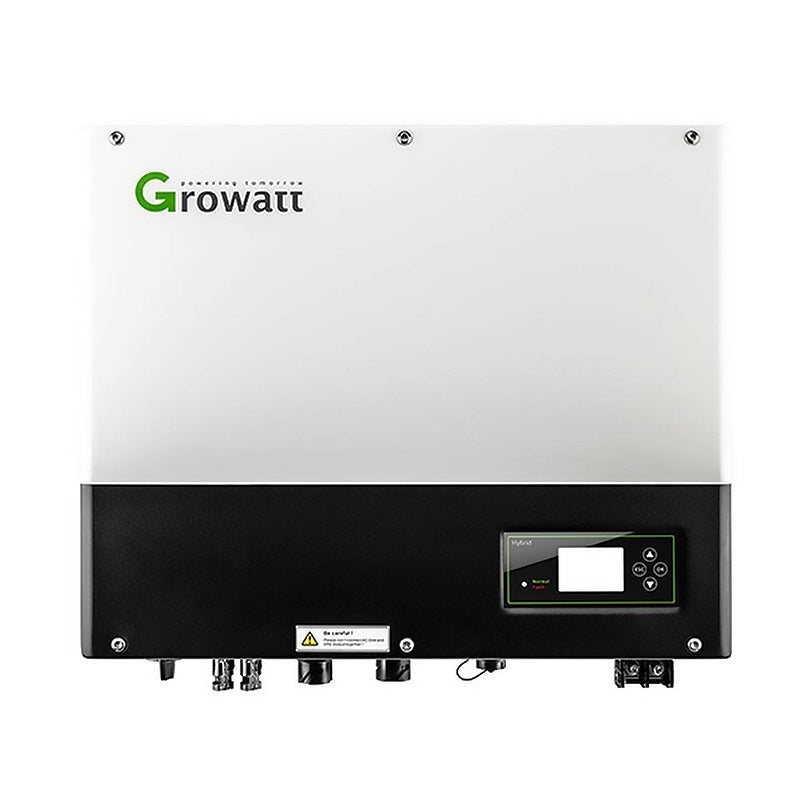

1 x Growatt Wifi accessory

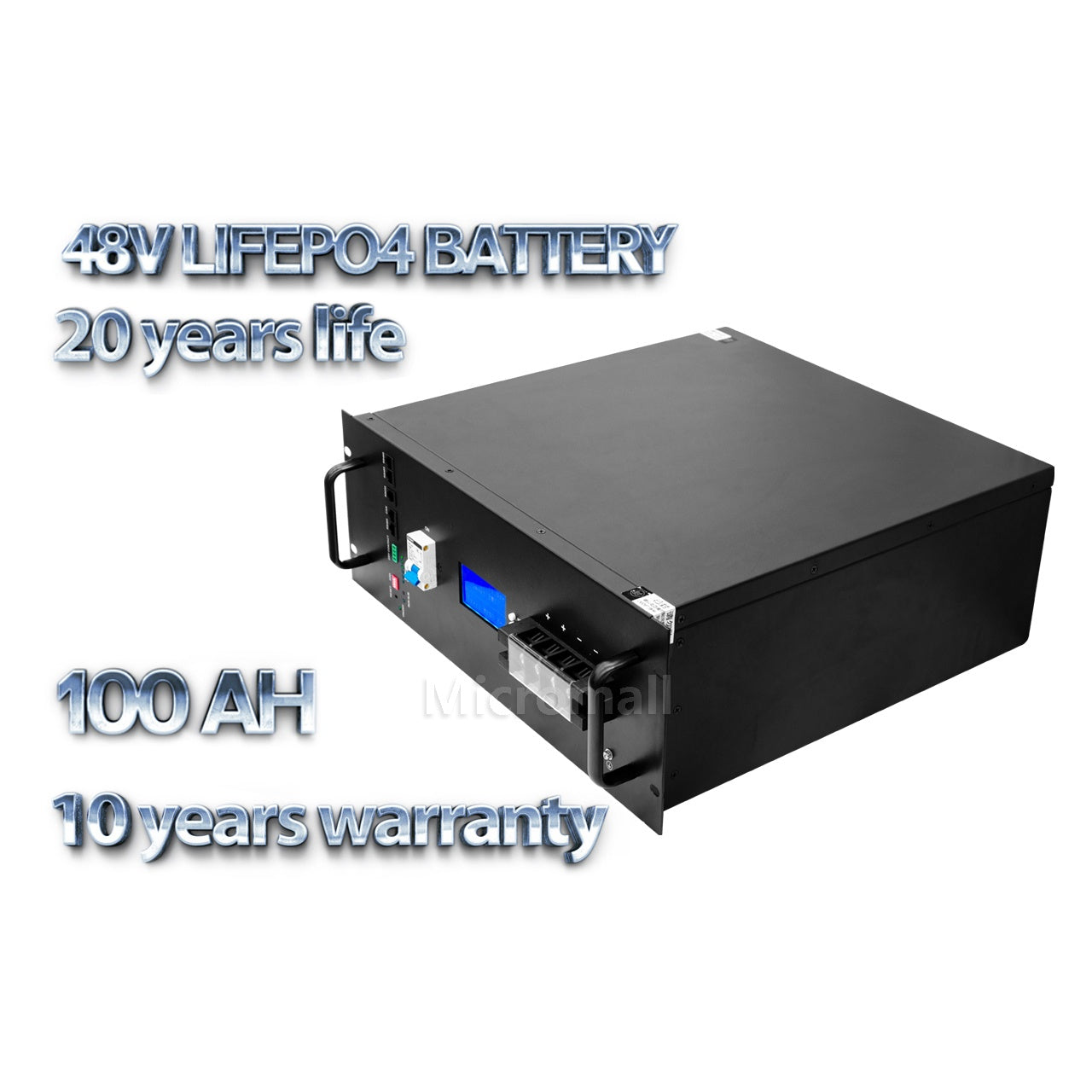

2 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
2 x 10m Twin 6mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x Battery Equalizer
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge Protector
1 x Fuse Box
7 x Adjustable Solar Panel Mounting Bracket Tilt Mount
Features
Compatible with 48V storage batteries.
Multiple charging and on-load modes to maximise energy use.
Efficient heat dissipation, prolonging system life.
Support remote monitoring of equipment operating parameters.
Equipped with unique functions such as dual activation for lithium batteries.

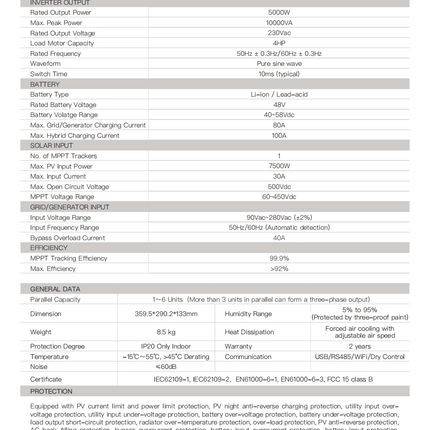

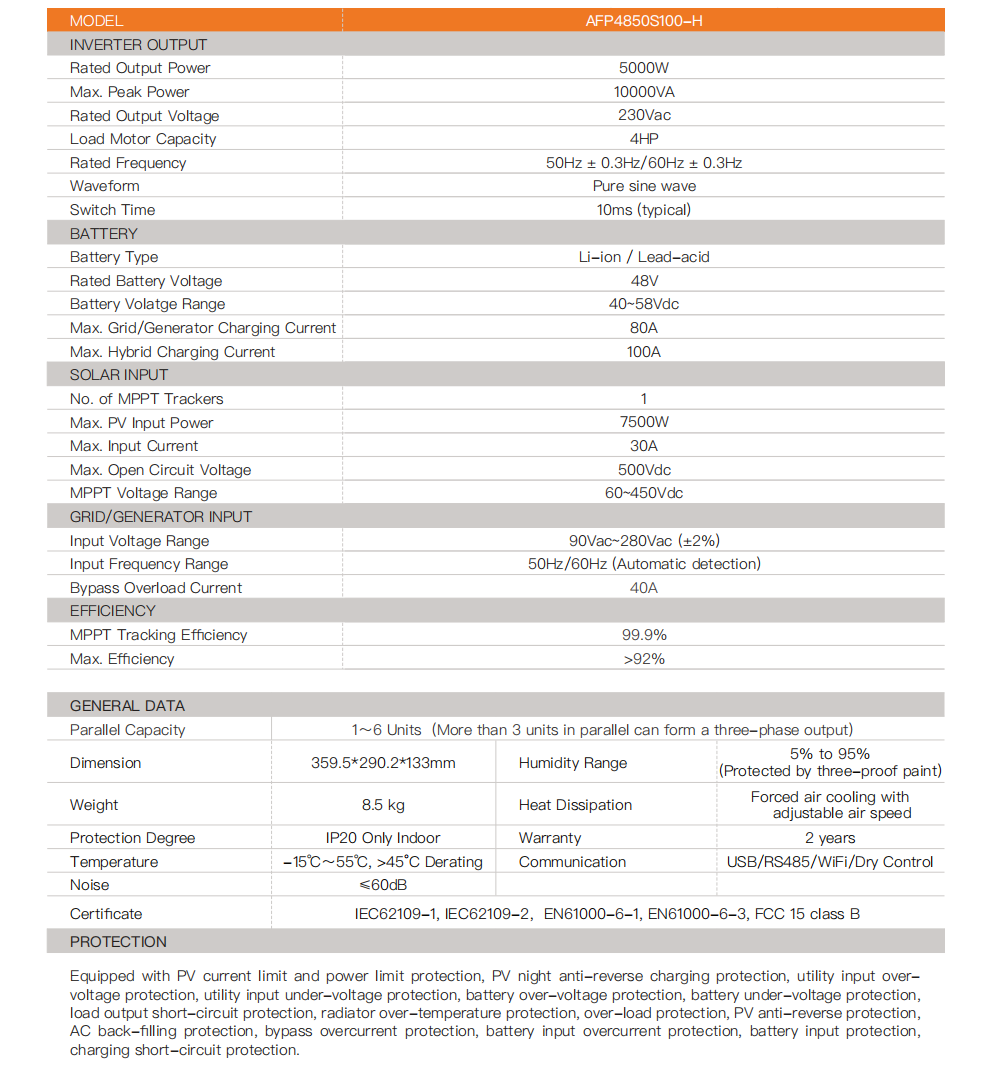

Specifications
- Rated Output Power: 5000W
- Max.Peak Power: 10000VA
- Rated Output Voltage: 230Vac
- Load Motor Capacity: 4HP
- Rated Frequency: 50Hz ± 0.3Hz/60Hz ± 0.3Hz
- Waveform: Pure sine wave
- Switch Time: 10ms（typical）
- Weight: 8.5kg
- Dimension: 359.5 x 290.2 x 133mm
- Protection Degree: IP20 Only Indoor
- Temperature: -15℃-55℃, >45°C Derating
- Humidity Range: 5% to 95%(Protected by three-proof paint)
- Heat Dissipation: Forced air cooling with adjustable air speed
This product is equipped with PV current limit and power limit protection, PV night anti-reverse charging protection, utility input over-voltage protection, utility input under-voltage protection, battery over-voltage protection and so on.
