Description

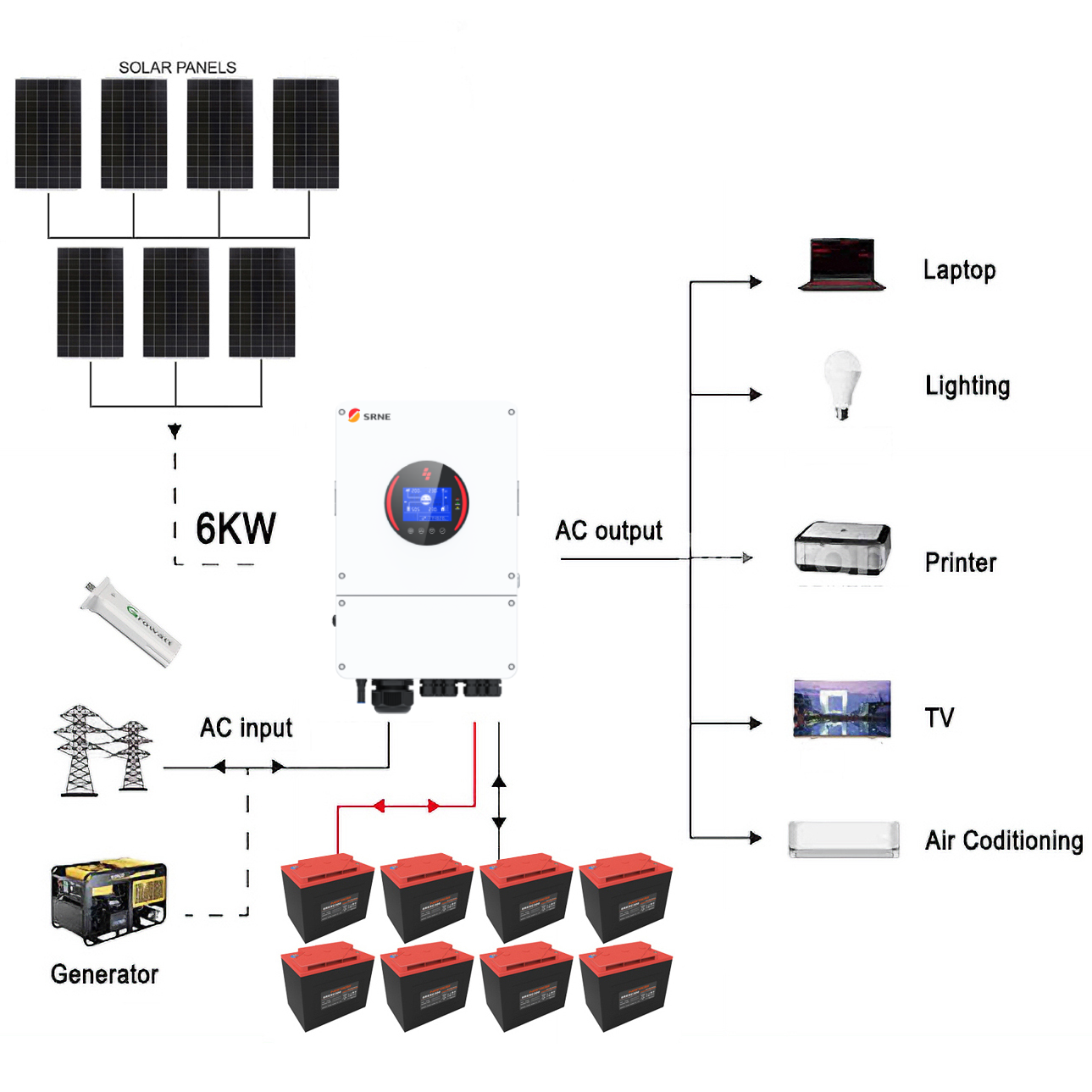

Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.
Package includes

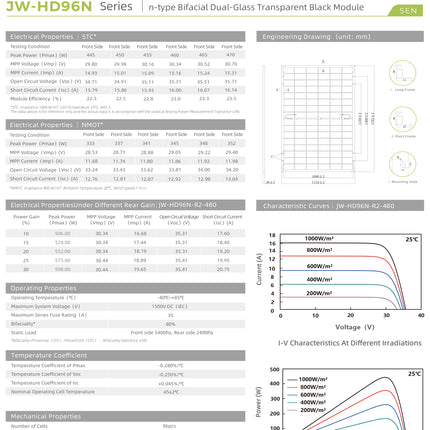

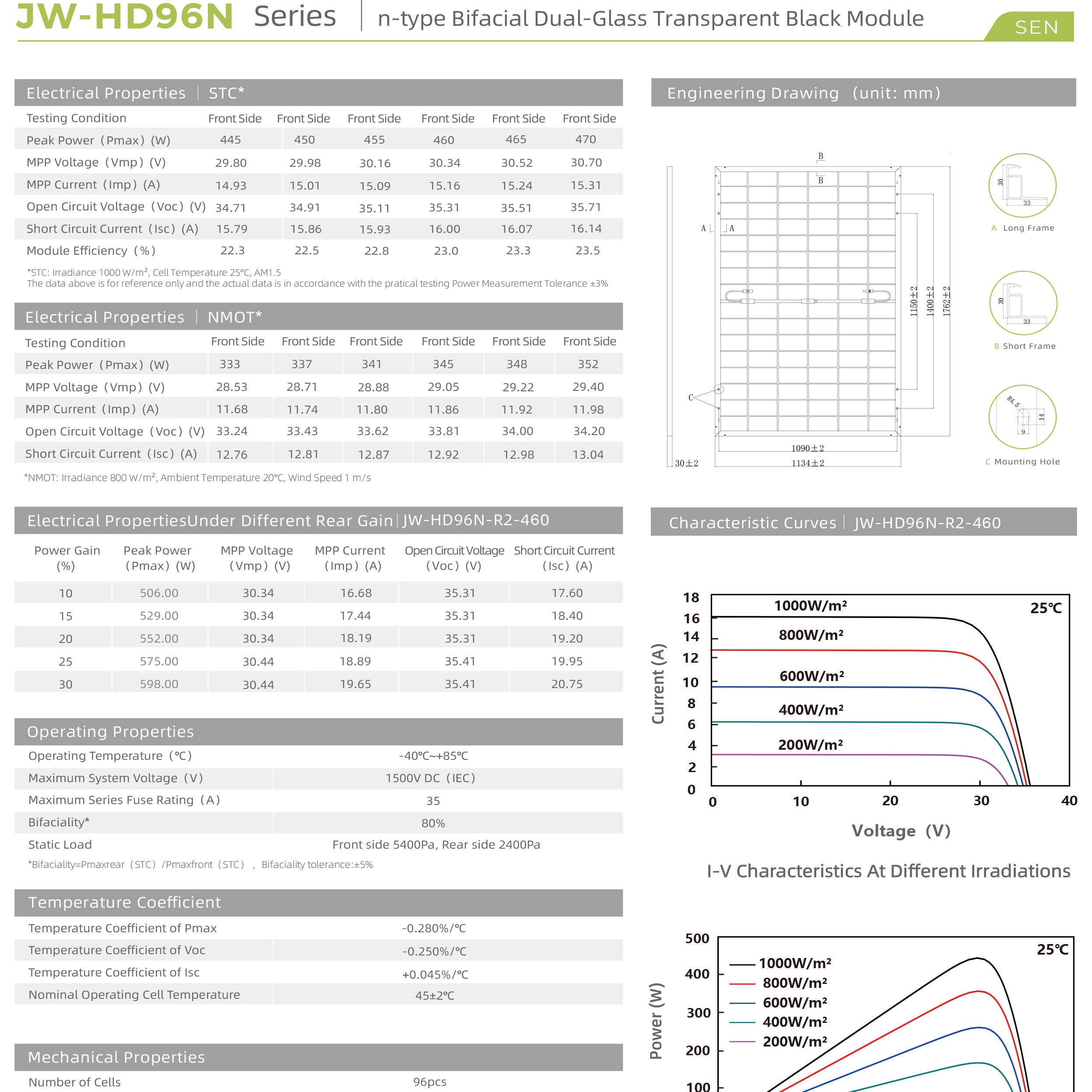

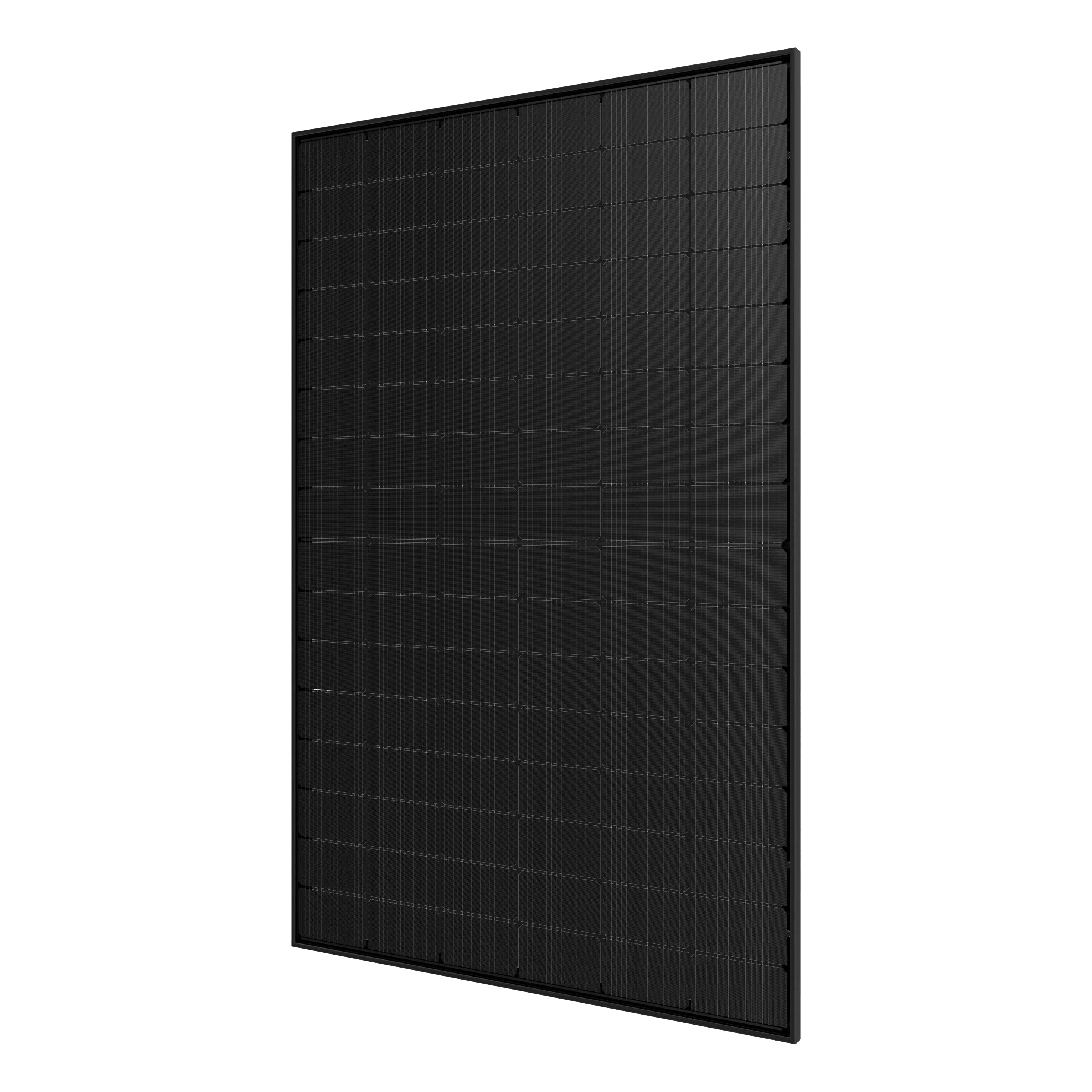

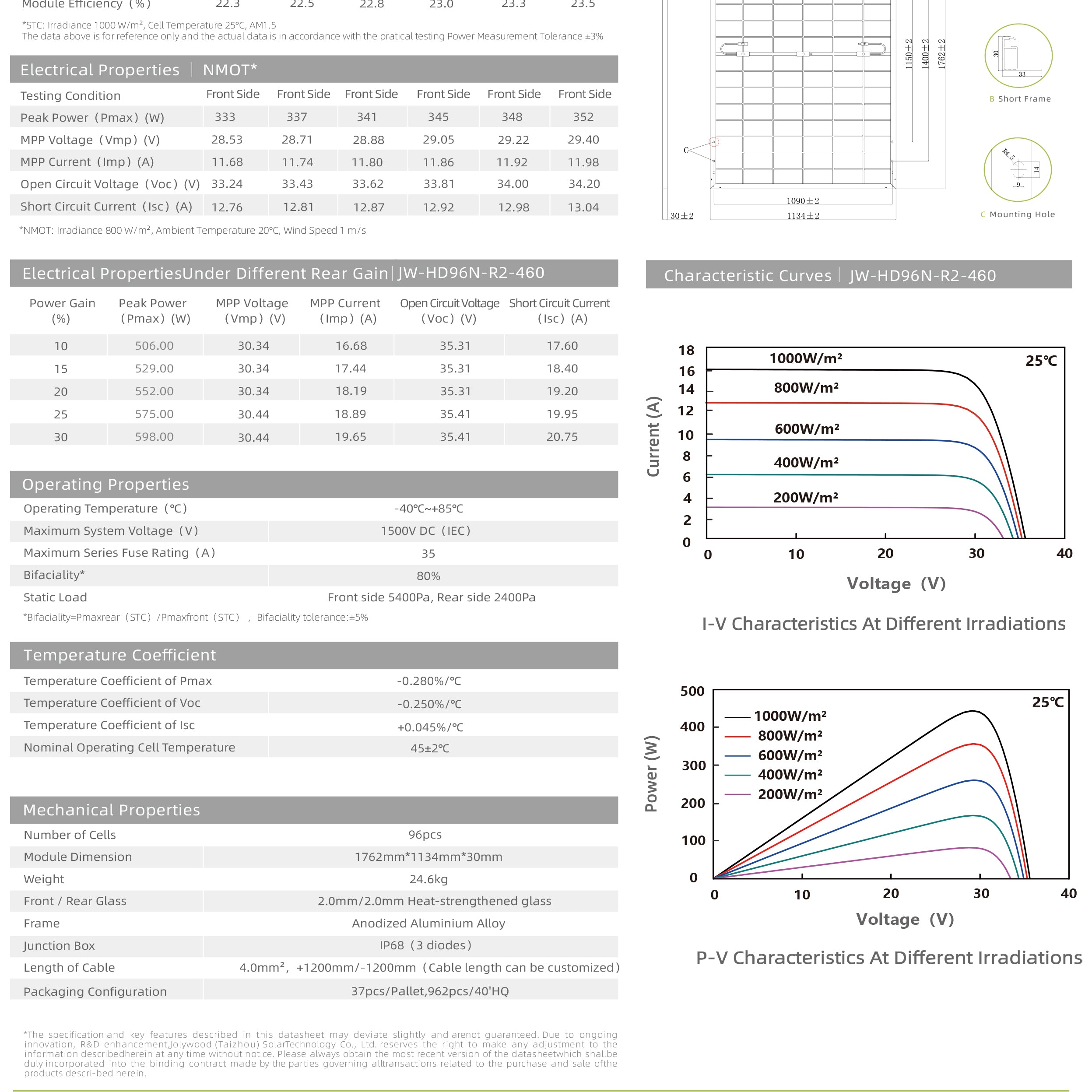

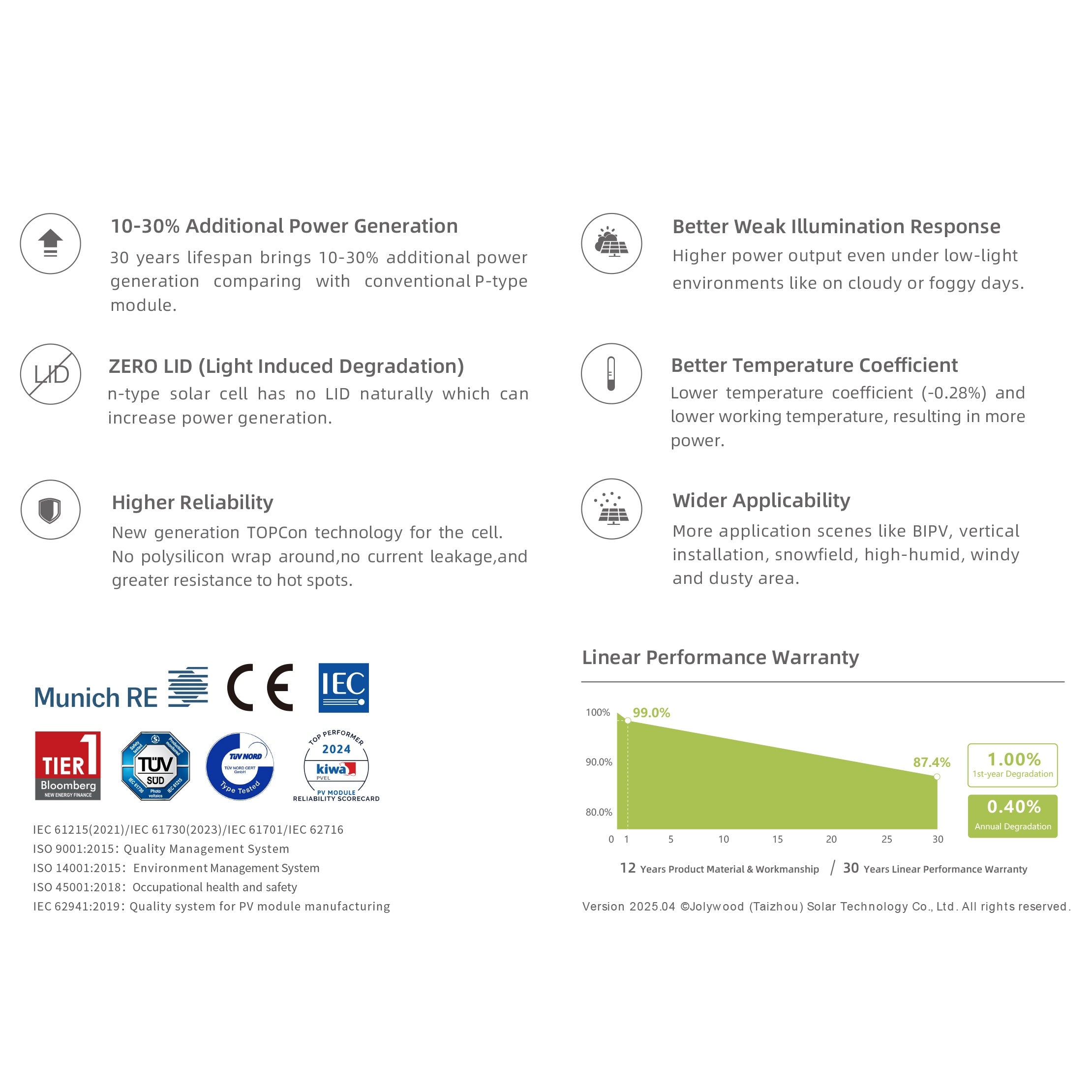

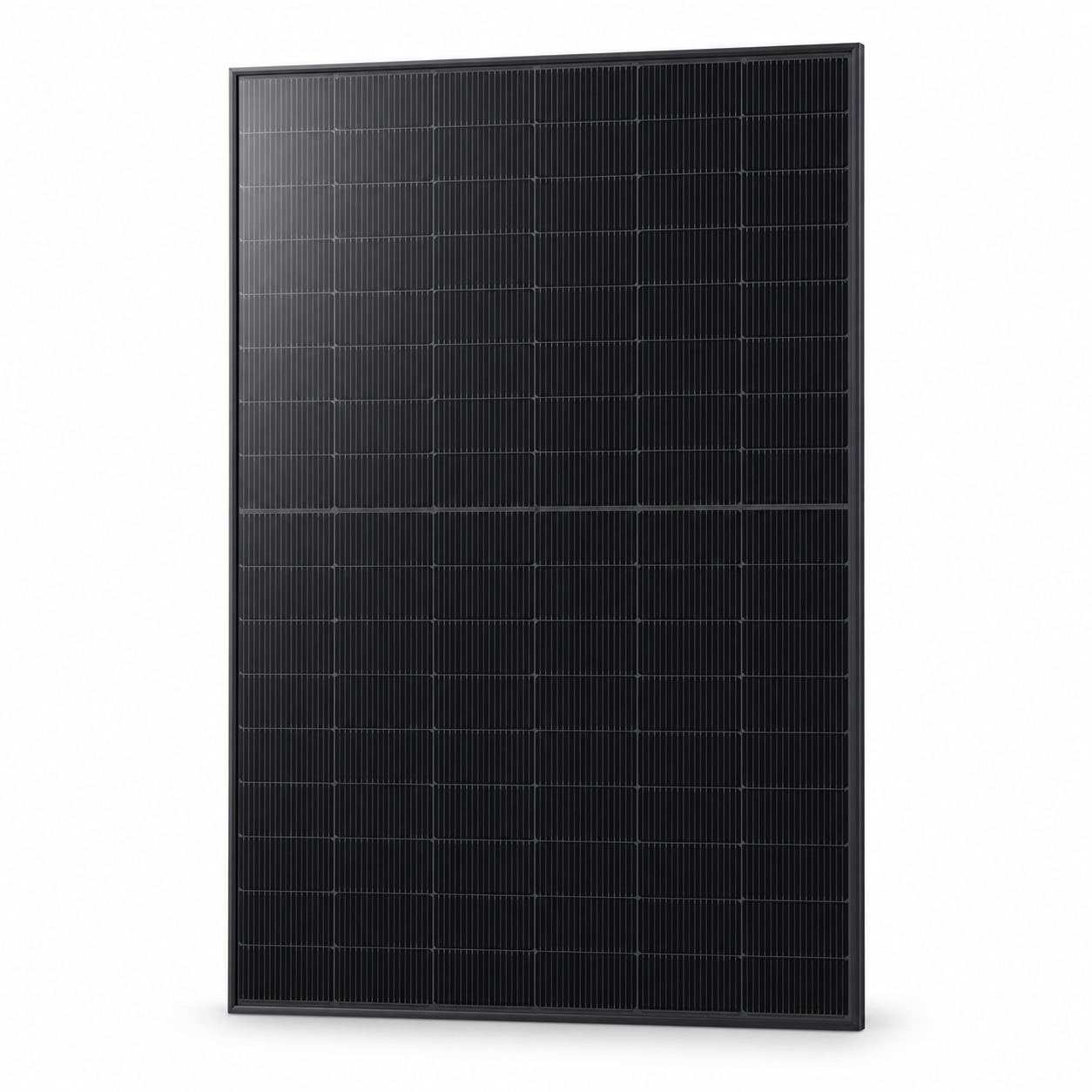

7 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell

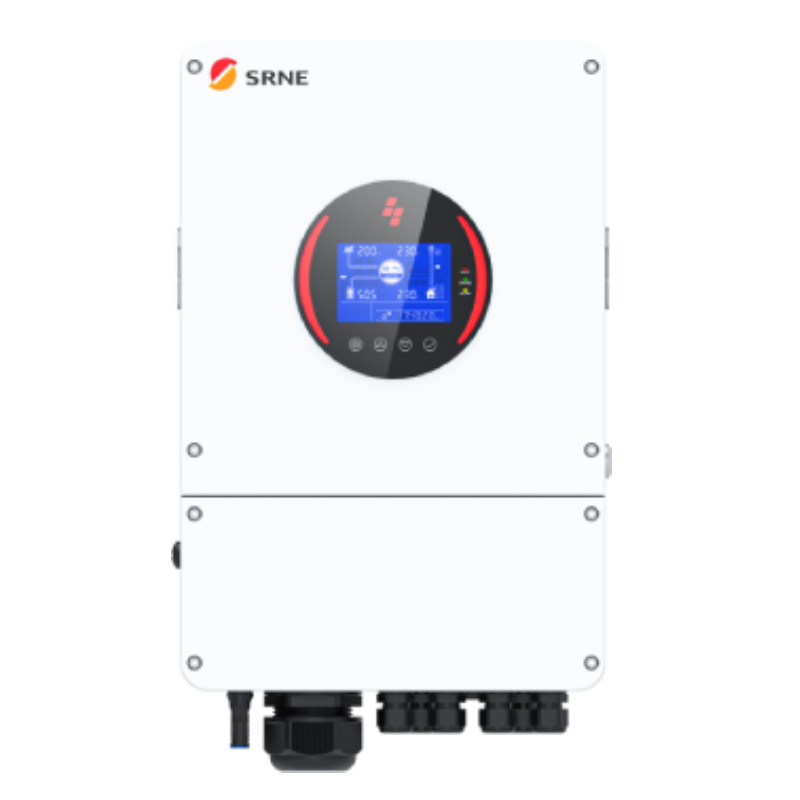

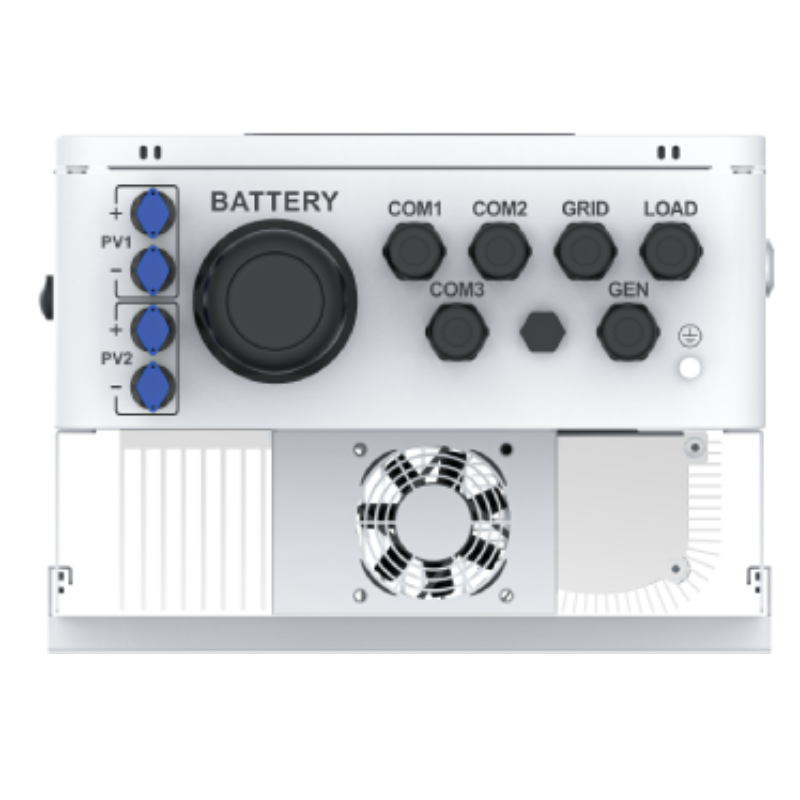

1 x 6000W SRNE Single Phase Off-Grid Solar Storage Inverter AEP4860S135-H (5 years warranty)
8 x Narada 6REXC-300 6V 300Ah Ultra Lead Carbon Deep Cycle Solar Battery (5 Years Warranty)
2 x 10m Twin 6mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x Battery Equalizer
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge Protector
1 x Fuse Box
7 x Adjustable Solar Panel Mounting Bracket Tilt Mount
Features
Support time-sharing charge and discharge function
HOME LOAD mode, supports external load antibackflow function
Energy-saving mode reduce no-load energy loss
Dual activation function for lithium batteries
Generator port with independent design and smart load compatibility
Generator peak-shaving function to effectively reduce diesel generator load pressure
Large LCD screen with dynamic flow chart design

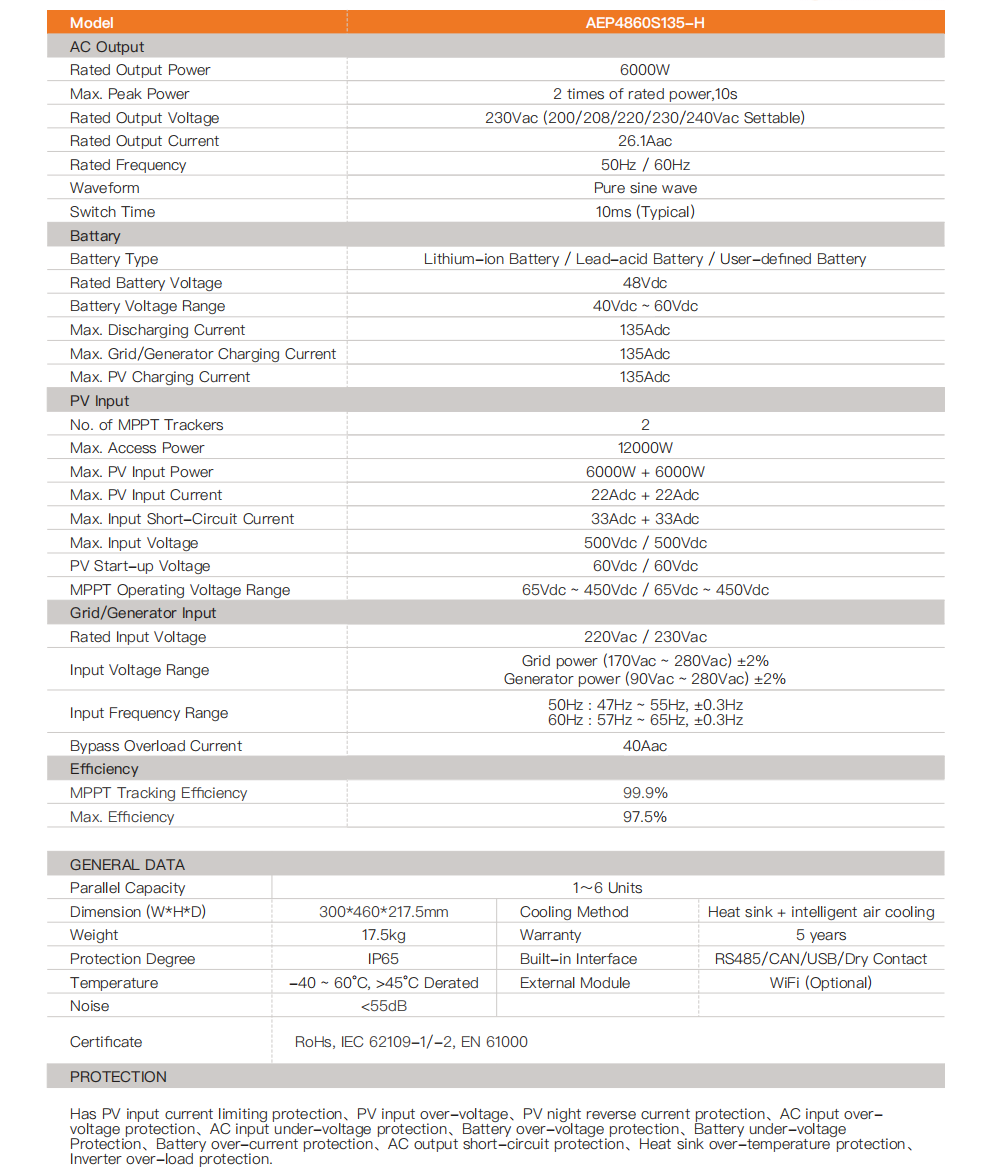

Specifications
- Rated Output Power: 6000W
- Max.Peak Power: 2 times of rated power,10s
- Rated Output Voltage: 230Vac (200/208/220/230/240Vac Settable)
- Rated Output Current: 26.1Aac
- Rated Frequency: 50/60Hz
- Waveform: Pure sine wave
- Switch Time: 10ms（typical）
- Weight: 17.5kg
- Dimension: 300 x 460 x 217.5mm
- Protection Degree: IP65
- Temperature: -40 - 60°C, >45°C Derated

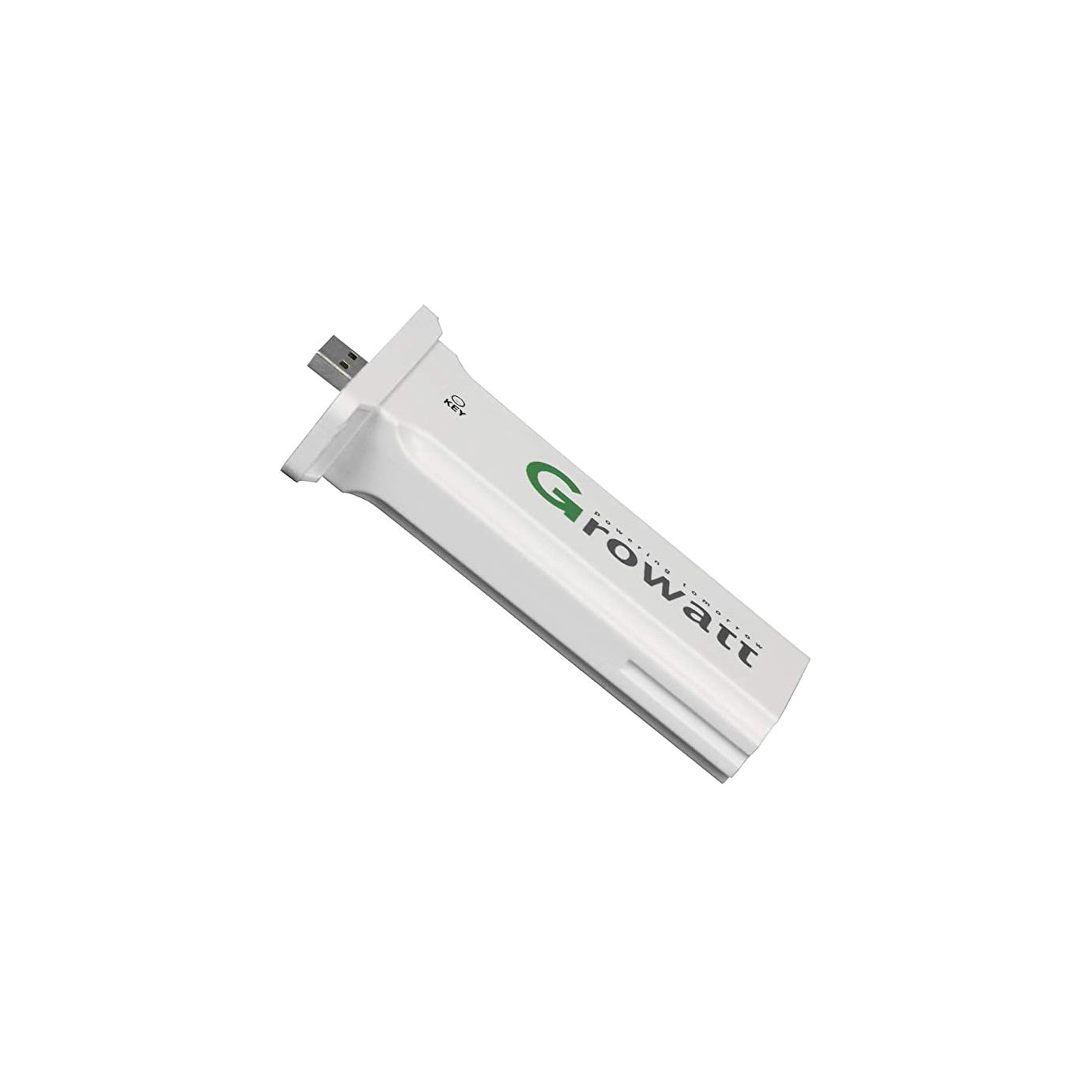

External Module（Optional）: WiFi
- Cooling Method: Heat sink + intelligent air cooling
This inverter is equipped with P PV input current limiting protection、PV input over-voltage、PV night reverse current protection、AC input overvoltage protection and so on.
