Description

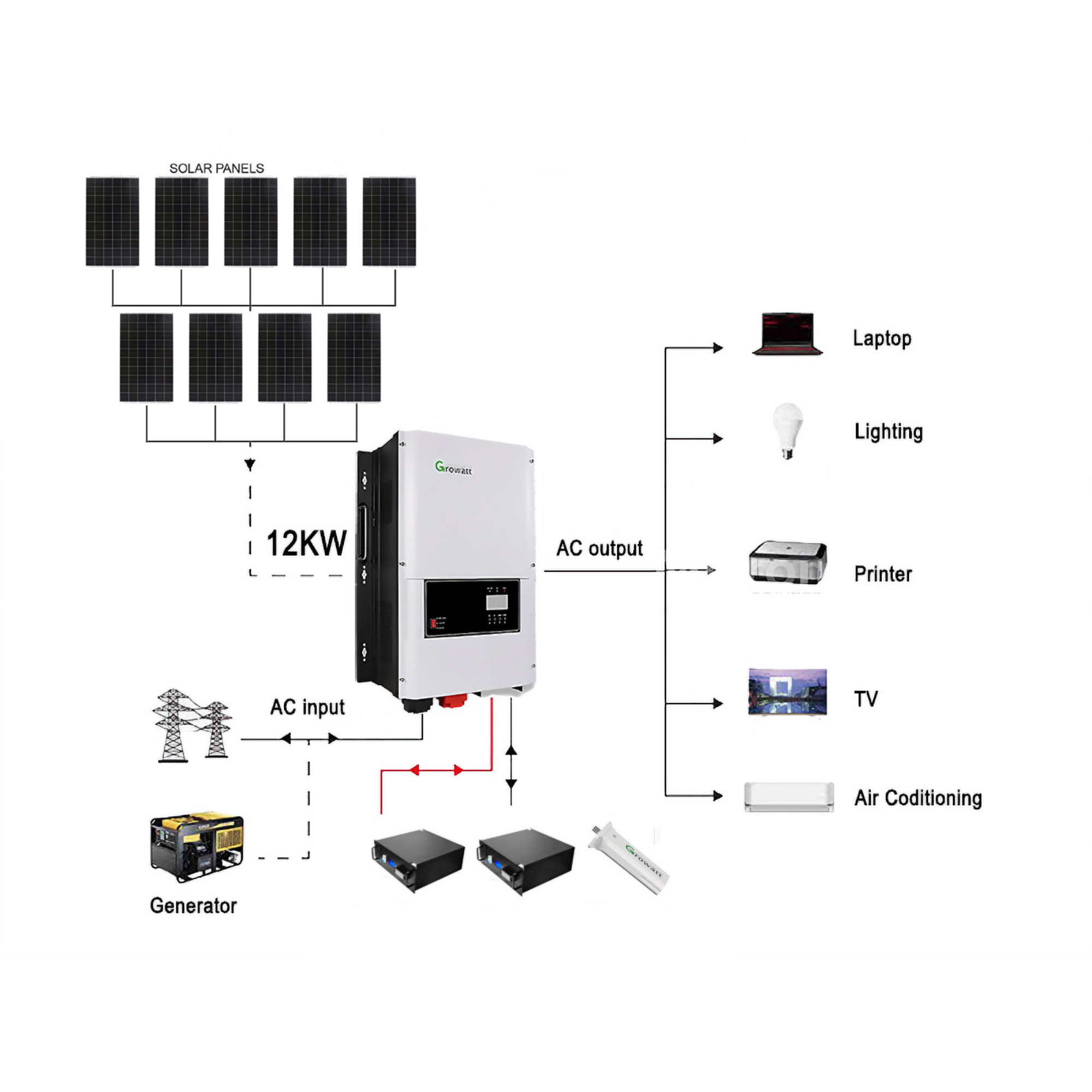

Introducing an amazing solar off-grid system featuring grade A solar panels and a high-quality hybrid solar inverter system.
Package includes:
1 x Growatt SPF 12KT HVM Off-Grid Storage Inverter (2-year warranty)

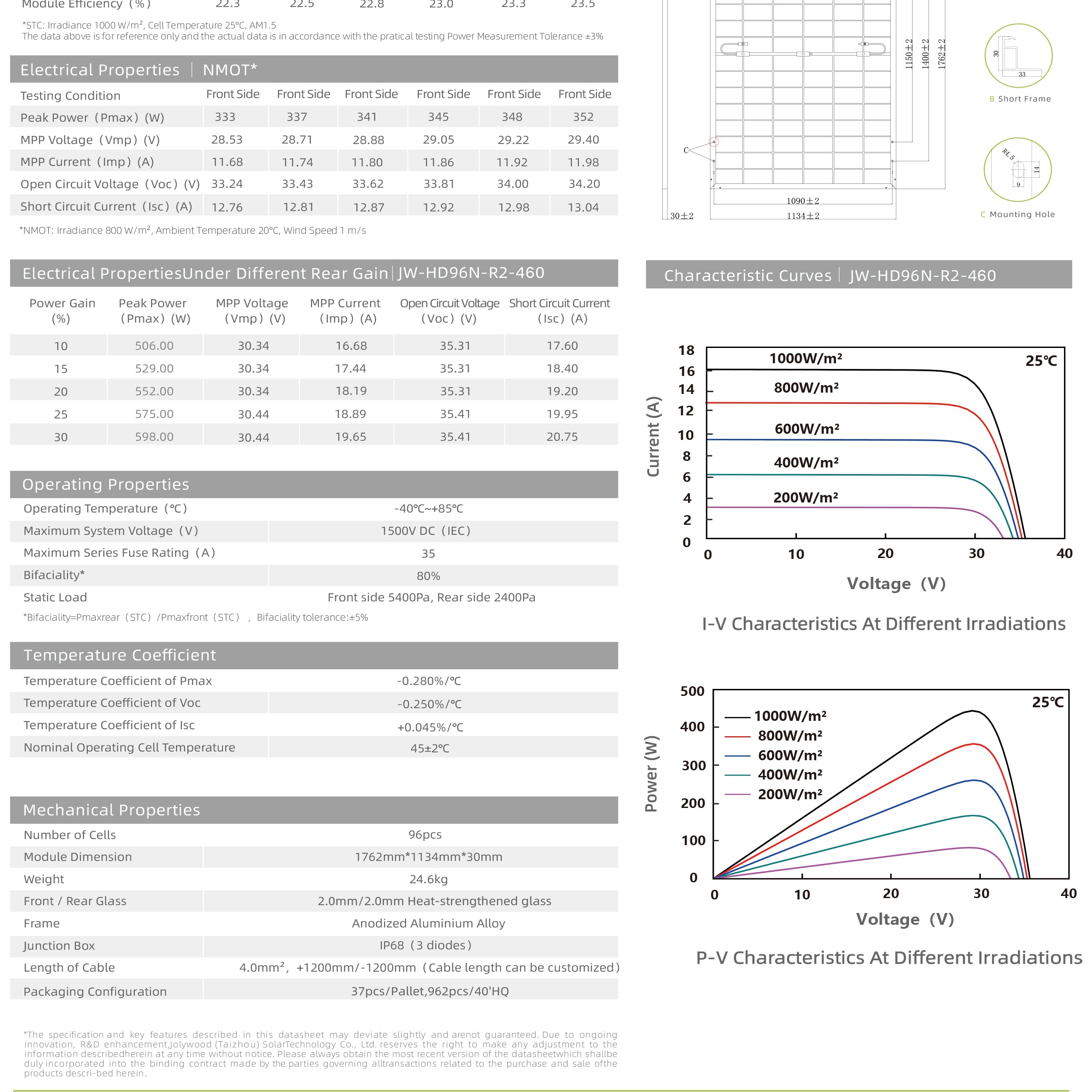

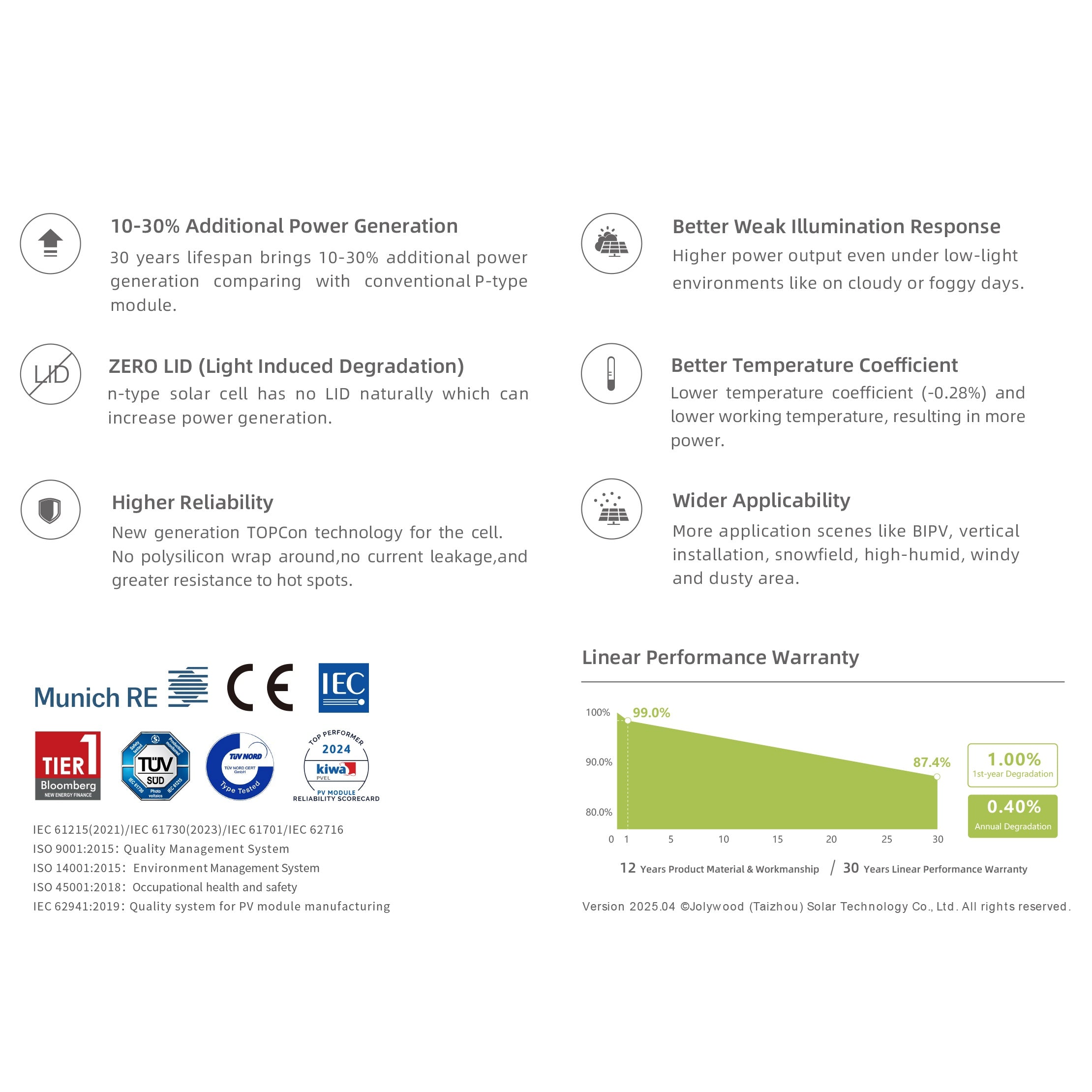

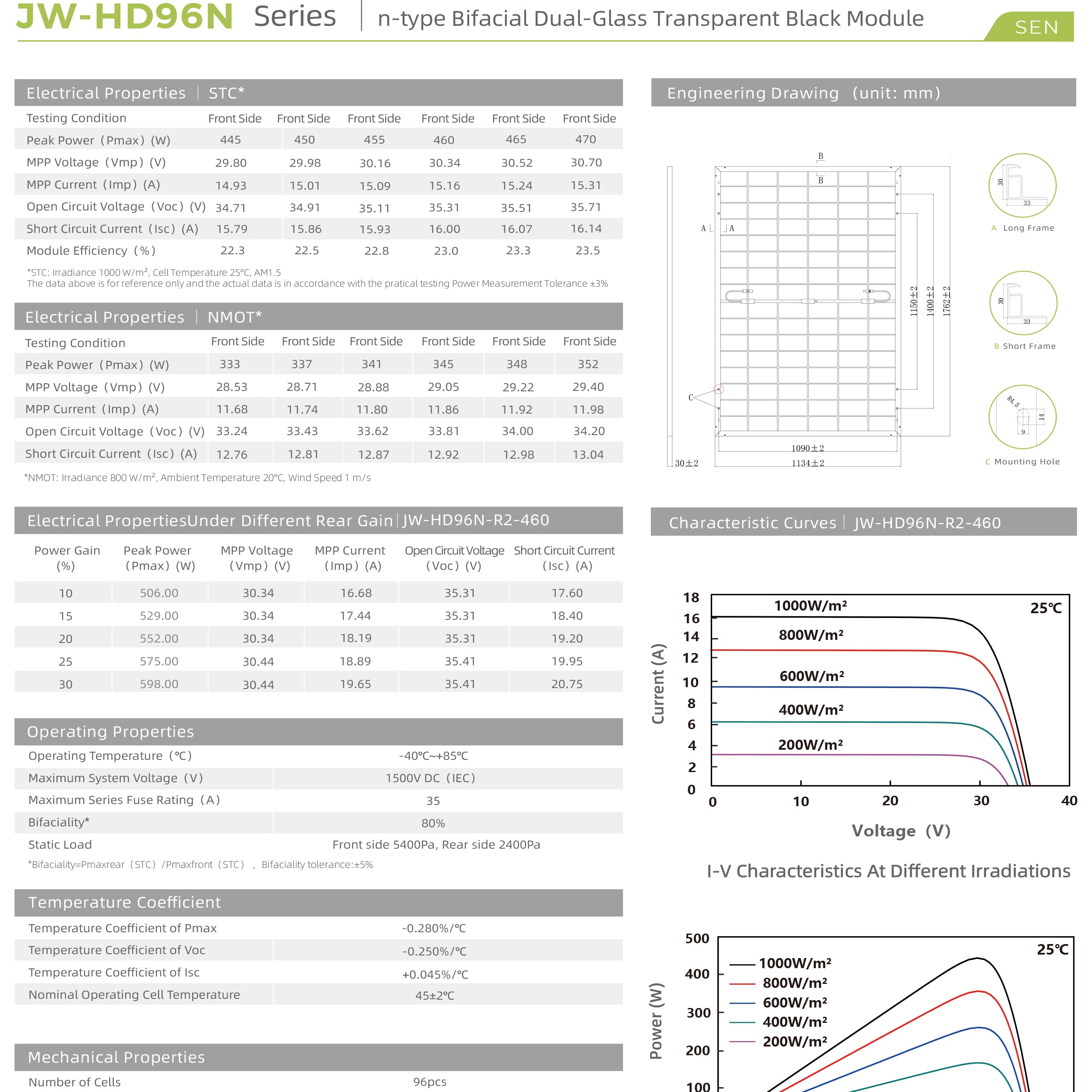

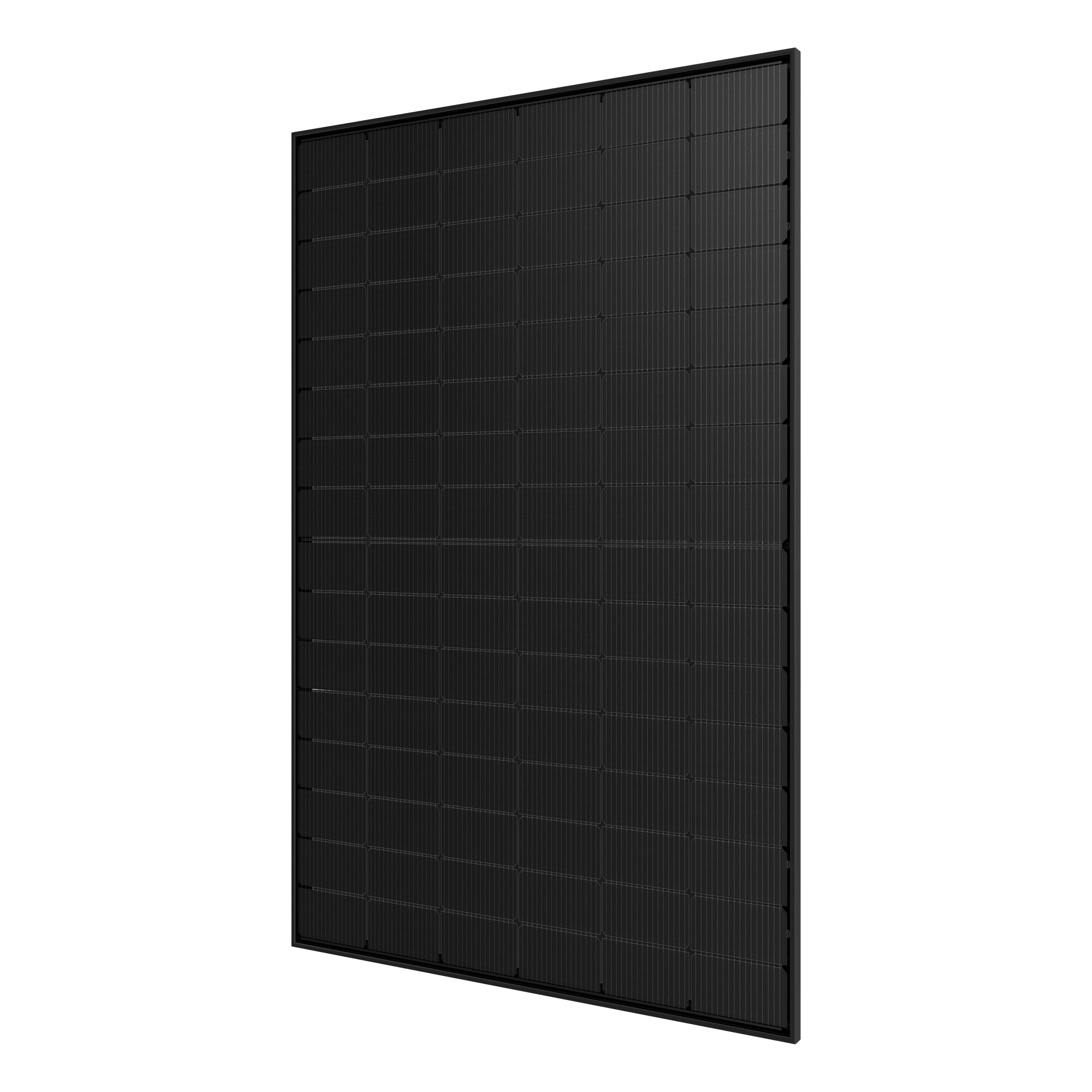

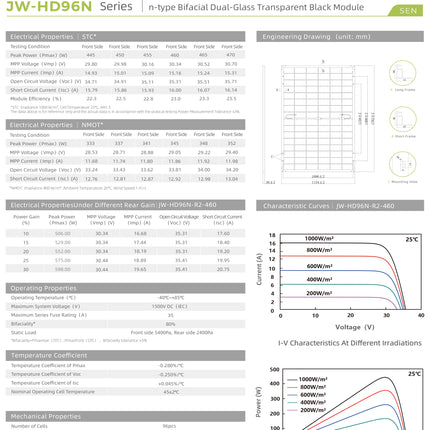

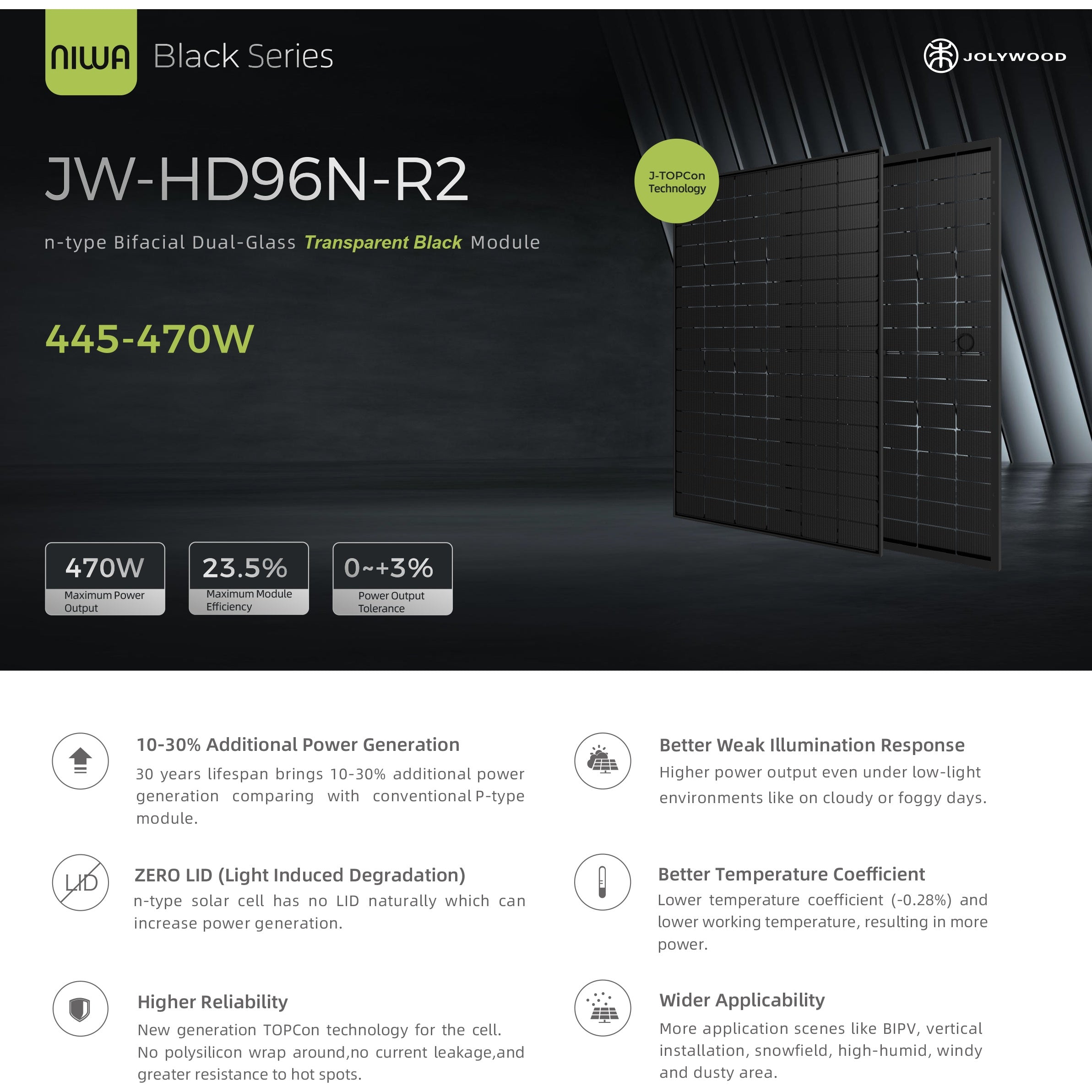

9 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell

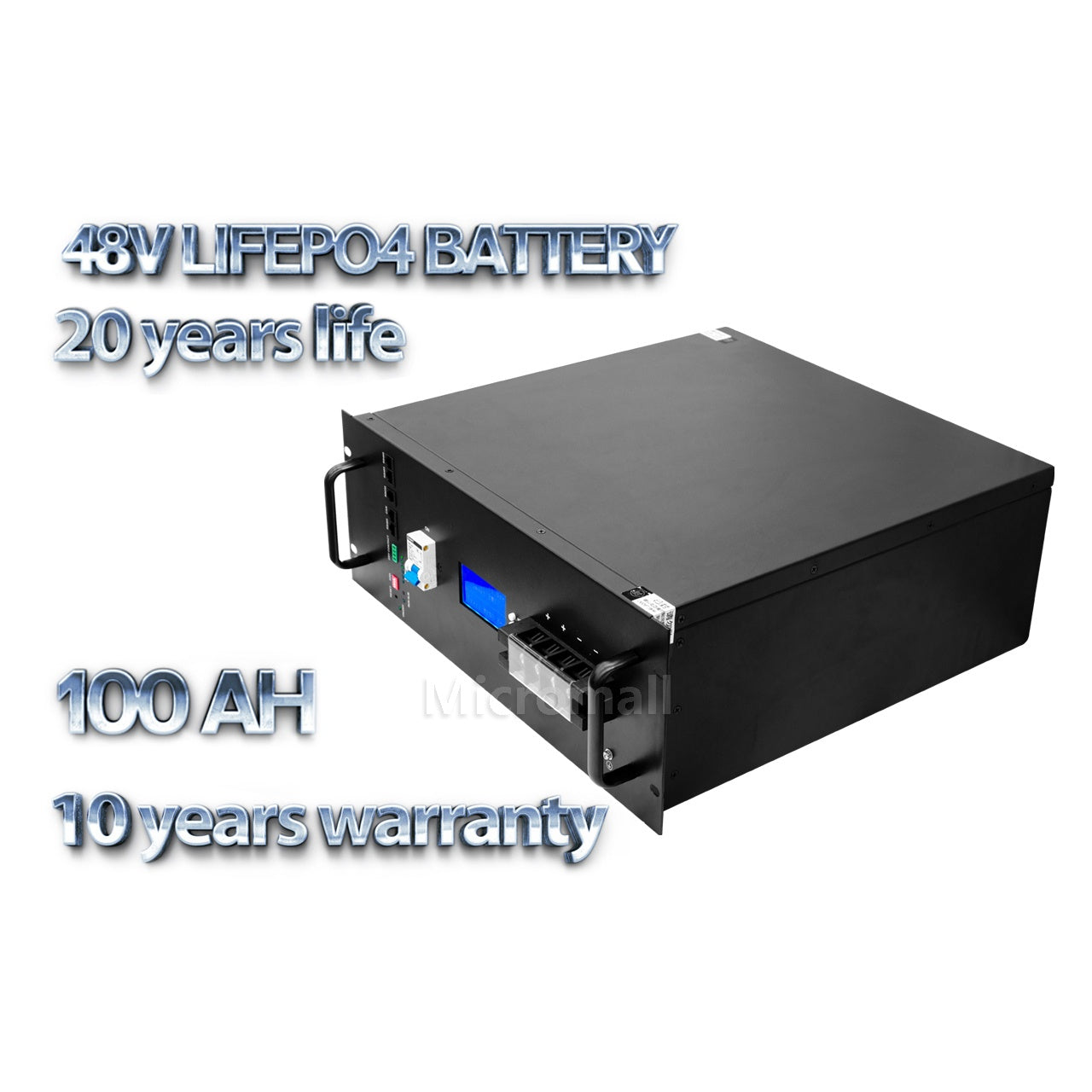

2 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)

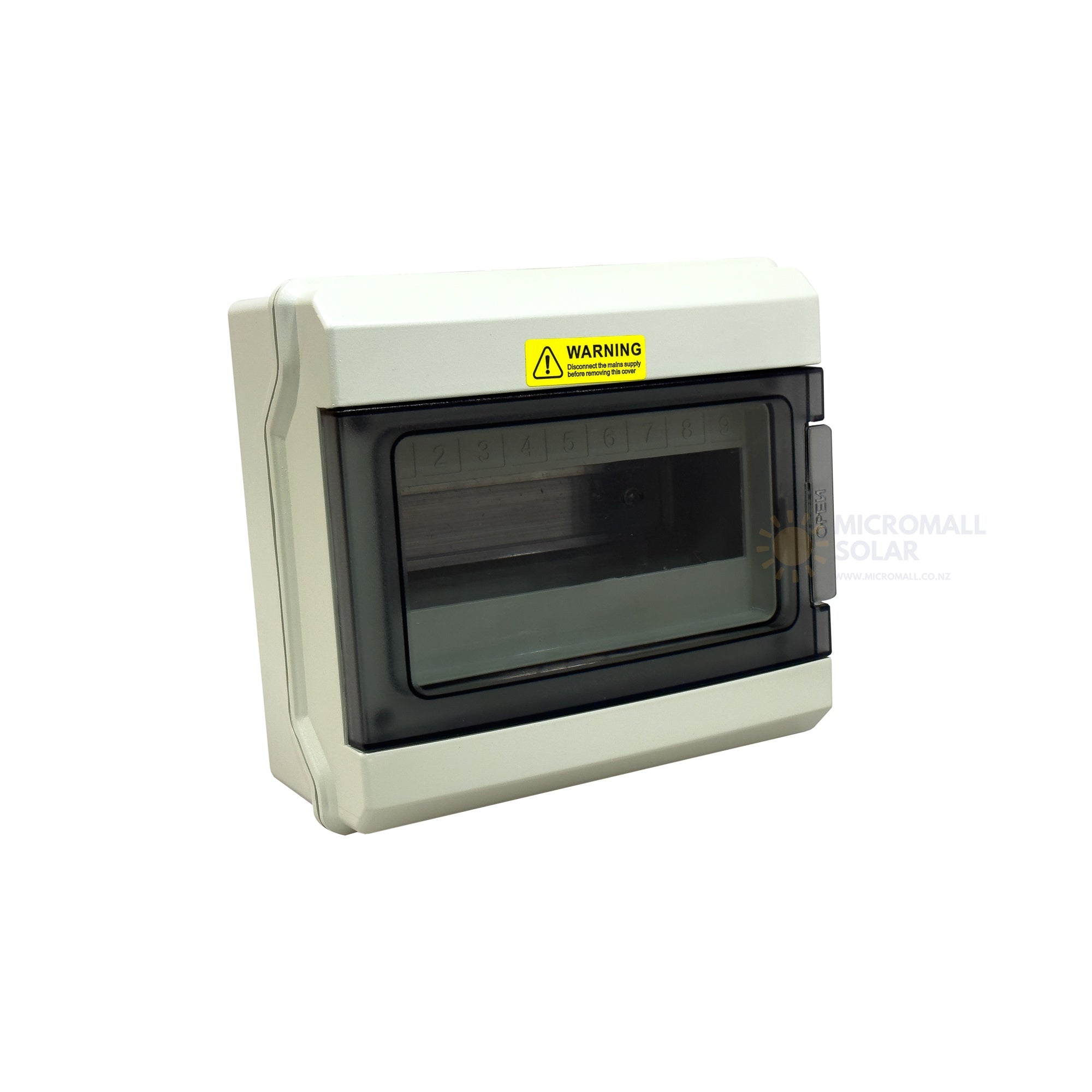

1 x PV Safety System with Fuse Box
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
9 x Commercial Mounting Kits with Adjustable Angle Version

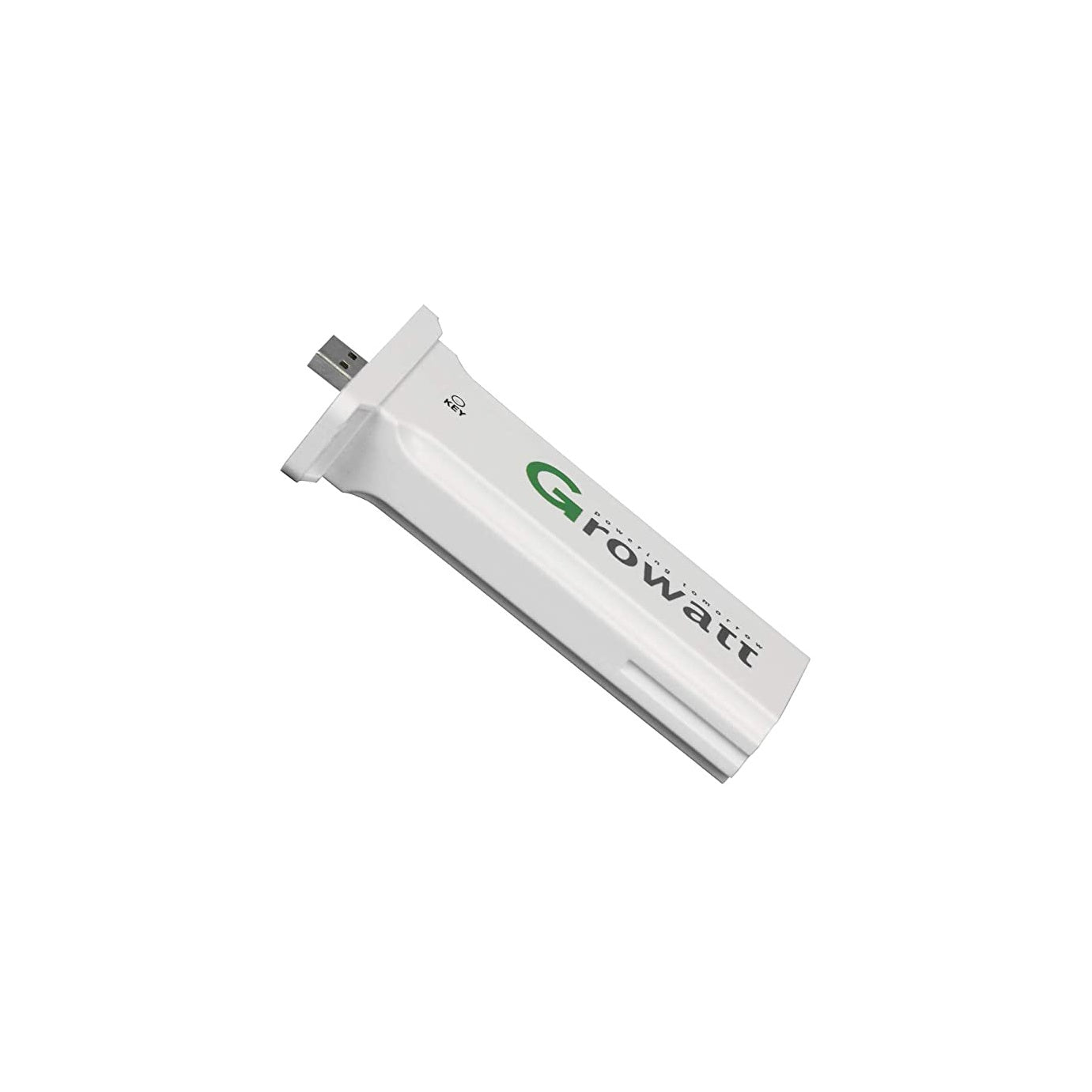

1 x GROWATT Wireless Monitoring Accessory (Wifi)

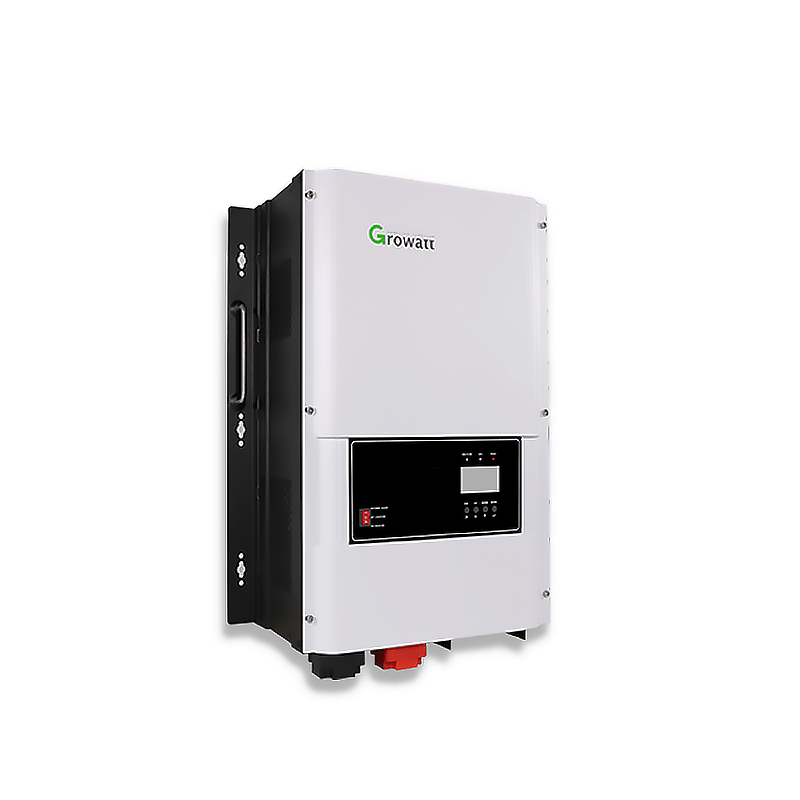

Introducing the Growatt SPF 12KT HVM Off-Grid Storage Inverter - New Arrival!
Dual MPPT solar charge controller
Remote monitoring via WIFI/GPRS
Industrial frequency design
Smart function and parameter settings through LCD buttons
Battery Parameters:
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid
Inverter Output:
Rated Power: 12KW
Surge Rating: 36KW
Waveform: Pure Sine Wave
Output Voltage: 220/230/240VAC
Output Frequency: 50/60HZ
Inverter Efficiency: >85%
Line Mode Efficiency: >95%
Power Factor: 1.0
Transfer Time: 10ms typical, 20ms max
Solar Charger:
Maximum PV Charge Current: 120A
Maximum PV Array Power: 7000W
Number of Independent MPPT Tracker/Strings per MPPT Tracker: 2/1
MPPT Range: 60-145VDC
Maximum PV Array Open Circuit Voltage: >98%
Maximum Efficiency: >98%
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 154-272VAC (for appliances), 184-272VAC (for UPS)
Frequency Range: 50/60HZ
Maximum Charge Current: 100A
Daily Output 23KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
This inverter fully complies with AS/NZS4777 and the new AS/NZS5033+ IEC 62109-1 & IEC 62109-2 + AS/NZS 5033:2014 Compliance (latest NZ 2015 spec requirements).
