Description

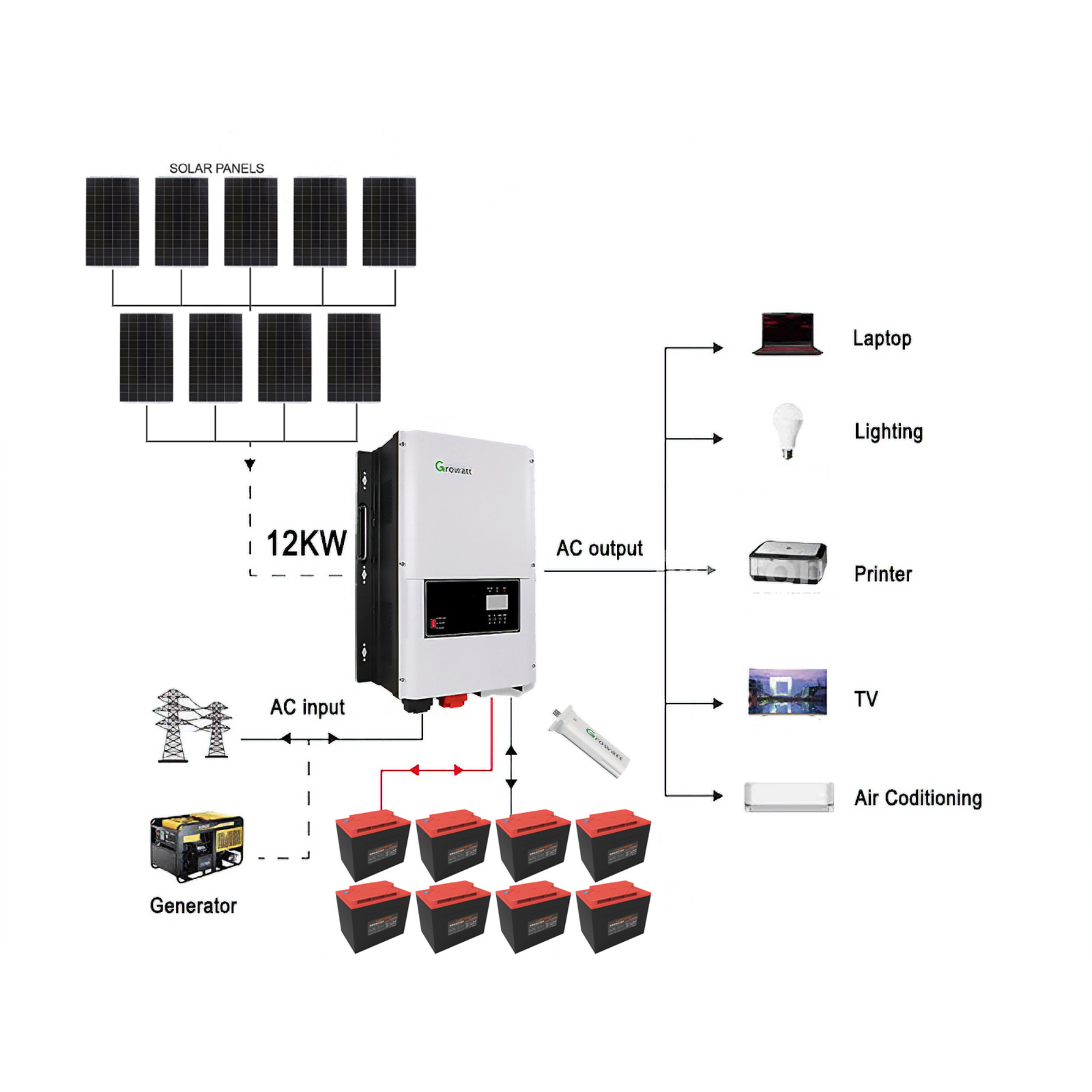

Introducing an exceptional solar off-grid system that showcases Grade A solar panels and a premium hybrid solar inverter system.
Package Includes:

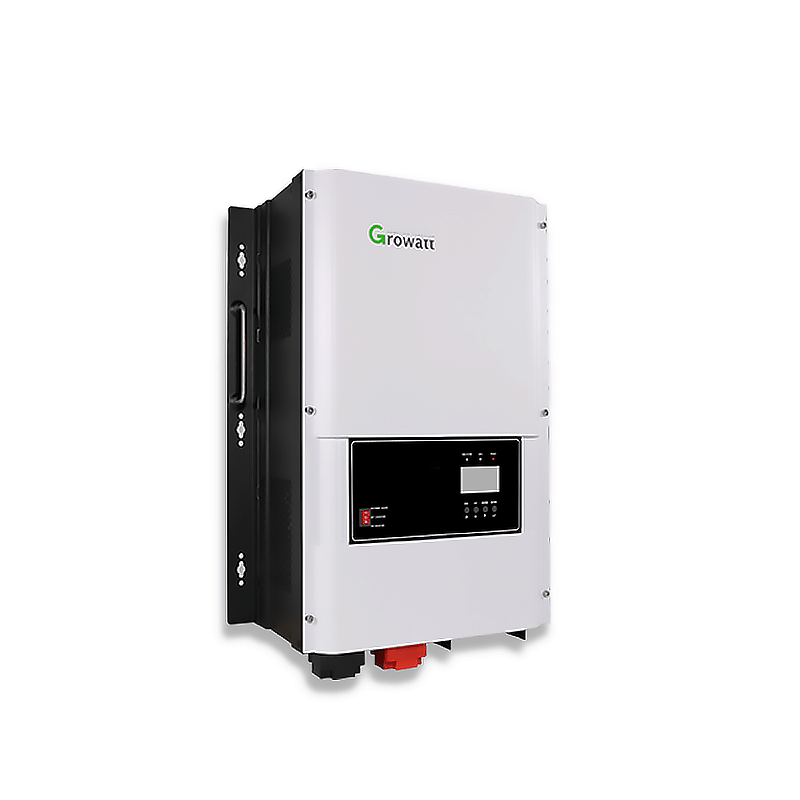

1 x Growatt SPF 12KT HVM Off-Grid Storage Inverter (2 Years Warranty)

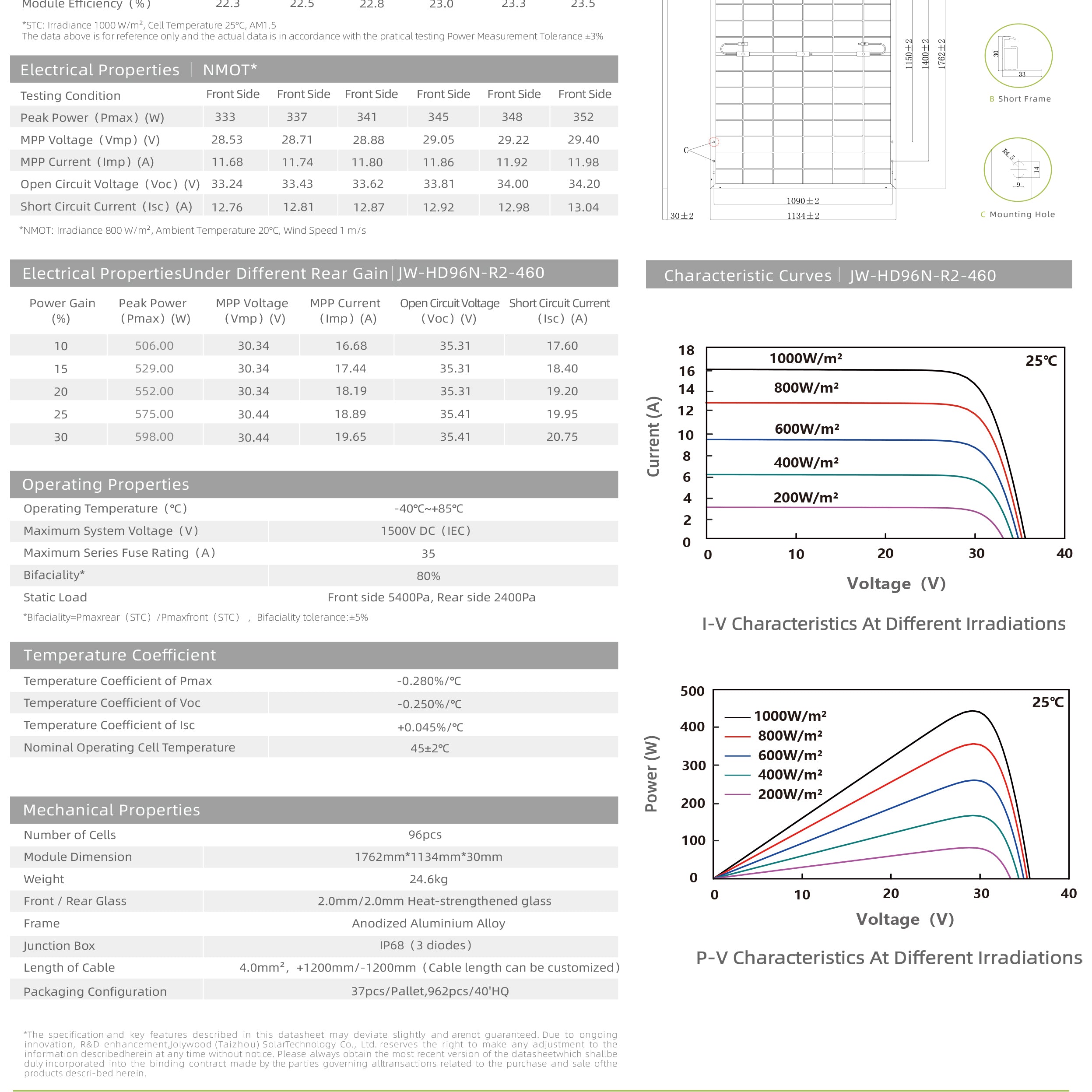

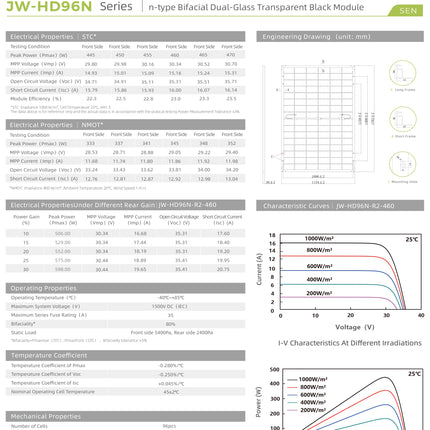

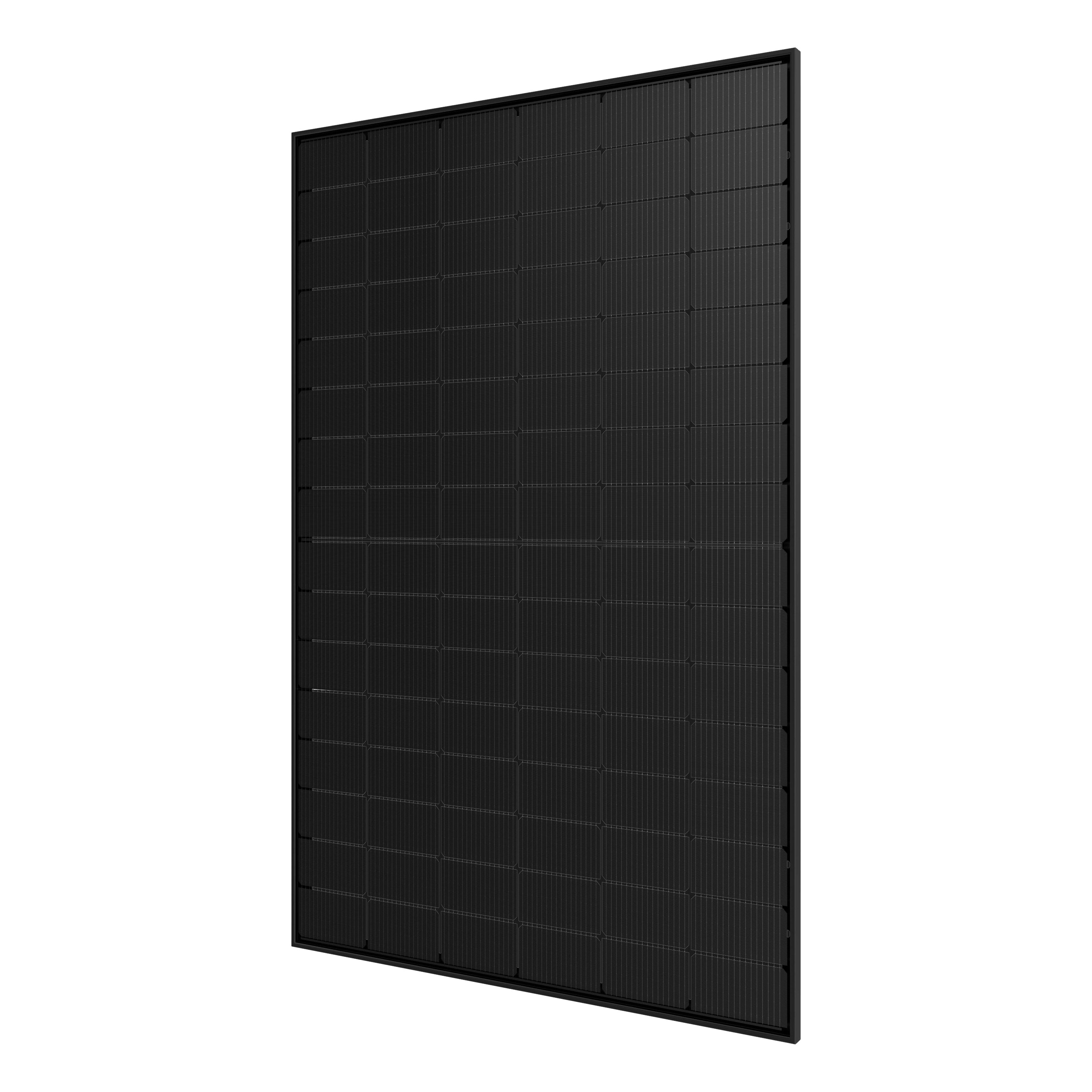

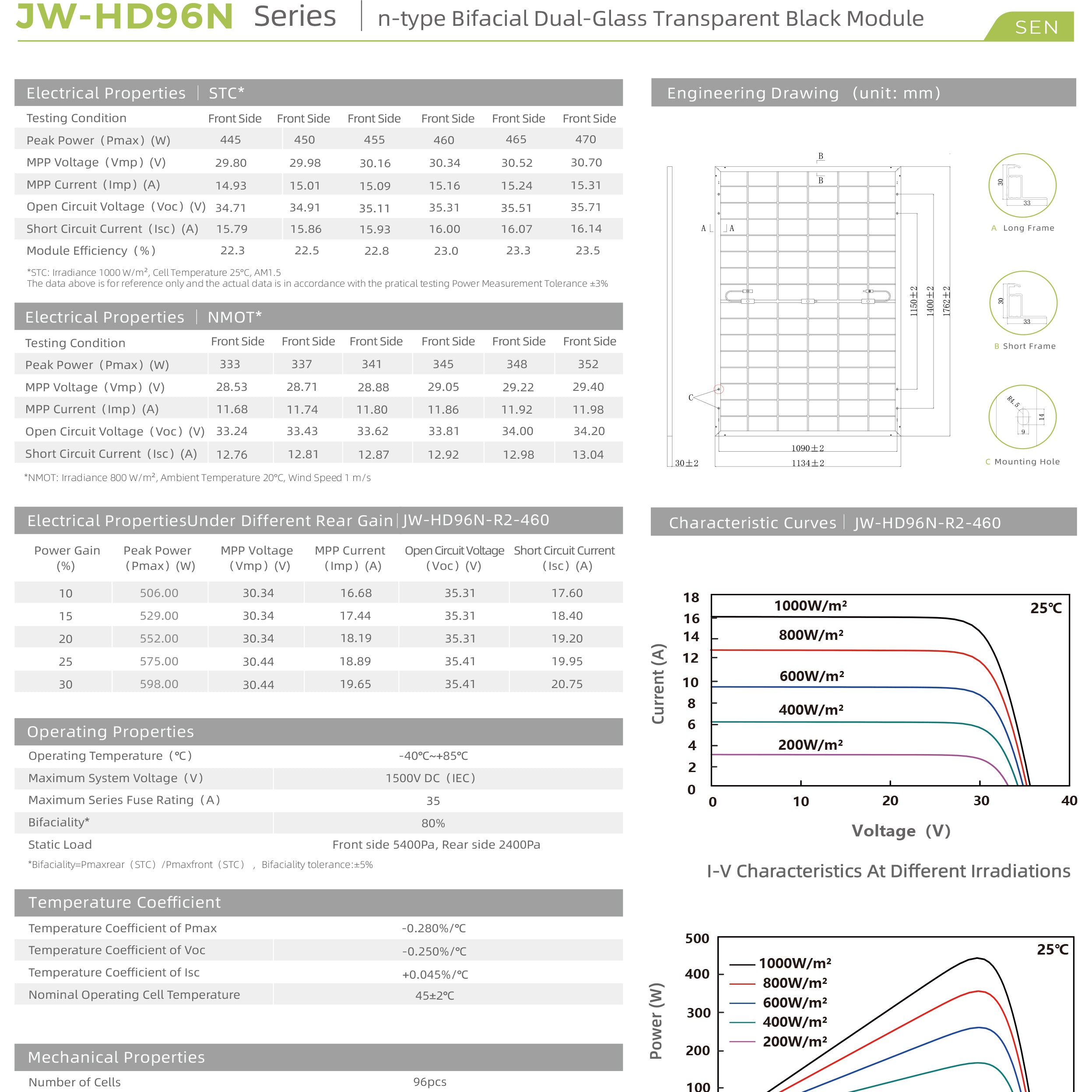

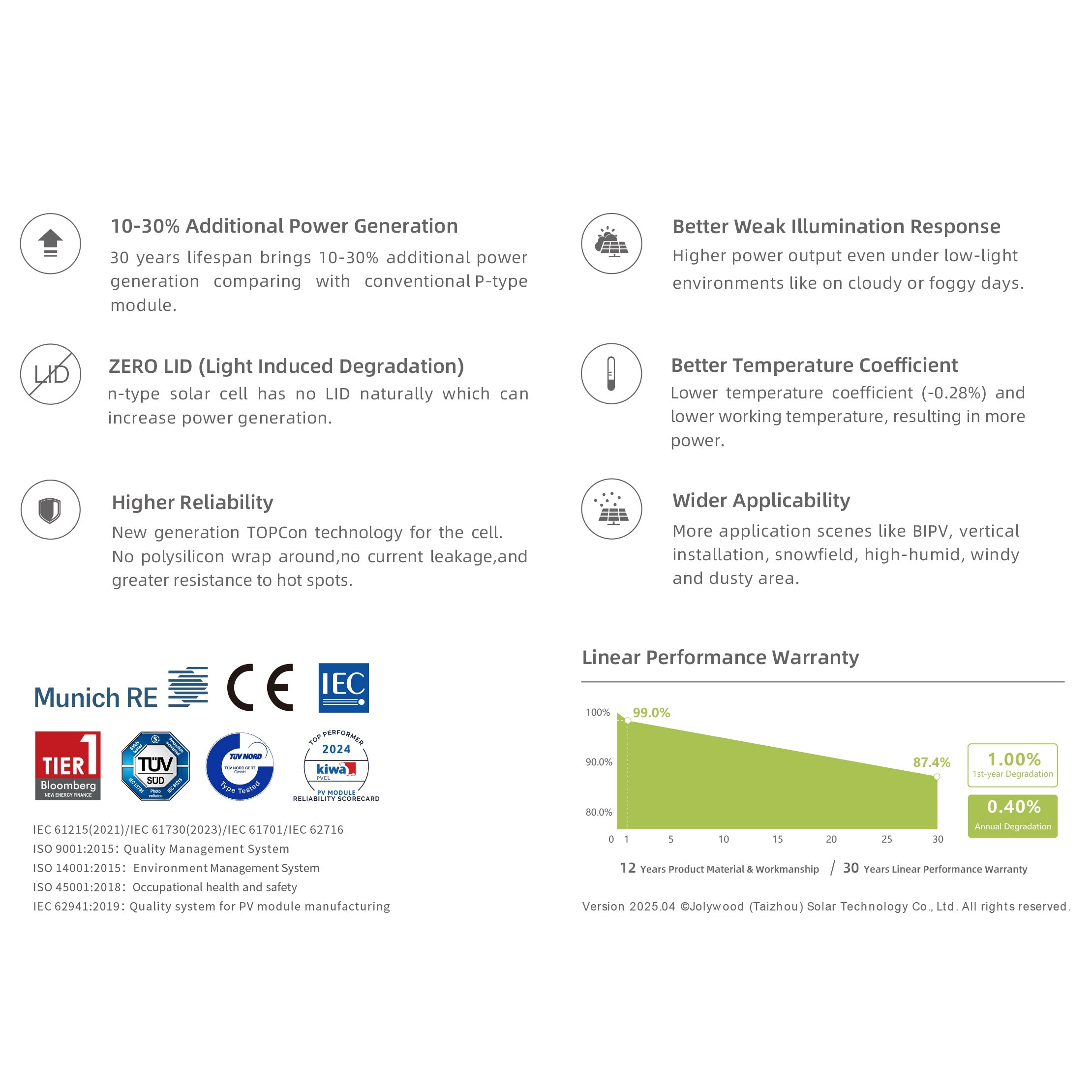

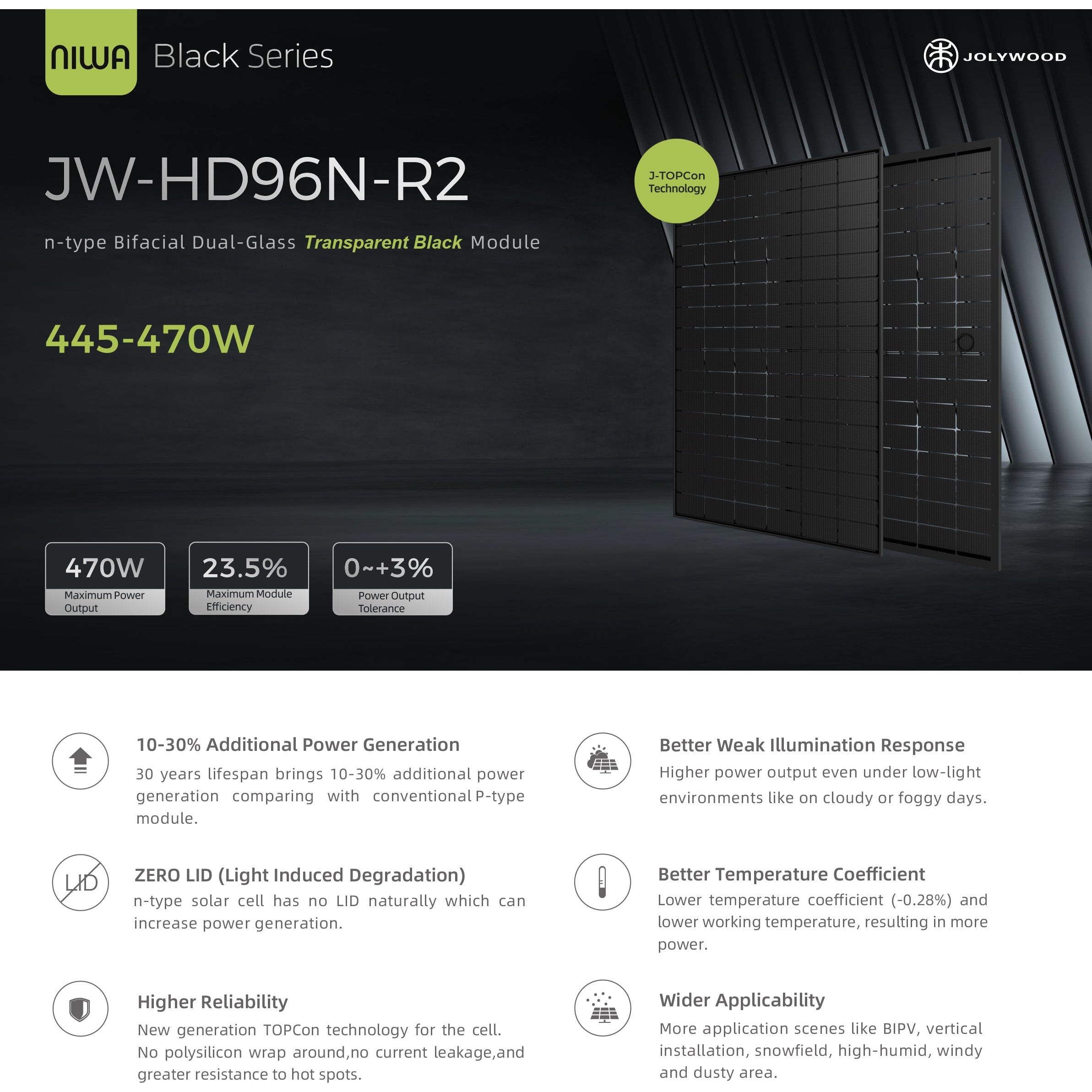

9 x 440W Solar Panel Bifacial Topcon N-Type Mono Half-Cell

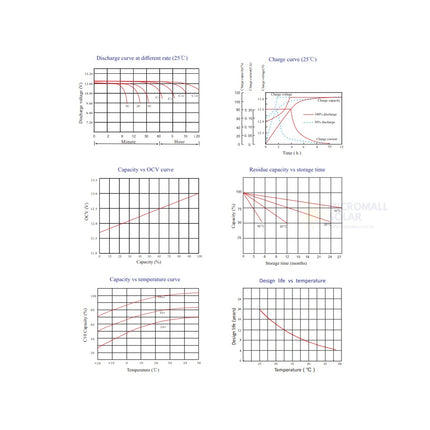

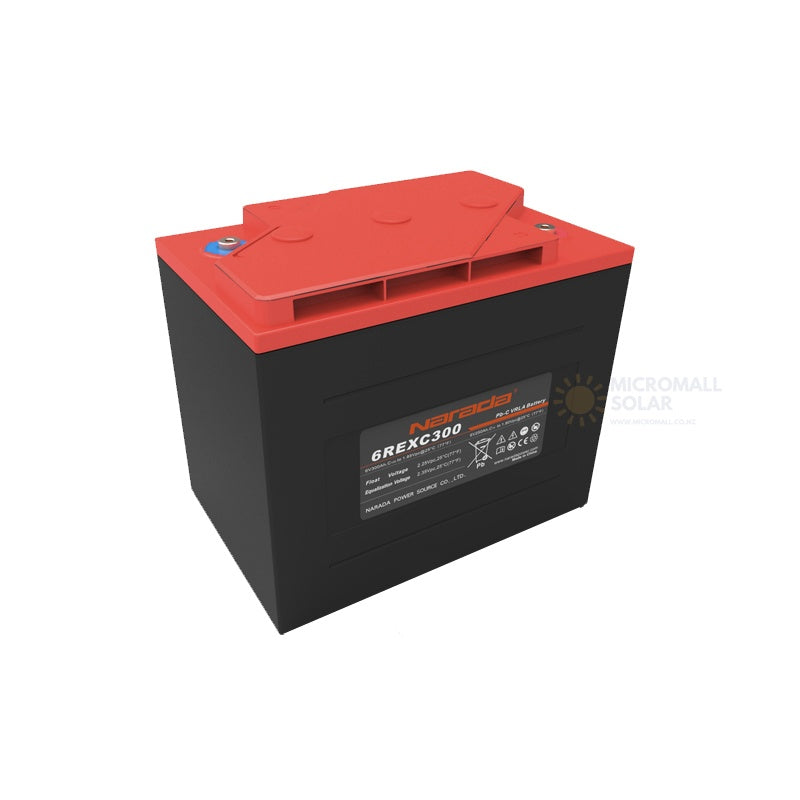

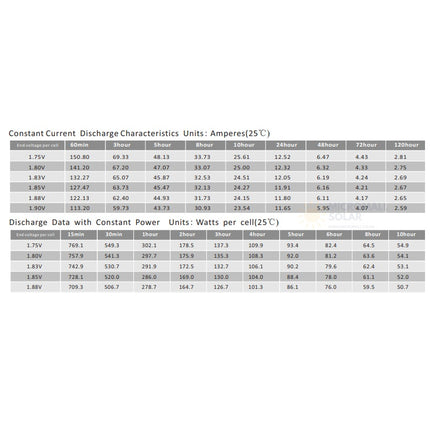

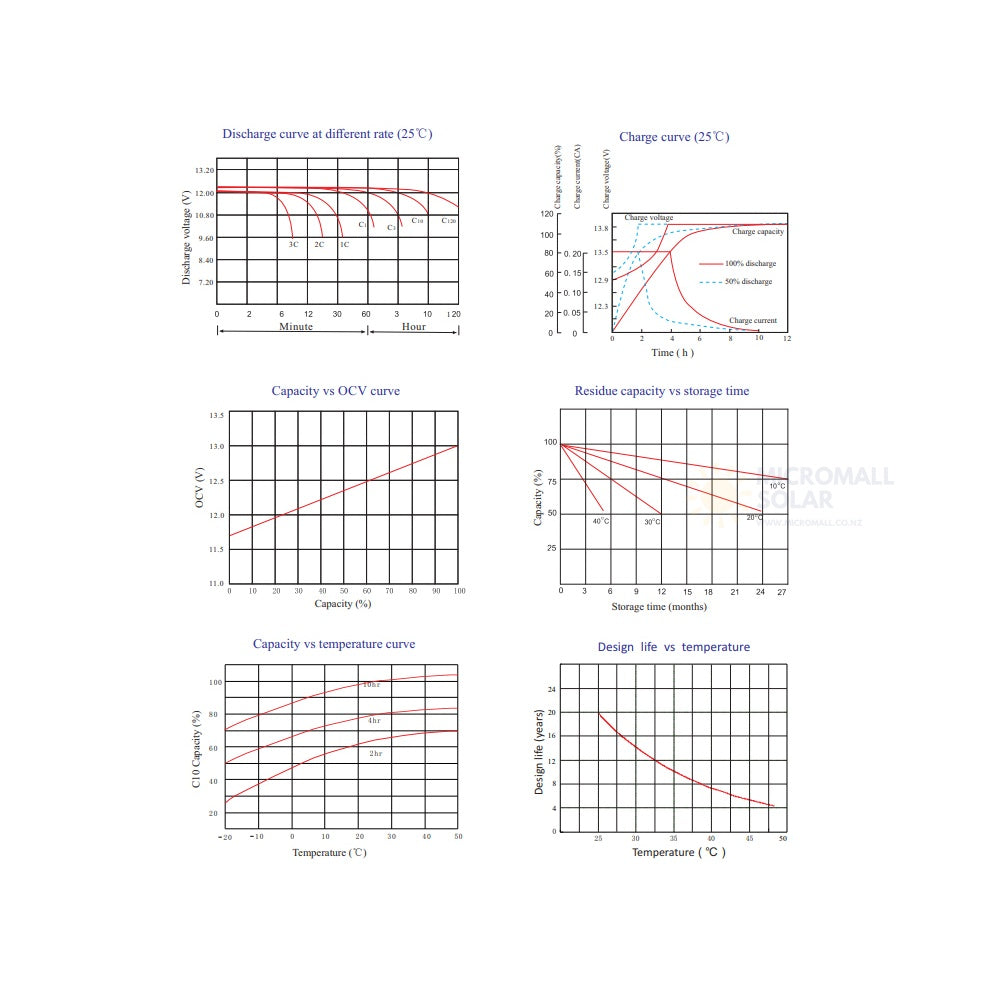

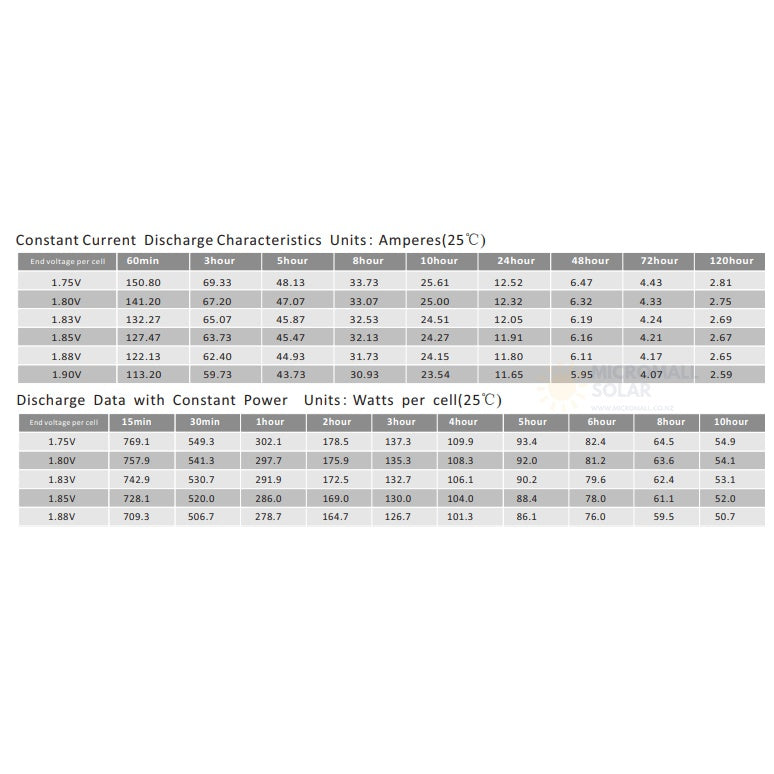

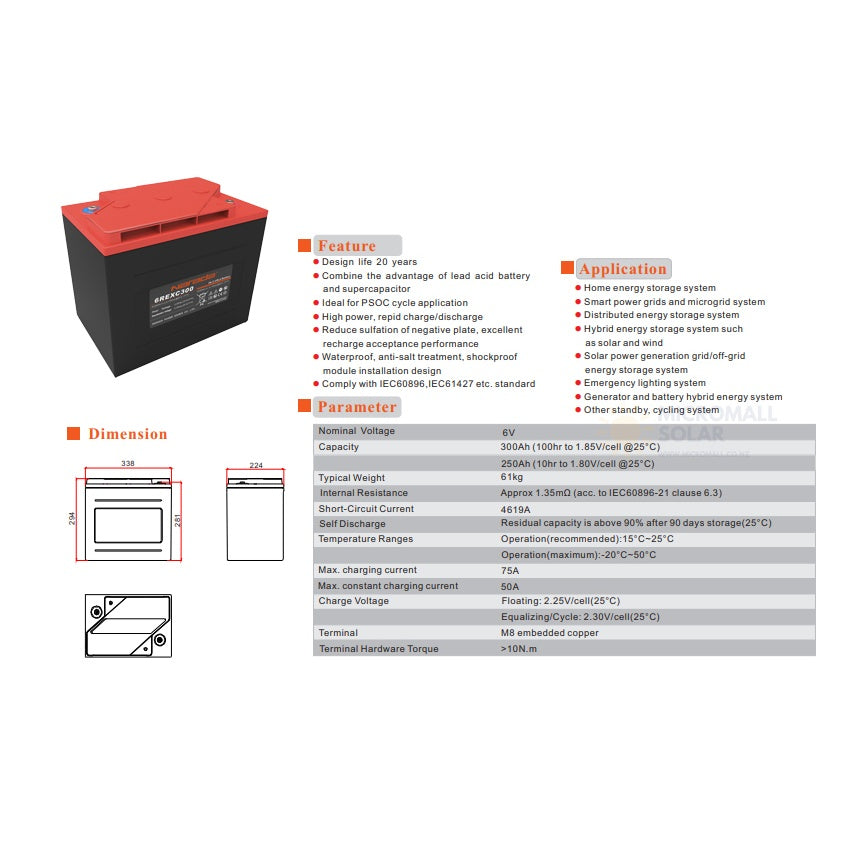

8 x Narada 6REXC-300 6V 300Ah Ultra Lead Carbon Deep Cycle Solar Battery (5 Years Warranty)

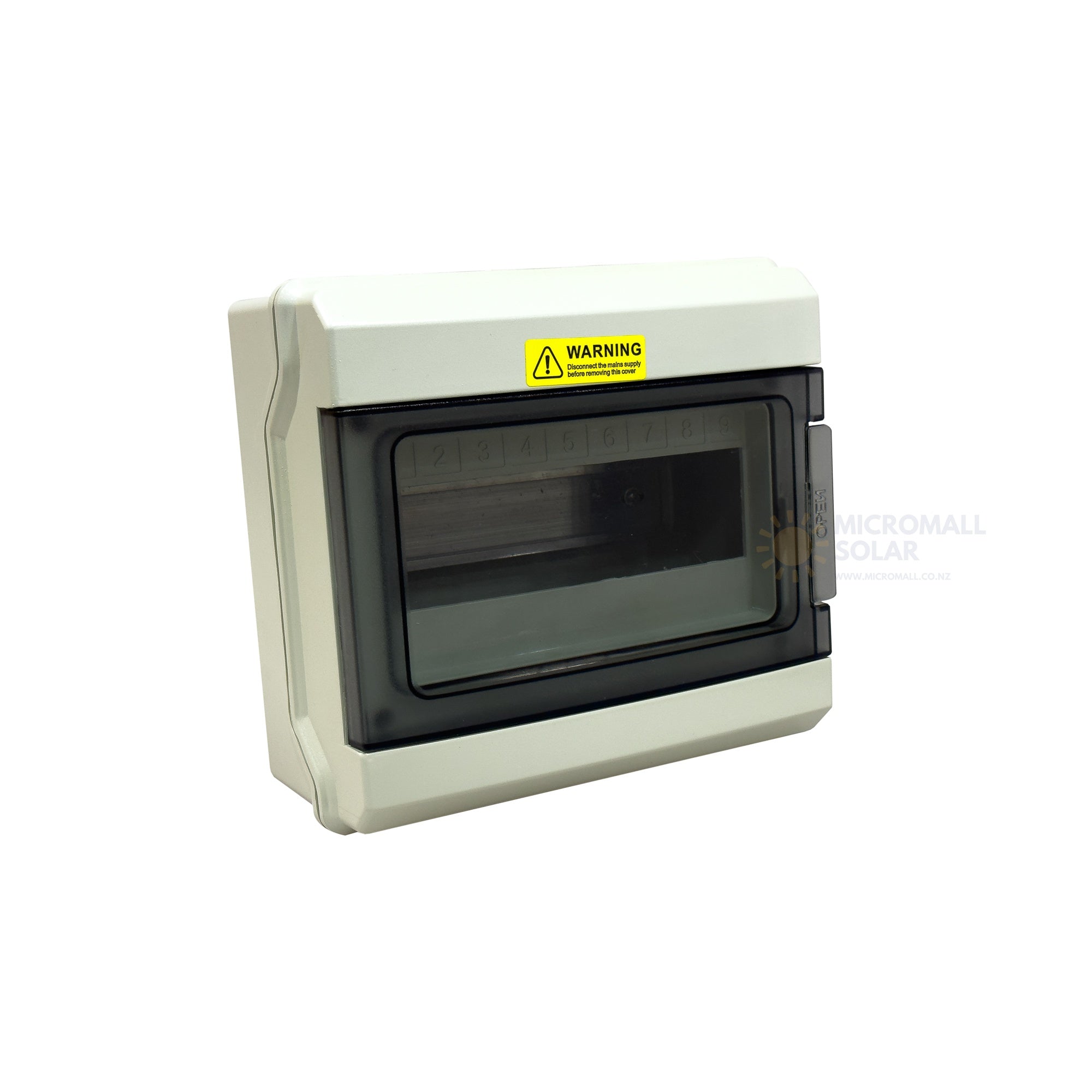

1 x PV Safety System with Fuse Box
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
9 x Commercial Mounting Kits with Adjustable Angle Version

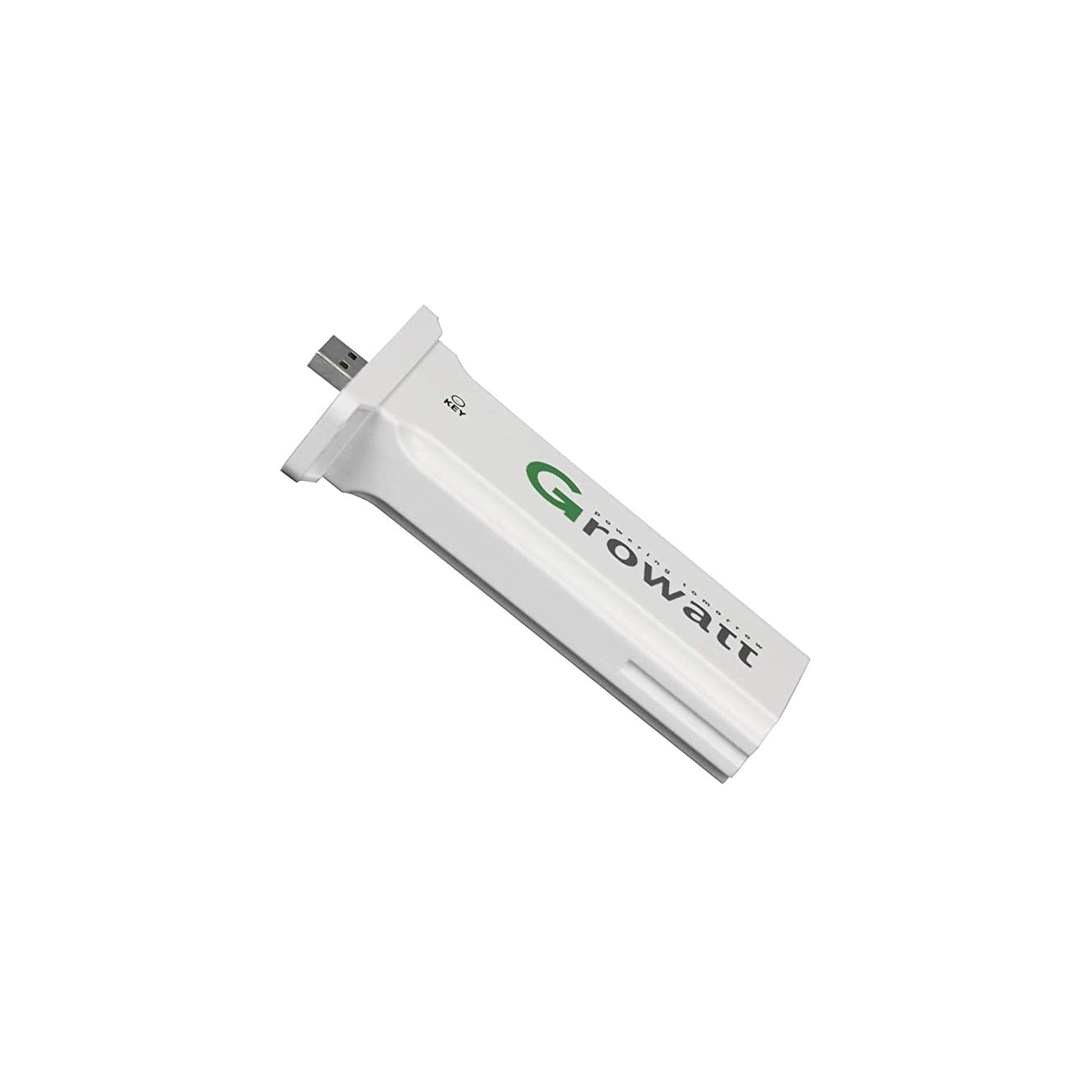

1 x GROWATT Wireless Monitoring Accessory Wifi
Key Features:
High Output with 2x peak power.
Versatile: Adapts to varied power sources like PV, battery, diesel, utility. Lithium, lead-acid, GEL battery compatible.
Smart: Supports WiFi/GPRS remote monitoring, PVkeeper platform.
Built-in low-frequency transformer.
Specifications:
Battery Voltage: 48VDC
Battery Type: Lithium/Lead-acid
INVERTER OUTPUT
Rated Power: 12KW
Surge Rating: 36KW
Waveform: Pure sine wave/ same as input(bypass mode)
Nominal Output Voltage RMS: 220V/230V/240VAC(+/-10% RMS)
Output Frequency: 50Hz/60Hz +/-0.3 Hz
Inverter Efficiency(Peak): >88%
SOLAR CHARGER
Maximum PV Charge Current: 120A
Maximum PV Array Power: 7000W
Number of independent MPP trackers/strings per MPP tracker: 2/1
MPPT Range @ Operating Voltage: 60~145VDC
Maximum PV Array Open Circuit Voltage: 150VDC
AC INPUT
Voltage: 230VAC
Frequency Range: 50Hz/60Hz (Auto sensing)
Maximum Charge Current: 100A
Dimensions: 380x650x255mm
Weight: 75kg
Daily Output 23KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
This inverter fully complies with AS/NZS4777 and the latest AS/NZS5033+ IEC 62109-1 & IEC 62109-2 + AS/NZS 5033:2014 Compliance standards for New Zealand.
