Description

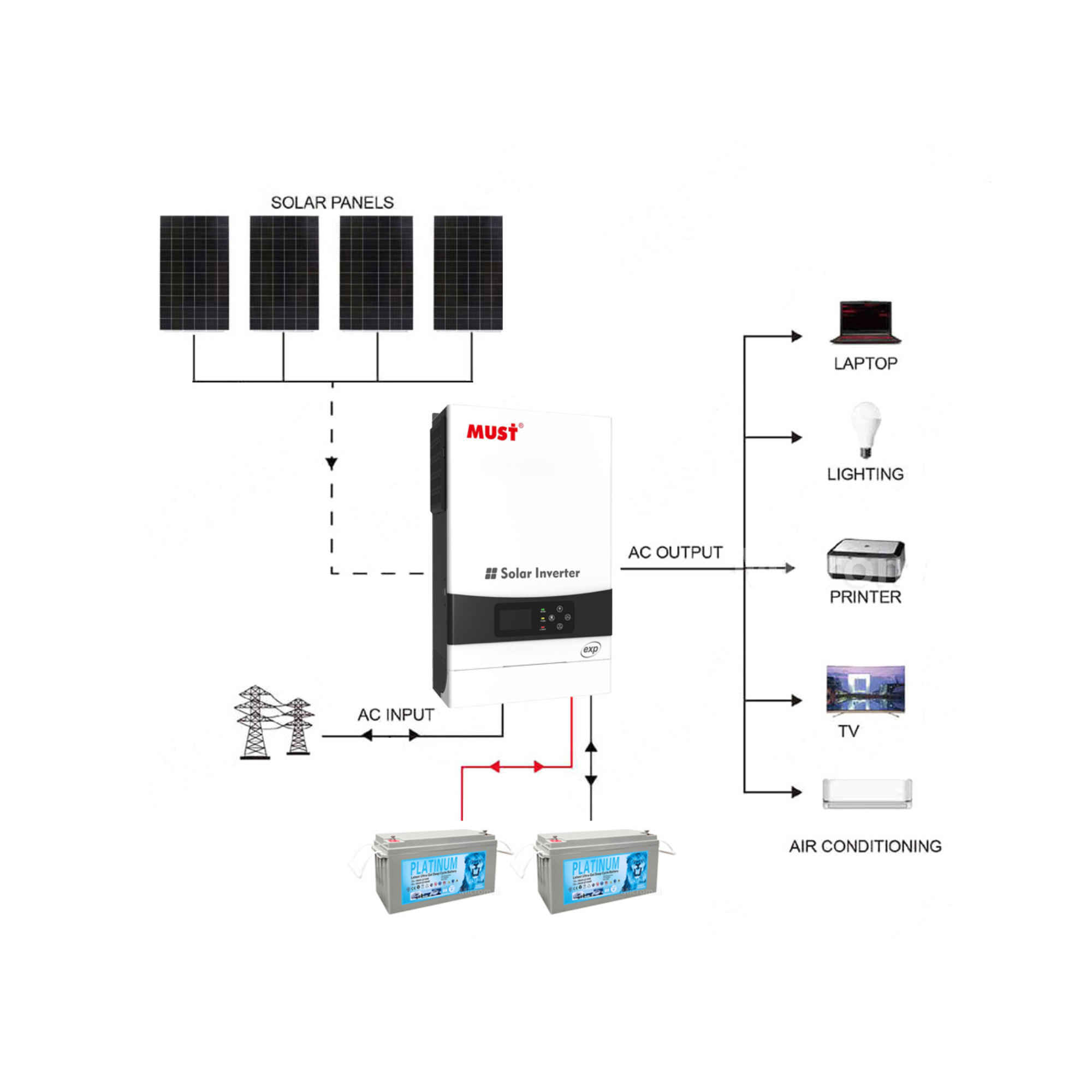

Introducing our exceptional off-grid solar system: the Premium Grade A Solar Panel combined with a high-quality Hybrid Solar Inverter System.
Package Includes:

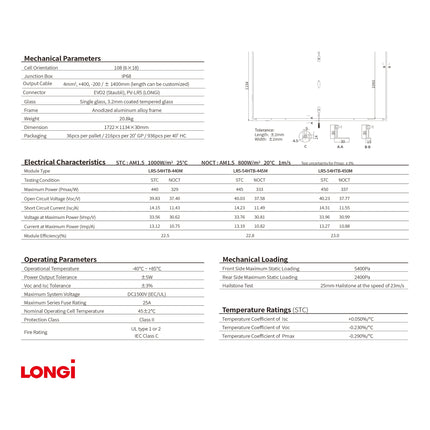

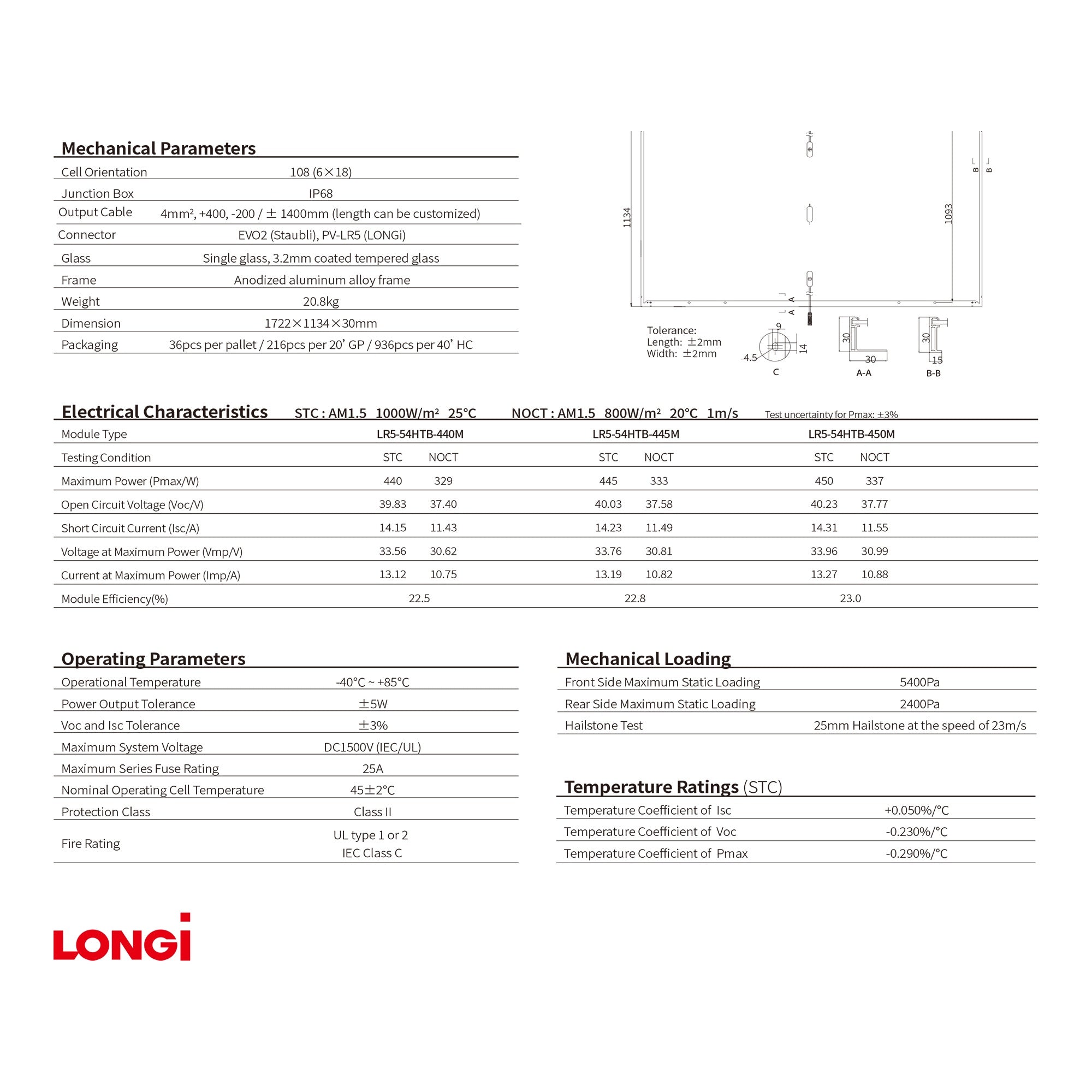

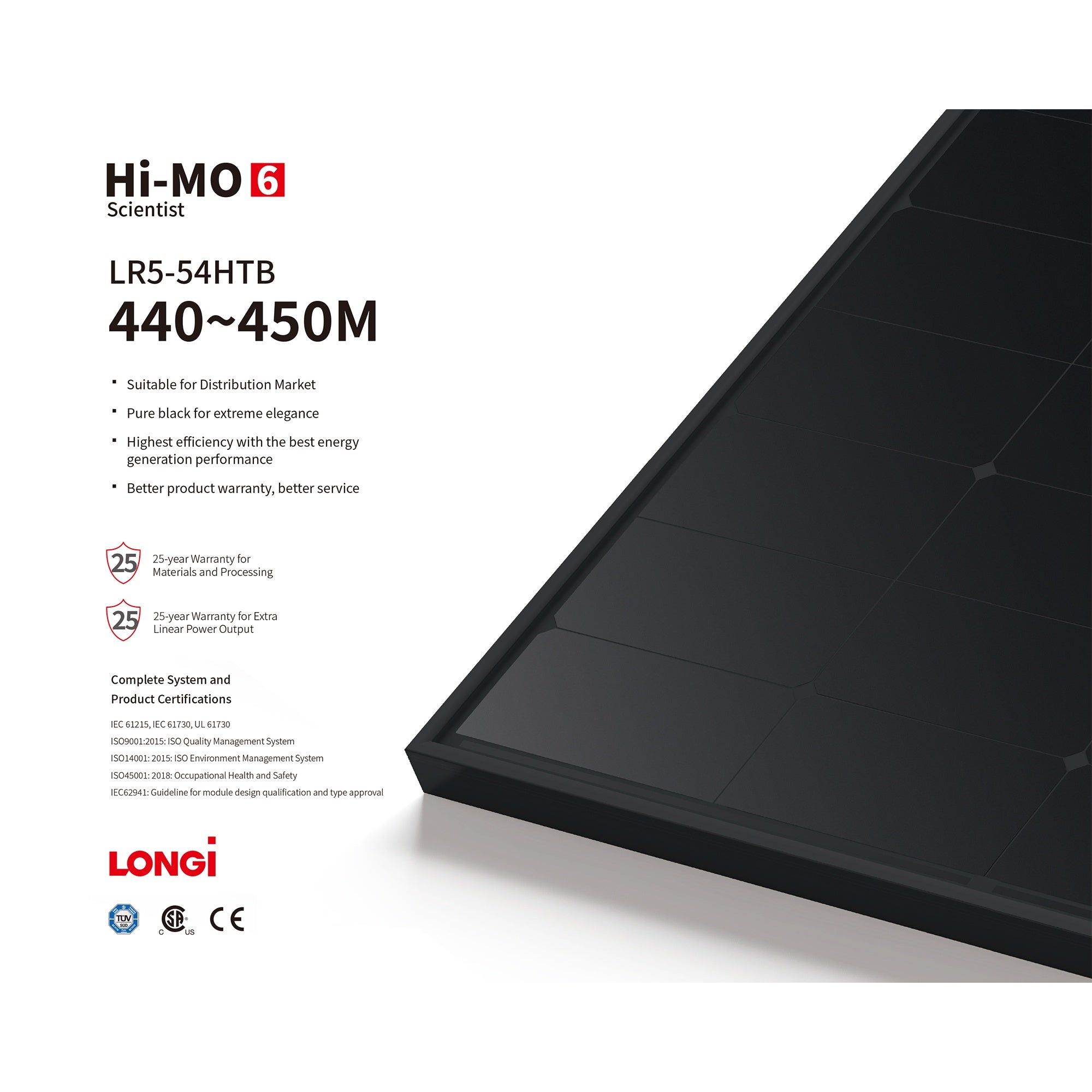

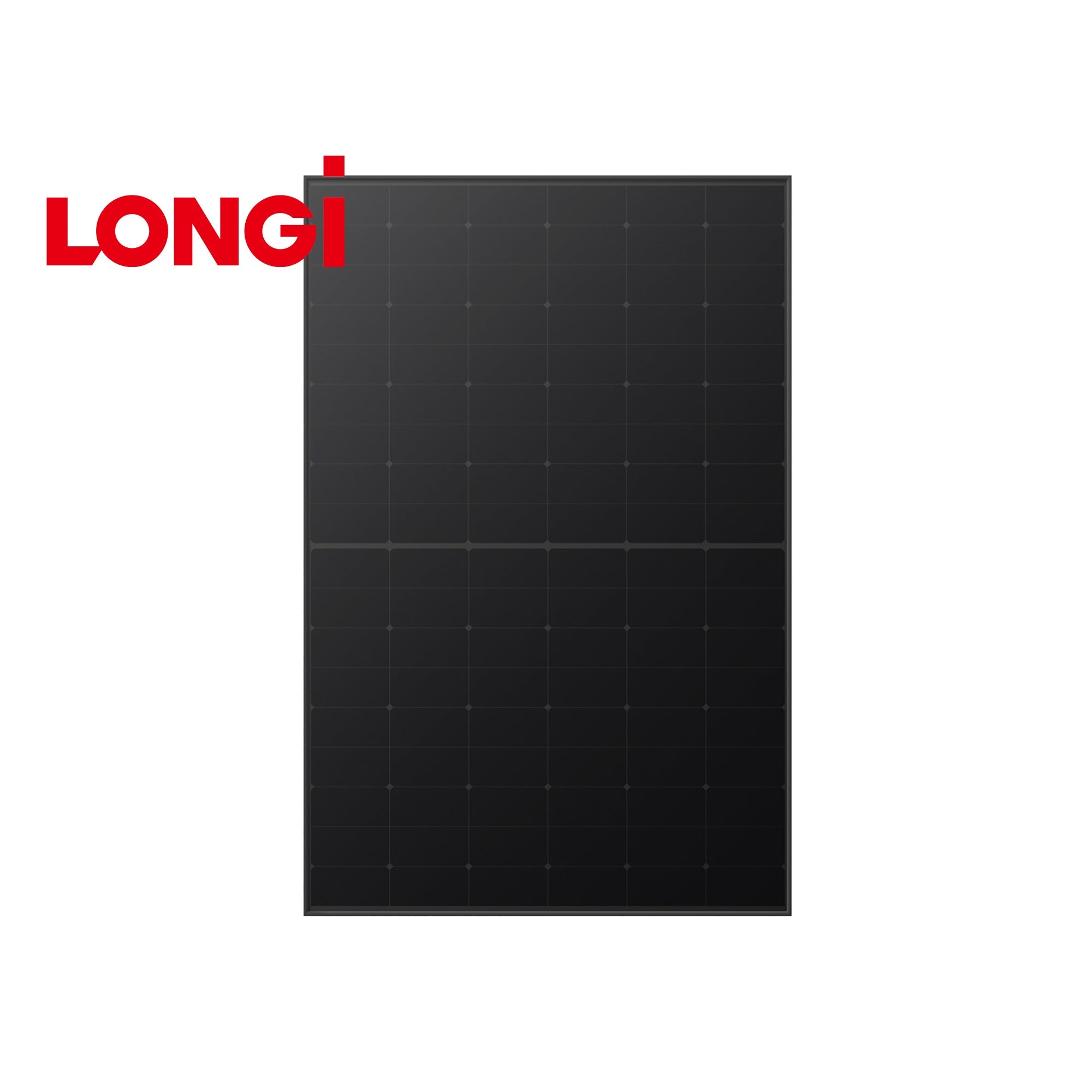

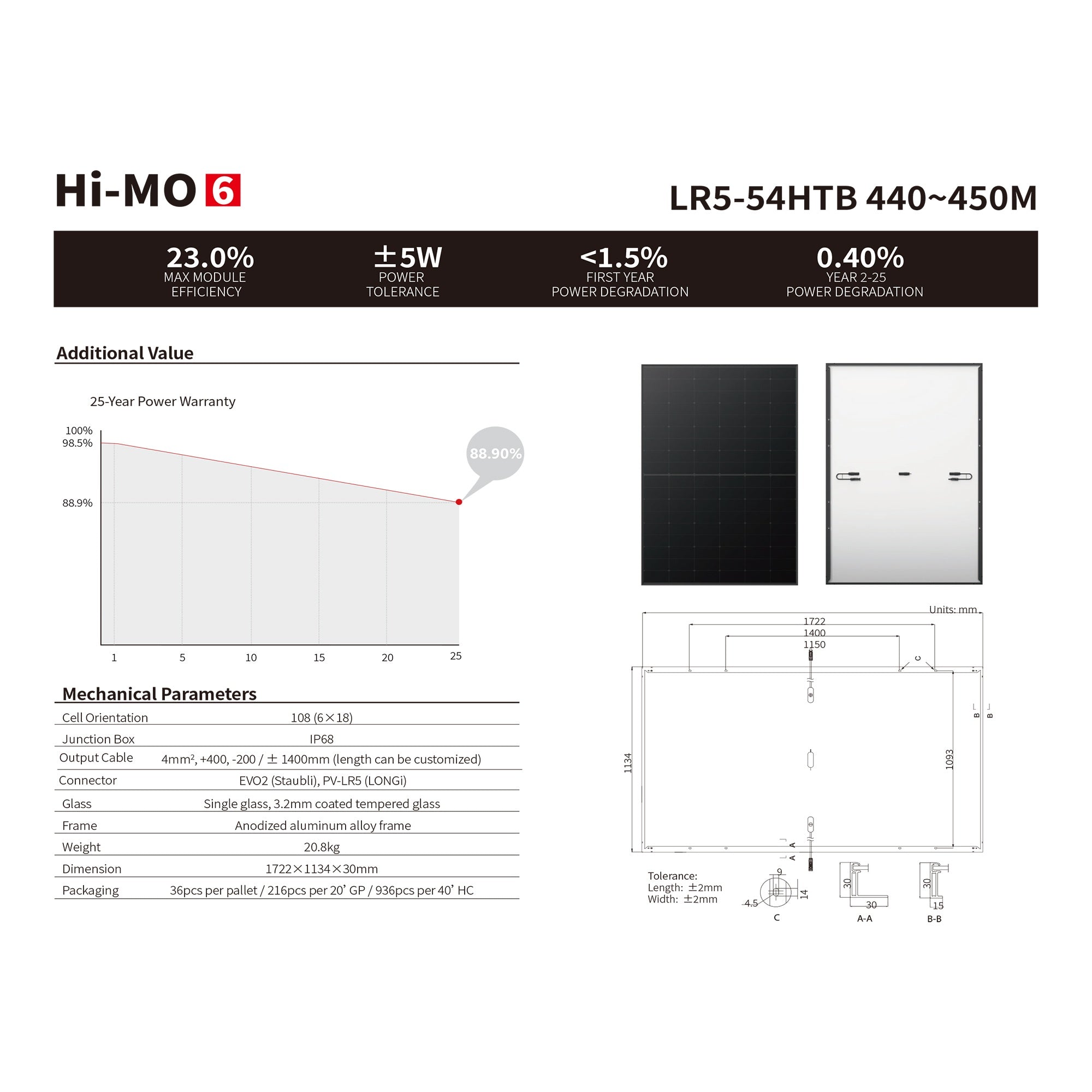

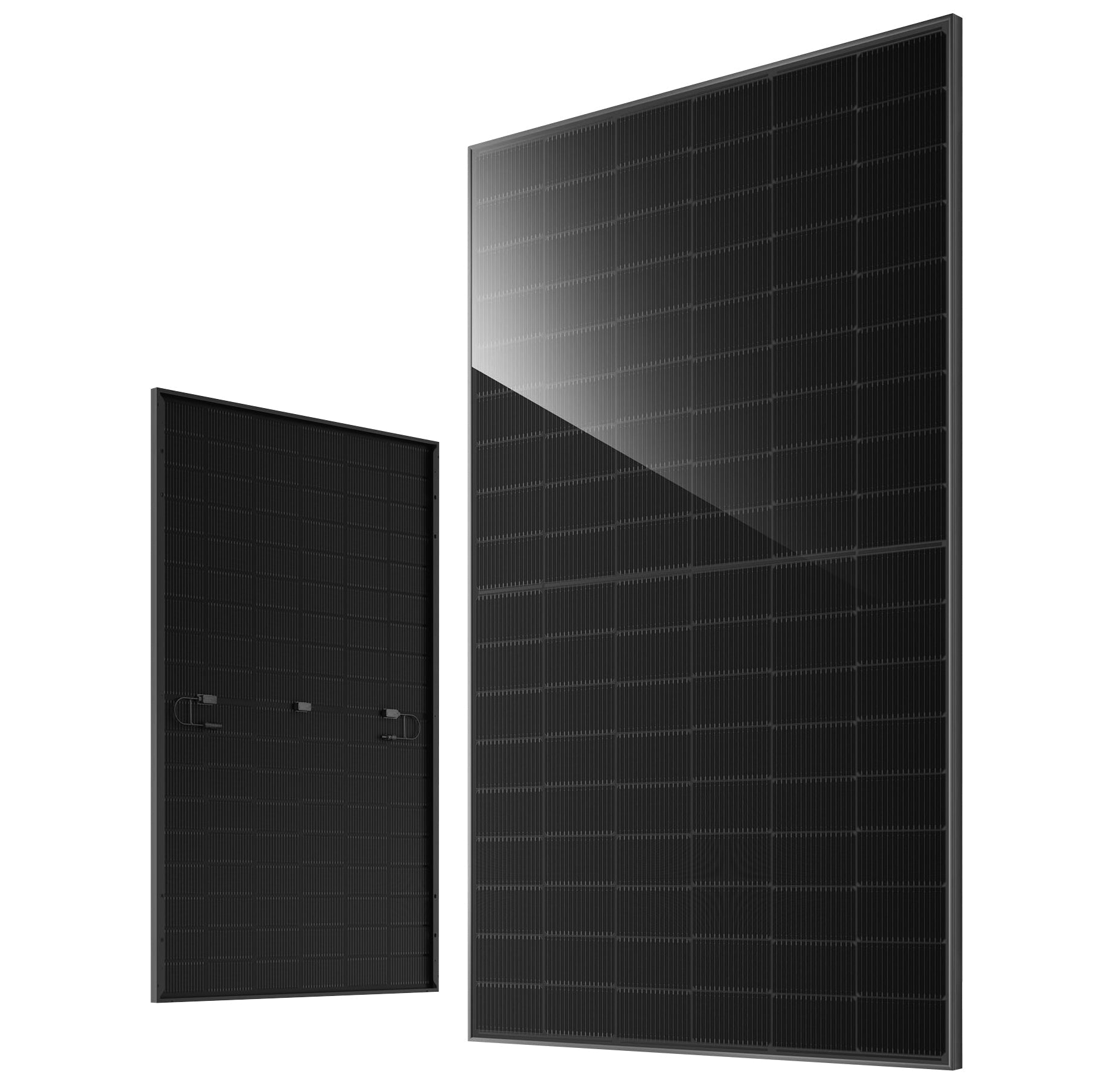

4 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

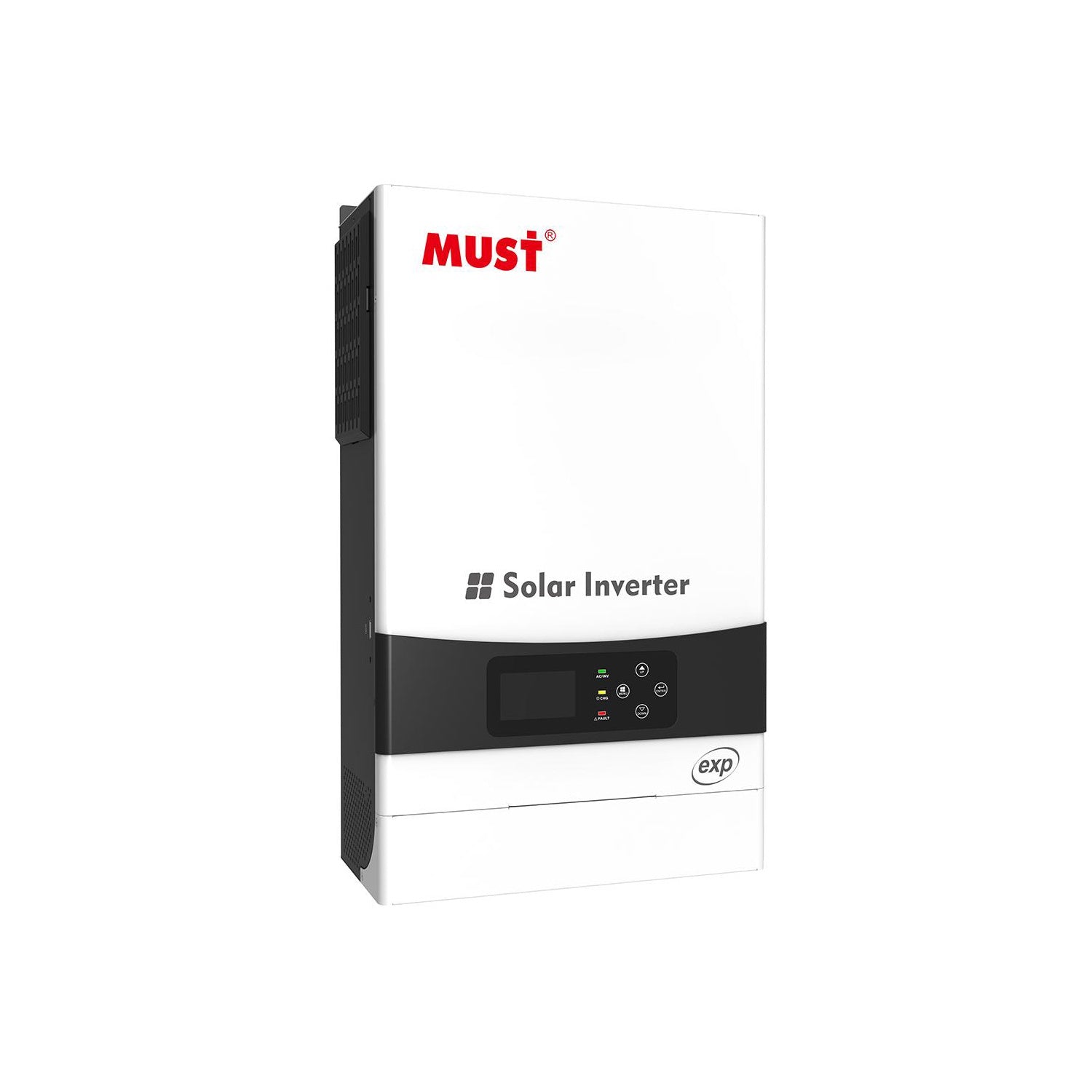

1 x Mustpower 24V 4KW High Frequency Solar Inverter 4000W (2 Years Warranty)

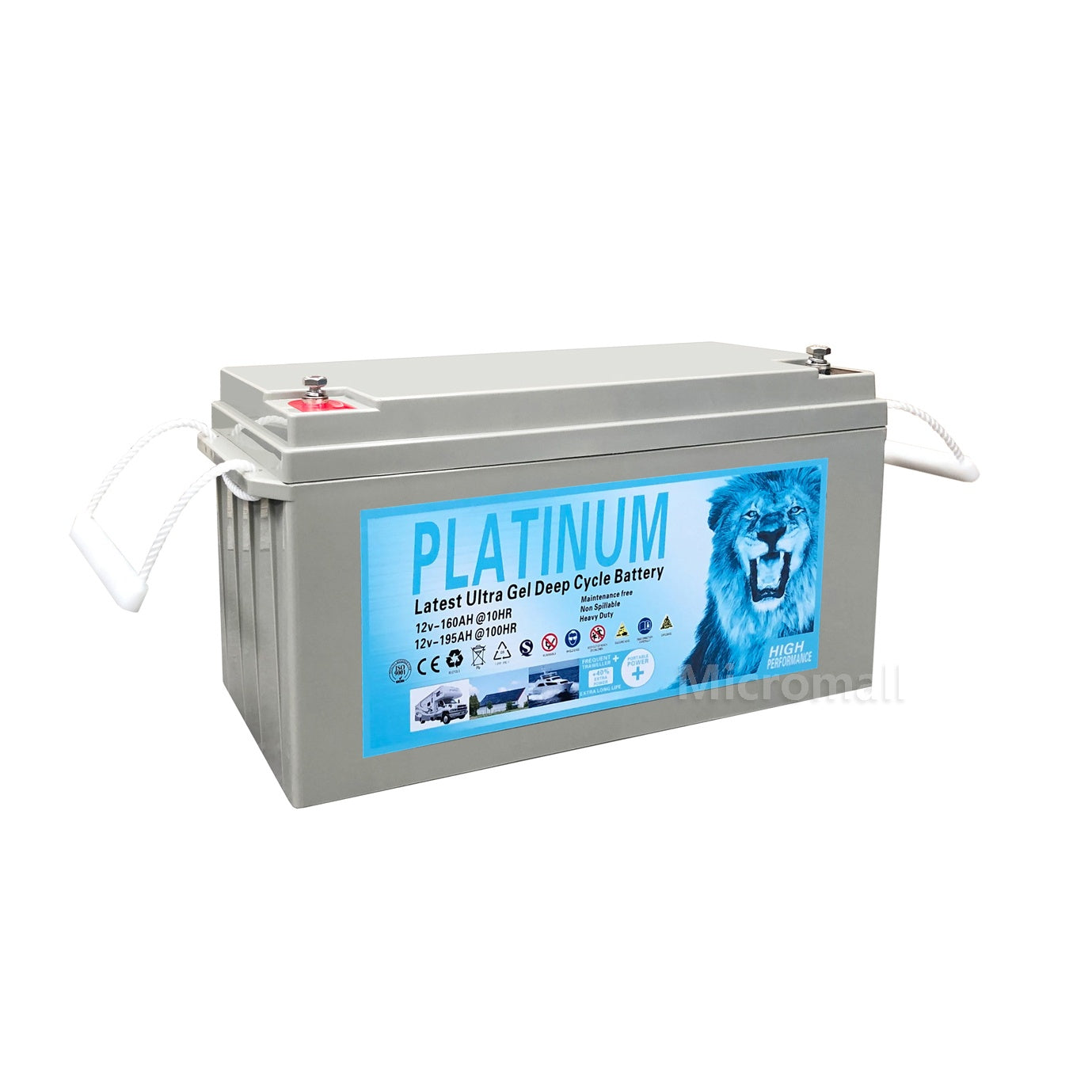

2 x 12V 195Ah Gel Deep Cycle Batteries (2 Years Warranty)
1 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x PV Fuse
1 x PV Circuit Breaker
1 x Surge Protector

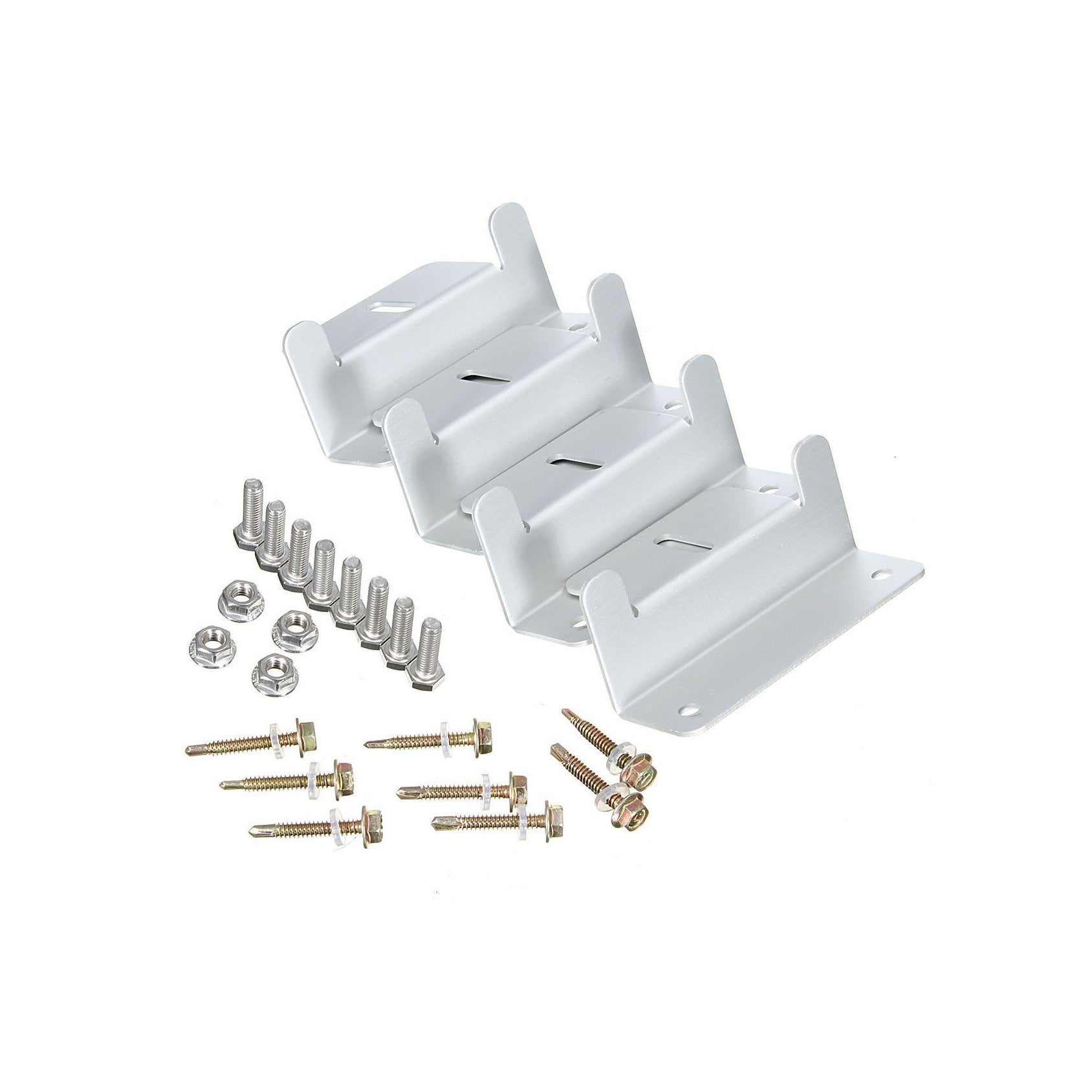

4 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $120. If you wish to upgrade, please contact us.**

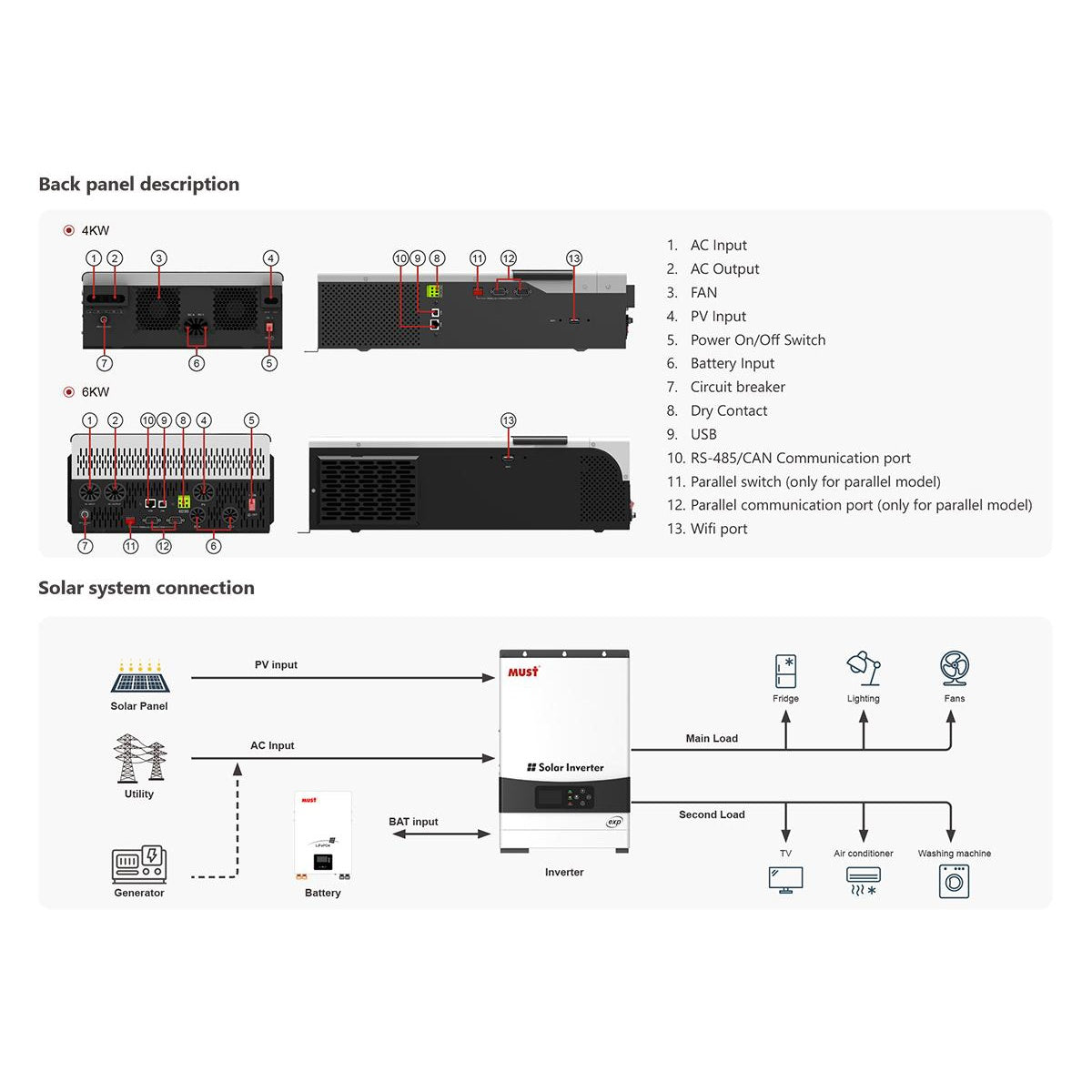

MODEL: PV19-4024 EXP
Nominal Battery System Voltage: 24VDC
INVERTER OUTPUT
Rated Power: 4000VA / 4000W
Surge Power: 8000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): 230VAC +-5%(Setting)
Inverter Efficiency(Peak): 92%
Transfer Time: 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage: 230VAC
Selectable Voltage Range: 170 - 280VAC(UPS) / 90 - 280VAC(APL) / 184 - 253VAC(VED4105)
Frequency Range: 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage: 24VDC
Floating Charge Voltage: 27.4VDC
Overcharge Protection: 30VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage: 500VDC (450V for parallel)
Charging Algorithm: 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power: 5000W
Maximum Solar Charge Current: 100A
Maximum AC Charge Current: 80A
Maximum Charge Current: 100A
Dimensions (WxHxD): 322x486x134mm
SAA NZ Certificated Inverter
Daily Output 10KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
