Description
Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.
this system solar panels can make 15kwh per day(average summer and winter), the inverter is 5kW, and the battery is a BTL-48V110H 51.2V 110Ah 5kWh LiFePO4 battery with a 15-year New Zealand local warranty

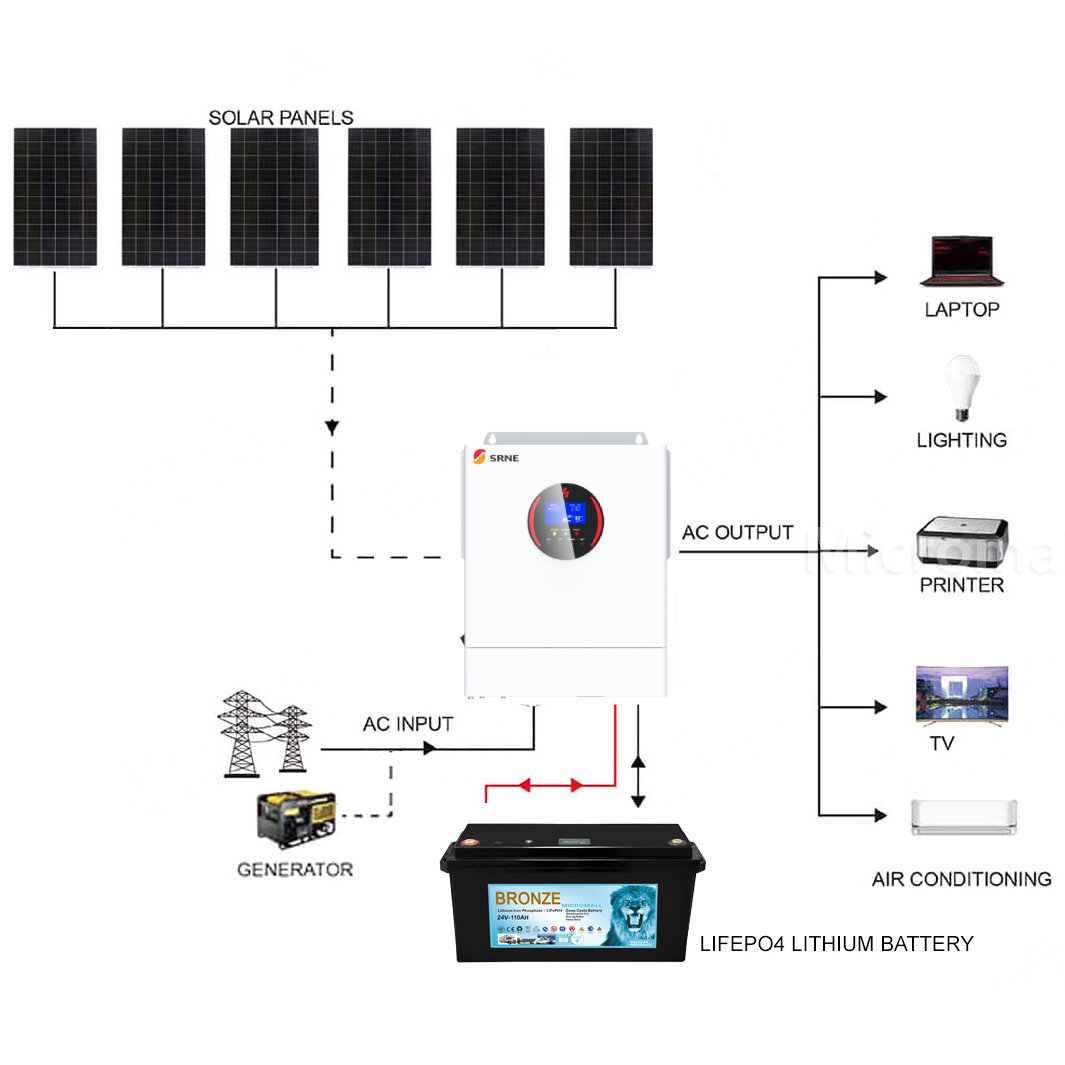

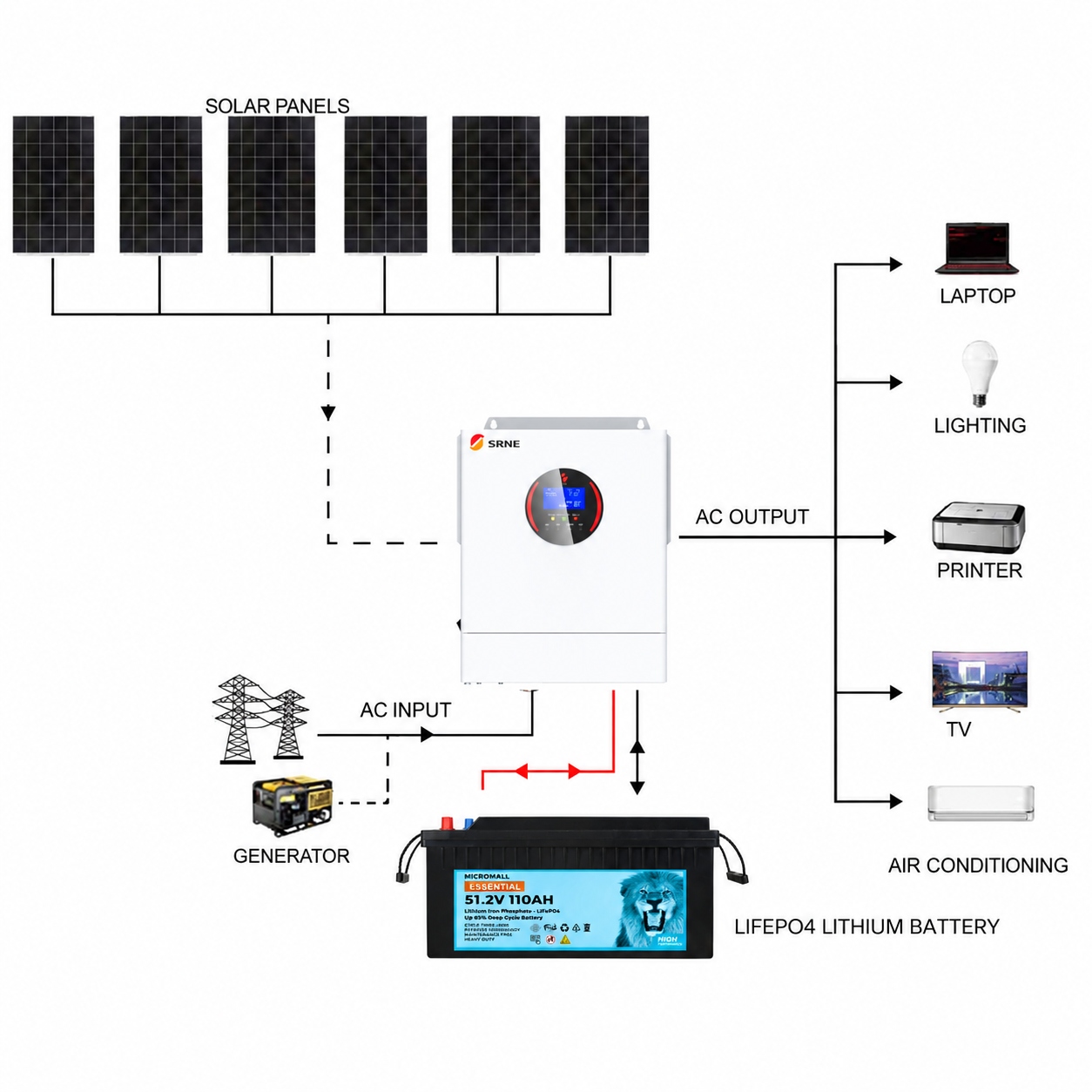

Package includes

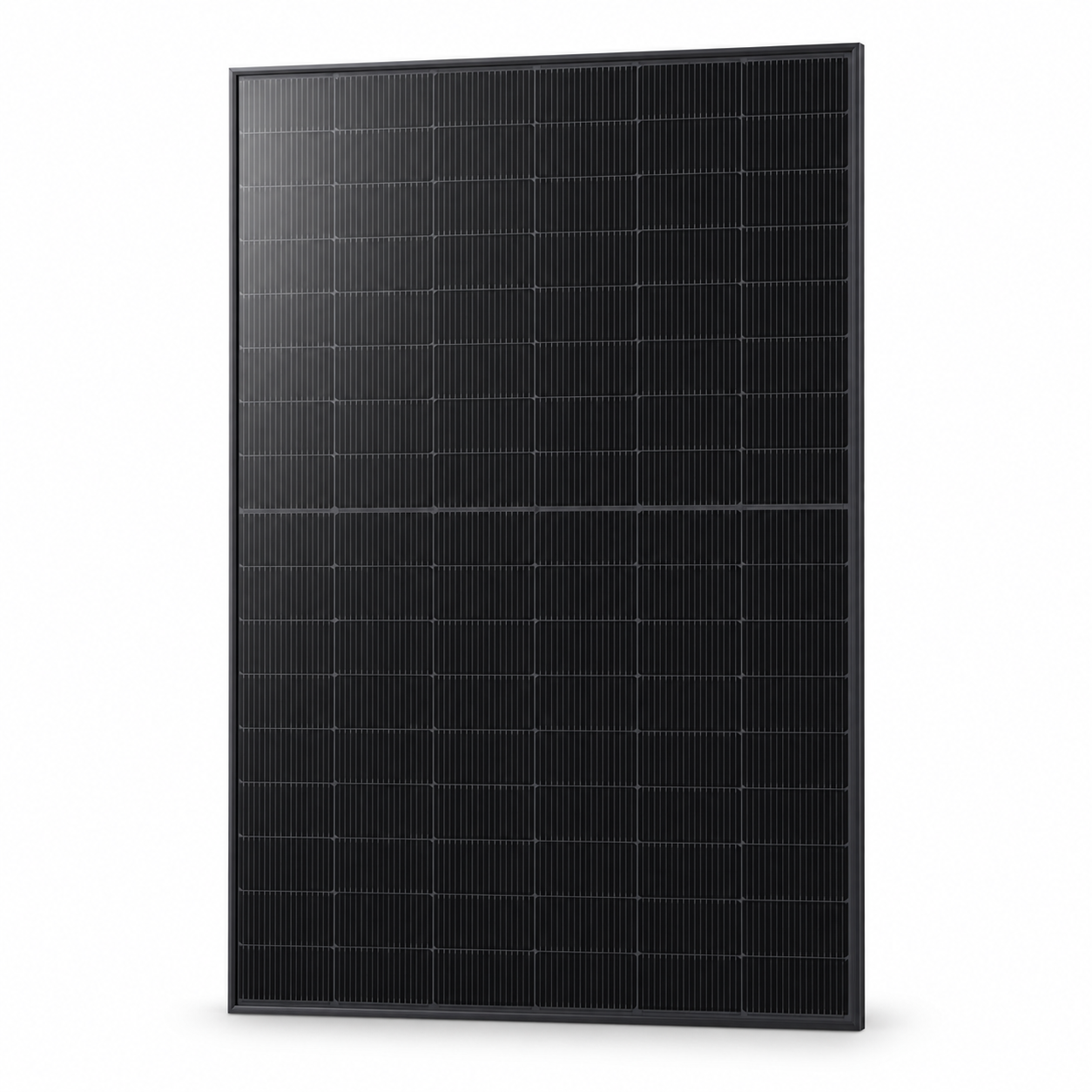

6 x JA Solar 460W Solar Panel

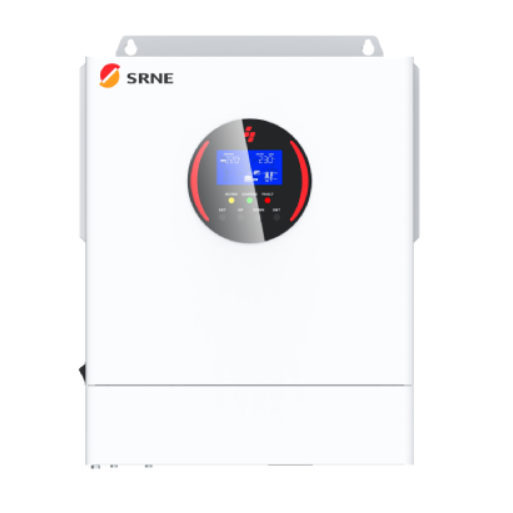

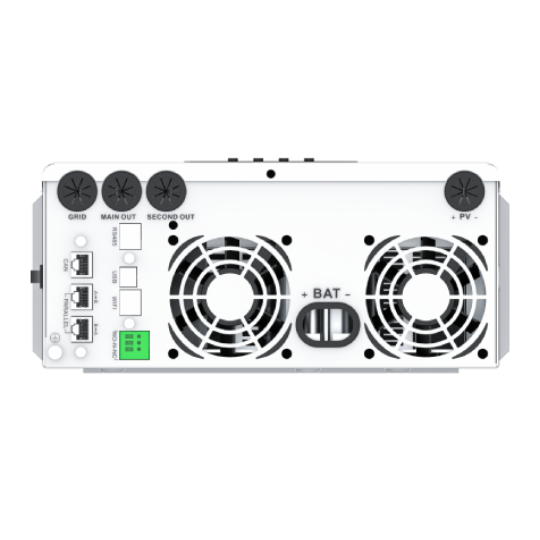

1 x 5000W SRNE Single Phase Off-Grid Solar Storage Inverter AFP4850S100-H (2 years warranty)

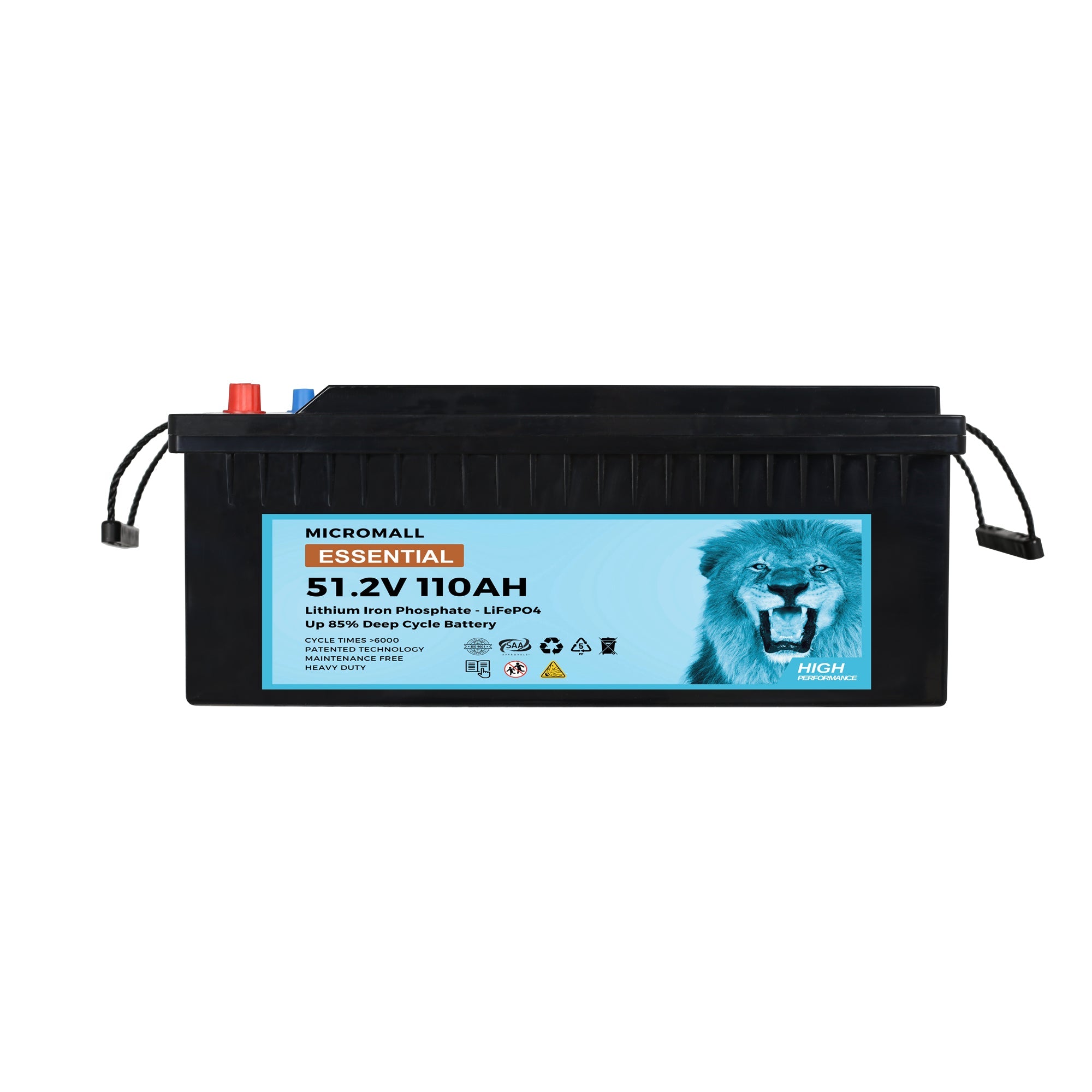

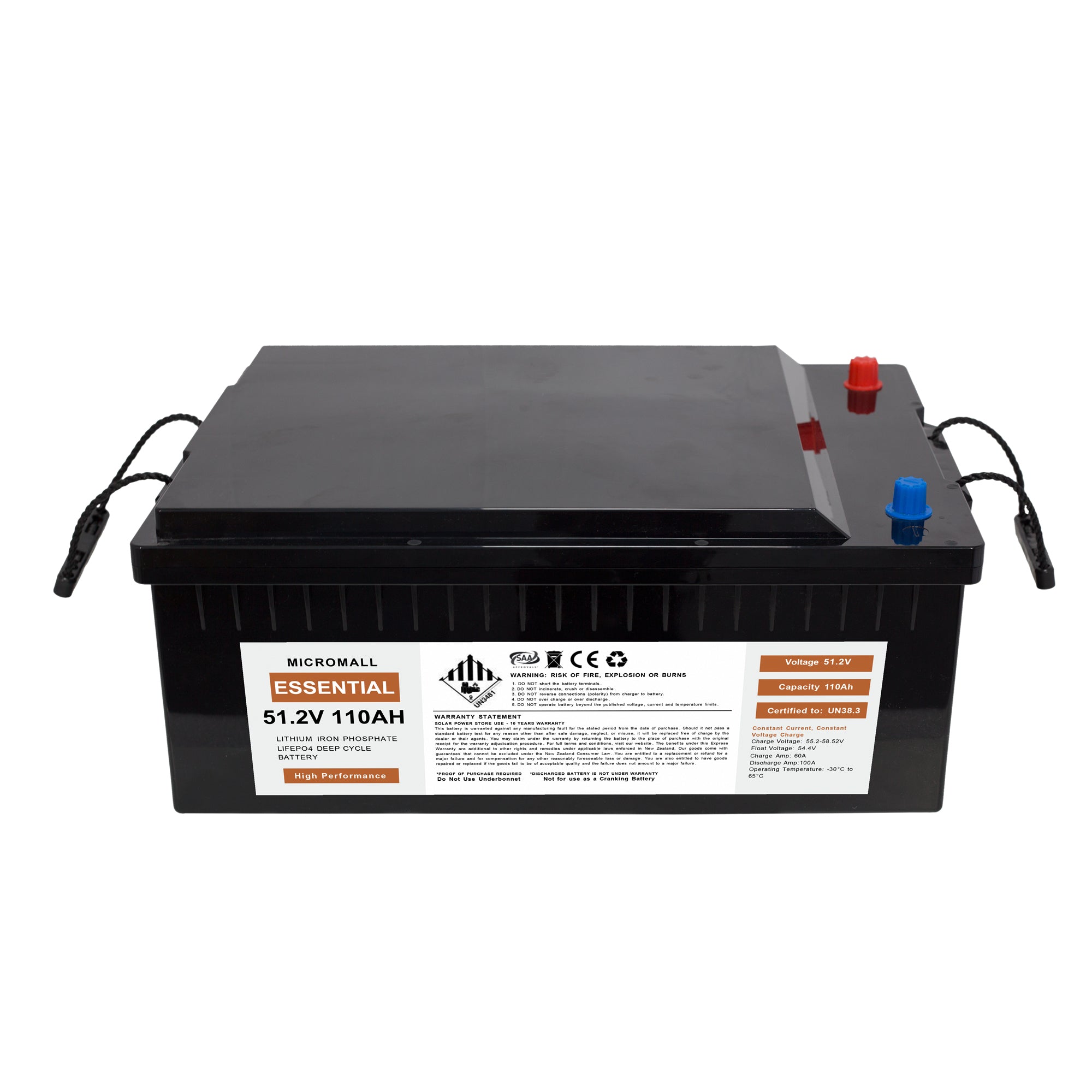

1 x Micromall Essential BTL-48V110H (NZ-48110H) 51.2V 110Ah 5kWh LiFePO4 Battery (15 years New Zealand local warranty)
1 x 10m Twin 4mm PV Extension Cables
1 x 2-in-1 MC4 Connectors
1 x PV Fuse
1 x PV Circuit Breaker

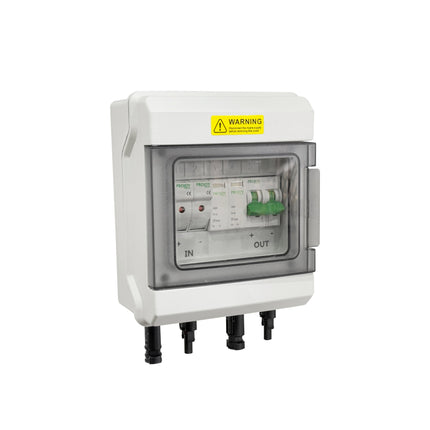

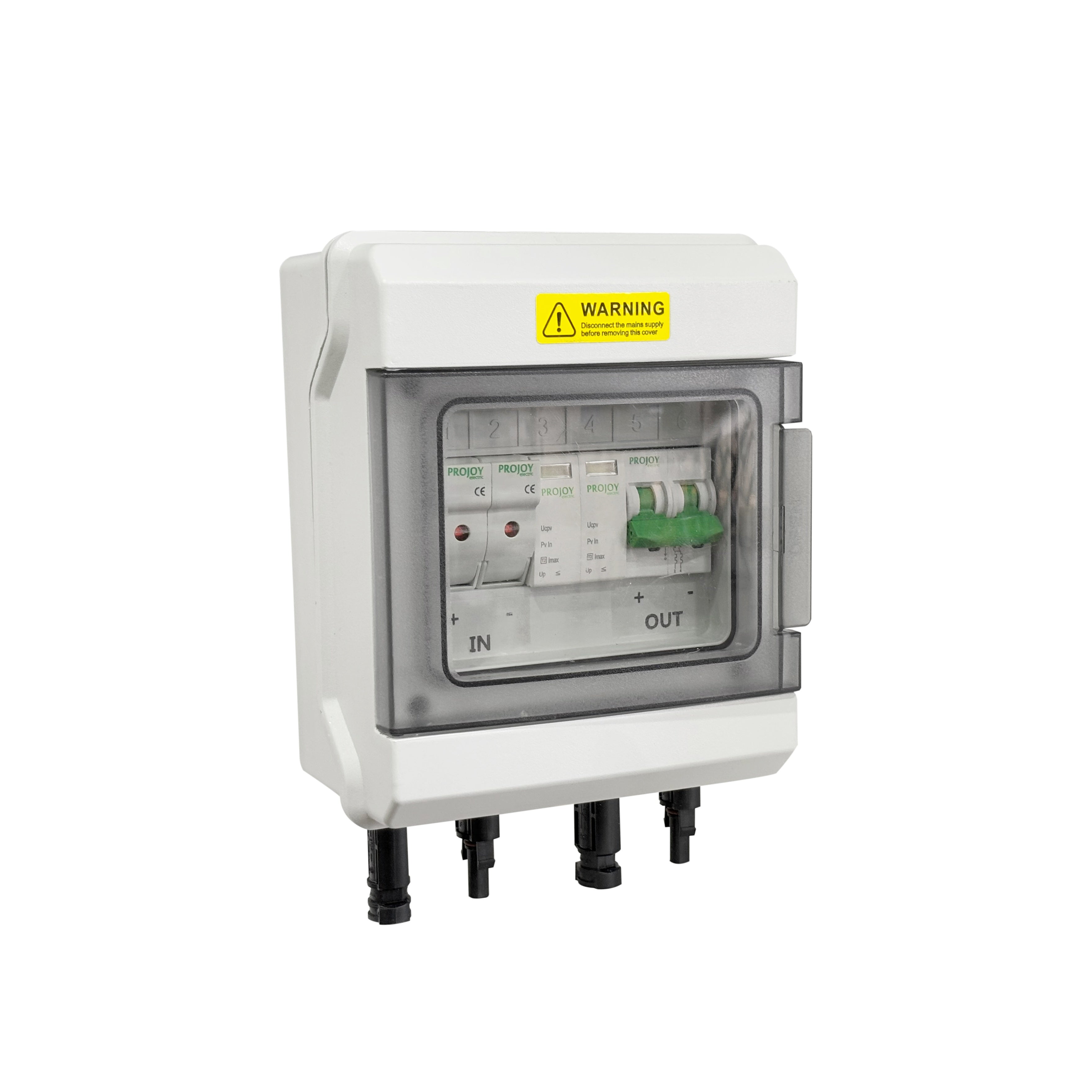

1 x Surge Protector

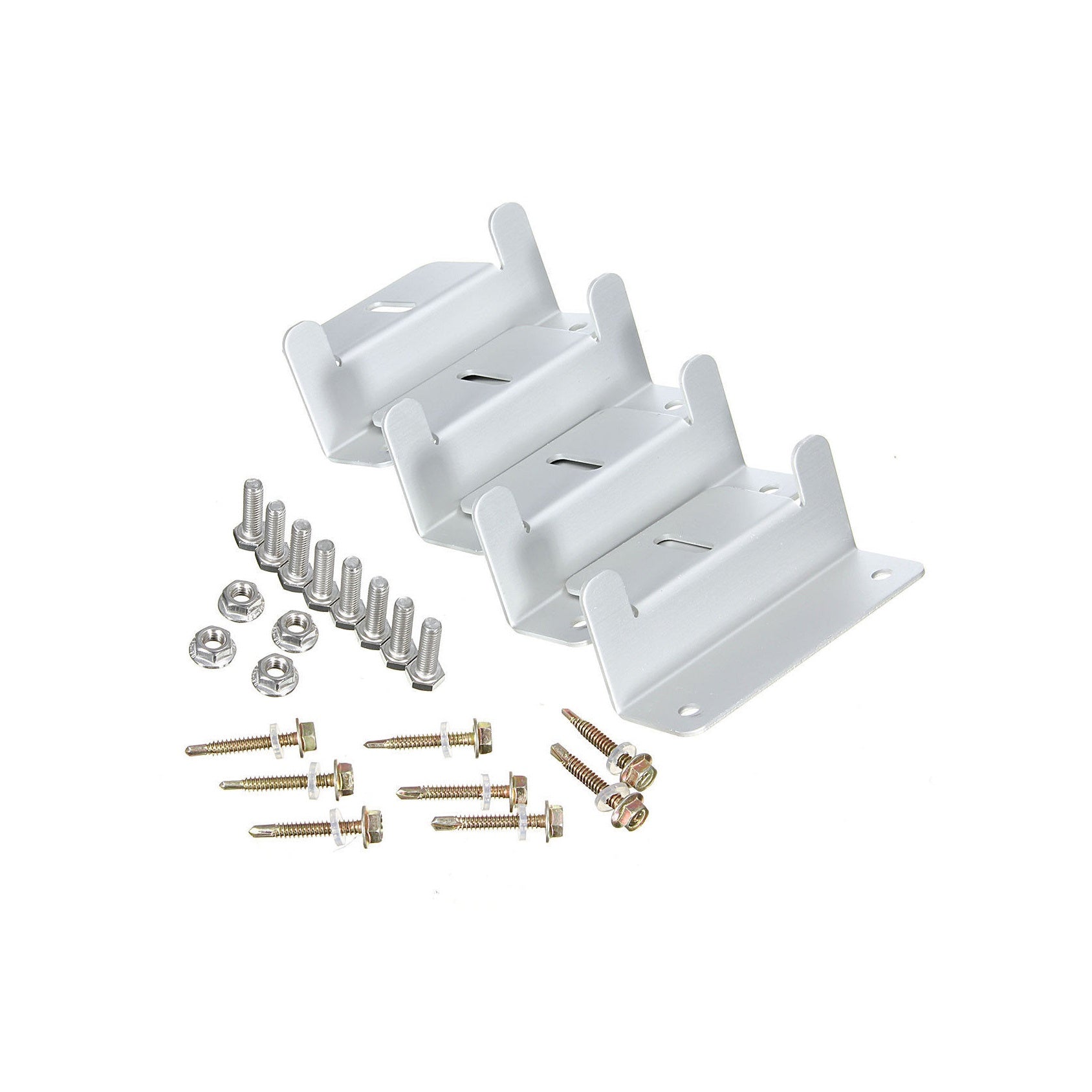

6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Features
Compatible with 48V storage batteries.
Multiple charging and on-load modes to maximise energy use.
Efficient heat dissipation, prolonging system life.
Support remote monitoring of equipment operating parameters.
Equipped with unique functions such as dual activation for lithium batteries.

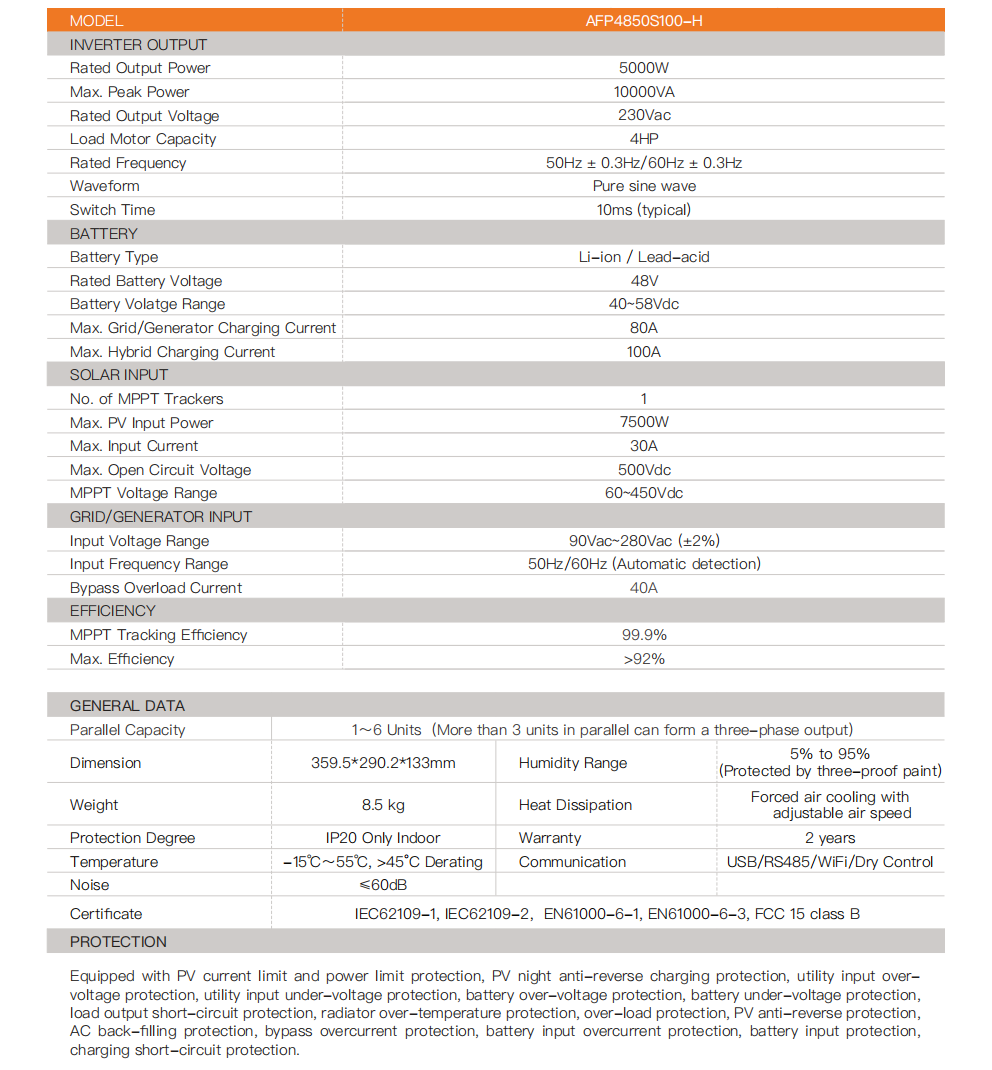

Specifications
- Rated Output Power: 5000W
- Max.Peak Power: 10000VA
- Rated Output Voltage: 230Vac
- Load Motor Capacity: 4HP
- Rated Frequency: 50Hz ± 0.3Hz/60Hz ± 0.3Hz
- Waveform: Pure sine wave
- Switch Time: 10ms（typical）
- Weight: 8.5kg
- Dimension: 359.5 x 290.2 x 133mm
- Protection Degree: IP20 Only Indoor
- Temperature: -15℃-55℃, >45°C Derating
- Humidity Range: 5% to 95%(Protected by three-proof paint)
- Heat Dissipation: Forced air cooling with adjustable air speed
This product is equipped with PV current limit and power limit protection, PV night anti-reverse charging protection, utility input over-voltage protection, utility input under-voltage protection, battery over-voltage protection and so on.
