Description

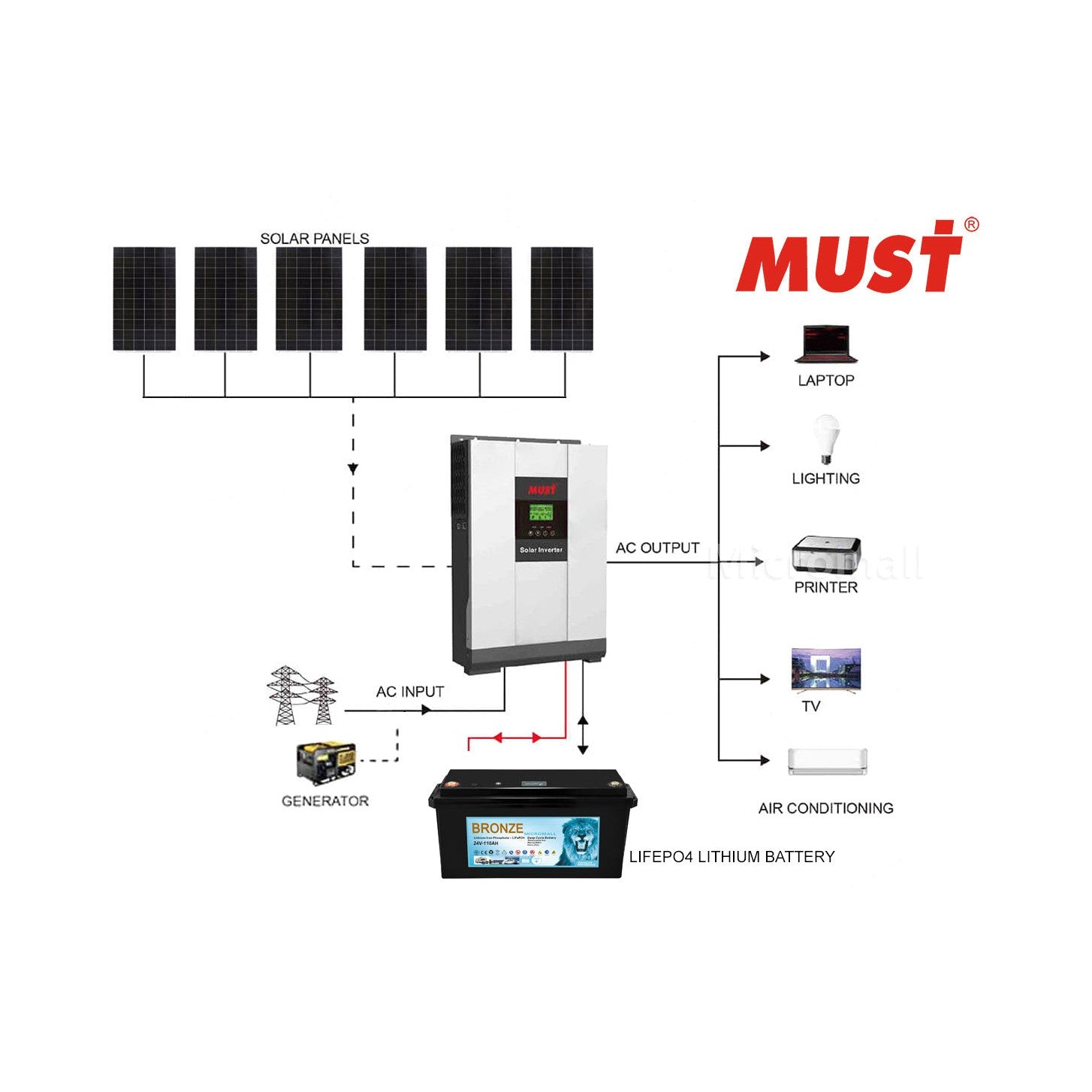

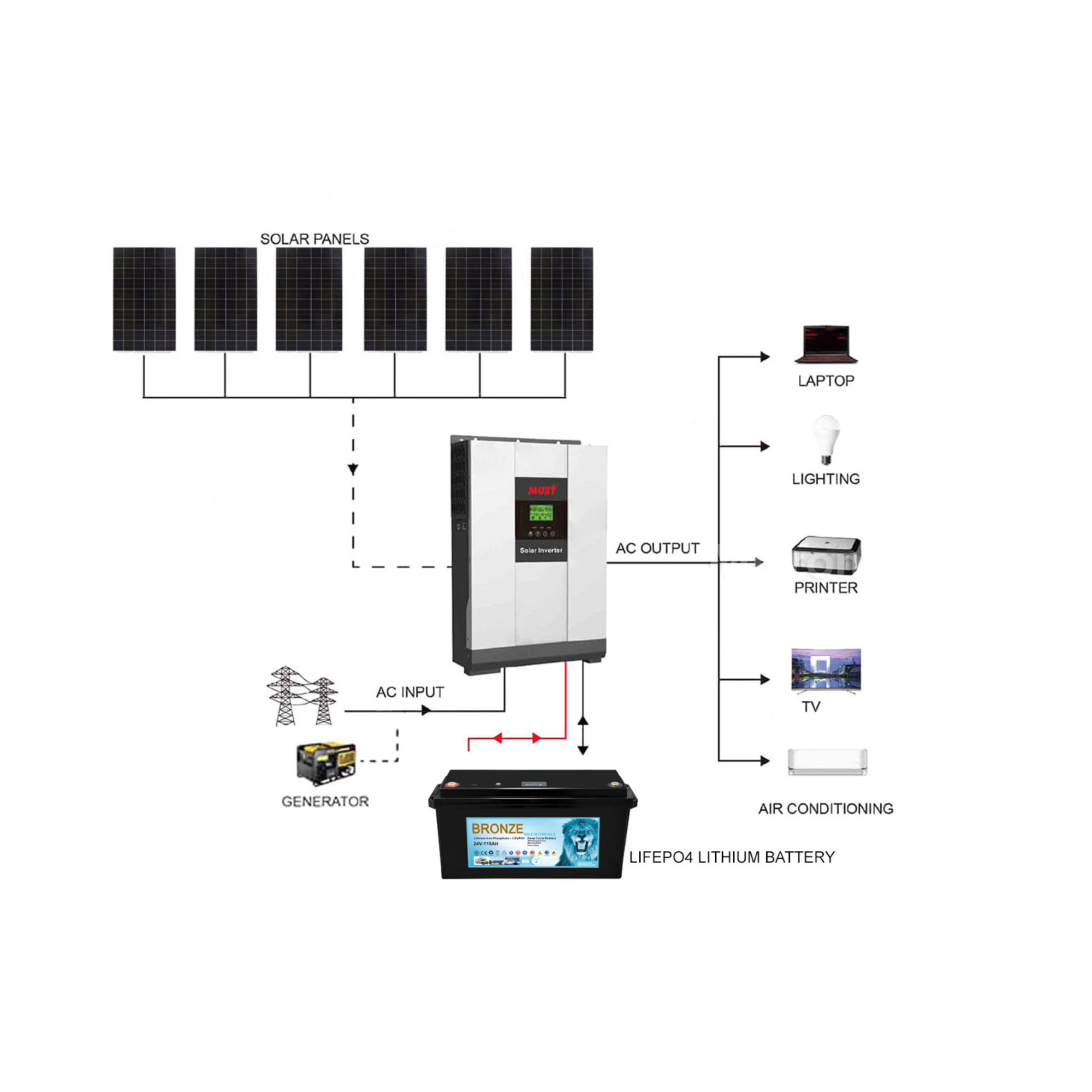

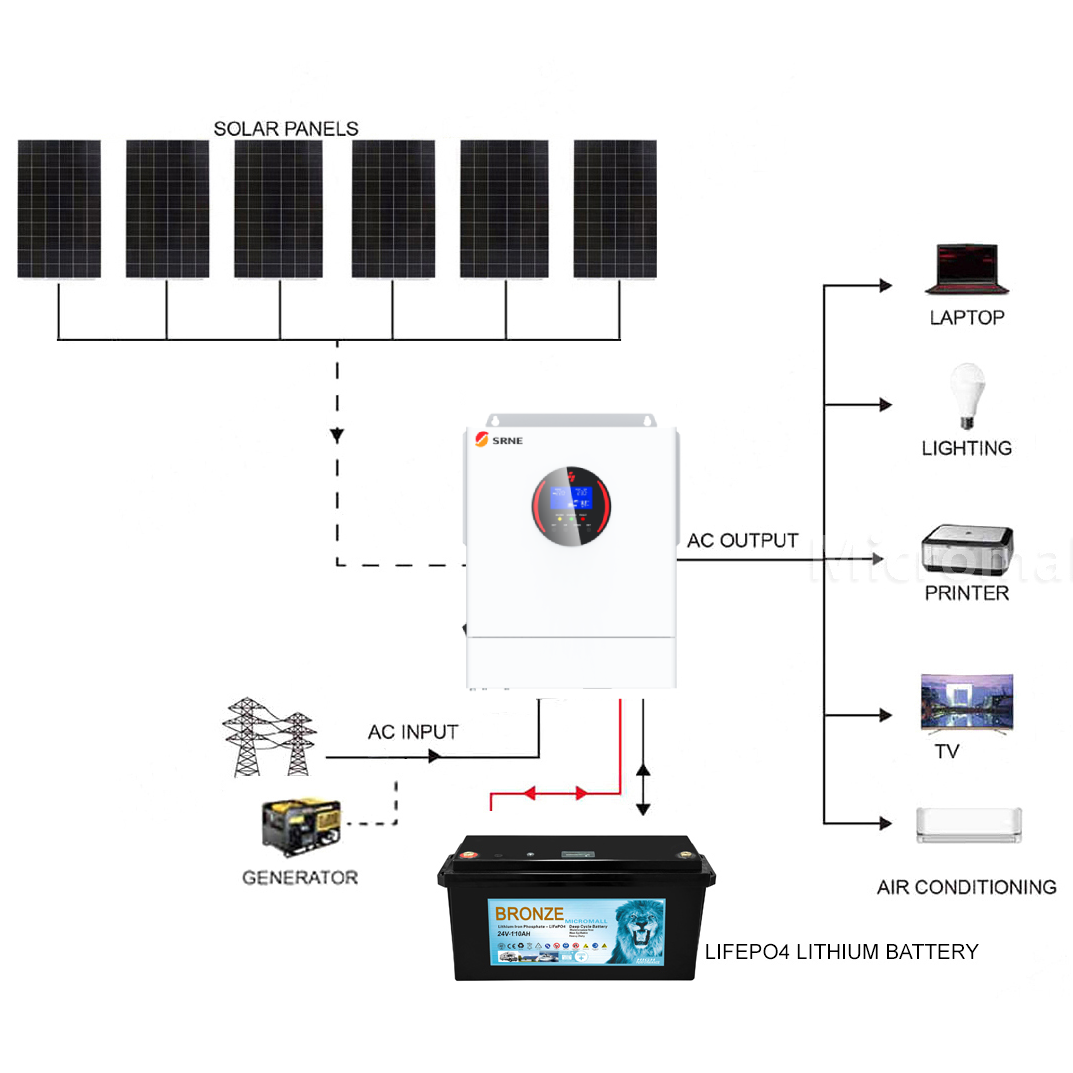

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.

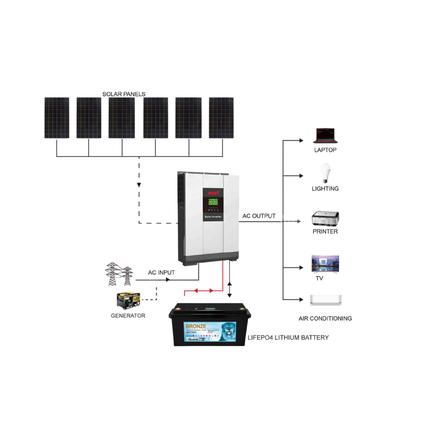

Package includes:

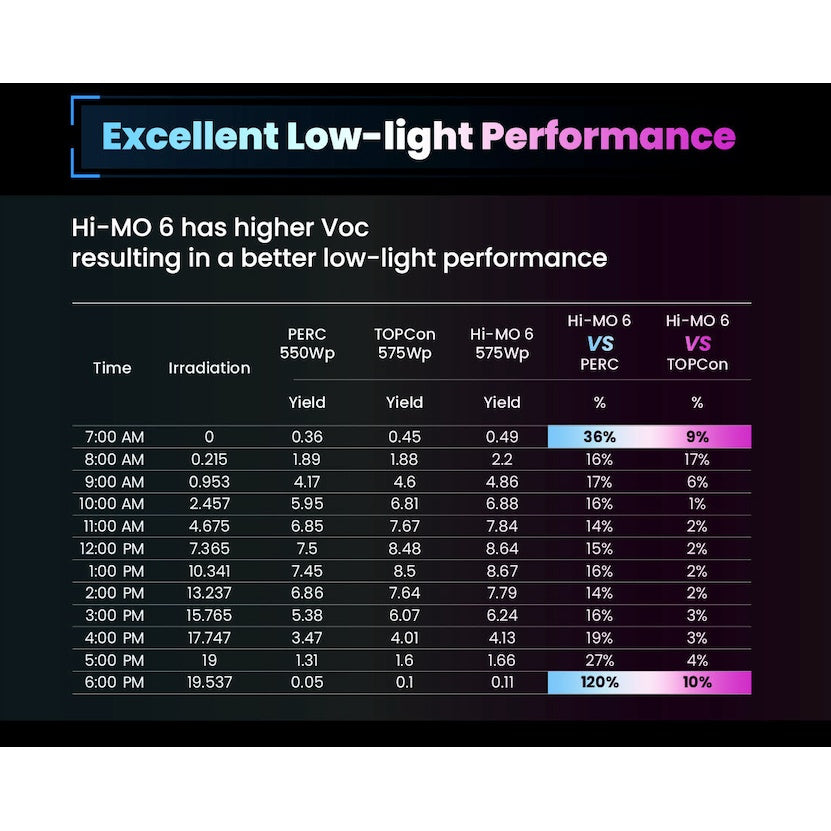

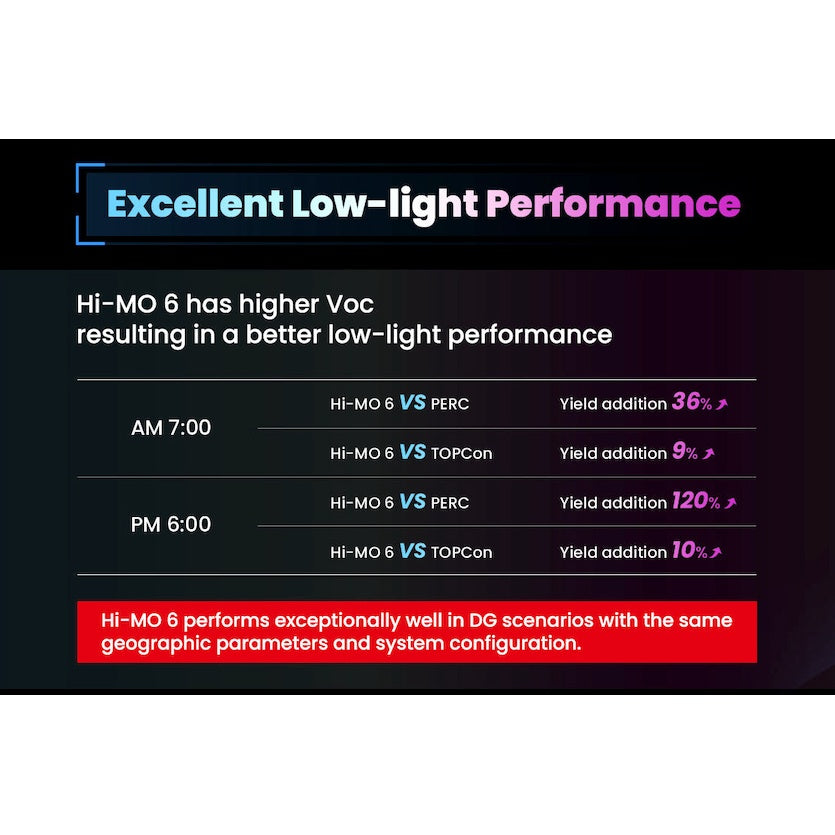

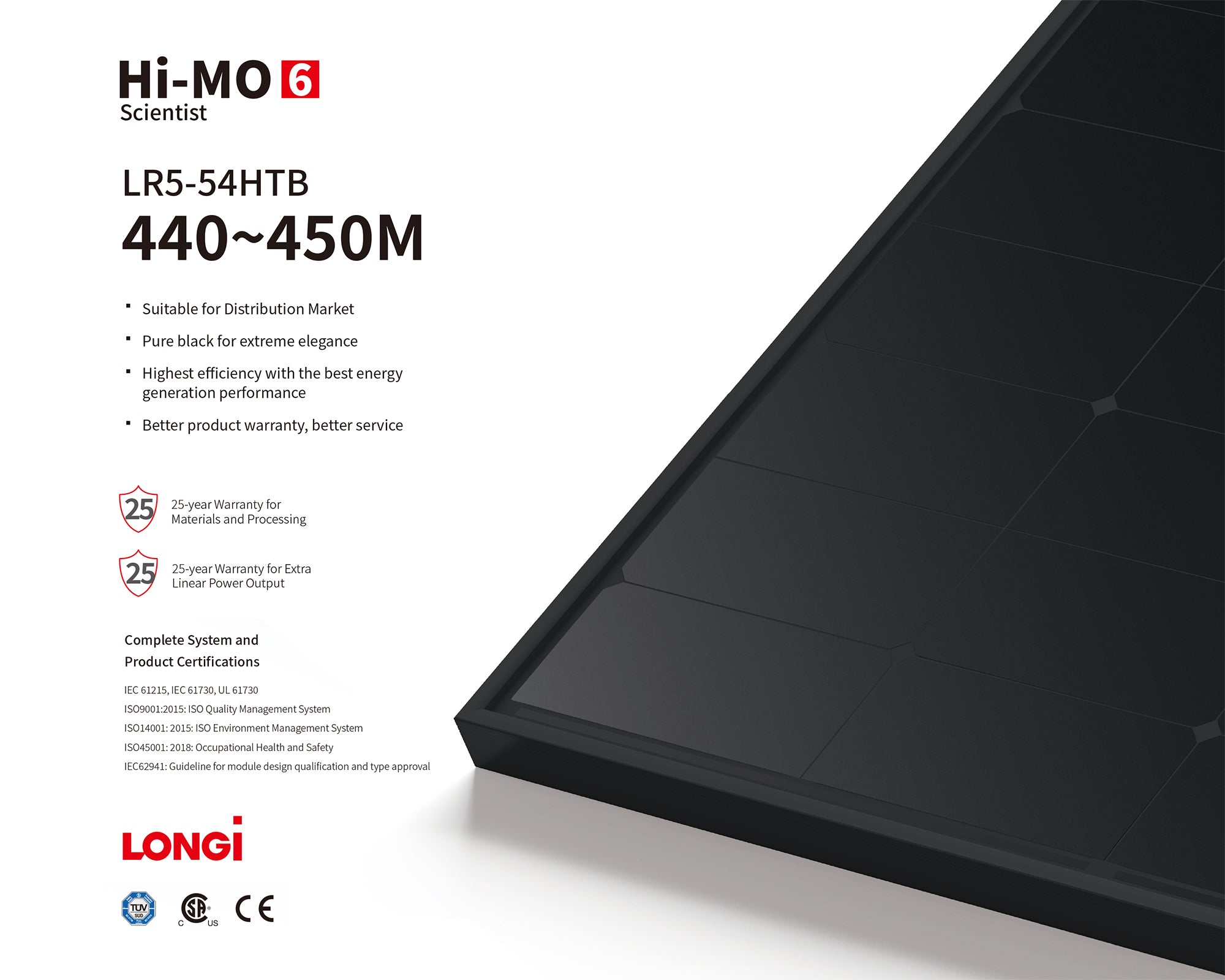

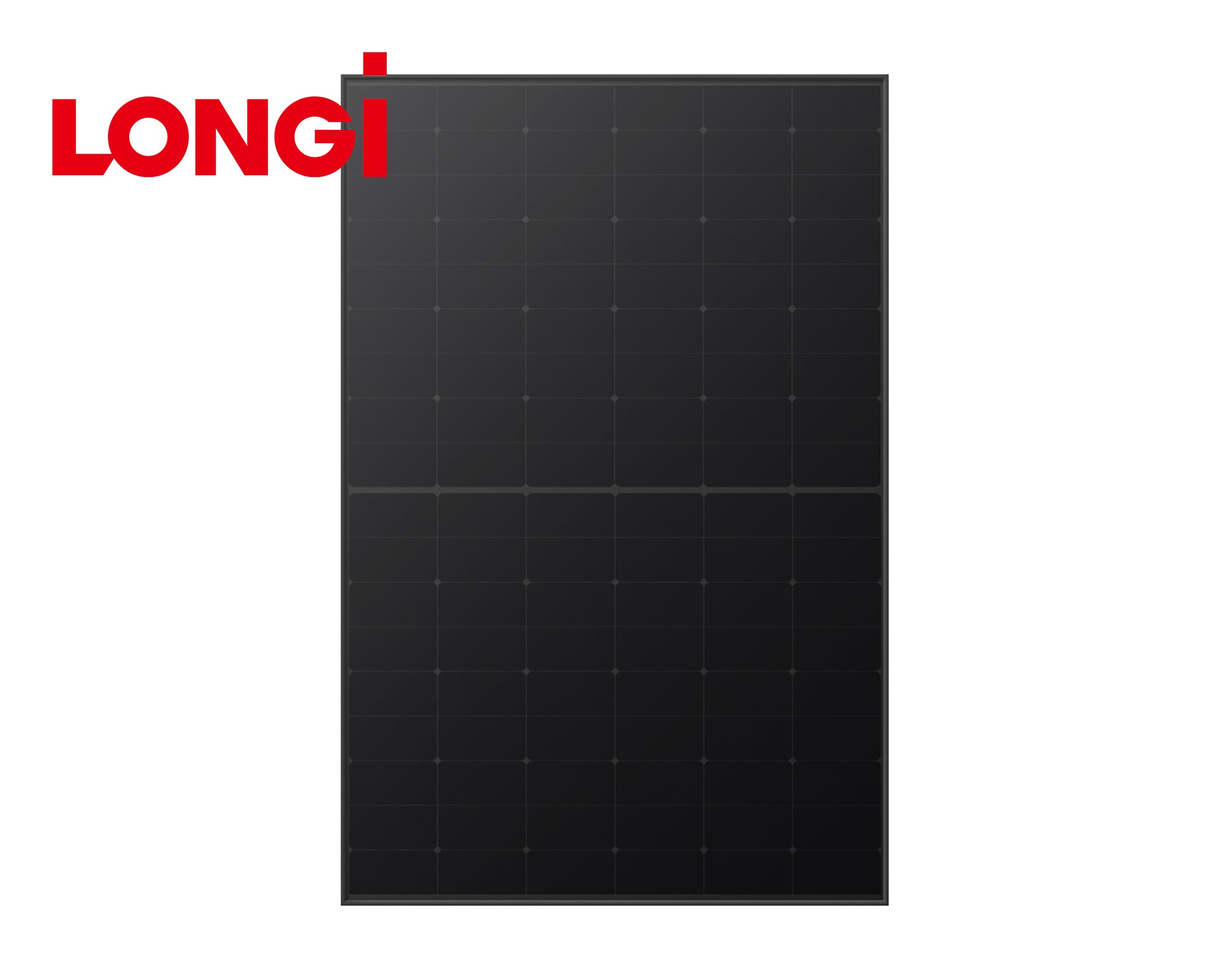

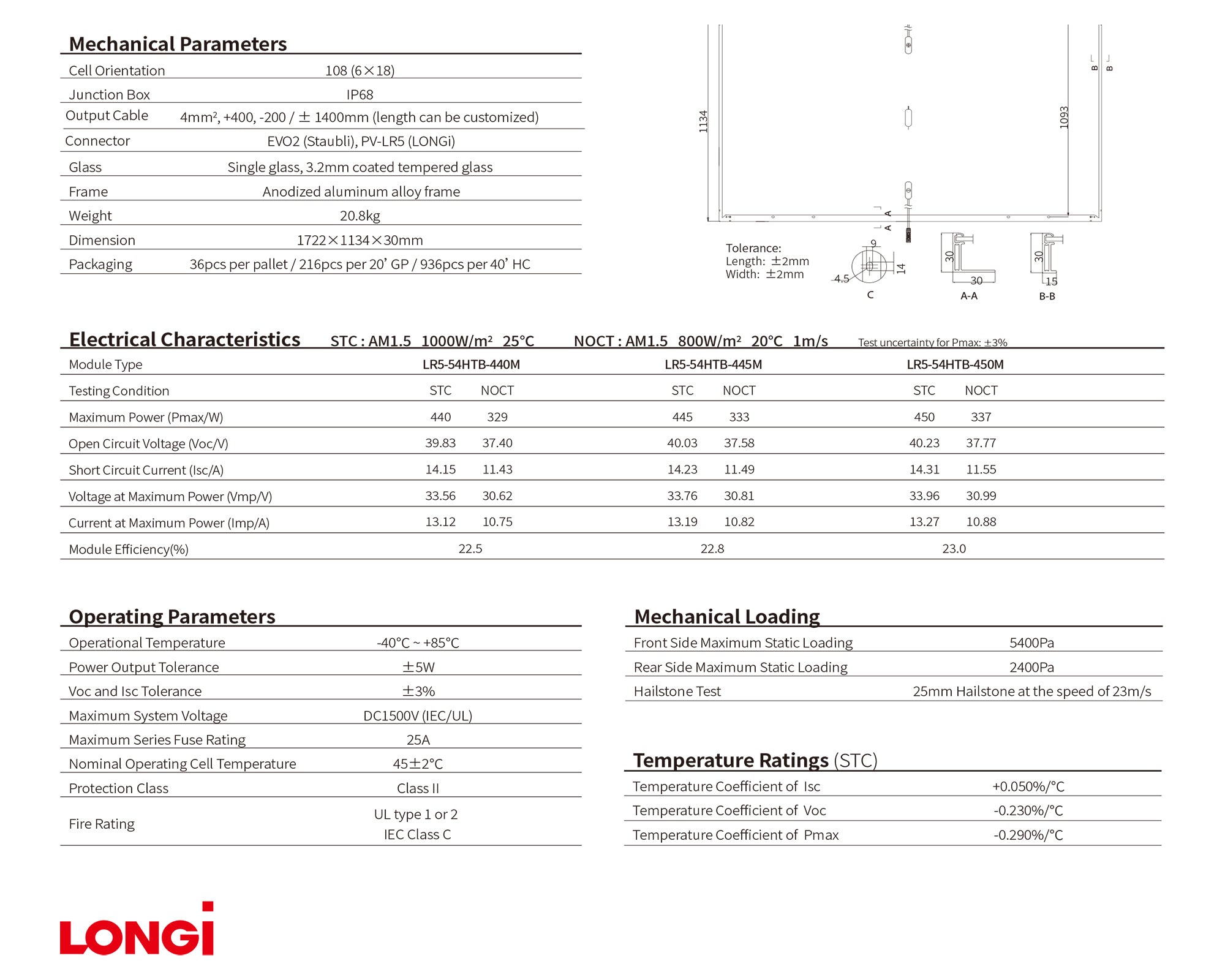

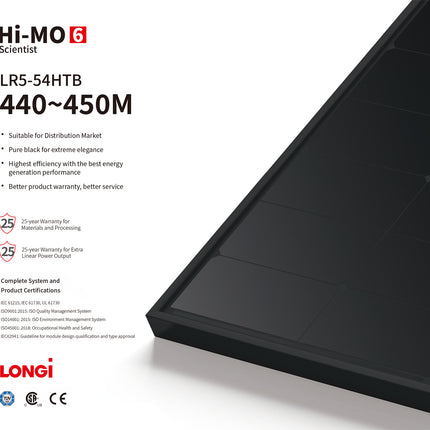

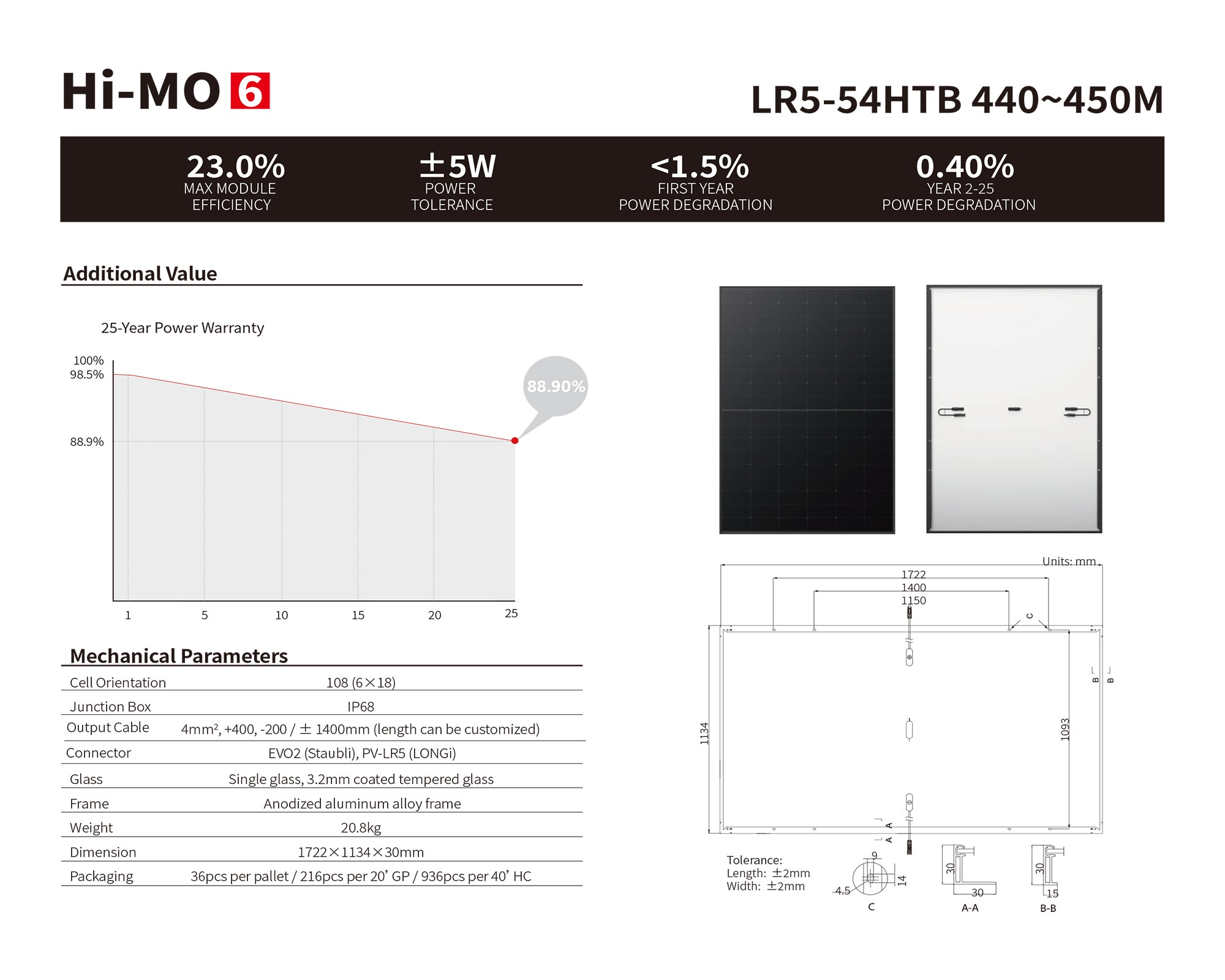

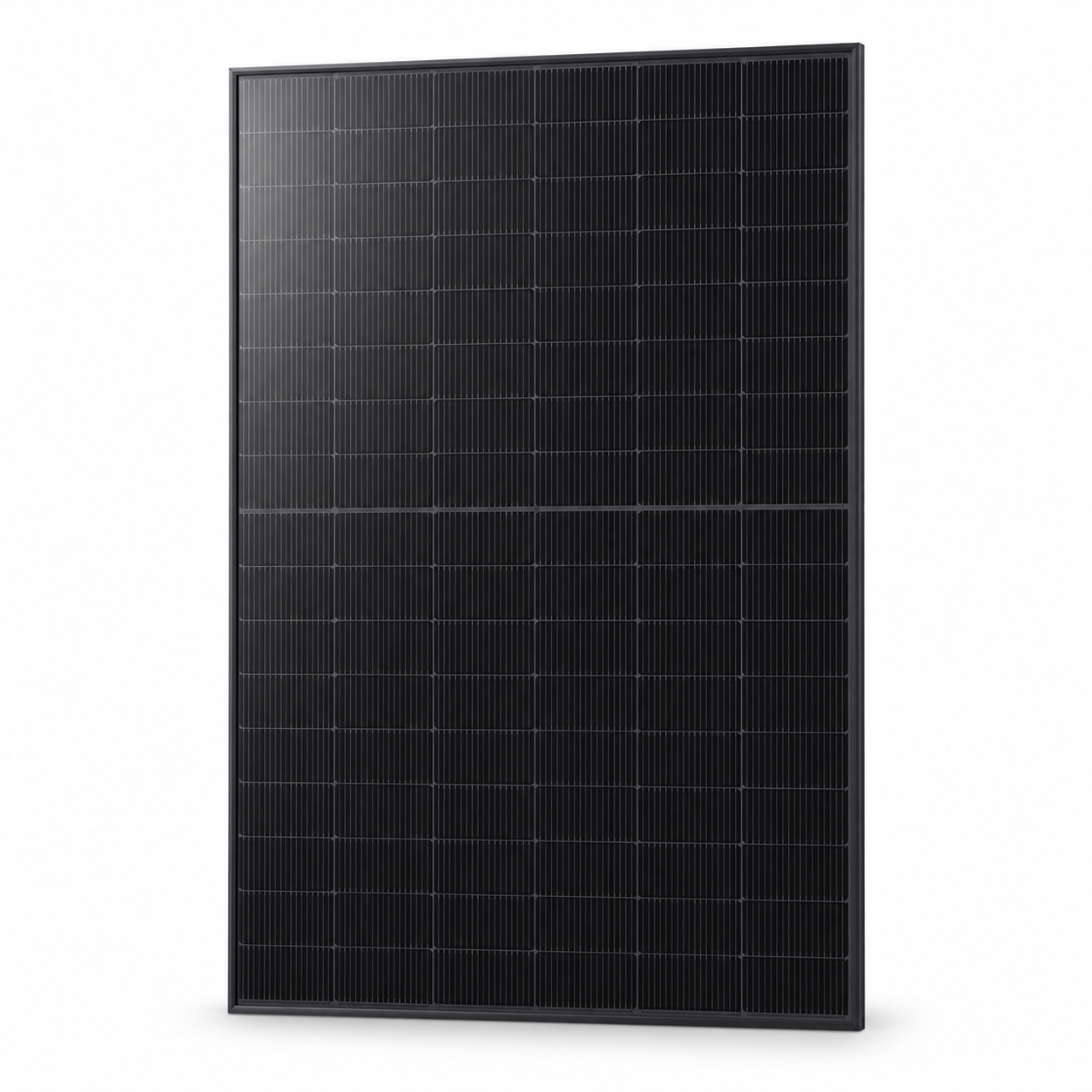

6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

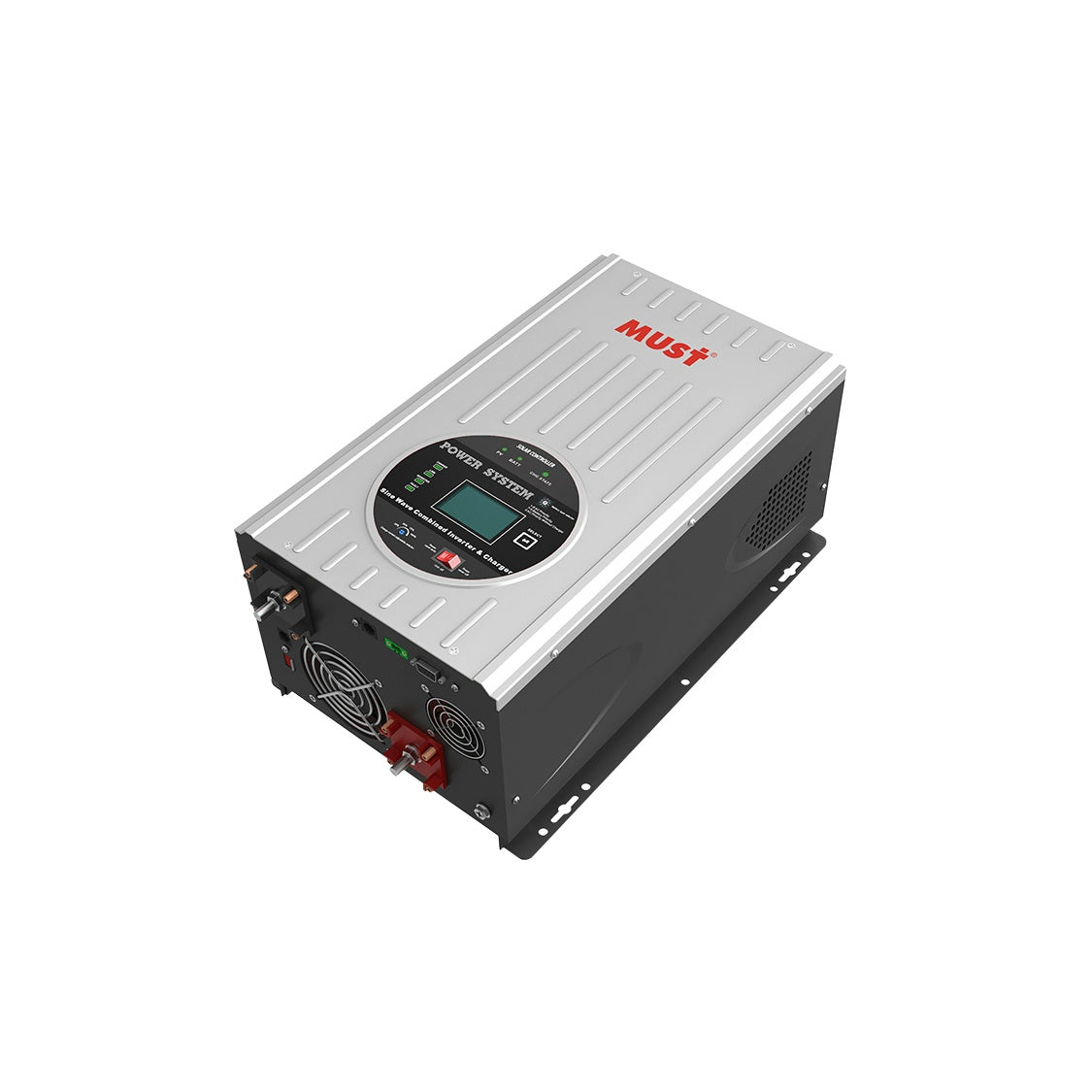

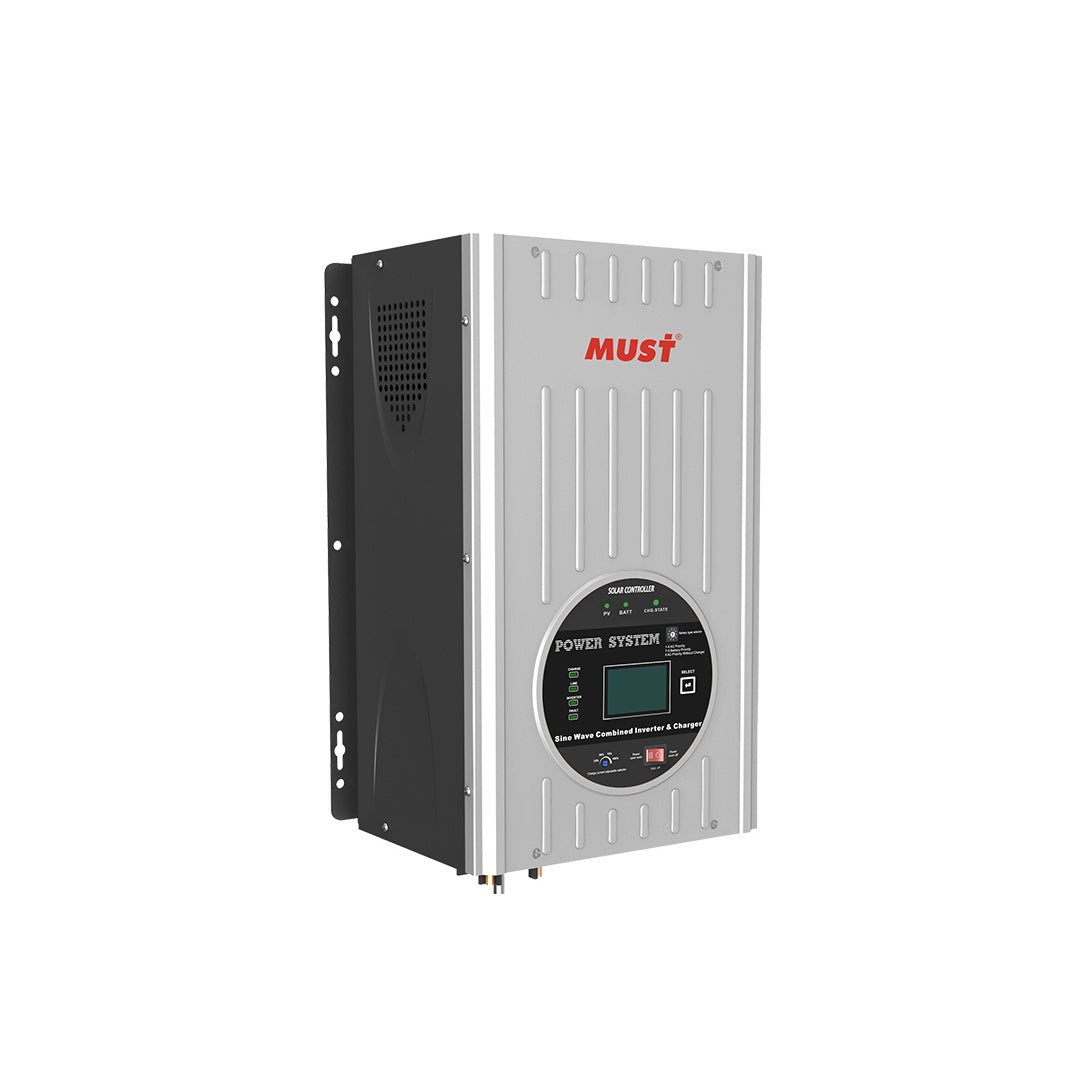

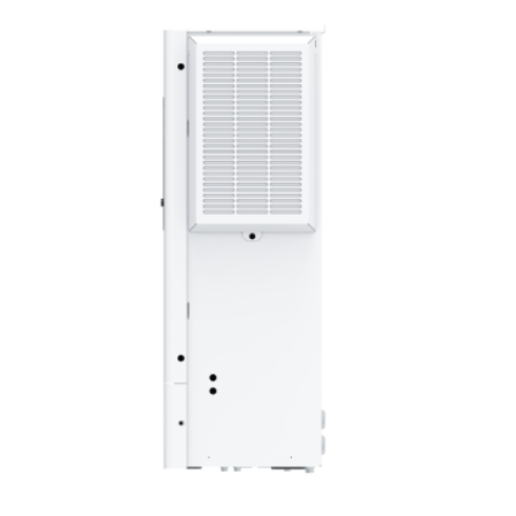

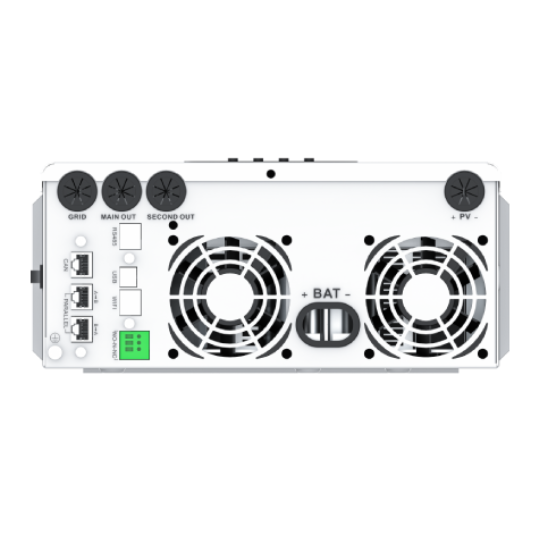

1 x 3000W Mustpower Hybrid Off-Grid Inverter PV18-3024 VHM Plus (2 Years Warranty)

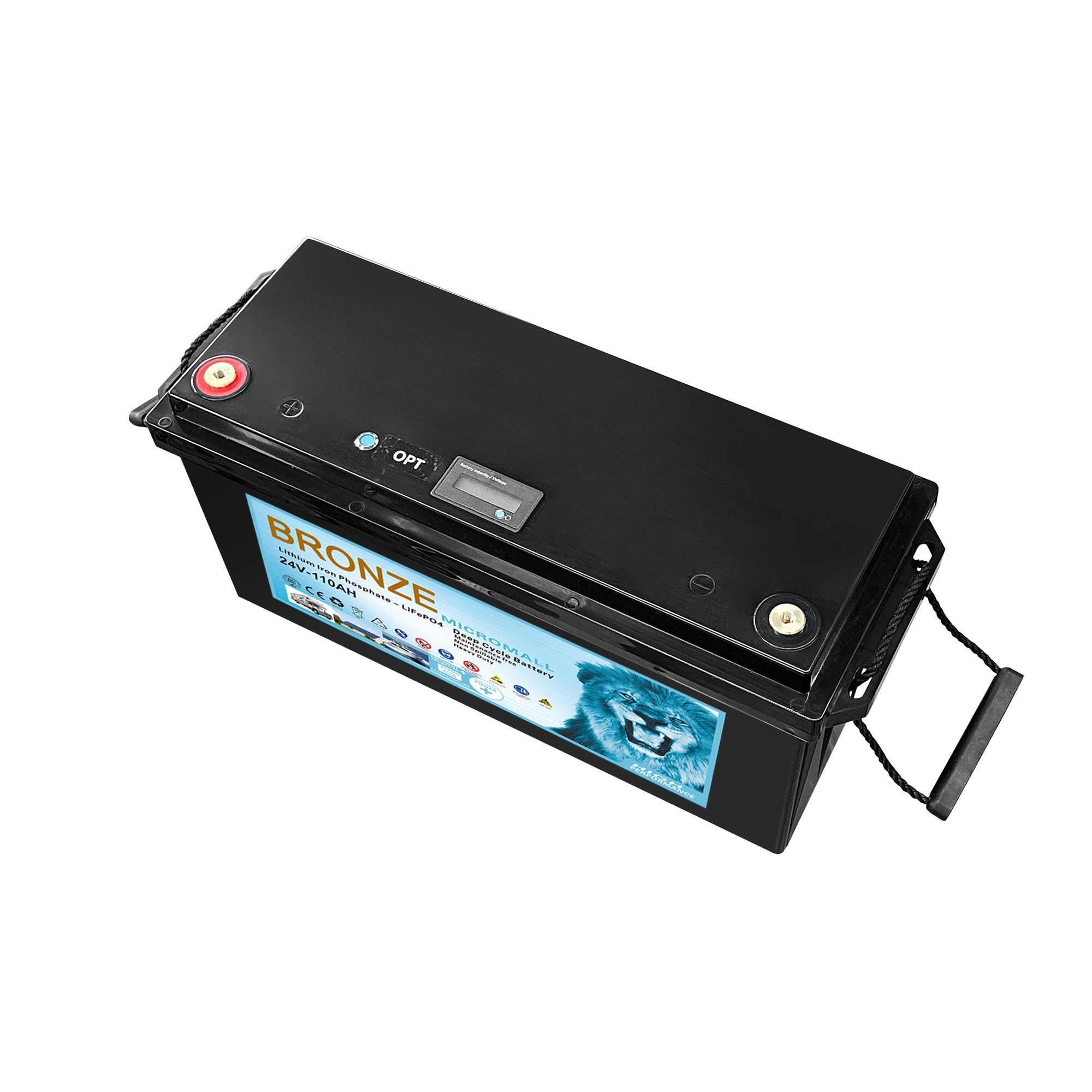

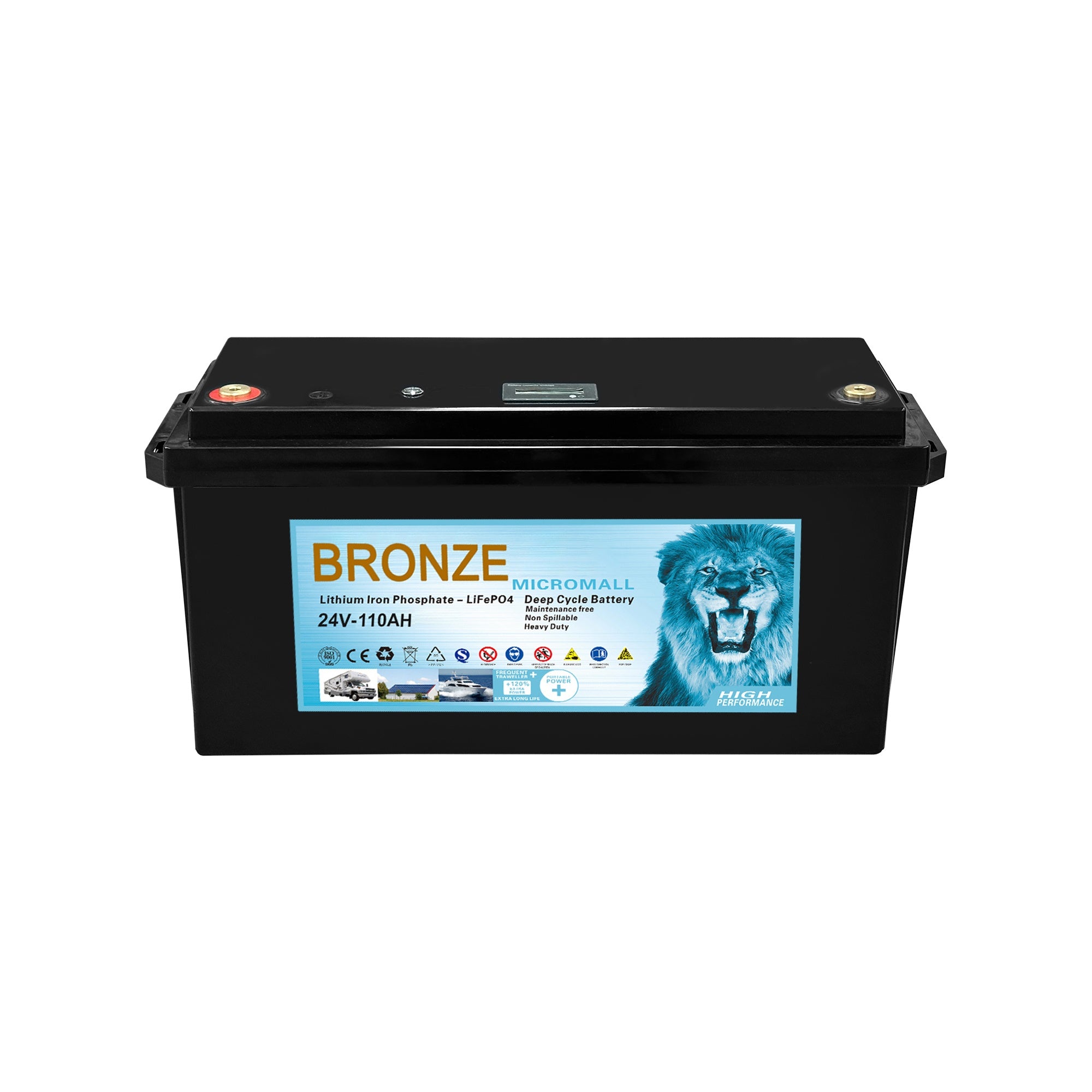

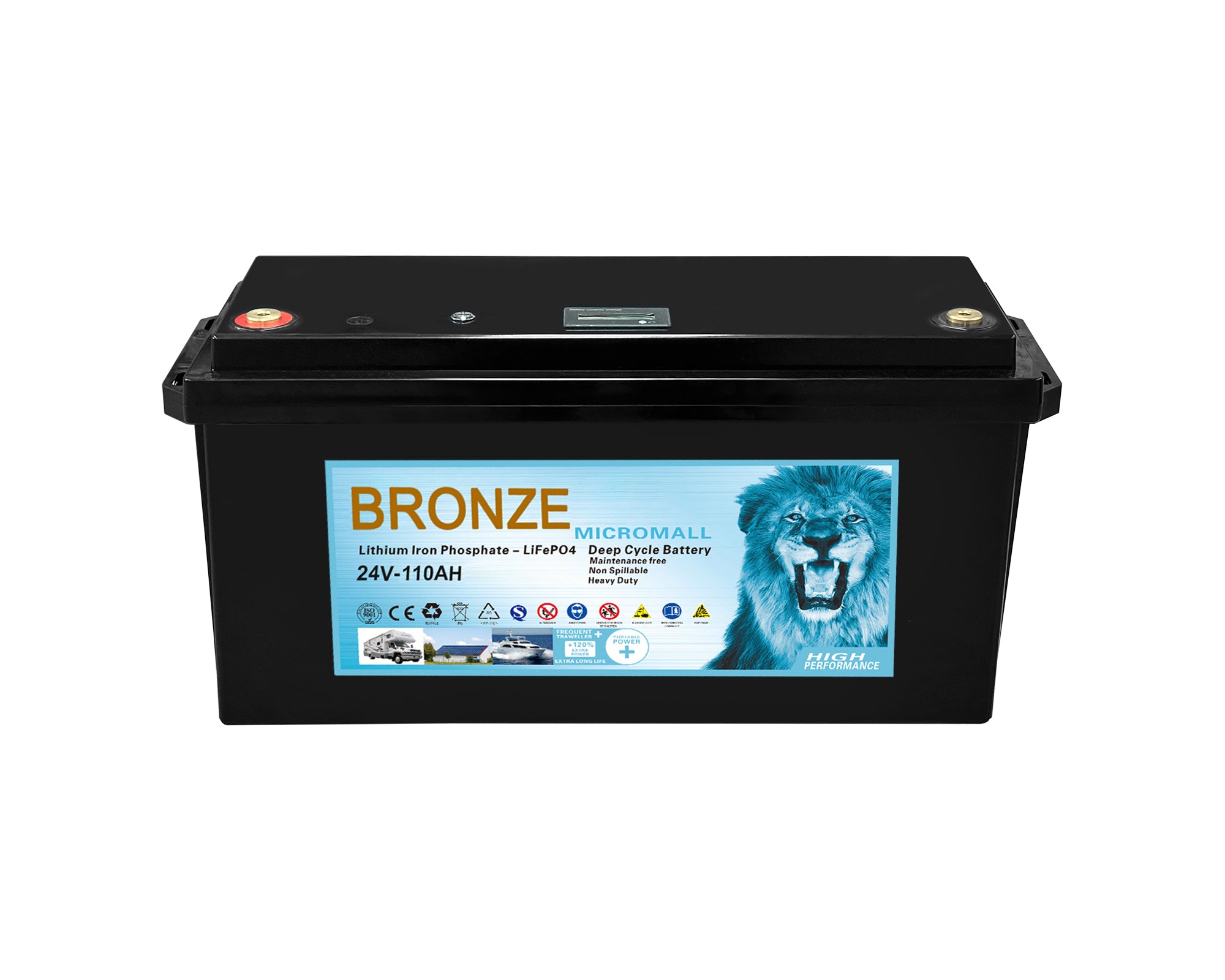

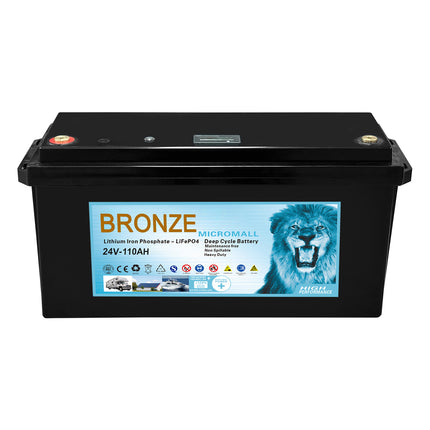

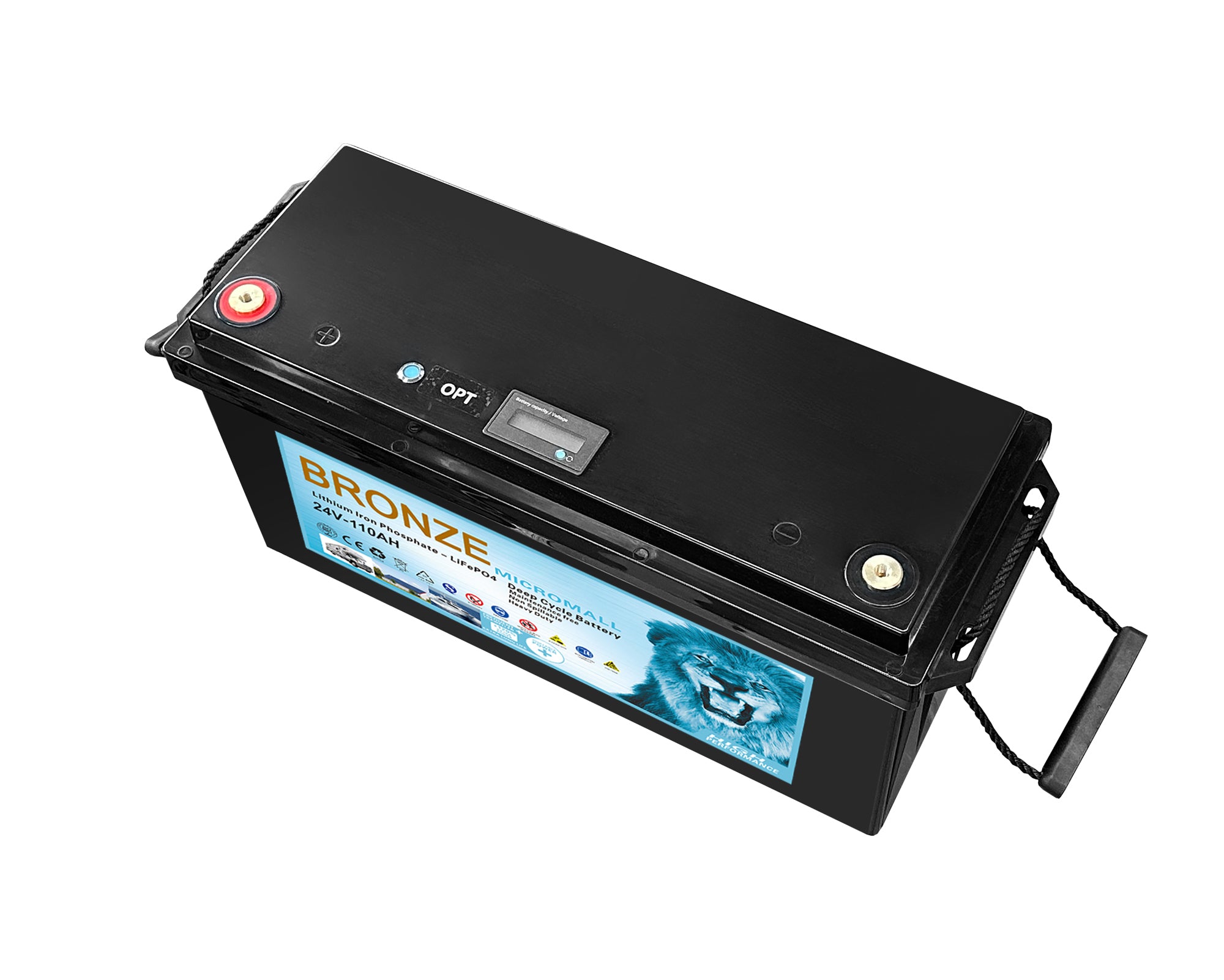

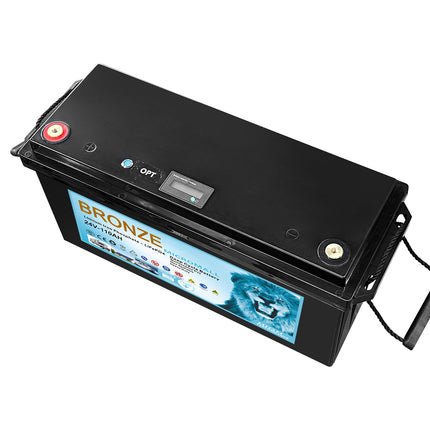

1 x Micromall Bronze 24V 110Ah LiFePO4 Lithium Battery (6 years warranty + 4 years repair warranty)
2 x 10m Twin 4mm PV extension cable with MC4 connectors
1 x 2-in-1 MC4 connectors
2 x PV fuse 30a

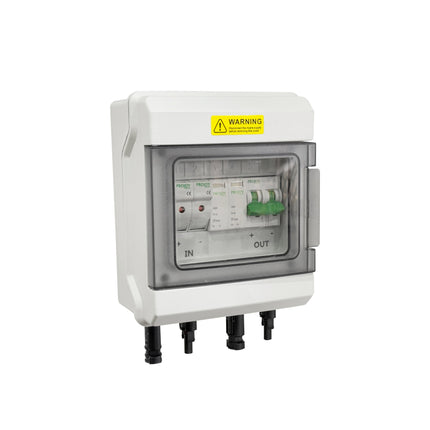

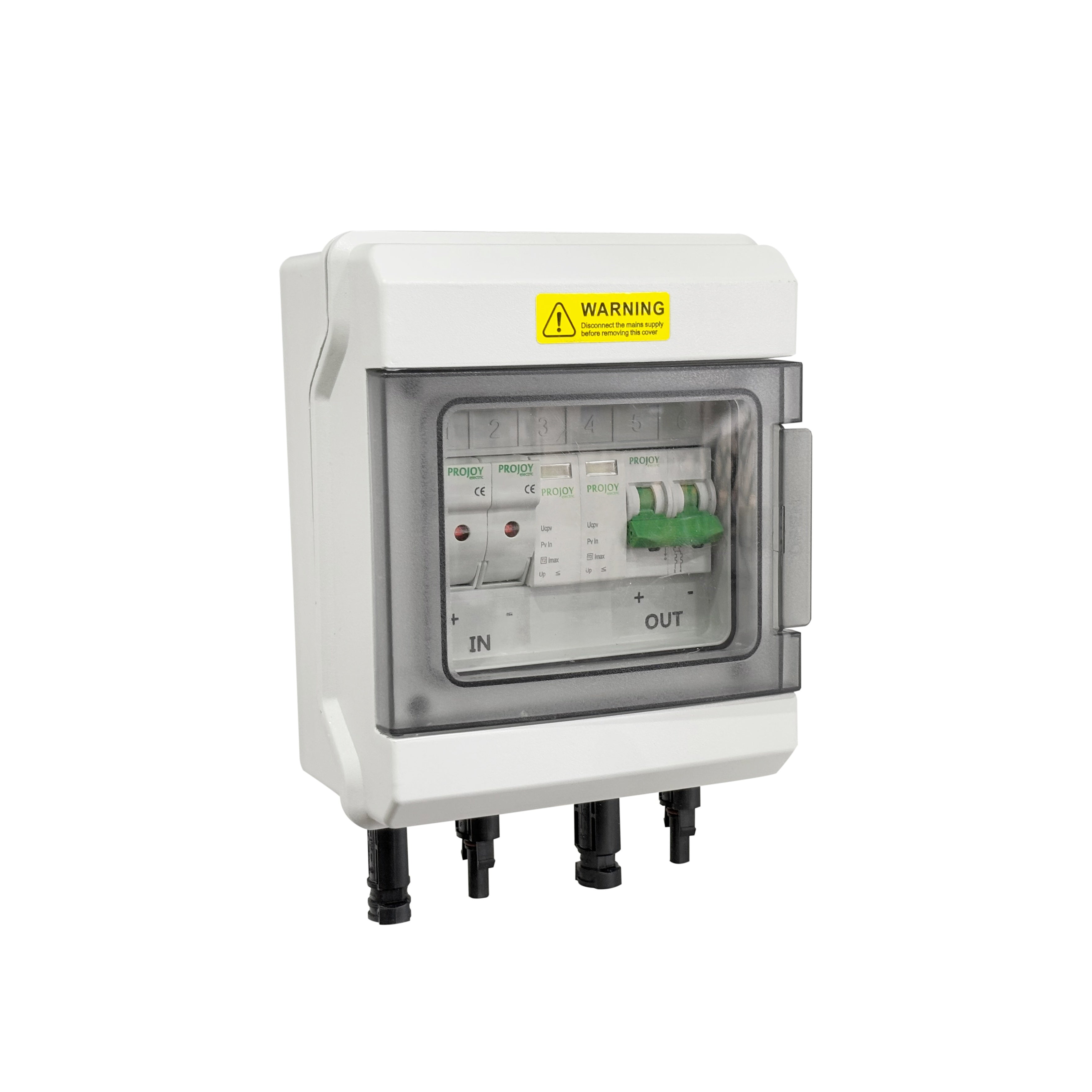

1 x PV circuit breaker 160v 32a
1 x Surge 600v

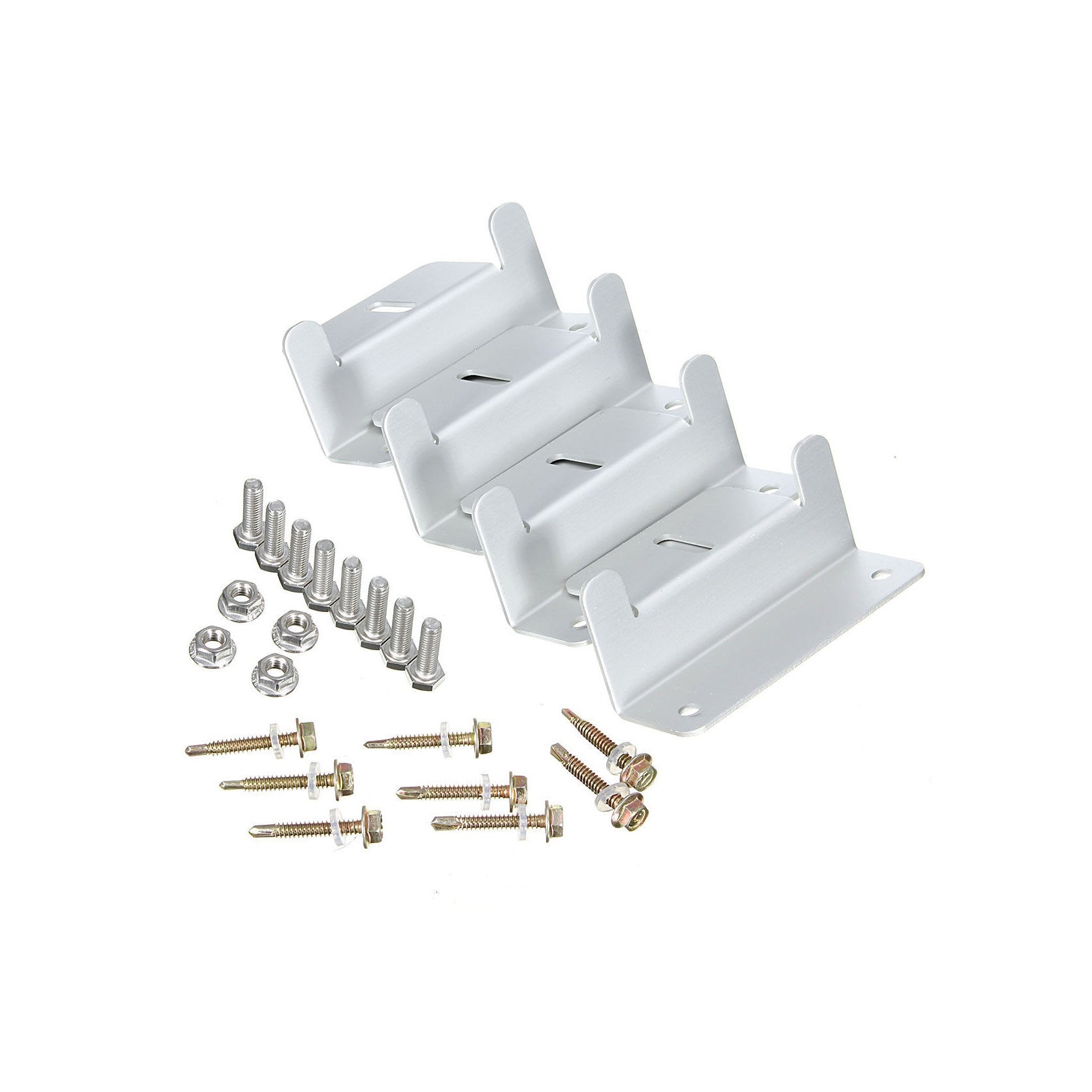

6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Specifications for the PV18-3024 VHM Plus Inverter:
Battery System Voltage: 24VDC
Supports generator charging
Inverter Output:
Rated Power: 3000W
Surge Power: 6000W
Waveform: Pure sine wave
Inverter Efficiency (Peak): 93%
Voltage: 230VAC ±5%
Maximum PV Array MPPT Voltage: 30~130VDC
Standby Power Consumption: 2W
PV Input Power: 1400W
Maximum Solar MPPT Charge Current: 80A
Maximum Efficiency: 98%
Machine Dimensions (W*H*D): 272*355*100mm
Net Weight: 11kg
SAA NZ Certificated Inverter
Daily Output 15KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
