Description

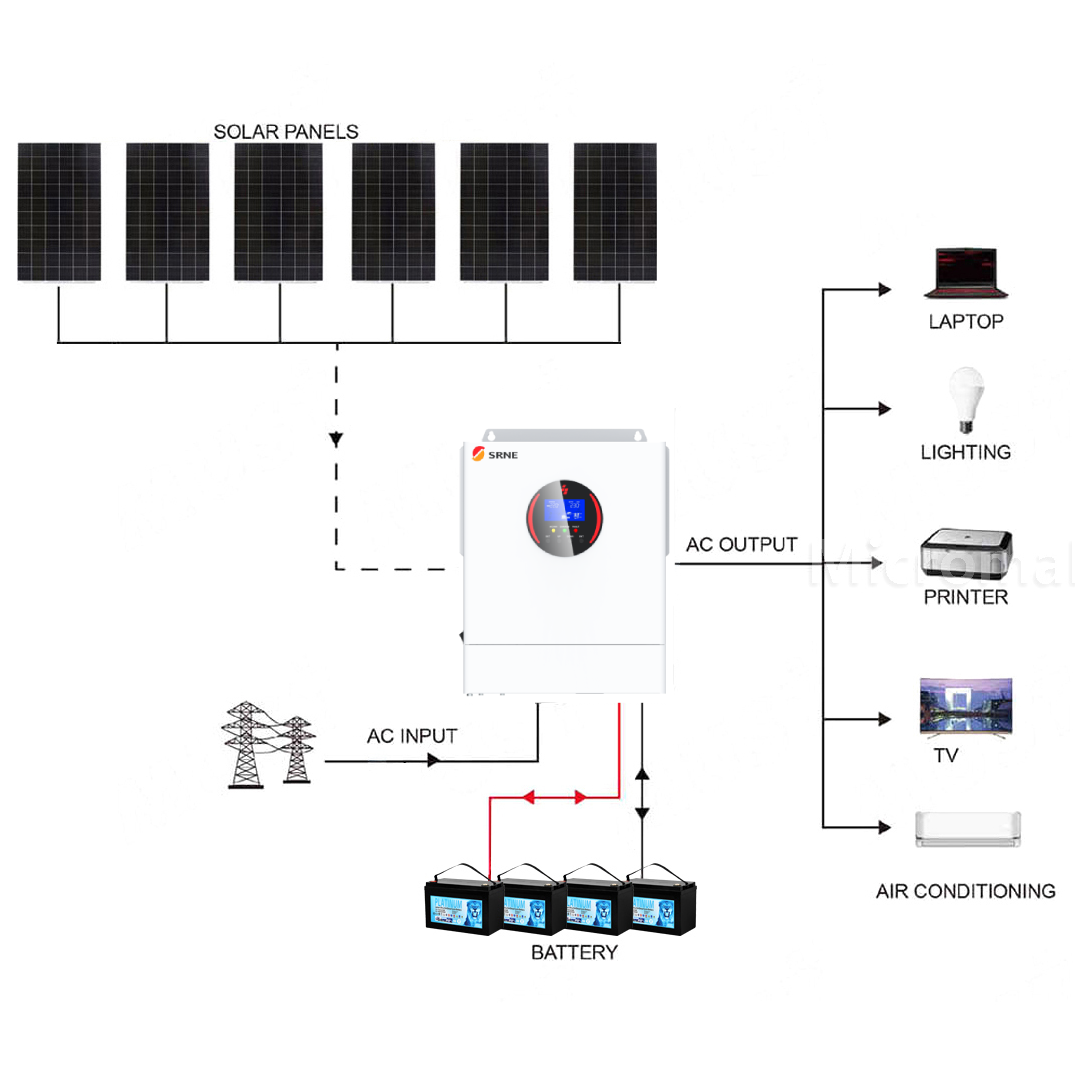

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.

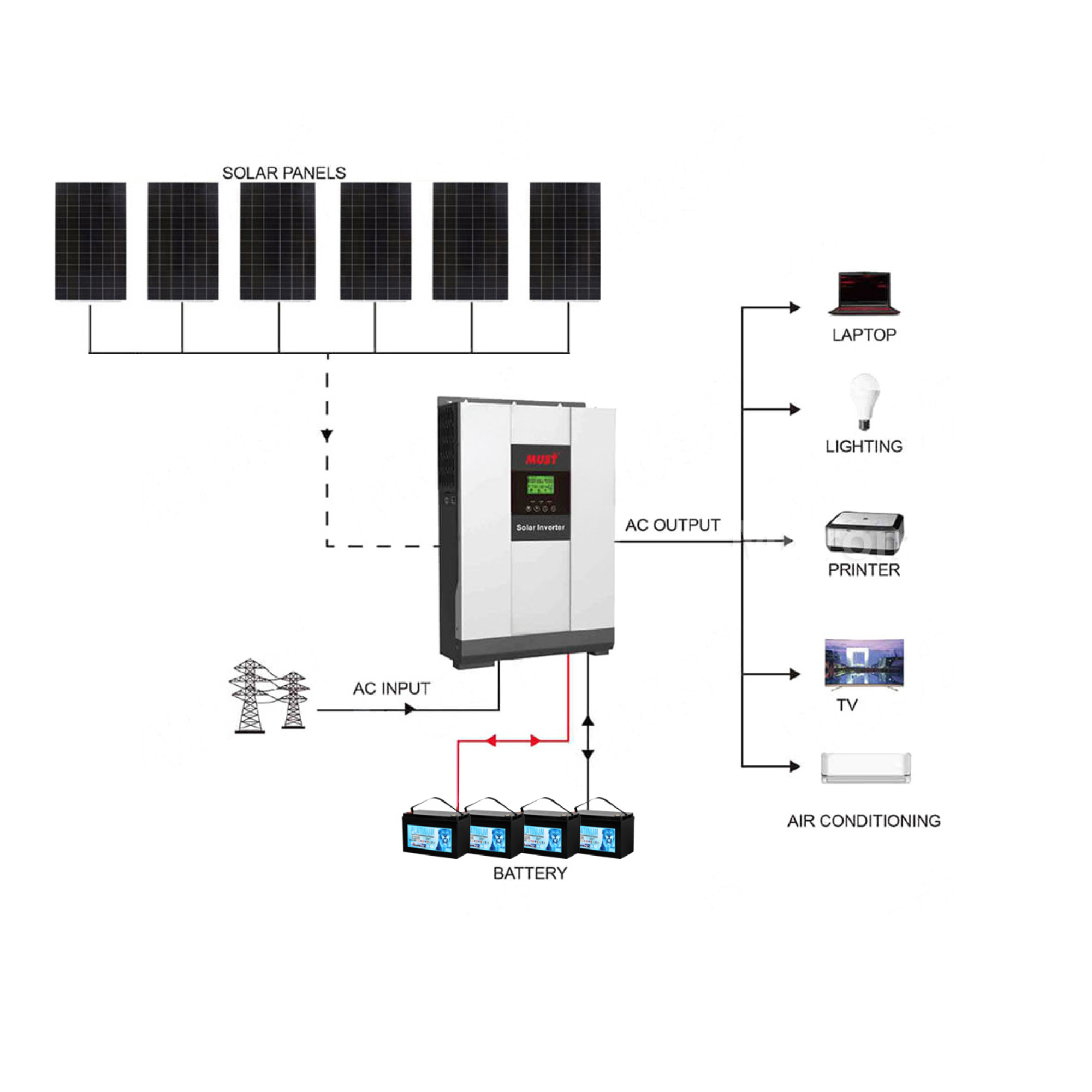

Package includes:

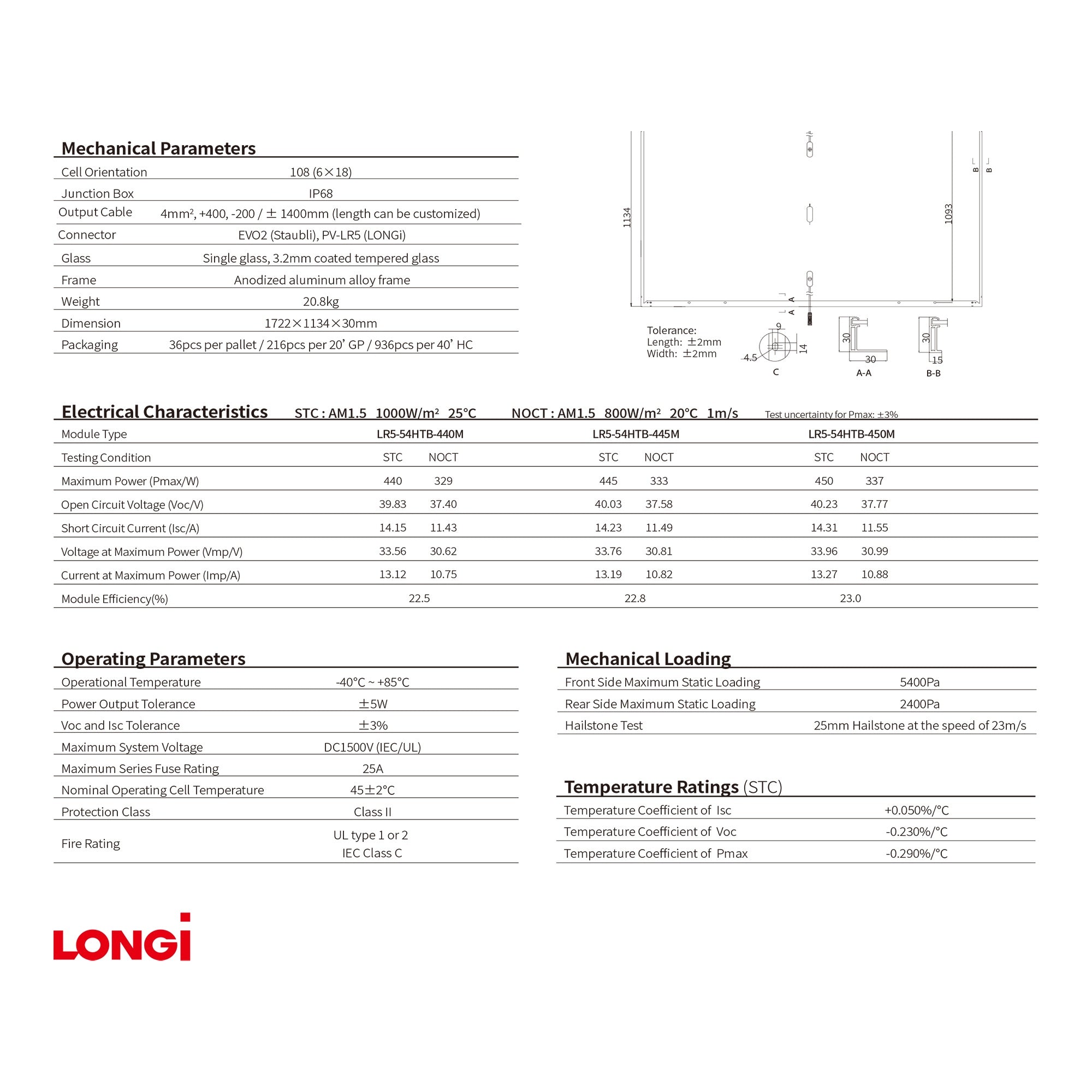

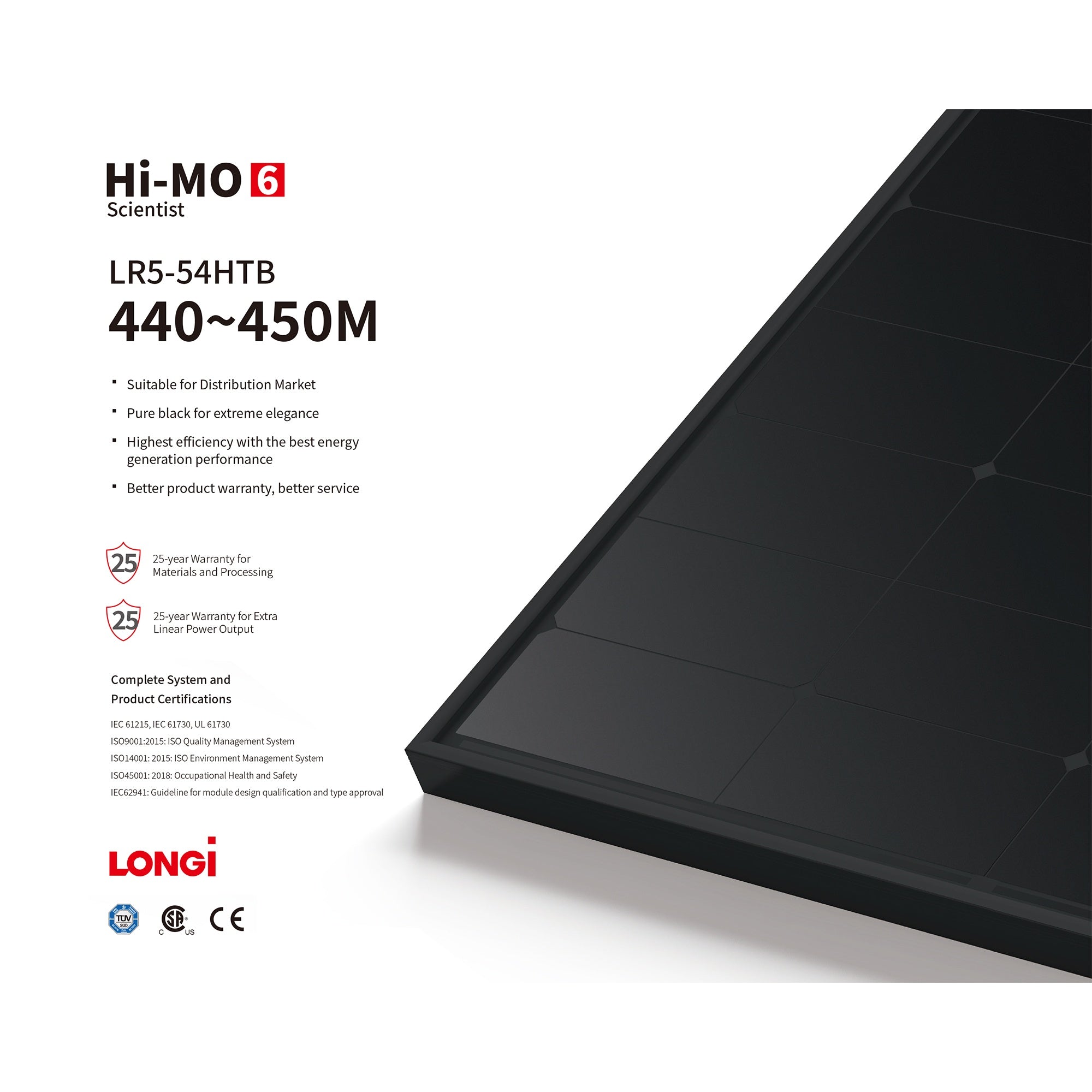

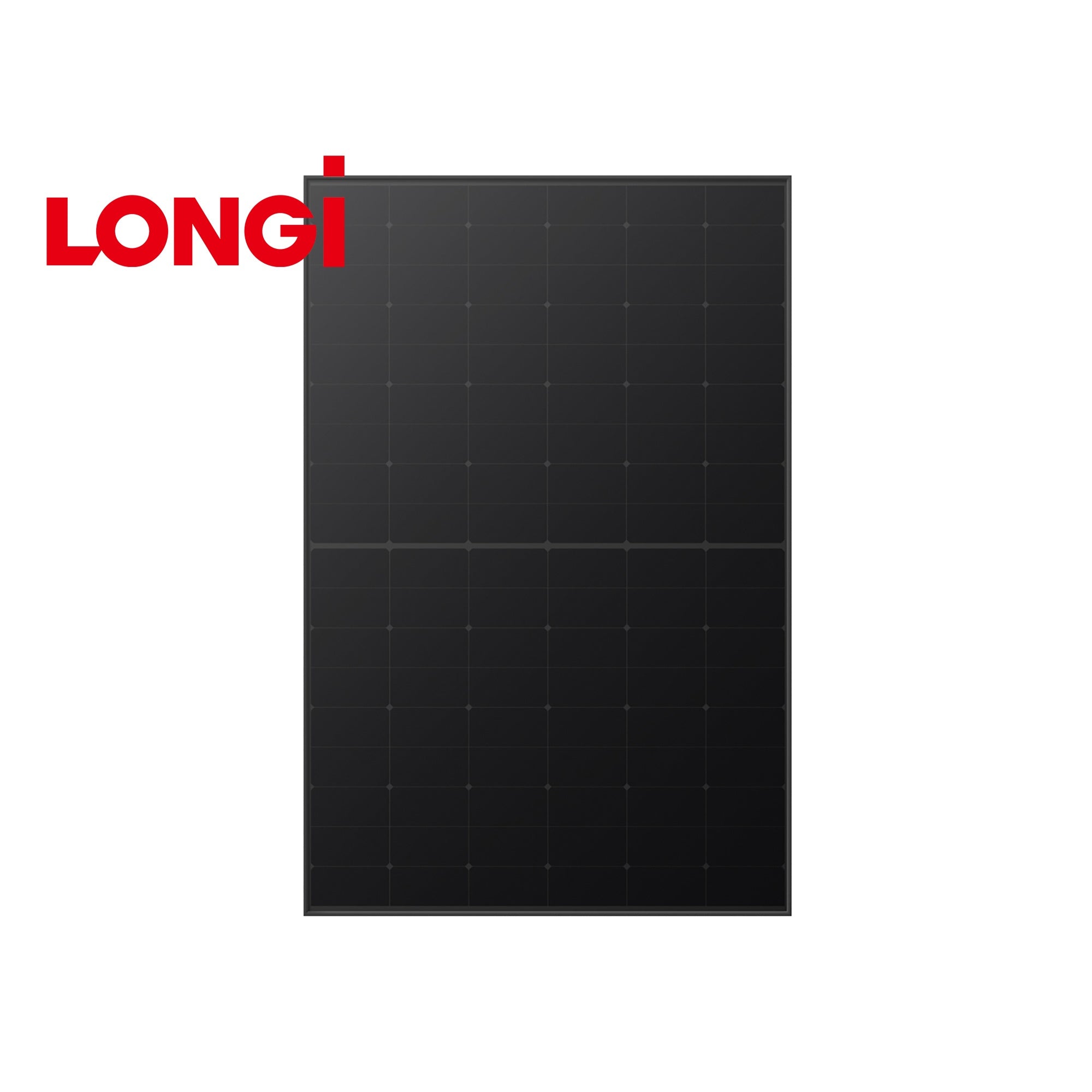

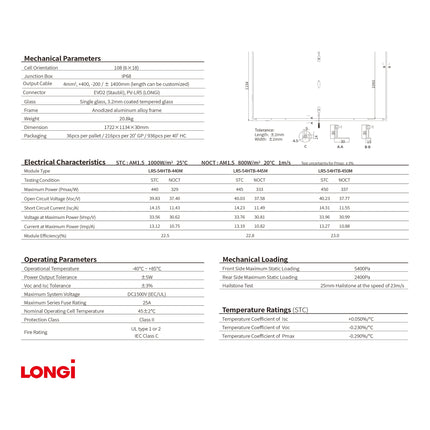

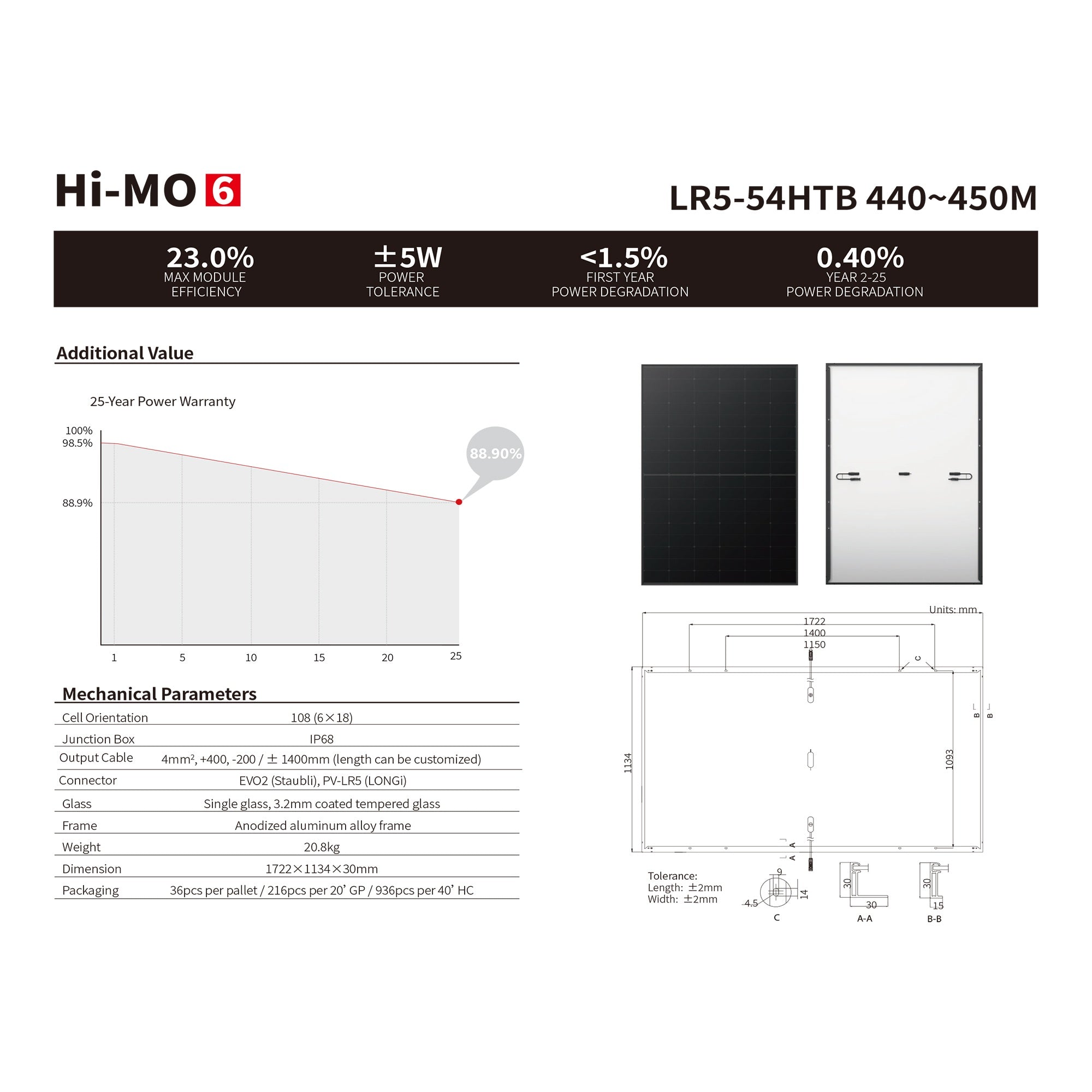

6 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

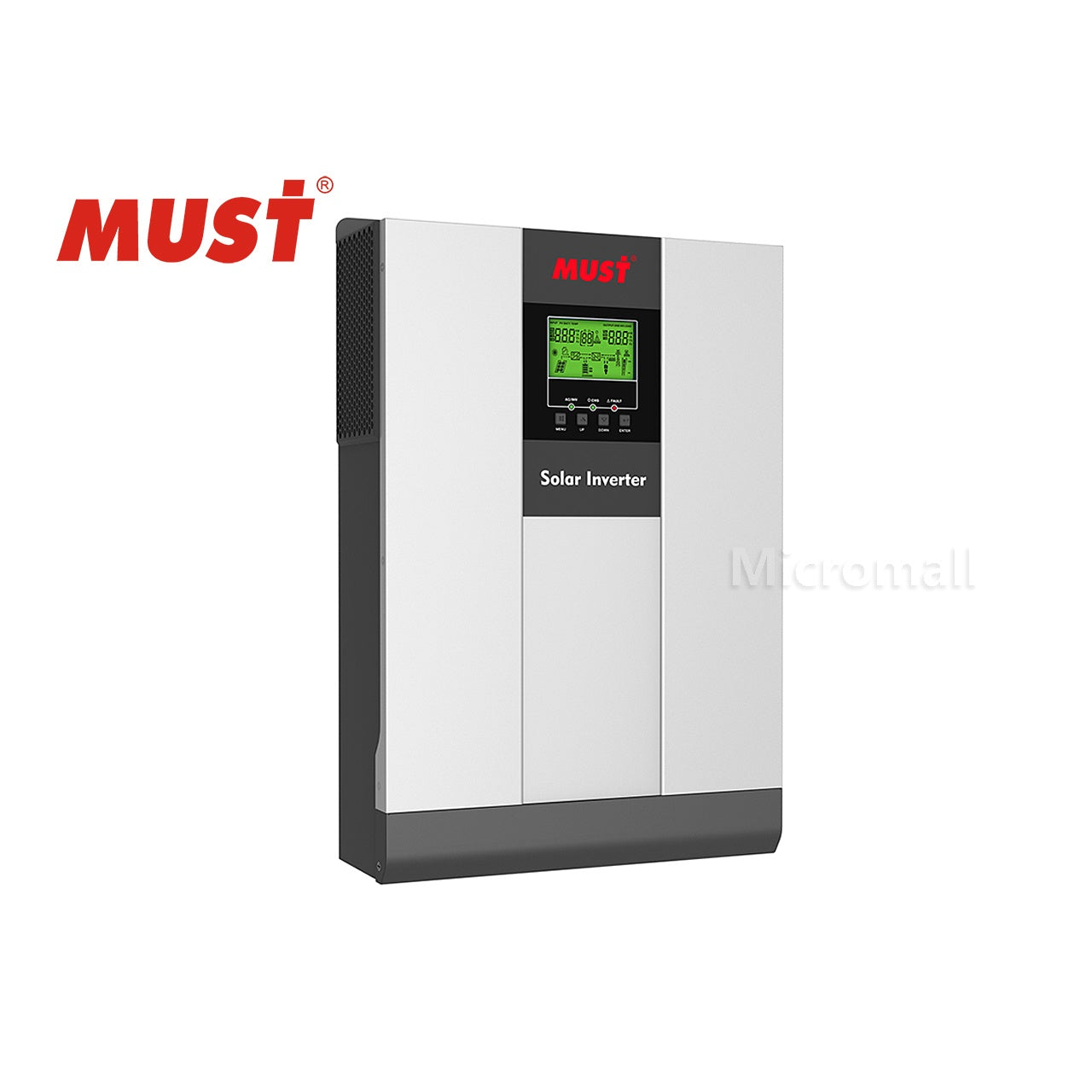

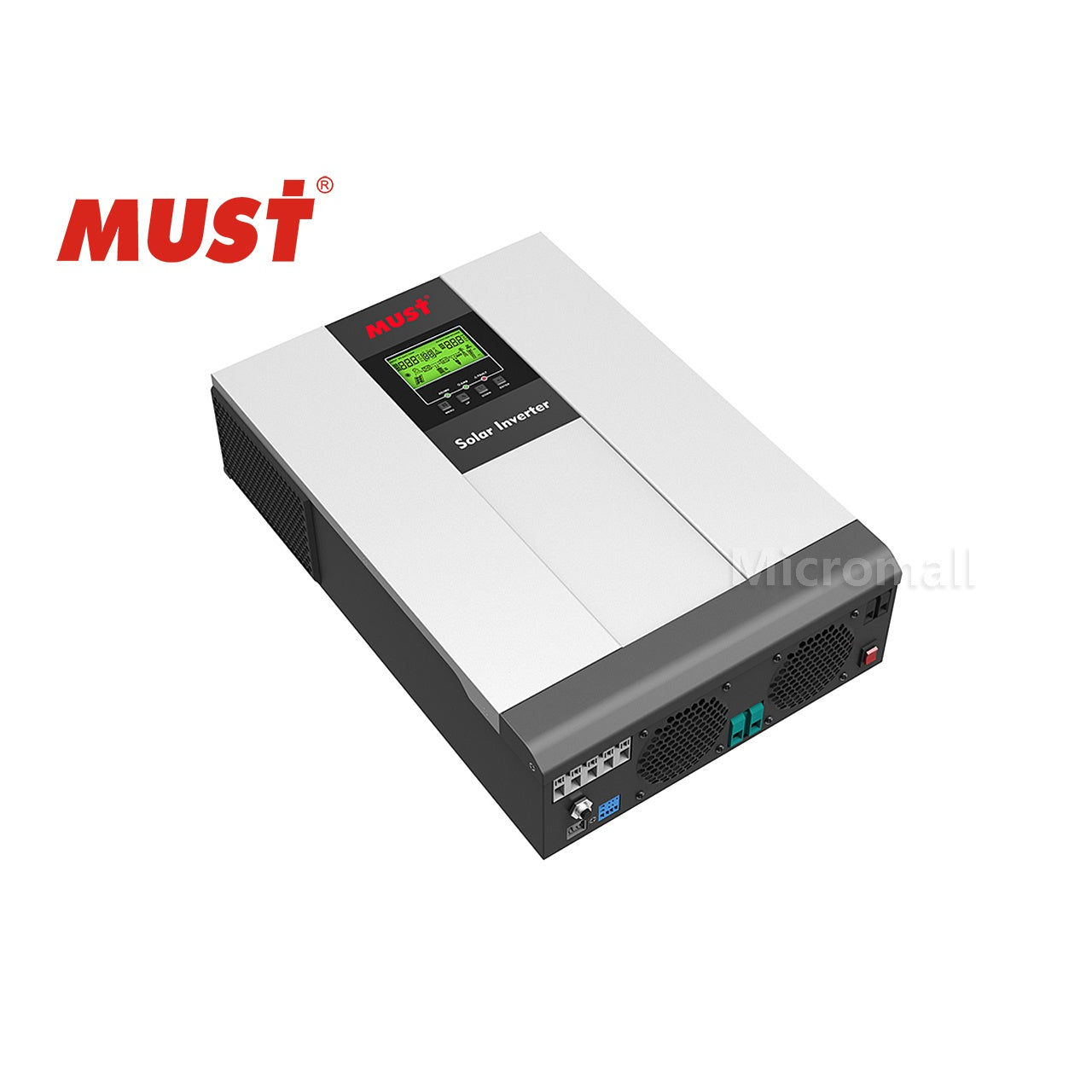

1 x 5000W MUSTPOWER Hybrid Off-Grid Inverter PV18-5048 VHM (2 years warranty)

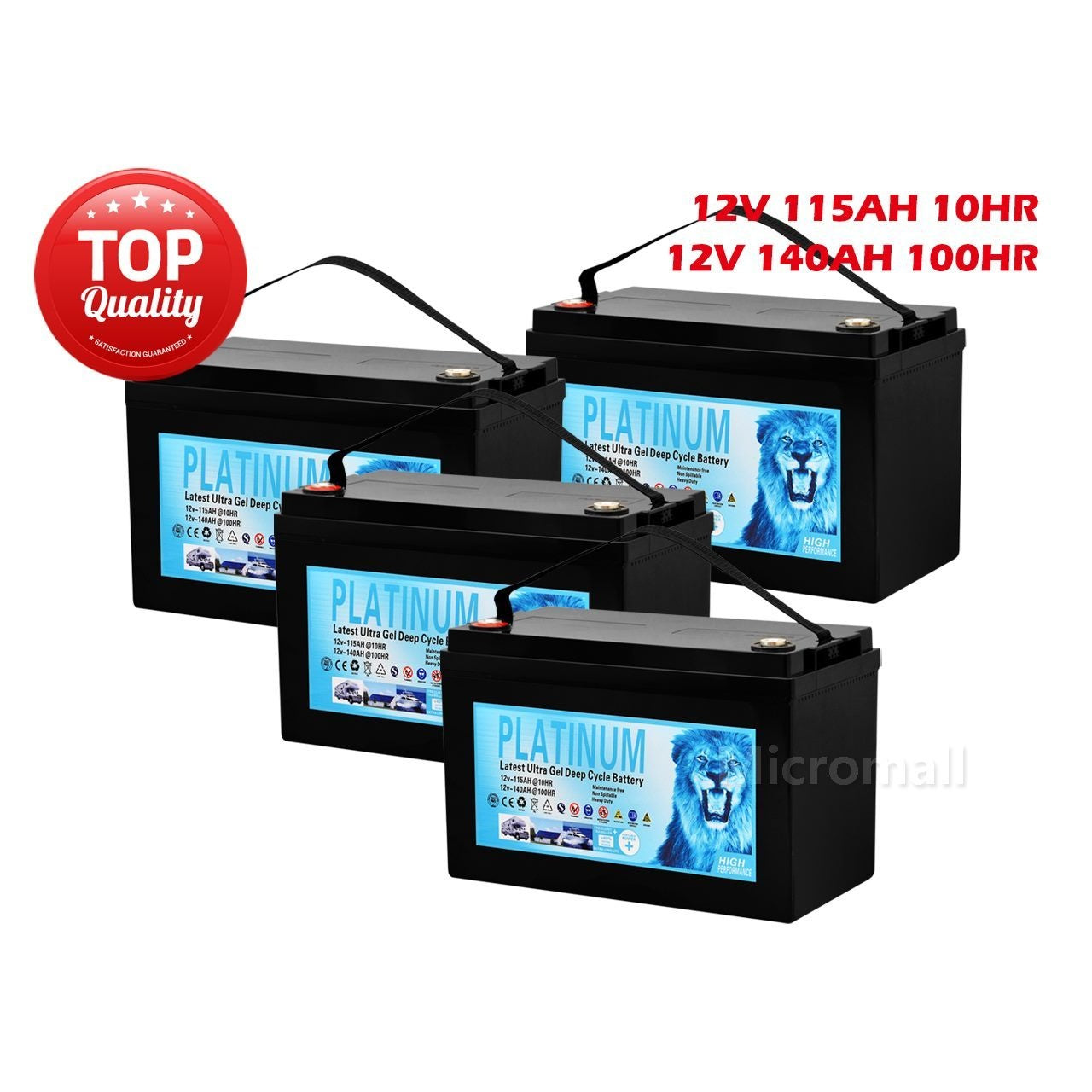

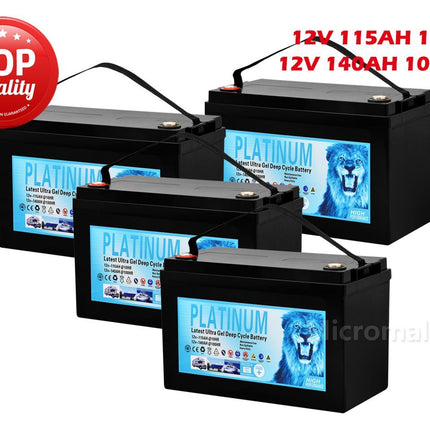

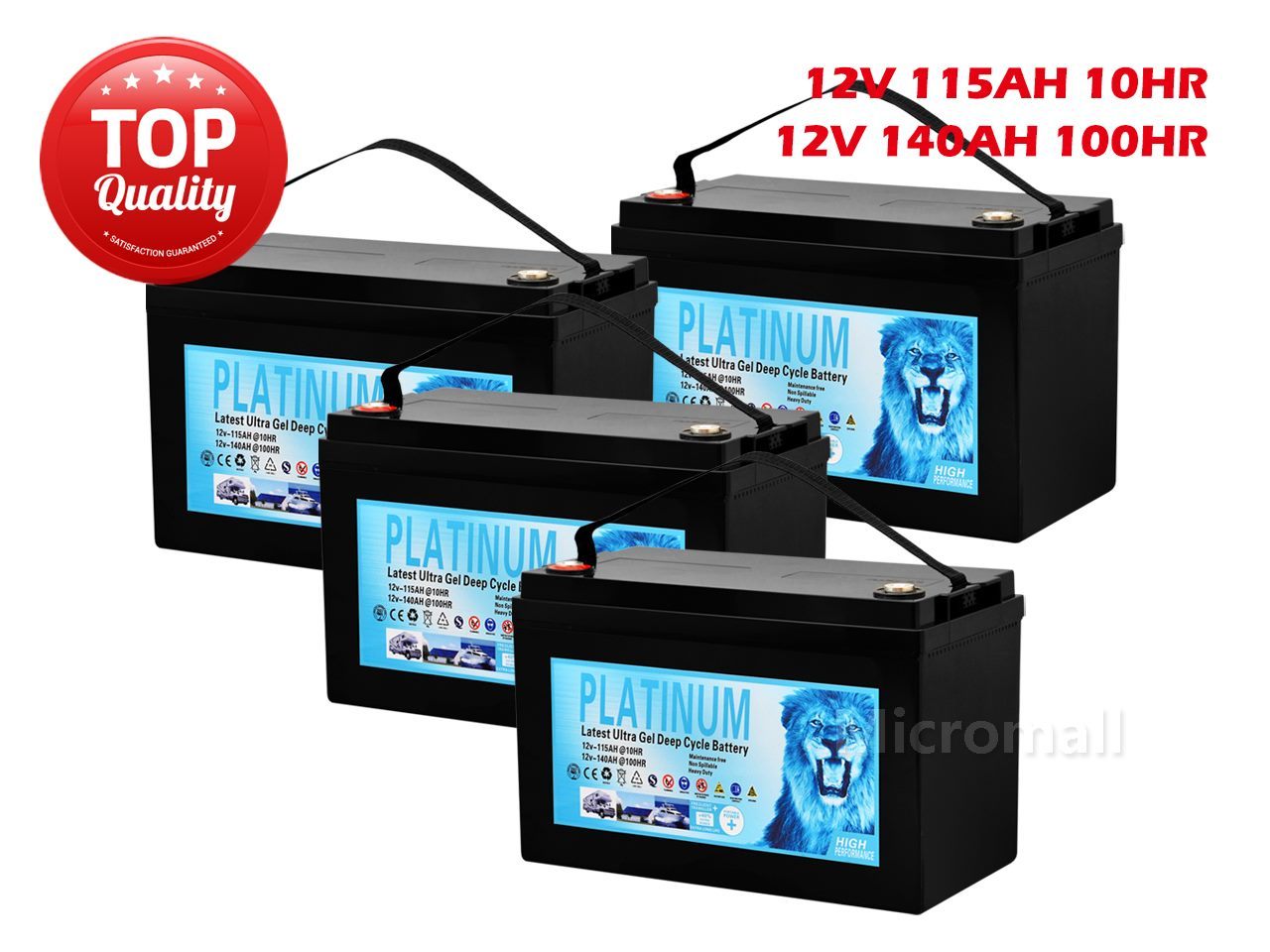

4 x 12V 140Ah GEL Deep Cycle Battery (2 years warranty)
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x 16a PV Fuse
1 x 500v 25a PV Circuit Breaker
1 x Surge
1 x 48V Battery Equalizer
6 x Solar Panel Mounting Kits Z Brackets
**Upgrading from Mounting Kits to Mounting Rails is $180. If you wish to upgrade, please contact us.**
Specifications for the PV18-5048 VHM Inverter:
Nominal Battery System Voltage: 48VDC
Inverter Output:
Rated Power: 5000W
Surge Power: 10000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC - 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184 - 253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto-sensing)
Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 60VDC
Solar Charger & AC Charger:
Maximum PV Array Open Circuit Voltage: 145VDC
PV Array MPPT Voltage: 64~130VDC
PV Input Power: 2880W/3840W
Maximum Solar Charge Current: 60/80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 60A
Maximum Charge Current: 120/140A
Physical Specifications:
Dimensions (WHD)(mm): 297.5x468x125
Net Weight(kg): 13.3
SAA NZ Certificated Inverter
Daily Output 15KWH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
