Description
Complete 48V single-phase off-grid solar kit featuring a 4.14kW JA Solar array, two 5kW SRNE inverters with 10kW total rated output, and two LiFePO4 battery modules.
Package includes

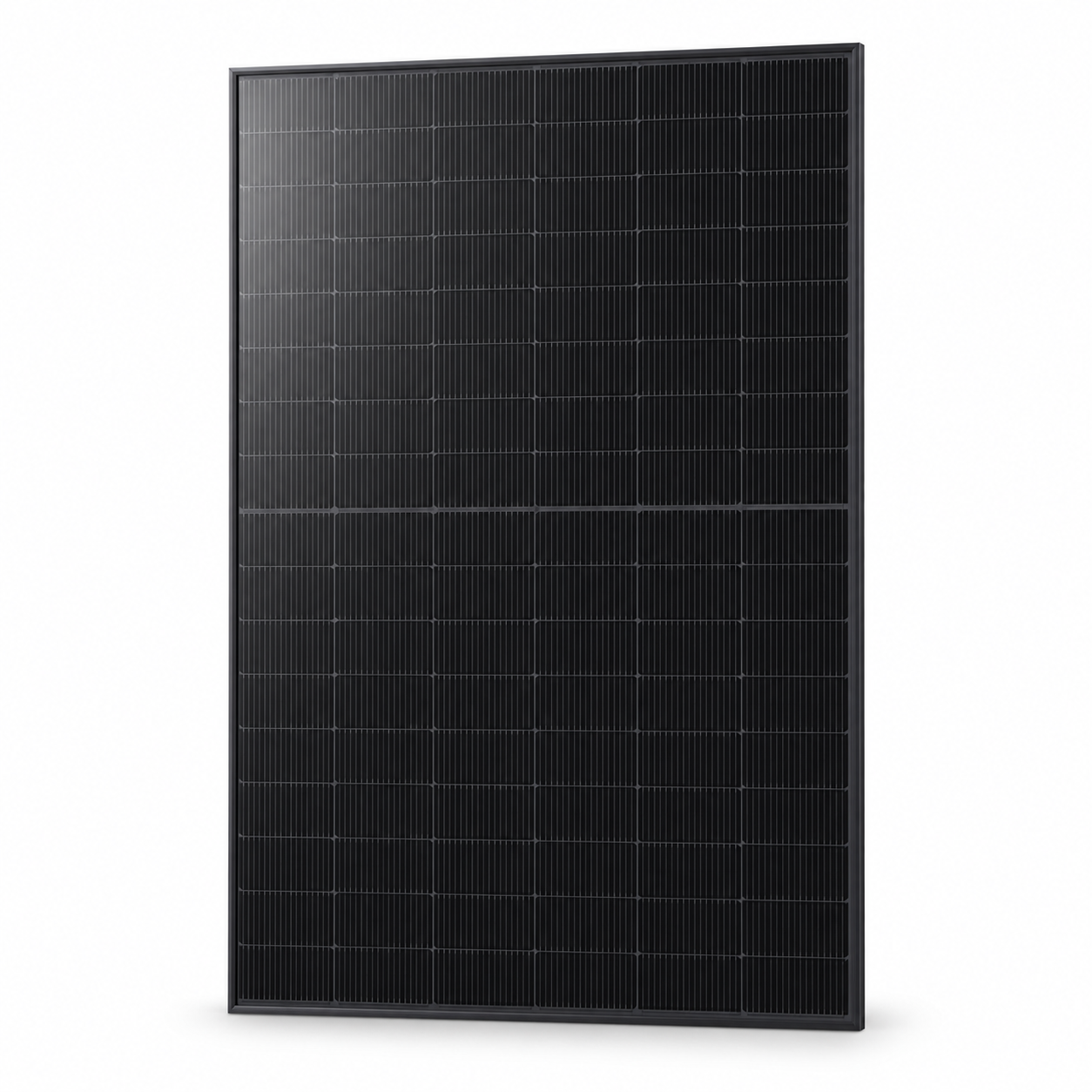

9 x JA Solar 460W Solar Panel
2 x 5000W SRNE Single Phase Off-Grid Solar Storage Inverter AFP4850S100-H (2 years warranty)

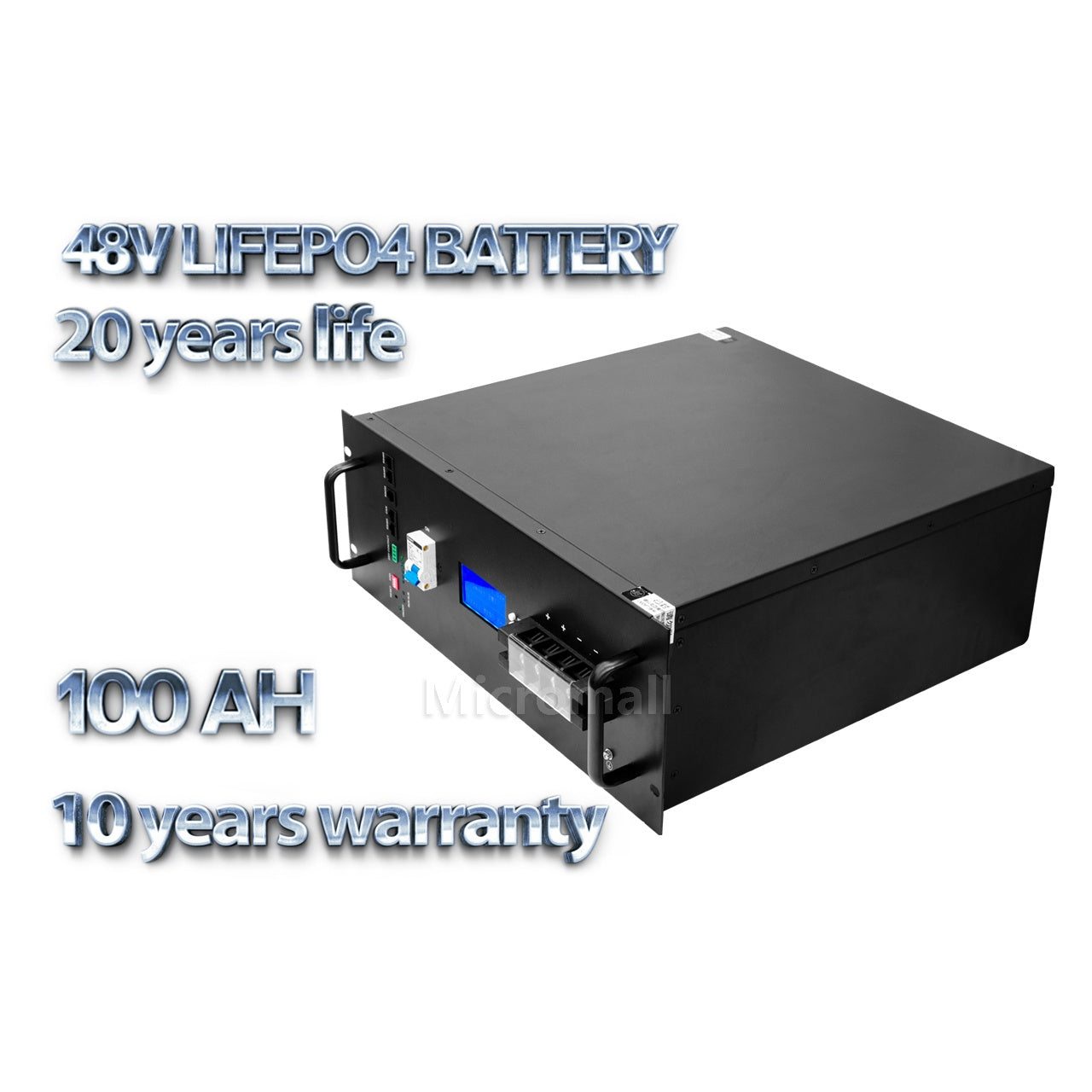

2 x 48V 51.2V 100Ah 110Ah LiFePO4 Battery with 6000 cycle times (15-year warranty, 30-year run life)
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors

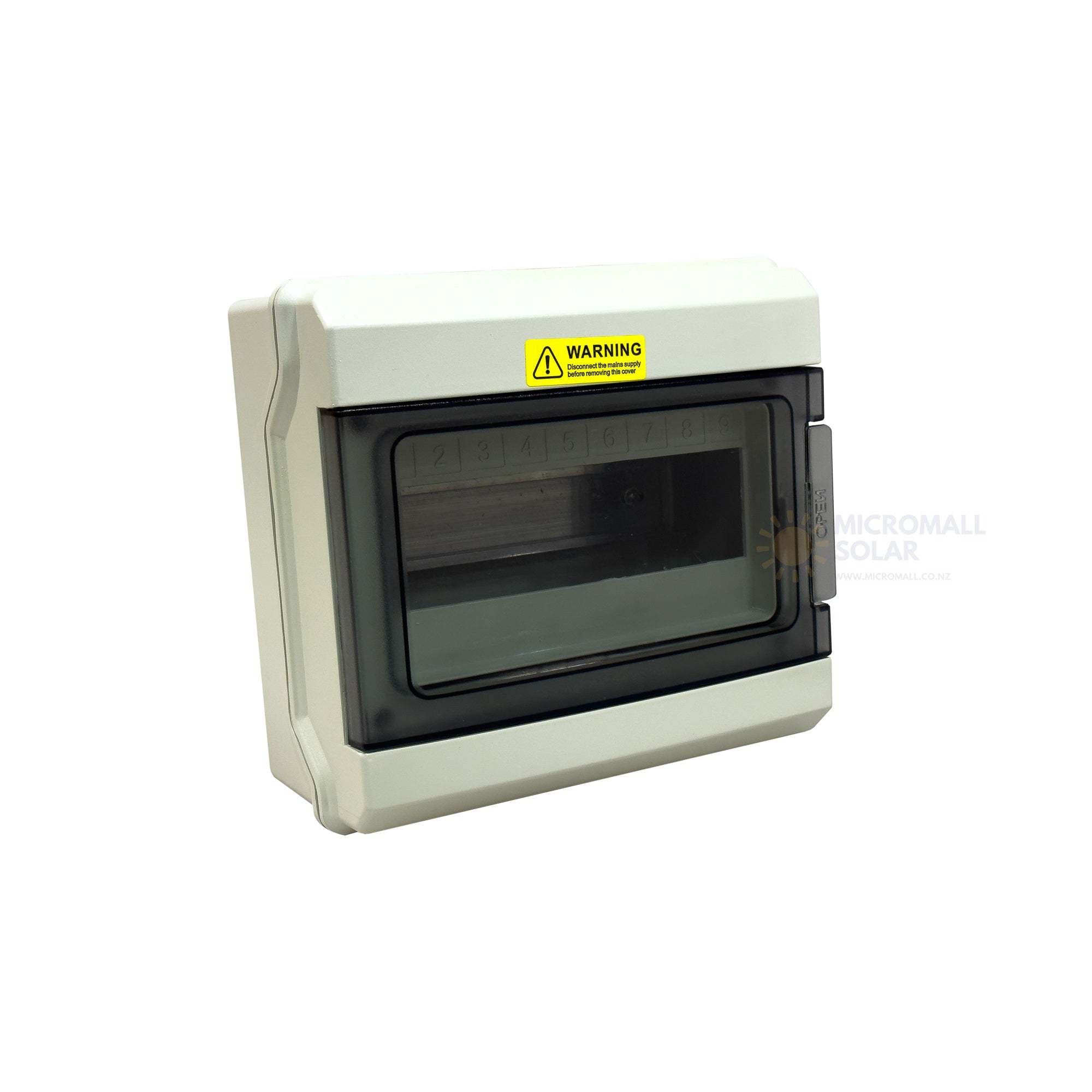

1 x PV Safety System with Fuse Box
9 x Commercial Mounting Kits with Adjustable Angle Version

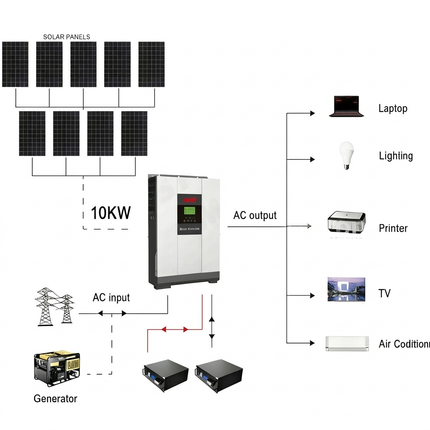

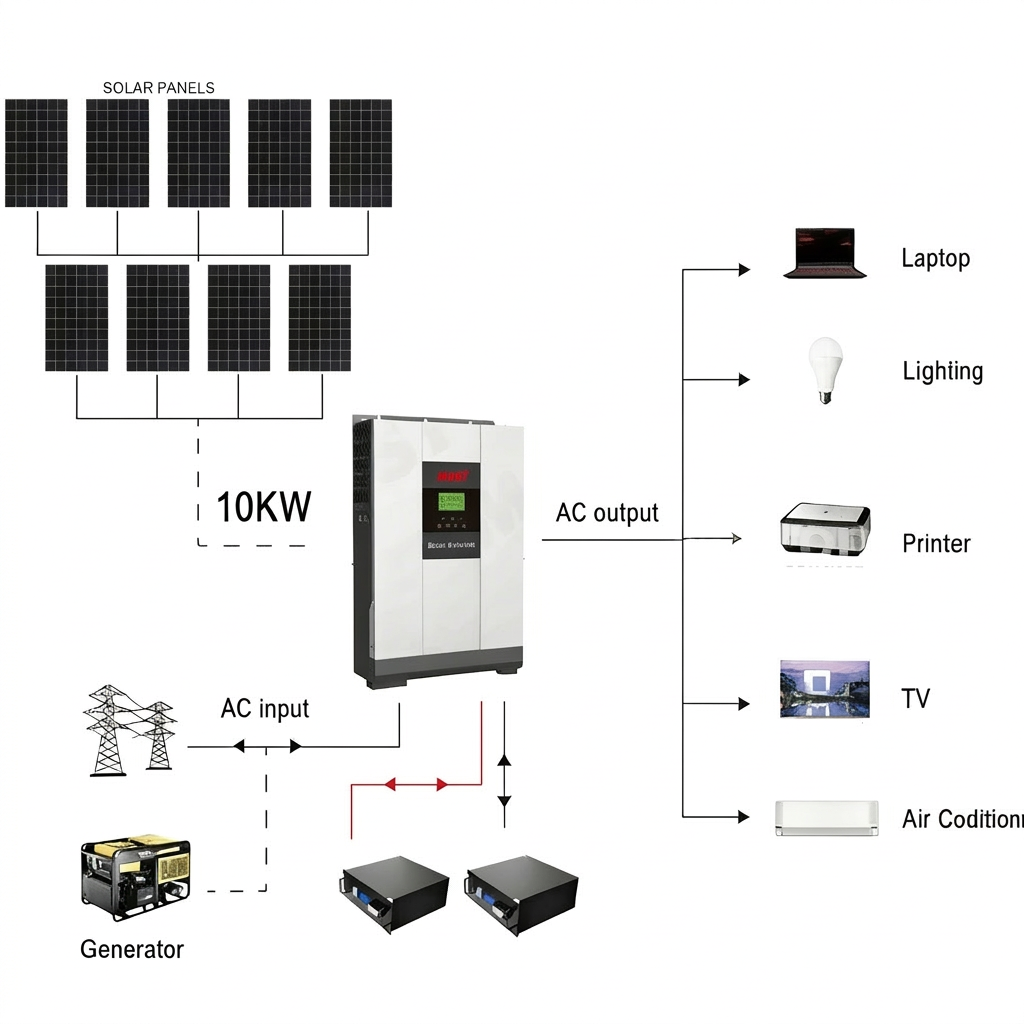

System configuration
- Solar array: 9 x 460W JA Solar modules (4140W total)
- Inverters: 2 x 5,000W SRNE AFP4850S100-H (10,000W total rated output)
- Battery system: 2 x 48V/51.2V LiFePO4 battery modules
- Output: 230Vac single phase, pure sine wave
Features
Compatible with 48V storage batteries.
Multiple charging and on-load modes help maximise energy use.
Efficient forced-air cooling supports reliable operation.
Remote monitoring support for equipment operating parameters.
Includes lithium-battery activation and comprehensive electrical protection functions.

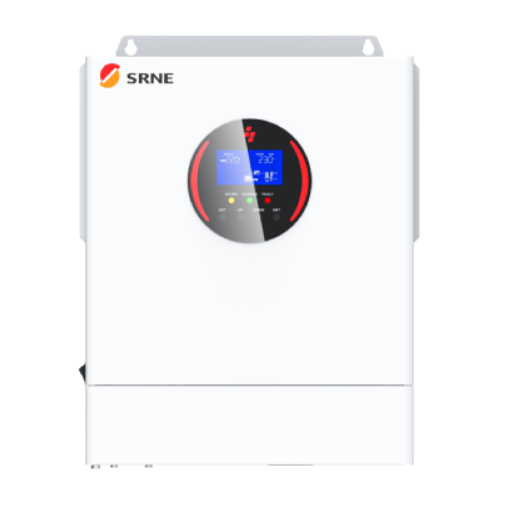

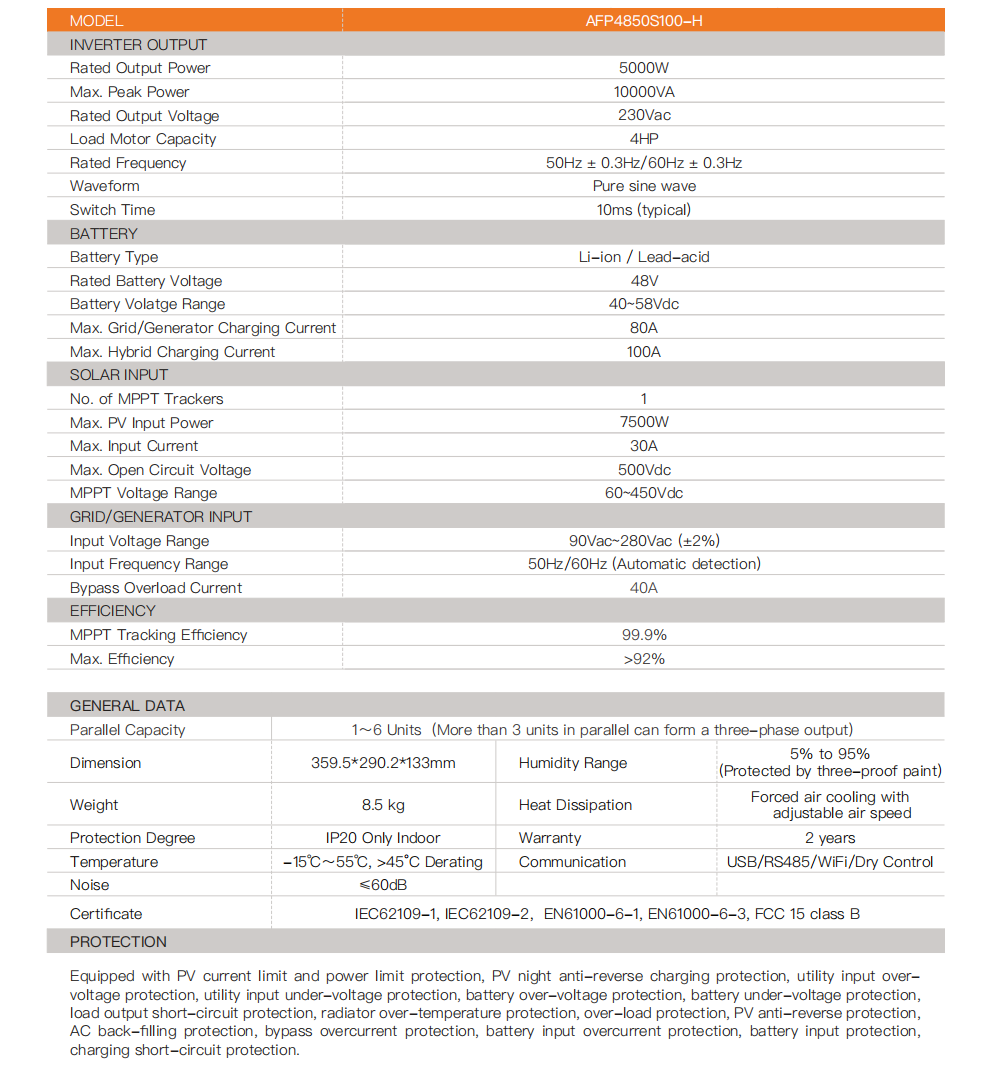

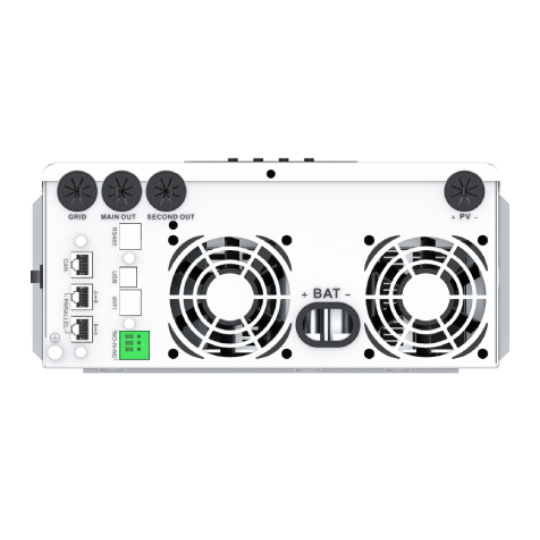

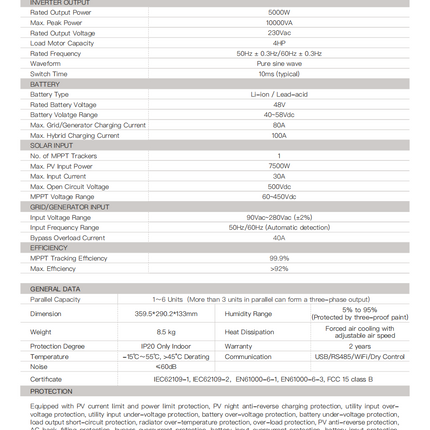

SRNE AFP4850S100-H specifications (per inverter)
- Rated Output Power: 5000W
- Max. Peak Power: 10000VA
- Rated Output Voltage: 230Vac
- Load Motor Capacity: 4HP
- Rated Frequency: 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
- Waveform: Pure sine wave
- Switch Time: 10ms (typical)
- Battery Type: Li-ion / Lead-acid
- Rated Battery Voltage: 48V
- Battery Voltage Range: 40–58Vdc
- Max. Grid/Generator Charging Current: 80A
- Max. Hybrid Charging Current: 100A
- MPPT Trackers: 1
- Max. PV Input Power: 7500W
- Max. PV Input Current: 30A
- Max. PV Open Circuit Voltage: 500Vdc
- MPPT Voltage Range: 60–450Vdc
- Input Voltage Range: 90–280Vac (±2%)
- MPPT Tracking Efficiency: 99.9%
- Max. Efficiency: >92%
- Weight: 8.5kg
- Dimensions: 359.5 x 290.2 x 133mm
- Protection Degree: IP20, indoor use only
- Operating Temperature: -15°C to 55°C; derating above 45°C
- Humidity Range: 5% to 95%
- Heat Dissipation: Forced-air cooling with adjustable fan speed
Protection functions include PV current and power limiting, PV night reverse-charge protection, utility input over-voltage and under-voltage protection, battery over-voltage and under-voltage protection, load output short-circuit and over-temperature protection, overload protection, PV anti-reverse protection, AC back-feed protection, bypass overcurrent protection, battery input overcurrent protection, battery input protection, and charging short-circuit protection.
