Description

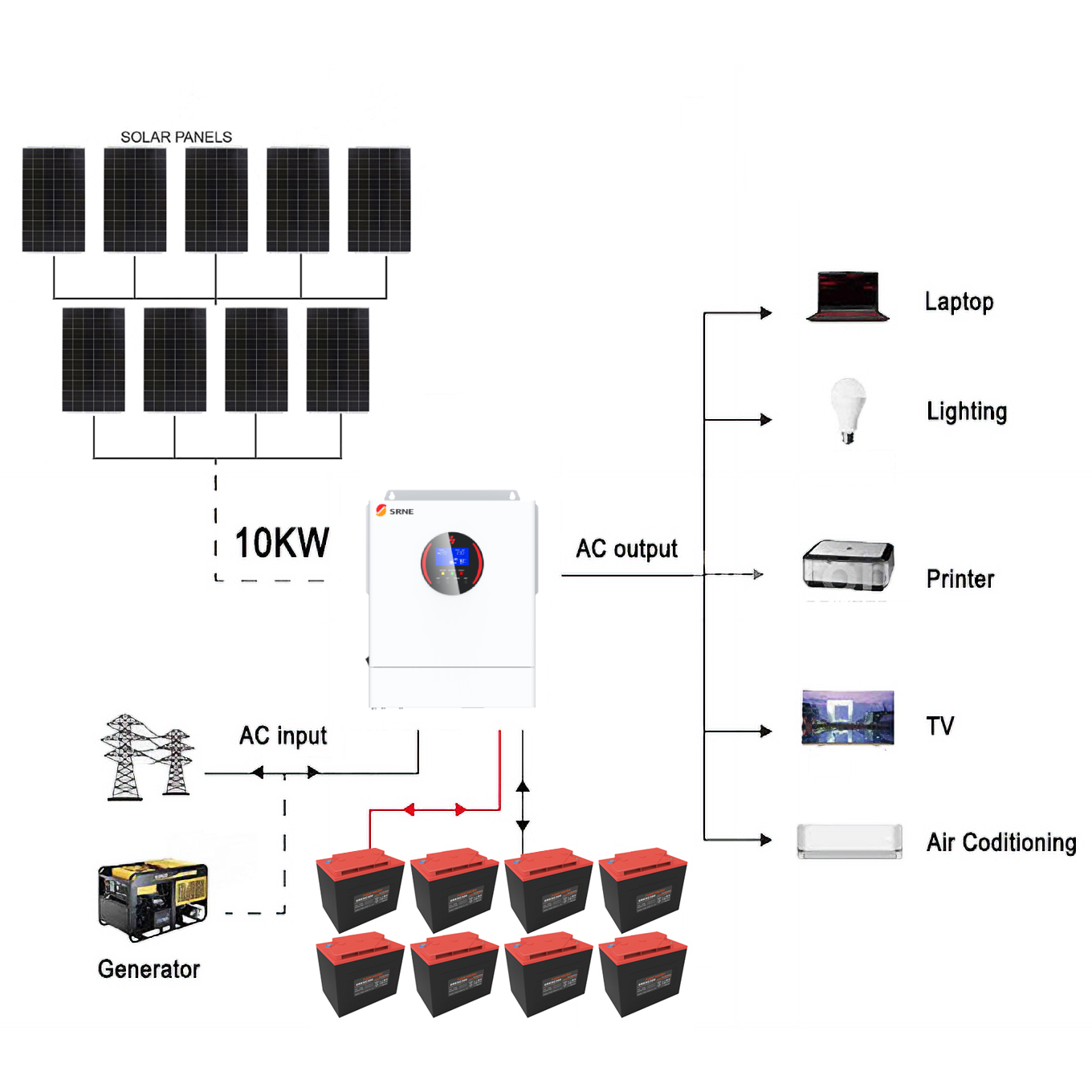

Experience seamless solar energy with our premium off-grid system, combining top-tier solar panels and a high-grade hybrid solar inverter.

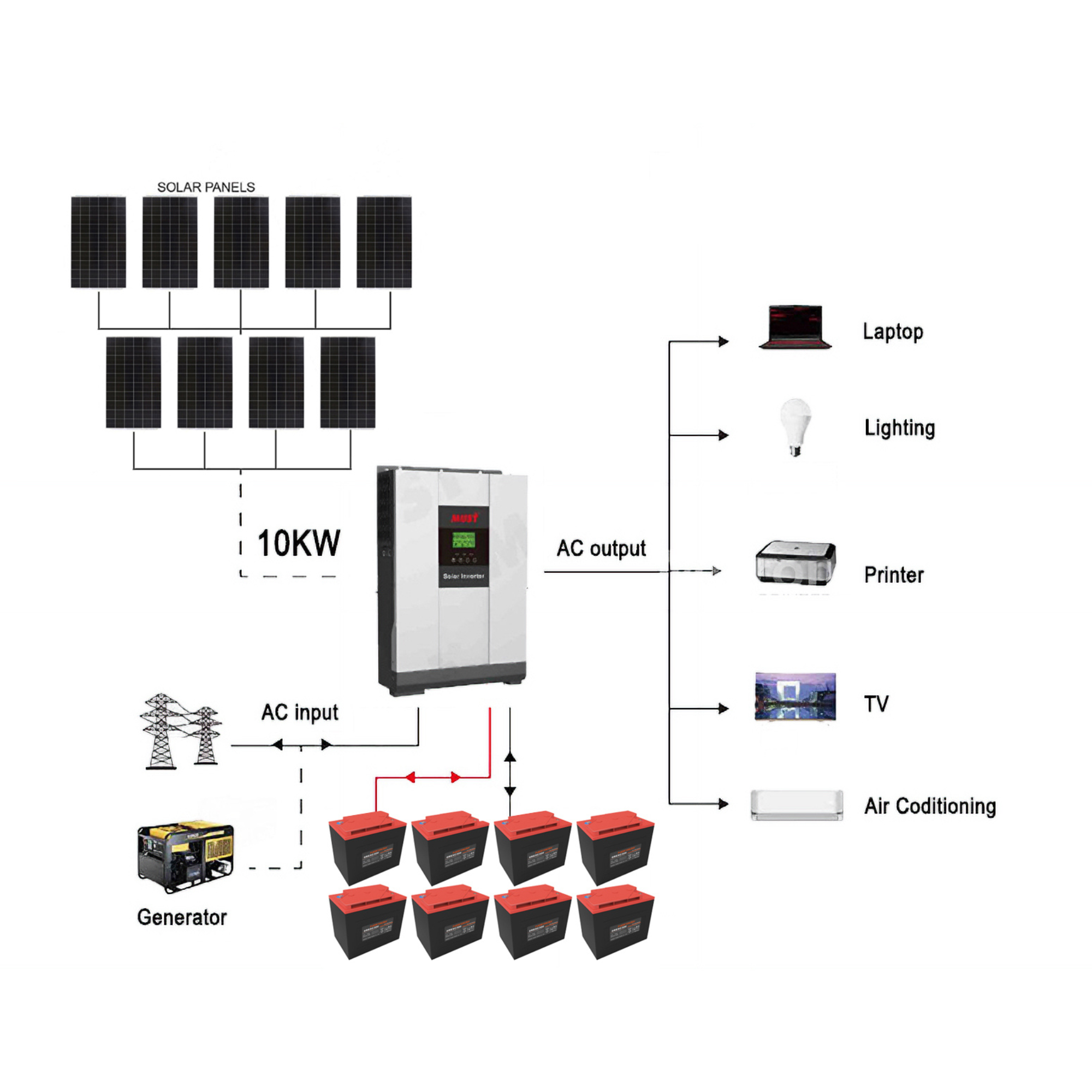

Package includes:
9 x LONGi Hi-MO LR5-54HTB Mono 440W Solar Panel Black Frame Half-Cell (25 Years Linear Power Output Warranty, dimensions: 1722x1134x30mm)

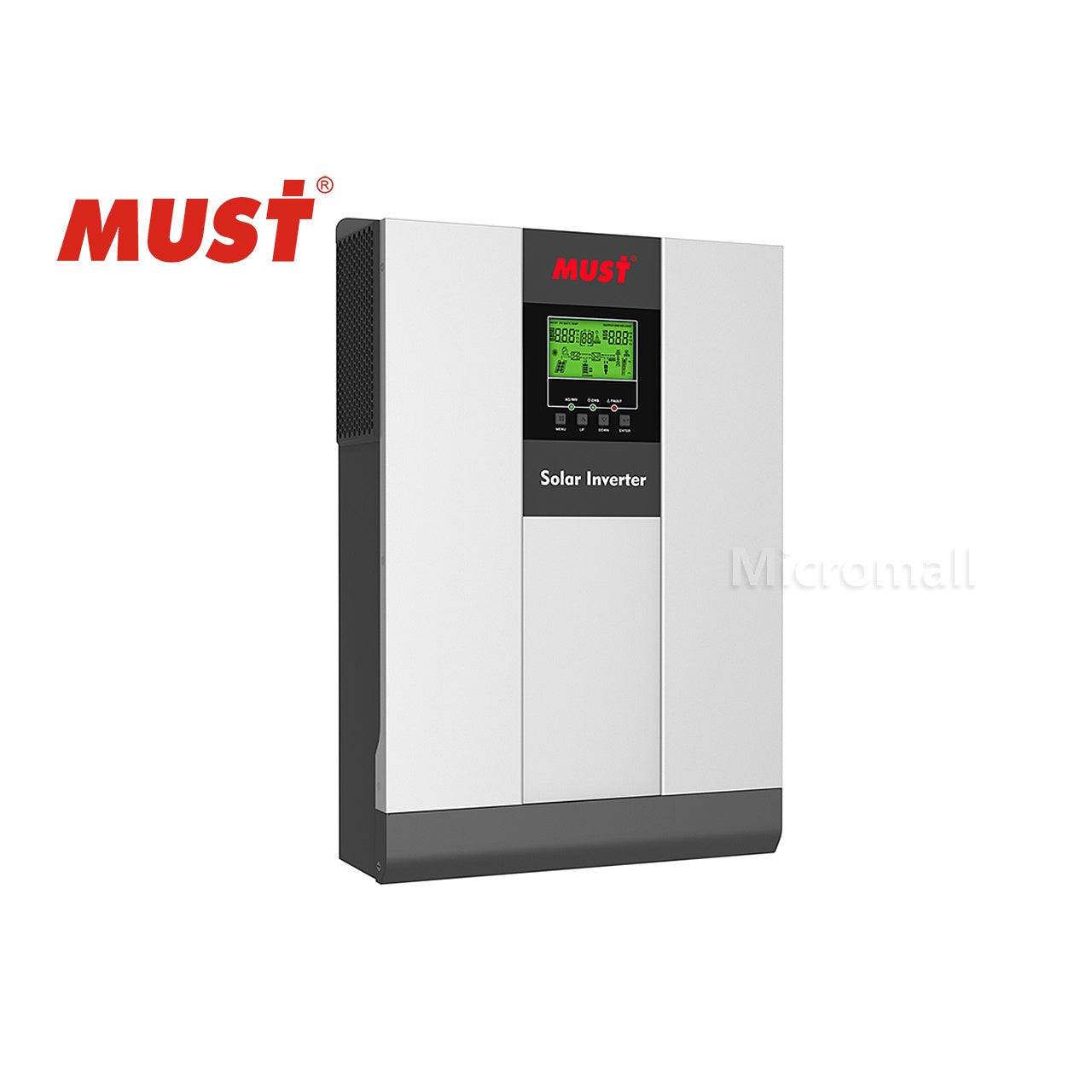

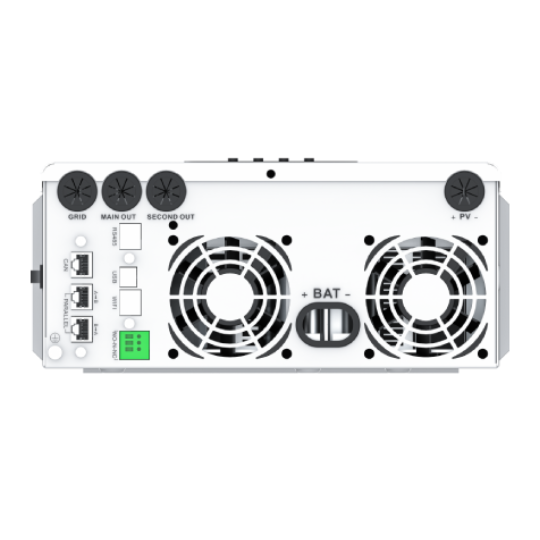

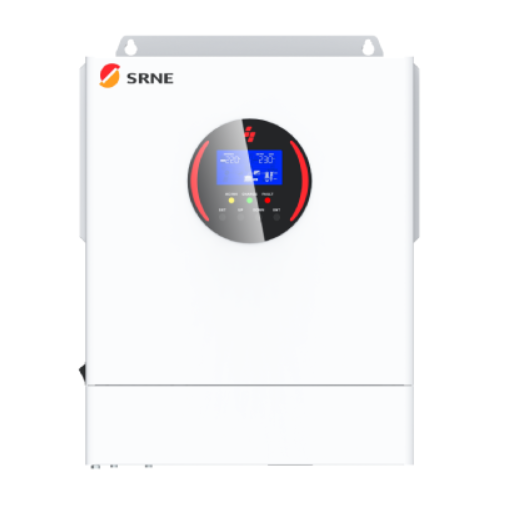

2 x 5000W MUSTPOWER Hybrid Off-Grid Inverter PV18-5048 VHM (2 years warranty)

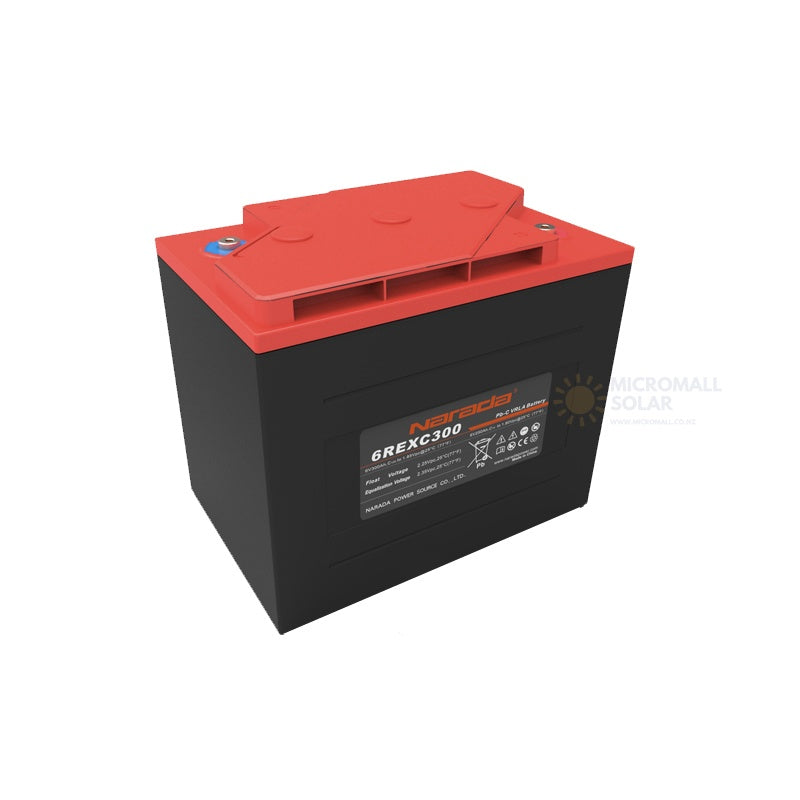

8 x Narada 6REXC-300 6V 300Ah Ultra Lead Carbon Deep Cycle Solar Battery (5-year warranty)
2 x 10m Twin 4mm PV Extension Cable with MC4 Connectors
1 x 2-in-1 MC4 Connectors
1 x PV Safety System with Fuse Box
9 x Commercial Mounting Kits with Adjustable Angle Version

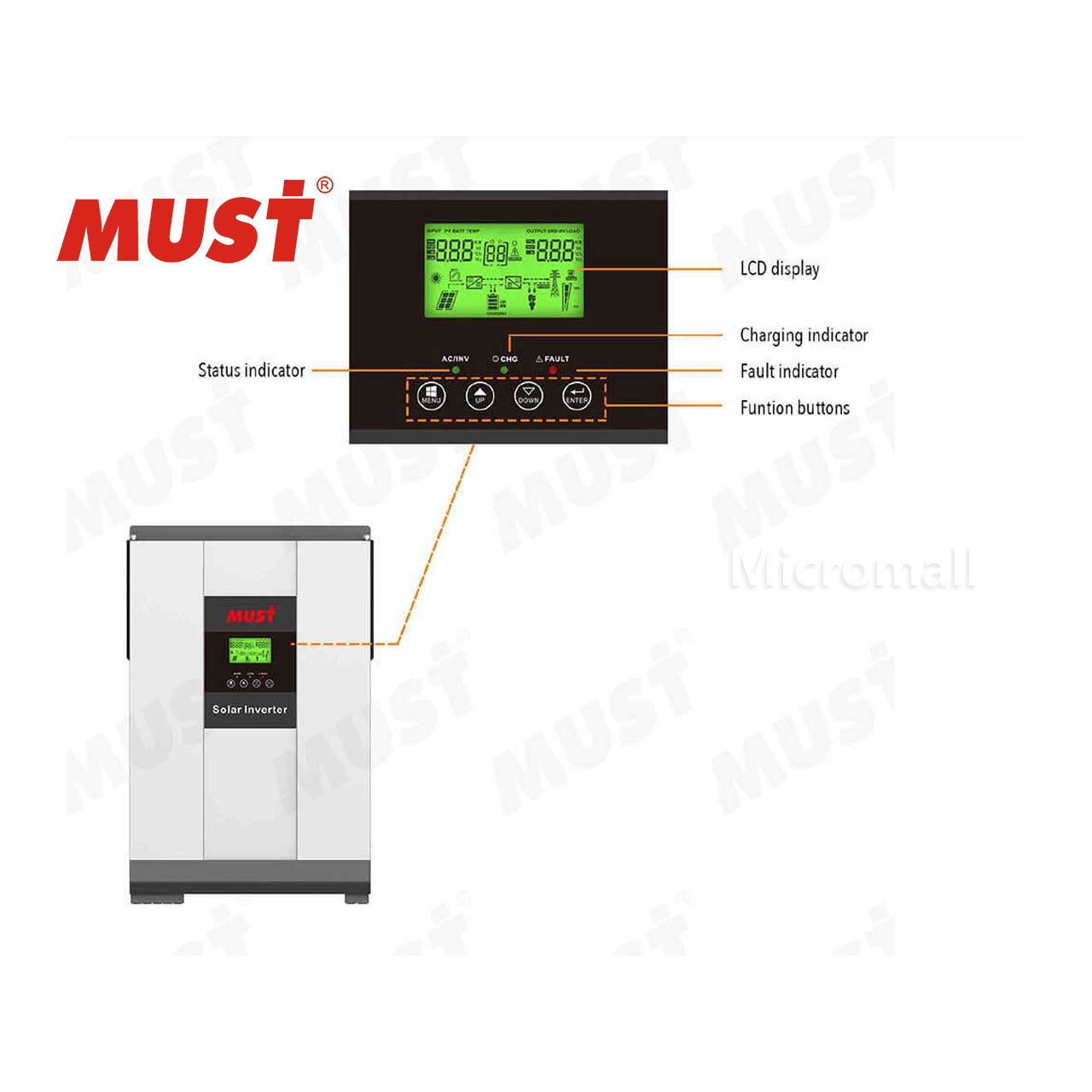

Specifications for the PV18-5048 VHM Inverter:
Nominal Battery System Voltage: 48VDC
Inverter Output:
Rated Power: 5000W
Surge Power: 10000W
Waveform: Pure sine wave
AC Voltage Regulation (Batt.Mode): ±5% (220VAC - 240VAC)
Inverter Efficiency (Peak): 93%
Transfer Time: 10ms (For Personal Computers), 20ms (For Home Appliances)
AC Input:
Voltage: 230VAC
Selectable Voltage Range: 170280VAC (For Personal Computers), 90280VAC (For Home Appliances), 184 - 253VAC (VDE4105)
Frequency Range: 50Hz/60Hz (Auto-sensing)

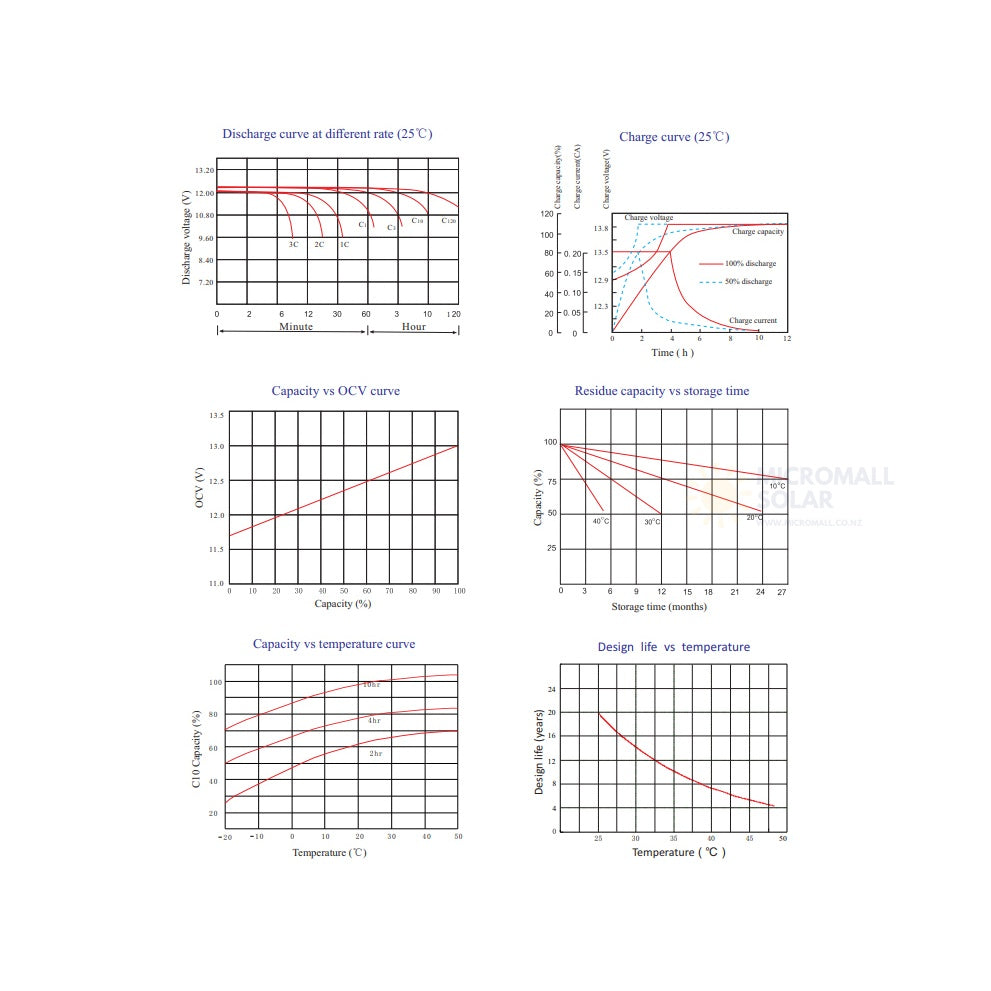

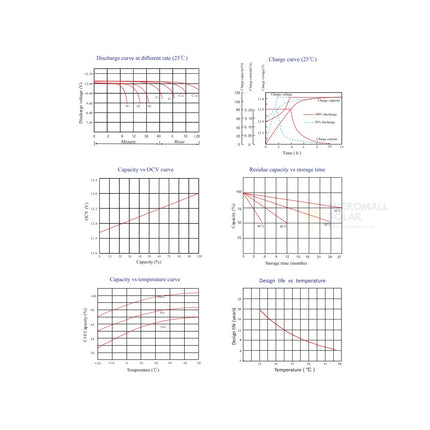

Battery:
6V VRLA AGM sealed Lead Carbon
Max charge current: 140A
Constant charge current: 100A
250Ah: C10 (10-hour discharge)
300Ah: C100 (100-hour discharge)
Dimensions: 338mm L x 224mm W x 294mm H
Weight: 61kg
Cycle life: 5000 at 50% depth of discharge or 2400 at 80% depth of discharge.
SAA NZ Certificated Inverter
Daily Output 23220WH with a 6-hour charging time based on average sunlight hours in New Zealand's winter & summer seasons.
