Description
HPBC
Low Light Performance
12 Years Material Workmanship Warranty
25 Years Linear Power Output Warranty
Features:
Half-cut Technology
New circuit design with lower internal current and reduced internal resistance loss.
Significantly avoiding heat spot
The unique circuit design significantly reduces the temperature of hotspots, thereby lowering power loss and increasing module output.
Lower cost
Increasing power generation helps reduce the cost per kilowatt-hour.
Excellent performance of PID resistance
The PID (Potential-Induced Degradation) resistance performance meets the TÜV Nord standard, ensuring stable module output.
Excellent light blocking performance
The module delivers higher power output under low-light conditions, such as haze and cloudy days.
High efficiency output power
High conversion efficiency.

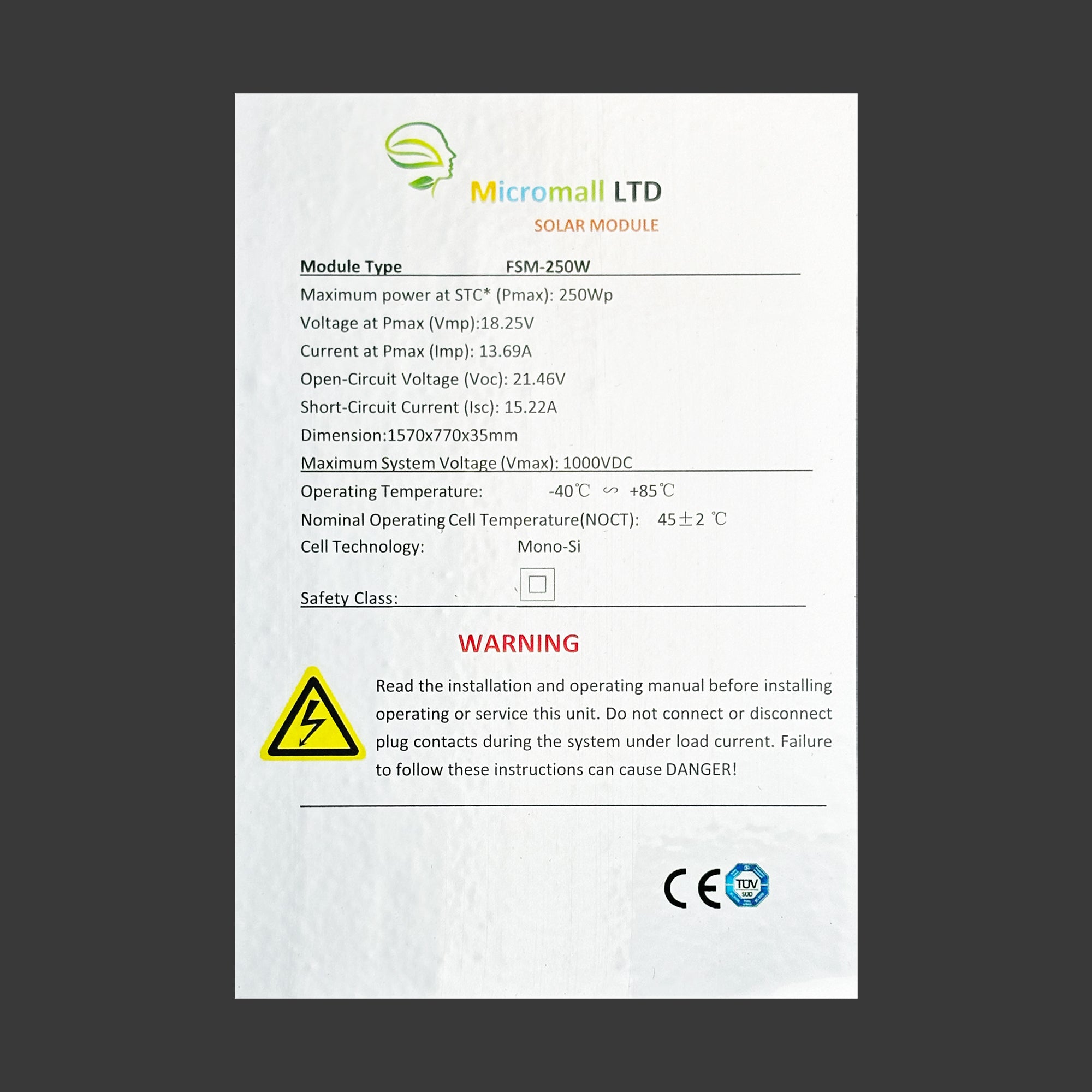

Specifications:
Module Type: FSM-250W
Maximum power at STC* (Pmax): 250Wp
Voltage at Pmax (Vmp): 18.25V
Current at Pmax (Imp): 13.69A
Open-Circuit Voltage (Voc): 21.46V
Short-Circuit Current (Isc): 15.22A
Dimension: 1570x770x35mm
Maximum System Voltage (Vmax): 1000VDC
Operating Temperature:
-40°C - +85°C
Nominal Operating Cell Temperature(NOCT): 45+-2 °C
Cell Technology: Mono-Si
Note: This product is designed to provide free electricity permanently and is built to withstand high wind pressure and snow load.
