Description
Low Light Performance
12 Years Material Workmanship Warranty
25 Years Linear Power Output Warranty
Features:
Half-cut Technology
New circuit design with lower internal current and reduced internal resistance loss.
Significantly avoiding heat spot
The unique circuit design significantly reduces the temperature of hotspots, thereby lowering power loss and increasing module output.
Lower cost
Increasing power generation helps reduce the cost per kilowatt-hour.
Excellent performance of PID resistance
The PID (Potential-Induced Degradation) resistance performance meets the TÜV Nord standard, ensuring stable module output.
Excellent light blocking performance
The module delivers higher power output under low-light conditions, such as haze and cloudy days.
High efficiency output power
High conversion efficiency.

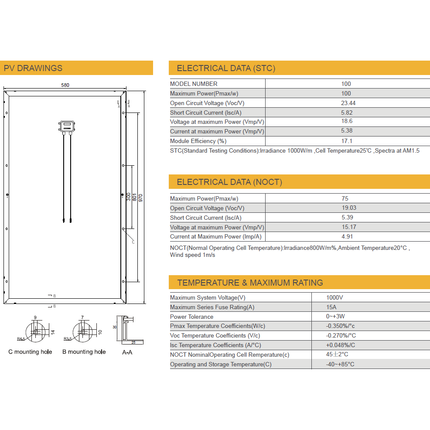

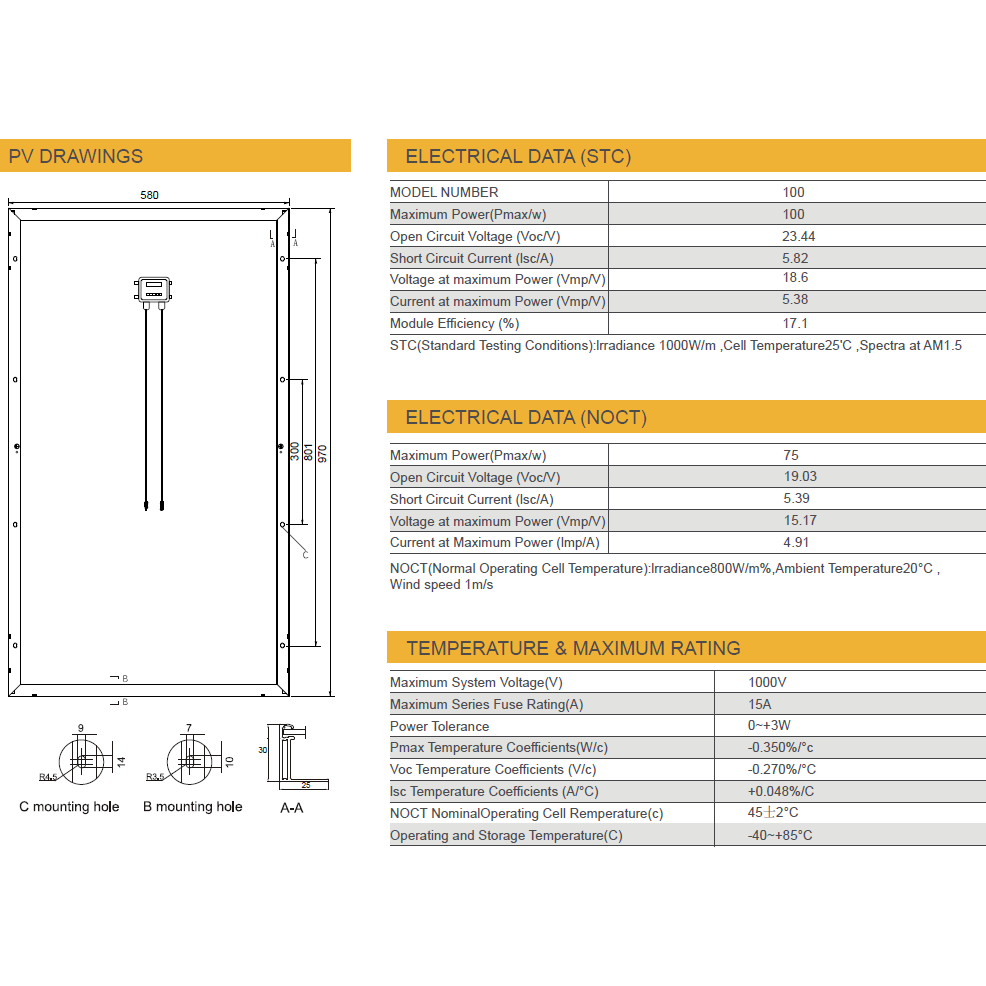

Specifications:

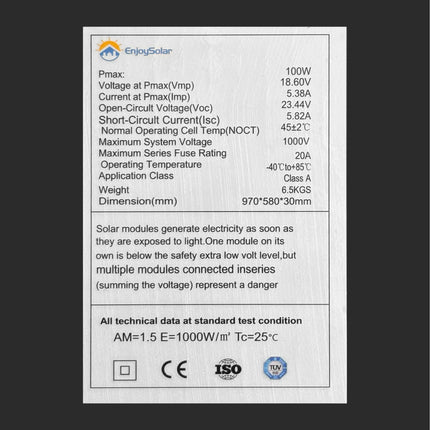

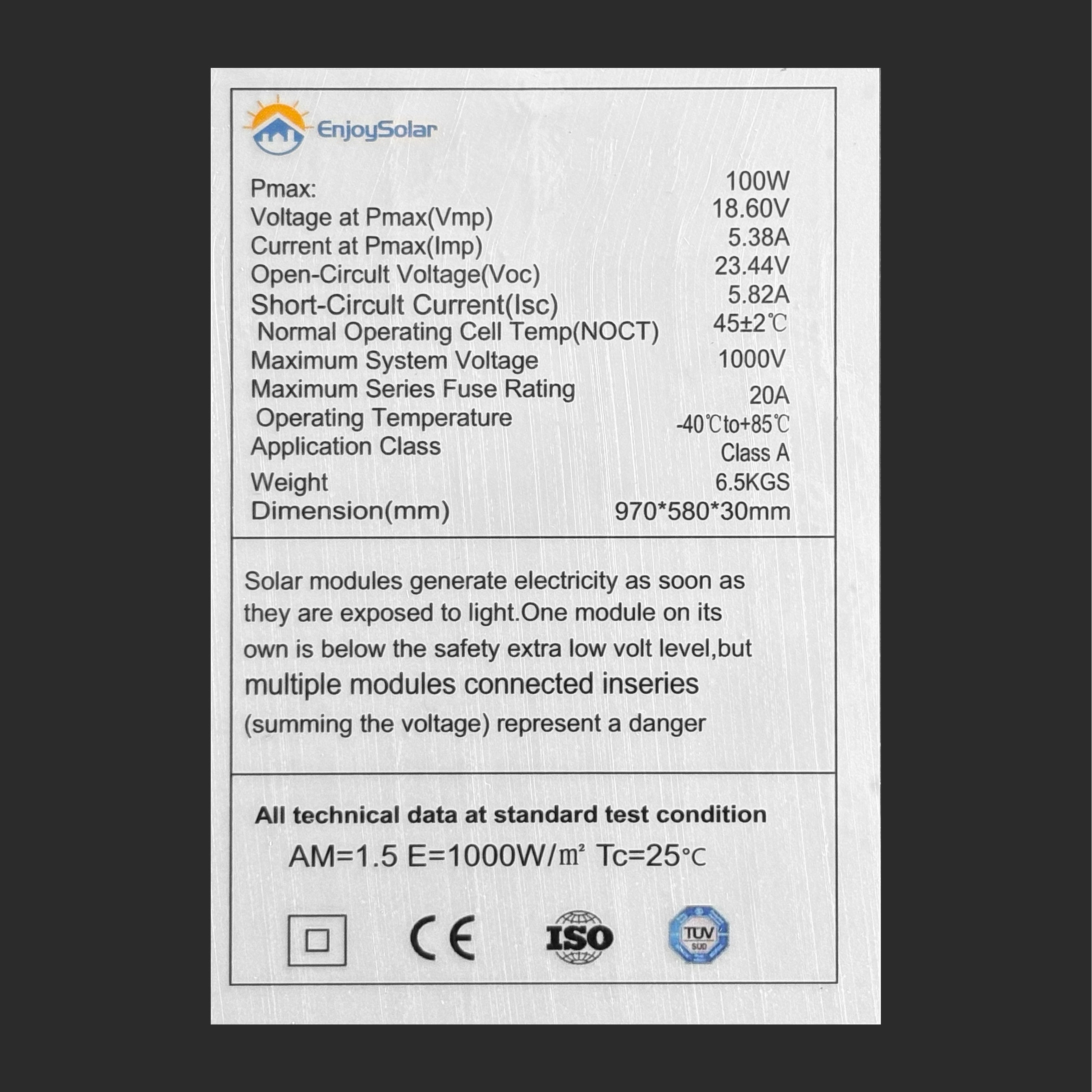

ELECTRICAL DATA (STC)
MODEL NUMBER: 100
Maximum Power(Pmax/w): 100
Open Circuit Voltage (Voc/V): 23.44
Short Circuit Current (lsc/A): 5.82
Voltage at maximum Power (Vmp/V): 18.6
Current at maximum Power (Vmp/V): 5.38
Module Efficiency (%): 17.1
STC(Standard Testing Conditions):lrradiance 1000W/m, Cell Temperature25'C, Spectra at AM1.5
ELECTRICAL DATA (NOCT)
Maximum Power(Pmax/w): 75
Open Circuit Voltage (Voc/V): 19.03
Short Circuit Current (lsc/A): 5.39
Voltage at maximum Power (Vmp/V): 15.17
Current at Maximum Power (lmp/A): 4.91
NOCT(Normal Operating Cell Temperature):lrradiance800W/m%, Ambient Temperature20℃, Wind speed 1m/s

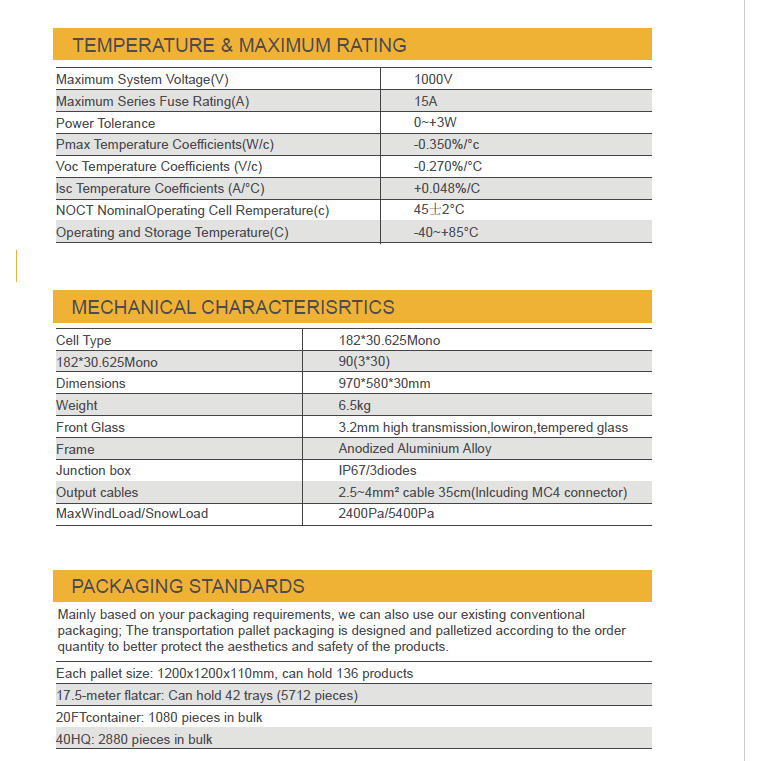

TEMPERATURE & MAXIMUM RATING
Maximum System Voltage(V): 1000V
Maximum Series Fuse Rating(A): 15A
Power Tolerance: 0 - +3W
NOCT Nominal Operating Cell Temperature(c): 45 +- 2°C
Operating and Storage Temperature(C): -40 + 85°C
MECHANICAL CHARACTERISRTICS
Cell Type: 182x30.625Mono
Dimensions: 970x580x30mm
Weight: 6.5kg

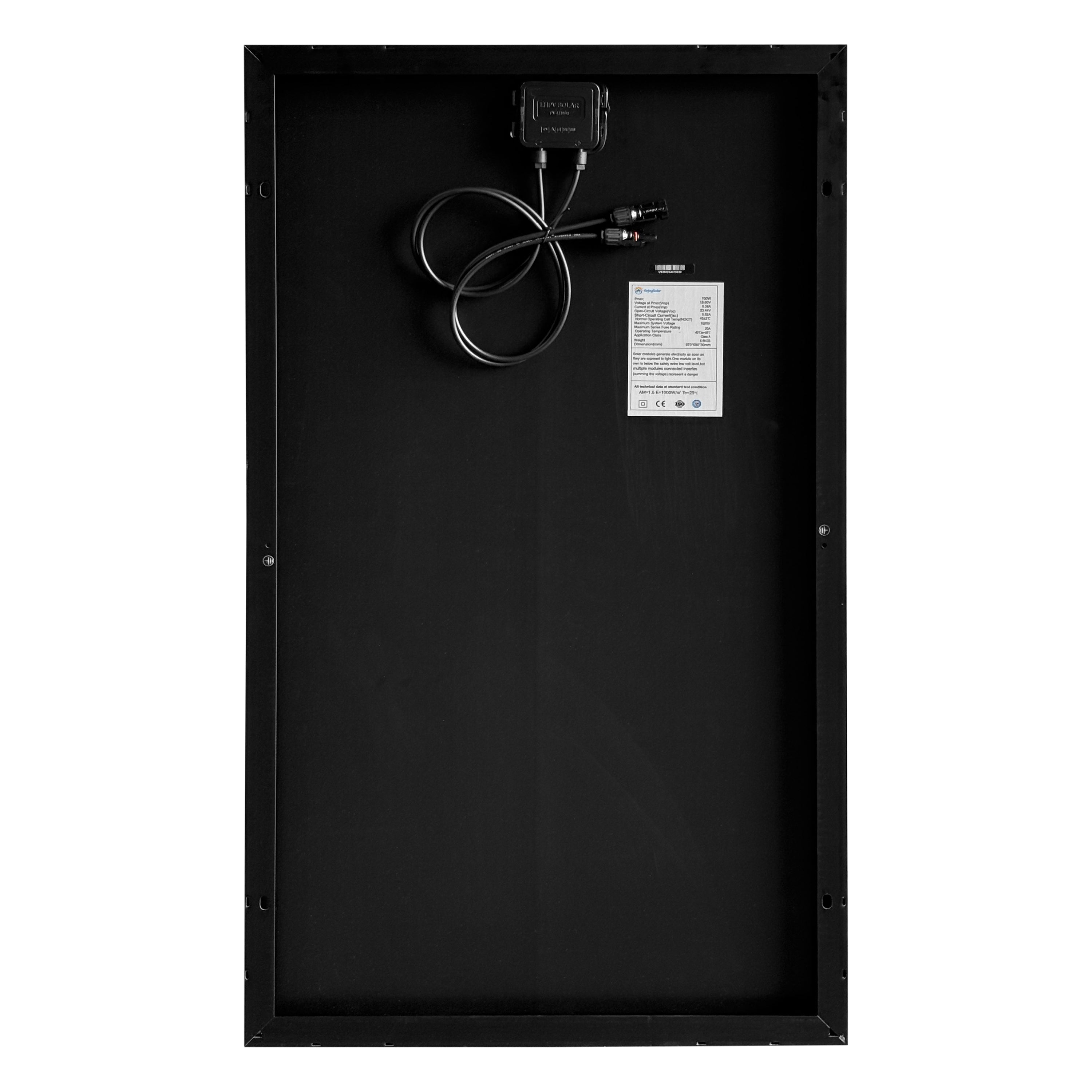

Output cables: 2.5-4mm² cable 35cm( including MC4 connector)
Note: This product is designed to provide free electricity permanently and is built to withstand high wind pressure and snow load.
