Description
LONGi Hi-MO X10 Scientist HPBC2.0 Bifacial 645W Solar Panel LR7-72HYD-645M
15-year Warranty for Materials and Processing
30-year Warranty for Extra Linear Power Output
Key Features
- Advanced: N-TaiRay + HPBC 2.0 + 0BB
- Value-Added: Power Leads by 30W+, A+ Anti-Shading
- Aesthetic: No Frontal Gridlines, Scenario Integration
- Safe: Prevent Localized Overheating, Less Micro-Crack
Extended Warranty
15-year warranty for materials and workmanship
30-year warranty for extra linear power output performance

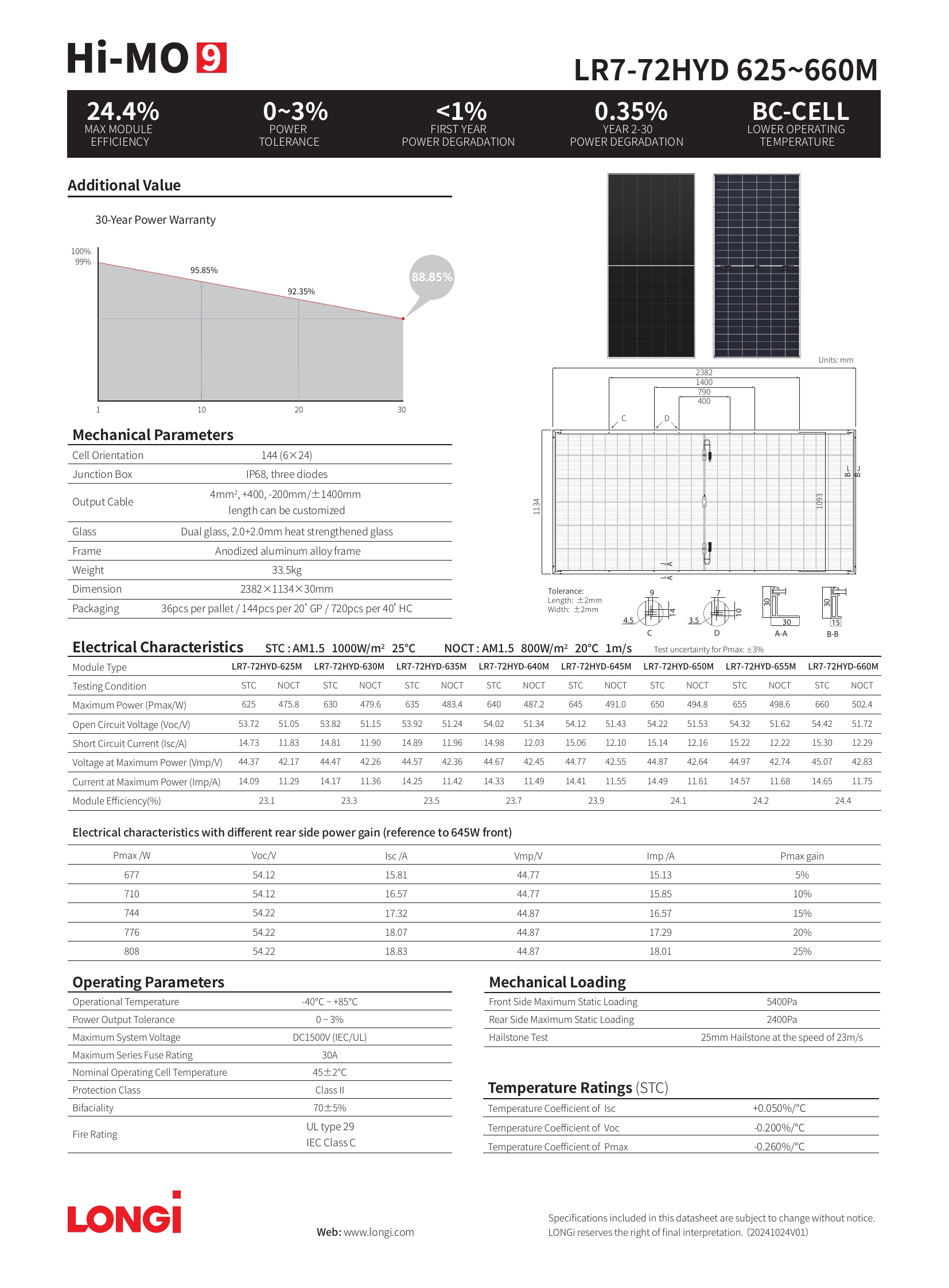

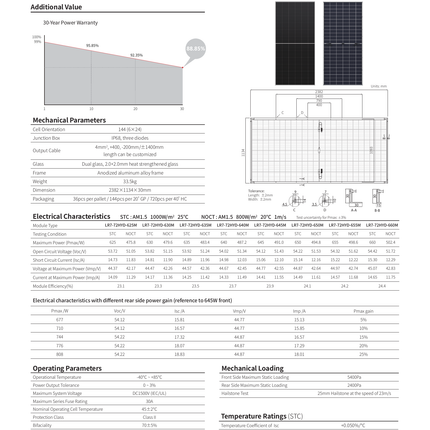

Mechanical Parameters
- Cell Orientation: 144
- Junction Box: IP68, three diodes
- Output Cable: 4mm², +400mm, -200mm / ±1400mm
- Glass: Dual glass, 2.0mm + 2.0mm heat strengthened glass
- Frame: Anodized aluminum alloy frame
- Weight: 33.5kg
- Dimension: 2382×1134×30mm
- Packaging: 36pcs per pallet
Electrical Characteristics
- Module Type: LR7-72HYD-645M
- Testing Condition: STC
- Maximum Power (Pmax/W): 645
- Open Circuit Voltage (Voc/V): 54.12
- Short Circuit Current (Isc/A): 15.06
- Voltage at Maximum Power (Vmp/V): 44.77
- Current at Maximum Power (Imp/A): 14.41
- Module Efficiency (%): 23.9
Operating Parameters
- Operational Temperature: -40°C ~ +85°C
- Power Output Tolerance: 0 ~ +3%
- Maximum System Voltage: DC1500V IEC/UL
- Maximum Series Fuse Rating: 30A
- Protection Class: Class II
- Nominal Operating Cell Temperature: 45±2°C
- Bifaciality: 70±5%
- Fire Rating: IEC Class C
Ideal for utility-scale, commercial, and high-efficiency residential projects seeking maximum performance, product longevity, and bankable solar solutions backed by LONGi’s global reputation and innovation.
