Description
***18-Month Warranty for Pump, 25-Year Warranty for Solar Panels***
3SSH1.3/50-D24/140 3inch Helical Rotor Solar Power Submersible Pump Combo
Key Features:
EC Drive DC Brushless Motors: Optimized for solar energy with over 90% efficiency.
Direct Solar Connection: Operates without a battery.
High MPPT Efficiency: 96% to 99% maximization of power usage from PV modules.
Rapid ROI: Maintenance-free with a quick return on investment.
Eco-Friendly: Competes favorably with diesel-powered pumps in reducing production costs and carbon emissions.
Easy Installation: Direct replacement for existing submersible pumps.
Smart Modular Design: Ensures simple and cost-effective maintenance.
Durable Materials: High-quality, non-corrosive materials including cast stainless steel components.

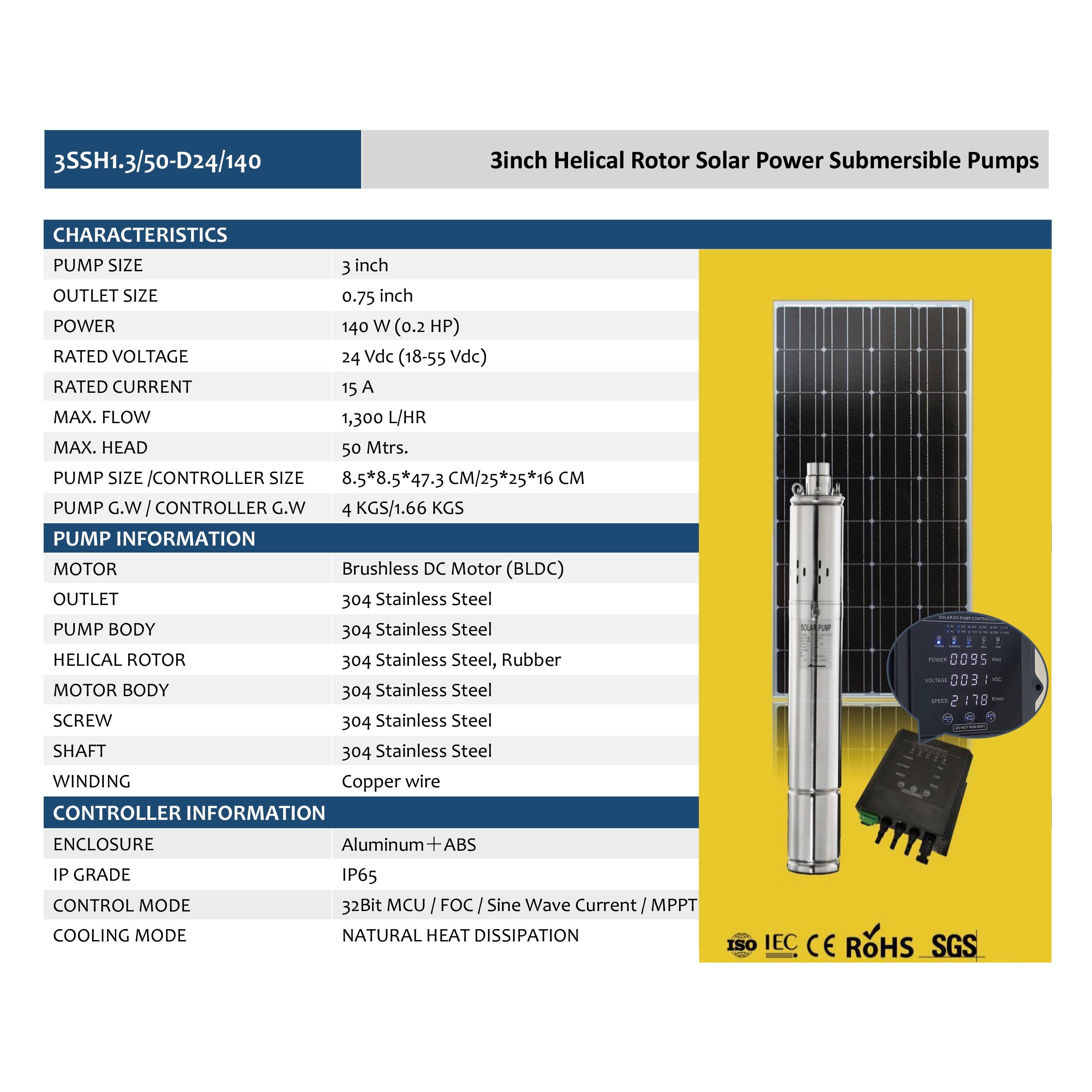

Characteristics:
Pump Size: 3 inches.
Outlet Size: 0.75 inch.
Power: 140 W (0.2 HP).
Rated Voltage: 24 Vdc (operational range 18-55 Vdc).
Rated Current: 15 A.
Maximum Flow: 1,300 L/hr.
Maximum Head: 50 meters.
Dimensions (Pump/Controller): 8.5 x 8.5 x 47.3 cm / 25 x 25 x 16 cm.
Gross Weight (Pump/Controller): 4 kg / 1.66 kg.
Pump Information:
Motor: Brushless DC (BLDC).
Outlet: 304 Stainless Steel.
Body: 304 Stainless Steel.
Helical Rotor: 304 Stainless Steel, Rubber.
Motor Body: 304 Stainless Steel.
Screw: 304 Stainless Steel.
Shaft: 304 Stainless Steel.
Winding: Copper wire.
Controller Information:
Enclosure: Aluminum + ABS.
IP Grade: IP65.
Control Mode: 32Bit MCU, FOC, Sine Wave Current, MPPT.
Cooling Mode: Natural Heat Dissipation.

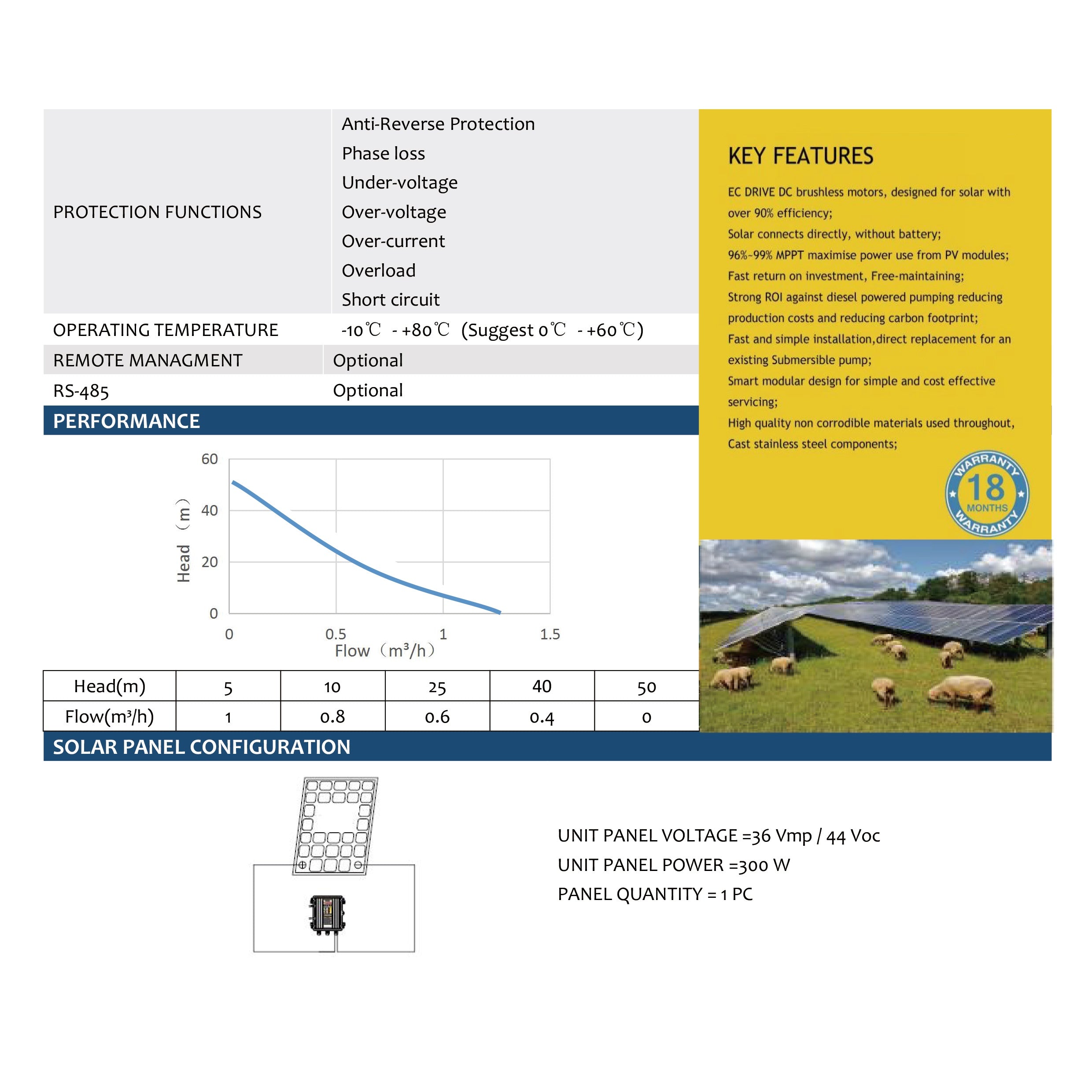

Protection Functions: Anti-reverse, phase loss, under-voltage, over-voltage, over-current, overload, short circuit.
Operating Temperature: -10℃ to +80℃ (recommended 0℃ to +60℃).
Remote Management: Optional.
RS-485 Interface: Optional.
Package included:

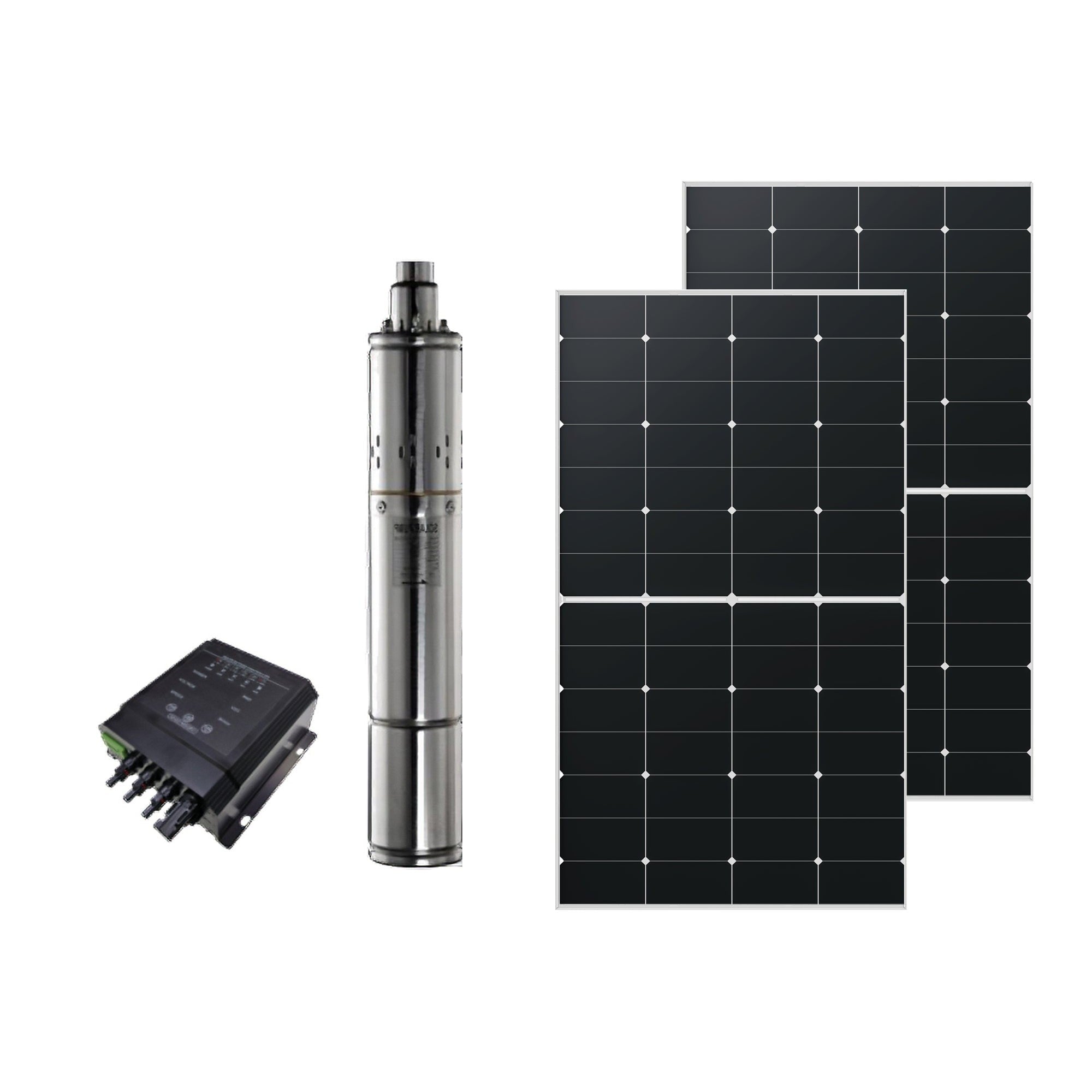

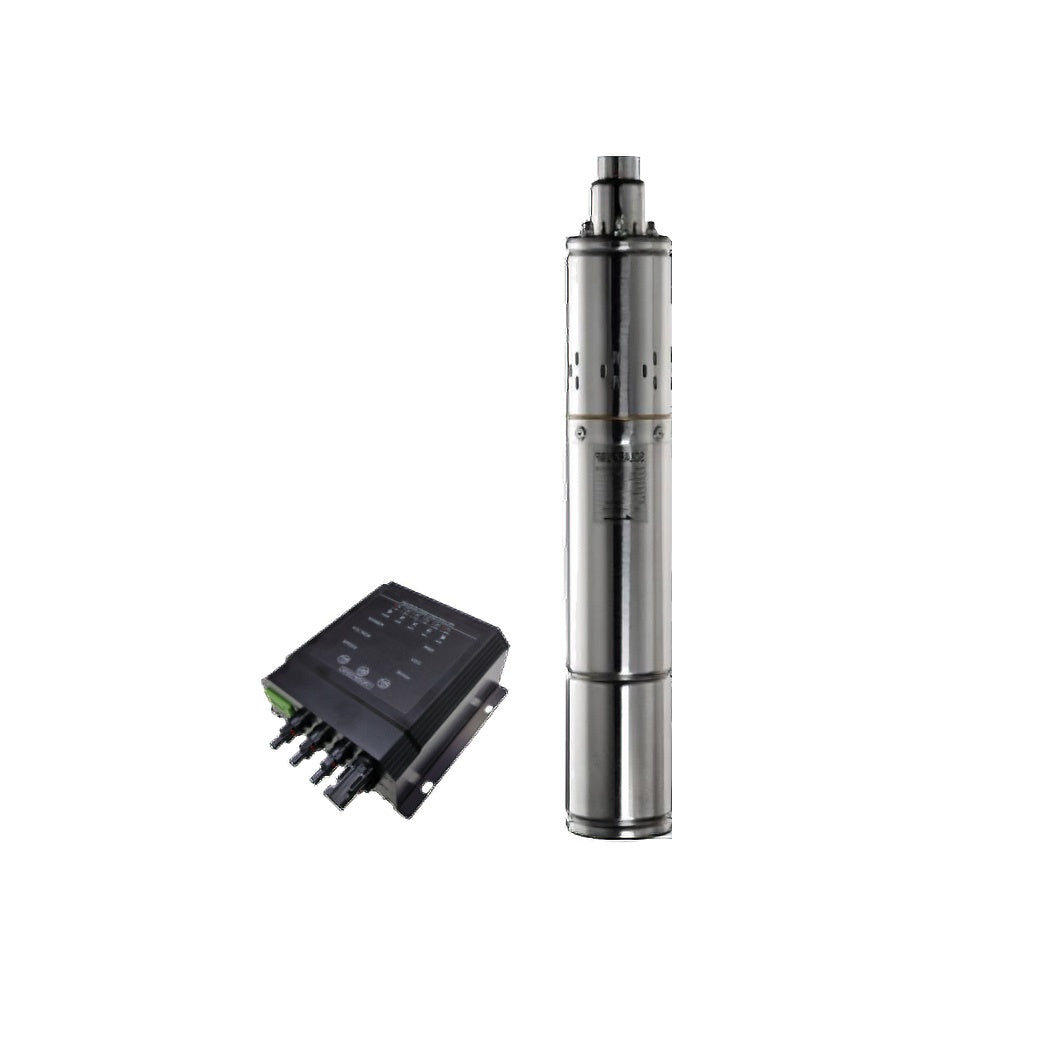

1X 3SSH1.3/50-D24/140 3inch Helical Rotor Solar Power Submersible Pump + Controller

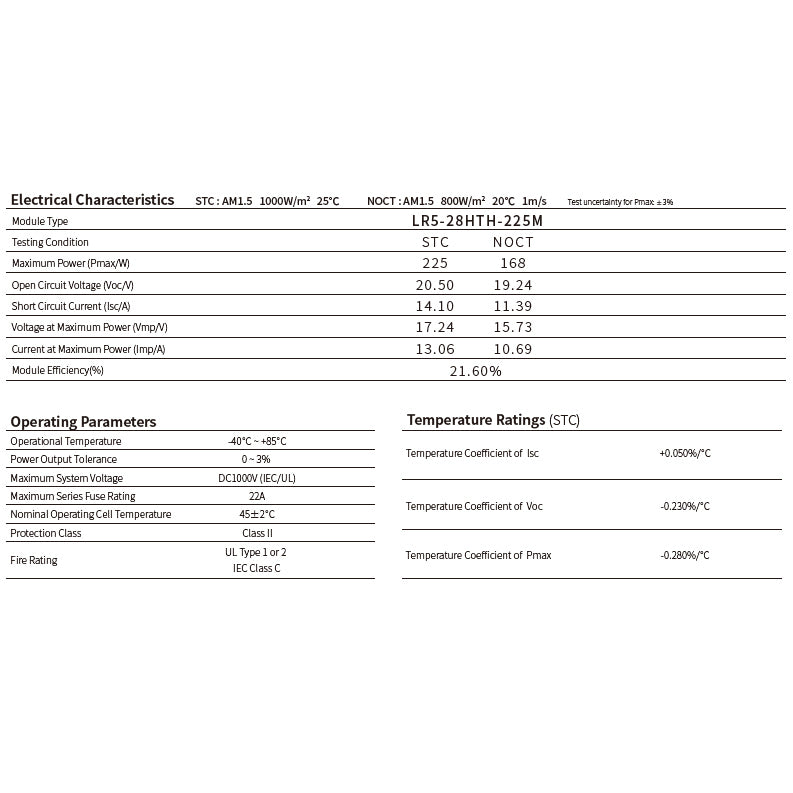

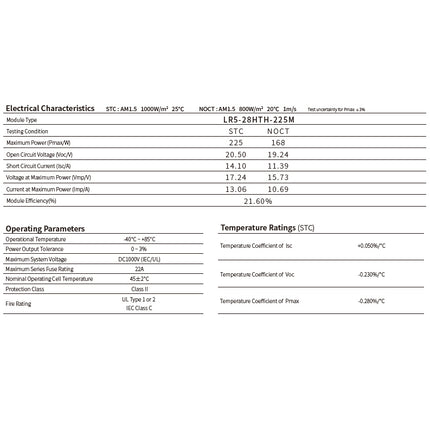

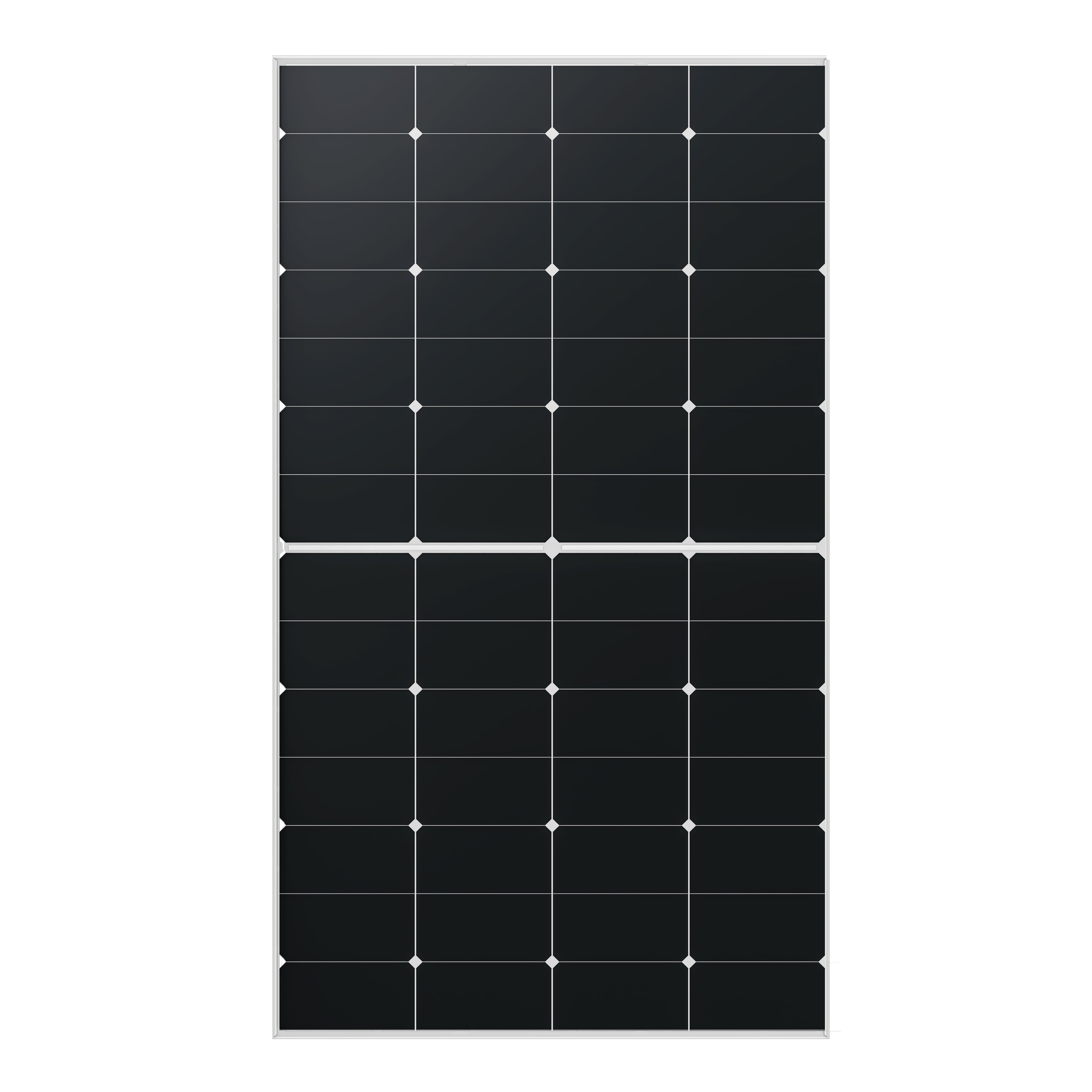

2X LONGi LR5-28HTH 225W Mono Solar Panel Low Light Performance
