Description
3kW Grid-Tied Solar System with 7 Panels – Home On-Grid Solar Power Kit
Warranties:
Solar panel linear power output: 30 years
Solar panels: 25 years
Inverter: 10 years

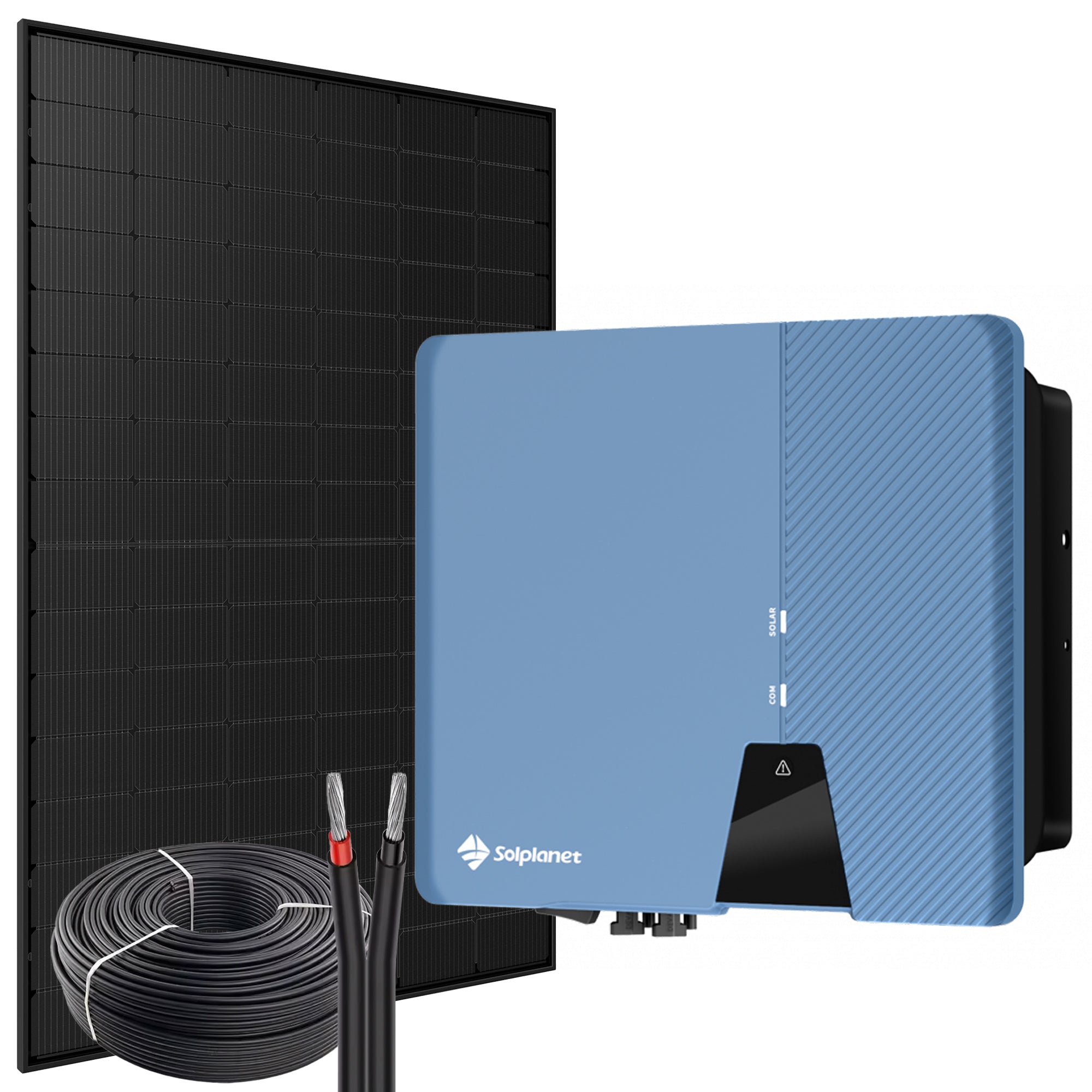

Package Includes:
7× 450W N-Type Bifacial Solar Panel – Transparent Black Dual Glass, High Efficiency (JW-HD96N-R2)
1× Solplanet 3kW Single-Phase Grid-Tie Solar Inverter with WiFi (ASW3000-S-G2)
1× MC4 Connector Pair
1× 20m Twin-Core Solar DC Cable
7× Mounting Rail System
Reliable & Durable System Design
Engineered to meet global safety and performance standards, this system ensures dependable long-term operation.
The Solplanet inverter features IP66 protection, DC reverse polarity protection, and AC residual current monitoring — delivering safe, efficient and stable grid-connected performance even in harsh outdoor environments.
High-Efficiency Energy Production
Optimized MPPT tracking enables maximum solar harvest, with a wide voltage range and low 60V start-up voltage to boost daily output.
Supports up to 150% PV oversizing, allowing flexible roof layouts and higher yield during low-light conditions.
Easy Installation & Smart Monitoring
Plug-and-play wiring with Phoenix Contact connectors ensures straightforward installation.
Built-in WiFi (and optional 4G dongle) enables real-time monitoring via the Solplanet app — track performance, receive alerts, and adjust settings from your smartphone with ease.
Technical Highlights – ASW3000-S-G2 (Inverter)
Max PV array power: 4500Wp STC
MPPT voltage range: 60V – 560V
Max input voltage: 600V
Max input current: 16A
Rated output: 3000W
AC voltage range: 180V – 295V
Dimensions: 368 × 325 × 145 mm
Weight: 9.5 kg
Protection level: IP66
Technical Highlights – JW-HD96N-R2 (Solar Panels)
Electrical Properties (STC)
Peak Power (Pmax): 450W
MPP Voltage (Vmp): 29.98V
MPP Current (Imp): 15.01A
Open Circuit Voltage (Voc): 34.91V
Short Circuit Current (Isc): 15.86A
Module Efficiency: 22.5%
Cell Count: 96 pcs
Dimensions: 1762 × 1134 × 30 mm
Weight: 24.6 kg
