Description
4” Solar Submersible Pump 2200W – Max Head 230m Stainless Steel Deep Well Pump
**2 Years Warranty**

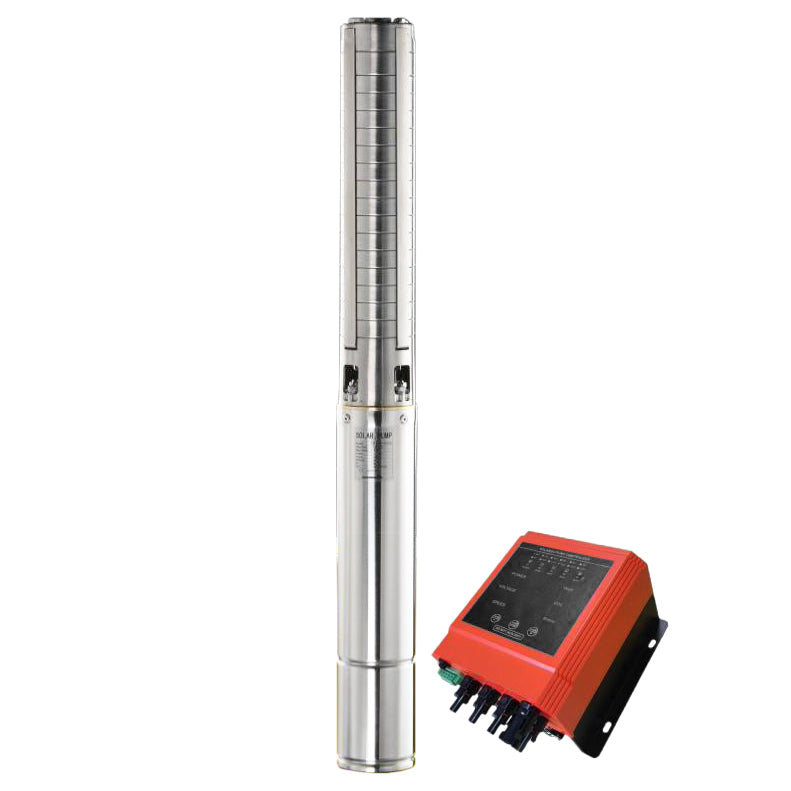

The 4SSC6-230 Solar Submersible Pump is a 4-inch high-head centrifugal solar pump designed for deep well water extraction and off-grid water supply systems.
It features a permanent magnet synchronous DC motor combined with an intelligent MPPT solar controller, delivering high efficiency, stable operation, and long service life.
This pump supports solar DC input as well as AC power (110–240Vac), making it suitable for a wide range of applications, including agricultural irrigation, livestock watering, rural water supply, and remote installations.
Solar powered with DC & AC input
2200W (3HP) high-performance motor
Max flow rate up to 6,000 L/h
Maximum head 230 meters
Full stainless steel construction
Intelligent MPPT controller
Multiple electrical protection functions
Ideal for deep wells, irrigation, farms, and remote water supply

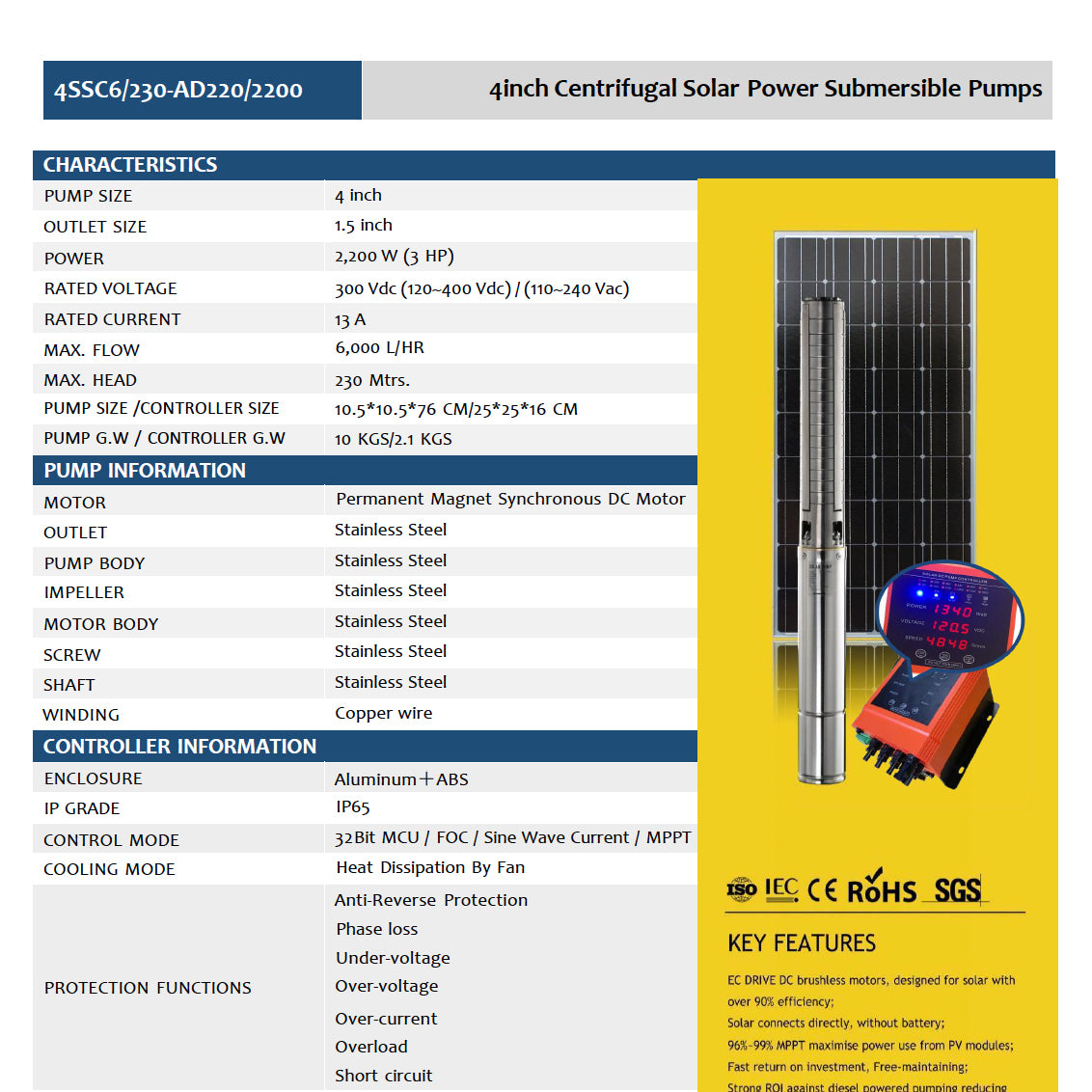

Pump Specifications
Pump Size: 4 inch
Outlet Size: 1.5 inch
Rated Power: 2200 W (3 HP)
Rated Voltage:
DC: 300 Vdc (120–400 Vdc)
AC: 110–240 Vac
Rated Current: 13 A
Maximum Flow: 6,000 L/hour
Maximum Head: 230 meters
Operating Temperature: -10°C to +80°C (Recommended 0°C to +60°C)
Motor & Pump Materials
Motor Type: Permanent Magnet Synchronous DC Motor
Pump Body: Stainless Steel
Outlet: Stainless Steel
Impeller: Stainless Steel
Motor Housing: Stainless Steel
Shaft & Screws: Stainless Steel
Winding: Copper Wire

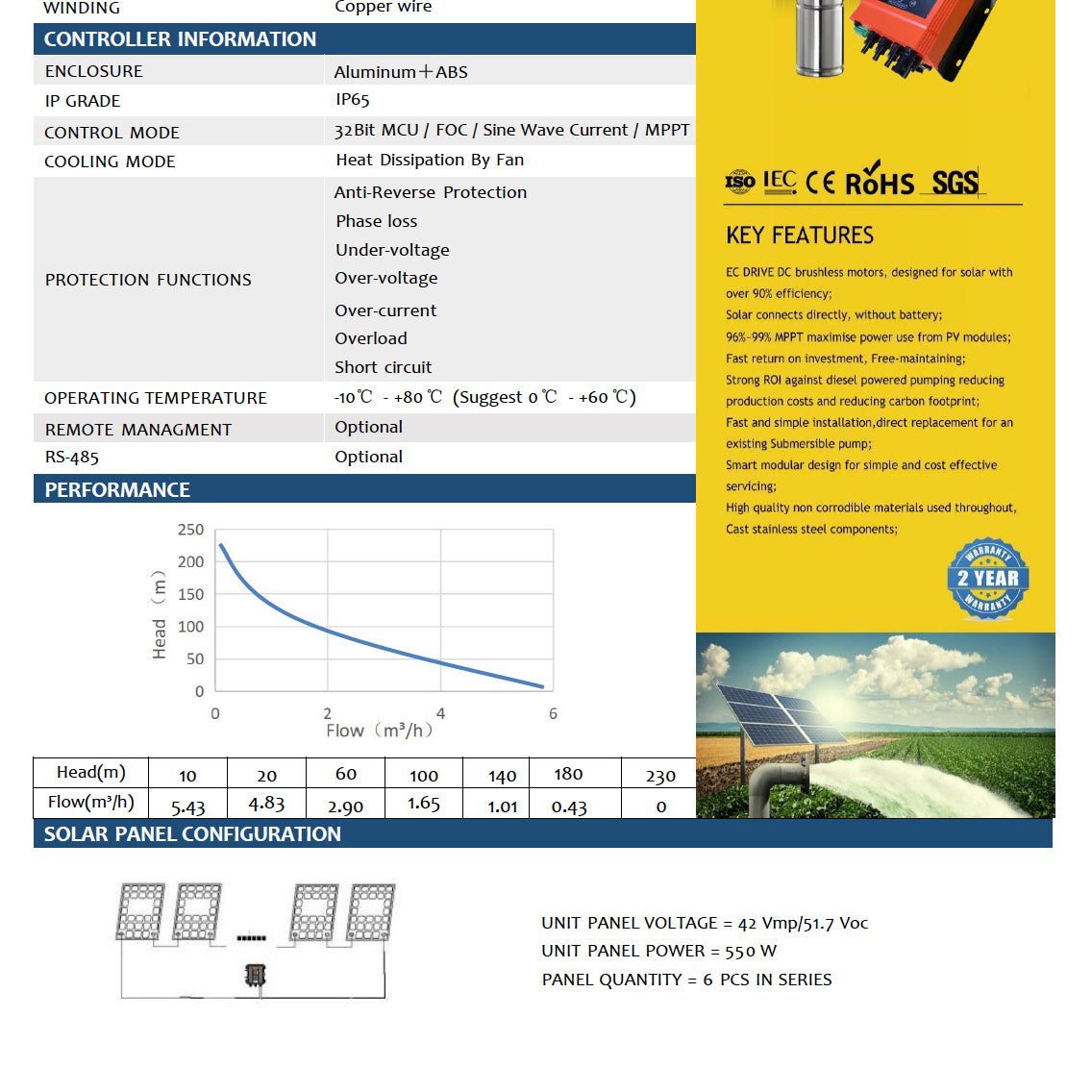

Controller Specifications
Enclosure: Aluminum + ABS
Protection Rating: IP65
Control Mode:
32-bit MCU
FOC (Field Oriented Control)
Sine Wave Current
MPPT Solar Tracking
Cooling Method: Fan-assisted heat dissipation
Optional Functions:
Remote Management
RS-485 Communication
