Description
**Pump - 2 Years Warranty**
**Panel - 12 Years Warranty, 30-year lifespan**

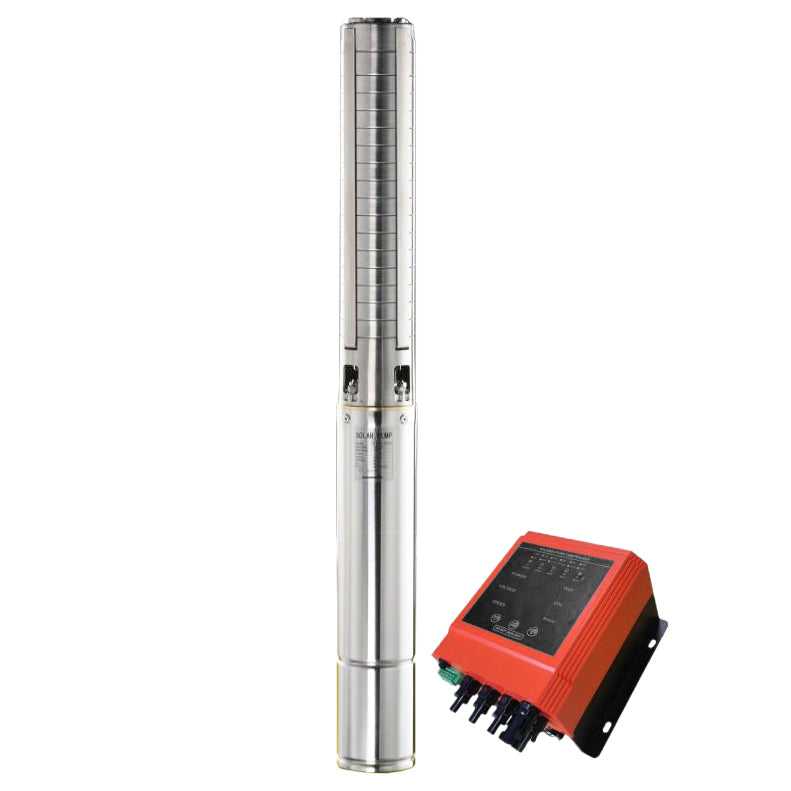

The 4SSC6-230 Solar Submersible Pump is a 4-inch high-head centrifugal solar pump designed for deep well water extraction and off-grid water supply systems.
It features a permanent magnet synchronous DC motor combined with an intelligent MPPT solar controller, delivering high efficiency, stable operation, and long service life.
This pump supports solar DC input as well as AC power (110–240Vac), making it suitable for a wide range of applications, including agricultural irrigation, livestock watering, rural water supply, and remote installations.
Solar powered with DC & AC input
2200W (3HP) high-performance motor
Max flow rate up to 6,000 L/h
Maximum head 230 meters
Full stainless steel construction
Intelligent MPPT controller
Multiple electrical protection functions
Ideal for deep wells, irrigation, farms, and remote water supply

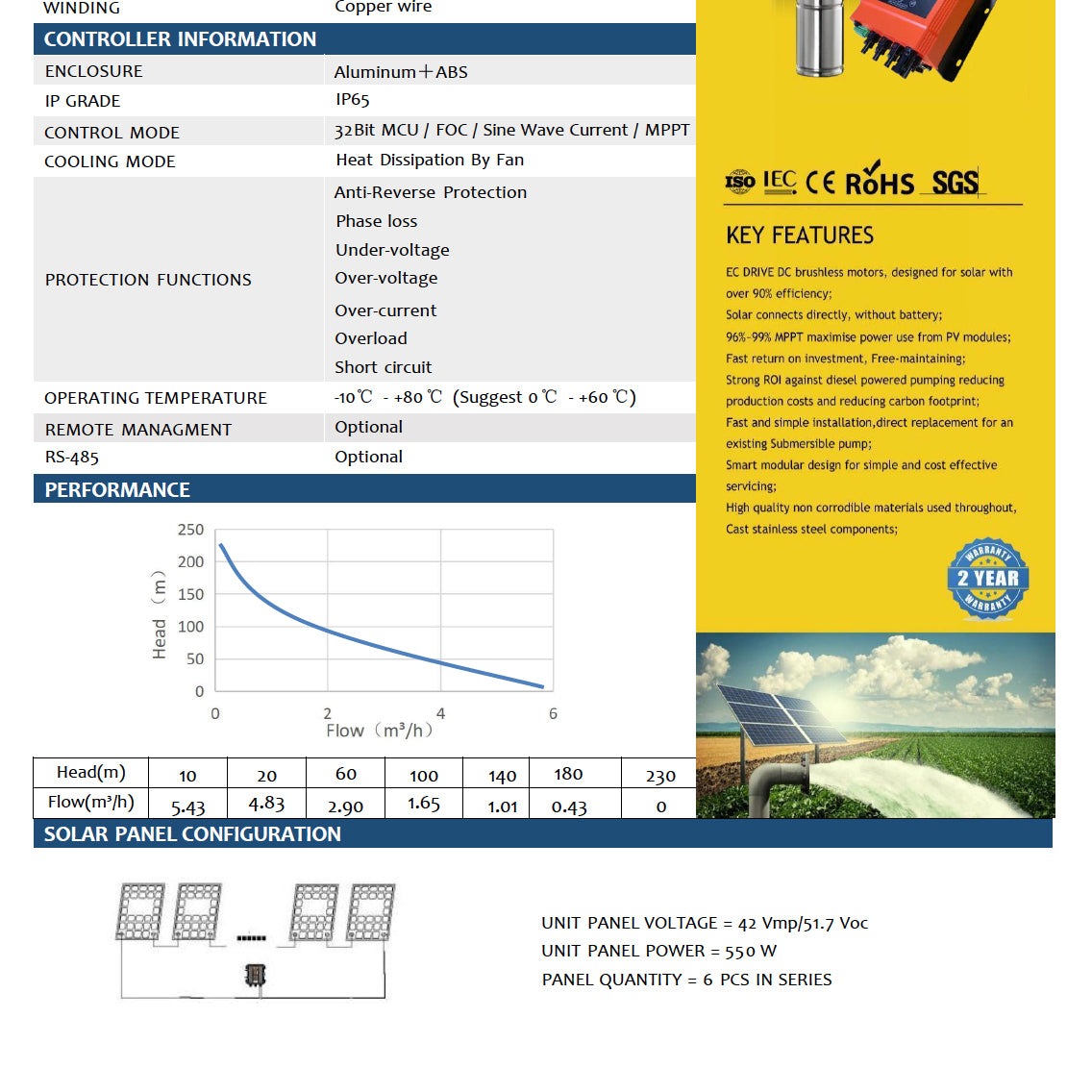

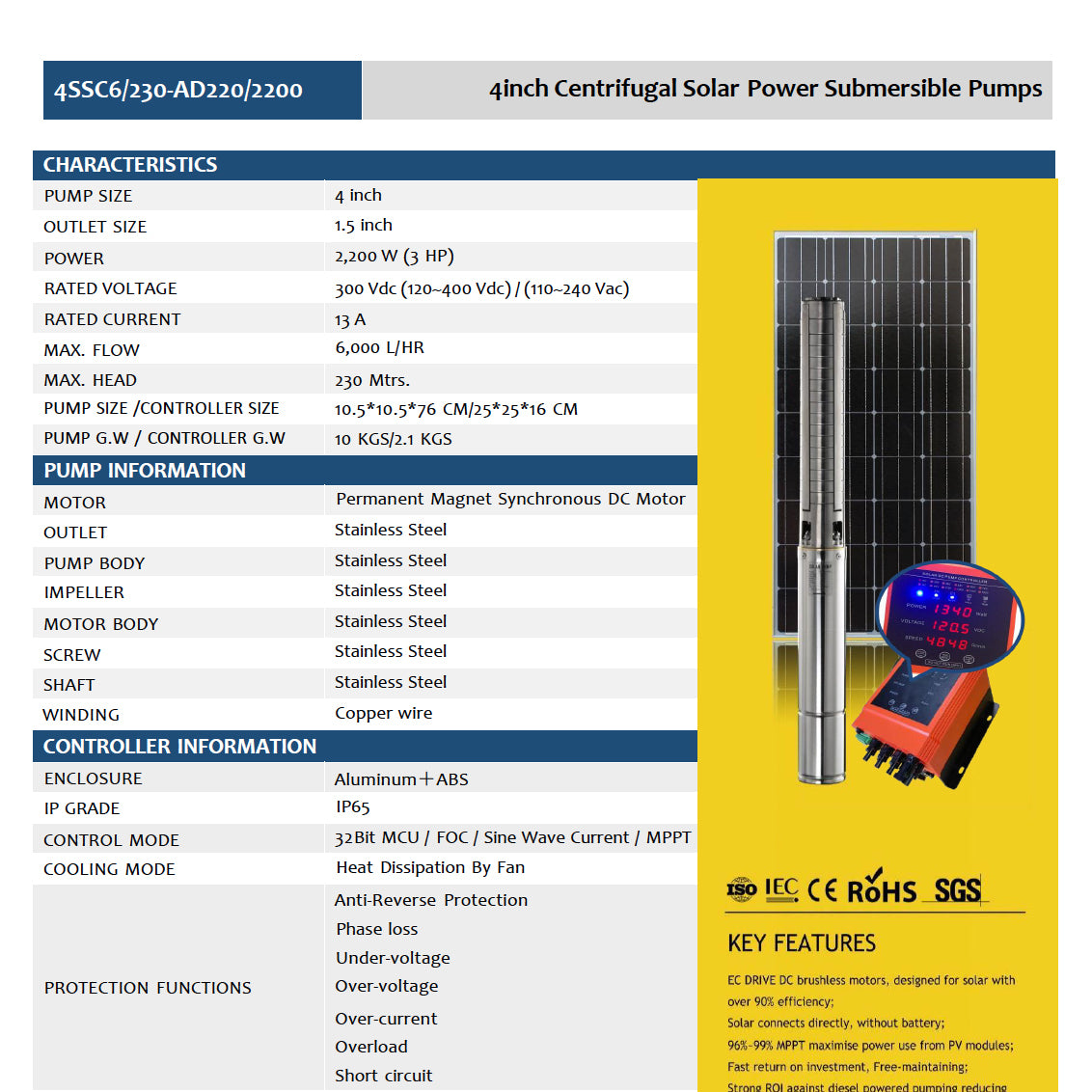

Pump Specifications
Pump Size: 4 inch
Outlet Size: 1.5 inch
Rated Power: 2200 W (3 HP)
Rated Voltage:
DC: 300 Vdc (120–400 Vdc)
AC: 110–240 Vac
Rated Current: 13 A
Maximum Flow: 6,000 L/hour
Maximum Head: 230 meters
Operating Temperature: -10°C to +80°C (Recommended 0°C to +60°C)

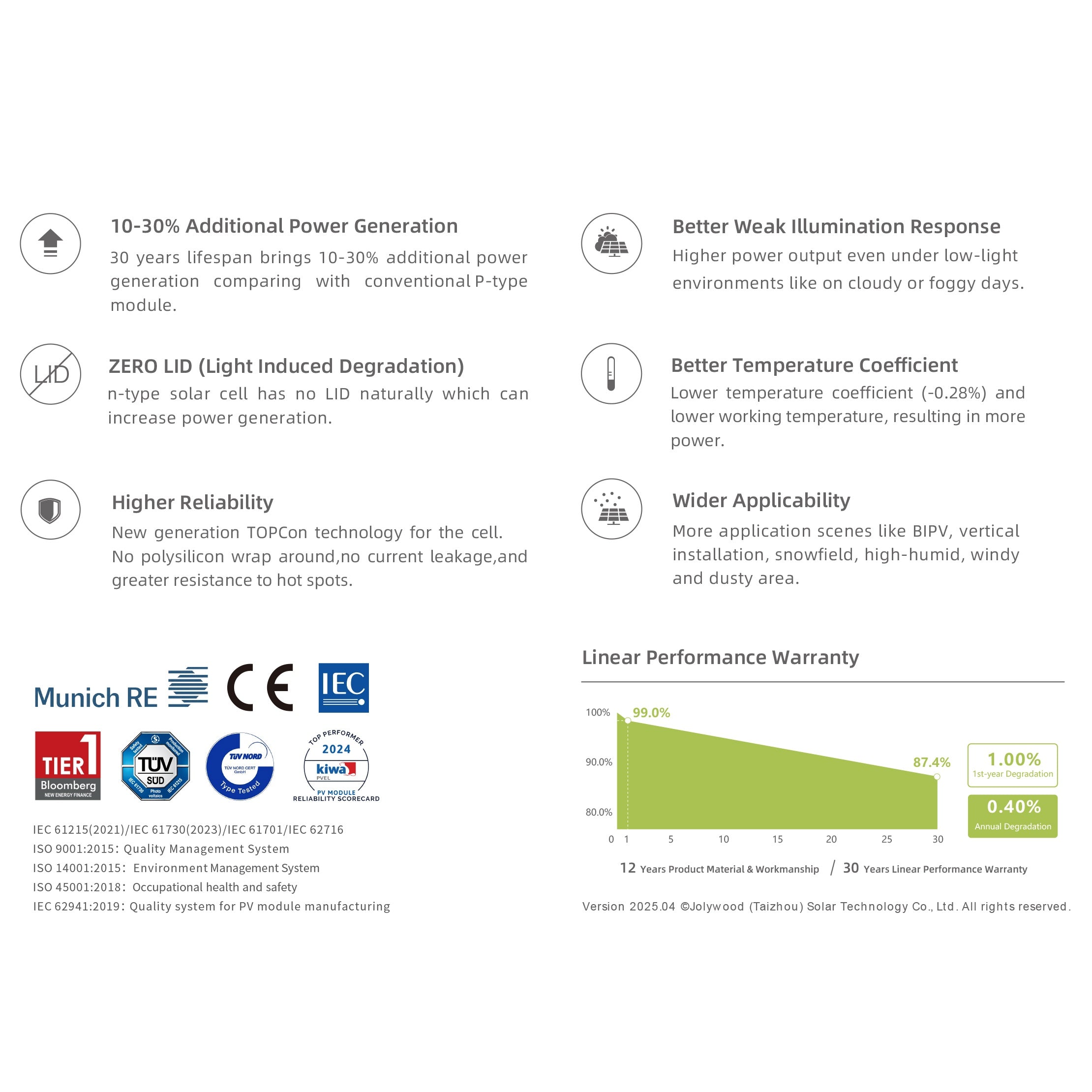

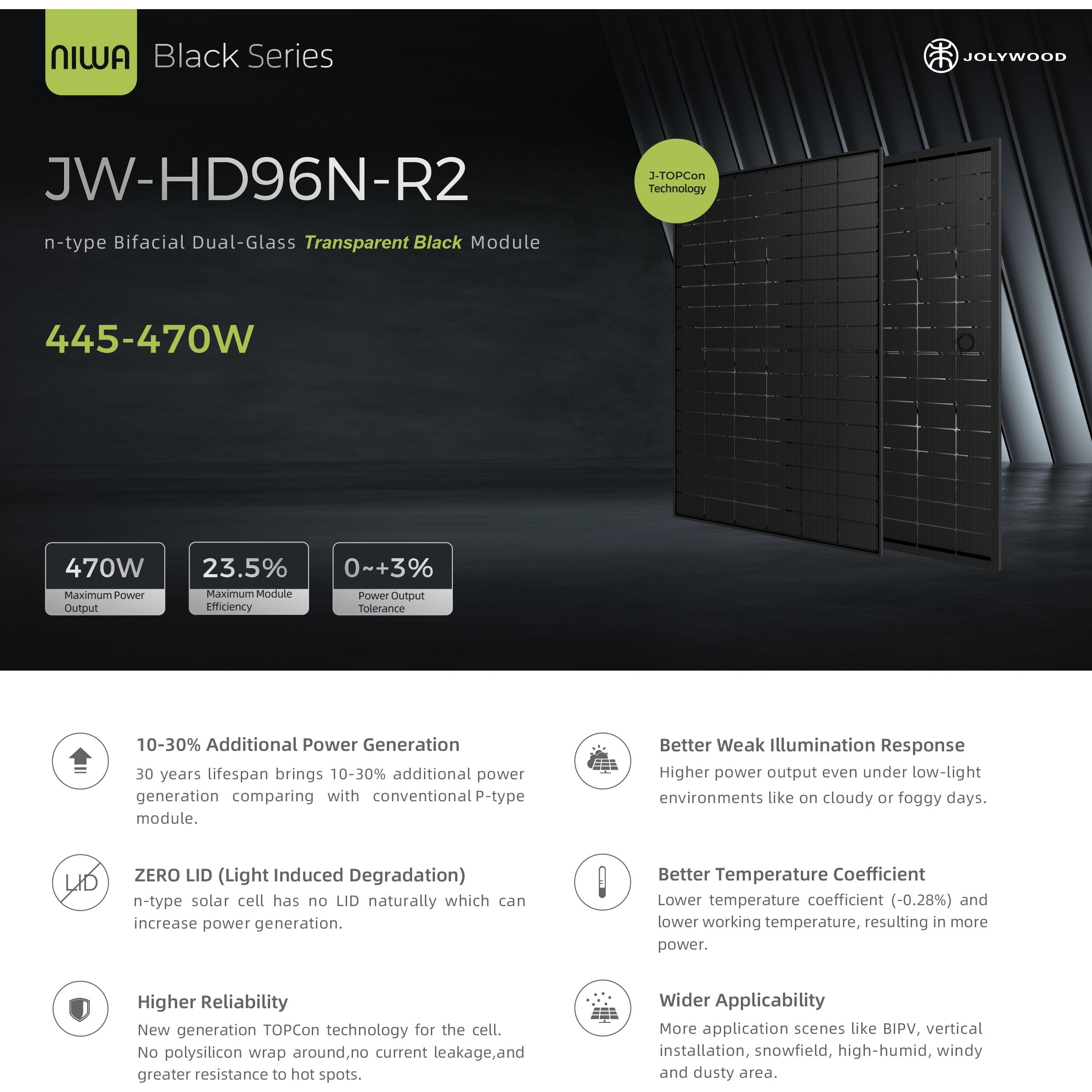

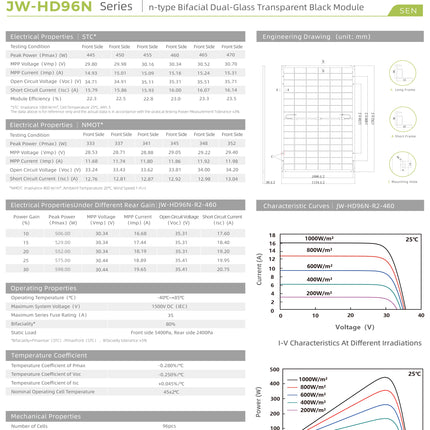

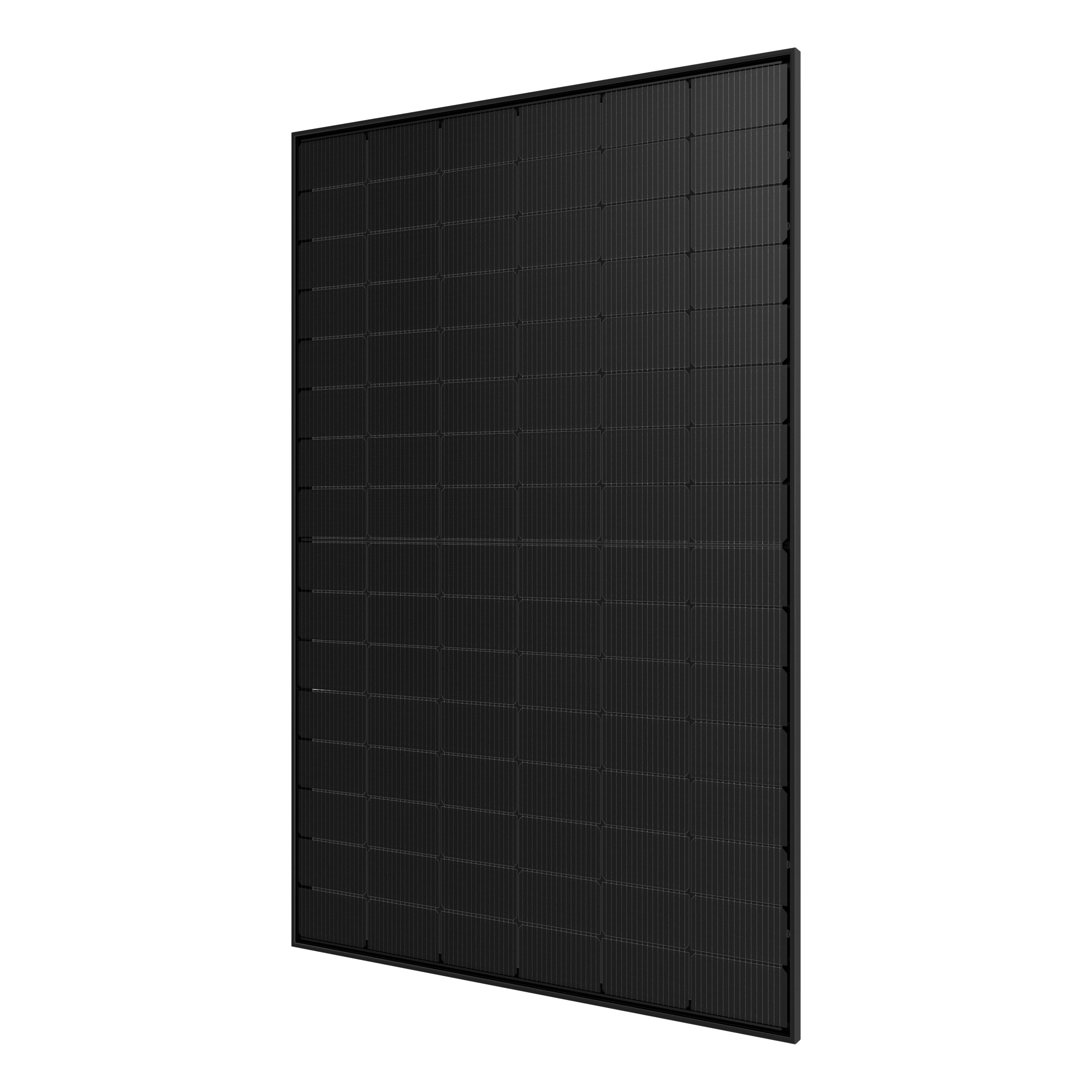

The NIWA Black Series JW-HD96N-R2 is a high-performance N-Type bifacial dual glass solar module designed for maximum energy generation and long-term reliability. With a 30-year lifespan, it delivers 10 to 30 percent more power compared to conventional P-Type modules.
Model: JW-HD96N-R2

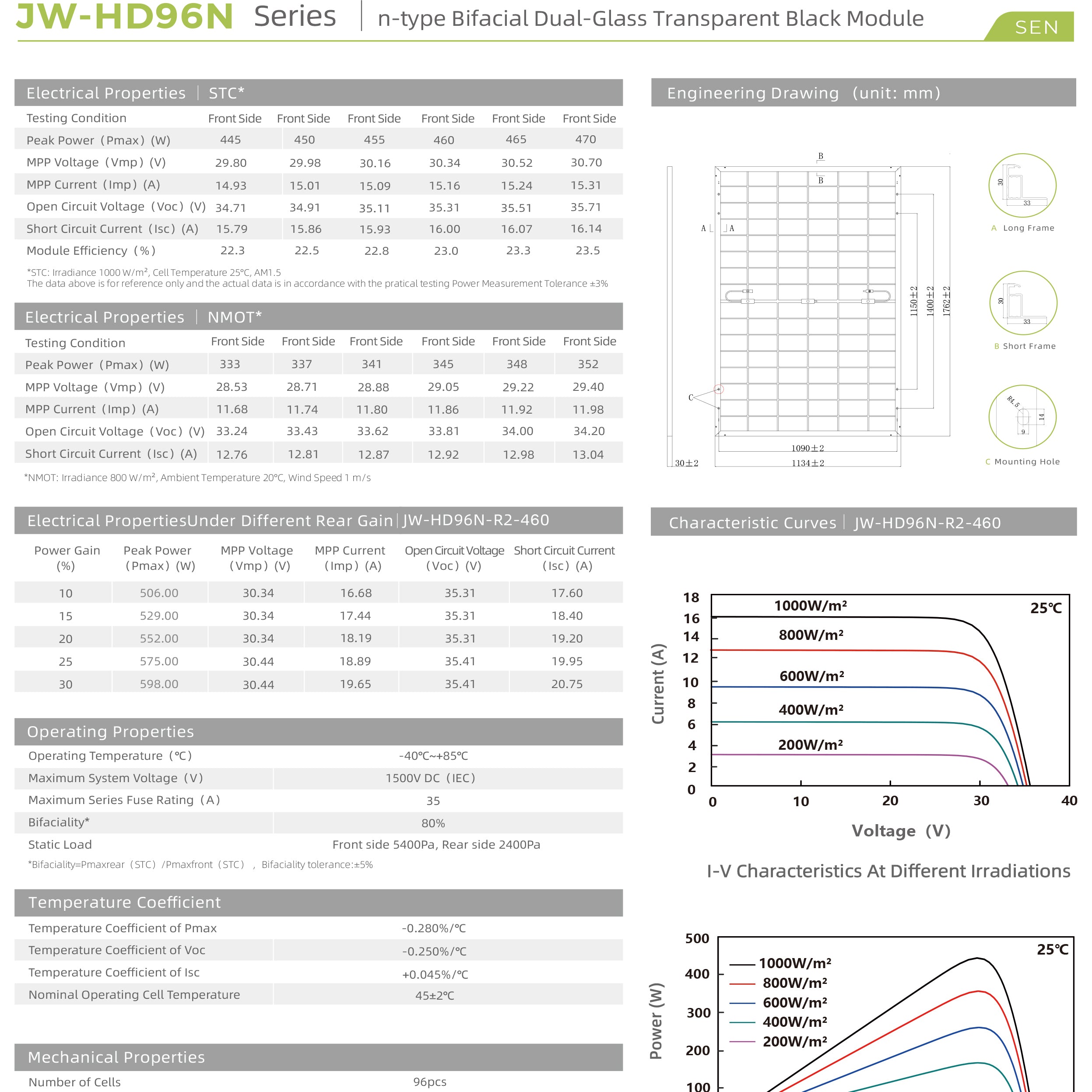

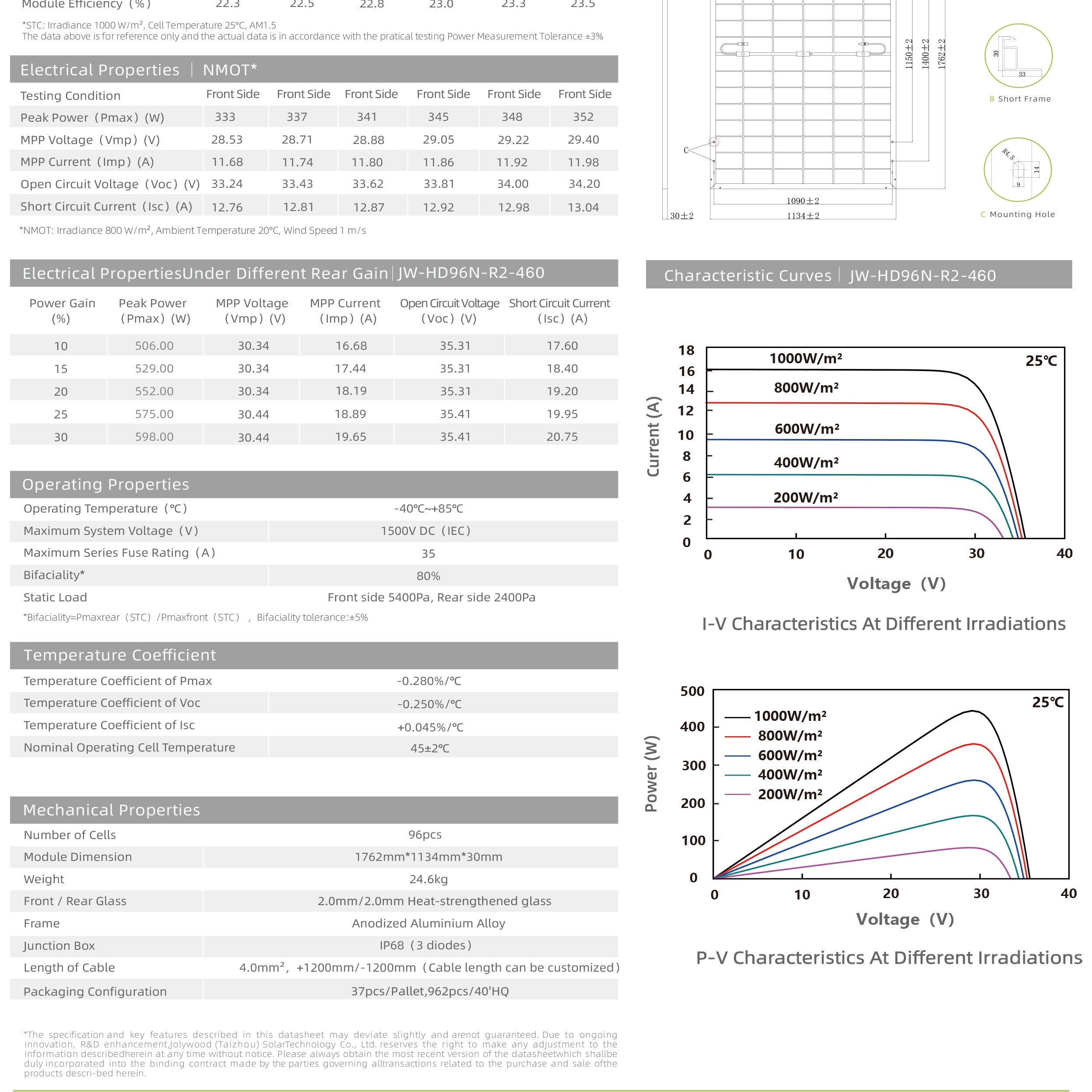

Electrical Properties (STC)
Peak Power (Pmax): 450 W
MPP Voltage (Vmp): 29.98 V
MPP Current (Imp): 15.01 A
Open Circuit Voltage (Voc): 34.91 V
Short Circuit Current (Isc): 15.86 A
Module Efficiency: 22.5%
Dimensions: 1762 × 1134 × 30 mm
Weight: 24.6 kg

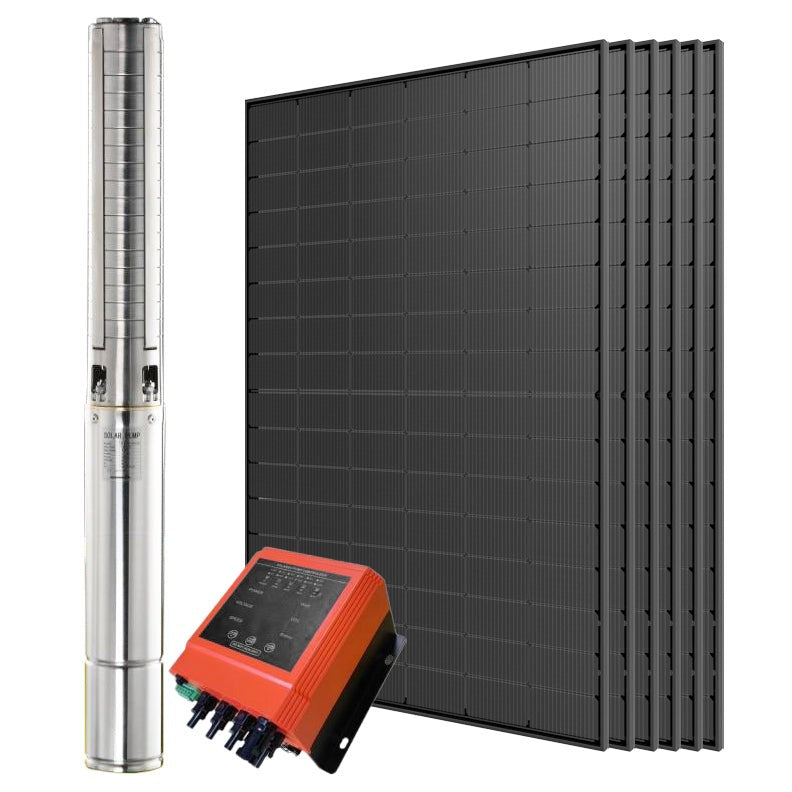

What’s included:
1 x 4” Solar Submersible Pump 2200W – Max Head 230m Stainless Steel Deep Well Pump
6 x NIWA 450W N-Type Bifacial Solar Panel Transparent Black Dual Glass
