Description
EPEVER XTRA3210N 30A MPPT A-GRADE 400W MONO PERC MPPT WITH FUSE AND BREAKER has Arrived!
We are a technically oriented solar service company that provides quality products, extensive service and support to our customers.
With years of accumulated expertise and rich experience, we will create professional and efficient system design solutions for you according to your different needs.

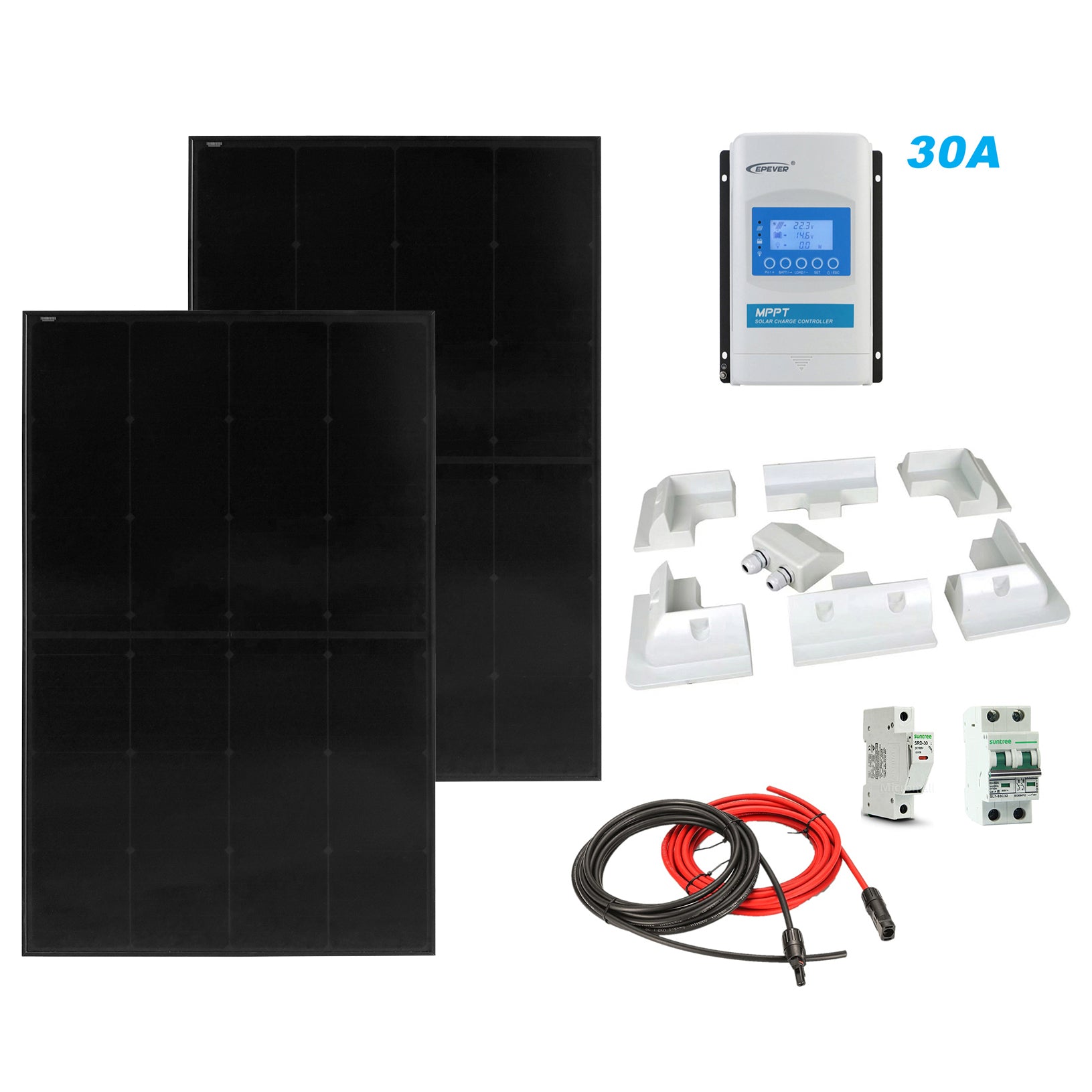

Package includes:
2x 200W A-Grade Mono Solar Panel
1x EPEVER XTRA3210N MPPT Solar Charge Controller 30A

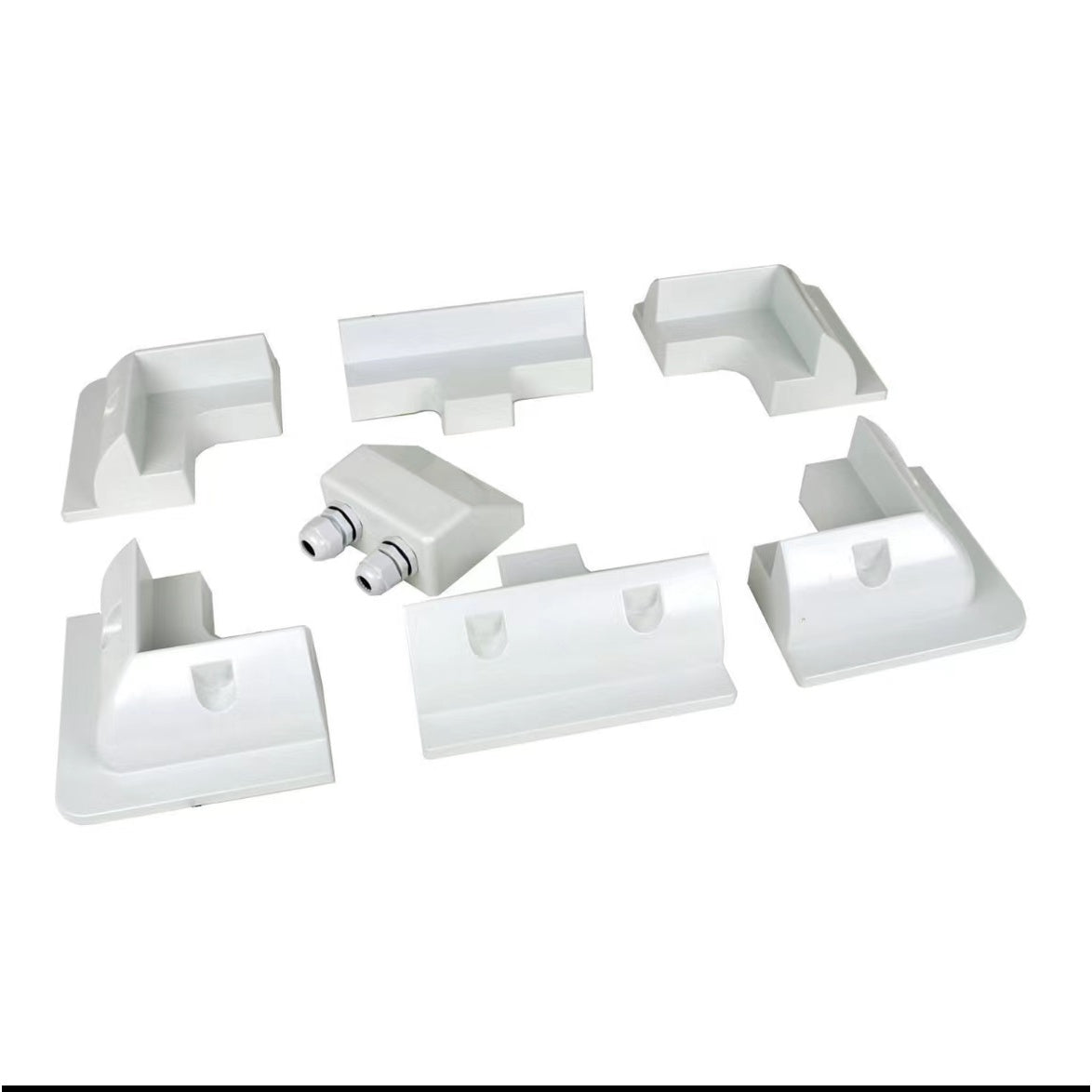

2x 7 PIECES ABS MOUNTING KIT
(Include WEATHER PROOF SOLAR DOUBLE CABLE ENTRY)
2x 5 meters 2.5mm PV single core cable with MC4 connector

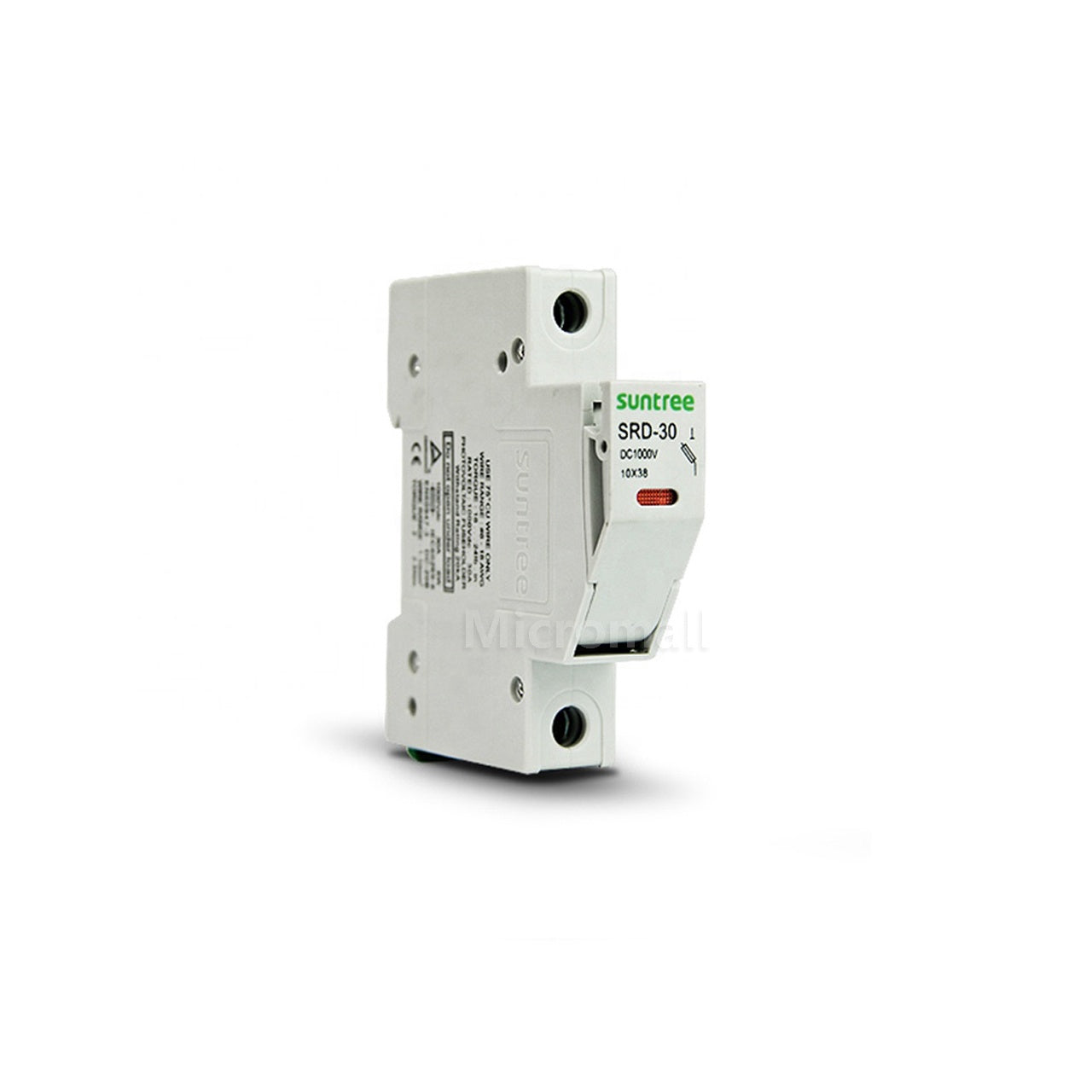

1x suntree 16a fuse

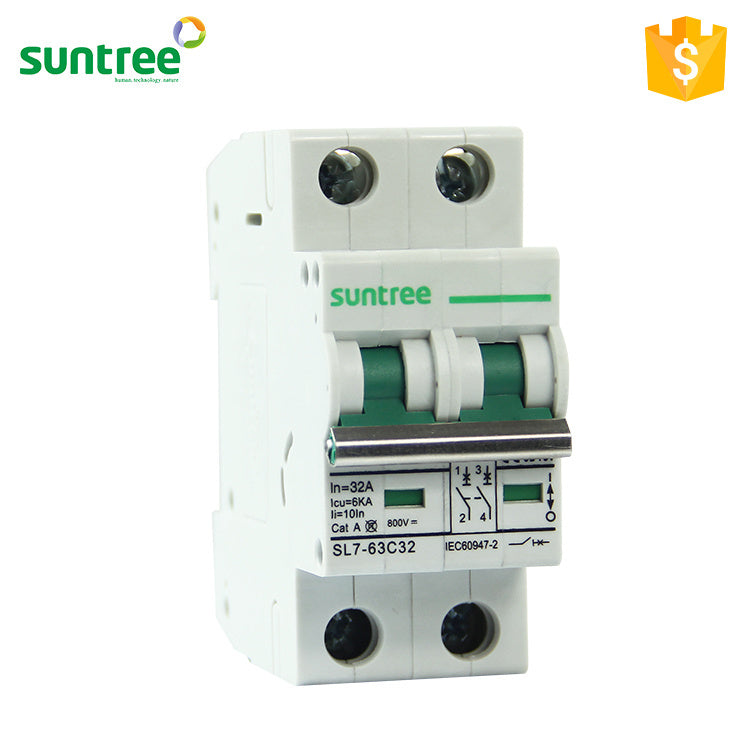

1x suntree 160v 25a breaker

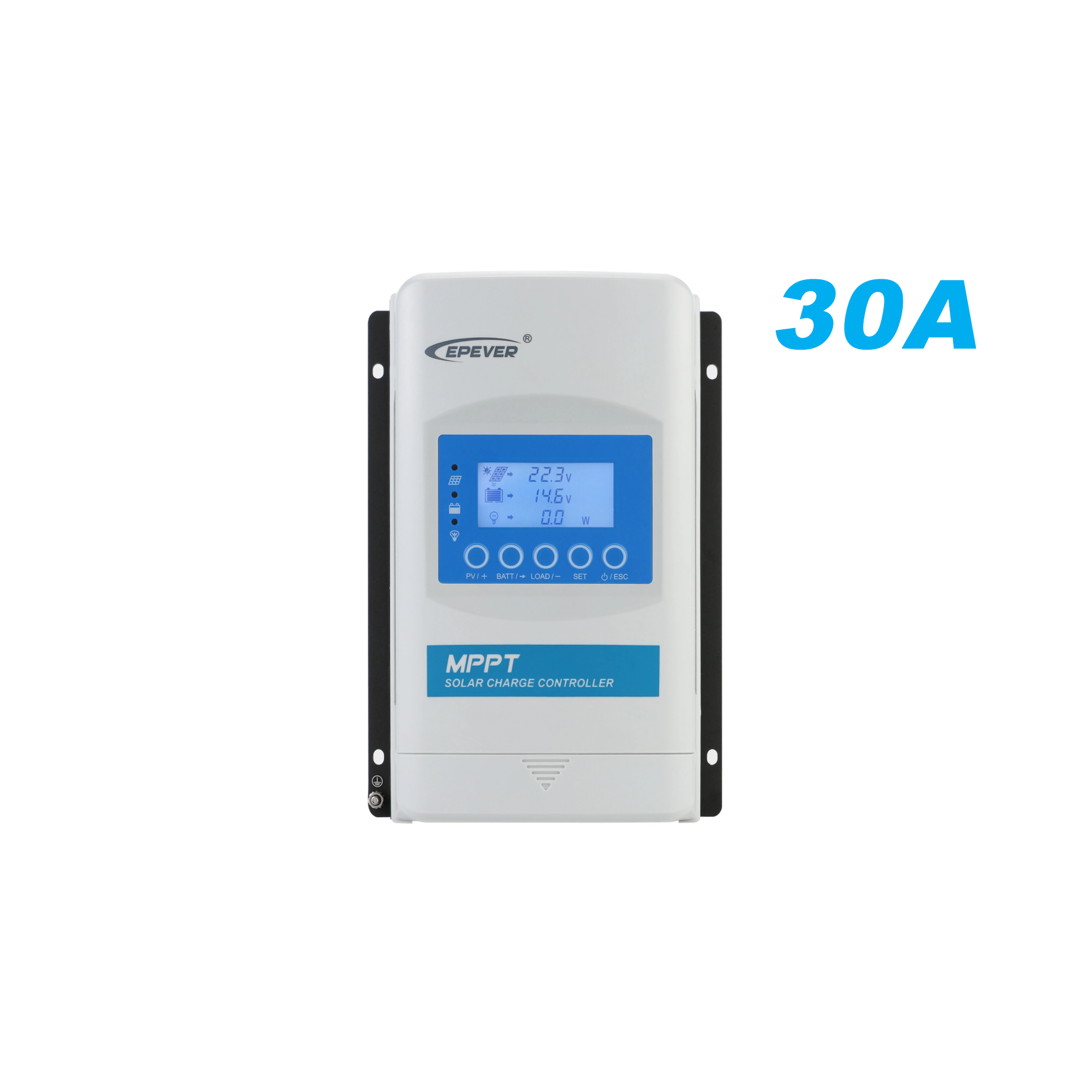

EPEVER XTRA3210N MPPT Solar Charge Controller
Model: XTRA3210N
Rated charge current: 30A
Rated charge power:
390W/12V
780W/24V
Max.PV Array Power:
580W/12V
1170W/24V
Max.PV open circuit voltage:
92V(25°C)
100V (minimum operating temperature)

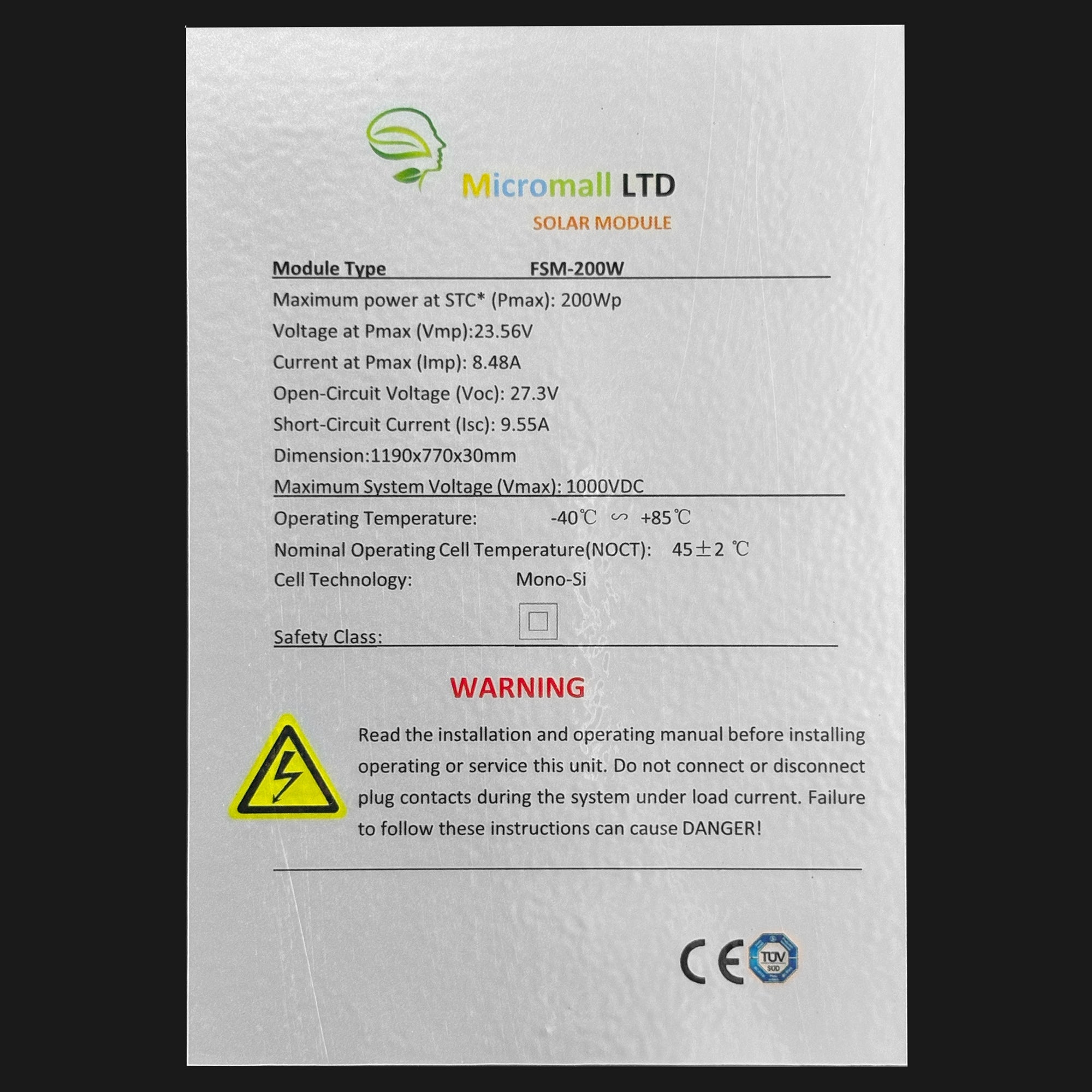

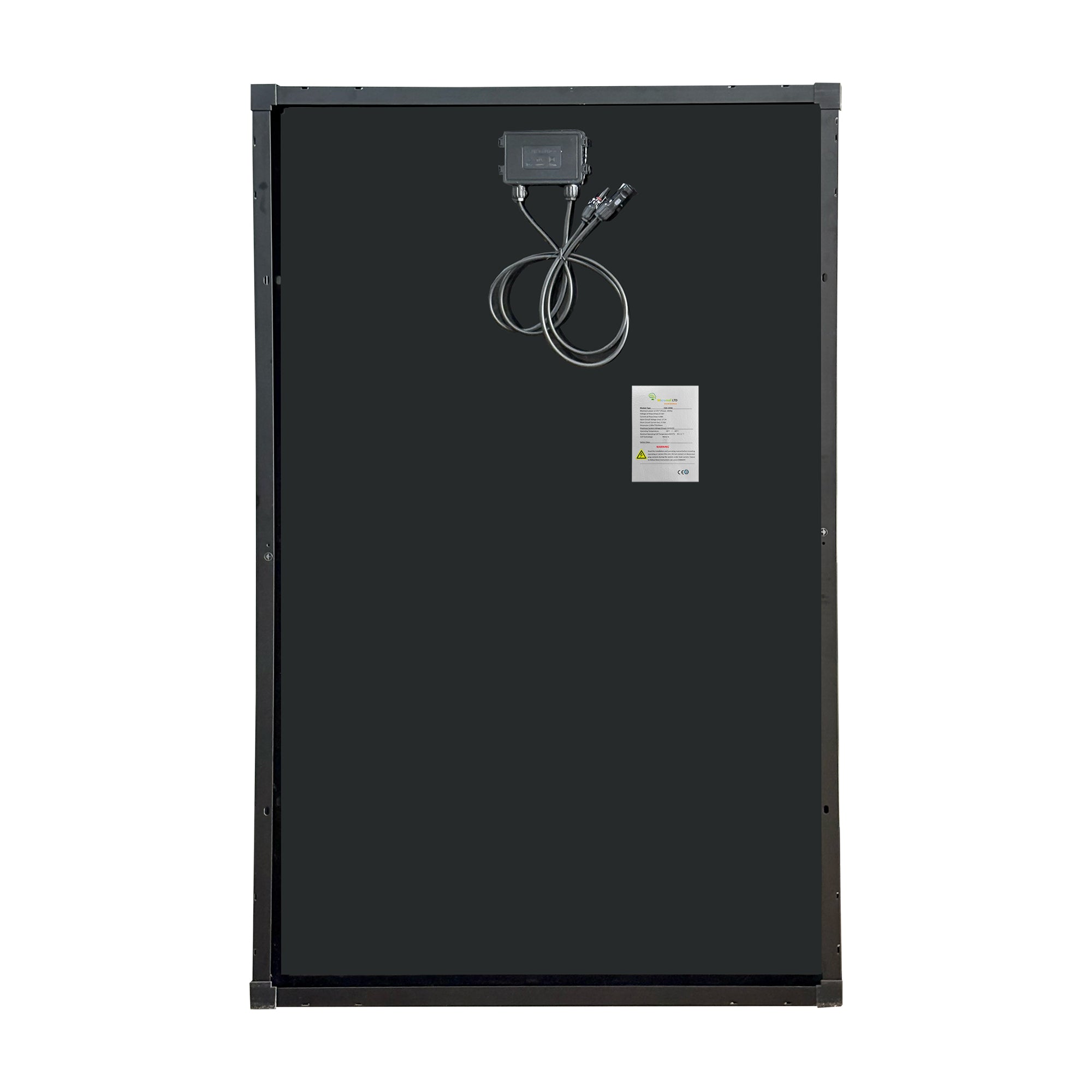

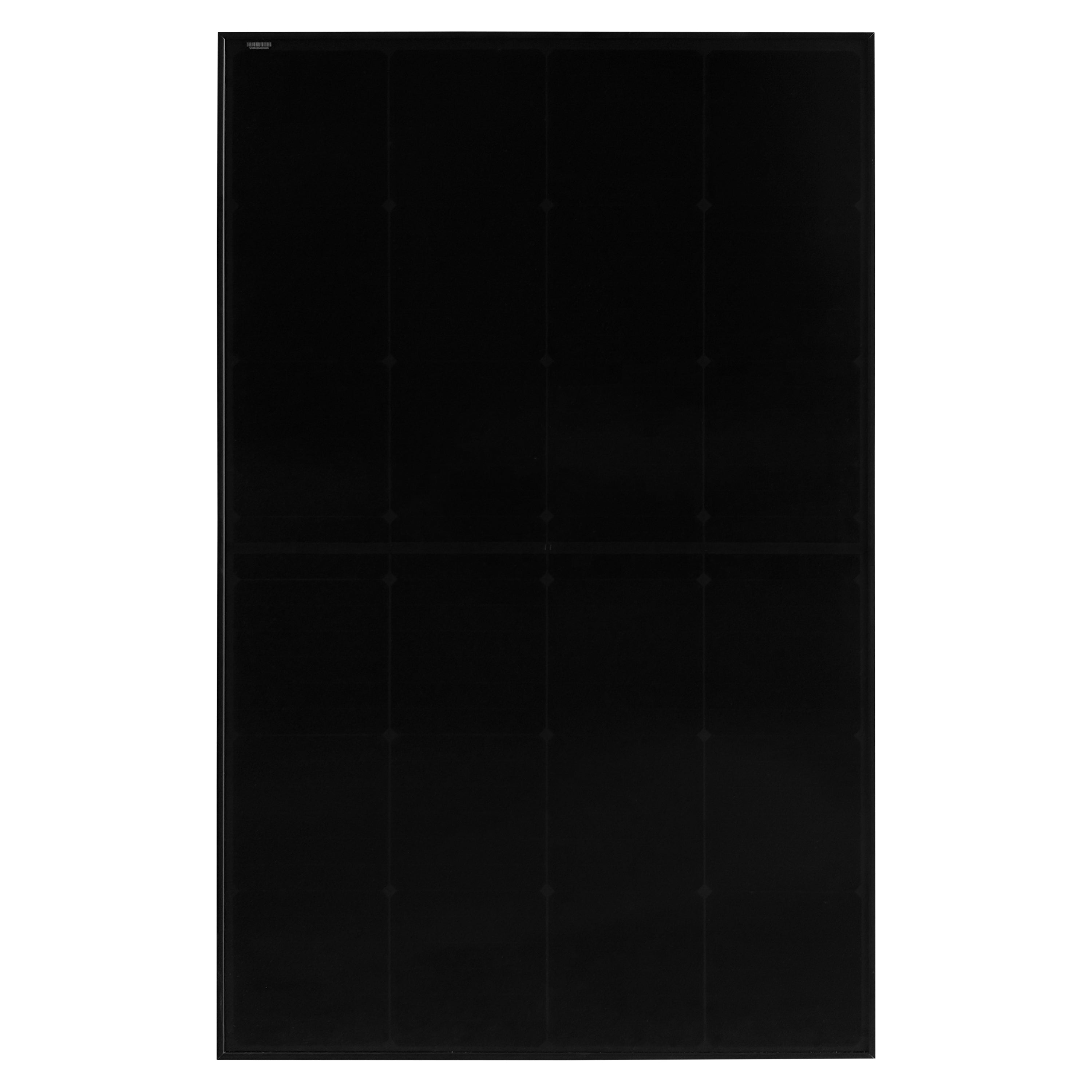

A-Grade Mono Solar Panel
Specifications:
Model number: FSM-200W
Maximum power at STC (Pmax): 200Wp
Voltage at Pmax (Vmp): 23.56V
Current at Pmax (Imp): 8.48A
Open-Circuit Voltage (Voc): 27.3V
Short-Circuit Current (Isc): 9.55A
Dimension: 1190x770x30mm
Maximum System Voltage (Vmax): 1000VDC
Operating Temperature: -40°C - +85°C
Nominal Operating Cell Temperature (NOCT): 45 +- 2°C
Cell Technology: Mono-Si
Local warehouse, feel free to visit us, we can also ship orders all over the country.
