Description

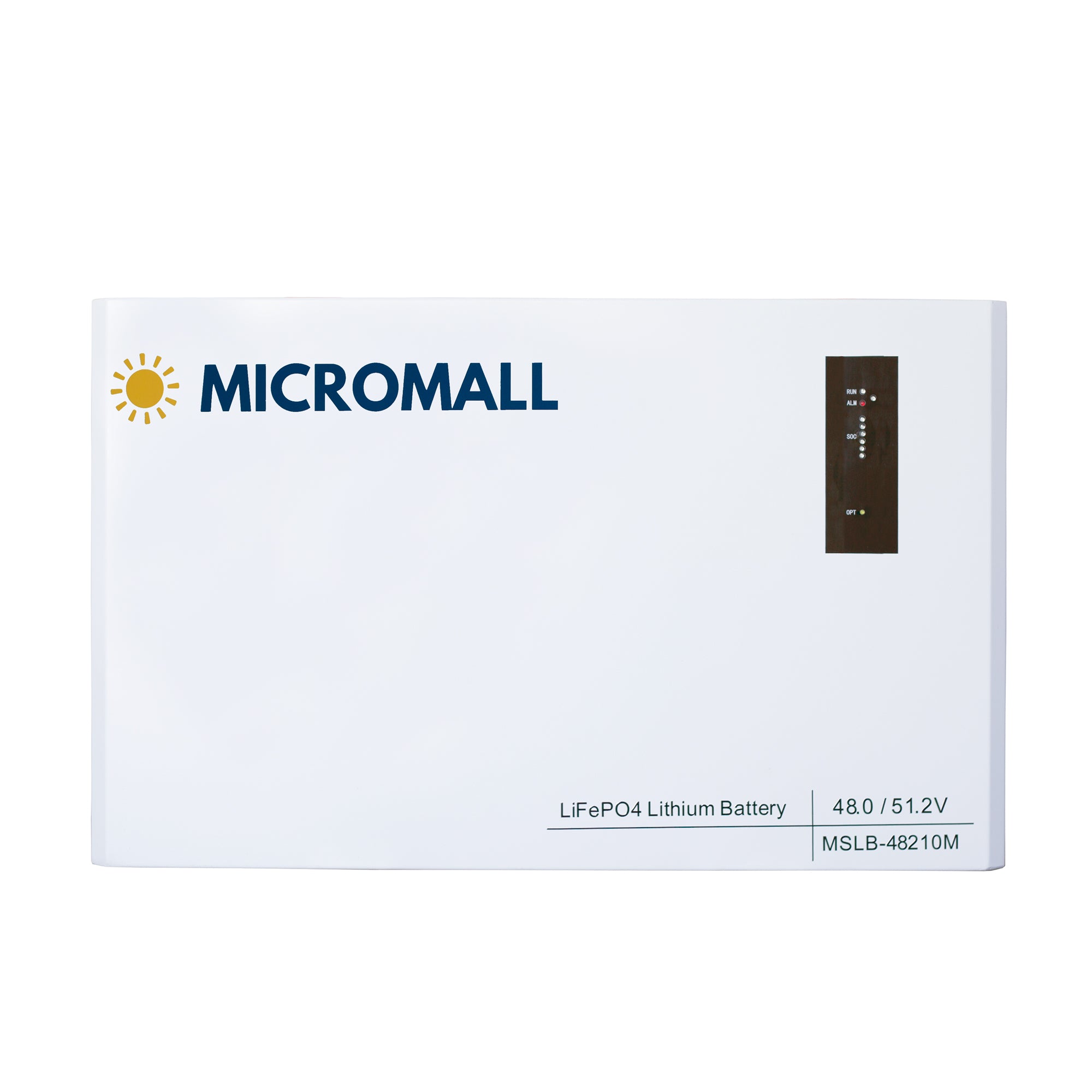

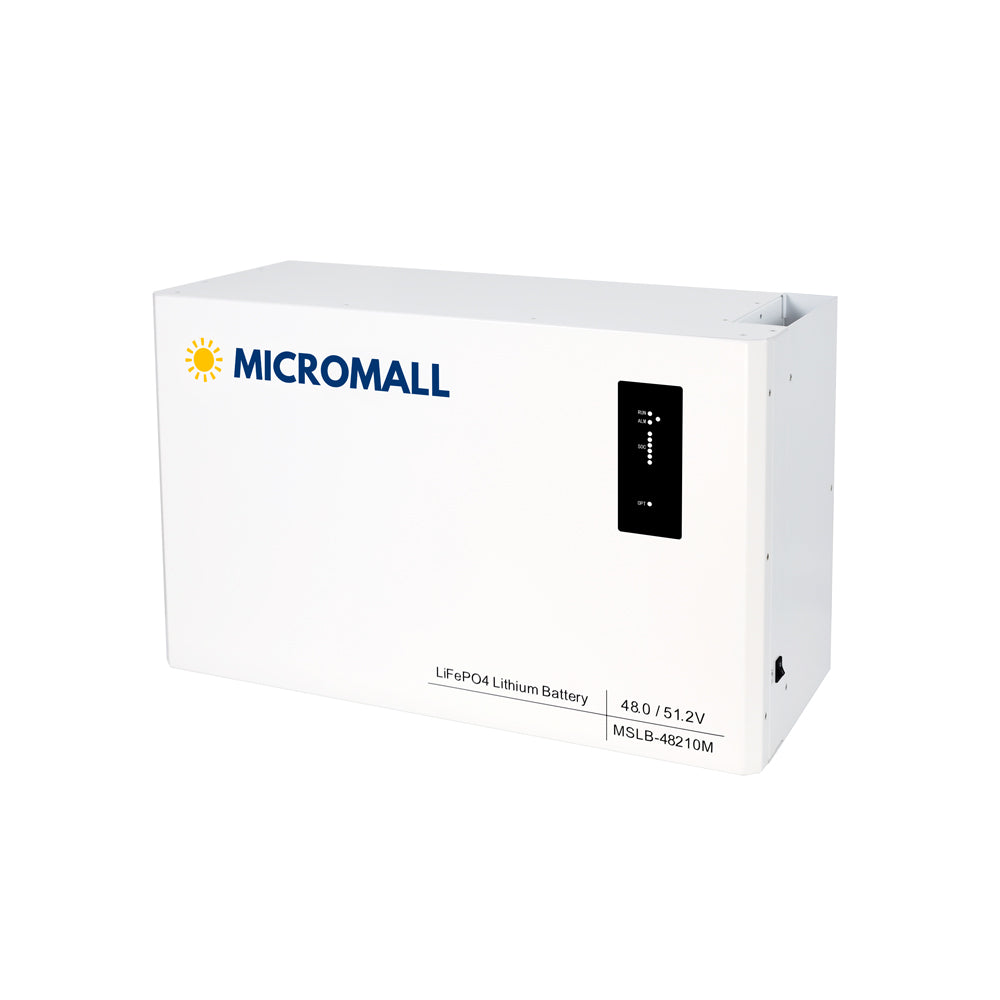

Introducing the Micromall 48V 51.2V 206Ah 10.54kWh LiFePO4 Lithium Battery IP20 Deep Cycle Stackable Solar Battery, a high-performance household energy storage solution.
Key Features:
Balancing: The whole series is equipped with an active equalization system, boasting high current, efficiency, and low energy loss.
Compatibility: Compatible with multiple brands of inverters, seamlessly connecting communication between different brands of inverters.
Safety: Safe and reliable, long service life, high temperature protection. Over 6000 cycles, 15-year warranty.

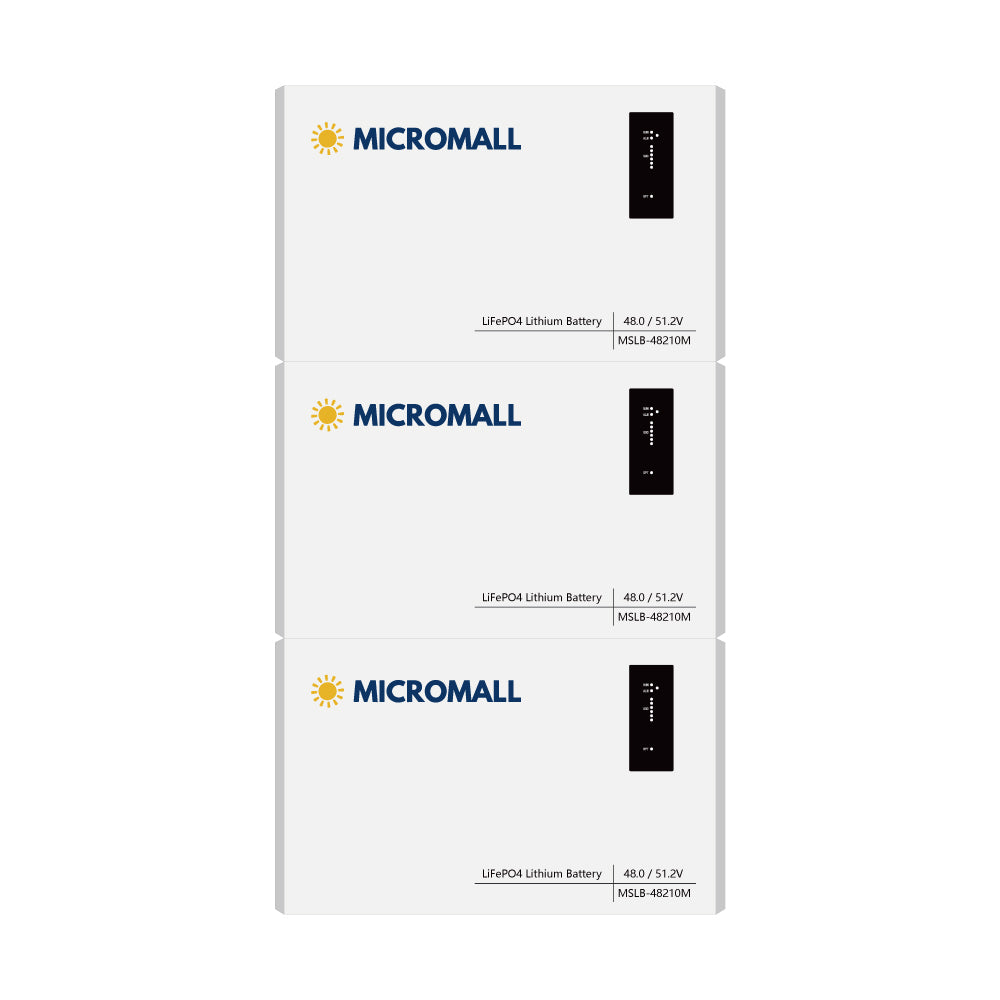

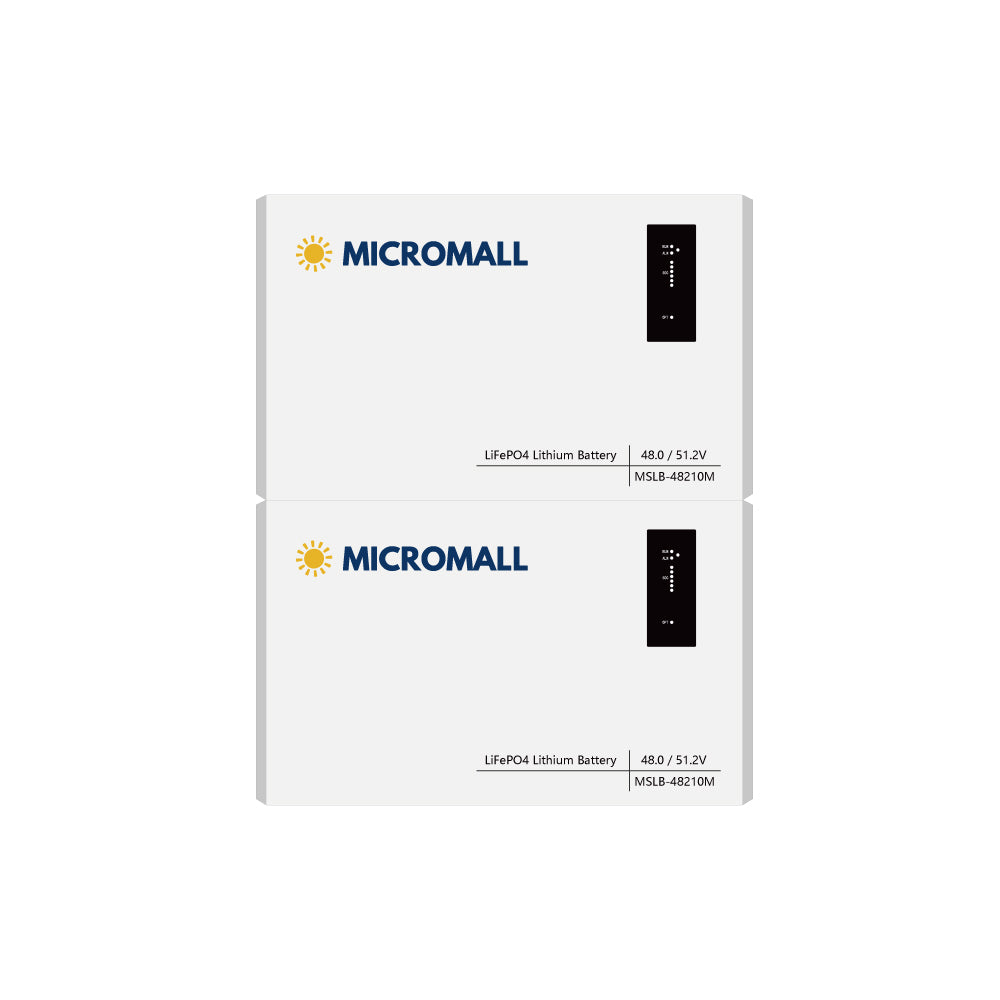

Flexible: Modular connection enhances safety, stability, and efficiency. Battery modules: 2~3 (optional)

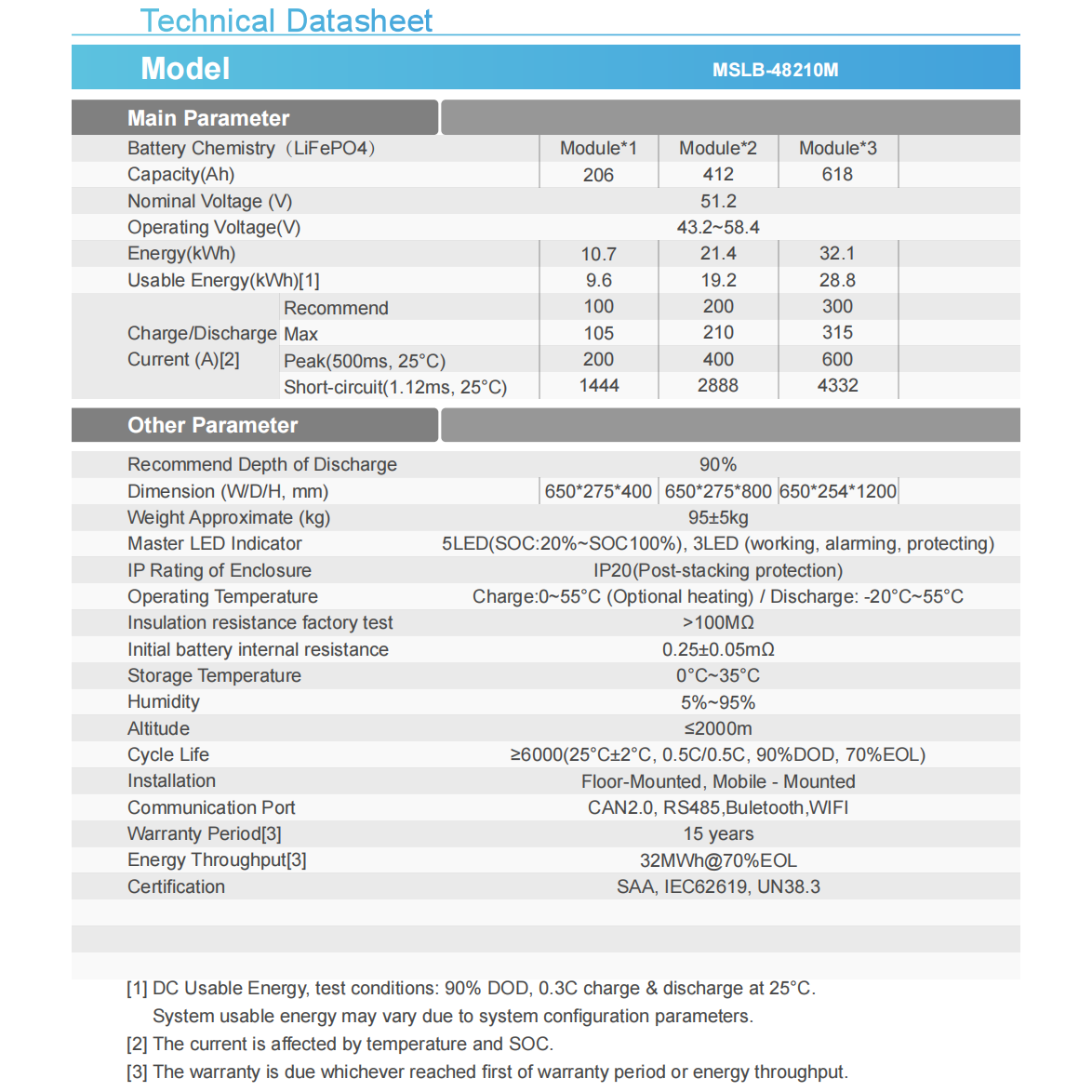

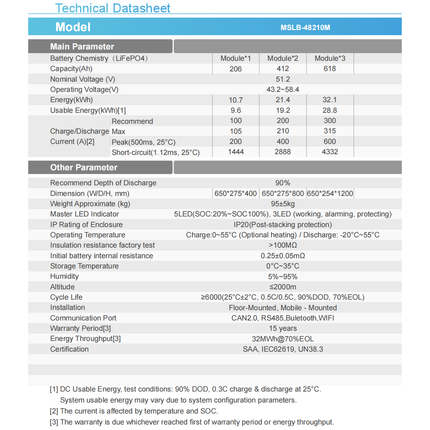

Specifications
Model: MSLB-48210M
Battery Chemistry: LiFePO4
Rated Capacity(Ah): 206Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2 - 58.4V
Energy(kWh): 10.5kWh
Usable Energy(kWh): 9.6kWh
Charge/Discharge Current (A) Recommend, Max: 100, 105
Charge/Discharge Current (A) Peak, Short-circuit: 200 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%

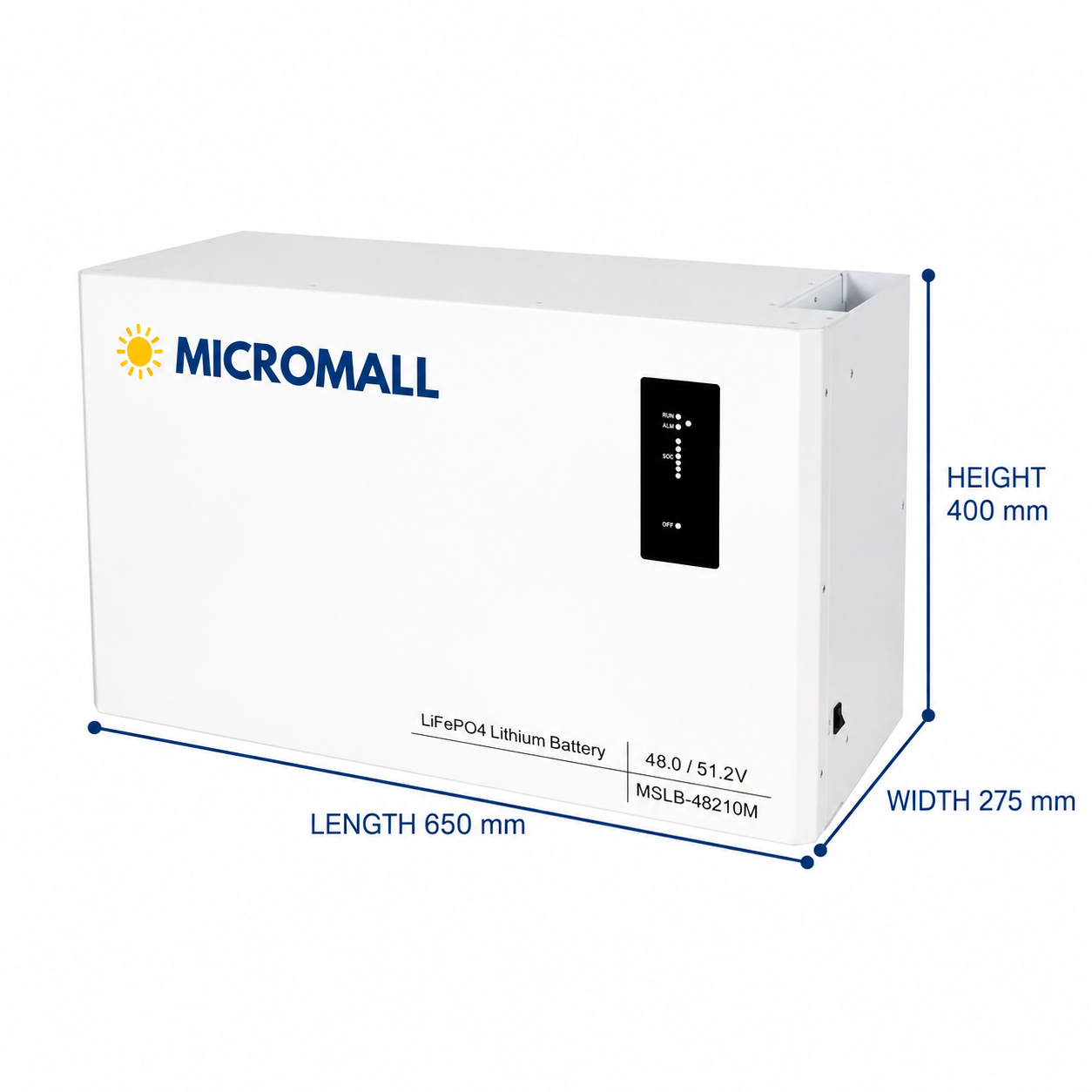

Dimension (W/H/D, mm): 650 x 400 x 275mm
Weight Approximate (kg): 95+-5kg

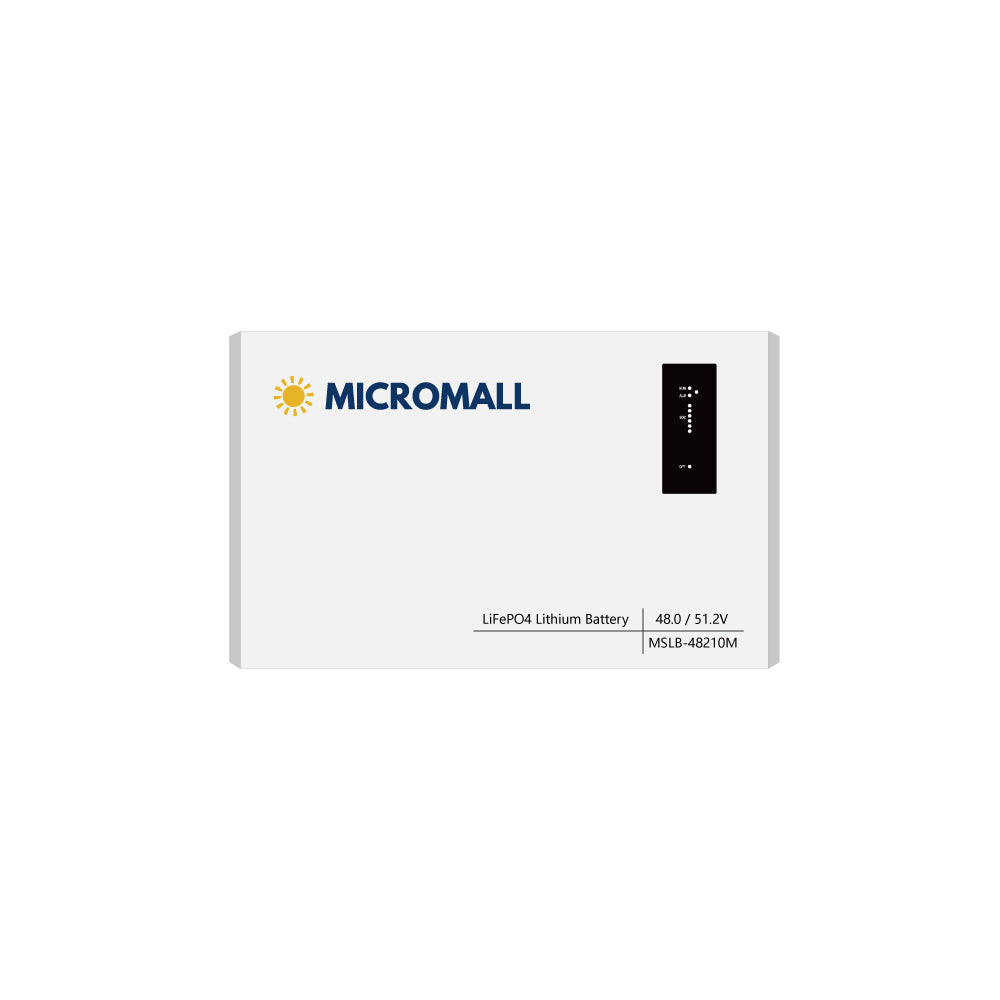

Master LED Indicator: 5LED(SOC:20%~SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure: IP20(Post-stacking protection)
Operating Temperature: Charge: 0 - 55°C (Optional heating) / Discharge: -20°C - 55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.25+-0.05mΩ
Storage Temperature: 0°C - 35°C
Humidity: 5% - 95%
Altitude: <=2000m
Cycle Life: >=6000(25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)
Installation: Floor-Mounted, Mobile-Mounted
Communication Port: CAN2.0, RS485,Buletooth,WIFI
Energy Throughput: 32MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
15 Years New Zealand Local Warranty
