Description

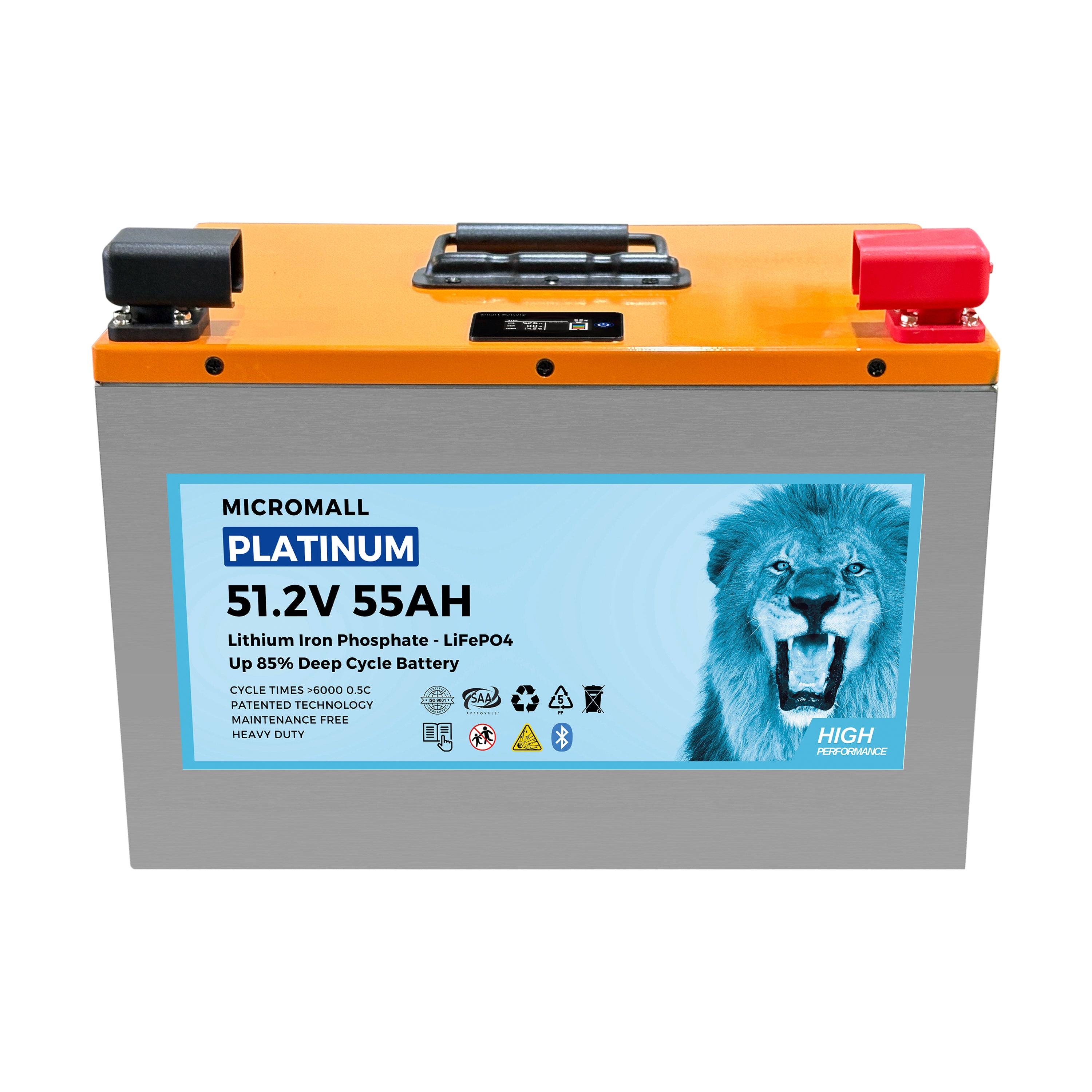

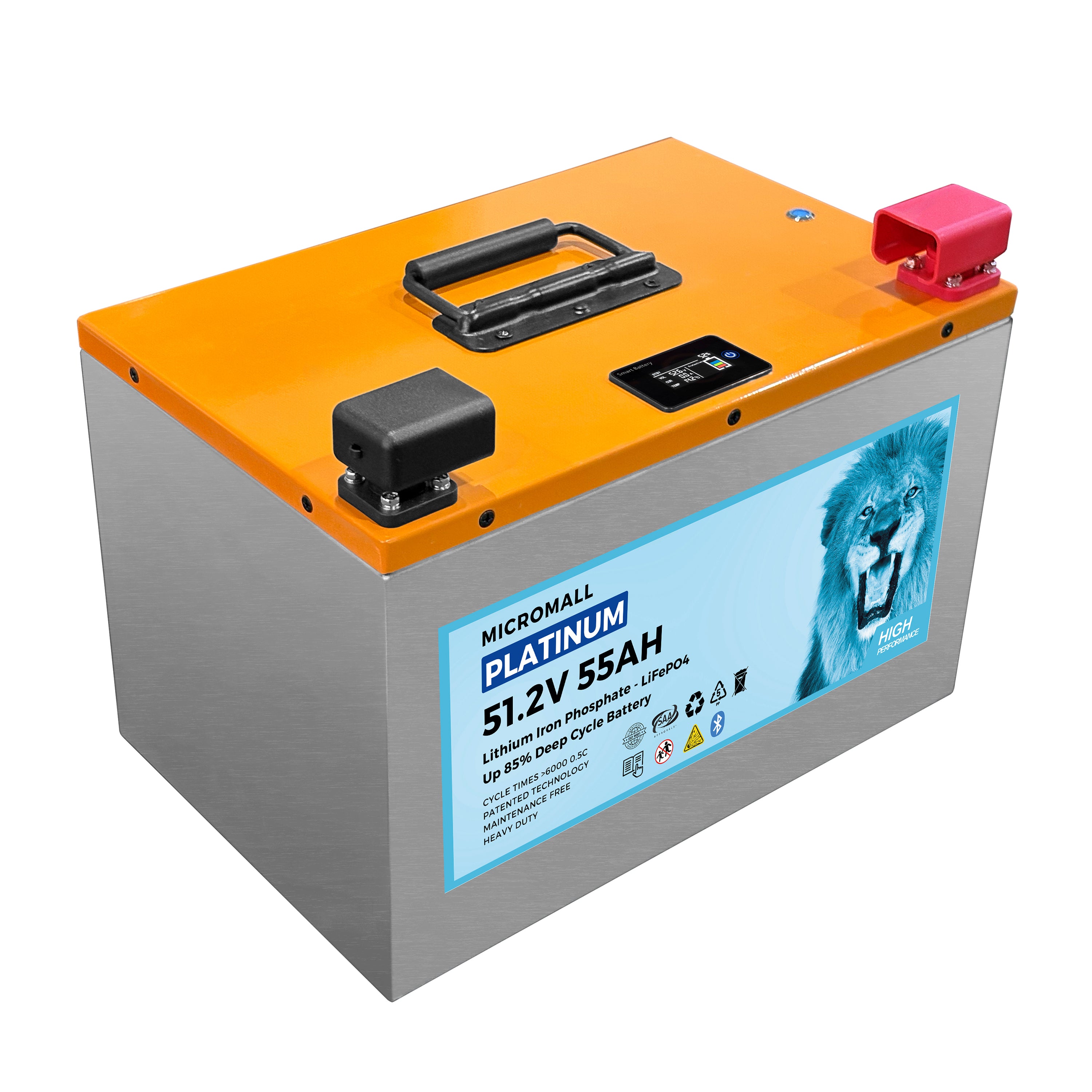

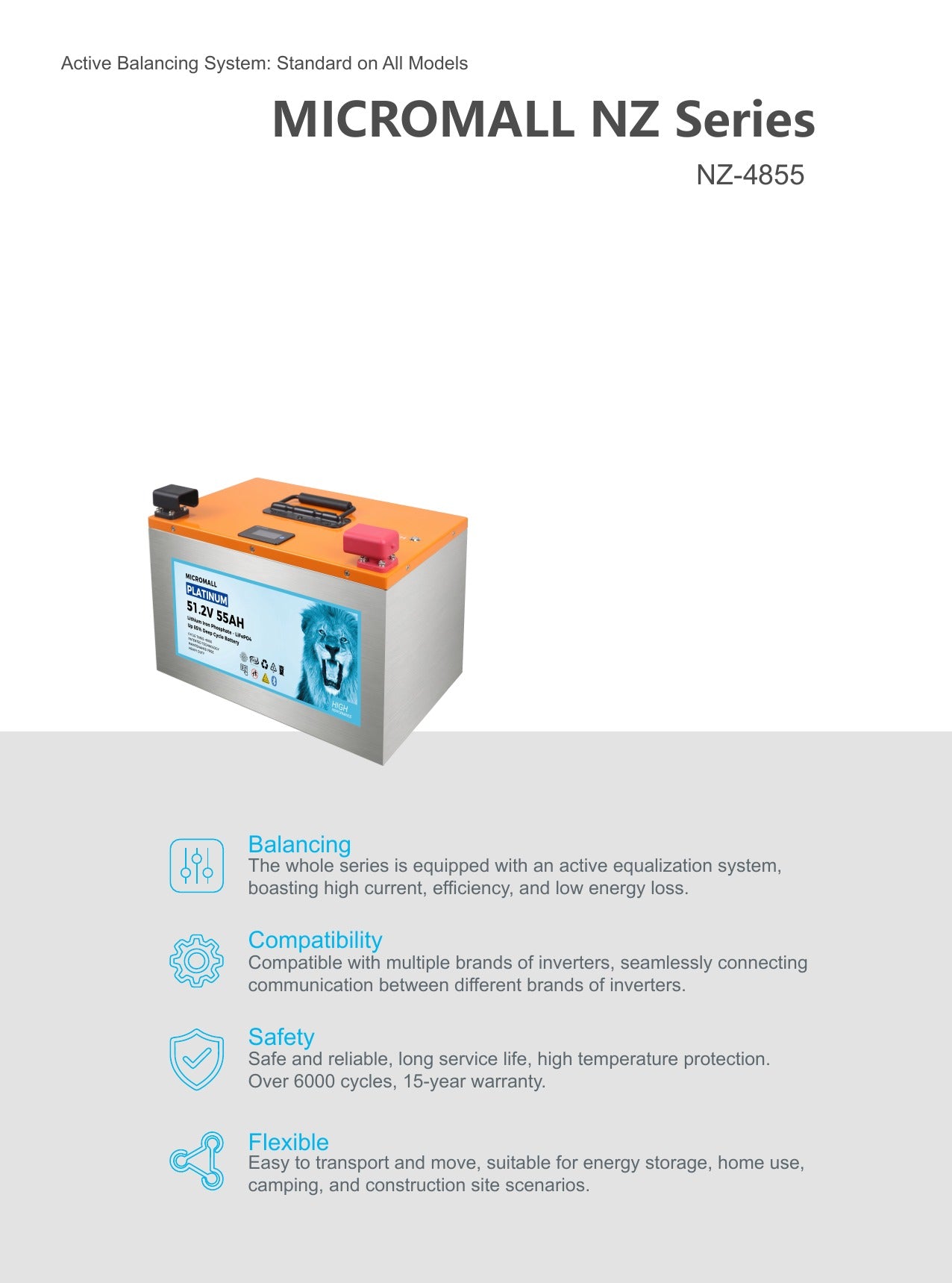

48V 55Ah Max CALB LiFePO4 Battery: Premium Power Solution for Diverse Applications
Key Highlights:
Premium Quality Cells: Featuring 16 Grade A CALB cells, designed originally for Ryobi Lawn Mower.
High Current Capability: With a true charge and discharge capacity of 100A, it stands as a top contender in the NZ market.
Long-Lasting and Durable: Engineered for 6000 cycles 0.5C at 90% depth of discharge, promising 20+ years of reliable service.
Intelligent Monitoring: Comes with a 2-smart BMS system and a Bluetooth app display for efficient battery management.
Safety Assured: Incorporates advanced safety features for risk reduction.
Exceptional Warranty: Provided with a 10-year full warranty and an additional 5-year repair warranty.

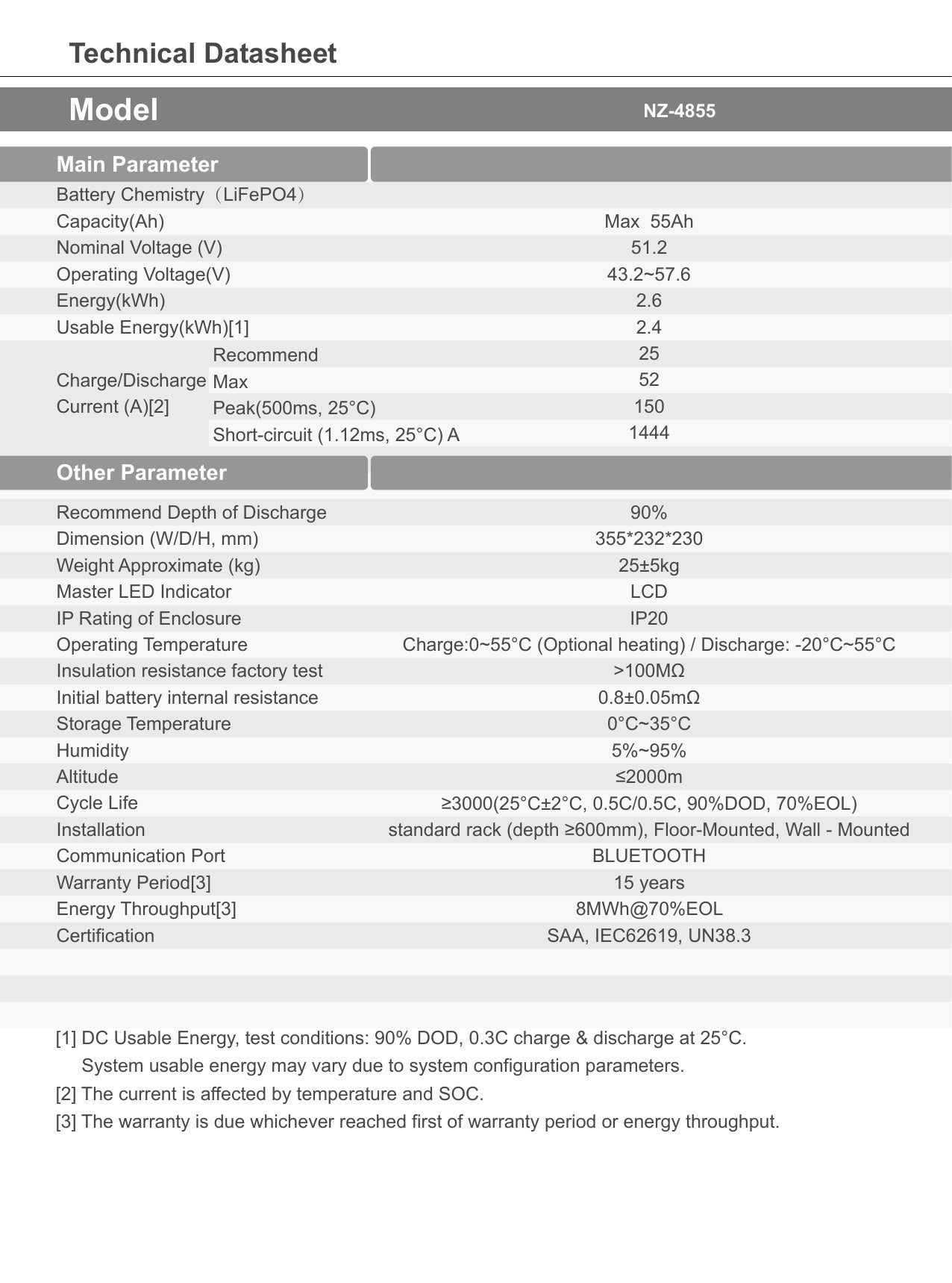

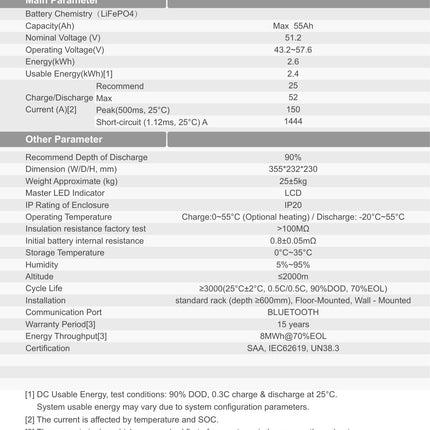

Technical Specifications:
Model: BTL-48V55M
Main Parameter
Battery Chemistry: LiFePO4
Capacity(Ah): Max 55Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2 - 57.6V
Energy(kWh): 2.6kWh
Usable Energy(kWh): 2.4kWh
Charge/Discharge Current (A)
Recommend: 25
Max: 52
Peak: 150 (500ms, 25°C)
Short-circuit: 1.444KA (1.12ms, 25°C)
Other Parameter
Recommend Depth of Discharge: 90%
Dimension (D/W/H, mm): 355x232x230mm
Weight Approximate (kg): 25kg

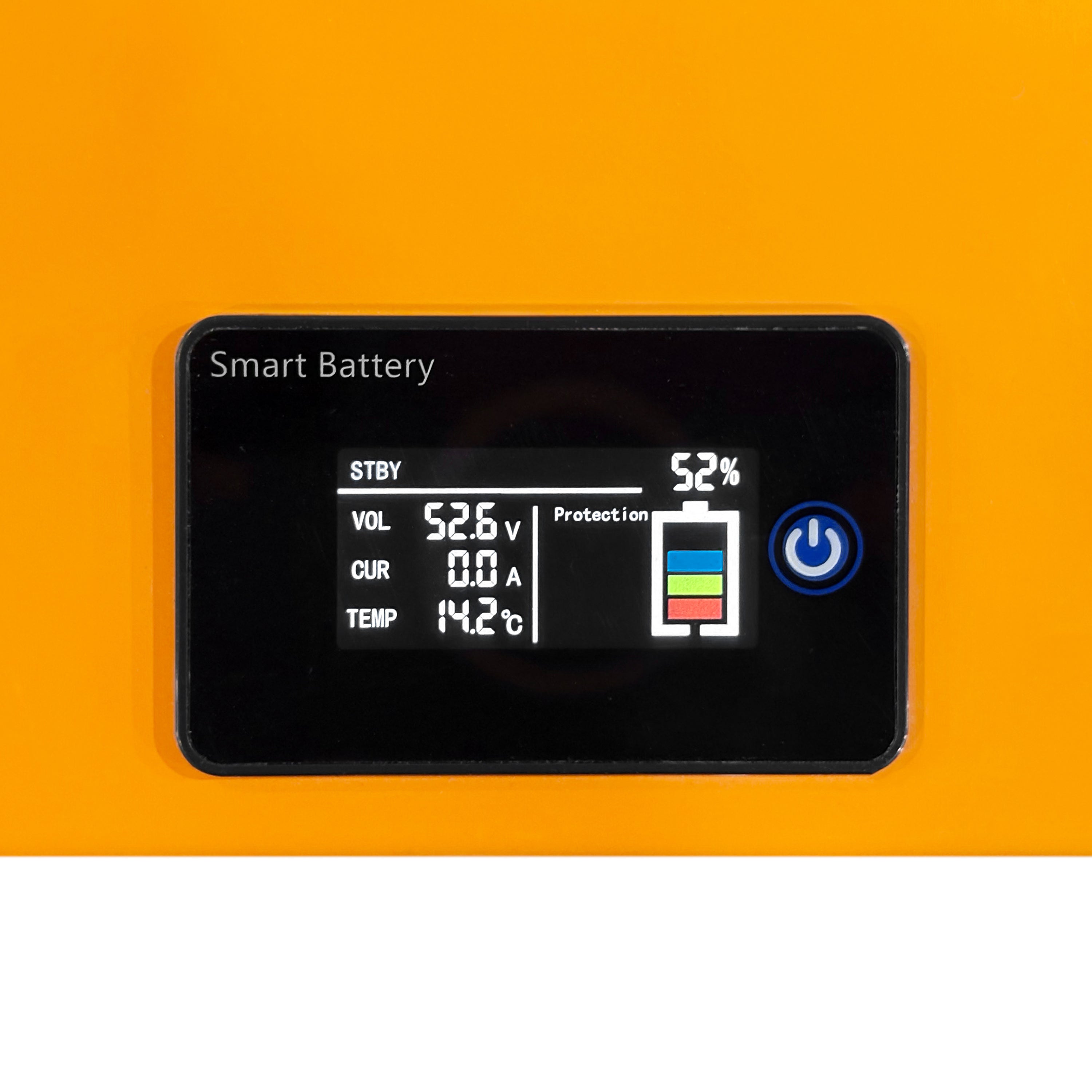

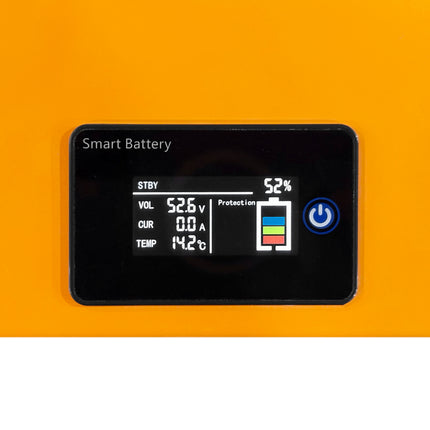

Master Indicator: LCD
IP Rating of Enclosure: IP20
Operating Temperature: Charge: 0 - 55°C (Optional heating) / Discharge: -20°C - 55°C
Humidity: 5% - 95%
Cycle Life: 6000 0.5C
Communication Port: BLUETOOTH
Energy Throughput: 8MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
