Description

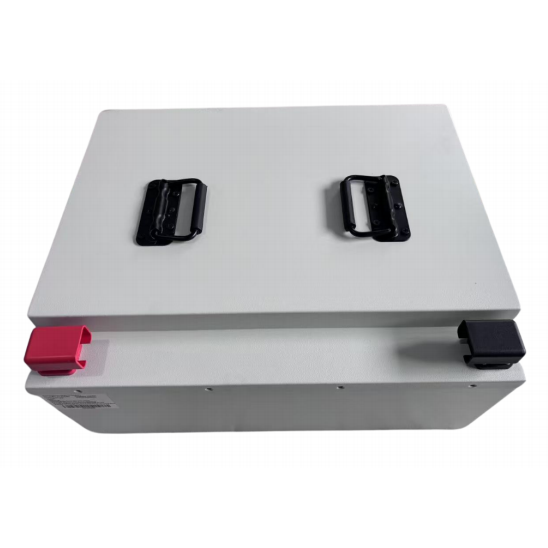

This 48V-class 100Ah/110Ah LiFePO4 battery provides approximately 5kWh of storage for solar, backup and deep-cycle energy applications. It uses long-cycle lithium iron phosphate cells and supports communication with multiple inverter platforms for flexible system integration.
Key Features
- Warranty: 10 years full warranty + 5 additional years repair warranty
- Life Expectancy: Over 20 years. Guaranteed 6,000 cycle times
- This commercial-grade LiFePO4 battery boasts 48V with a maximum capacity of 100Ah/110Ah and an energy rating of 5.0kWh. It is crafted using the latest long-cycle cell technology. With a daily discharge depth of 80%, this battery can be cycled 6,000 times, ensuring a lifespan of up to 20 years
- Real Cell Count: Features 16 genuine CATL brand new, Grade A cells that support 57.6V
- Performance: This battery can continuously charge and discharge at 300A. It stands out as one of the highest capacities in the NZ market, even suitable for electric vehicles
- Compatibility: This Grade A LiFePO4 battery is compatible with 48V lead acid batteries solar systems. It also supports most 48V MPPT controllers, 48V off-grid solar systems, and generators. Furthermore, it is built for seamless communication with Growatt, BlueSun, MustPower, Victron, and Deye off/on-grid systems
- Expansion: The battery allows for parallel connections to boost capacity. It also includes a 485 port, enabling computer monitoring using the provided software

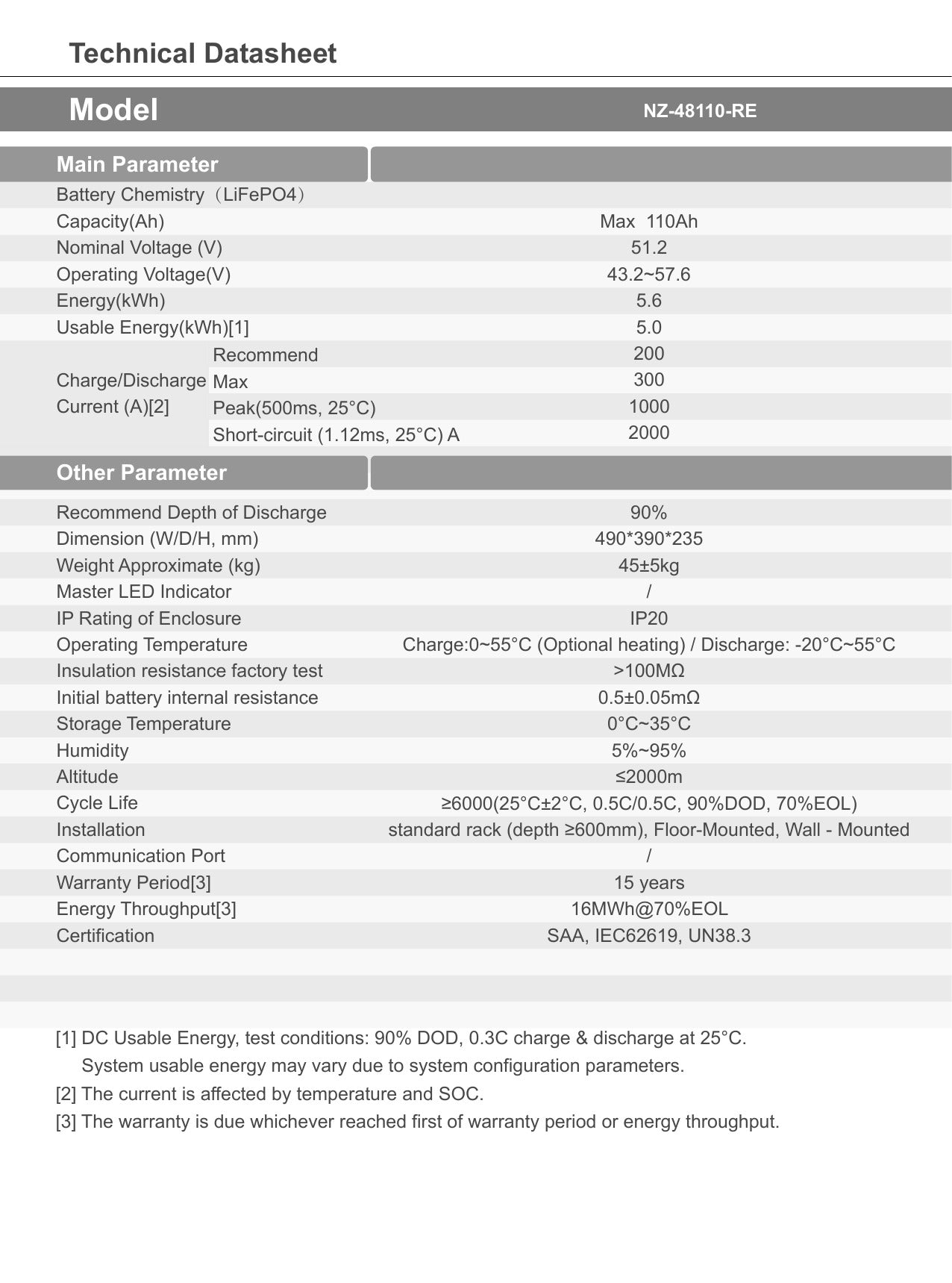

Specifications
- Warranty: 10 years full warranty + 5 additional years repair warranty.
- Life Expectancy: Over 20 years. Guaranteed 6,000 cycle times.
- Real Cell Count: Features 16 genuine CATL brand new, Grade A cells that support 57.6V.
- Performance: This battery can continuously charge and discharge at 300A. It stands out as one of the highest capacities in the NZ market, even suitable for electric vehicles.
- Compatibility: This Grade A LiFePO4 battery is compatible with 48V lead acid batteries solar systems. It also supports most 48V MPPT controllers, 48V off-grid solar systems, and generators. Furthermore, it is built for seamless communication with Growatt, BlueSun, MustPower, Victron, and Deye off/on-grid systems.
- Expansion: The battery allows for parallel connections to boost capacity. It also includes a 485 port, enabling computer monitoring using the provided software.
- Type of Battery: Lithium Iron Phosphate (LFP)
- Rated Capacity: Max 110Ah
- Rated Energy: 5.0kWh
- Operating Voltage Range: 43.2V - 57.6V DC
- Standard Charging Current: 100A DC
- Max Charging Continuous Current: 110A DC
- Standard Discharge Current: 100A DC
- Max Discharge Continuous Current: 110A DC
- Max Discharge Pulse Current: 100A DC (30s, 25°C ± 2°C, SOC≥40%)
- Operational Temperature Range: 0 - 55°C (charging), -20 - 55°C (discharging)
- Output Short-Circuit Current: 2000A (400us, 25°C)
- Altitude: Below 2000m
- Cell Self-Discharge Rate: ≤5% (25°C, 50%SOC)
- Insulation Resistance Factory Test: >100MΩ
- Group Pressure Difference: ≤20mV
- Battery Internal Resistance: 0.5±0.05mΩ
- Weight: 45kg
- Dimensions (Length × Width × Height): 490 × 390 × 235 mm
- Installation: standard rack (depth ≥600mm), Floor-Mounted, Wall - Mounted
