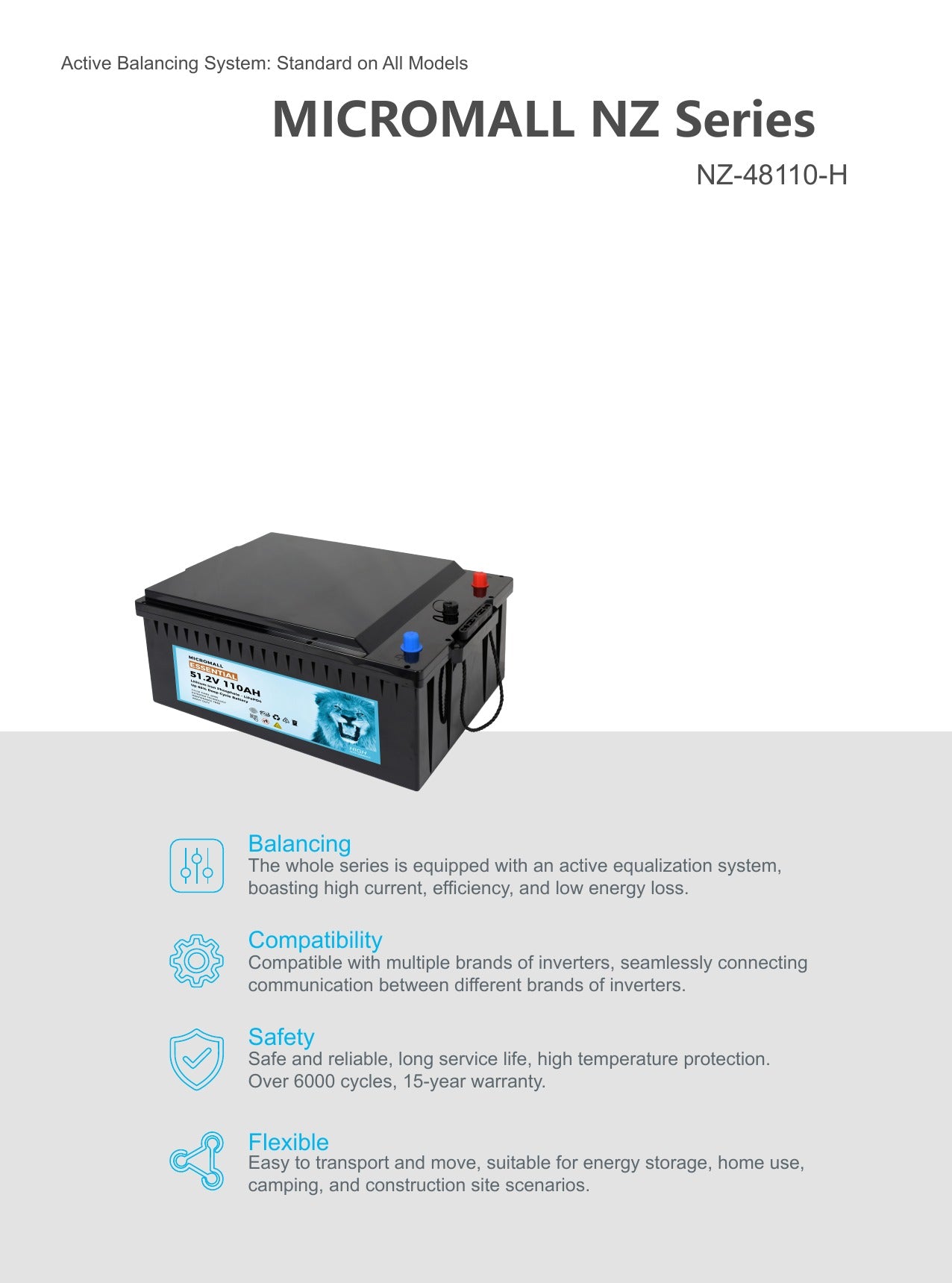

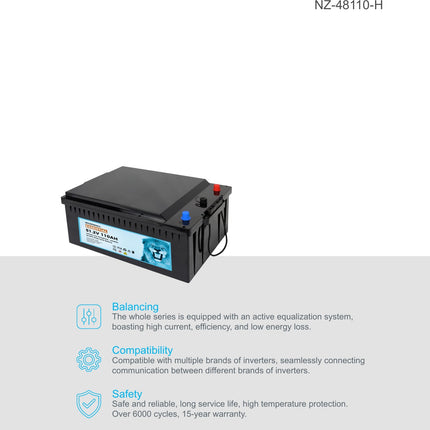

Description
This 51.2V 110Ah LiFePO4 battery provides approximately 5kWh of energy storage for residential solar and backup-power systems. Its IP54 enclosure and broad inverter-protocol compatibility make it suitable for integration with a wide range of common off-grid and grid-connected inverters.
Key Features
- Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters
- Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application
- Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load
- Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs

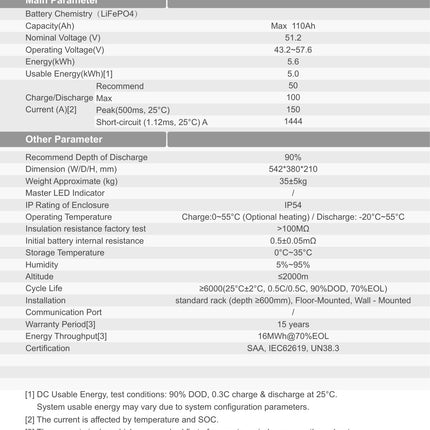

Specifications
- Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
- Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
- Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
- Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.

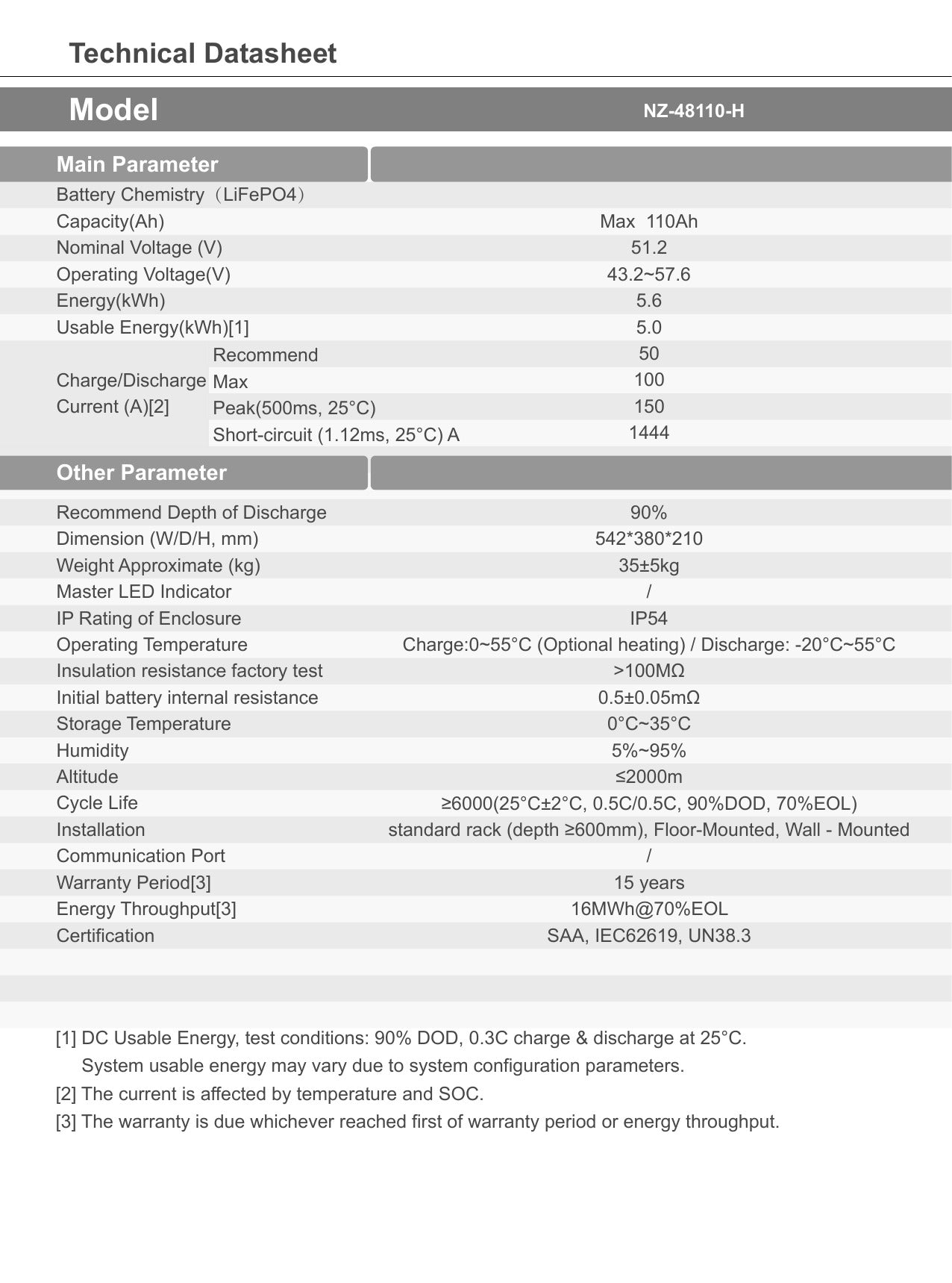

- Model: NZ-48110H
- Battery Chemistry: LiFePO4
- Max Capacity(Ah): 110Ah
- Nominal Voltage (V): 51.2V
- Operating Voltage(V): 43.2 - 57.6V
- Energy(kWh): 5.6kWh
- Usable Energy(kWh): 5.0kWh
- Charge/Discharge Current (A) Recommend, Max: 50, 100
- Charge/Discharge Current (A) Peak, Short-circuit: 150 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
- Recommend Depth of Discharge: 90%
- Dimensions (Length × Width × Height): 542 × 380 × 210 mm
- Weight Approximate (kg): 35+-5kg
- Operating Temperature: Charge: 0 - 55°C (Optional heating) / Discharge: -20°C - 55°C
- Insulation resistance factory test: >100MΩ
- Initial battery internal resistance: 0.5+-0.05mΩ
- Storage Temperature: 0°C - 35°C
- Humidity: 5% - 95%
- Altitude: <=2000m
- Cycle Life: >=6000(25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)
- Installation: Standard rack (depth ≥600mm), Floor-Mounted, Wall - Mounted
- Energy Throughput: 16MWh@70%EOL
- Certification: SAA, IEC62619, UN38.3
- 15 Years New Zealand Local Warranty
