Description
Warranty: 10 years full warranty + 5 additional years repair warranty.
Life Expectancy: Over 20 years. Guaranteed 6,000 cycle times.

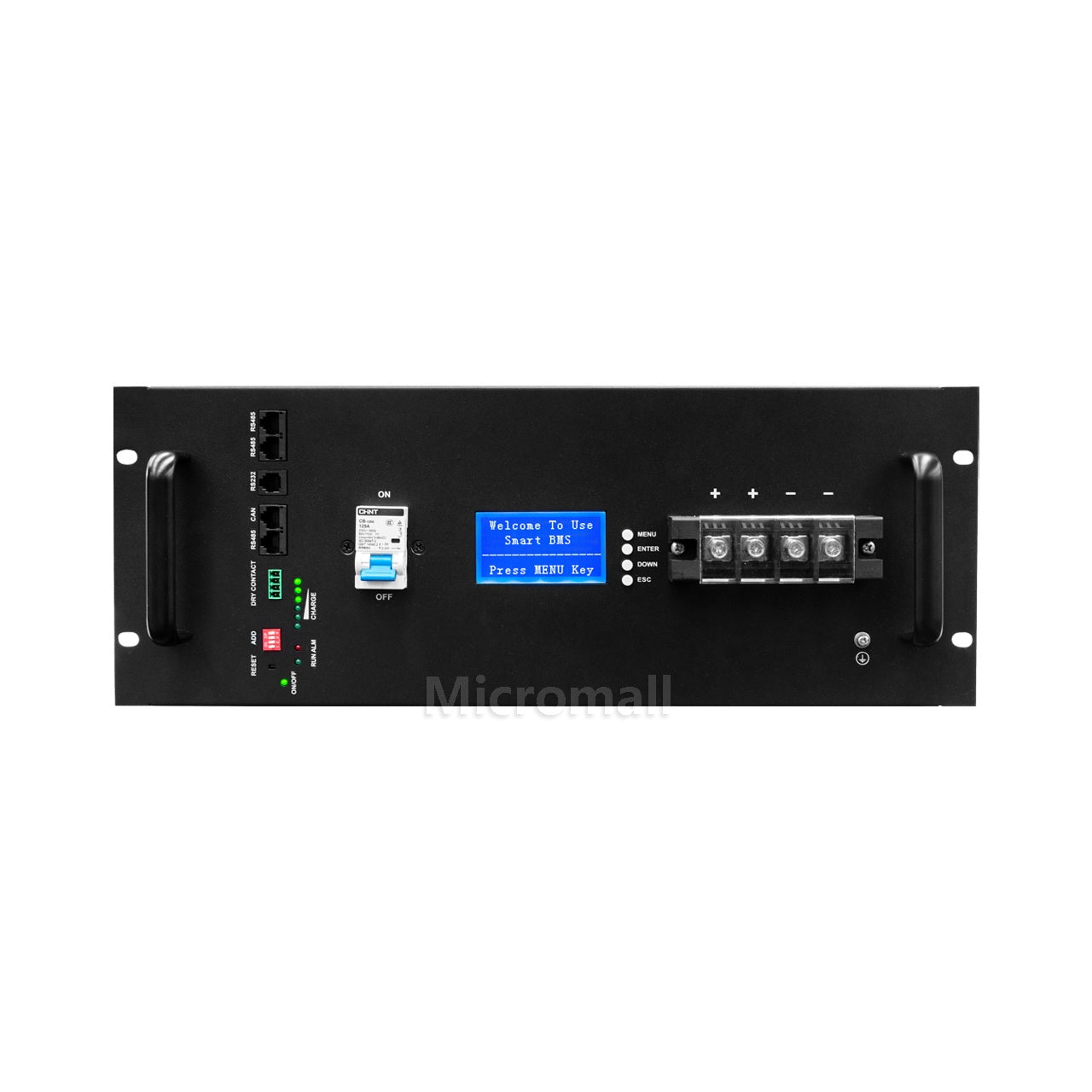

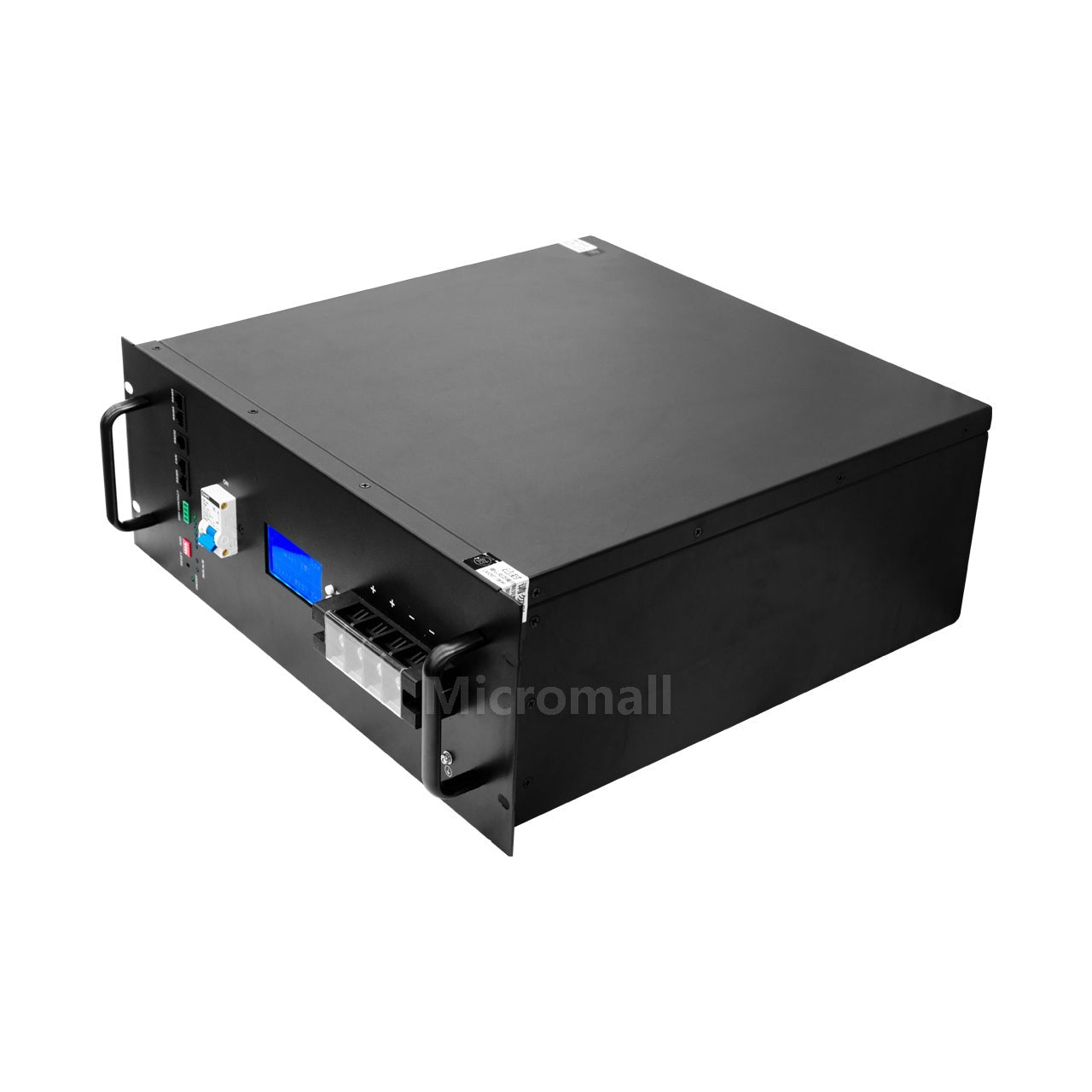

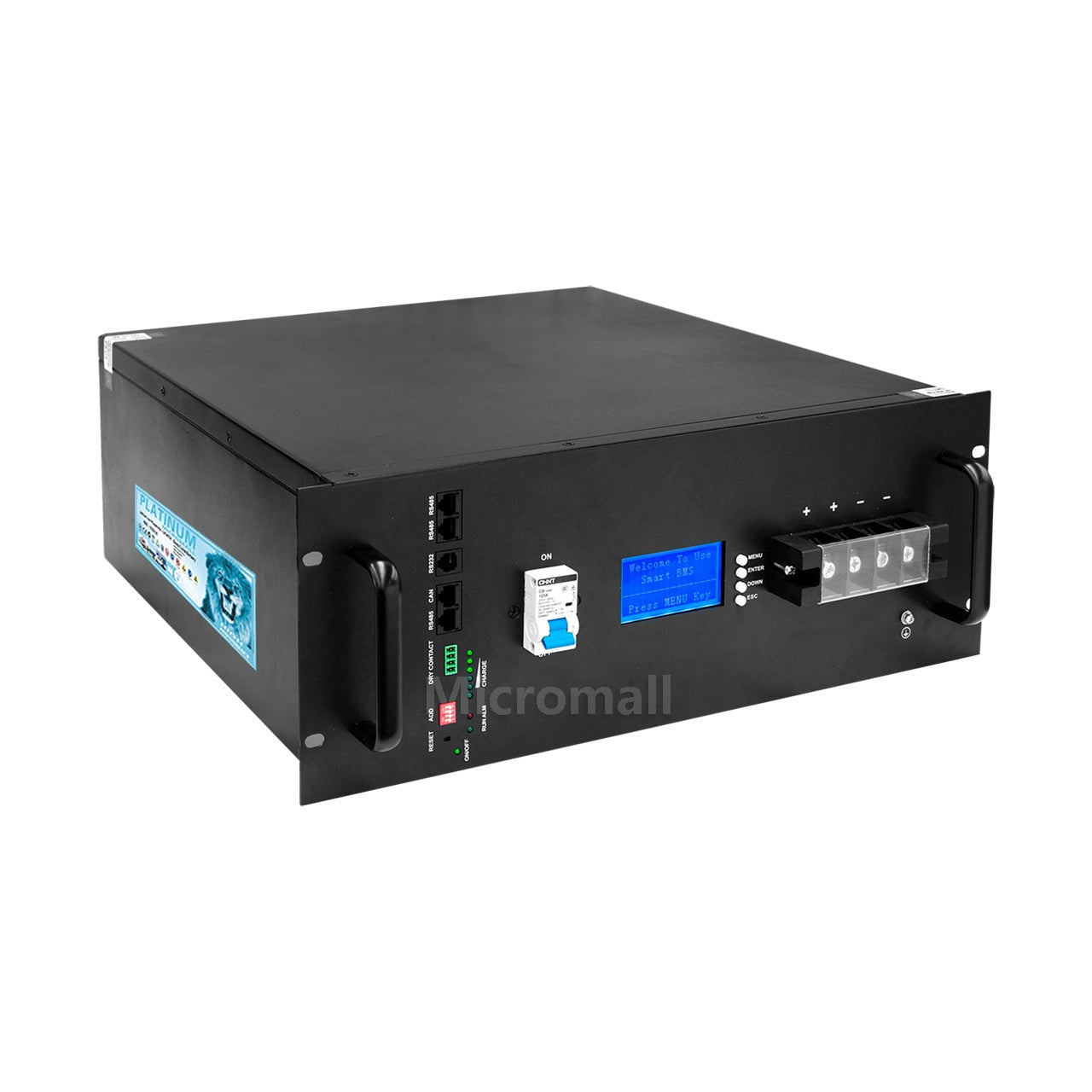

This commercial-grade LiFePO4 battery boasts 48V with a maximum capacity of 100Ah/110Ah and an energy rating of 5.0kWh. It is crafted using the latest long-cycle cell technology. With a daily discharge depth of 80%, this battery can be cycled 6,000 times, ensuring a lifespan of up to 20 years.

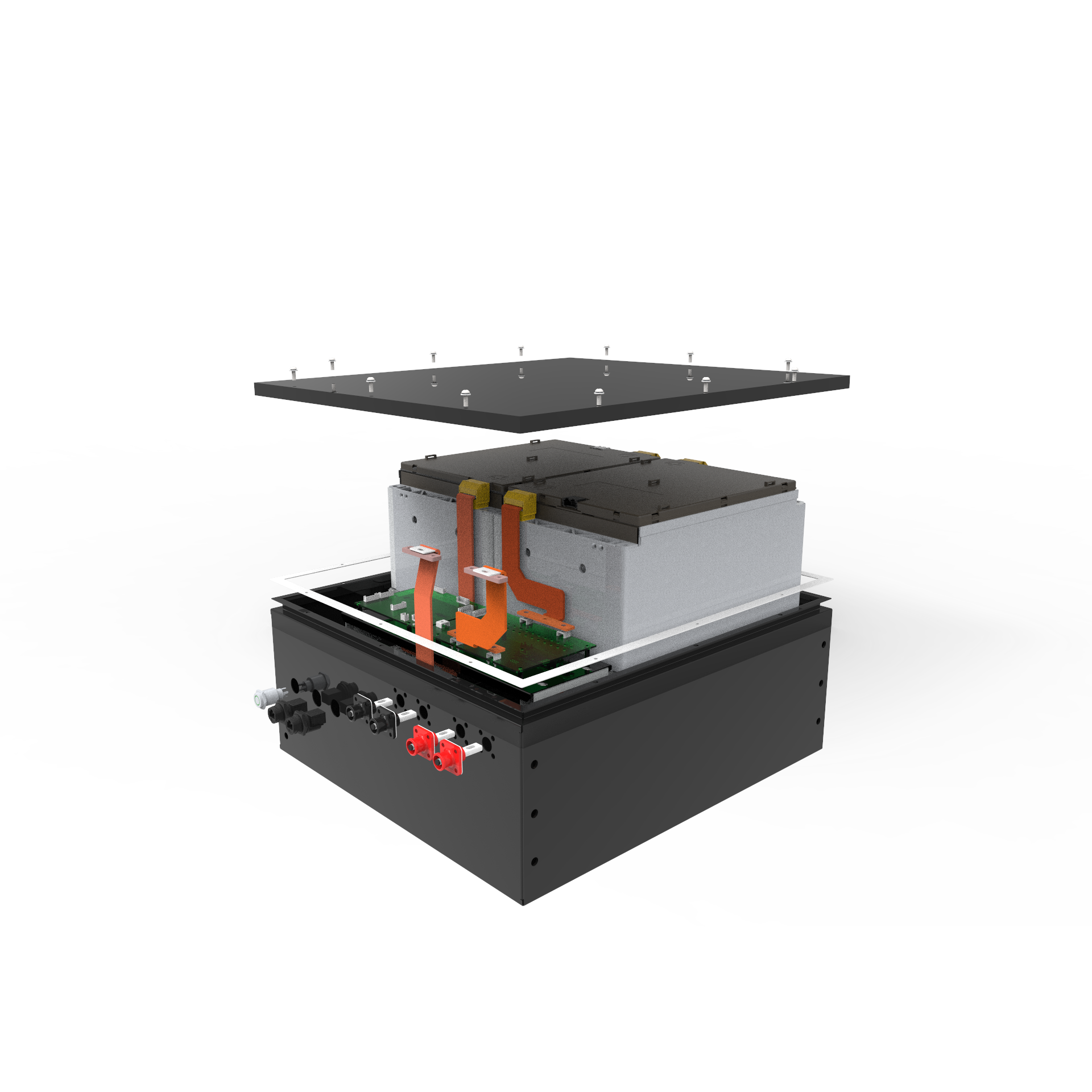

Real Cell Count: Features 16 genuine CATL brand new, Grade A cells that support 57.6V.
Performance: This battery can continuously charge and discharge at 100A. It stands out as one of the highest capacities in the NZ market, even suitable for electric vehicles.

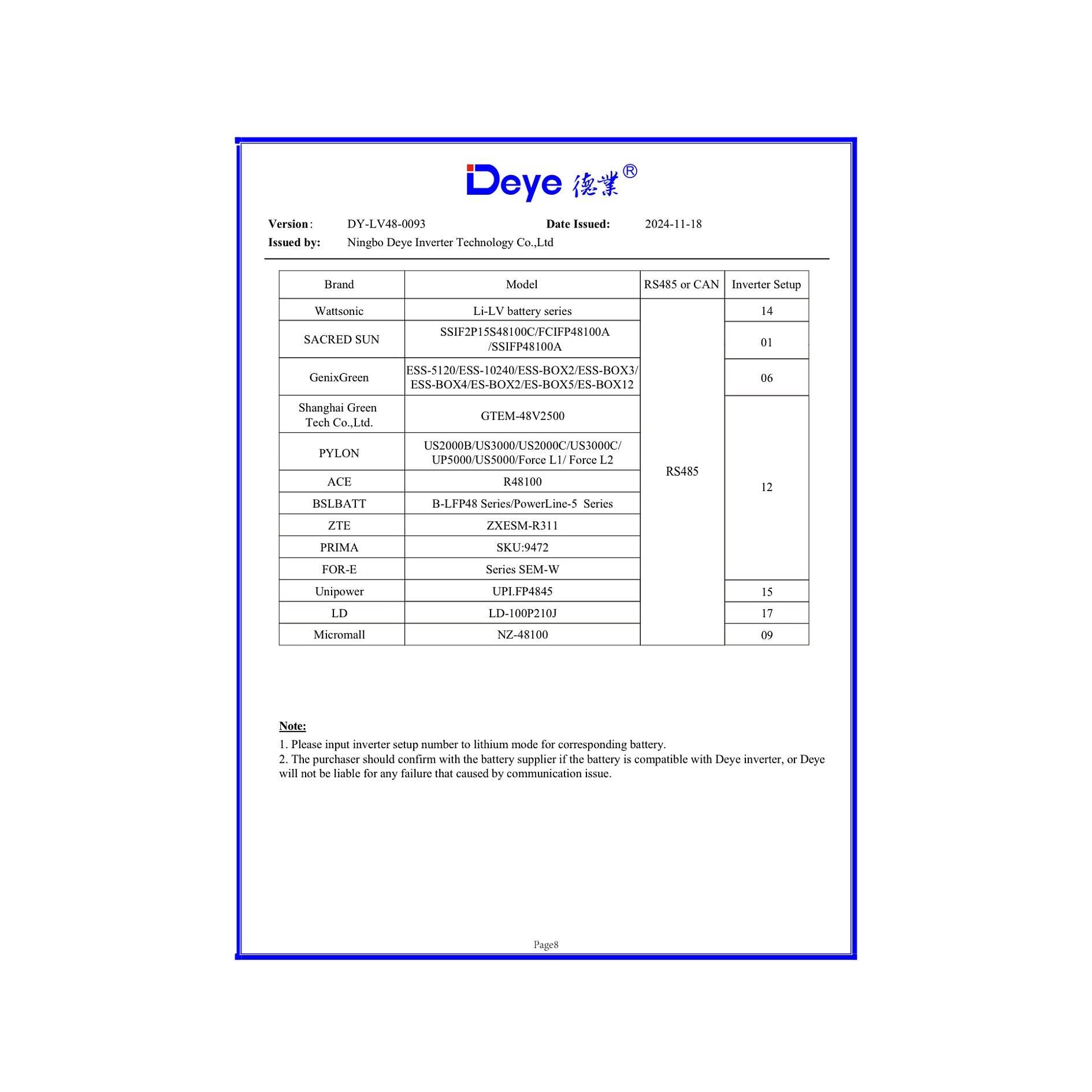

Compatibility: This Grade A LiFePO4 battery is compatible with 48V lead acid batteries solar systems. It also supports most 48V MPPT controllers, 48V off-grid solar systems, and generators. Furthermore, it is built for seamless communication with Growatt, BlueSun, MustPower, Victron, and Deye off/on-grid systems.

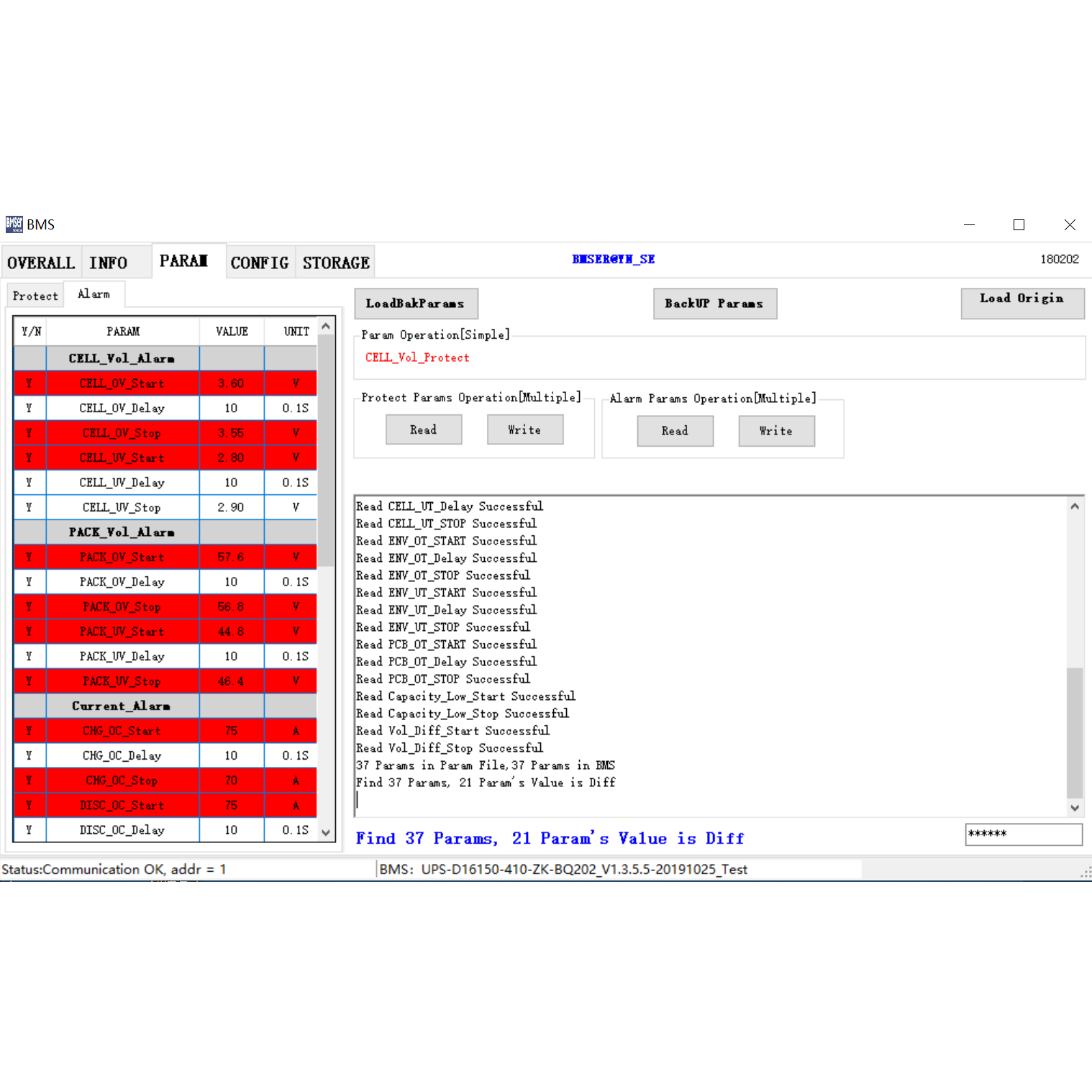

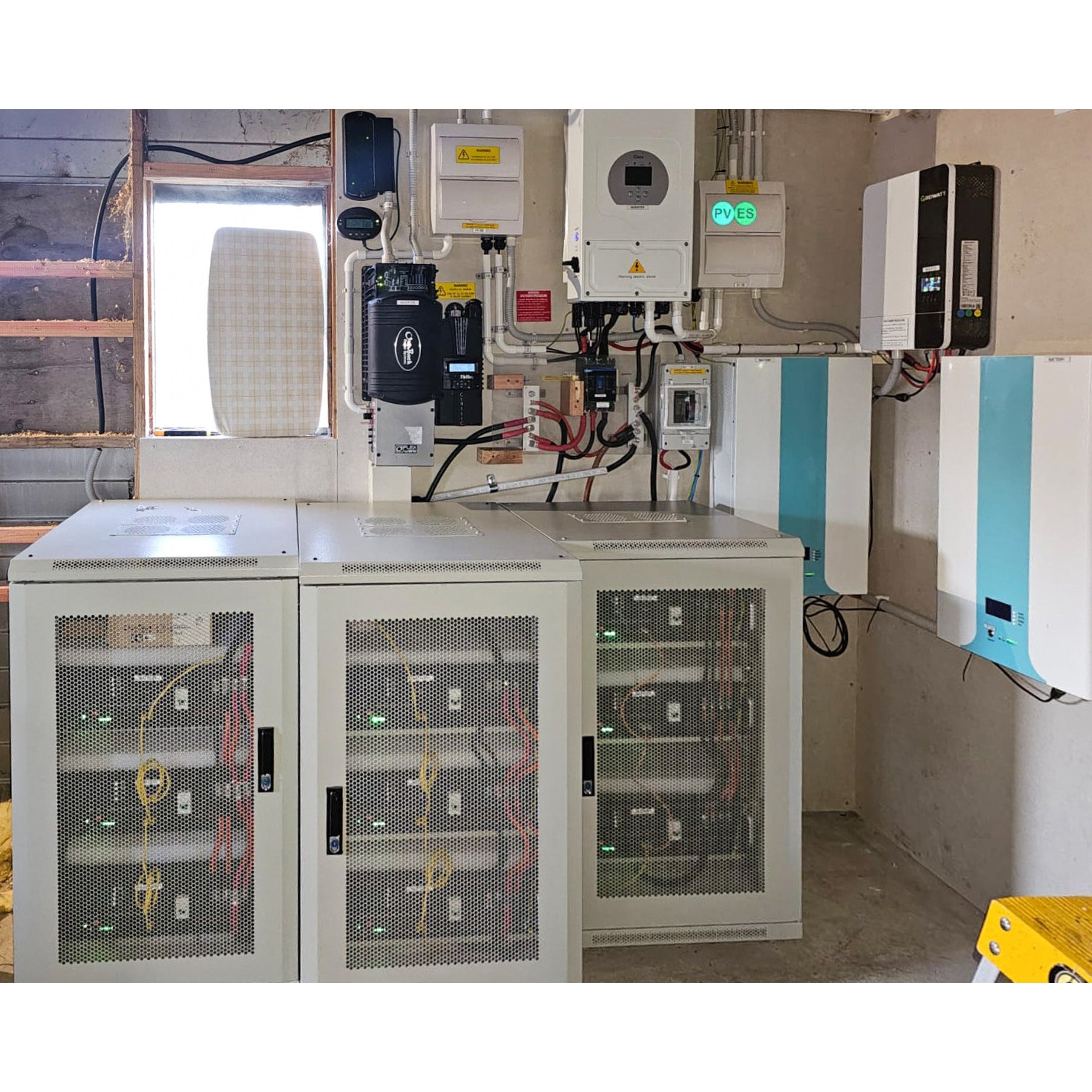

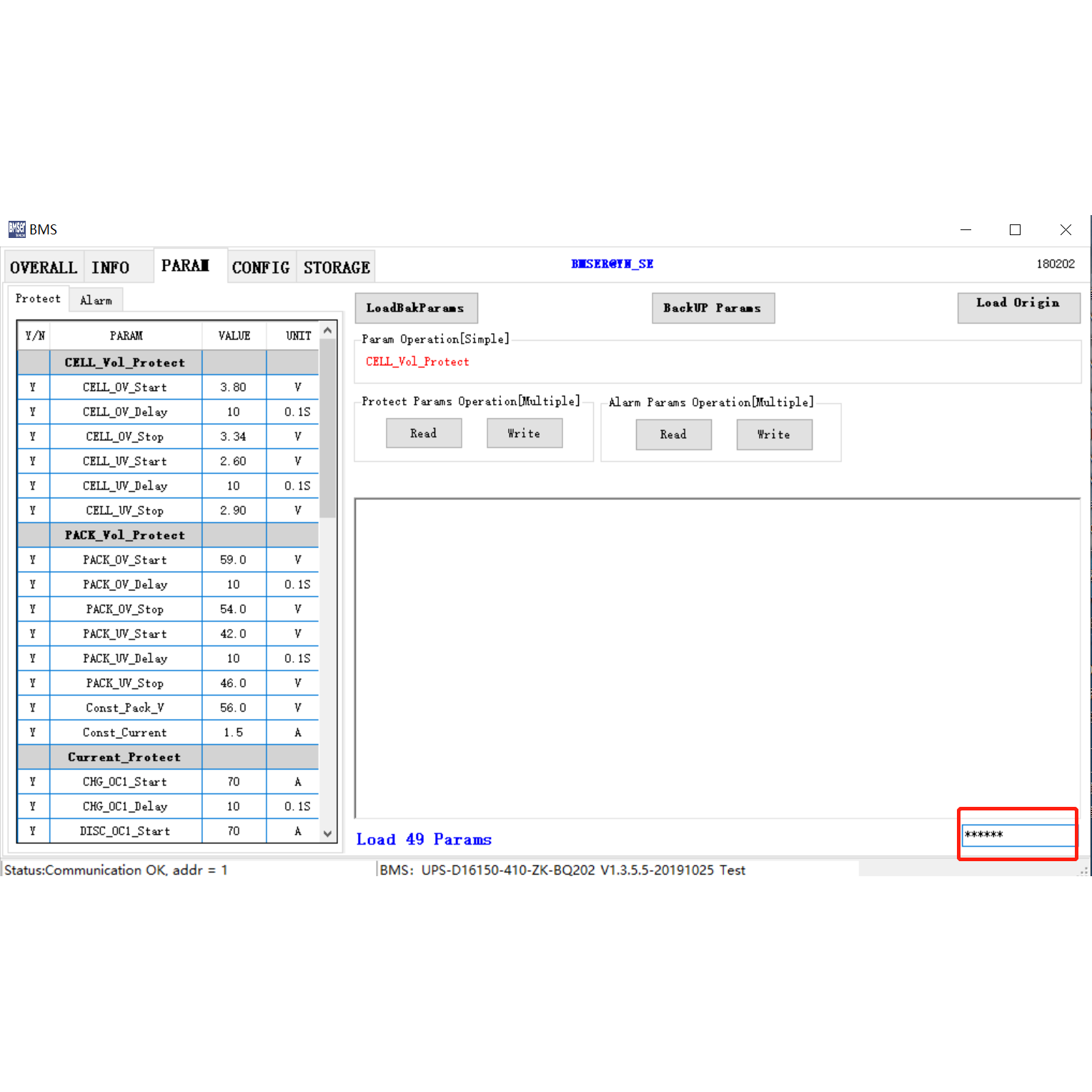

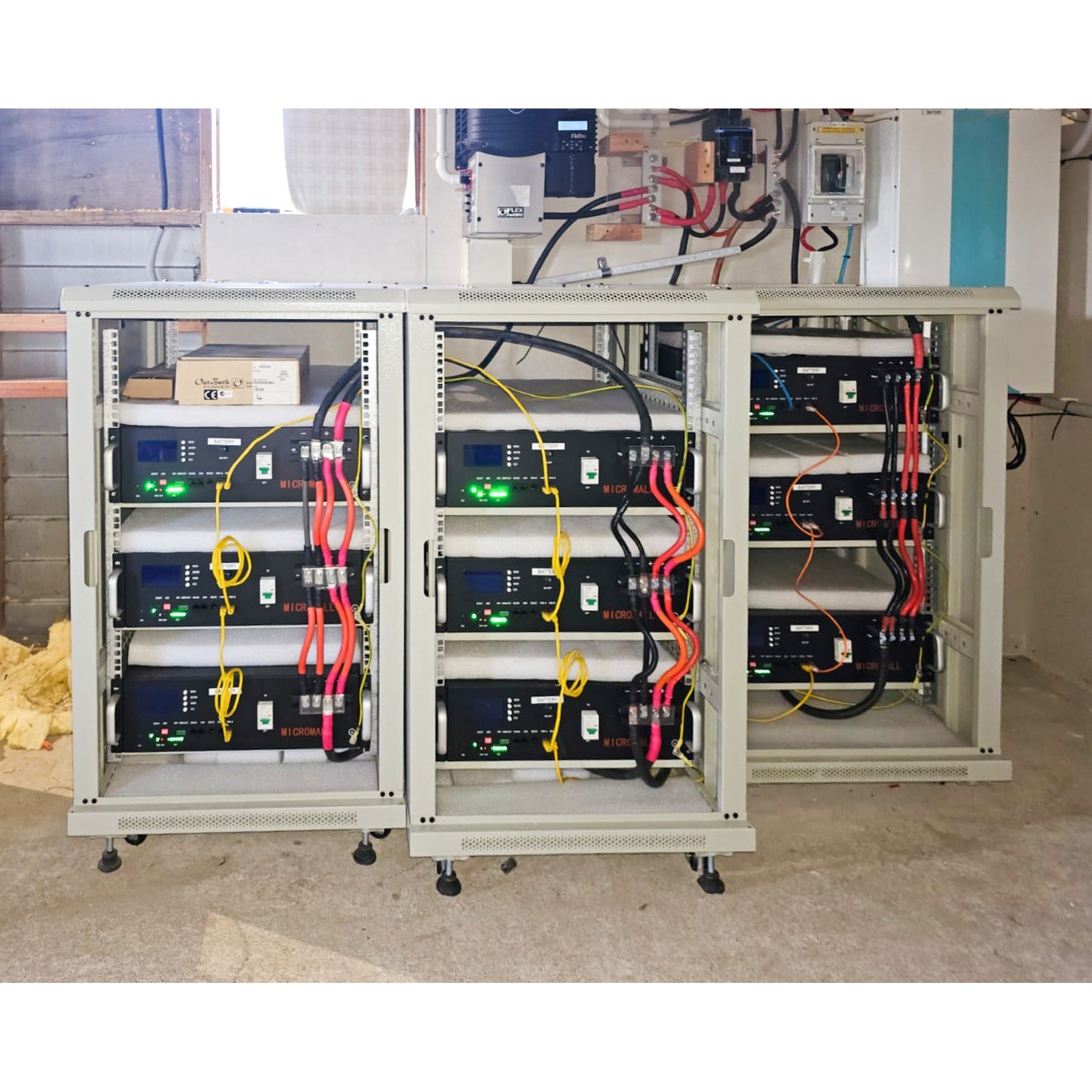

Expansion: The battery allows for parallel connections to boost capacity. It also includes a 485 port, enabling computer monitoring using the provided software.
Technical Details:
Type of Battery: Lithium Iron Phosphate (LFP)
Rated Capacity: Max 110Ah
Rated Energy: 5.0kWh
Composition Method: 1P16S
Operating Voltage Range: 44.8V - 57.6V DC
Standard Charging Current: 100A DC
Max Charging Continuous Current: 110A DC
Standard Discharge Current: 100A DC
Max Discharge Continuous Current: 110A DC
Parallel Connections: 16
Max Discharge Pulse Current: 100A DC (30s, 25°C ± 2°C, SOC≥40%)
Operational Temperature Range: 0-55°C (charging), -20-55°C (discharging)
Output Short-Circuit Current: 1.444KA (1.12ms)
Altitude: Below 2000m
Cell Self-Discharge Rate: ≤5% (25°C, 50%SOC)
Insulation Resistance Factory Test: >100MΩ
Group Pressure Difference: ≤20mV
Battery Internal Resistance: 0.34±0.05mΩ (new battery state, 30-40% SOC, 1kHz, single cell)
Weight: 53kg
Dimensions: 460x500x200mm
Installation: Indoor
