Description

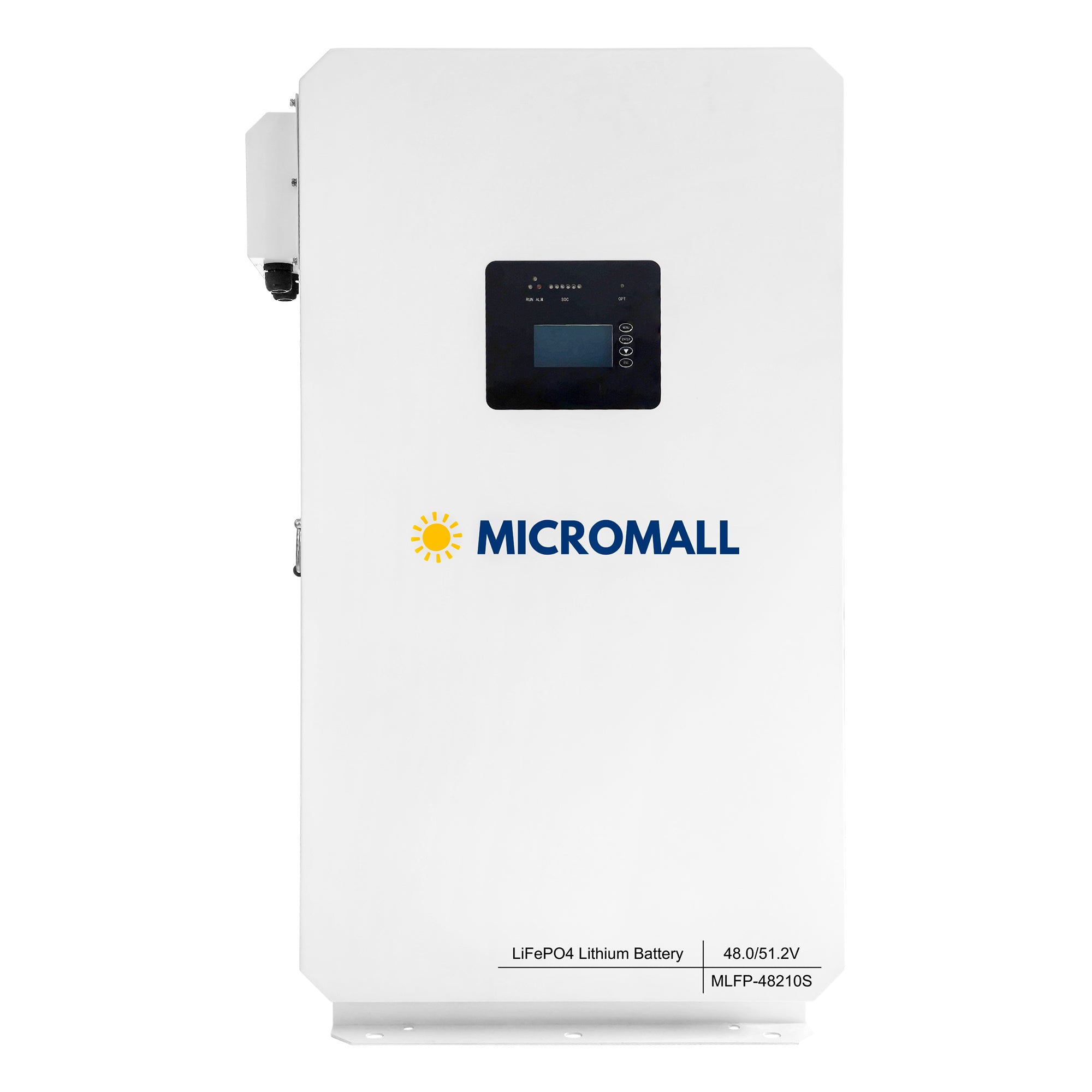

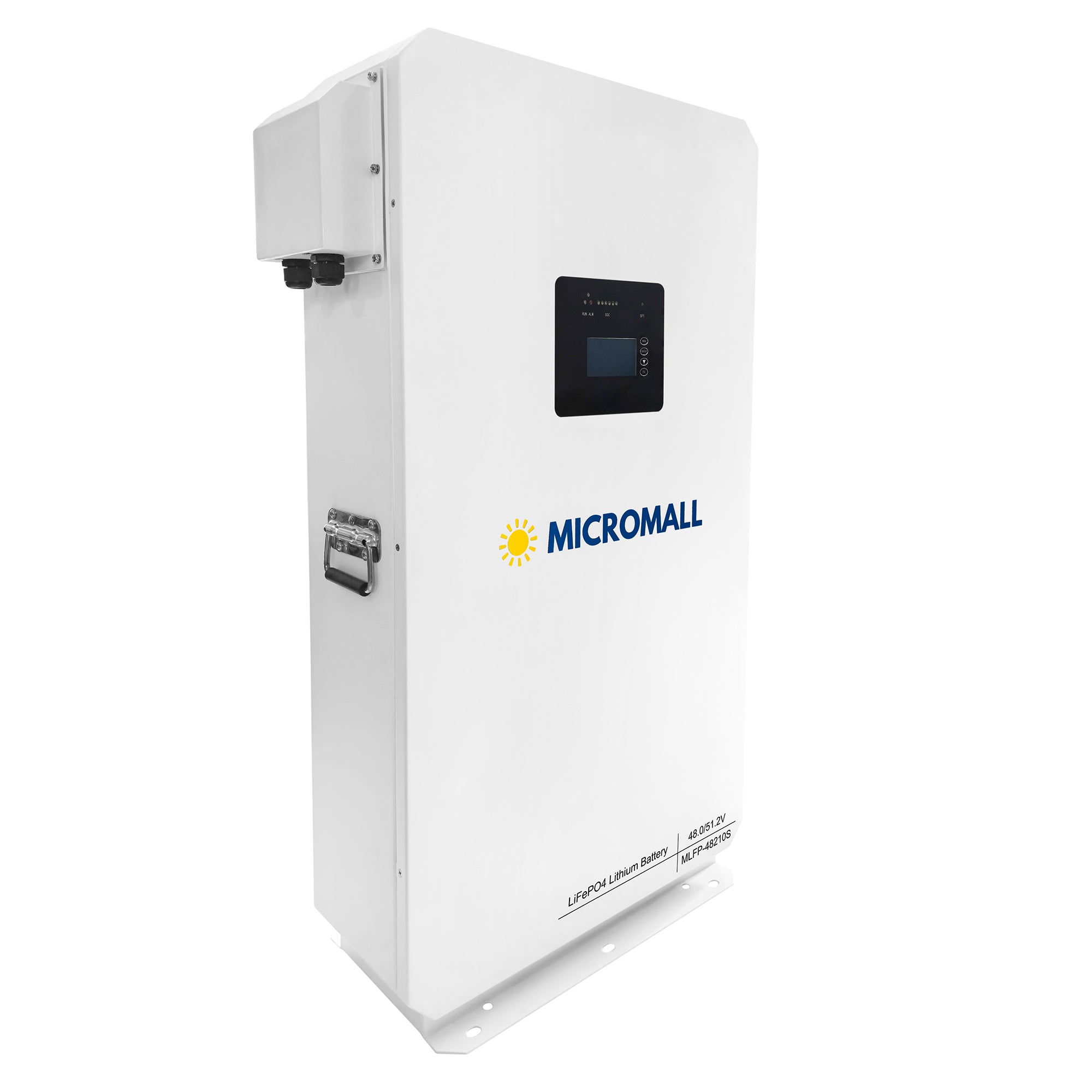

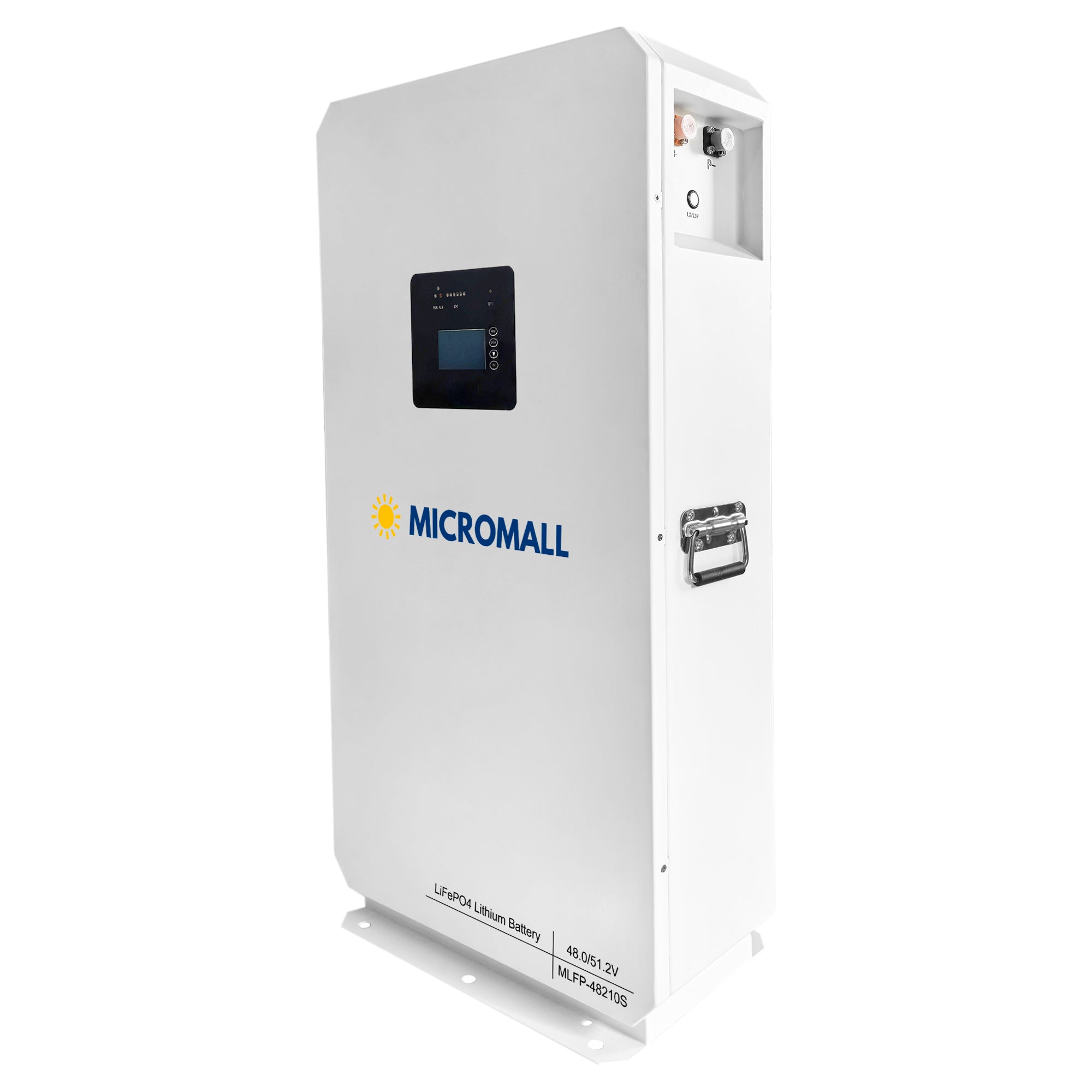

Introducing the 48V 51.2V 210Ah IP65 LiFePO4 Deep Cycle Lithium Battery for Solar Energy Storage, a high-performance household energy storage solution.
15 Years New Zealand Local Warranty
Key Features:
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: MLFP-48210S
Main Parameters
Battery Chemistry: LiFePO4
Capacity: Max 210 Ah
Nominal Voltage: 51.2 V
Operating Voltage: 43.2 – 57.6 V
Energy: 10.7 kWh
Usable Energy: 9.6 kWh
Charge/Discharge Current:
Recommended: 100 A
Max: 200 A
Peak: 250 A (500 ms, 25°C)
Short-circuit: 1.444 kA (1.12 ms, 25°C)
Other Parameters
Recommended Depth of Discharge: 90%
Dimensions (H × W × D): 930 × 550 × 230 (215) mm
Weight: 100 ± 5 kg
Master LED Indicator: 5 LEDs (SOC 20%–100%), 3 LEDs (Working, Alarming, Protecting)
IP Rating: IP65
Operating Temperature:
Charge: 0–55°C (Optional Heating)
Discharge: -20–55°C
Insulation Resistance (Factory Test): >100 MΩ
Initial Internal Resistance: 0.25 ± 0.05 mΩ
Storage Temperature: 0–35°C
Humidity: 5%–95%
Altitude: ≤2000 m
Cycle Life: ≥6000 cycles (25°C ±2°C, 0.5C/0.5C, 90% DOD, 70% EOL)
Installation: Floor-Mounted, Mobile-Mounted
Communication Port: CAN 2.0, RS485
Warranty Period: 15 years
Energy Throughput: 32 MWh @ 70% EOL
Certification: SAA, IEC 62619, UN38.3
15 Years New Zealand Local Warranty
