Description

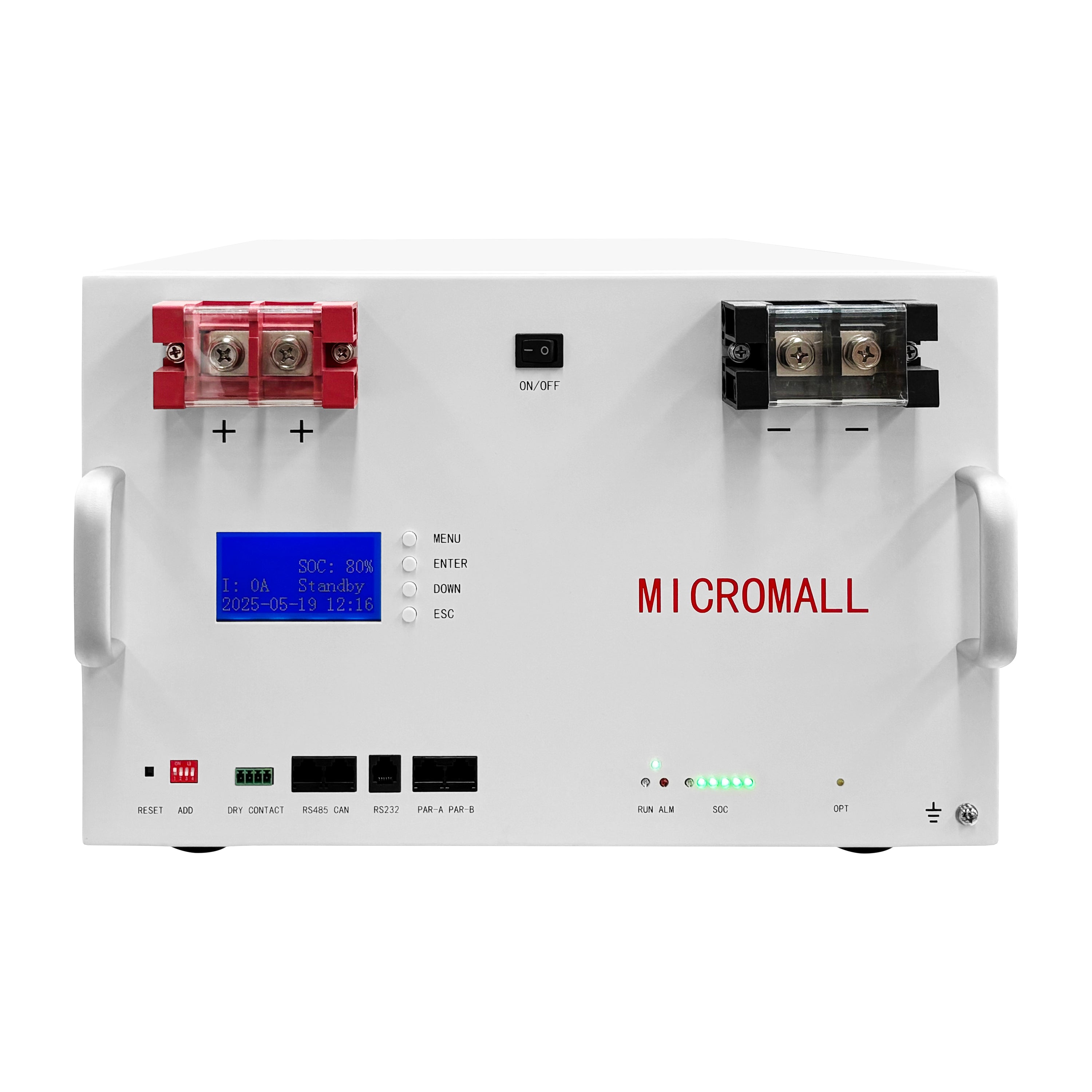

Introducing the Micromall 48V 51.2V 290Ah 300Ah Lithium Battery LiFePO4 Battery Deep Cycle Solar Battery, a high-performance household energy storage solution.
Key Features:
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: MLFP-48290
Battery Chemistry: LiFePO4
Capacity(Ah): 290Ah Max 300Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2-57.6V
Energy(kWh): 14.5kWh
Usable Energy(kWh): 13.6kWh
Charge/Discharge Current (A) Recommend, Max: 150, 200
Charge/Discharge Current (A) Peak, Short-circuit: 250 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (H/W/D, mm): 790 x 400 x 250mm
Weight Approximate (kg): 110±5kg

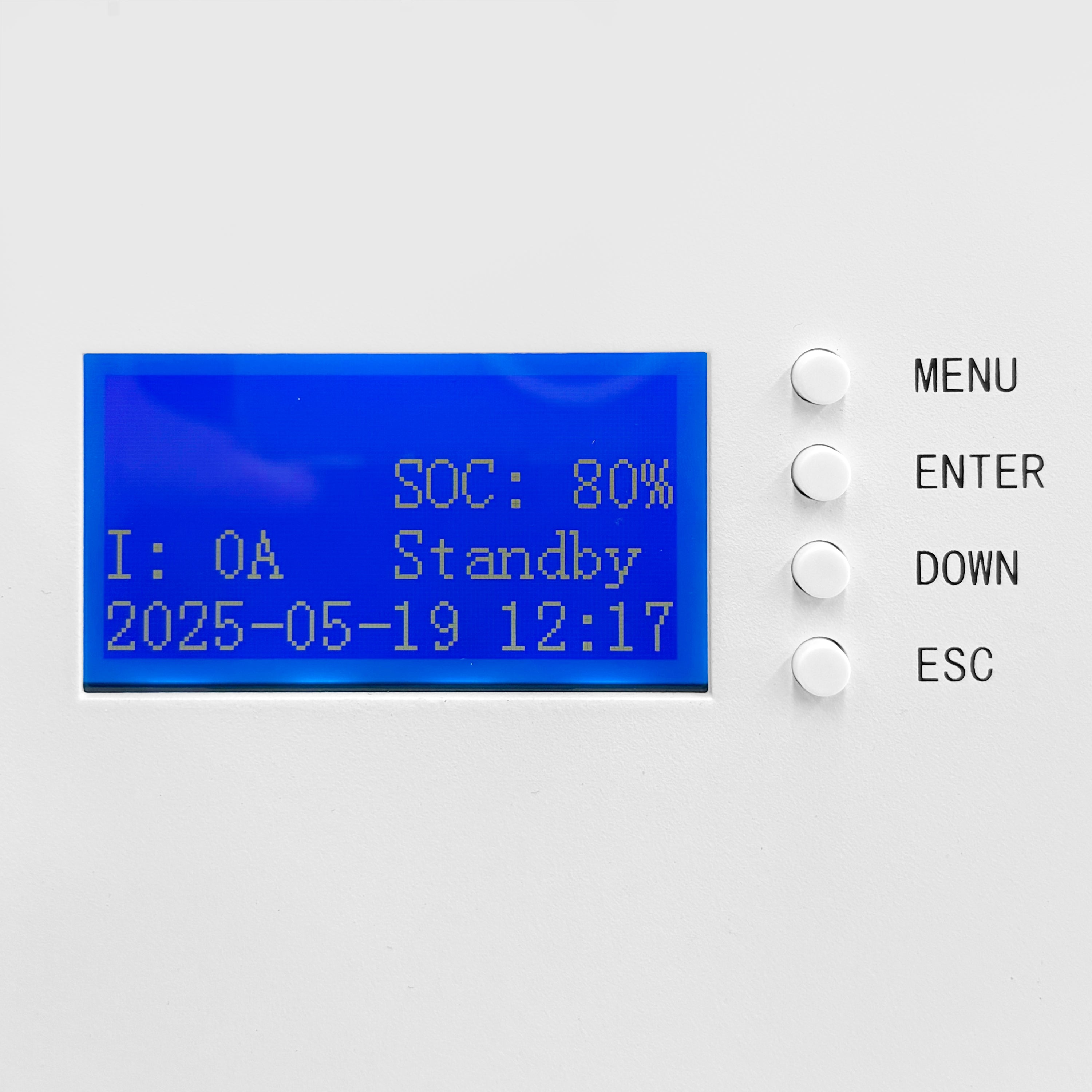

Master LED Indicator: 5LED(SOC:20%-SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure: IP20
Operating Temperature: Charge:0-55°C (Optional heating) / Discharge: -20°C-55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.18+-0.05mΩ
Storage Temperature: 0°C-35°C
Humidity: 5%-95%
Altitude: =10000 (25°C±2°C, 0.5C/0.5C, 90%DOD, 70%EOL)
Installation: Floor-Mounted, Mobile - Mounted

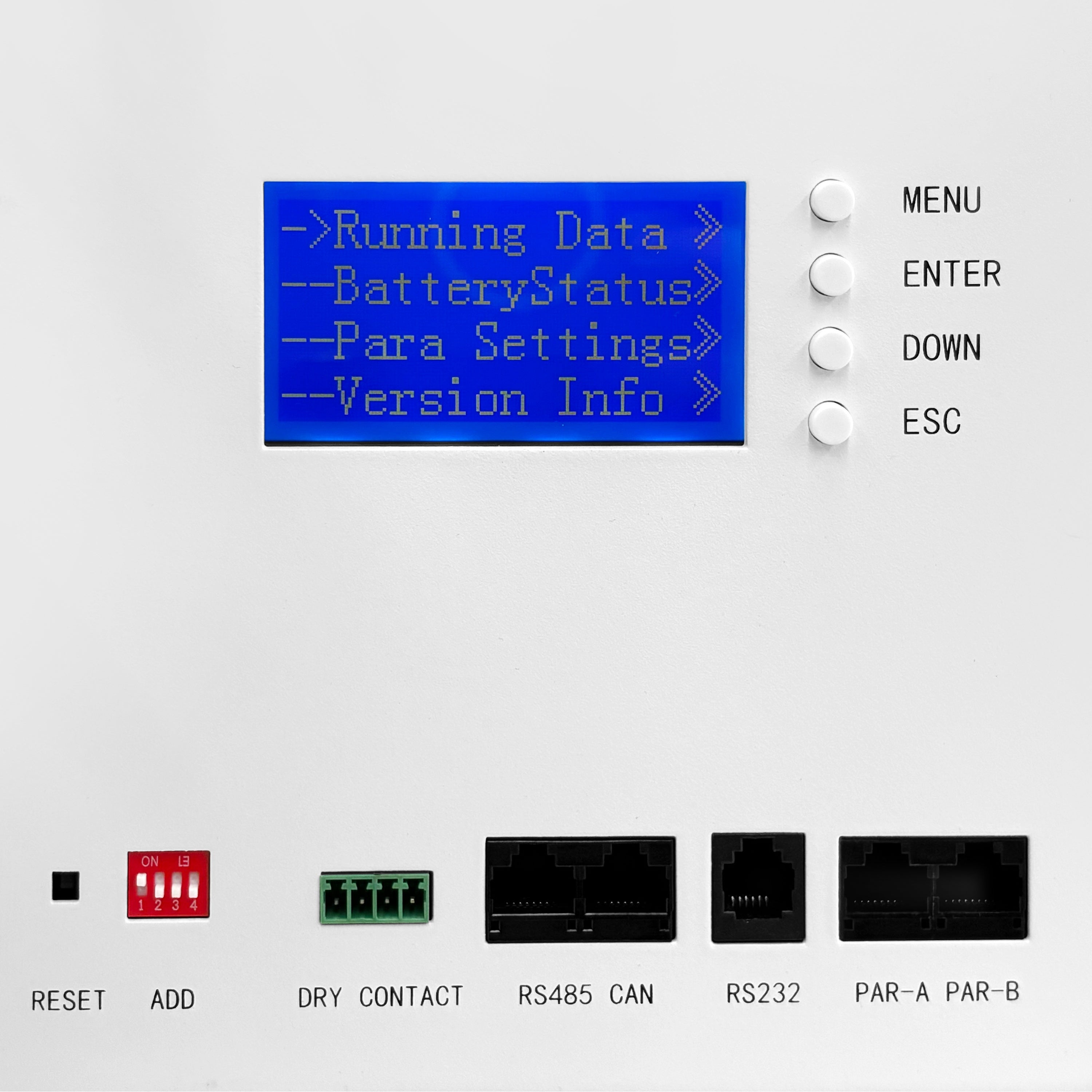

Communication Port: CAN2.0, RS485
Energy Throughput: 78MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
Terminal: M8 bolted fence terminal
15 Years New Zealand Local Warranty
