Description

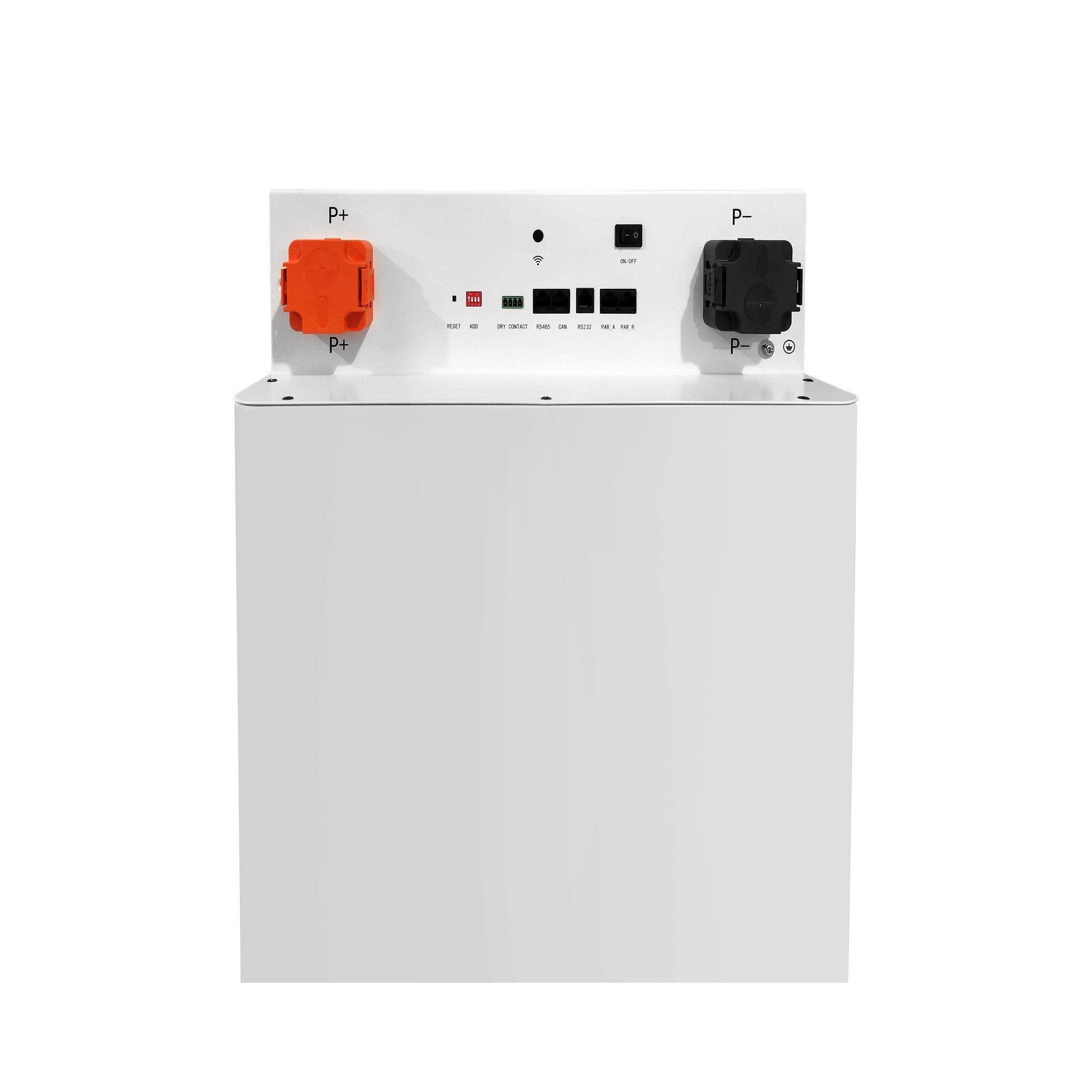

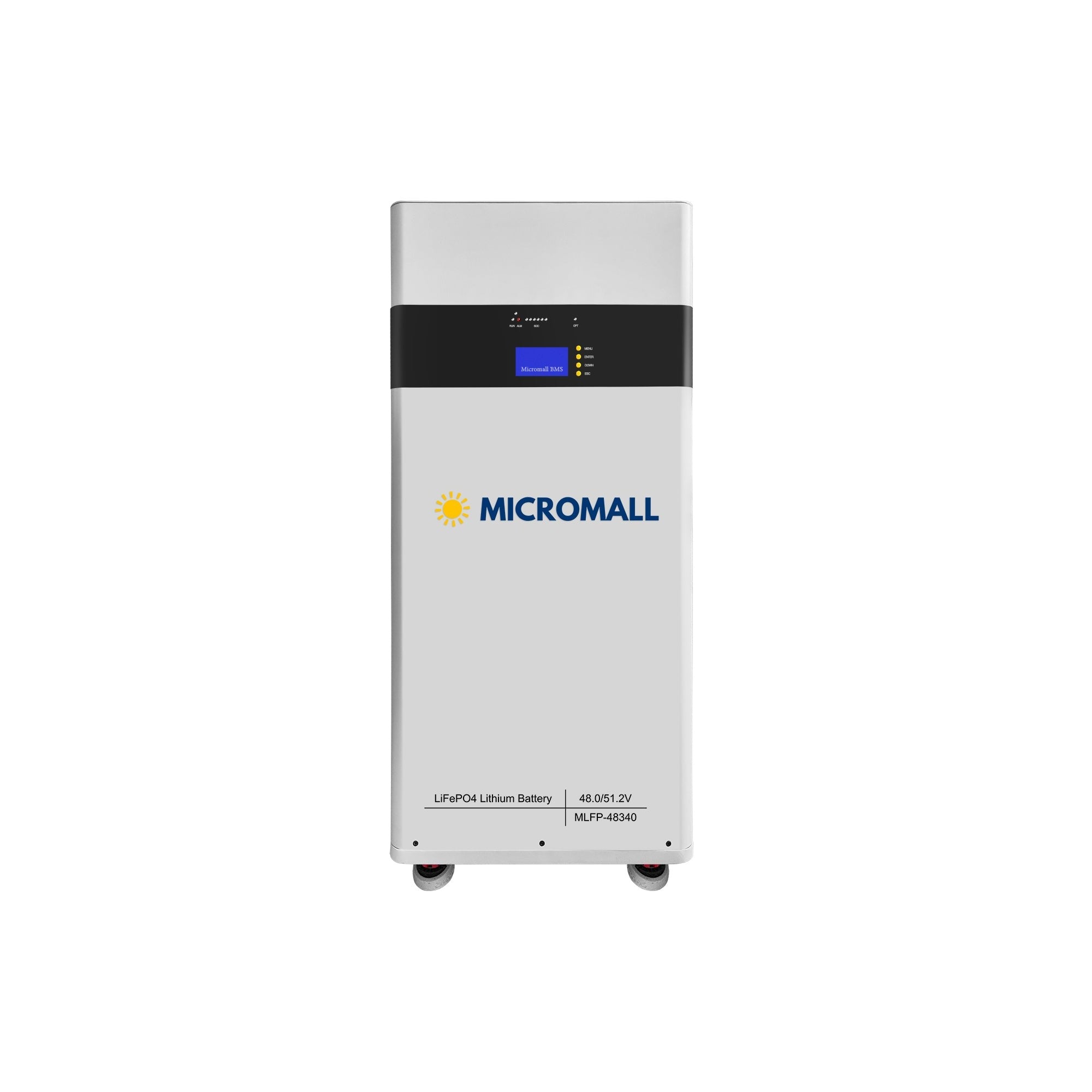

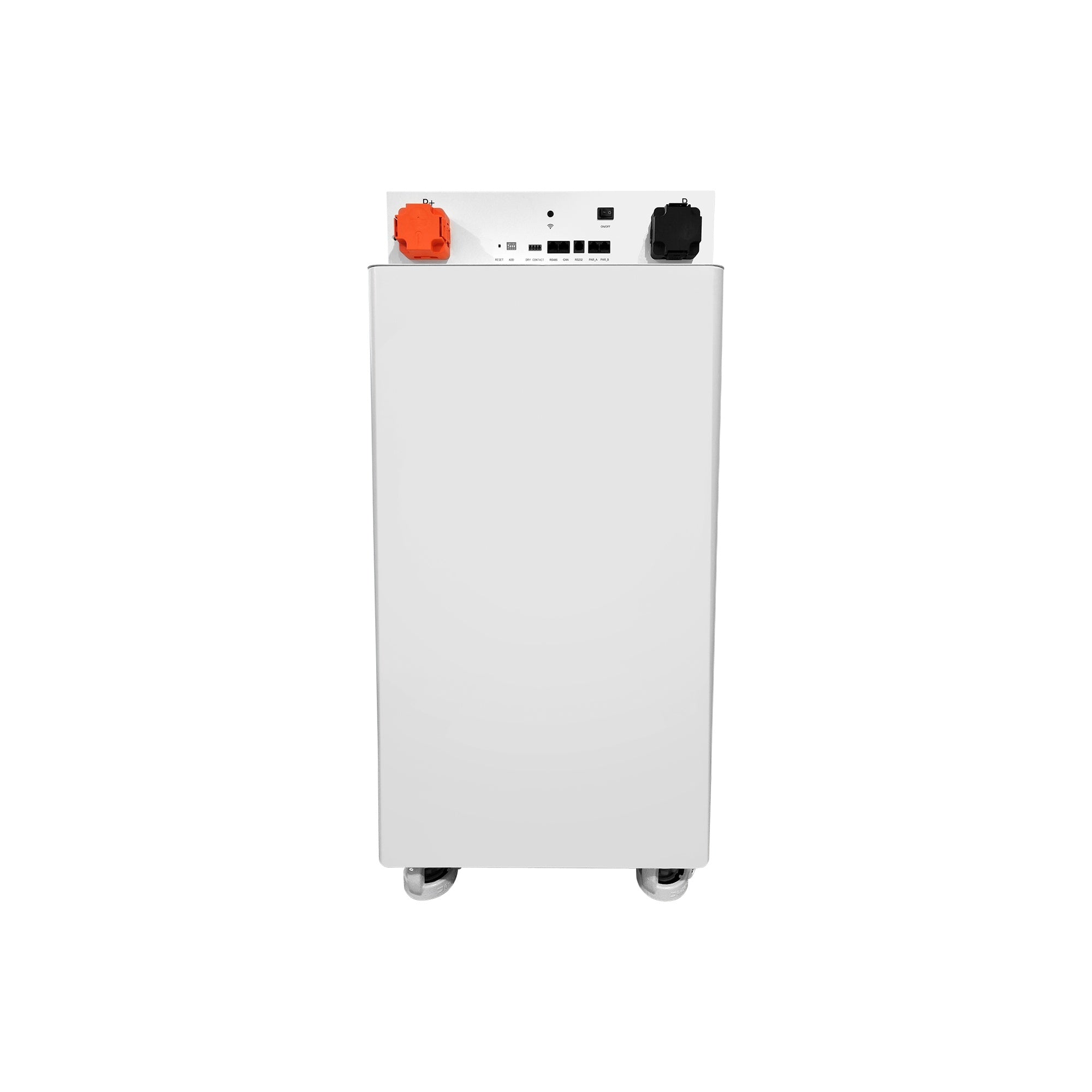

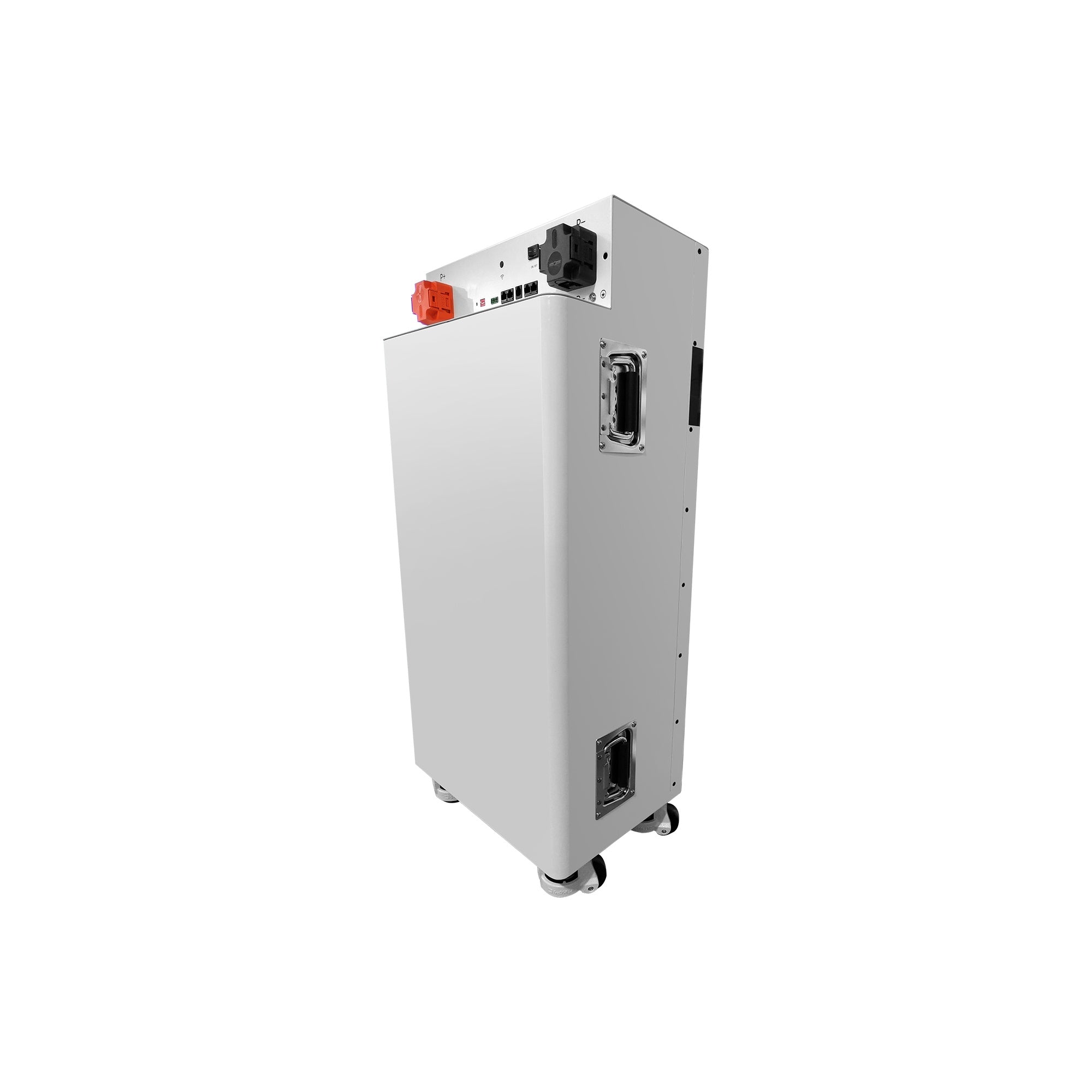

Introducing the Micromall 48V 51.2V 340Ah Lithium Battery LiFePO4 Battery Deep Cycle Solar Battery, a high-performance household energy storage solution.
Key Features:
Seamless Integration: Designed for seamless communication with Victron, Deye off-grid/on-grid, GoodWe, Growatt, BlueSun, MustPower, and Sofar inverters.
Comprehensive Compatibility: This system is compatible with various inverter protocols available on the market, ensuring versatile application.
Efficient Energy Conversion: When paired with an inverter, it effectively achieves energy conversion and storage, addressing the imbalance between distributed generation and load.
Enhanced Stability: Improves the stability and utilization of renewable energy generation, enabling self-consumption at the user end and reducing electricity costs.
Specifications
Model: MLFP-48340
Battery Chemistry: LiFePO4
Capacity(Ah): Max 340Ah
Nominal Voltage (V): 51.2V
Operating Voltage(V): 43.2-57.6V
Energy(kWh): 17.4kWh
Usable Energy(kWh): 15.6kWh
Charge/Discharge Current (A) Recommend, Max: 200, 200
Charge/Discharge Current (A) Peak, Short-circuit: 250 (500ms, 25°C), 1.444KA (1.12ms, 25°C)
Recommend Depth of Discharge: 90%
Dimension (H/W/D, mm): 960x430x280mm
Weight Approximate (kg): 130±5kg
Master LED Indicator: 5LED(SOC:20%-SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure: IP20
Operating Temperature: Charge:0-55°C (Optional heating) / Discharge: -20°C-55°C
Insulation resistance factory test: >100MΩ
Initial battery internal resistance: 0.18+-0.05mΩ
Storage Temperature: 0°C-35°C
Humidity: 5%-95%
Altitude: =10000
Installation: Floor-Mounted, Mobile - Mounted
Communication Port: CAN2.0, RS485
Energy Throughput: 32MWh@70%EOL
Certification: SAA, IEC62619, UN38.3
Terminal: M8 bolted fence terminal
15 Years New Zealand Local Warranty
