Product Description:
Introducing the DF-SMH520J-12X12UW, a 520W mono-crystalline flexible solar panel designed for optimal performance and convenience. This ultra-lightweight panel is perfect for applications where weight and flexibility are critical, such as RVs, boats, and mobile homes. With its high power output and advanced mono-crystalline technology, it offers exceptional energy efficiency and reliability. The panel’s durable, weather-resistant construction ensures long-lasting use in a variety of outdoor environments.
Why Choose the DF-SMH520J-12X12UW?
520W High Output: Achieve powerful energy production to support your electrical needs.
Mono-Crystalline Cells: Benefit from high efficiency and superior energy conversion rates.
Flexible & Lightweight: Easy to install on curved or uneven surfaces without adding excessive weight.
Robust & Weatherproof: Designed to withstand challenging outdoor conditions for dependable performance.
Versatile Use: Ideal for RVs, boats, off-grid systems, and other mobile applications.

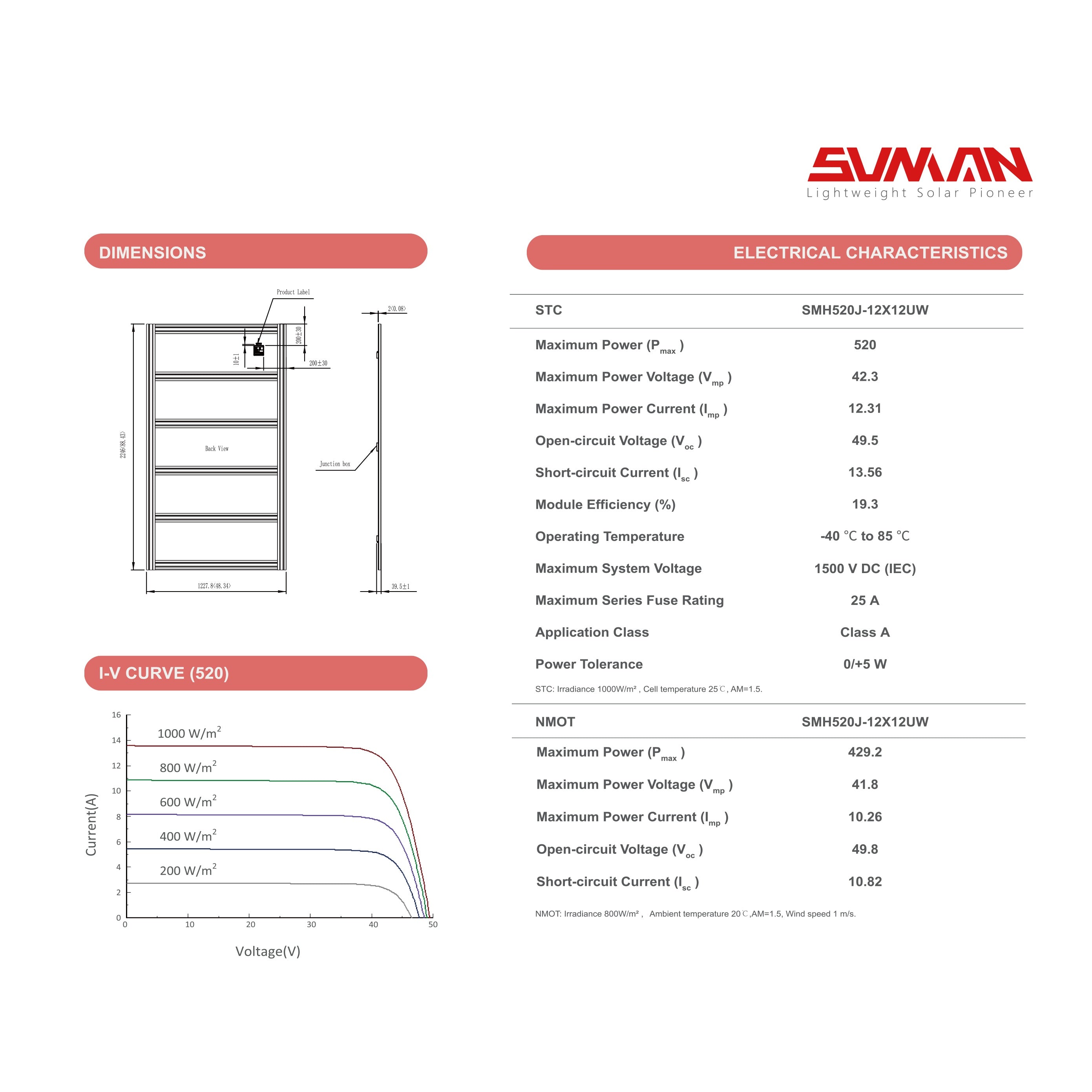

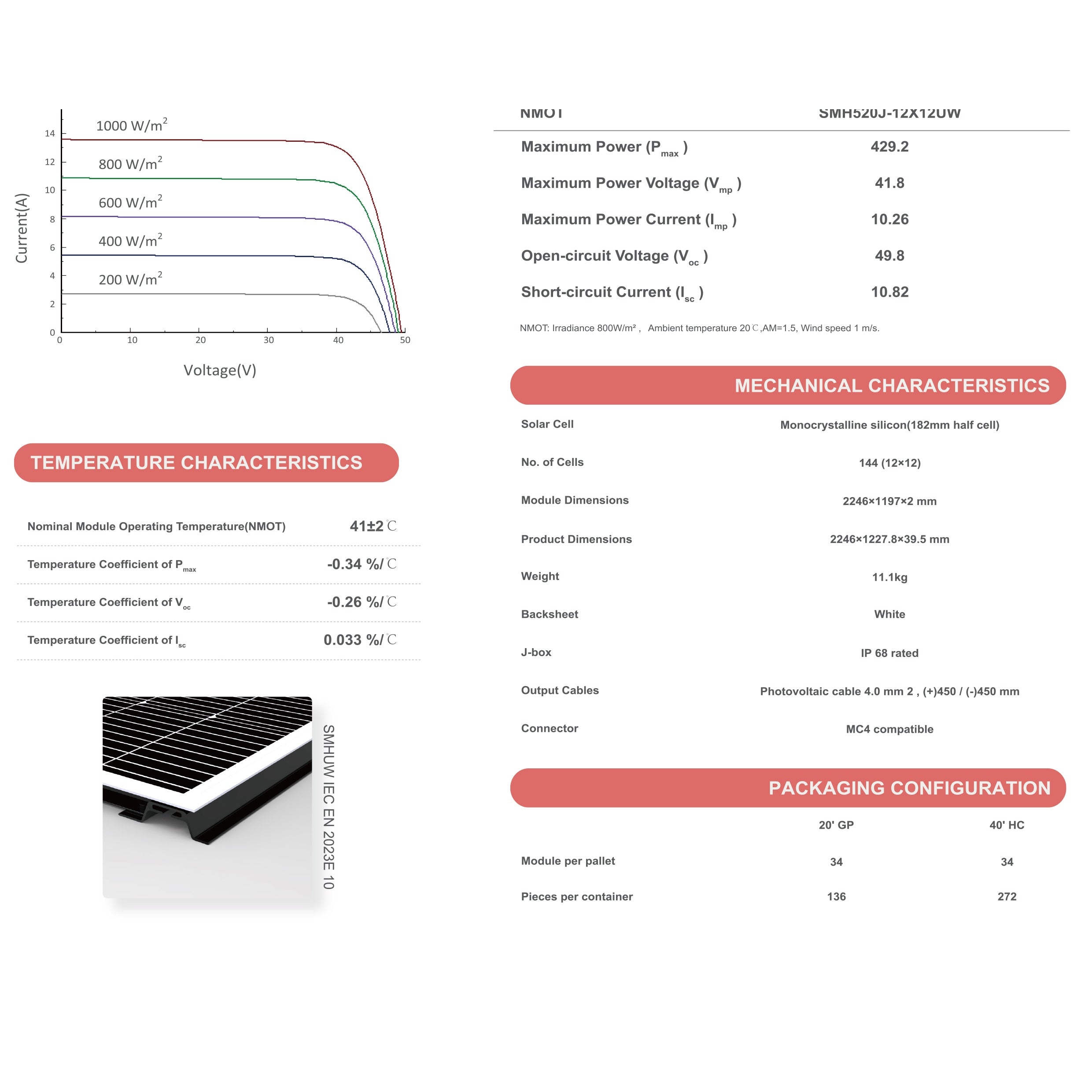

Specifications:
Maximum Power (Pmax): 520W
Maximum Power Voltage (Vmp): 42.3V
Maximum Power Current (Imp): 12.31A
Open-Circuit Voltage (Voc): 49.5V
Short-Circuit Current (Isc): 13.56A
Module Efficiency: 19.3%
Maximum System Voltage: 1500V DC
Maximum Series Fuse Rating: 25A
Solar Cell Type: Monocrystalline Silicon, 182mm half-cell
Number of Cells: 144
Dimensions: 2246 mm (L) x 1197 mm (W) x 2 mm (Thickness)
Weight: 11 kg
