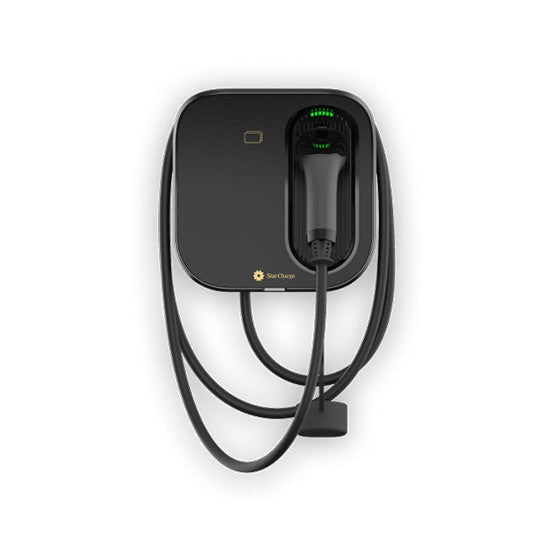

Description
The Artemis GBT EV Charger is a high-performance electric vehicle charging solution designed for efficiency, reliability, and safety. With a sleek design and advanced features, this charger is ideal for residential, commercial, and industrial applications.

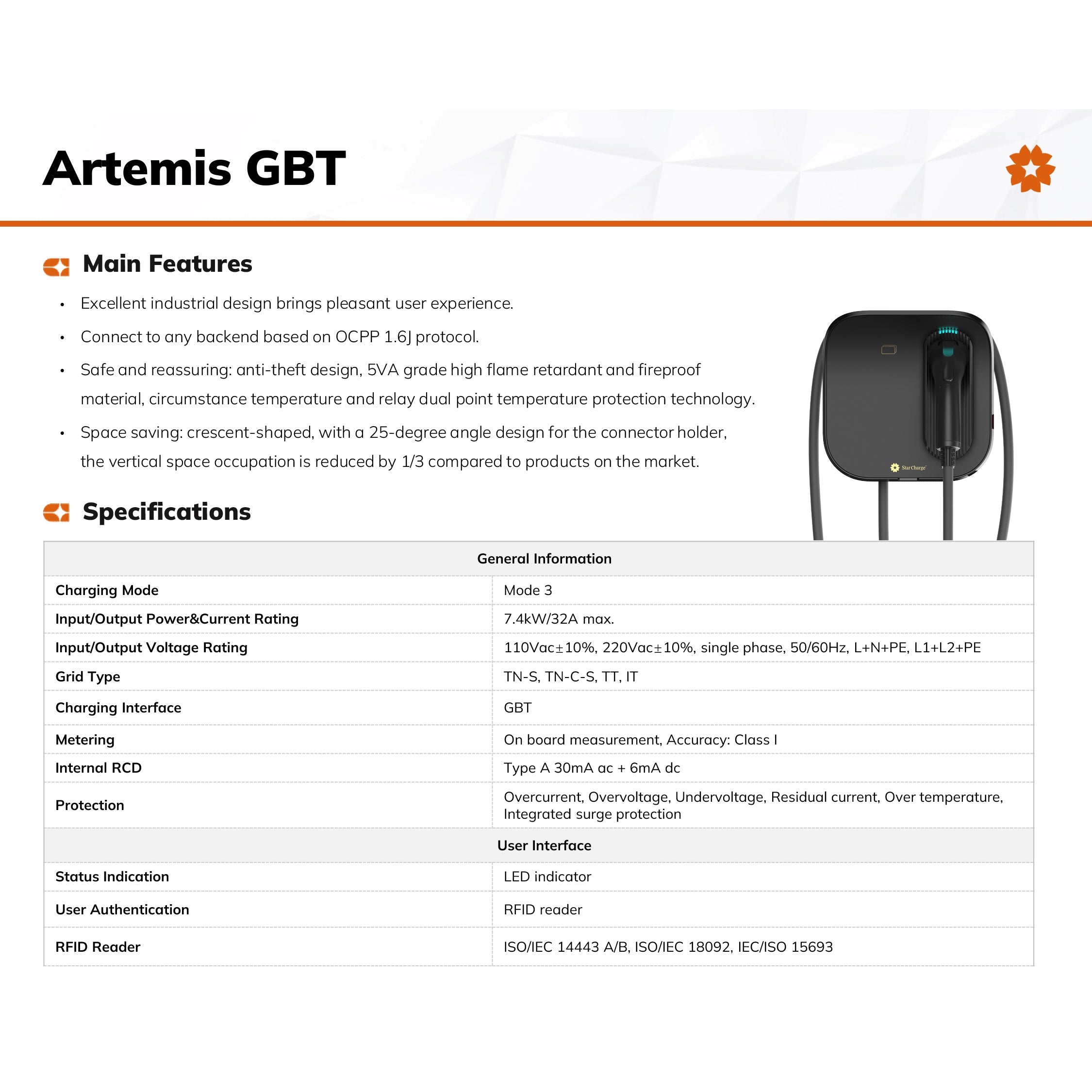

General Information
Charging Mode: Mode 3
Power Rating: Up to 7.4kW (32A max)
Voltage Rating: 110Vac±10%, 220Vac±10%, single phase, 50/60Hz
Grid Compatibility: TN-S, TN-C-S, TT, IT
Charging Interface: GBT Standard
Safety and Protection
Integrated protections: Overcurrent, Overvoltage, Undervoltage, Residual Current, Over Temperature, and Surge Protection
Internal RCD: Type A (30mA AC + 6mA DC)
Accurate onboard metering: Class I

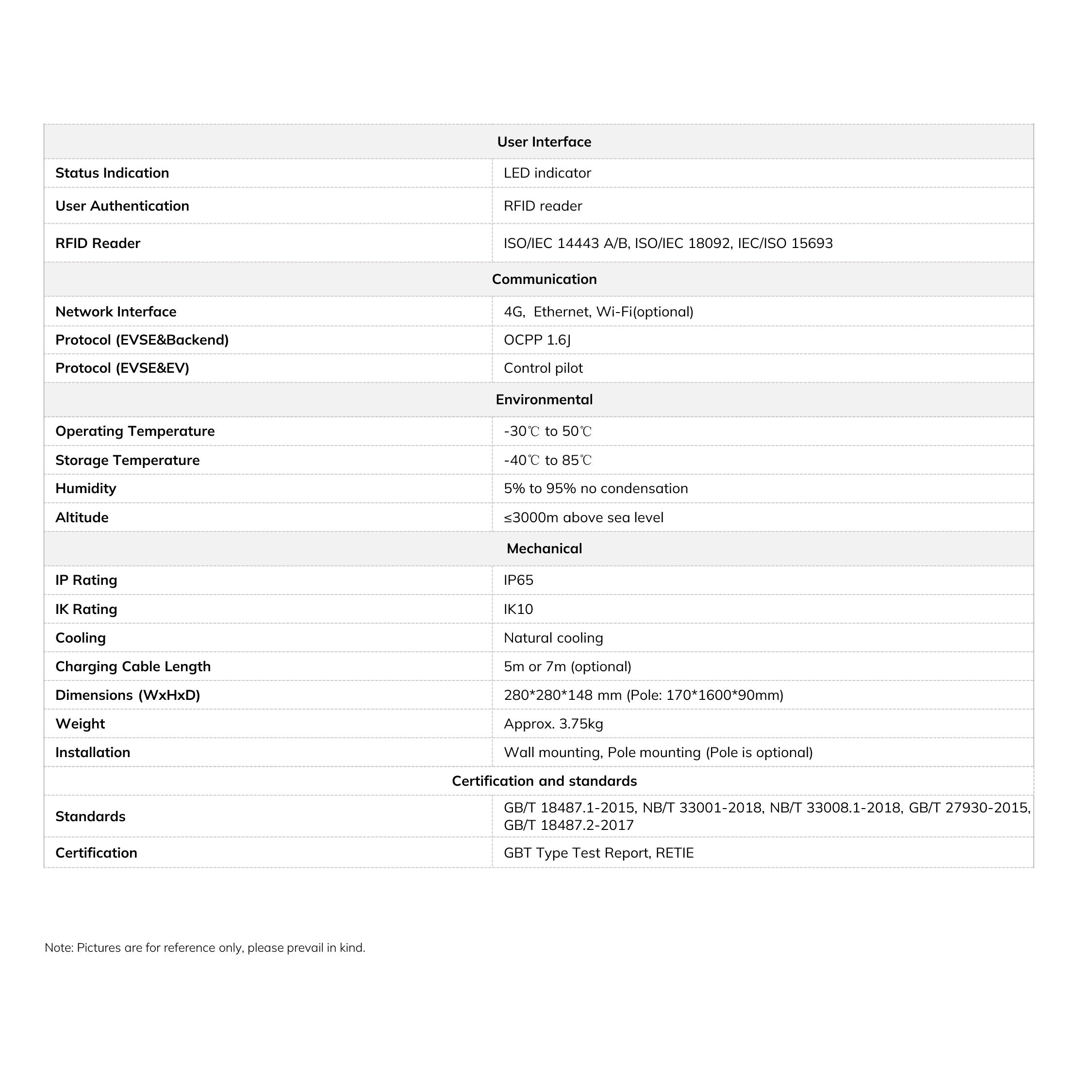

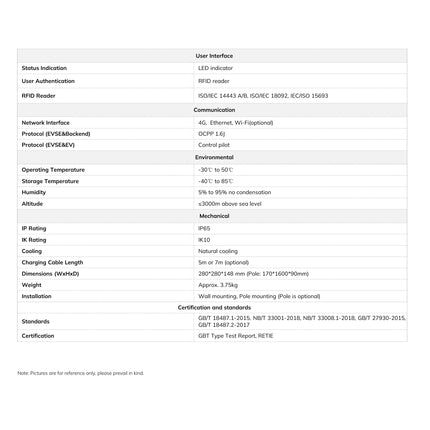

User Interface & Authentication
Status Indicator: LED lights for charging status
User Authentication: RFID reader supporting ISO/IEC 14443 A/B, ISO/IEC 18092, and IEC/ISO 15693 standards
Communication
Network Interface: 4G, Ethernet, optional Wi-Fi
Protocols:
EVSE & Backend: OCPP 1.6J
EVSE & EV: Control pilot
Environmental Specifications
Operating Temperature: -30°C to 50°C
Storage Temperature: -40°C to 85°C
Humidity: 5% to 95% (non-condensing)
Altitude: ≤3000m above sea level
Mechanical Features
Durability:
IP Rating: IP65 (dust-tight and water-resistant)
IK Rating: IK10 (high impact resistance)
Cooling System: Natural cooling for maintenance-free operation
Charging Cable Lengths: 5m or 7m (optional)
Dimensions: 280x280x148 mm (Pole: 170x1600x90 mm)
Weight: Approx. 3.75kg
Installation Options: Wall mounting or pole mounting (pole sold separately)
Certifications and Standards
Compliance with Standards:
GB/T 18487.1-2015, NB/T 33001-2018, NB/T 33008.1-2018, GB/T 27930-2015, GB/T 18487.2-2017
Certification: GBT Type Test Report, RETIE
Choose the Artemis GBT EV Charger for a seamless charging experience backed by robust safety features, versatile installation options, and industry-standard certifications.
