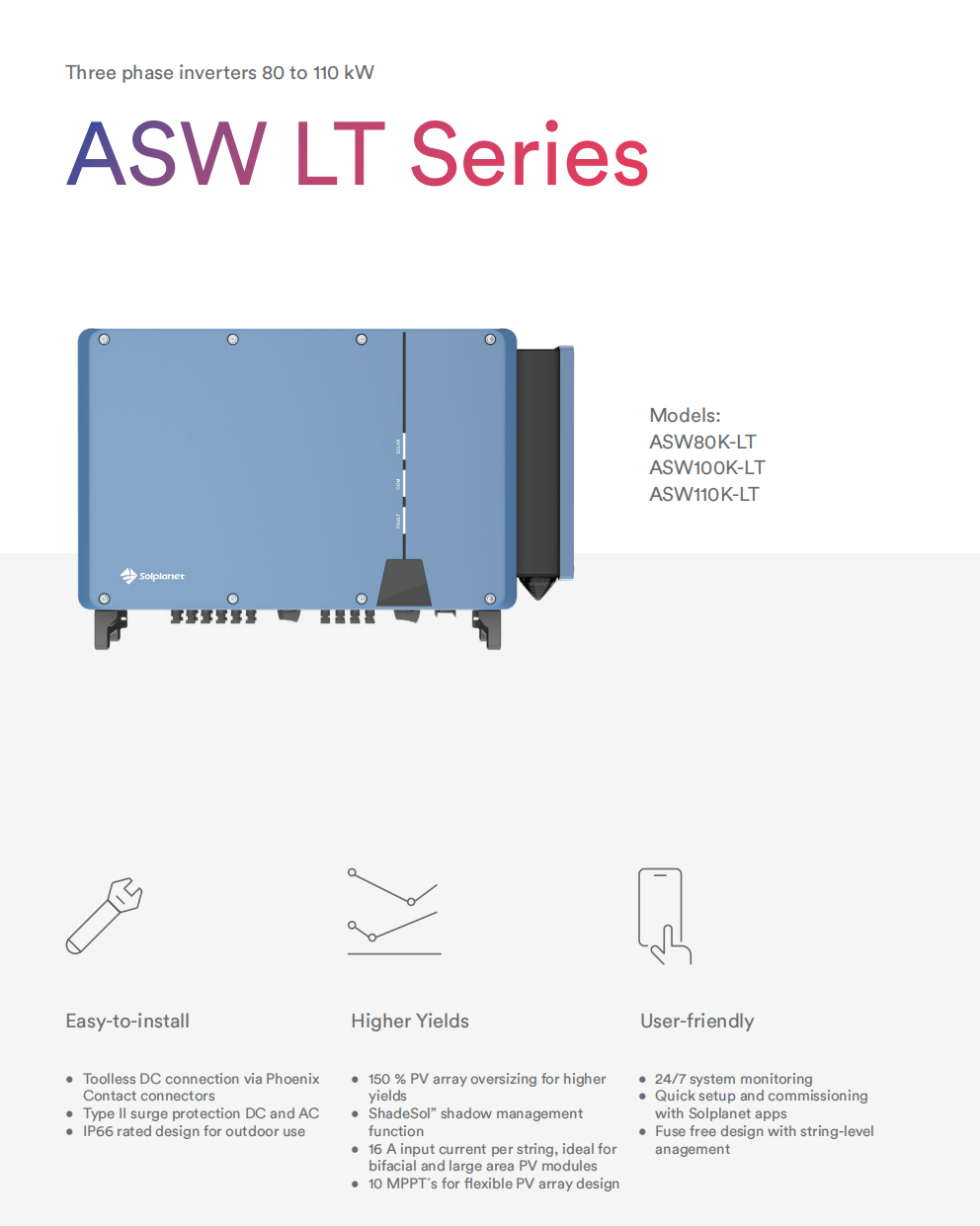

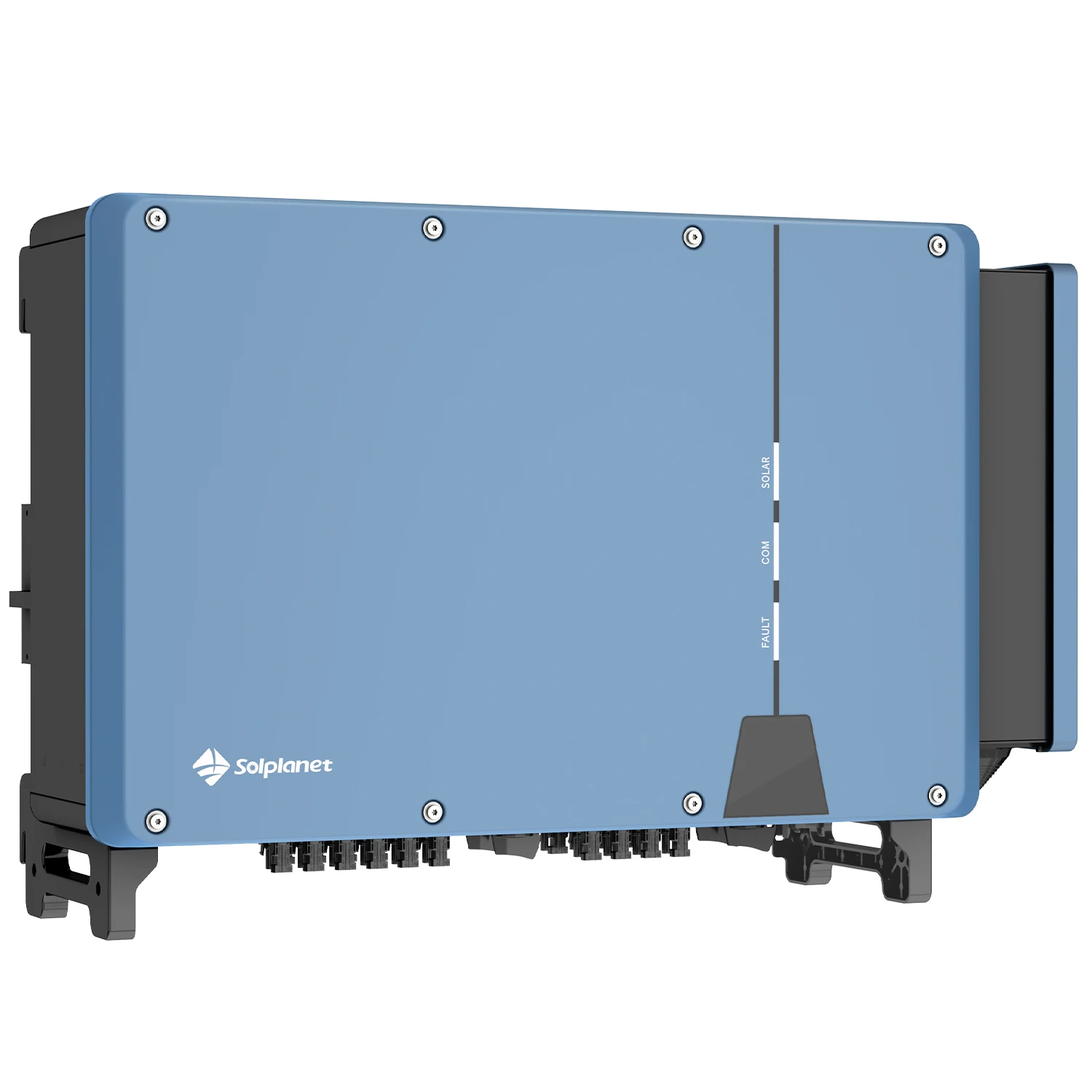

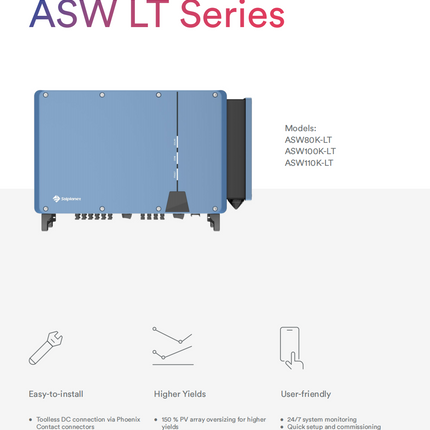

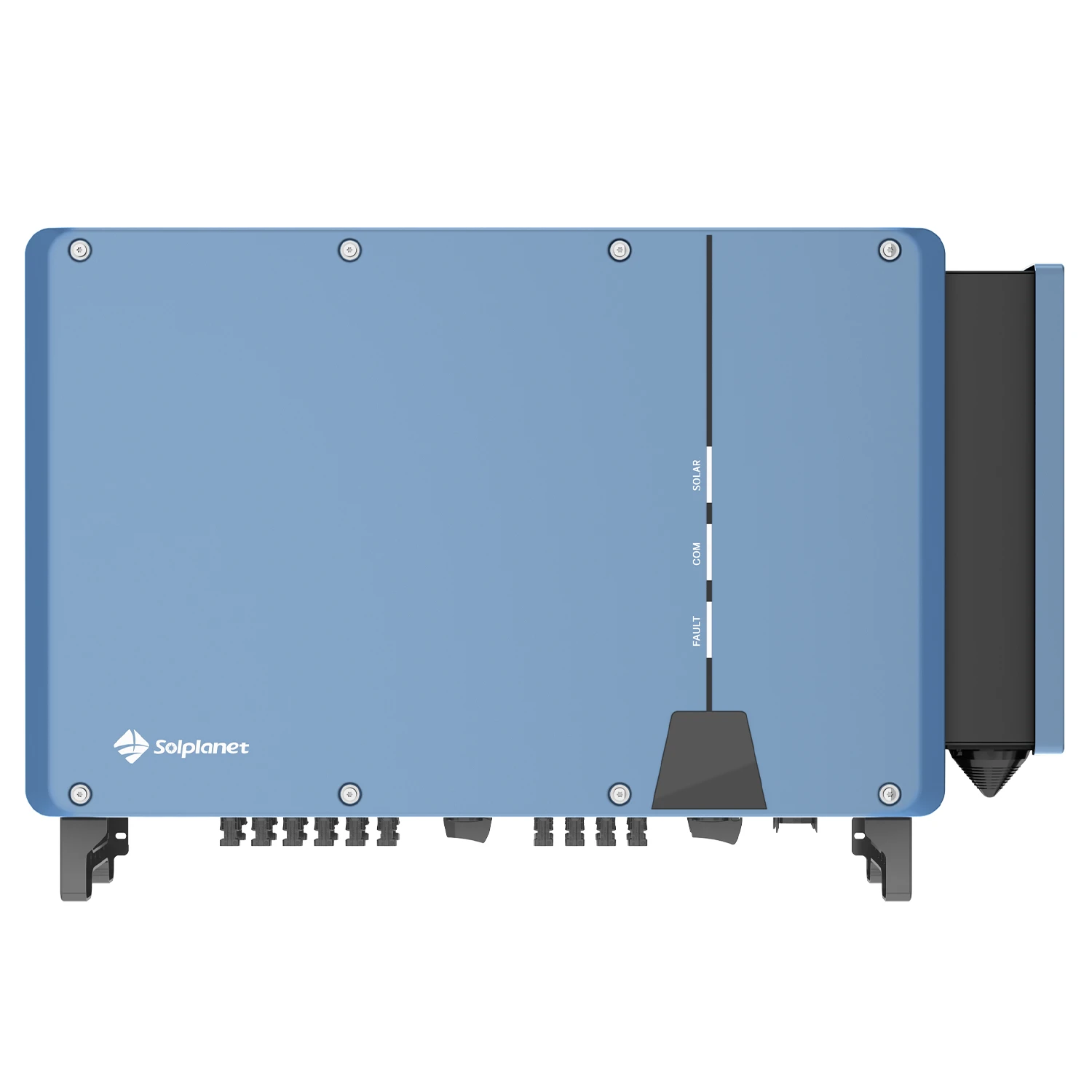

Solplanet ASW80K-LT 80kW Three Phase Solar Inverter
The ASW80K-LT series inverters provide dynamic power to help any commercial or industrial business become a powerhouse of the low-carbon era. They have up to ten independent MPP trackers, allowing 150% DC / AC ratio oversizing and maximum flexibility in system designs.
ASW80K-LT | 80kW | Three Phase | 10 MPPT
Reliable and easy-to-install / High yields and versatile plant designs / User friendly & easy to monitor

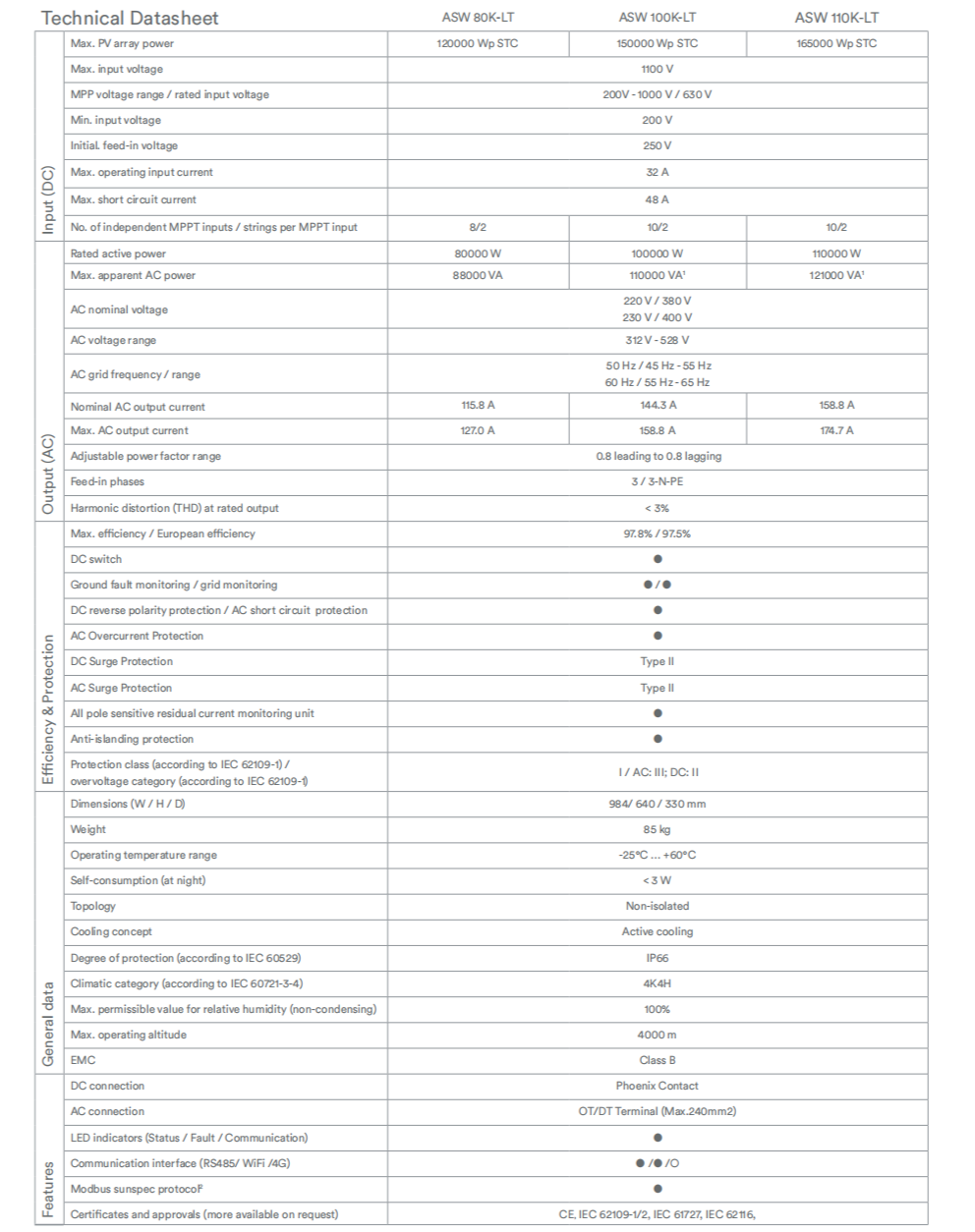

Input (PV)
Max. PV array power: 120000 Wp STC
Max. input voltage: 1100V
- MPP voltage range / rated input voltage: 200V - 1000V / 630V
Min. input voltage: 200V
Initial. feed-in voltage: 250V
Max. operating input current: 32A
Max. short-circuit current: 48A
No. of independent MPPT inputs / strings per MPPT input: 8 / 2
Output (AC)
- Rated active power: 80000 W
Max. apparent AC power: 88000VA
- AC Nominal voltage: 220V / 380V,230V / 400V
- AC voltage range: 312V - 528V
- Nominal AC output current: 115.8A
Max. AC output current: 127A
- AC grid frequency / range: 50Hz / 45Hz - 55Hz, 60Hz / 55Hz - 65Hz
- Adjustable power factor range: 0.8 leading to 0.8 lagging
- Feed-in phases: 3 / 3-N-PE
- Harmonic distortion (THD) at rated output: < 3%
- General data:
- Dimensions (W / H / D): 984/ 640 / 330mm
- Weight: 85kg
- Operating temperature range: -25 °C - +60 °C
- Self-consumption (at night): < 3W
- Topology: Non-isolated
- Cooling concept: Active cooling
Degree of protection (according to IEC 60529): IP66
Climatic category (according to IEC 60721-3-4): 4K4H
Max. relative humidity: 100%
Max. operating altitude: 4000m
**10-Year Warranty**
